USER MANUAL Sauenland Suckling OneConcept

Suckling Pig BBQ Grill

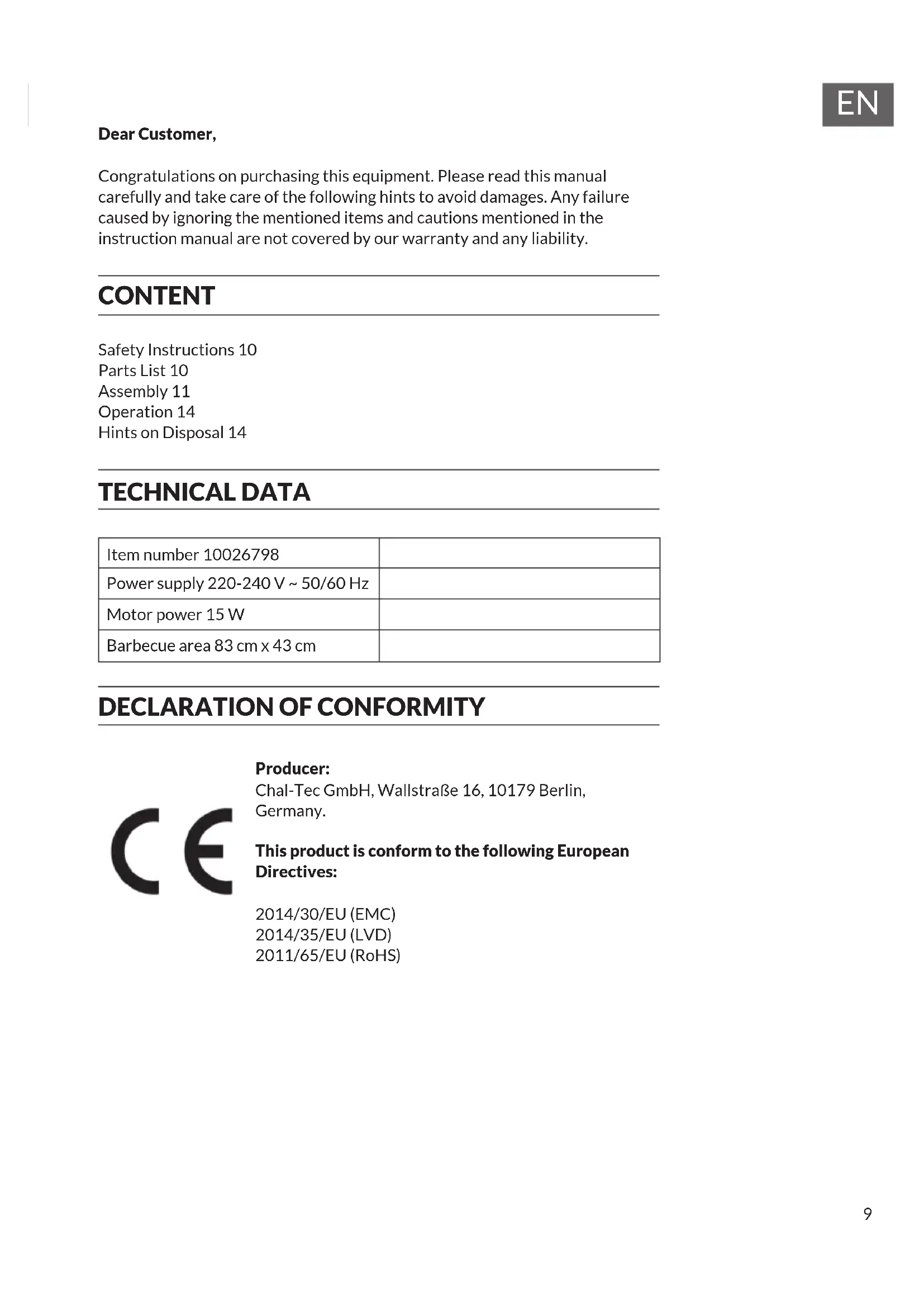

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Safety Instructions 10

Parts List 10

Assembly 11

Operation 14

Hints on Disposal 14

TECHNICAL DATA

Item number 10026798
Power supply 220-240 V ~ 50/60 Hz
Motor power 15 W
Barbecue area 83 cm x 43 cm

DECLARATION OF CONFORMITY

Producer:

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

• The BBQ should always be used with caution.
• DO NOT touch the BBQ while it is hot.
• DO NOT move the BBQ while it is hot.
• Never use methylated spirits or petrol to light or reactivate the fire.
• Keep children away from the fire.
• Only use the BBQ outside.
• The maximum load is 40kg , do not load more than 40kg as it may damage the motor and void the warranty.
• DO NOT extinguish hot coals with water as it can damage the Charcoal Pan.
• DO NOT expose the Rotisserie Motor to wet weather.
• It is recommended that the Rotisserie Motor be supplied through a Residual Current Device(RCD) having a rated residual operating current not exceeding 30mA .
• The supply cord should be regularly examined for signs of damage and the Rotisserie Motor is not to be used if the cord is damaged.

PARTS LIST

Item Picture Qty
Spit		1
Motor		1
Motor Mounting Bracket		1
Cooking Grill 3
Mounting Bracket		1
BBQ Pit 1
Charcoal Tray		1
Leg Clamp		1
Tail Clamp		1
Fork		1
Wheel		4
Leg bracket(L)		1
Leg bracket(R)		1
Leg		2

ASSEMBLY

1	2
Attech the leg bracket(L) to the BBQ pit with 6 pcs M6*15 screws and M6 nuts.	Repeat this step on other side of the BBQ pit.
3	4
Assemble legs with Casters. Push Casters and casters into sides of BBQ Pit.	Assemble legs to BBQ Pit. Insert assembled legs into base of legs.
5	6
Attach Motor Mounting Bracket to adjust. Fasten pins though eye holes in leg to Motor uprights and then adjust.	Attach Mounting Bracket and Motor Mount Bracket to leg uprights and then determine height required for both Bracket and make sure they are level.
7	8
Place Charcoal Tray in bottom of BBQ Pit. Place 3 Grill elements onto BBQ Pit top.
9	10
Mount the Meat Spikes, Tail Clamp and/or Leg Clamp to the Rotisserie Skewer.	Place fully assembled Rotisserie skewer onto mounting brackets and plug in the motor. Your BBQ is now fully assembled and ready for use.

OPERATION

CAUTION

Risk of injury! : To be operated by an adult.Any children in the vicinity of the BBQ must be supervised at all times. The BBQ is very hot during operation and will cause burns if touched.

1 Remove the grills.
2 Load the charcoal tray with heat beads and ignite with fire lighters.
3 Refit the grills.
4 Once the meat has been prepared, place centrally on the Rotisserie Skewer. Placing the meat exactly in the center of the skewer will reduce the stain on the motor.
5 If cooking a whole roast fix to tail clamp and leg clamps and lock onto the skewer. Insert the Meat spike onto the skewer and into roast. When the whole roast is secure,lock the meat spike to the skewer.
6 If cooking meat/s, insert the meat spikes on both ends of the meat and lock the Meat Spikes onto the Skewer.
7 Insert Skewer into Rotisserie Motor and place Skewer on the support as the other end.
8 Plug the power cord into a 10 A power outlet and switch on the Rotisserie Motor. If necessary, add more coals by lifting the grills with the grills with the tool supplied When finished cooking, carefully remove the Rotisseries Skewer with oven mitts or heat proof gloves.

HINTSONDISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
