BGP115557 - Grill plate Emerio - Free user manual and instructions

Product type	Portable charcoal barbecue grill plate with fan
Brand	Emerio
Model	BGP115557
Power supply	4 AA batteries or external battery via Mini USB port (5 V)
Fan power	Adjustable from 25% to 100% via rotary knob
Charcoal capacity	Maximum 250 g per charge
Firelighter gel reservoir capacity	Approx. 20 ml per use
Main material	Steel and plastic (body), metal plate
Removable components	Grill plate, charcoal reservoir, gel reservoir, juice collection tray
Included accessories	Tongs, carry bag
Cleaning and maintenance	Plate, reservoirs and tray dishwasher safe; main unit wiped with a damp cloth
Safety	Do not use indoors or in enclosed spaces; do not move during use; do not use alcohol or gasoline to ignite; very hot surface
Warranty	2 years, subject to presentation of receipt
After-sales service	Email: [e-mail], Tel: [phone]
Repairability	Some parts (plate, reservoirs) are replaceable; contact customer service for spare parts
Environment	Recycling according to directive 2012/19/EU; batteries to be recycled separately

Frequently Asked Questions - BGP115557 Emerio

What type of fuel should I use in the Emerio BGP115557?

Use charcoal, not briquettes. Do not put more than 250 g of charcoal at a time.

How long does it take for the barbecue to be ready?

After lighting the gel and placing the charcoal, wait about 3 minutes at full power, then reduce to 25-50% for cooking.

Can I use this barbecue indoors?

No, never use it indoors or in an enclosed space (house, tent, caravan, boat) due to the risk of carbon monoxide poisoning.

How do I clean the grill plate and other parts?

Let the charcoal burn completely and the appliance cool down. The grill plate, charcoal reservoir, gel reservoir and tray can go in the dishwasher or be hand washed. The main unit is cleaned with a damp cloth.

What should I do if the fan does not work?

Check the batteries (4x AA) or connect a battery via the Mini USB port. Make sure the power knob is turned to at least 25%.

Can I add charcoal during cooking?

Yes, lift the grill plate with the provided tongs to add charcoal. Set the power to 100% to raise the temperature, then reduce.

How do I safely extinguish the barbecue?

Let the charcoal burn completely and cool naturally. Never pour water or liquid into the main unit.

What is the warranty period?

The warranty is 2 years from the date of purchase, subject to presentation of the receipt. Damage due to misuse is not covered.

Can I use liquid or gel firelighters?

Use only a gel firelighter compliant with EN 1860-3 (about 20 ml). Do not spray into the fan opening.

Is the barbecue dismountable for transport?

Yes, the parts separate: grill plate, reservoirs, tray, unit. A carry bag is included for easy storage.

USER MANUAL BGP115557 Emerio

Close-up of a black circular electronic device with a perforated lid and ventilation grille (no visible text or symbols)

Portable charcoal BBQ Grill with fan (EN)

Instruction manual – English ...... - 2 -

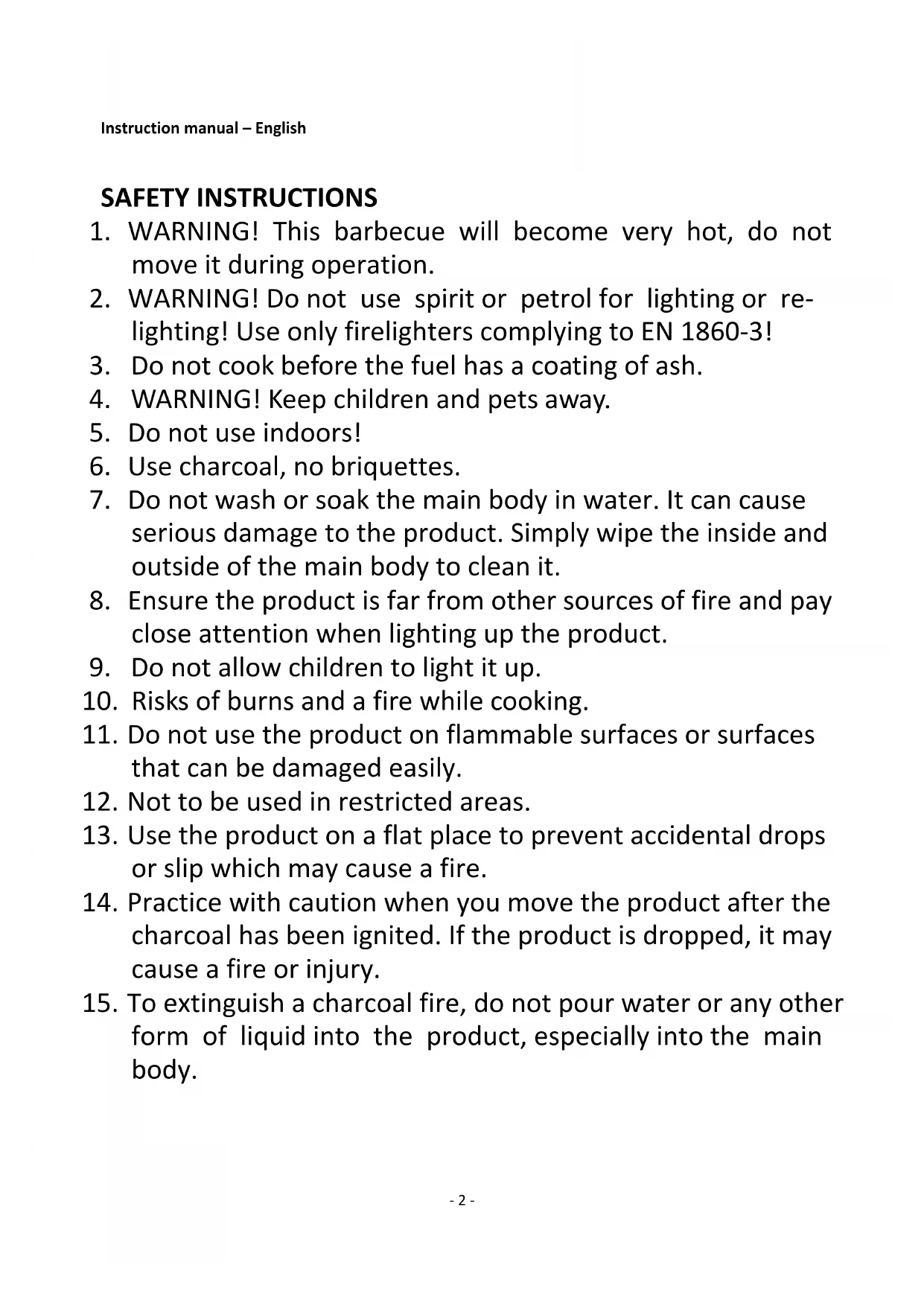

1. WARNING! This barbecue will become very hot, do not move it during operation.
2. WARNING! Do not use spirit or petrol for lighting or re-lighting! Use only firelighters complying to EN 1860-3!
3. Do not cook before the fuel has a coating of ash.
4. WARNING! Keep children and pets away.
5. Do not use indoors!
6. Use charcoal, no briquettes.
7. Do not wash or soak the main body in water. It can cause serious damage to the product. Simply wipe the inside and outside of the main body to clean it.
8. Ensure the product is far from other sources of fire and pay close attention when lighting up the product.
9. Do not allow children to light it up.
10. Risks of burns and a fire while cooking.
11. Do not use the product on flammable surfaces or surfaces that can be damaged easily.
12. Not to be used in restricted areas.
13. Use the product on a flat place to prevent accidental drops or slip which may cause a fire.
14. Practice with caution when you move the product after the charcoal has been ignited. If the product is dropped, it may cause a fire or injury.
15. To extinguish a charcoal fire, do not pour water or any other form of liquid into the product, especially into the main body.

16.

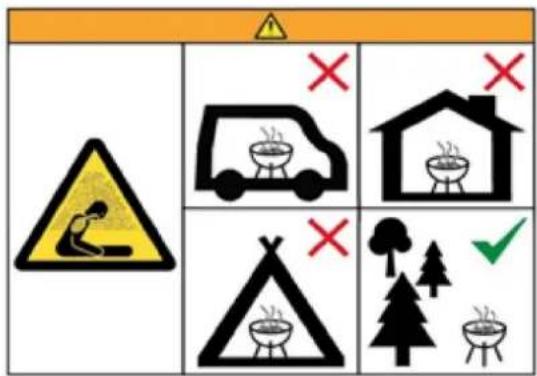

Do not use the barbecue in a confined and/or habitable space e.g. houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality.

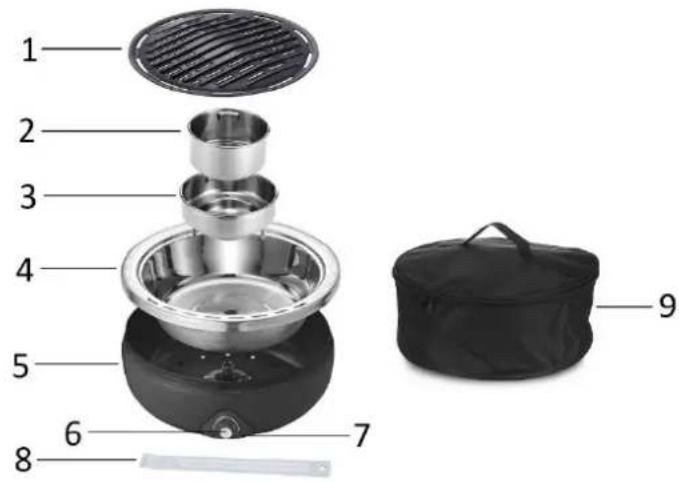

PARTS DESCRIPTION

1. Grill plate
2. Charcoal container
3. Gel container
4. Oil collector
5. Main body
6. Fire control switch
7. Mini-USB interface
8. Gripper
9. Carrying bag

HOW TO USE

1. Power

a) Insert the batteries (AA x 4) into the battery compartment in the fan unit which can be taken out from the base.
b) Or connect a battery pack to the mini-USB interface

Close-up of a white and gray electronic device component with a black handle (no visible text or symbols)

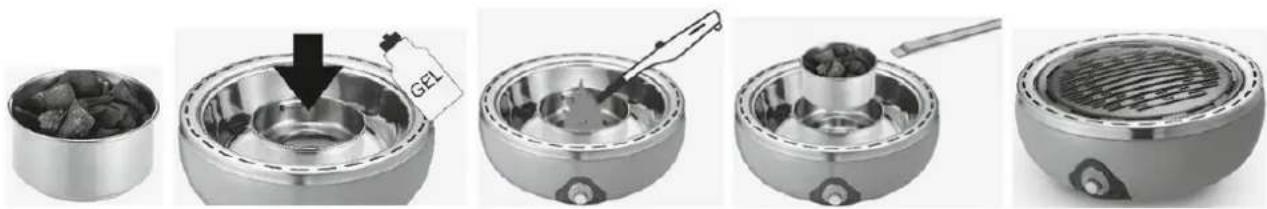

1. Place the oil collector in the main body.
2. Switch on the fan in the main body by turning the fire control switch clockwise to maximum.
3. Squeeze the ignition gel into the gel container (about 20ml per time) and light it. Caution! Do not spray lighting gel in the opening of the fan. This causes irreversible damage.
4. Use the gripper to place the charcoal container onto the fire in the gel container. (Put charcoal no more than 250g into the charcoal container for one time.)
5. Place the grill plate on the top. Spread a thin layer of oil on the grill plate before grilling. Turn the fire control switch back to 25% to 50% power after 3 minutes avoiding the grill plate to overheat. The appliance is ready to barbecue.

Sequence of five-step food preparation steps: adding granular material, using a GEL tag, then mixing into a steamer with a lid (no text or symbols visible)

1. By lifting the grill plate with the gripper you can easily add charcoal. By putting power to 100% this heats up quickly and after it's hot, switch it back to 25-50%.

CLEANING AND MAINTENANCE

1. Let the charcoal burn up completely and allow the appliance to cool down before cleaning.
2. Grill plate, charcoal container, gel container and oil collector are dishwasher safe, or you can clean them with standard washing liquid. Rinse and dry thoroughly before use.
3. Wipe the interior and exterior of the main body with a soft cloth.

4. Never use abrasive cleaning agents or sharp objects (e.g. scrubbing brush or knife) for cleaning.

5. Remove batteries from the appliance during storage of a long period.

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT DISPOSE

OR IN FIRE OR SHORT CIRCUIT.

Emerio Deutschland GmbH (no service address)

Lerchenweg 3

40789 Monheim am Rhein

Deutschland

Customer service:

T: [phone]

E: [e-mail]
