USER MANUAL Fly Away 30 Allround Eurom

Three identical white industrial air purifiers with mesh grating, arranged in a row (no visible text or symbols)

Fly Away Allround 16/30/40

Art.nr. 211245 / 211252 / 211269

Dank

Simple line drawing of a house with lightning bolt and directional arrow (no text or symbols)

Close-up of a hand hanging chains attached to a white industrial fan or air conditioner unit (no visible text or symbols)

Close-up of a white industrial machine with a control panel and handle (no visible text or symbols)

Service

3D rendering of a rectangular container with small protrusions and a small square component, placed on a textured surface (no text or symbols visible)

Exterior view of a modern office building (no signage)

Symbol of a trash bin crossed with no visible text or labels

Simple line drawing of a house with lightning bolt and directional arrow, no text or symbols present

Close-up of a hand hanging chains attached to an electric motor (no visible text or symbols)

Close-up of a white electronic device with a black control panel and lever handle (no visible text or symbols)

Service

3D rendering of a rectangular container with small insects on top, placed on a metal tray (no text or symbols visible)

Close-up of a white air conditioner unit with cooling fins and internal spray pattern (no text or symbols visible)

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Thank you very much for choosing for a EUROM product. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your insect-killer in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Fly Away Allround!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been compiled with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically.

Symbol statement

Simple line drawing of a house with lightning bolt and directional arrow, no text or symbols present

Beware! High Voltage!

For indoor use only!

Technical Specifications

Type	16	30	40
Connected power	220-240V~50Hz	220-240V~50Hz	220-240V~50Hz
Lamps	2 x 8 W	2 x 15 W	2 x 18 W
Power consumption	23 W	39 W	43 W
Max. space	100 m2	150 m2	200 m2
Screen voltage	2200 V	2200 V	2200 V
Dimensions (cm)	42,5 x 9 x 26,5	57,5 x 9 x 26,5	72,6 x 9 x 26,5
Weight	1,6 kg	2,2 kg	2,7 kg

Safety warnings

1. This appliance is intended for indoor use.

2. The appliance is not suitable for sheds, stables or similar locations where the air is humid and acidity. This can affect the materials.

3. Connect the appliance only to suitable earthed socket that provides 220-240V\~50Hz.

4. Do not use the appliance in areas that contain explosive or flammable gases, vapours and liquids or similar materials e.g., not in garages. In addition, do not use the appliance in places that have a risk of substance explosion. The insect killer could emit a spark that can ignite such materials!

5. Do not use the appliance in 'wet' rooms, such as swimming pools, laundry rooms, bathrooms, etc. Never submerge the appliance in water or in any other liquid!

6. Do not place the appliance in an open window (due to rain), not on a wet surface and prevent that any type of moisture is spilled on it.

7. Do not make any changes to the appliance; that can be dangerous and it will invalidate the manufacturer's warranty.

8. Make sure you never touch the high-voltage grid while it operates: not with your fingers, a pen, a piece of paper or any other object. This can cause an electric shock and perhaps fire! Never stick any objects into the appliance through the safety grid.

9. Ensure careful supervision when the appliance is used in the presence of children, incapacitated persons or pets. The appliance is not suitable for use by people (including children) with physical, sensory or mental disabilities. It is also not suitable for use by people who lack knowledge and experience, regardless of whether there is supervision or instructions given (prior to use) by a person responsible for their safety.

10. You must supervise that children do not play with the appliance. The grid is under high voltage!

11. Place the appliance out of children's reach. Danger! High voltage!

12. Remove the plug from the socket before cleaning the appliance. Use a suitable brush (not a metal brush) to clean the high-voltage grid and throw away the dead insects in the collection tray at least once a week.

13. If the appliance, cord or plug shows damage, switch off the appliance immediately and remove the plug from the socket. Turn

to your supplier or a certified electrician for repairing/replacing the part. Never carry out repairs yourself!

1. Remove the plug from the socket and switch off the insect-killer immediately, if you hear strange noises, smell something or see smoke.
2. If the electric cable or the plug is damaged, it must be replaced by a qualified person. Never carry out repairs yourself!
3. If the lamp, starter, fuse or any other part is defective or damaged, it must be replaced by a qualified person. Never carry out repairs yourself.

Operating principe

The insect-killer is designed to attract flying insects, such as flies, moths, mosquitoes, etc. using ultraviolet light. As they fly towards with light, they fly into an electrified metal screen that electrocutes them.

The device

The insect-killer is highly efficient and safe. It is fitted with a safety switch so that should there be a short-circuit in the device, it will not blow your entire domestic electricity system, but just trip the insect-killer itself.

The electrified screen is made from stainless steel. This material has been chosen so that there is only minimal crackling on electrocution and the insects neither combust nor is the material damaged.

The special UV lamps are totally harmless to humans and pets.

An external safety screen protects users from coming into unintentional contact with the electrified screen.

The insect-killer uses no chemicals or sprays, does not emit smoke or odours, produces no waste and is environmentally friendly.

The insect-killer is designed to be used indoors, in the home, in work areas, retail outlets, etc.

Installation

When placing and installing the insect-killer, it is important to take the location of

the device in the room/space into account.

1. Place the insect-killer centrally in the room; that way, the ultraviolet light can be dispersed better and attract insects from the entire area.
2. Place the insect-killer or a wall or in a corner if the room/area is not very large.
3. The best height for the insect-killer is 1.5 to 2 metres off the ground, which is the most common flying height for insects.

Close-up of a hand securing a chain attached to a white electric fan (no text or symbols visible)

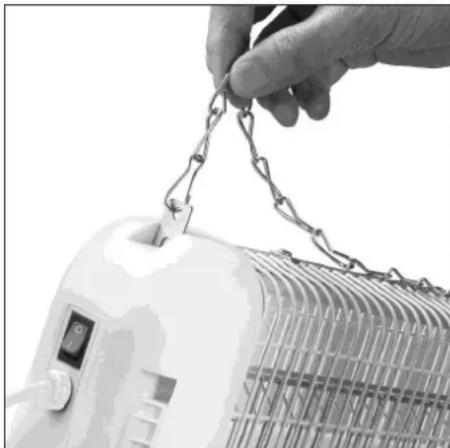

1. The insect-killer can be suspended from the chain or placed on a surface such as a table or cabinet. Make sure it is on a good stable base.

2. Install your insect-killer in a relatively dark place: not in direct sunlight (windows, doors), because bright sunlight weakens the insect-killer's radiation power. Artificial light does not weaken the radiation, but makes it work less well.

3. Do not place the insect killer in the draft. Insects avoid drafts / air flows. Placing the insect killer in the draft flow will therefore not be effective.

Use and Maintenance

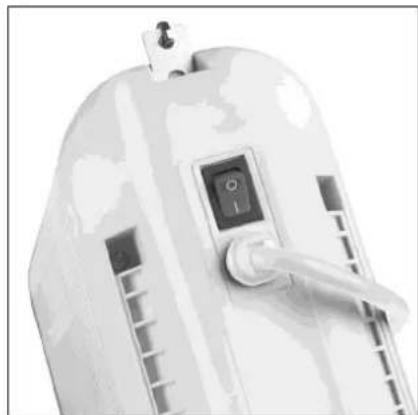

Using

Make sure that the power socket you intend using is earthed and the correct voltage (220-240V\~50Hz). Start the insect-killer working by plugging the device in and then setting the ON/OFF switch (O/I) to ON (press in 'I'). The insect-killer is operating. If desired, attractants can be poured or laid in the appropriate collection tray.

Close-up of a white electronic device with a control panel and ventilation slots (no visible text or symbols)

Service

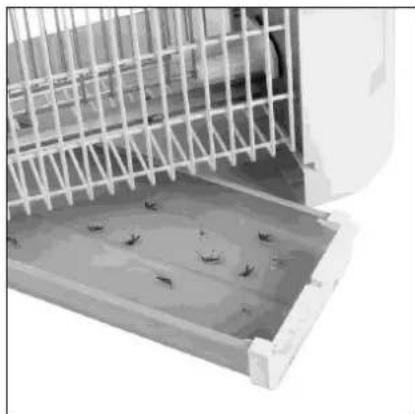

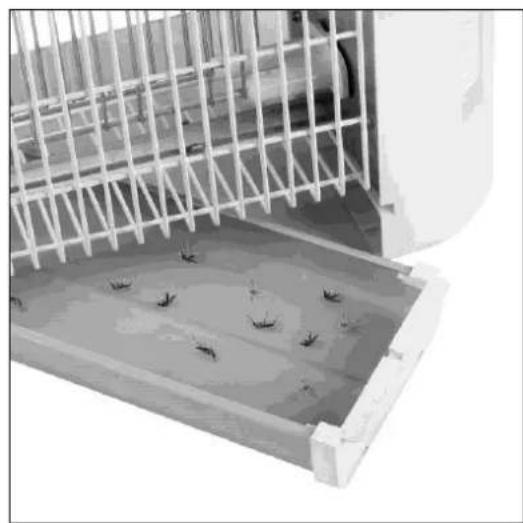

For safety reasons, the user may not open the grille. So you may not replace lamps, the fuse or the starter yourself: consult a certified electrician or other qualified professional for this. The fuse and the starter of the Fly Away Allround 16/30/40 form a part of the circuit board, which can also only be replaced by a qualified professional.

Cleaning

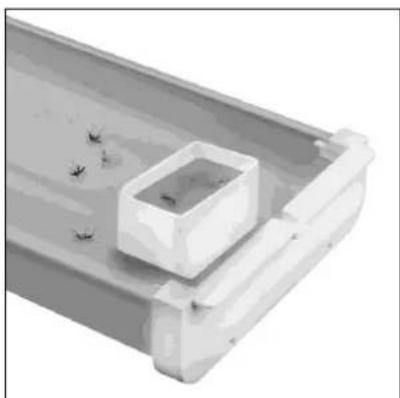

Regularly empty the collection tray by pulling it out of the appliance. Then empty and clean it.

Exterior view of a modern office building (no signage)

Close-up of an air conditioner unit with cooling fins and a tray of air filters (no visible text or symbols)

Dust and dirt influence the appliance's effectiveness, so regularly clean the appliance. Switch the appliance off, remove the plug from the socket and remove the collection tray. If you lay the appliance down, you can remove dust and dirt from the appliance using e.g. a vacuum cleaner, a duster or a soft brush (not a metal brush!). Never remove the grille! Do not use moisture or aggressive cleaning

agents in the appliance. You can dust off the outside of the appliance with a soft cloth.

Possible defects/problems

Check if the plug is placed properly in the socket and that the power supply is in order. In the case of any other causes, consult a qualified professional. It is strictly forbidden to open the grille and/or to carry out repairs yourself!

Removal

Symbol of a trash bin crossed with no visible text or labels

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

CE - Declaration

See page 67.

Merci

Simple line drawing of a house with lightning bolt and bidirectional arrow, no text or symbols present

Attention ! Haute tension !

Close-up of a hand hanging chains attached to a portable electrical device (no visible text or symbols)

Close-up of a white industrial electrical switch with a digital display and handle (no visible text or symbols)

Service

Exterior view of a rectangular metal tray with a small rectangular container and scattered debris (no text or symbols visible)

Close-up of a white air conditioner unit with grid grating and internal components (no visible text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Simple line drawing of a house with lightning bolt and directional arrow, no text or symbols present

OBS! Högspänning!

Close-up of a hand securing a chain attached to an electric air conditioner (no text or symbols visible)

Close-up of a medical device with a digital display and tubing (no visible text or symbols)

Underhåll

Close-up of a metallic mechanical component with a rectangular housing and small protrusions (no visible text or symbols)

Close-up of a white appliance with a grid-patterned lid and internal components (no visible text or symbols)

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

Simple line drawing of a house with lightning bolt and directional arrow, no text or symbols present

Close-up of a hand securing a chain attached to a white electric heater (no text or symbols visible)

stabilt underlag!

Close-up of a medical device with a digital display and tubing (no visible text or symbols)

Service

Exterior view of a rectangular metal tray with a small rectangular component and small protrusions (no text or symbols visible)

Close-up of a mechanical component with grid-like structure and small protrusions (no visible text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Simple line drawing of a house with lightning bolt and directional arrow (no text or symbols)

Varo! Suurjännite!

Close-up of a hand hanging chains attached to a white electric fan (no text or symbols visible)

Close-up of a medical device with a digital display and tubing (no visible text or symbols)

Palvelu

Exterior view of a rectangular metal tray with a small square component and scattered debris (no text or symbols visible)

Close-up of a white appliance with a grid-patterned lid and metal frame, showing internal components (no visible text or symbols)

Symbol of a trash bin crossed with no text or numbers, accompanied by a black rectangular block below (no text or symbols present)

Simple line drawing of a house with lightning bolt and directional arrow, no text or symbols present

Close-up of hands hanging chains attached to a portable air conditioner unit (no visible text or symbols)

Close-up of a white electronic device with a control panel and lever (no visible text or symbols)

Servizio

3D rendering of a rectangular metal tray with a small rectangular component and small protrusions, no visible text or symbols.

Close-up of a white industrial machine with metal frame and internal components (no visible text or symbols)

Symbol of a trash bin crossed with two diagonal lines, no text or labels present

Simple line drawing of a house with lightning bolt and directional arrow (no text or symbols)

Close-up of a hand hanging chains attached to a white electric fan (no text or symbols visible)

Close-up of a white electronic device with a control panel and handle (no visible text or symbols)

Servicio

Exterior view of a modern office building (no signage)

Close-up of a white air conditioner unit with grid-patterned insulation and internal components (no visible text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Simple line drawing of a house with lightning bolt and directional arrow (no text or symbols)

Close-up of a hand securing a chain attached to a white electric fan (no text or symbols visible)

Close-up of a white industrial device with a control panel and handle (no visible text or symbols)

Serviço

Exterior view of a modern office building (no signage)

Close-up of a white air conditioner unit with cooling rack and internal cooling panel (no visible text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a house with lightning bolt and bidirectional arrow, no text or symbols present

Pozor! Vysoké napeti!

Close-up of a hand securing a chain attached to a white electric fan (no text or symbols visible)

Close-up of a white electronic device with a black control panel and cable (no visible text or symbols)

Servis

Exterior view of a rectangular metal tray with a small square component and scattered debris (no text or symbols visible)

Close-up of a white appliance with a grid-patterned panel and small bird-like objects inside (no visible text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a house with lightning bolt and bidirectional arrow, no text or symbols present

Pozor! Vysoké napätie!

Close-up of a hand hanging chains attached to a white industrial machine (no visible text or symbols)

Close-up of a white industrial device with a control panel and handle (no visible text or symbols)

Údržba

3D rendering of a mechanical component with a rectangular housing and mounting holes (no text or symbols visible)

Close-up of a white air conditioner unit with mesh grating and internal components (no visible text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Simple line drawing of a house with lightning bolt and directional arrow (no text or symbols)

Close-up of a hand hanging chains attached to a white electric fan (no text or symbols visible)

Close-up of a white electronic device with a control panel and handle (no visible text or symbols)

Deservirea

Exterior view of a modern office building (no signage)

Close-up of a white air conditioner unit with cooling fins and internal components (no visible text or symbols)

Symbol of a trash bin with no text or labels, crossed by two diagonal lines and a solid black rectangle below (no text or symbols present)

declares the following device in sole responsibility:

Product: Insect-killer

Brand name: EUROM

Model: Fly Away Allround 16 & 30 & 40

Item number: 211245 & 211252 & 211269

Complies with the following harmonization rules:

Low Voltage Directive: LVD 2014/35/EU

Electromagnetic compatibility Directive: EMC 2014/30/EU

Restriction of Hazardous Substances RoHS Directive: 2011/65/EU&(EU)2015/863

Applied harmonized standards:

EN 60335-2-59:2003/A2:2009

EN 60335-1:2012/A11:2014

EN 62233:2008

AfPS GS 2014:01 PAK

EN 55014-1:2006+A1:2009+A2:2011

EN 55014-2:1997+A1:2011+A2:2008

EN 61000-3-2:2014

EN 61000-3-3:2013

Genemuiden, 02-12-2020

W.J. Bakker, alg. Dir.

alaker.

Eurom

Kokosstraat 20

8281 JC Genemuiden

The Netherlands

[e-mail]

www.eurom.nl
