PW0822 MKII - Loudspeaker Auna - Free user manual and instructions

Product type	Passive speaker
Brand	Auna
Model	PW0822 MKII
Power handling (RMS)	150 W
Max. power handling	300 W
Impedance	8 Ω
Max. sound pressure	88 dB
Frequency response	70 Hz - 18 kHz
Speaker diameter	8"
Speaker type	Mid-range horn
Connections	1x PA input, 1x PA output, 2x 6.3 mm jack input, 1x gold-plated stereo terminal input
Housing material	Wood with black felt coating
Protective grille	Yes
Tripod adapter	Yes
Recommended use	Mobile disco, fixed installation
Dimensions (W x H x D)	28.5 x 43 x 24.5 cm
Weight	5.5 kg
Cleaning	Soft cloth and neutral solution
Maintenance	Unplug during thunderstorms, do not insert objects
Safety	Do not open, maintenance by qualified personnel
Recycling	Do not dispose of with household waste, take to collection point

Frequently Asked Questions - PW0822 MKII Auna

How to connect the PW0822 MKII speaker?

Use a PA connection (input) from your amplifier. The speaker has a PA input, a PA output for daisy-chaining, two 6.3 mm jack inputs, and a gold-plated stereo terminal input.

What amplifier power do you recommend?

It is recommended to use an amplifier delivering between 150 and 300 W at 8 Ω to fully utilize the speaker without risk of overload.

Can I use this speaker outdoors?

Yes, but avoid direct exposure to rain or humidity. The speaker is not waterproof. Protect it from weather.

How to clean the speaker?

Use a soft cloth or cotton soaked in a neutral solution. Do not use harsh chemicals or abrasive fabrics.

What to do if the speaker produces no sound?

Check the connections and amplifier power. Make sure the volume is sufficient and the speaker is properly connected. If the problem persists, consult a professional.

Is the speaker compatible with a subwoofer?

Yes, you can connect an active subwoofer via the PA output or using a signal splitter. Make sure to respect impedances.

How to mount the speaker on a tripod?

The speaker is equipped with a tripod mount adapter. Screw the adapter onto a standard tripod, then place the speaker on it.

What is the difference between PW0622 and PW0822?

The PW0822 has an 8" speaker (vs. 6.5"), a power of 150 W RMS (125 W for PW0622), and a frequency response of 70 Hz - 18 kHz (35 Hz - 3.5 kHz for PW0622). Dimensions and weight also differ.

Can I connect multiple speakers in parallel?

Yes, via the PA output you can daisy-chain multiple speakers. Make sure not to exceed the minimum impedance supported by your amplifier (usually 4 Ω).

Where to find spare parts?

Contact an authorized service center or the manufacturer. Only use approved spare parts to avoid any risk of fire or electric shock.

USER MANUAL PW0822 MKII Auna

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 12
Technical Data 13
Connections 14
Cleaning and Care 14
Disposal Considerations 15
Declaration of Conformity 15

FEATURES

Passive loudspeaker.
- Horn midrange speaker.
- Flange for stand mounting.
- Very high load capacity
- Sturdy wooden case with scratch-resistant black felt cover.
- Sturdy protective grille to guard against damage.
Sturdy protective covers.
- Ideal for mobile discotheques or for permanent installation in party cellars.

SAFETY INSTRUCTIONS

General information

• Lightning - If you are not going to use the device for a long time or if there is a storm, disconnect the plug from the electrical outlet and disconnect the device from the antenna connector. This will avoid damage to the product that may be caused by lightning or overvoltage.

• Overload - Do not overload power outlets, extension cords, or built-in power outlets, as this may result in a fire or electric shock.

• Foreign objects and liquid - Never push objects of any kind through openings in the device as they may touch dangerous voltage points or short out parts, which could result in a fire or electric shock. Never spill liquids of any kind on the device.

• Repairs and maintenance - Do not attempt to service this product yourself, as opening or removing covers will expose you to dangerous voltages or other hazards. Leave all maintenance to qualified service personnel.

• Damage requiring service - Disconnect the power plug from the outlet and consult a qualified specialist if any of the following conditions occur:

a) If the power cord or plug is damaged.
b) If liquid has been spilled or objects have fallen onto the product.
c) If the product has been exposed to rain or water.
d) If the product has been dropped or damaged.
e) If the product has a markedly reduced performance.

• Replacement parts - When replacement parts are required, make sure that the service professional who replaces the parts only uses replacement parts that have been approved by the manufacturer or that have the same characteristics as the original part. Unauthorized replacement may result in fire, electric shock or other hazards.

• Heat - Do not place the unit near heat sources such as radiators, heaters, stoves or other products (including amplifiers).

Special Instructions

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
  Children should be supervised to ensure that they do not play with the appliance.
• Ensure children and babies do not play with plastic bags or any packaging materials.
• Mains plug/Power adaptor is used as disconnect device and it should remain readily operable during intended use.
• In order to disconnect the apparatus from the mains completely, the main plug/power adaptor should be disconnected from the mains socket outlet completely.

TECHNICAL DATA

Item number 10035008	0035009
Name PW-0622 PW-082	2
Power 125 W 150 W
Power max. 250 W 300 W
Size 6.5" 8"
Connections	1x PA input, 1x PA output, 2x 6.3 mm jack input, 1x gold plated stereo screw terminal input
Sound pressure max. 94	dB 88 dB
Impedance 8 Ω 8 Ω
Frequency range	35 Hz - 3.5 kHz	70 Hz - 18 kHz
Dimensions	55 x 68 x 47.5 cm	28.5 x 43 x 24.5 cm
Weight	26 kg 5.5 kg

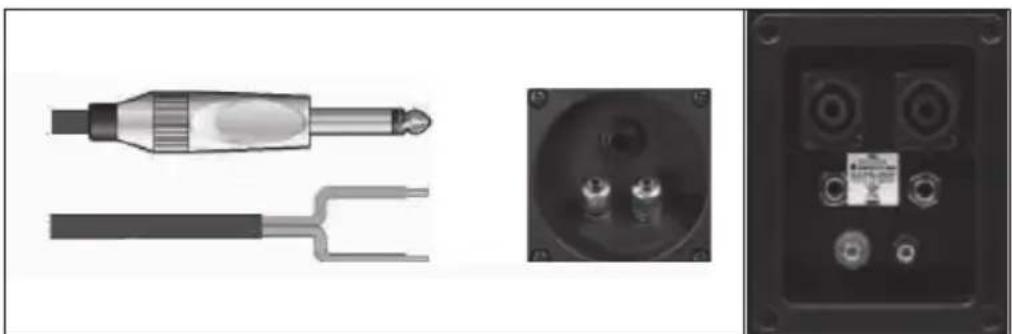

CONNECTIONS

CLEANING AND CARE

• Use a soft cloth or cotton dipped in a neutral solution for cleaning the surface of the speaker. Do not use the type of cloth that you use for washing dishes or aggressive chemical agents.
• If the speaker is not working properly during a storm, please disconnect the plug from the power socket and reinsert it after a minute.
• Do not drop small items or a liquid into the speaker.
• In the event that you find small items or a liquid inside the speaker, you see smoke or smell an odour, immediately disconnect the speaker from the power grid, send the speaker to an authorised service centre.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin,

Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type PW-0622 / PW-0822 is in compliance

with Directive 2014/53/EU. The full text of the EU

declaration of conformity is available at the following

internet address: use.berlin/10035008

For Great Britain: Hereby, Chal-Tec GmbH declares

that the radio equipment type PW-0622 / PW-0822 is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10035008
