USER MANUAL CM001B Auna

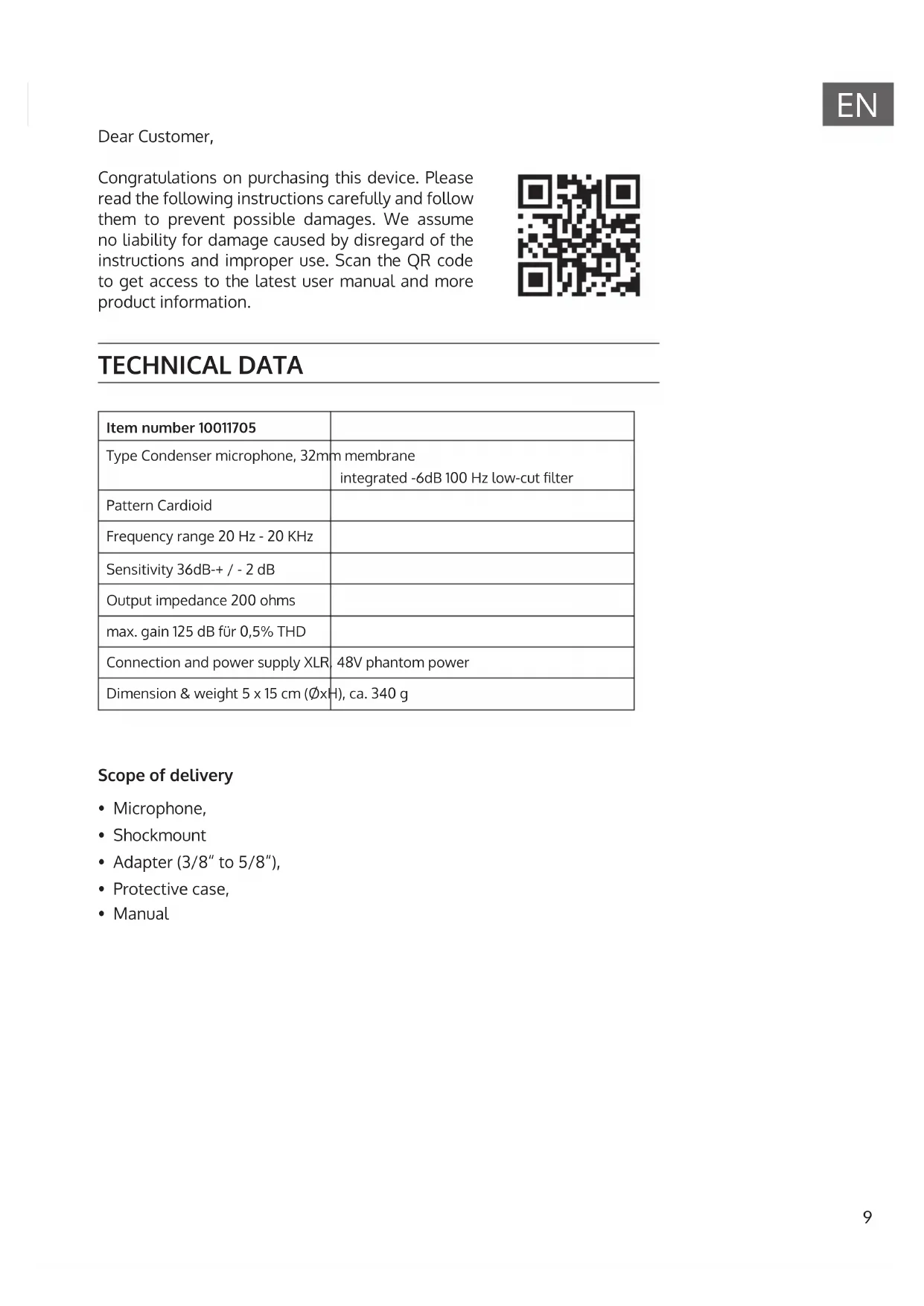

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. TECHNICAL DATA Item number 10011705 Type Condenser microphone, 32mm membrane integrated -6dB 100 Hz low-cut lter Pattern Cardioid Frequency range 20 Hz - 20 KHz Sensitivity 36dB-+ / - 2 dB Output impedance 200 ohms max. gain 125 dB für 0,5% THD Connection and power supply XLR, 48V phantom power Dimension & weight 5 x 15 cm (ØxH), ca. 340g Scope of delivery

• Adapter (3/8“ to 5/8“),

• These operating instructions are intended to familiarize you with the operation of this product.

• Please keep this manual in a safe place so that you can access it at any time.

• Please use the product only in its intended manner. Any other use may result in damage to the product or to the environment of the product.

• Conversion or modication of the product impairs product safety.

• Never open the product on your own authority and never carry out repairs yourself!

• Handle the product carefully. It can be damaged by shocks, blows or falling from an already low height.

• Keep the product away from moisture and extreme heat.

• Do not drop metal objects into this product.

• Do not place heavy objects on this product.

• Clean the product only with a dry cloth.

• Only use accessories recommended by the manufacturer or by qualied retailers.

• Warranty will be void if the unit is tampered with. Small objects Keep small objects (i.e. screws, mounting material, memory cards etc.) and packaging out of the range of children. Do not let children play with foil. Choking hazard! Transporting the device Please keep the original packaging. To gain suicient protection of the device while shipment or transportation, make sure to put it back in its original packaging. Cleaning the surface Do not use any volatile liquids, detergents or the like. Use a clean dry cloth.11

MOUNTING AND OPERATION

To get the sound you want, try changing the mic position relative to the sound source oreven move the microphone around in the recording room of your studio. Adjusting the angle at which walls face the sound source can also be helpful. There is an adapter on your microphone that lets you mount it on mic stands with either metric (Europe) or imperial-gauge threads (North America). Basically, the microphone in the stand mount adapter should stand upright and face the sound source at a right angle. Of course, you can detach the microphone from the stand mount adapter and attach it to a commercially available suspension mount. The angle of the microphone to the sound source inuences the sound of the recording; therefore, experiment with dierent positions until you achieve the desired sound. To this end, you can rotate the mic in the stand mount adapter by loosening the screw somewhat and tightening it again. If necessary, you can bend the microphone out of its vertical position by using the hinge on the microphone stand. It is often advisable to use a pop lter (not included) when recording vocals, not only to ovoid overly accentuated ´S, ´P´ and ´B´sounds, but also to protect the mic from moisture. it is always a good idea to store the microphone in its protection bag when not in use. Connect the microphone to a mixer or recording device with a high quality XLR cable before turning on the phantom power. Make sure all volume ond gain controls on your mixer, mic preamp or recording device are at their minimum volume settings when switching the phantom power on. Once the MCOO1 is plugged in and the phantom power is switched on, Move the channel fader gradually to the 0dB position adjust the input gain using your channel peak led or VU-meter. NOTE: Please make sure to handle the microphone shaft with attention and care to avoid damaging the screw thread. In no situation should you ever apply excessive force. Low Cut Filter: To operate the low cut switch, unscrew the bottom of the microphone housing, slide the microphone body from the chassis. Look for the blue switch in the middle of the microphone circuit board. Pressing the swith activates the low cut lter.12
