USER MANUAL MIC900 Auna

MIC-900 Adensator-Mikro anser Mic- ond

ILC-90 Kodensator-Mikrofon Condenser Microphone Micro à condensateur Microfono a condensador Microfono a condensatore 10006515 1001711 1002886

aUC

www.auna-multimedia.com

Auna MIC900 - 1

bar | Category | Value | |---|---| | Category 1 | 100 | | Category 2 | 100 | | Category 3 | 100 | | Category 4 | 100 | | Category 5 | 100 | | Category 6 | 100 | | Category 7 | 100 | | Category 8 | 100 | | Category 9 | 100 | | Category 10 | 100 | | Category 11 | 100 | | Category 12 | 100 | | Category 13 | 100 | | Category 14 | 100 | | Category 15 | 100 | | Category 16 | 100 | | Category 17 | 100 | | Category 18 | 100 | | Category 19 | 100 | | Category 20 | 100 | | Category 21 | 100 | | Category 22 | 100 | | Category 23 | 100 | | Category 24 | 100 | | Category 25 | 100 | | Category 26 | 100 | | Category 27 | 100 | | Category 28 | 100 | | Category 29 | 100 | | Category 30 | 100 | | Category 31 | 100 | | Category 32 | 100 | | Category 33 | 100 | | Category 34 | 100 | | Category 35 | 100 | | Category 36 | 100 | | Category 37 | 100 | | Category 38 | 100 | | Category 39 | 100 | | Category 40 | 100 | | Category 41 | 100 | | Category 42 | 100 | | Category 43 | 100 | | Category 44 | 100 | | Category 45 | 100 | | Category 46 | 100 | | Category 47 | 100 | | Category 48 | 100 | | Category 49 | 100 | | Category 50 | 100 | | Category 51 | 100 | | Category 52 | 100 | | Category 53 | 100 | | Category 54 | 100 | | Category 55 | 100 | | Category 56 | 100 | | Category 57 | 100 | | Category 58 | 100 | | Category 59 | 100 | | Category 60 | 100 | | Category 61 | 100 | | Category 62 | 100 | | Category 63 | 100 | | Category 64 | 100 | | Category 65 | 100 | | Category 66 | 100 | | Category 67 | 100 | | Category 68 | 100 | | Category 69 | 100 | | Category 70 | 100 | | Category 71 | 100 | | Category 72 | 100 | | Category 73 | 100 | | Category 74 | 100 | | Category 75 | 100 | | Category 76 | 100 | | Category 77 | 100 | | Category 78 | 100 | | Category 79 | 100 | | Category 80 | 100 | | Category 81 | 100 | | Category 82 | 100 | | Category 83 | 100 | | Category 84 | 100 | | Category 85 | 100 | | Category 86 | 100 | | Category 87 | 100 | | Category 88 | 100 | | Category 89 | 100 | | Category 90 | 100 | | Category 91 | 100 | | Category 92 | 100 | | Category 93 | 100 | | Category 94 | 100 | | Category 95 | 100 | | Category 96 | 100 | | Category 97 | 100 | | Category 98 | 100 | | Category 99 | 100 | | Total (Total) |
text_image QR code image containing encoded data, no visible human-readable text

TECHNISCHE DATEN

text_image auna Front View ✓ Rear View € 3

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

natural_image Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Berlin Brands Group UK Ltd

PO Box 1145

Oxford

OX1 9UW

Großbritannien

Dear customer,

Congratulations on the purchase of your device. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

Auna MIC900 - Dear customer, - 1

text_image QR code image containing encoded data, no visible human-readable text

TECHNICAL DATA

Product code 10006515, 10011711, 10028868, 10028869, 10030363, 10030364, 10031503
Microphone type USB condenser microphone
Characteristics Cardioid
Frequency range 30 Hz - 18 KHz
Sensitivity -32 dB
Power supply Via USB (connection: type B)
Dimensions / Weight Microphone: approx. 16.5 x ∅ 5 cm (H x ∅)Microphone spider: 9 x 9 x 6 cm (WxHxD)Cable length: approx. 3 metresMicrophone weight: approx. 295 gWeight microphone spider: approx. 180 g

SCOPE OF DELIVERY

  • Microphone
  • Spider
  • 3/8" to 5/8" - adapter,
  • Protective bag
  • USB cable

WARNING

• These operating instructions are intended to familiarise you with the operation of this product. Therefore, always keep these instructions in a safe place so that you can access them at any time.
- When you purchase this product, you receive a two-year warranty against defects when used properly.
- Please use the product only in its intended manner. Any other use may lead to damage to the product or in the vicinity of the product.
- Modifying or changing the product will compromise product safety.
- Never open the unit without authorisation and never carry out repairs yourself!
- Handle the product carefully. It can be damaged by bumps, blows or falls from a small height.
- Keep the product away from moisture and extreme heat.

SAFETY INSTRUCTIONS

  • These operating instructions are intended to familiarise you with the operation of this product.
  • Therefore, always keep these instructions in a safe place so that you can access them at any time.
  • Please use the product only in its intended manner. Any other
  • use may lead to damage to the product or in the vicinity of the product.
  • Modifying or changing the product will compromise product safety.
  • Never open the unit without authorisation and never carry out repairs yourself!
  • Handle the product carefully. It can be damaged by bumps, blows or falls from a small height.
  • Keep the product away from moisture and extreme heat.
  • Do not drop metal objects into this device.
  • Do not place any heavy objects on the device.
  • Only clean the device with a dry cloth.
  • Only use accessories recommended by the manufacturer or a qualified service professional.
  • The warranty is void if the unit is tampered with by third parties.

Small objects/packaging parts (plastic bags, cardboard, etc.):

Keep small objects and packaging parts (e.g. screws and other mounting material, memory cards) out of the reach of children so that they cannot be swallowed by them. Do not let small children play with plastic film. There is a danger of suffocation!

Transporting the unit

Please keep the original packaging. To achieve sufficient protection when transporting the unit, pack the unit in the original packaging.

Cleaning the outer surface

Do not use volatile liquids such as bug sprays. Excessive pressure when wiping the surface can cause damage. Rubber or plastic parts should not be in contact with the appliance for a long period of time. Use a dry cloth.

TECHNICAL REQUIREMENTS

Your microphone is equipped with a USB connection. This connector sends the audio signal from the microphone to the computer.

At the same time, the computer uses the USB connection to supply the microphone with the necessary power. The connection is made via the supplied USB cable with type B plug.

NOTE: Use only the supplied cable to ensure optimal signal quality and reliable power supply.

To operate the microphone, your computer must meet the following system requirements:

Windows PC Mac
Intel or AMD CPU, 1 GHz or better G4/G5, 800 MHz or better
At least 512 MB RAM At least 512 MB RAM
USB 2.0 port USB 2.0 port
Windows XP/Vista/7/8/10 Mac OSX 10.3.9 (Panther) or better

INSTALLATION

Follow the steps below to put your microphone into operation:

  • Start your computer.
  • Connect the microphone to a free USB port. NOTE: The operating system automatically installs the required drivers.
  • Select the microphone as the input source for the recording software you are using.

Windows:

  • Adjust the recording volume using the Windows volume controls (speaker system on the taskbar).
  • Optional: Select the microphone under System Settings > Sounds and Audio Devices > Audio (tab) as the sound recording device.

Mac OS:

  • Adjust the recording volume via the Audio Midi Setup. Note: The microphone is now ready for use.
  • (Optional:) Select Microphone in the Audio Midi Setup in the Audio Devices tab as the default sound recording device.

NOTES ON ASSEMBLY AND USE

To achieve the desired sound, test different positions to the sound source.

Move the microphone quietly around the recording room and test different distances and angles. Only when you have reached the right basic tone should you use equalisers and sound processors.

Because of the microphone's extremely linear frequency response and high sound resolution, "EQing" should not be necessary for high frequencies. This only influences the input signal too much and increases the interference tone unnecessarily. The microphone has the clarity needed for recording and mixing.

The microphone has an adapter that fits European and American microphone holders. Detach the adapter from the microphone, attach it to the microphone holder and then fix the microphone on the adapter. The microphone should be mounted upright and the sound should hit it at a right angle. Test different positions until you achieve the desired sound. If necessary, you can also adjust it vertically with the hinge.

NOTE: Handle the microphone and the adapter with care. Do not subject the threads to excessive force.

Of course, you can also mount the microphone without this adapter on a suitable microphone stand purchased by you.

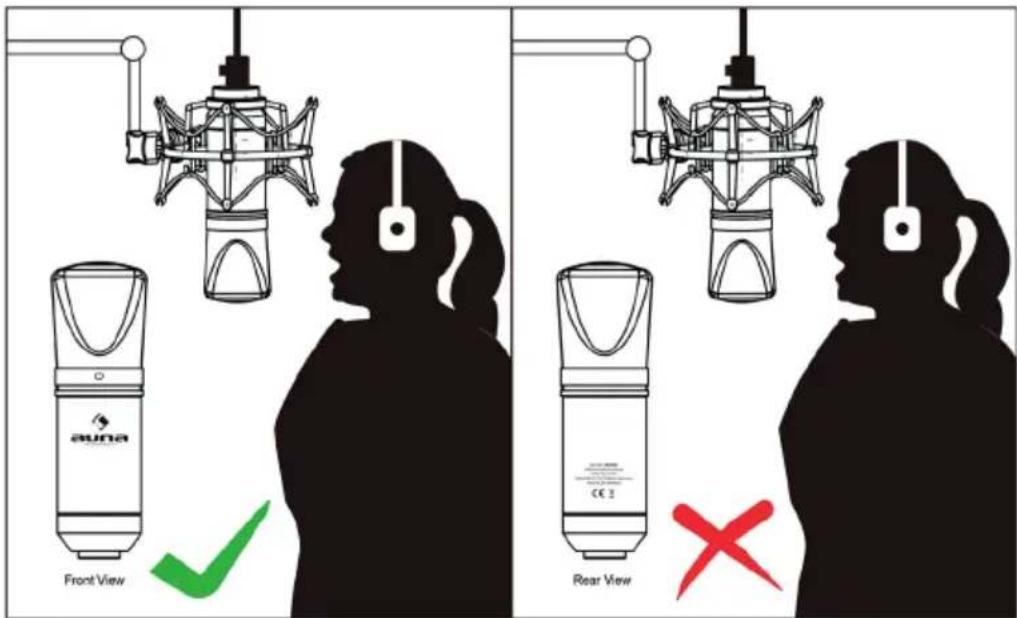

Sing/speak into the front (printed with auna logo) of the microphone for best results:

Auna MIC900 - NOTES ON ASSEMBLY AND USE - 1

text_image auna Front View ✓ Rear View € 1 X

DISPOSAL CONSIDERATIONS

Auna MIC900 - DISPOSAL CONSIDERATIONS - 1

natural_image Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford

OX1 9UW

United Kingdom

Estimado cliente:

text_image QR code image containing encoded data, no visible human-readable text

DATOS TÉCNICOS

text_image auna Front View ✓ Rear View CE 1 X

INDICACIONES SOBRE LA RETIRADA DEL APARATO

Auna MIC900 - INDICACIONES SOBRE LA RETIRADA DEL APARATO - 1

natural_image Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Berlin Brands Group UK Ltd

PO Box 1145

Oxford

OX1 9UW

United Kingdom

Cher client, chère cliente,

text_image QR code image containing encoded data, no visible human-readable text

FICHE TECHNIQUE

text_image auna Front View ✓ Rear View € 3

INFORMATIONS SUR LE RECYCLAGE

Auna MIC900 - INFORMATIONS SUR LE RECYCLAGE - 1

natural_image Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

Berlin Brands Group UK Ltd

PO Box 1145

Oxford

OX1 9UW

United Kingdom

Gentile cliente,

text_image QR code image containing encoded data, no visible human-readable text

DATI TECNICI

text_image auna Front View ✓ Rear View € 3

AVVISO DI SMALTIMENTO

Auna MIC900 - AVVISO DI SMALTIMENTO - 1

natural_image Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

Regno Unito

Auna MIC900 - PRODUTTORE E IMPORTATORE (UK) - 1

bar | Category | Value | |---|---| | Category 1 | 100 | | Category 2 | 100 | | Category 3 | 100 | | Category 4 | 100 | | Category 5 | 100 | | Category 6 | 100 | | Category 7 | 100 | | Category 8 | 100 | | Category 9 | 100 | | Category 10 | 100 | | Category 11 | 100 | | Category 12 | 100 | | Category 13 | 100 | | Category 14 | 100 | | Category 15 | 100 | | Category 16 | 100 | | Category 17 | 100 | | Category 18 | 100 | | Category 19 | 100 | | Category 20 | 100 | | Category 21 | 100 | | Category 22 | 100 | | Category 23 | 100 | | Category 24 | 100 | | Category 25 | 100 | | Category 26 | 100 | | Category 27 | 100 | | Category 28 | 100 | | Category 29 | 100 | | Category 30 | 100 | | Category 31 | 100 | | Category 32 | 100 | | Category 33 | 100 | | Category 34 | 100 | | Category 35 | 100 | | Category 36 | 100 | | Category 37 | 100 | | Category 38 | 100 | | Category 39 | 100 | | Category 40 | 100 | | Category 41 | 100 | | Category 42 | 100 | | Category 43 | 100 | | Category 44 | 100 | | Category 45 | 100 | | Category 46 | 100 | | Category 47 | 100 | | Category 48 | 100 | | Category 49 | 100 | | Category 50 | 100 | | Category 51 | 100 | | Category 52 | 100 | | Category 53 | 100 | | Category 54 | 100 | | Category 55 | 100 | | Category 56 | 100 | | Category 57 | 100 | | Category 58 | 100 | | Category 59 | 100 | | Category 60 | 100 | | Category 61 | 100 | | Category 62 | 100 | | Category 63 | 100 | | Category 64 | 100 | | Category 65 | 100 | | Category 66 | 100 | | Category 67 | 100 | | Category 68 | 100 | | Category 69 | 100 | | Category 70 | 100 | | Category 71 | 100 | | Category 72 | 100 | | Category 73 | 100 | | Category 74 | 100 | | Category 75 | 100 | | Category 76 | 100 | | Category 77 | 100 | | Category 78 | 100 | | Category 79 | 100 | | Category 80 | 100 | | Category 81 | 100 | | Category 82 | 100 | | Category 83 | 100 | | Category 84 | 100 | | Category 85 | 100 | | Category 86 | 100 | | Category 87 | 100 | | Category 88 | 100 | | Category 89 | 100 | | Category 90 | 100 | | Category 91 | 100 | | Category 92 | 100 | | Category 93 | 100 | | Category 94 | 100 | | Category 95 | 100 | | Category 96 | 100 | | Category 97 | 100 | | Category 98 | 100 | | Category 99 | 100 | | Total (Total) |

Auna MIC900 - PRODUTTORE E IMPORTATORE (UK) - 2

natural_image Abstract white logo design on dark background, resembling stylized letter 'S' or wave form (no text or symbols)
