USER MANUAL CG125165 Emerio

RENGJØ RING OG VEDLIKEHOLD

10. If an extension cord is used it must be suited to the power

consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

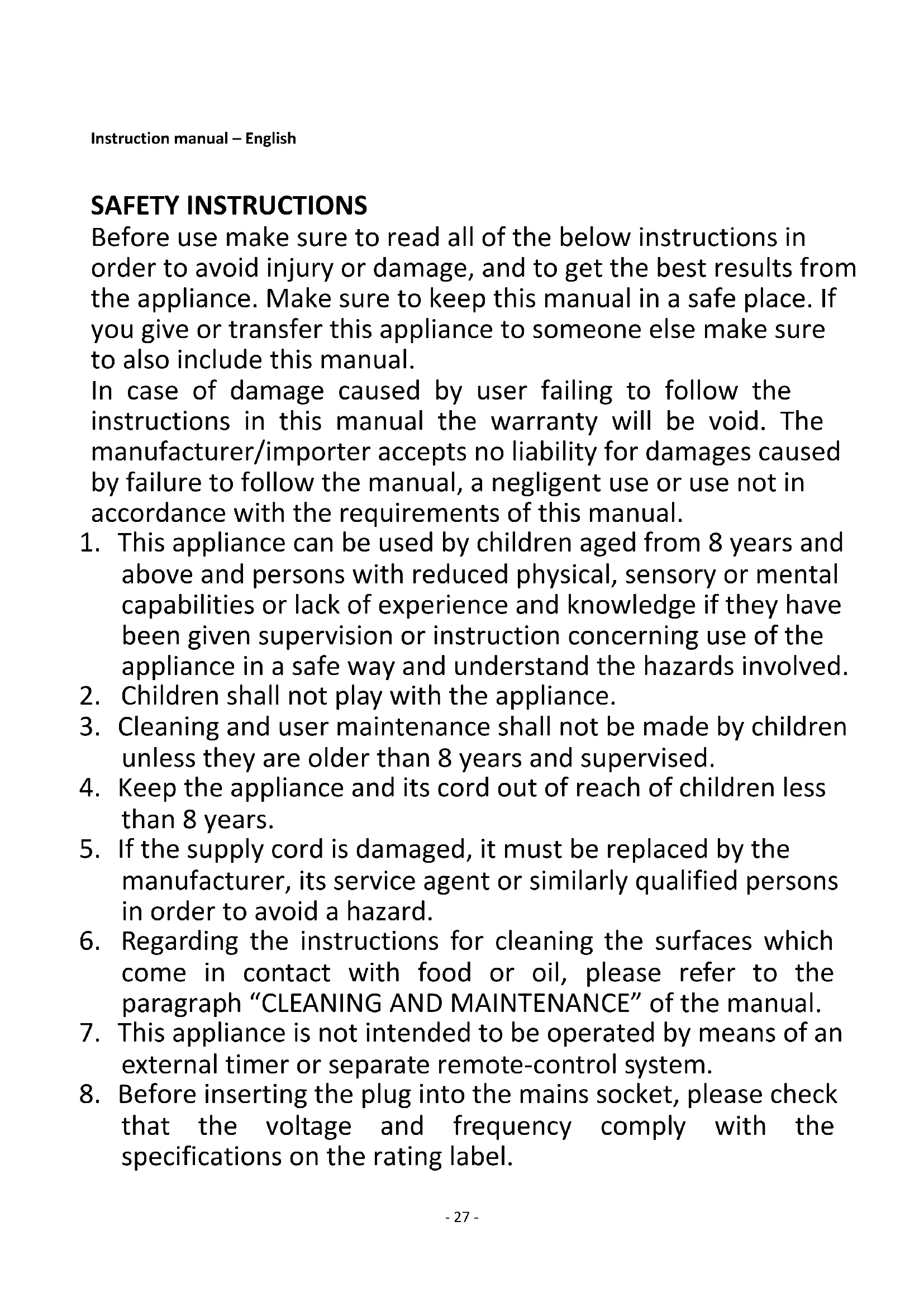

1. This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children

unless they are older than 8 years and supervised.

4. Keep the appliance and its cord out of reach of children less

5. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. Regarding the instructions for cleaning the surfaces which

come in contact with food or oil, please refer to the paragraph “CLEANING AND MAINTENANCE” of the manual.

7. This appliance is not intended to be operated by means of an

external timer or separate remote-control system.

8. Before inserting the plug into the mains socket, please check

that the voltage and frequency comply with the specifications on the rating label.- 28 -

9. Always plug the appliance into an earthed plug socket.

10. If an extension cord is used it must be suited to the power

consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

11. Disconnect the mains plug from the socket when the

appliance is not in use and before cleaning.

12. Ensure that the mains cable is not hung over sharp edges and

keep it away from hot objects and open flames.

13. Do not immerse the appliance or the mains plug in water or

other liquids. There is danger to life due to electric shock!

14. To remove the plug from the plug socket, pull the plug. Do

not pull the power cord.

15. Do not touch the appliance if it falls into water. Remove the

plug from its socket, turn off the appliance and send it to an authorized service center for repair.

16. Do not plug or unplug the appliance from the electrical outlet

17. Never attempt to open the housing of the appliance, or to

repair the appliance yourself. This could cause electric shock.

18. Never leave the appliance unattended during use.

19. This appliance is not designed for commercial use.

20. Do not use the appliance for other than intended use.

21. Do not wind the cord around the appliance and do not bend

22. Place the appliance on a stable, level surface from which it

23. The use of accessory attachment not recommended by the

appliance manufacturer may cause injuries.

24. If you use products with non-stick surfaces, please make sure

no birds are in the same room and that the room can be completely closed off and well-ventilated.- 29 -

Caution, hot surface. WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.- 30 -

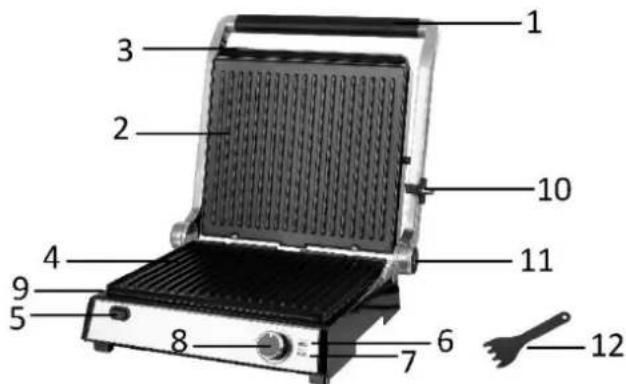

3. Upper plate release button

Note: Do not use the scraper during cooking, it is used to remove crumbs from grill plates after use.

1. Remove all packaging.

2. Unwind the mains cable completely.

3. Press the upper / bottom plate release button to remove the upper / bottom grill plate. Clean them and other

accessories. NEVER IMMERSE THE MAIN BODY INTO WATER. See the “cleaning and maintenance” subsection below for detailed instructions.

4. Insert the upper / bottom grill plates /oil drip tray into their respective positions before use.

Notice: When your grill is heated for the first time, it may emit slight smoke or odor. This is normal and harmless.

WARNING: The grill plates and metal surfaces of the upper housing and handle will become very hot during use. To

avoid a burn hazard, wear protective oven mitts when using and touch only the black part of the handle. Place the product on a clean, flat, level, stable, heat-resistant surface with at least 4-6 inches of space on all sides to allow adequate air circulation. For best results, lightly coat the cooking plates with a little cooking oil or cooking spray. The appliance has 3 cooking positions, adjust the upper plate to have 3 cooking positions according to the different cooking purpose.

The upper plate is closed or rests on the base. Use this position when heating the product and when grilling most foods. In this position, food will cook quickly since both sides cook at the same time.- 31 -

1) Close the upper plate.

2) Plug the appliance into the wall outlet, rotate the thermostat knob to select your desired heating level.

Setting Temperature min close max 425℉(230℃)

3) During the whole process, the ready light will turn off to indicate the grill is heating and turn on to indicate

the set temperature has been reached.

4) Open the upper plate.

5) Put the sandwich, meat or other food on the bottom cooking plate.

6) Close the grill. The upper plate will self-adjust to the thickness of the food.

NOTE: If cooking more than one piece of food at a time, food items should be similar in thickness to ensure the upper plate rests evenly on the food for even cooking.

7) The cooking will take several minutes depending on different food.

8) When the food is cooked, use the handle to open the lid. Remove the food with the help

of a plastic heat-resistant spatula. Never use metal tongs or a knife as these can cause damage to the non-stick coating of the cooking plates. Note: the appliance has a securing latch: Slide the latch to position A, the handle is unlocked. when the upper plate is closed, side the latch to position B, the handle is locked; it is easy to move the appliance. When the upper plate is in open position, slide the latch to position B/C/D/E/F, then close the upper plate; you can adjust the distance between the upper plate and bottom plate.

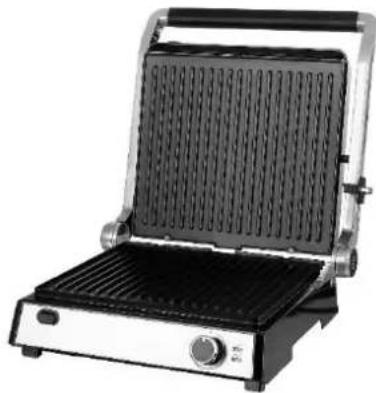

The upper plate is open. Lift the handle until the upper housing is at about a 90°angle. The position is appropriate for when grilling certain foods in which the upper grill plate is not appropriate, such as pizza or fish. Follow steps 2,3,5,7,8 in above section “closed position”.

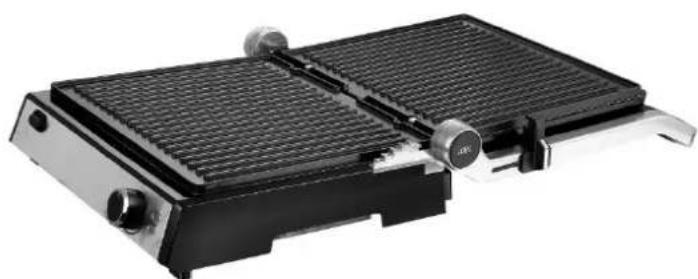

To make the upper plate be leveled with the bottom plate, push and hold the hinge release button in the arrow’s direction with one hand, and make the upper plate rest flat with the other hand. Use the grill as an open grill to cook burgers, steak, poultry (we do not recommend cooking bone-in chicken, since it does not cook evenly on an open grill), fish and vegetables. Use the product in this position when grilling larger amounts of food or cooking foods on different plates to avoid combining flavors. Follow steps 2,3,5,7,8 in above section “closed position”.- 32 -

CLEANING AND MAINTENANCE

1. Always switch off and unplug the appliance after use. Allow it to cool down before cleaning.

2. Clean the housing with a soft damp cloth and then dry it thoroughly.

3. Remove any leftover food from the grill plates with the scraper.

4. Clean the grill plates and scraper in warm soapy water; rinse and dry. They may be cleaned in a dishwasher.

5. Remove and empty the oil drip tray. Wash it in warm soapy water. The oil drip tray is dishwasher safe.

6. Never use abrasive cleaning agents or sharp objects (e.g. scrubbing brush or knife) for cleaning.

Caution: Do not immerse the appliance in water or other liquids. There is danger to life due to electric shock! TECHNICAL DATA Operating voltage: 220-240V ~ 50-60Hz Power: 2000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee: For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase. Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Fun Nordic ApS Egelund 8 6200 Aabenraa Denmark www.funnordic.dk- 33 - Mode d‘emploi – French
