FN114507 - Fan Emerio - Free user manual and instructions

Product type	Pedestal fan
Brand	Emerio
Model	FN114507
Color	White (typical)
Power supply	220-240 V ~ 50 Hz
Power consumption	120 W
Number of speeds	3 (Low, Medium, High)
Operating modes	Normal, Natural, Sleep
Timer	From 0.5 h to 7.5 h
Remote control	Yes, with AAA batteries (not included)
Adjustable height	Yes, by telescopic tube
Tilt adjustment	Yes, manually
Blade diameter	Approximately 40 cm (estimate)
Base dimensions	Approximately 30 cm diameter (estimate)
Total height	Approximately 1.2 m (estimate)
Net weight	Approximately 5 kg (estimate)
Housing material	Plastic and metal
Cleaning	Damp cloth, do not immerse
Outdoor use	Not recommended
Warranty	2 years

Frequently Asked Questions - FN114507 Emerio

How to assemble the FN114507 fan?

Follow the assembly instructions: attach the vertical tube to the base with the counterweight, then assemble the fan head onto the tube and attach the control panel. Tighten all screws properly.

How to use the remote control?

The remote control works with two AAA batteries (not included). Insert the batteries, then use the buttons to turn on/off, select speed, mode and timer.

What operating modes are available?

Three modes: Normal (constant speed), Natural (simulates a natural breeze) and Sleep (gradually reduces airflow).

How to set the timer?

Press the TIMER button to choose a duration from 0.5 h to 7.5 h in 0.5 h increments. Once the time has elapsed, the fan turns off automatically.

How to clean the fan?

Turn off and unplug the appliance. Use a damp cloth to clean the exterior. Never immerse the appliance in water. Vacuum dust from the grilles with a vacuum cleaner.

Can the fan oscillate?

The manual does not mention automatic oscillation. The direction is adjusted manually by tilting the fan head.

What is the maximum height of the fan?

The height is adjustable via the telescopic tube. The maximum height is approximately 1.2 m (estimate).

How to replace the remote control batteries?

Open the battery compartment on the back of the remote control. Insert two AAA batteries, respecting polarity. Close the compartment.

The fan is noisy, is this normal?

A slight fan noise is normal. If the noise is excessive, check that all screws are tight and that the fan blade is not obstructed.

What to do if the fan does not turn on?

Check the power outlet and power cord. Ensure the fan is properly assembled and all buttons are in the correct position. If the problem persists, contact customer service.

USER MANUAL FN114507 Emerio

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
6. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
7. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

8. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

9. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

10. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
11. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
12. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
13. Never leave the appliance unattended during use.
14. This appliance is not designed for commercial use.
15. Do not use the appliance for other than intended use.
16. Do not wind the cord around the appliance and do not bend it.
17. Keep the appliance away from damp, and protect from splashes.
18. Use the appliance on a flat, dry and heat resistance surface.
19. Do not store or operate the appliance in the open air.
20. Keep the appliance in a dry place for storage, inaccessible to children (in its packaging).
21. Never put fingers or any other objects through the fan guards when the fan is running.
22. Never operate the product without the fan guards in place, as serious personal injury may result.
23. The appliance must be assembled completely before use.
24. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
25. Do not point the air flow at people for a long time.
26. Ensure that the fan is switched off from the supply mains before removing the guard.

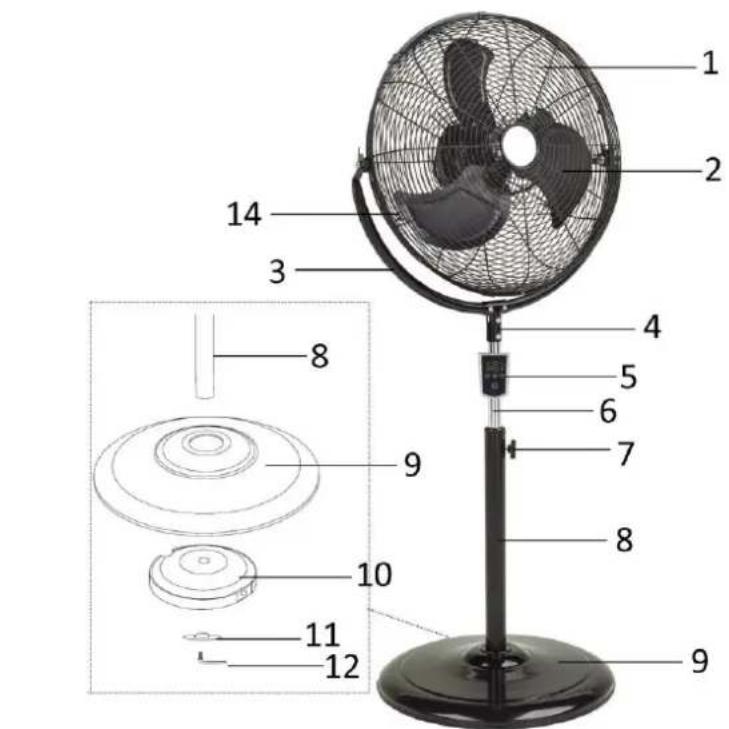

PARTS DESCRIPTION

1. Fan guard
2. Fan blade
3. U tube
4. Neck lock
5. Control panel
6. Height adjustment pipe
7. Height adjust knob
8. Standing shaft
9. Standing base
10. Weight support
11. Fastener
12. L screw
13. Remote control
14. Support for cable storage

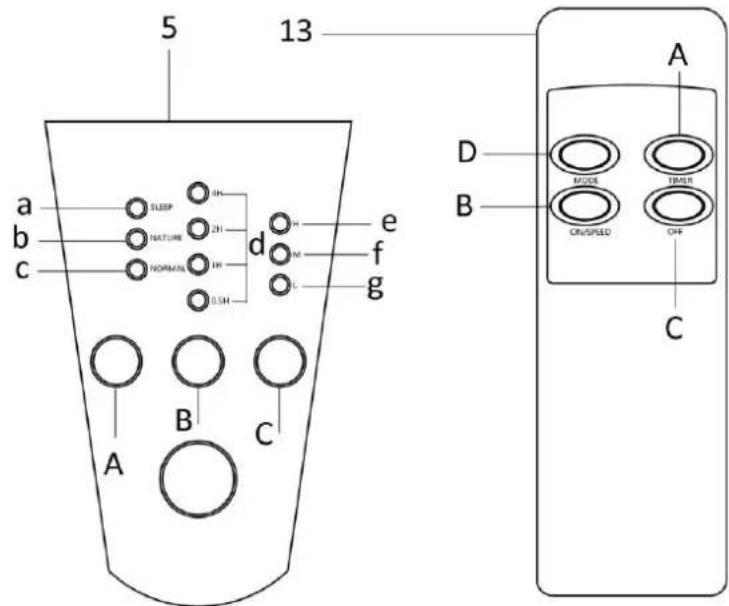

Control panel and remote control

a. Sleep mode light
b. Nature mode light
c. Normal mode light
d. Timer lights
e. High speed light
f. Mid speed light
g. Low speed light

A. Timer
B. On/speed button
C. Off button
D.Mode button

Note: Please use two AAA batteries for this remote control.

ASSEMBLY INSTRUCTIONS

** Please assemble correctly by the following order when using.

1. Assembly of the stand

2. Rotate the fastener and the L screw out from the bottom of the standing shaft.

3. Put the standing shaft into the standing base.

4. Place the weight support to the bottom of the base. Tighten the weight support to the base with fastener and the L screw.

5. Fan head assembly

6. Pull the height adjustment pipe out to your desired height and tighten the height adjust knob.

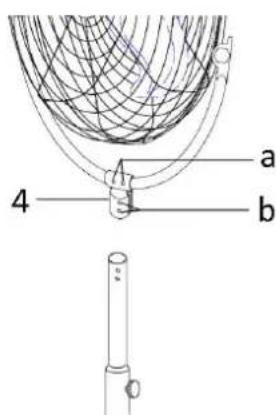

   Fix the neck lock to the U tube by two screws (a), gaskets and nuts. Pay attention do not screw tight. Place the fan head, together with the neck lock, onto the top

of height adjustment pipe. Insert the other two screws (b) through the holes of the neck lock and the standing pipe, and tighten them up with gaskets and nuts. At last, tighten the two screws (a) up in the U tube.

1. Control panel assembly

2. First insert the screw through the holes of the height adjustment pipe, and then screw into the back hole of the control panel to tighten it to the height adjustment pipe.

OPERATION

Please press the control panel to choose your desired functions.

1. ON/SPEED: Connect the appliance to a suitable power source. Then press ON/SPEED button to turn the appliance on.

1) If the unit is turned on at the first time, it will work with the following presetting:

Speed: low / Mode: normal / Timer: off

2) If the unit is working, press ON/SPEED button to adjust the speed. It will work as below:

Low Mid High Low ... (repeating).

Tilting Angles: turn off and unplug the fan, then push or pull the guards to adjust the angle of airflow.

1. MODE: Press the MODE button in the remote control to choose the functions from normal Nature Sleep normal ... (Repeating).

1) Normal: under this mode, the motor works with the preset speed and the indicator light of NORMAL is on. You can press the ON/SPEED button to choose the speed Low /Mid /High.
2) Nature: under this mode, the indicator light of NATURE is on. The appliance runs according to the natural mode program. Generating softer and more comfort air volume, you feel like the wind from the nature. You can press the speed button to choose Low /Mid /High natural wind.
3) Sleep: under this mode, the indicator light of SLEEP is on. The appliance runs according to the sleeping mode program. Air volume will weaken with the decrease of body temperature when you fall asleep, which will protect you from catching cold. You can press the speed button to choose Low /Mid /High sleeping wind.
3. TIMER: Press this button to set your desired working time from 0.5h 1h 1.5h 7.5h off 0.5h ... (Repeating). When the set time has elapsed, the fan will be off and under standby condition.
4. OFF: Press this button and all functions and the display will be off. The unit will be at standby condition.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Operating voltage: 220 - 240V 50Hz

Power consumption: 120W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal

rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling - European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT DISPOSE

OR IN FIRE OR SHORT CIRCUIT.

Emerio Deutschland GmbH (no service address)

Hofferweg14

51519 Odenthal

Germany

Customer service:

T: [phone]

E: [e-mail]
