USER MANUAL FN108777 Emerio

Instruction manual - English 41

Upute za rad-Croatian 45-

Hasznalati utmutato-Hungarian 49-

Leiöbeiningarhandbok - Icelandic. 53

Brukermanual - Norwegian 74

Hnctpykua no 3Kcnpyaatau - Russian . 78-

Uputstvo - Serbian-Latin 83

KohcymaunHa eJeekTpoeepnra: 50W

SIGURNOSNE INFORMACije

Potrosnja snage: 50W

Zahtjevi za ekološki dizajn
Zahtjevi za informacije o proizvodu
Maksimalna brzina okretanja propelledera (F)	42.20 m3/min
Ulazna snaga ventilatora (P)	36.73 W
Vrijednost opsluživanja (SV)	1.15(m3/min)/W
Mjerni standard za vrijednost opsluživanja	IEC 60879: 1986 (ispravljeno.1992)
Potrošnja snage pri mirovanju (PsB)	0.00 W
Nivo jačine zvuka propelledera (LwA)	54.5 dB(A)
Maksimalna brzina zraka (c)	2.08 metara/).[ukundi]
Kontakt podaci za više informacija	BAHAG AGGutenbergstr. 2168167 MannheimGermany

Recikliranje

Ova oznakaPokazu de ovaj proizvod ne treba odlagati s ostalim opadam iz domacinstva, koliko je obuhvaćeno propisom 2012/19/EU. Kako bi se sprijecila moguca šeta po okolinu i Čovjekovo zdravlje usljed nekontrolisanog odlaganja opada, molimo vas da odgovorno vršite recikliranje kako bi se promovisala održiva ponovna upotreba resursa i materijala. Za povrat iskorištenog urežaja koristite

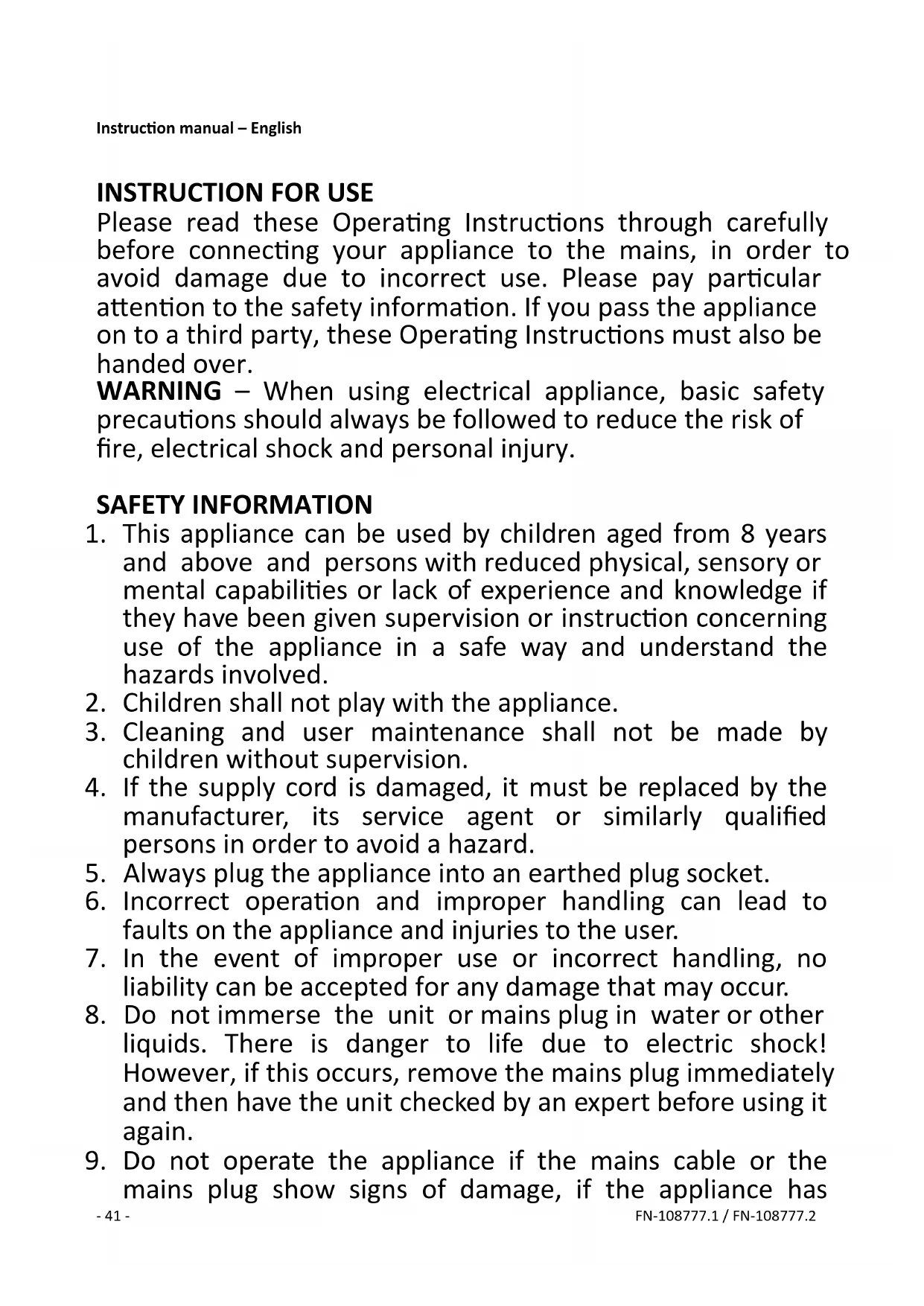

Please read these Operating Instructions through carefully before connecting your appliance to the mains, in order to avoid damage due to incorrect use. Please pay particular attention to the safety information. If you pass the appliance on to a third party, these Operating Instructions must also be handed over.

WARNING - When using electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury.

SAFETY INFORMATION

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Always plug the appliance into an earthed plug socket.
6. Incorrect operation and improper handling can lead to faults on the appliance and injuries to the user.
7. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.
8. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this occurs, remove the mains plug immediately and then have the unit checked by an expert before using it again.
9. Do not operate the appliance if the mains cable or the mains plug show signs of damage, if the appliance has

fallen on the floor or has been otherwise damaged. In such cases take the appliance to a specialist for checking and repair if necessary.

1. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.
2. Ensure that the mains cable does not hang over sharp edges or allow it to become trapped.
3. Keep the appliance away from damp, and protect from splashes.
4. Keep the appliance away from hot objects (e.g. hotplates) and open flames.
5. Keep the appliance and its cord out of reach of children less than 8 years.
6. Use the appliance on a flat, dry and heat resistance surface.
7. Never leave the appliance unattended during use.
8. Do not store or operate the appliance in the open air.
9. Keep the appliance in a dry place, inaccessible to children (in its packaging).
10. Never put fingers or any other objects through the grilles (fan guards) when the fan is running.
11. Never operate the appliance without the grilles (fan guards) in place, as serious personal injury may result.
12. The appliance must be assembled completely before use.
13. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
14. Do not point the air flow to the people for a long time.
15. Ensure that the fan is switched off from the supply mains before removing the guard.

PARTS DESCRIPTION

1. Main body (Fan guard + Fan blade)
2. Spring button
3. Tube stand
4. Straight tube
5. Speed switch
6. Control box

ASSEMBLY OF YOUR FAN

1. Take the main body of the fan and tube stand from the packaging.
2. Press and hold the spring buttons on both straight tubes; insert the main body into the tube stand. Make sure the main body and tube stand are connected firmly with the spring buttons popped out.
3. Make sure the fan is correctly assembled as shown in the picture above.

OPERATING INSTRUCTIONS:

1. Plug the power cord into a suitable socket.
2. Turn the switch at the rear of control box to select at a speed 0 = OFF , 1 = Low Speed , 2 = Medium speed , 3 = High speed .
3. Tilting Angles: By pushing the fan-guard, you can adjust the fan to the preferred elevation.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and then dry it carefully. Always take out the mains plug first.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Operating voltage: 220 - 240V 50Hz

Power consumption: 50W

Eco design requirements
Product information requirements
Maximum fan flow rate (F)	42.20 m³/min
Fan power input (P)	36.73 W
Service value (SV)	1.15 (m³/min)/W
Measurement standard for service value	IEC 60879: 1986 (corr.1992)
Standby power consumption (PsB)	0.00 W
Fan sound power level (LwA)	54.5 dB(A)
Maximum air velocity (c)	2.08 meters/sec
Contact details for obtaining more information	BAHAG AG Gutenbergstr. 21 68167 Mannheim Germany

Recycling - European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

UPUTE ZA UPOTREBU

SIGURNOSNE INFORMACije
