USER MANUAL SI125400 Emerio

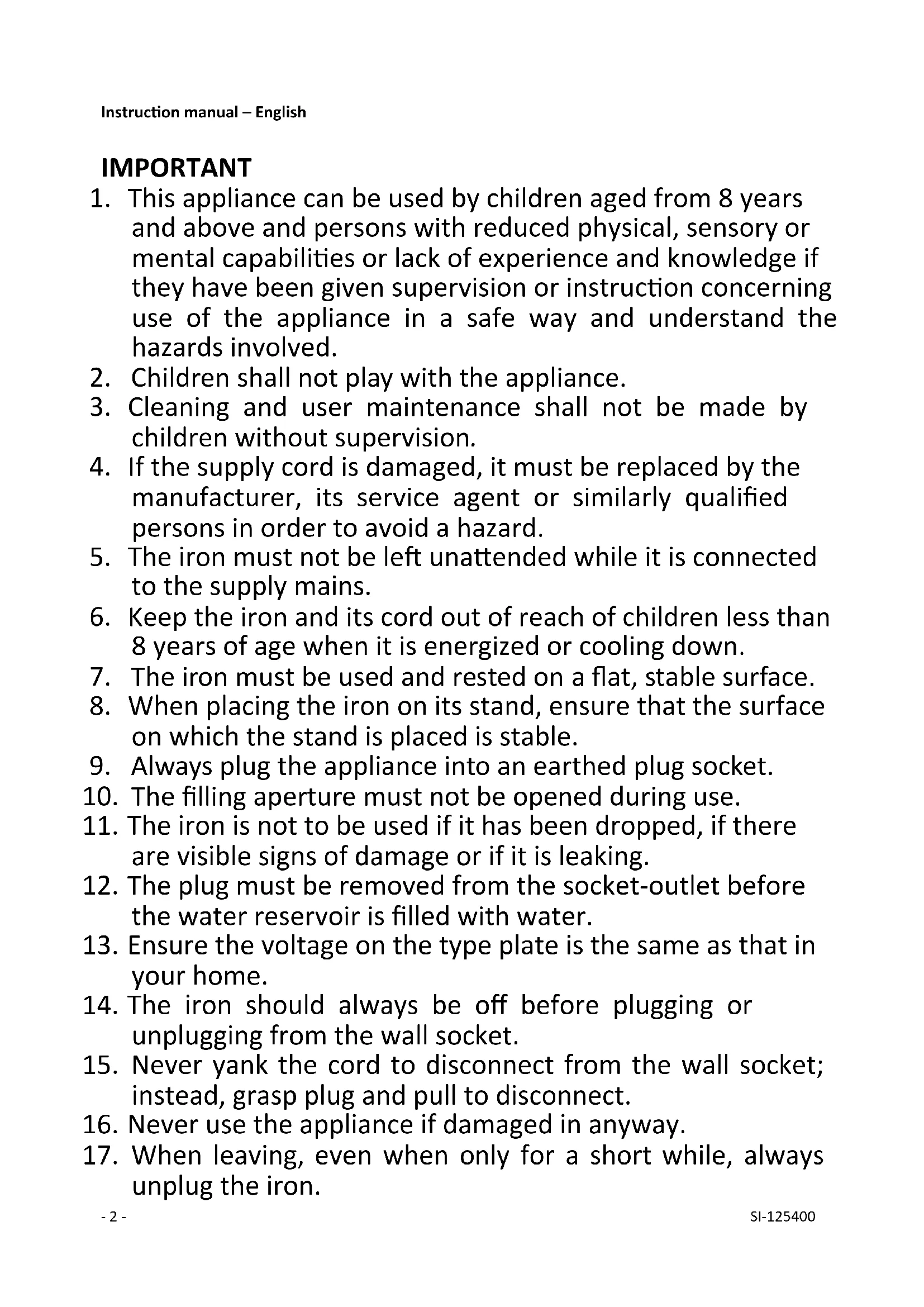

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. The iron must not be left unattended while it is connected to the supply mains.
6. Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
7. The iron must be used and rested on a flat, stable surface.
8. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.
9. Always plug the appliance into an earthed plug socket.
10. The filling aperture must not be opened during use.
11. The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
12. The plug must be removed from the socket-outlet before the water reservoir is filled with water.
13. Ensure the voltage on the type plate is the same as that in your home.
14. The iron should always be off before plugging or unplugging from the wall socket.
15. Never yank the cord to disconnect from the wall socket; instead, grasp plug and pull to disconnect.
16. Never use the appliance if damaged in anyway.

17. When leaving, even when only for a short while, always unplug the iron.

18. Close supervision is necessary for any appliance being used by or near children.

19. Burns can occur from touching hot metal parts, hot water or steam.
20. Use caution when you turn a steam iron upside down-there may be hot water in the reservoir.
21. Never immerse the iron in water.
22. Always place the iron with its back on a firm flat surface when interrupting ironing and after use.
23. Keep the soleplate smooth. Avoid hard contact with a metal object.
24. The cord should not be allowed to touch the soleplate when it is hot.
25. Prevent water overflow. Do not over max level.
26. When using the iron for the first time put it on an old piece of fabric to ensure the soleplate and water tank are completely clean.
27. Remove the plug from the socket before filling or emptying water reservoir.
28. The iron shall be used on a stable ironing board.
29. Do not use the appliance if it is dropped or otherwise damaged or if the cable or plug are damaged. In the case of damage, take the appliance to an electrical repair shop for examination and repair if necessary.
30. Never attempt to repair the appliance yourself. This could cause an electric shock.
31. This appliance is not designed for commercial use.
32. Regarding the instructions for cleaning and maintenance, please refer to the below paragraphs.

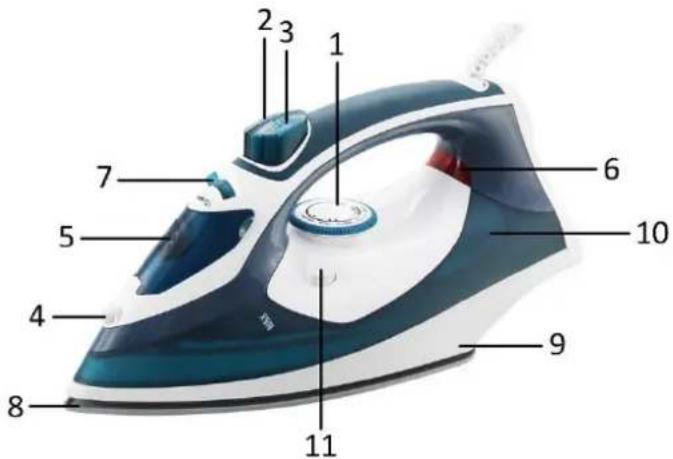

PARTS IDENTIFICATION

1. Temperature regulator
2. Burst of steam button
3. Spray button
4. Spray nozzle
5. Water inlet cover
6. Indicator light
7. Steam control knob
8. Soleplate
9. Heating base
10. Water tank
11. Self-clean button

BEFORE INITIAL USAGE

Remove all packaging material. Make sure the appliance is unplugged and the temperature regulator is set at position "OFF".

Open the water inlet cover and fill water into the opening up to the max level marked on the water tank. For this, use the measuring cup. Do not use chemically de-calcified water.

Insert the power plug into a designated outlet and set the temperature regulator on the highest temperature setting. After the indicator light goes off, set the steam control knob to your desired position and iron on an old piece of cloth to remove possible residue.

With first use, these can be slight odour or smoke. But this is harmless and only of short duration. Make sure there is adequate ventilation.

OPERATION

Before selecting the temperature, read the instruction manual for the iron or the care advice on the tag of the clothing.

Note: If there is no care advice on the piece of clothing, then you should begin ironing with the lowest temperature. With lower temperature, there will be less steam.

OFF
●	Nylon
●●	Wool, silk
●●● MAX	Linen, cotton, highest temperature

DRY IRONING

• Connect the iron to a suitable mains supply outlet.
• Ensure that the steam control knob is in position "O".
• Select the setting on the temperature regulator.
• When the indicator light goes off, the required temperature is reached. The iron is ready for use.
  To turn off the iron, turn the temperature regulator counter-clockwise to position "OFF", set the iron upright, and pull out the power plug.

STEAM IRON

Fill the water tank, as described before initial usage.

Steam ironing can be used in the temperature ranges , , , MAX. For the reliable functioning of the steam ironing, the water tank must be at least 1/4 filled.

Spraying function: Press the spray button to moisten a spot to be ironed. Water will come out of the spray nozzle. Steam Function: Turn the steam control knob to the required position, steam starts coming out from the holes in the soleplate.

Burst of steam: Turn the temperature regulator to the position "MAX". The indicator light will go off when the required temperature is reached. Then press the burst of steam button. This function provides an extra amount of steam to remove stubborn wrinkles. For optimal use, please allow the appliance to have a rest of 3 - 5 seconds between each press.

"Burst of steam" can also be applied when holding the iron in vertical position, which is useful for removing creases from hanging clothes, curtains, etc.

The iron surface must always be kept in an upright position.

To turn off, turn the temperature regulator counter-clockwise to "OFF" and pull out the power plug.

Turn the appliance upside down and carefully pour the remaining water out of the water tank. Carefully shake the appliance.

Press the spray button to allow possible remaining water to come out more easily.

Notice: With conventional steam ironing, water may leak from the soleplate if a too low temperature has been selected. If this happens, turn the temperature regulator to the advised position. Steam will recommence as soon as the appropriate temperature has been reached.

SELF-CLEAN FUNCTION

You can use the self-clean function to remove scale and impurities.

The self-clean function should be used at least once per month.

If the water is very hard in your area, use the self-clean function every two weeks.

• Make sure the appliance is unplugged.
• Set the steam control knob to position "O".
• Fill the water tank to maximum level.
• Select the maximum ironing temperature.
• Put the plug in the wall socket.
  Unplug the iron when the temperature indicator light goes off.
• Hold the iron over the sink, press and hold the self-clean button and gently shake the iron to and fro. (Steam) and boiling water will come out of the soleplate. Impurities and flakes (if any) will be flushed out).
• Release the self-clean button as soon as all water in the tank has been used up.

Repeat the self-clean process if the iron still contains a lot of impurities.

CLEANING AND MAINTENANCE

Before cleaning the iron ensure it is disconnected from the power supply and has completely cooled down.
Deposits on the soleplate may be removed with a rough cloth soaked in a vinegar water solution.
The casting may be wiped with a damp cloth and then polished with a dry one.
- Do not use abrasives on the soleplate.
- Keep the soleplate smooth. Avoid hard contact with metal objects.

TIPS

Which type of water to use?

Your appliance has been designed to function with untreated tap water. If your water is very hard, it's possible to mix untreated tap water with store bought distilled or demineralised water in the following proportion: 50% tap water / 50% distilled water.

Which type of water not to use?

The types of water listed below contain organic waste or mineral elements that can cause spitting, brown staining, or leakage: water from clothes dryers, scented or softened water, and water from air conditioners.

If problems occur?

Water drips from the holes in the soleplate.	The chosen temperature is too low and does not allow for the formation of steam.	Position the thermostat to the maximum temperature setting.
	You are using steam while the iron is not hot enough.	Wait until the control light goes out.
	You have stored the iron horizontal, without emptying it and without switching off the steam function.	Empty the iron after each use, and store it vertical.
Brown streaks come through the holes in the soleplate and stain the linen.	You are using chemical descending agents.	Do not add any descending agents to the water.
	Fabric fibers have accumulated in the holes of the soleplate and are burning.	Let the iron cool down and clean the soleplate with a sponge. Vacuum the holes of the soleplate from time to time.
	Your linen has not been rinsed sufficiently or you have ironed a new garment before washing it.	Make sure that your laundry is rinsed sufficiently so as to remove any deposits of soap or chemical products on new clothes.
The soleplate is dirty or brown and can stain the linen.	You are ironing with a too high temperature.	Let the iron cool down and clean the soleplate with a sponge. Select the appropriate temperature.
The soleplate is scratched.	You have placed your iron flat on a metal rest-plate or ironed over a zip.	Always set your iron on its heel in an upright position. Do not iron over zips.

TECHNICAL DATA

Operating voltage: 220 - 240V 50 - 60Hz

Power consumption: 2200W

ENVIRONMENT FRIENDLY DISPOSAL

Recycling - European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

Emerio Holland B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

T: [phone]
