USER MANUAL CDG9CEBWIFI CANDY

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 2

SAFETY PRECAUTION 2

SPECIFICATION 5

INSTALLATION (VENT OUTSIDE) 6

INSTALLATION (VENT INSIDE) 11

DESCRIPTION OF COMPONENTS 15

OPERATION 15

MAINTENANCE 17

TROBULESHOOTING 18

CONFORMITY WITH DIRECTIVES 19

ENVIRONMENTAL PROTECTION 19

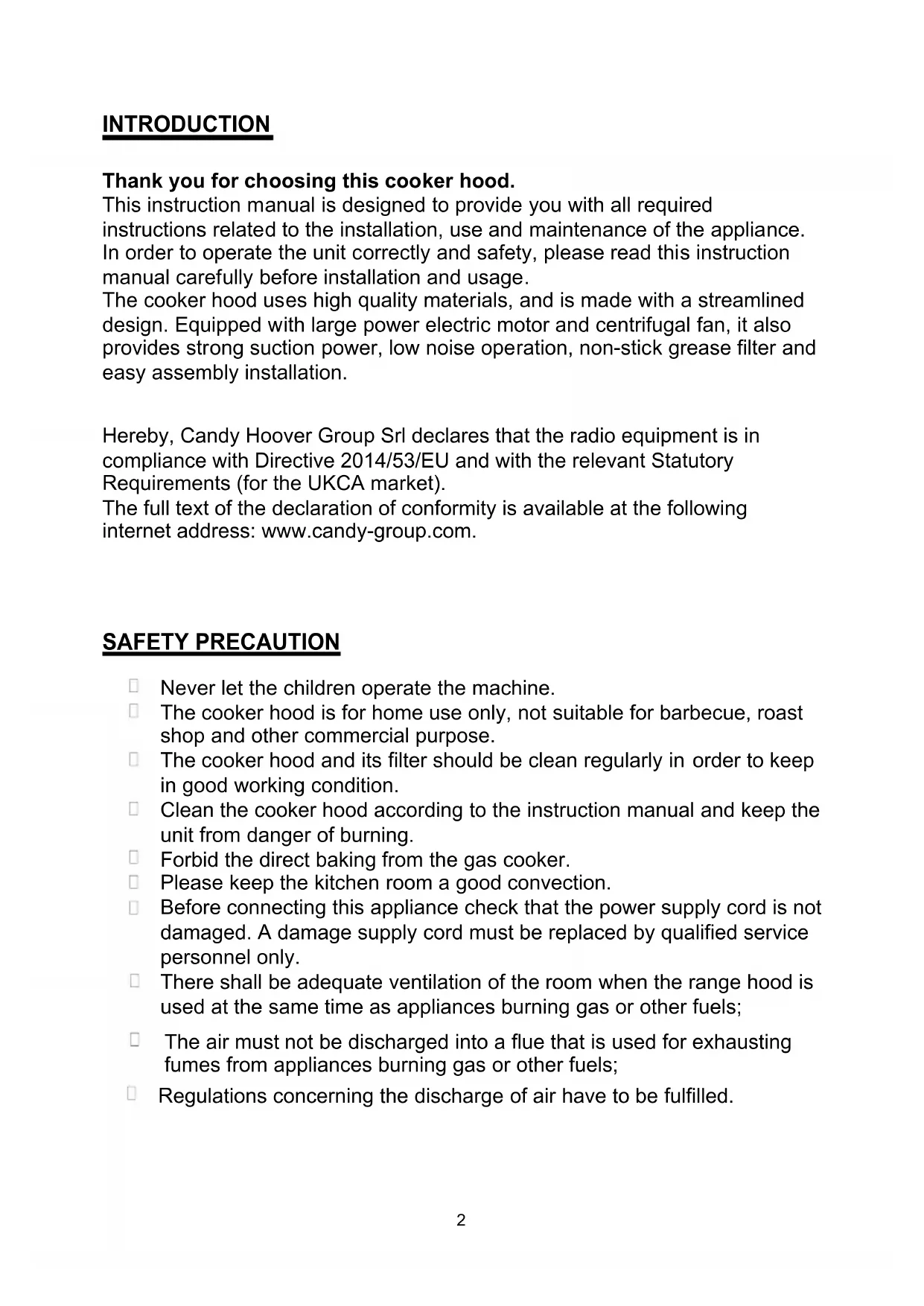

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant Statutory Requirements (for the UKCA market).

The full text of the declaration of conformity is available at the following internet address: www.candy-group.com.

SAFETY PRECAUTION

☐ Never let the children operate the machine.
☐ The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose.
☐ The cooker hood and its filter should be clean regularly in order to keep in good working condition.
☐ Clean the cooker hood according to the instruction manual and keep the unit from danger of burning.
☐ Forbid the direct baking from the gas cooker.
☐ Please keep the kitchen room a good convection.
Before connecting this appliance check that the power supply cord is not damaged. A damage supply cord must be replaced by qualified service personnel only.
☐ There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels;
☐ The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels;
☐ Regulations concerning the discharge of air have to be fulfilled.

☐ This appliance if not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person slide for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Do not flambé under the range hood.

☐ CAUTION: Accessible parts may become hot when used with cooking appliance

Electrical Shock Hazard

Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.

Failure to follow these instructions can result in death, fire, or electrical shock.

Electrical Installation

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate.

Direct Connection

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

WARNING: This is a Class I appliance and MUST be earthed

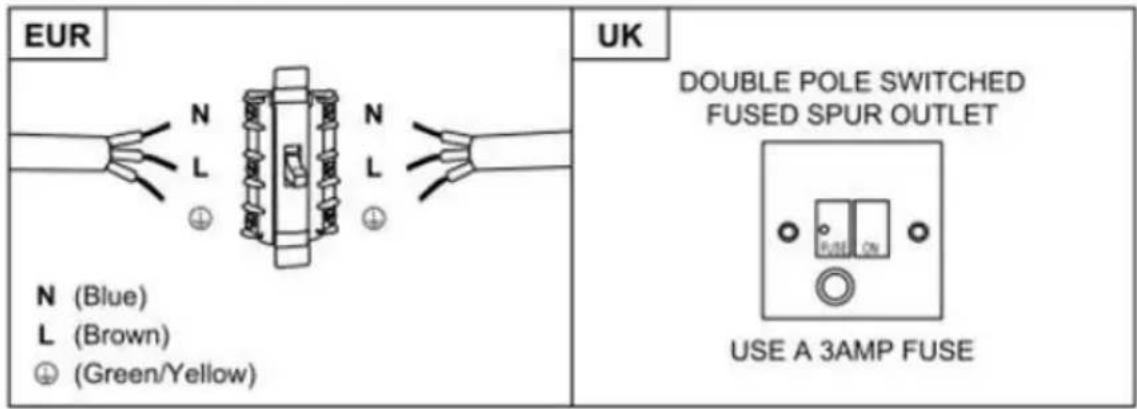

This appliance is supplied with a 3 core mains cable coloured as follows:

Brown = L or Live

Blue = N or Neutral

Green and Yellow = E or Earth

EUR N (Blue) L (Brown) ⊕ (Green/Yellow) UK DOUBLE POLE SWITCHED FUSED SPUR OUTLET USE A 3AMP FUSE

The fuse must be rated at 3 Amps.

Standard Installation Accessories List

Spec.	Illustration Picture	Qty
Casing		1
Upper Chimney		1
Lower Chimney		1
Lower chimney bracket		1
Upper chimney bracket		1
Hanging Board		1
φ8 rawl plugsφ8×φ6 white color		9
ScrewsST4.0×30		9
φ7.2screwsST4.0×8		2

If you have an outlet to the outside, your cooker hood can be connected below picture by means of an extraction duct (enamel, aluminum, flexible pi inflammable material with an interior diameter of 150mm)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65\~75cm above the cooking plane for best effect.

65cm 75cm

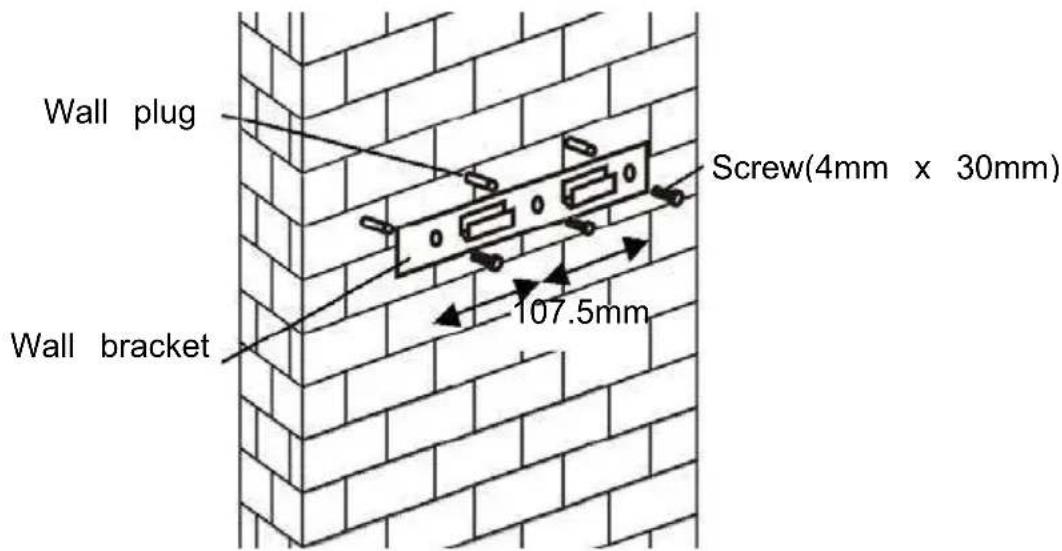

1. Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws provided.

Wall plug Screw(4mm x 30mm) Wall bracket 107.5mm

For inclined panel Model

- eed to drill 2x8mm extra holes & fixing screws & screw plugs before installation. Voor schuine modellen

Technical line drawing of a rectangular device with internal components and alignment lines (no text or symbols)

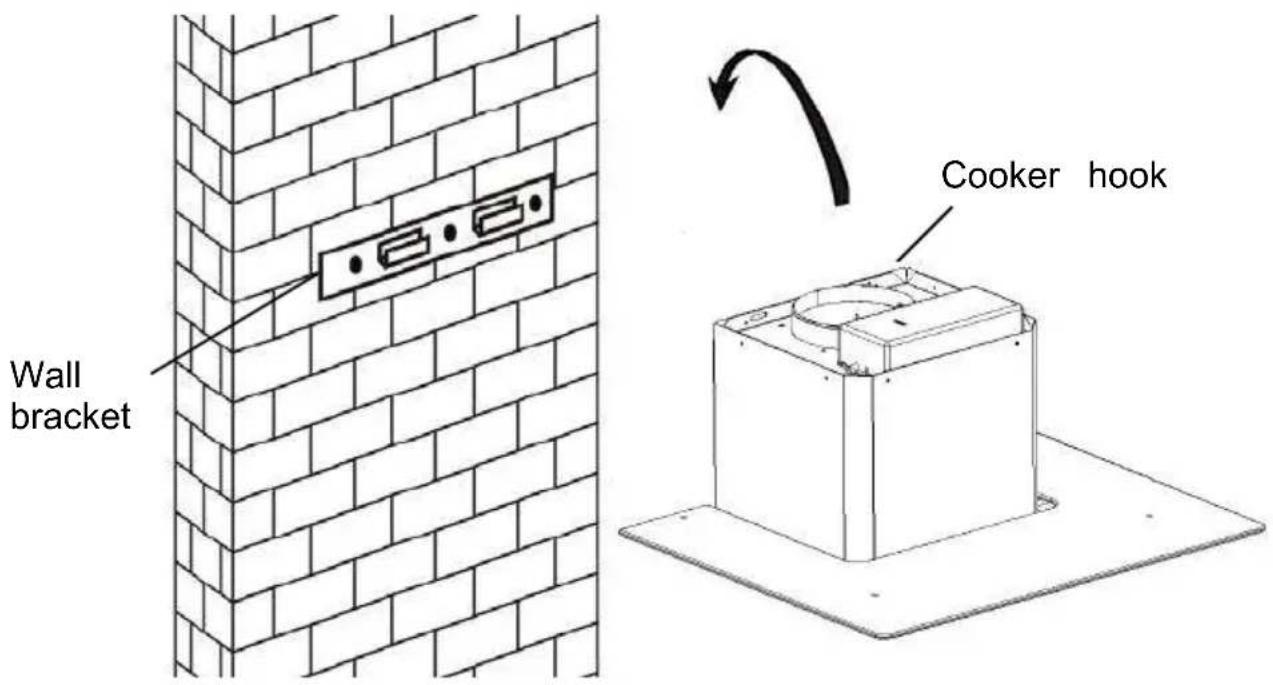

1. Leave up the cooker hood and hang onto the wall bracket hook.

Wall bracket Cooker hook

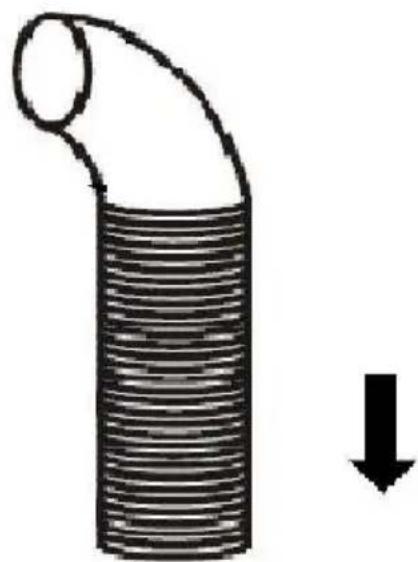

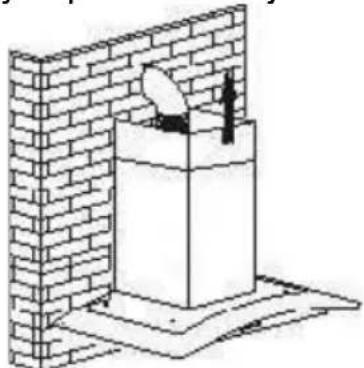

1. Fix the one-way-valve to the air outlet of the cooker hood. Then, attached the exhaust pipe onto the one-way-valve as shown below.

Exhaust pipe

Diagram of a coiled pipe with a downward arrow indicating flow or direction (no text or symbols)

Cooker hood

Technical line drawing of a mechanical component with no visible text or symbols

6.

i. Place the glass in appropriate position on the top the cooker hood.

ii. Fix with 4 screws and washer. In order to avoid the glass cracking, please do not tighten the screws too strongly.

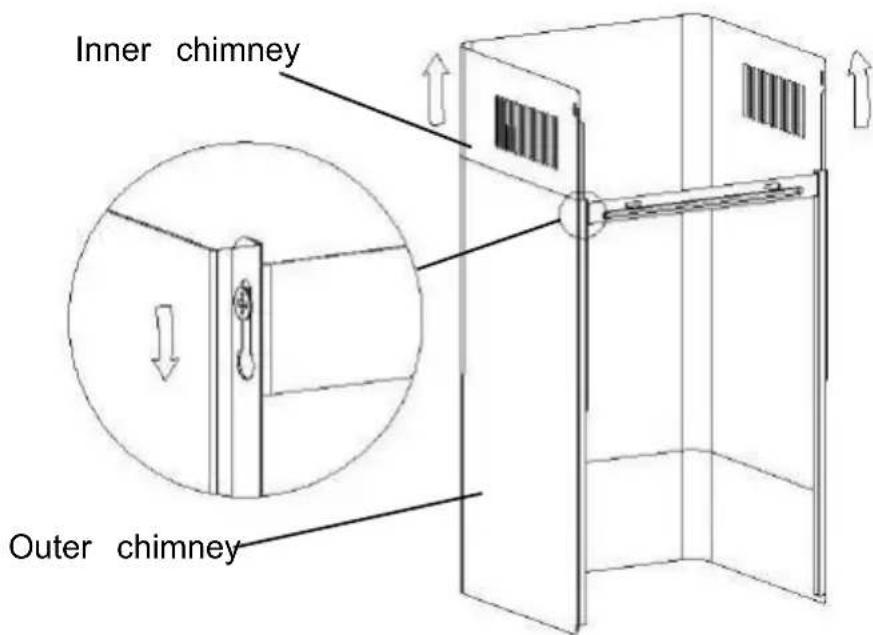

i. By Put the inner chimney into outer chimney .Then pulling out the inner chimney upwards. Adjust to reach the height required

Isometric line drawing of a brick chimney mounted on a platform, with no visible text or symbols

ii. Sliding the chimney to adjust the chimney height. When the height you required is reached, then hang the fixing hole to the screws as showed in below pictures.

Inner chimney Outer chimney

8.

i. Drill 2 x 8mm holes to accommodate the plate II. Screw and tighten the plate II onto the wall with 2 screws provided.
ii. Assembly the chimney onto the unit and fix it with 2 screws.

Plate II Wall plug Screw 4mm x 8mm Screw (4mm x 30mm)

StandardInstallationAccessoriesList

Spec.Illustration	PictureQty
AirDeflector		1
Bracket		1
φ8 rawl plugs φ8×φ6 white color		2
Screws ST4.0×30		2
Screws ST3.5×12		2

Airdeflectorismentionedasincludedandnotoptional.

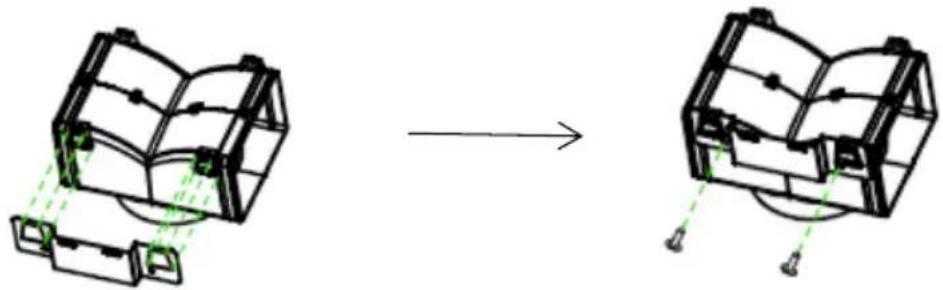

1. FixthebrackettotheT-shapedplasticoutletwith2pcsST3.5x12mmscrews providedasshownbelow:

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

1. Drill2holesonthewalltoaccommodatethewallplugs, thenscrew and tightenthebracketontothewallwith2pcsST4x30mmscrewsprovided.

Diagram of a kitchen chimney mounted on a brick wall, with no visible text or symbols

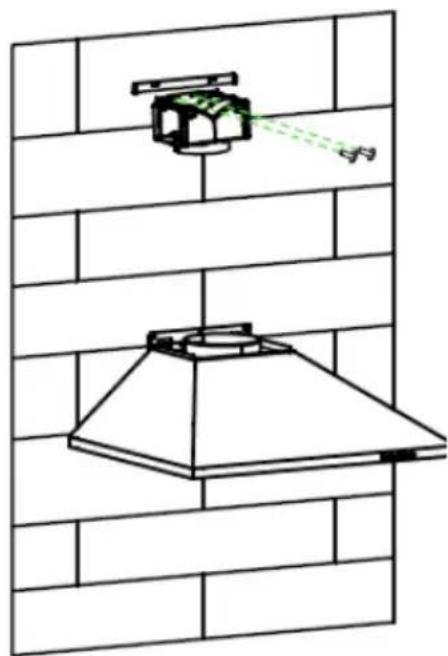

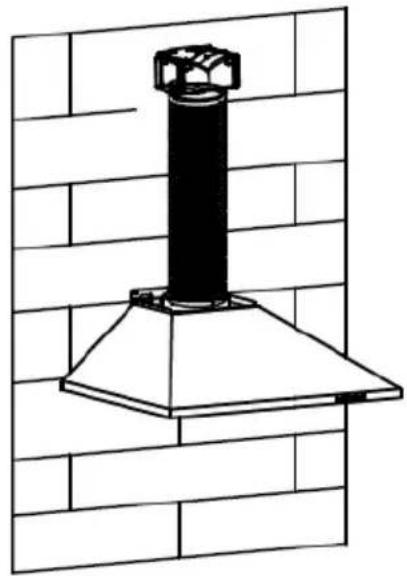

1. Attach the exhaust pipe onto the air outlet of the cooker hood as shown below:

Line drawing of a black smokestack mounted on a white chimney against a brick wall (no text or symbols)

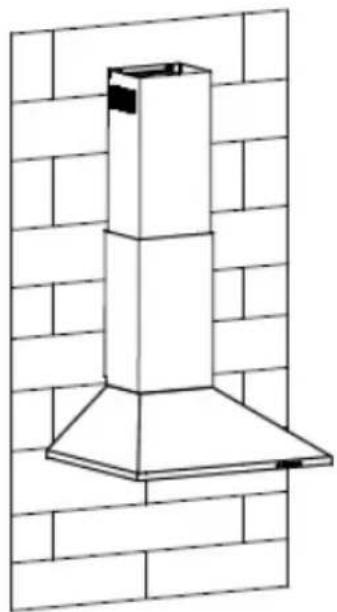

1. Install the chimney to the unit and fix it.

Line drawing of a double-hopper kitchen chimney mounted on a brick wall (no text or symbols)

o“Pleasekindlybenoted:T-shapedplasticoutletandv-flapscannotbeused at the same time. You can usethemintwoways:1) Addv-fla utlet;2)UseT-shapedplasticoutlet,noaddv-flap.”

o"Note: Theproductisprovidedwithv-flapaccessory. Thisaccessoryisnot mandatoryforinstallation,operationanduseoftheproduct."

INSTALLATION (VENT INSIDE)

If you do not have an outlet to the outside, exhaust pipe is not required the installation is similar to the one show in section "INSTALLATION (VENT OUTSIDE)".

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

Activated carbon filter can be used to trap odors.

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Illustration of a hand pressing down on a piano keyboard (no text or symbols)

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

Technical line drawing of a mechanical component with no visible text or symbols

NOTE:

o Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
o When activated carbon filter attached, the suction power will be lowere

DESCRIPTION OF COMPONENTS

Diagram showing Wi-Fi signal, a square, and a phone icon with plus sign

OPERATION

Wi-Fi Connection

Long press WiFi icon and enter into connecting mode: the backlit of WiFi icon keep flashing indicate the connection is under connecting, the backlit of WiFi icon is light on indicate it is connected, same for standby mode; long press WiFi icon again and the connection will be stopped;

Speed plus button

For increasing the speed of the fan

Speed decrease button

For decreasing the speed of the fan.

Light button

Digital display

Fan speed display:"1" for Low speed, "2" for Medium speed, "3" for High speed, "4" for Booster function.

Quick timer: Press + & hold for 1 second, Digital display will flashing & into 5 minutes count down, after 5 minutes motor & will turn off automatic & Buzzer sound for 1 second.

Booster function

This hood has a booster function. To activate the booster, Press + to speed 4, enter into highest speed while the hood is in use and it will increase speed for 5 minutes, before slowing down again.

Download hOn App

First of all, you should download hOn APP and install to your portable device. Then enroll your hood.

QR code image containing encoded data, no visible human-readable text

NOTE

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

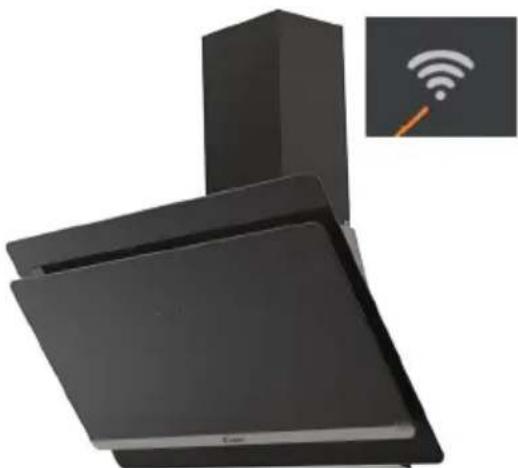

ENROLLMENT CANDY HOOD

Exterior view of a modern office building (no signage)

The image of the hood has the only purpose of presenting it. May not be perfectly representative.

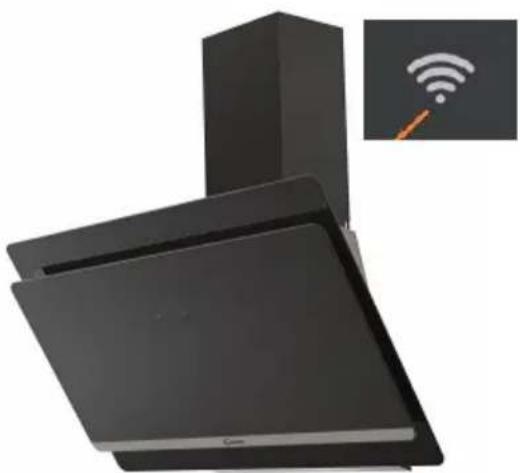

1- Press the WiFi button until the icon starts blinking When the pairing is completed the WiFi icon will be on.

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust..... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequent the cooker hood used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

Pure electrical circuit lines without any symbols

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same manners as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws fully tightened.

TROBULESHOOTING

Fault Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	Halogen light bulb burn.	Replace the bulb with correct rating.
	Power cord looses. Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

Technology Wi-Fi
Standard 802.11 b/g/n
Frequency Band(s)[MHz]	2400 MHz - 2483.5 MHz
Maximum Power[mW]	100 mW

Product information for networked equipment
power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated:	2W
How to activate wireless network port:	If the Hood has been enrolled with the APP, turn on the Hood to activate wireless network port.
How to deactivate wireless network port:	If the Hood has been enrolled with the APP, turn off the Hood to deactivate wireless network port. If the Hood hasn't been enrolled with the APP, wireless network port will be deactivated even the Hood is on.

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.

Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a rectangular electronic device with mounting brackets and internal components (no text or symbols)

Diagram of a brick wall with a cylindrical object inserted into a container, no text or symbols present

Diagram showing a mechanical assembly before and after transformation, with no visible text or symbols.

Technical line drawing of a ceiling-mounted device mounted on a brick wall, with no visible text or symbols.

Line drawing of a black smokestack mounted on a white brick wall (no text or symbols)

Line drawing of a chimney mounted on a brick wall (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a piano keyboard (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

Fermé

REMARQUE :

Diagram showing Wi-Fi signal, a minus sign, a plus sign, and a small circle symbol with a lightning bolt.

FONCTIONNEMENT

Connexion Wi-Fi

QR code image containing encoded data, no visible human-readable text

REMARQUE

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

ENREGISTREMENT DE LA HOTTE CANDY

Exterior view of a modern office building (no signage)

Pure technical diagram showing two vertical arrows pointing downward to a horizontal line with a small rectangular component, no text or symbols present.

STROMSCHLAGGEFAHR....41

ELEKTRISCHE INSTALLATION 42

INSTALLATION (WANDMONTAGE)......44

INSTALLATION (ENTLÜFTUNG INNEN)......52

INSTALLATION (Wandmontage)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a rectangular electronic device with mounting brackets and internal components (no text or symbols)

Isometric line drawing of a brick wall with a mounted structure and support base (no text or symbols)

Diagram showing a device being processed from a component, with no visible text or symbols

Technical line drawing of a kitchen chimney mounted on a brick wall, with no visible text or symbols.

Line drawing of a black smokestack mounted on a white brick wall (no text or symbols)

Line drawing of a chimney mounted on a brick wall (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a piano keyboard (no text or symbols visible)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

Schließen

HINWEIS:

Diagram showing Wi-Fi signal, a minus sign, a plus sign, and an icon with a lightning bolt symbol

BETRIEB

WiFi-Anschluss

QR code image containing encoded data, no visible human-readable text

HINWEIS

Get ready to add your appliance

Stay close to your appliance

While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability.

Prepare to enter your Home Wi-Fi password.

ANMELDEN DER CANDY-ABZUGSHAUBE

Exterior view of a modern office building (no signage)

Pure mechanical diagram showing two downward arrows pointing to a central component (no text or symbols)
