USER MANUAL Heat Guru Turbo Blumfeldt

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. CONTENT Safety Instructions 14 Assembly 16 Operation 18 Cleaning and Maintenance 19 Disposal Considerations 20 Manufacturer & Importer (UK) 20 TECHNICAL DATA Part number 10035937 Power supply 220-240 V ~ 50/60 Hz Power 2000 W Protection class IP4414

• Do not leave this unit unattended when in use.

• This heater will get hot when in use. Do not touch hot surfaces. CAUTION Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given when children and vulnerable people are present.

• Do not move the unit when in use. Wait until the heater is completely cool before moving and check that it has been unplugged from the power supply.

• Position the unit at least 1.5 m away from highly combustible materials such as furniture, trees, leaves, dry grass and bushes.

• The heater must not face with the heating element pointing upwards towards a ceiling. The heater element must be facing the area it is to heat. Note: In order to avoid overheating do not cover the heater. It is not for drying clothes.

• Keep children and pets at a safe distance from the unit.

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Do not operate the heater if any signs of damage or malfunction manifest themselves.

• Do not attempt to repair or adjust any electrical or mechanical functions on this unit. The unit does not contain any user serviceable parts. Only a quali ed electrician should perform servicing or repairs.

• If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly quali ed persons in order to avoid a hazard.

• Do not handle the element with bare hands. If it is inadvertently touched, remove nger marks with a soft cloth and methylated spirits or alcohol, otherwise the marks will burn into the element causing premature heater failure.15

• Do not replace or attempt to replace the element in this product.

• Do not use this heater in the immediate surroundings of a bath, shower or swimming pool.

• This product must not be left outdoors exposed to the elements for long periods of time.

• Do not touch the plug with wet or damp hands.

• Do not run the power cable under carpeting. Do not cover the power cable with rugs, runner, or similar coverings. Arrange the power cable away from foot trafc and where it will not be tripped over.

• Do not wind the power cable around the unit.

• Do not insert or allow foreign objects to enter any ventilation or opening on the heater, as this may result in electric shock, re, or damage to the heater.

• To prevent a possible re, do not block the air vents.

• A heater has hot and arcing or sparking parts inside. Do not use in areas where petrol, paint, explosive and/or ammable liquids are used or stored. Keep unit away from heated surfaces and open ames.

• Where possible, avoid the use of an extension cable as this may overheat and cause a re. However, if you have to use an extension cable, ensure it is suitable for the purpose, has been tested for outdoor use and preferably has an RCD device tted or attached.

• Always ensure the heater is plugged into a suitable socket, one that is tested for outdoor use.

• Always unplug the unit and ensure the unit is completely cold before moving, cleaning or storing.

• This heater is intended for domestic use only and should not be used commercially for contract purposes. Any alternative use, not recommended by the manufacturer, may result in re, electric shock, or injury to persons.

• The use of attachments on the heater is not recommended.

• Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a re risk exists if the heater is covered or positioned incorrectly. Important note on transport safety There are foam transport locks between the grids of the radiant heater. Remove the transport locks completely before operating the device, otherwise there is a risk of re.16

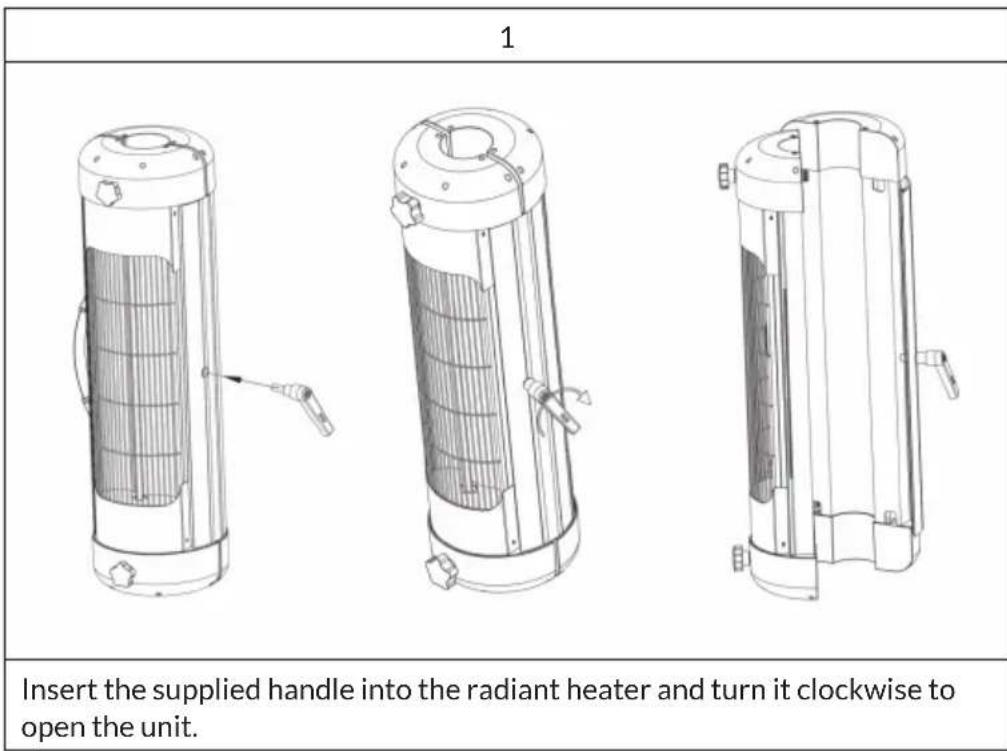

Insert the supplied handle into the radiant heater and turn it clockwise to open the unit.

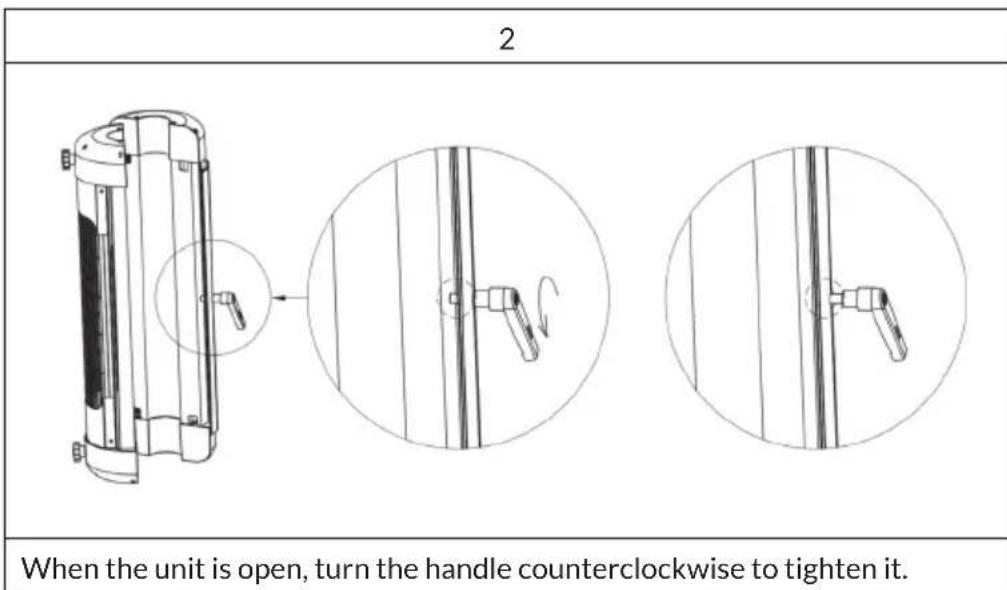

When the unit is open, turn the handle counterclockwise to tighten it.17

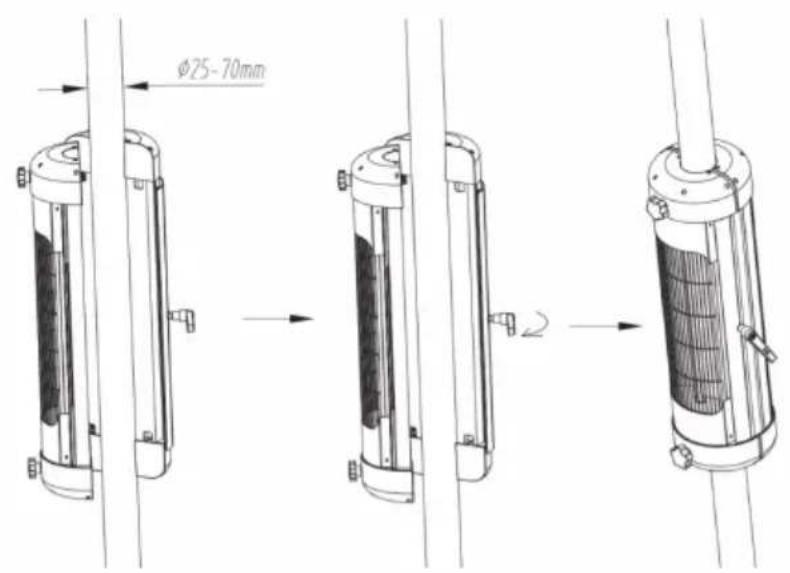

Install the heater on a rod or post with a diameter of 25-70 mm.

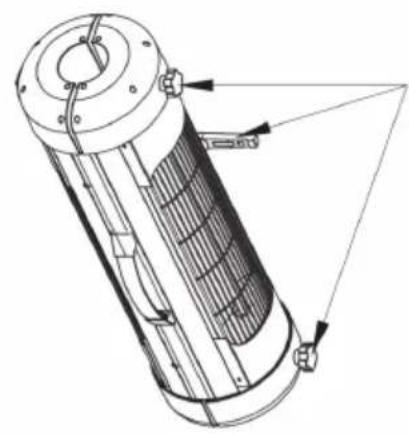

Adjust the position of the radiant heater (at least 50 mm from the oor) and then x it by turning the two star-shaped locking knobs clockwise.18

OPERATION Important notes on operation

• The device must not be used without a rod/post.

• Do not disassemble the device while it is in operation.

• Do not use the locking knobs and handle while the device is in operation. Commissioning and operation Connect the power plug to a power outlet located in a dry area protected from water. Then press the switch on the top of the heater, which is used for heat setting.

• Position (I) for 1000 W

• Position (II) for 1000 W

• Position (I & II) for 2000 W

• In position „0“ the heater is switched off. Note: Although the heater is waterproof, do not use it during rain or in wet environments. Always unplug the heater from the wall outlet when not in use.19

CLEANING AND MAINTENANCE

• Disconnect the plug from the socket and allow the device to cool down completely.

• Clean the device housing with a soft, damp cloth. If necessary, a mild cleaning agent can also be used. Dry the device with a soft cloth after cleaning.

• Do not use alcohol, benzine, scouring powder, furniture polish or scouring brushes to clean the device. This could damage the surface of the device.

• Although the device is suitable for outdoor use, for your own safety, never immerse it in water.

• Wait until the device is completely dry before using it. Storage Store the device in a cool and dry place when not in use. Store the instrument in its original packaging to avoid dust and dirt accumulation inside the instrument. Troubleshooting If the unit does not operate as specied, check the following instructions before contacting the manufacturer or customer service:

• Check that the plug is in the socket. If not, plug it in.

• Make sure that the main fuse is working.

• Make sure that the device is turned on. If not, select a setting.20

DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service. MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom21
