USER MANUAL Home WM623BELL WILFA

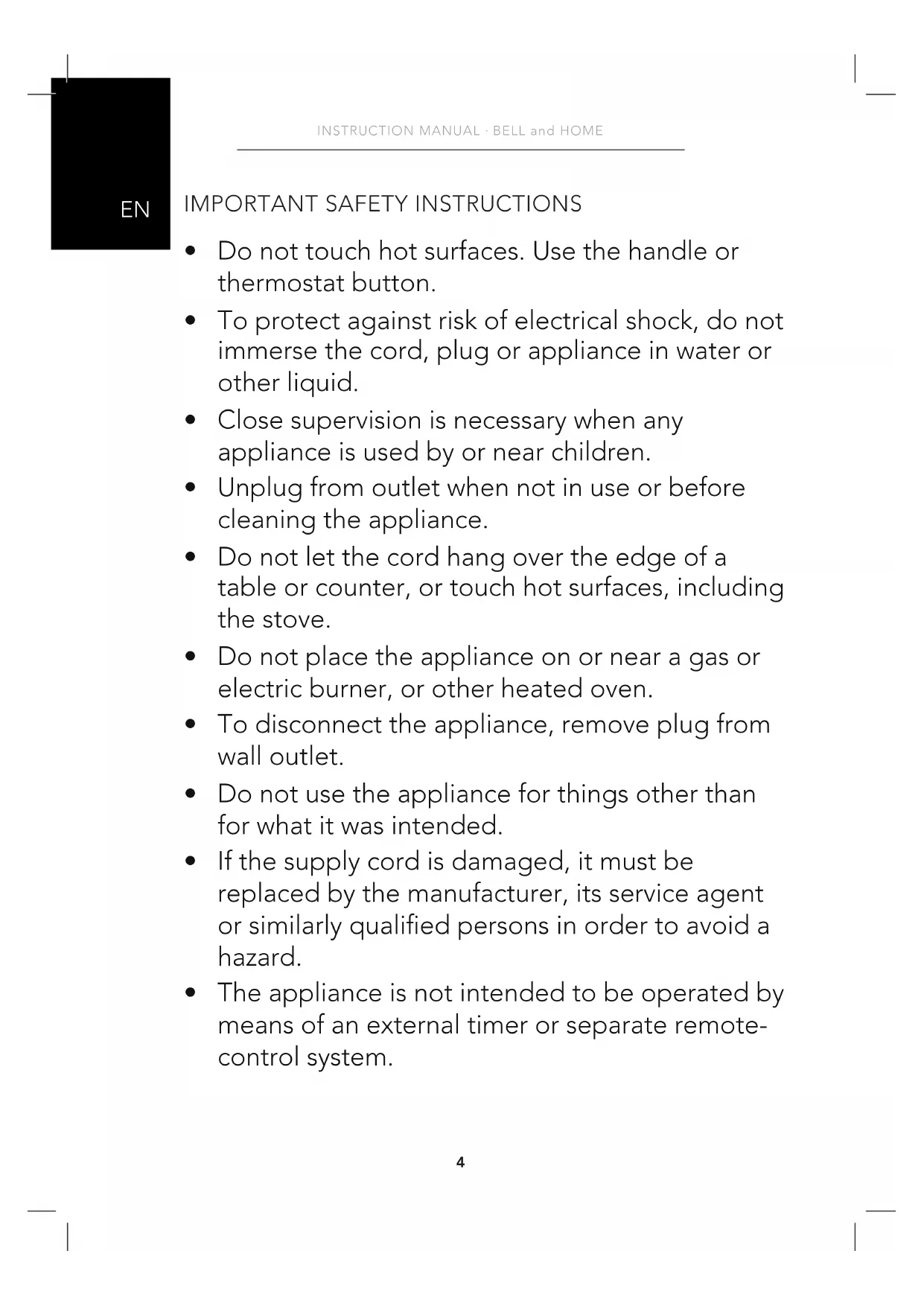

• To protect against risk of electrical shock, do not immerse the cord, plug or appliance in water or other liquid.

• Close supervision is necessary when any appliance is used by or near children.

• Unplug from outlet when not in use or before cleaning the appliance.

• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces, including the stove.

• Do not place the appliance on or near a gas or electric burner, or other heated oven.

• To disconnect the appliance, remove plug from wall outlet.

• Do not use the appliance for things other than for what it was intended.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• The appliance is not intended to be operated by means of an external timer or separate remote- control system.5

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

• This product is intended for indoor, non- industrial, non-commercial, household use only. Note:

• A short power cord is provided to reduce the hazards resulting from entanglement or tripping over a longer cord. An extension cord may be used with care; however, its marked electrical rating should be at least as great as the electrical rating of this appliance. The extension cord should be positioned such that it does not hang over the counter or tabletop where it can be pulled on by children or tripped over.

• The electrical rating of this appliance is listed on the appliance’s rating plate.

BEFORE USING FOR THE FIRST TIME

Before using for the rst time, the hotplates should be cleaned with a moist cloth.We recommend lightly greasing the hotplates when using the appliance for the rst time. This will not be necessary on subsequent occasions. The rst wafe should not be eaten.6

1. Insert the plug into a standard electrical outlet. Make sure that the voltage

to be used agrees with the rated voltage of your appliance.

2. Close the wafe iron and prepare wafe batter while the wafe iron heats up.

Set the thermostat regulator to the desired setting.

3. The power (red), indicator lights will light up. When the green indicator

lights up (after about 4 minutes), the wafe iron is ready for baking.

4. Open the appliance and pour the wafe batter onto the centre of the lower

hotplates. Using the included ladle will result in the correct amount of batter being used. Close the appliance carefully. Do not force shut. Steam may be ejected from between the hotplates.

5. When the green indicator light turns off, the red indicator light will light.

After few minutes the green light will light up and the wafe is ready.

6. If you think the wafe is too light or too dark, adjust the thermostat.

• Care must be taken to ensure that ngers do not come into contact with the hotplates.

• During baking, the ready light will turn on and off as the thermostat keeps the wafe iron at the right temperature.

• Your wafe will bake in about 2 minutes or longer depending on your personal tastes. When baking is nished, open the wafe iron and remove the wafe with a plastic or wooden spatula. Never use a metal knife as this may damage the non-stick coating. The appliance should be kept closed in-between baking wafes.

• After use, remove the plug from the wall socket. AUDIO SIGNAL Only applies to Wilfa BELL (WM-623BELL). This model is equipped with an audio signal, which can be turned on and off. The on/off button is found under the handle. HELPFUL HINTS

• Always preheat the wafe iron before baking. Plug the wafe iron in rst, and prepare the batter while the wafe iron is heating.

• If you want light-coloured wafes, turn the thermostat lower (to the left). If you prefer darker wafes, turn the thermostat higher (to the right).

• If the lid resists lifting allow the wafe to bake a little longer, and then try lifting the lid again.

• If the wafe sticks to the top cooking plates, remove them with a plastic or wooden spatula.

• Let wafe cool slightly on an oven grate before eating to avoid possible burns.7

• Top baked wafes with different fruits or ice cream to create your own specialties.

• The included ladle measures out the correct amount of batter.

• These wafe irons hotplates are a new, revolutionary design. The coned design ensures that the batter is evenly distributed and that all the air is pressed out of the wafe iron. It is therefore not necessary to spread out the wafe batter using a ladle or similar. This is done automatically when you close the wafe iron. CLEANING

• Always pull out the plug before any cleaning operation and allow the appliance to cool down.

• Never immerse the appliance in water or hold it under running water.

• Wipe down the casing with a moist cloth only.

• Clean the hotplates after they have cooled down with a moist cloth or with a very soft brush.

• Never use sharp or pointed objects or any abrasive cleaning agents for cleaning purposes. WAFFLE RECIPE 2 egg 100 g sugar 2 dl buttermilk 1 1/2 dl milk 1 dl water 350 g our 1 1/2 tsp baking powder 1tsp vanilla sugar 1/2 tsp cardamom powder 120 g melted butter

1. Beat eggs and sugar together in a bowl

2. Stir in the milk, buttermilk, and water

3. Mix all the dry ingredients in a separate bowl, and mix it into the liquids until

the batter is smooth

4. Let the batter swell for 15 minutes

INSTRUCTION MANUAL · BELL and HOME GUARANTEE Wilfa issues a 5 year guarantee on this product from the day of purchase.The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee. The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modied or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product

• Coating Instruction manual is also available at our website; wilfa.com9 AS Wilfa Nydalsveien 24, 0484 Oslo, Norway

For support please visit us at wilfa.com, and see our customer service/support page. Here you will nd frequently asked questions, spare parts, tips and tricks and all our contact information. RECYCLABILITY This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.10
