Product type	Electric fireplace
Brand	Klarstein
Model	Graz
Power supply	220-240 V ~ 50/60 Hz
Nominal heating power	2.0 kW
Adjustable heating power	1000 W (I) and 2000 W (I+II)
Flame simulation	Yes, with brightness adjustment
Thermostat	Yes, adjustable
Overheat protection	Yes, automatic shutdown and reset after 10 min
Use	Indoor, well-insulated rooms
Safety distance	1 meter from combustible materials
Cleaning	Vacuum cleaner for grilles, damp cloth for surfaces
Maintenance	Unplug and let cool before cleaning
Storage	In a dry, dust-free place
Repairs	Only by a qualified professional
Article number	10033094, 10033095
Weight	Not specified (estimated: ~10 kg)
Dimensions (estimated)	Approximately 60 x 40 x 20 cm

Frequently Asked Questions - Graz Klarstein

What is the heating power of the Klarstein Graz fireplace?

The fireplace offers two power levels: 1000 W (mode I) and 2000 W (mode I+II). The nominal power is 2.0 kW.

Can I use the fireplace without heating, only with the flame simulation?

Yes, you can activate only the flame simulation without the heating by pressing the corresponding button. The brightness of the flames is adjustable.

How to set the desired temperature?

Use the thermostat knob to select the desired room temperature. The heating stops automatically when the temperature is reached.

What to do if the heating stops suddenly?

This may be due to overheat protection. Turn off the device, unplug it, and wait at least 10 minutes before plugging it back in and turning it on. Make sure the air inlets are not obstructed.

What safety distances must be maintained?

Maintain a distance of at least 1 meter from combustible materials such as furniture, curtains, or bedding. Do not place the fireplace directly under a power outlet.

How to clean the Graz electric fireplace?

Unplug the device and let it cool down. Use a vacuum cleaner for the ventilation grilles and a damp (not wet) cloth for the outer surfaces. Do not use aggressive or abrasive detergents.

Can the fireplace be used in a bathroom?

No, the device must not be used near a bathtub, shower, or swimming pool. It is intended for indoor use in dry, well-insulated rooms.

Can children use the fireplace?

Children should only use the device under adult supervision. Some parts can become very hot, posing a burn risk. Keep the device out of reach of unsupervised children.

What to do if the power cord is damaged?

The cable must be replaced by a qualified professional to avoid any risk. Do not use the device with a damaged cable.

Where can I find spare parts for the Klarstein Graz fireplace?

Repairs must be carried out by an authorized specialist. Contact the manufacturer (Chal-Tec GmbH) or customer service for spare parts.

USER MANUAL Graz Klarstein

ONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

KLARSTEIN

www.klarstein.com

Note: This product is only suitable for well insulated spaces or occasional use.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SICHERHEITSHINWEISE

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

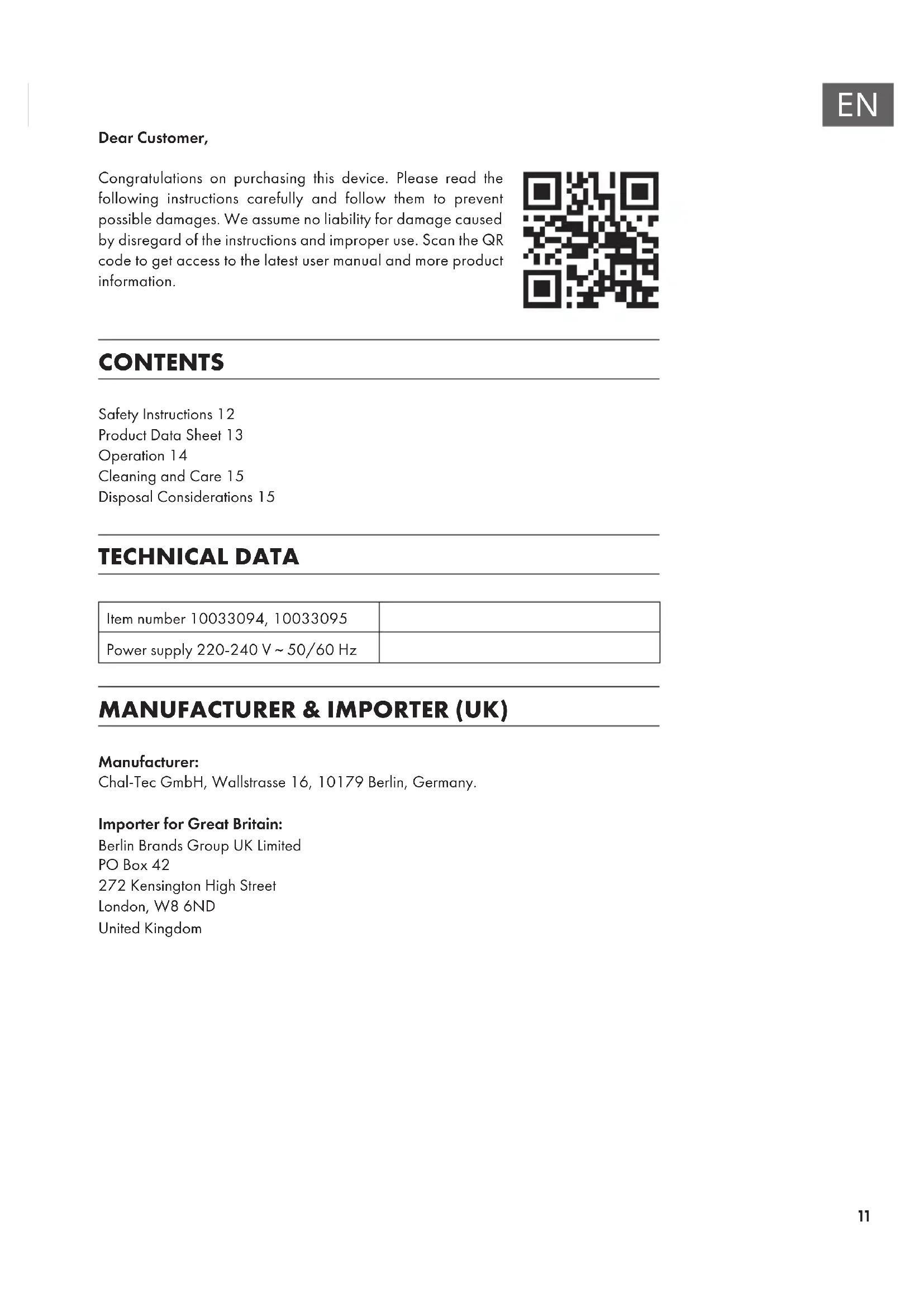

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 12

Product Data Sheet 13

Operation 14

Cleaning and Care 15

Disposal Considerations 15

TECHNICAL DATA

Item number 10033094, 10033095
Power supply 220-240 V ~ 50/60 Hz

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SAFETYINSTRUCTIONS

• Do not use the appliance until it is securely fixe d as described in this manual.
• Check that the voltage indicates on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• If the supply cord is damaged, it must be replaced by a qualified engineer in order to avoid a hazard.
• The fi replace heater must not be positioned directly under the power socket.
• Keep furniture, curtains and other flammable material at least 1 meter away from the appliance.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
• Keep out of reach of children and do not allow them to operate this appliance.
• This appliance is intended for household use only and should not be used for industrial purposes.
• Do not operate this appliance after a malfunction or after being damaged in any way.
• Repairs to electrical appliances should only be performed by a qualified electrician.
• Improper repairs may place user at serious risk.
• Do not run the mains cable under carpets, rugs, etc.
• Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.
• In order to avoid overheating, do not cover the heater.
• Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• Never immerse the product in water or any other liquid for any reasons.
• Do not use this heater in the immediate surroundings of a bath, a shower or any swimming pool.
• Do not use the appliance outdoors.
• Do not use if you have wet hands.
• Never use the appliance on or near hot surfaces.
• Do not operate with a damaged cord.
• Before cleaning the appliance, make sure it is unplugged from the power and that it is completely cooled.
• Do not clean the appliance with abrasive chemicals.
• Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the appliance.
• This appliance is not intended for use by persons (including children) with reduced Physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

PRODUCT DATA SHEET

Model identifier(s): 10033094	10033095
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space				heaters only
Nominal heat output P	nom	2.0 kW	manual heat	charge control, with integrated thermostat		N/A
Minimum heat output (indicative)	Pmin	N/A kW	manual heat	charge control with room and/or outdoor temperature feedback		N/A
Maximum continuous heat output	Pmax,c	N/A kW	electronic	heat charge control with room and/or outdoor temperature feedback		N/A
Auxiliary electricity consumption					fan assisted heat output N/A
At nominal heat output (fan motor)	elmax	N/A kW		Type of heat output/room temperature control
At minimum heat output (fan motor)	elmin	N/A kW	single stage	heat output and no room temperature control		no
In standby mode el	SB	N/A W	Two	or more manual stages, no room temperature control		no
				with mechanic thermostat room temperature control		no
				with electronic room temperature control		yes
				electronic room temperature control plus day timer		no
				electronic room temperature control plus week timer		no
				Other control options (multiple selections possible)
				room temperature control, with presence detection		no
				room temperature control, with open window detection		no
				with distance control option		no
				with adaptive start control no
				with working time limitation		no
				with black bulb sensor		no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

OPERATION

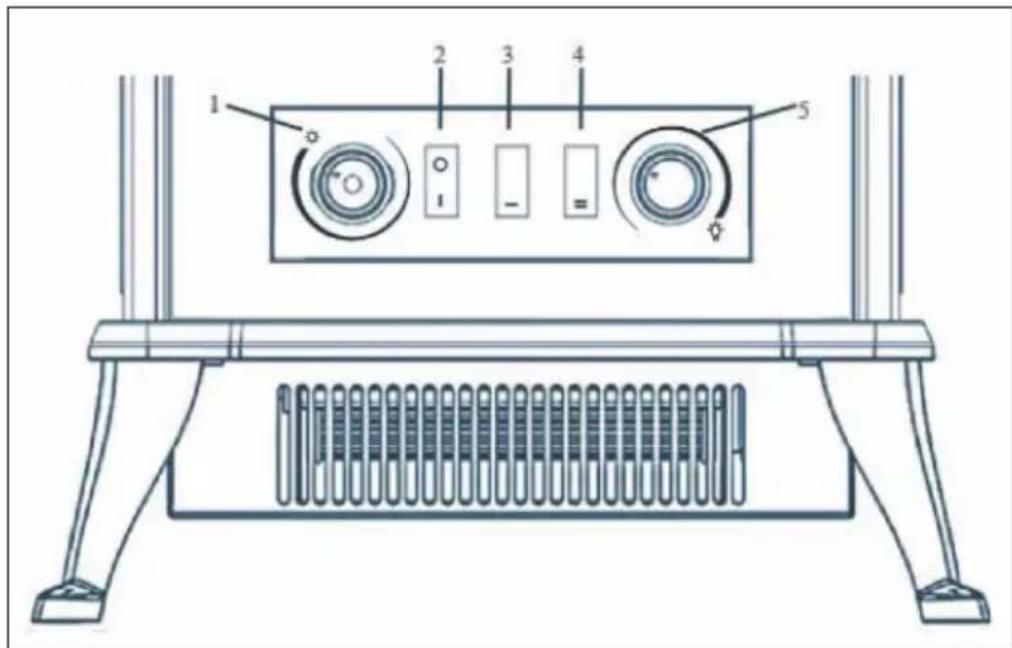

Control Panel and Button Functions

1 Thermostat control knob: Adjust to maintain room temperature.
2 Flame switch: Switches flame effect and power on/off.
3 Low heating setting: please press (I) for 1000 W.
4 High heating setting: please press (I) and (II) at the same time for 2000 W. Note: Can not operate without first press (II).
5 Flame dimmer control: Adjust to set flame intensity.

Note on Overheating Protection

If the heater stops working, turn the heater off and inspect the blockage of inlet or outlet. Disconnect the plug and wait at least 10 minutes for the protection system to reset before attempting to restart the heater. If the safe device still switches the heater off and makes the heater fail to operate, take the heater to your nearest service center for examination or repair.

Attention: before restarting the heater, the plug must be disconnected for at least 10 minutes

CLEANING AND CARE

Note: Turn off the unit and unplug it from the power outlet. Wait until the unit has completely cooled down before cleaning it.

• Use a vacuum cleaner to clean the ventilation slots and grilles.
• Remove dust on the outside surfaces with a damp (not wet) cloth.
• Do not use strong cleaning agents or abrasives.
• Do not spray the device with liquids or immerse it in water or other liquids.
• Never open the heater housing.

Storage

Keep the unit in a dust-free place during the low season. Pack it in the original carton.

Wind the heater cable cleanly to avoid damaging the cable.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
