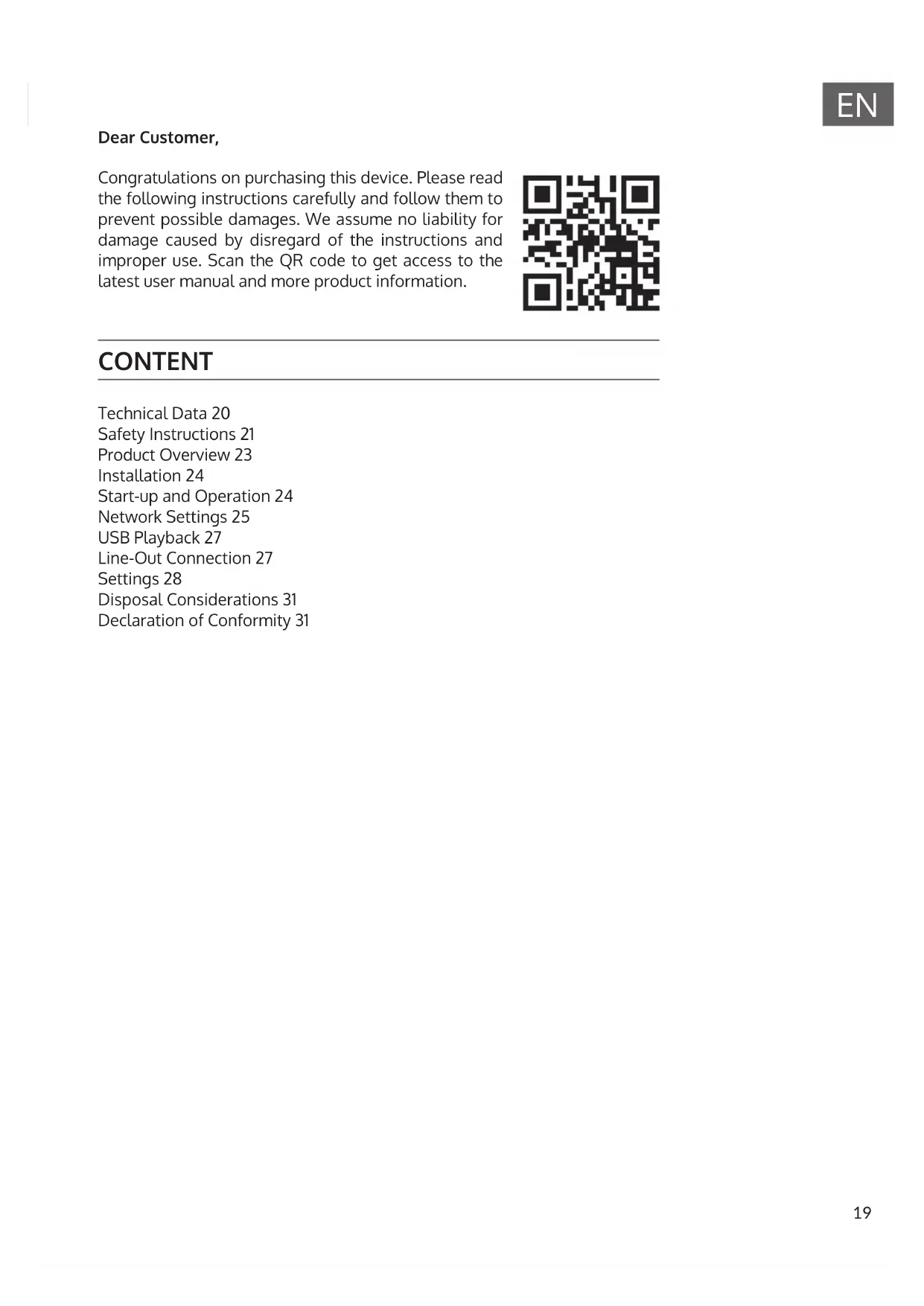

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. CONTENT Technical Data 20 Safety Instructions 21 Product Overview 23 Installation 24 Start-up and Operation 24 Network Settings 25 USB Playback 27 Line-Out Connection 27 Settings 28 Disposal Considerations 31 Declaration of Conformity 3120

TECHNICAL DATA Order number 10034904, 10034905 Network 802.11 b/g/n Max. transmission power 17 dBm (EIRP) Encryption (WLAN) WEP, WPA, WPA 2 (PSK), WPS Supported le types WMA, MP3 Connections DC (power supply), USB connection, 3.5 mm line out connection Power supply (power pack) 100-240 V ~ 50/60 Hz, 0.2 A max. Output power 5 V / 1.5 A Power consumption 5 W Power consumption (Standby) < 1 W21

• Lightning - If you are not going to use the device for a long time or if there is a storm, disconnect the plug from the electrical outlet and disconnect the device from the antenna connector. This will avoid damage to the product that may be caused by lightning or overvoltage.

• Overload - Do not overload power outlets, extension cords, or built-in power outlets, as this may result in a re or electric shock.

• Foreign objects and liquid - Never push objects of any kind through openings in the device as they may touch dangerous voltage points or short out parts, which could result in a re or electric shock. Never spill liquids of any kind on the device.

• Repairs and maintenance - Do not attempt to service this product yourself, as opening or removing covers will expose you to dangerous voltages or other hazards. Leave all maintenance to qualied service personnel.

• Damage requiring service - Disconnect the power plug from the outlet and consult a qualied specialist if any of the following conditions occur: a) If the power cord or plug is damaged. b) If liquid has been spilled or objects have fallen onto the product. c) If the product has been exposed to rain or water. d) If the product has been dropped or damaged. e) If the product has a markedly reduced performance.

• Replacement parts - When replacement parts are required, make sure that the service professional who replaces the parts only uses replacement parts that have been approved by the manufacturer or that have the same characteristics as the original part. Unauthorized replacement may result in re, electric shock or other hazards.

• Heat - Do not place the unit near heat sources such as radiators, heaters, stoves or other products (including ampliers).22

Special Instructions

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

• Children should be supervised to ensure that they do not play with the appliance.

• Ensure children and babies do not play with plastic bags or any packaging materials.

• Mains plug/Power adaptor is used as disconnect device and it should remain readily operable during intended use.

• In order to disconnect the apparatus from the mains completely, the main plug/power adaptor should be disconnected from the mains socket outlet completely.23

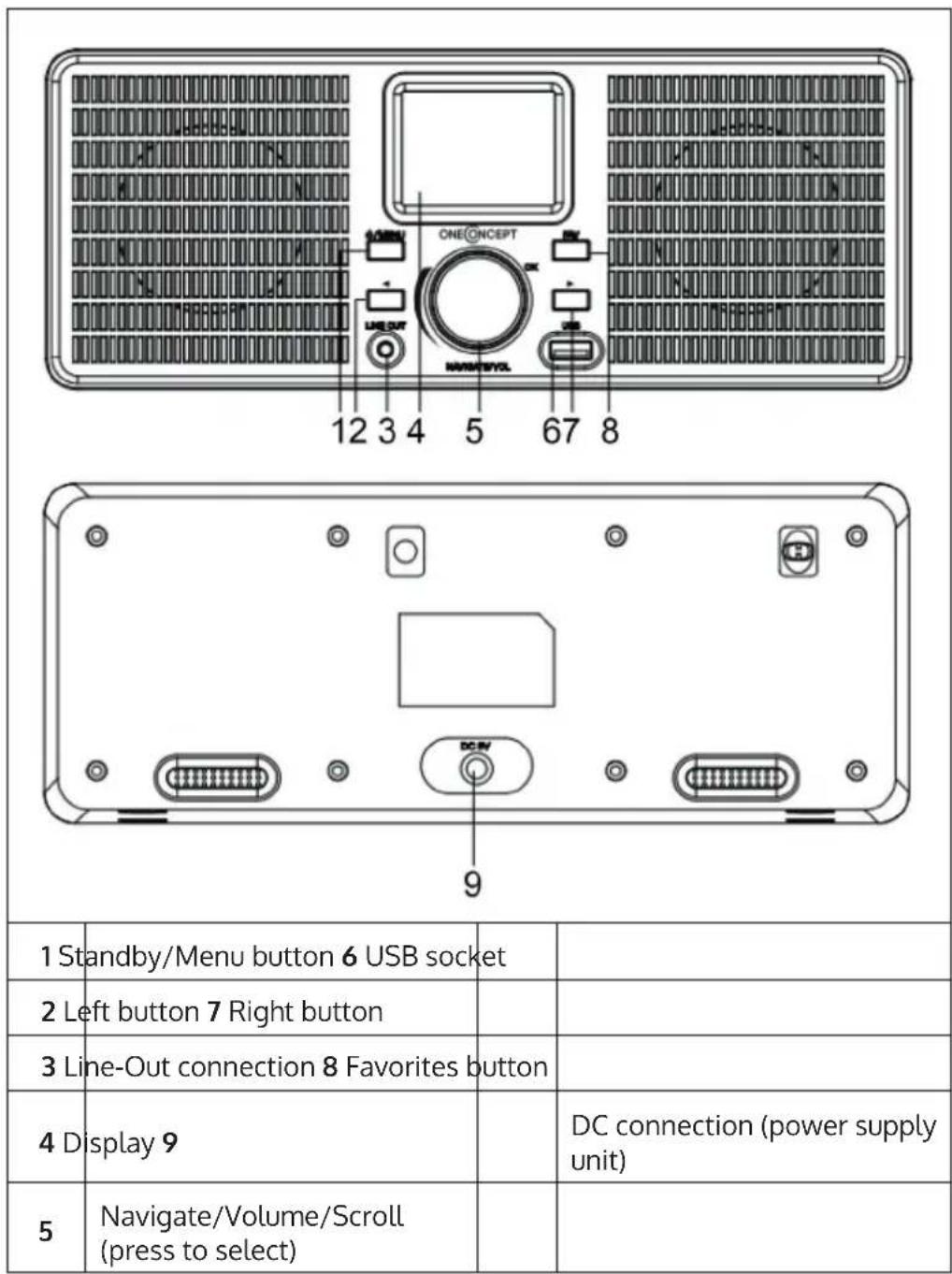

INSTALLATION Unpack all parts of the device and remove all packing material. Do not insert the power plug of the appliance into the power outlet until you have checked the voltage of the outlet and all connections have been made.

START-UP AND OPERATION

First use Before use, make sure that the voltage indicated on the nameplate of the device corresponds to the voltage of the power outlet. Turn on the power using the power switch on the back of the unit. When you use the machine for the rst time, it is necessary to set the language and network settings on the machine. You can connect to the network either immediately or at a later time. Use the NAVIGATE/VOL knob to select the desired options. Press the NAVIGATE/ VOL. knob to conrm. If you press and hold the MENU button while the power is on, the unit will go into standby mode. If you press the button again, the unit will be turned on again.25

NETWORK SETTINGS Normal network setting Select „Yes“ for the normal network setting: Select the AP you need with the NAVIGATE/VOL knob and conrm your selection by pressing the knob. Enter the WEP or WPA password required for the desired wireless network using the NAVIGATE/VOL knob. Press the [>] button to select the next letter/number and press the [<] button to delete incorrect entries. When you have entered the password completely, press the NAVIGATE/VOL. button to conrm. Note: The following characters can be entered on the unit:

• Numbers (from 0 - 9)

• Letters (from A (a) to Z (z))

• Special characters: DEL, @, space, !, „, #, $, %, &, *, ‚, + and , WPS PBC network conguration Select „Yes WPS“ if you want to connect to a wireless network (WPS PBC): If you are using a router with a WPS button, you can easily connect to the network using the WPS function. Open the WPS function and press the WPS button on your router within 120 seconds. Select „No“ if you do not want to connect to the network at this time. No network setting Select „No“ if you do not wish to establish a network connection at this time. Press and hold the MENU button to put the unit in standby mode. When the current date and time is displayed, the network connection has been successfully established. The date, time and any alarms you have set are also displayed on the screen in standby mode.26

Internet radio Put the device in standby mode and use the NAVIGATE/VOL knob in the main menu to display the various options. Press the control dial to enter the submenus or to conrm a setting. Press the [<] button to return to the previous menu. If the connection to any station is successful, the station information will be displayed on the screen. You can change the displayed information by pressing the [<] or [>] button. My Favorites You can save your favourite channels in a list. Up to 250 favourites, including channels and folders, can be saved. To store a station in the Favorites list, press the FAV button during station playback. If you wish, a previously saved station can be replaced with the current station. If the currently listened station has already been saved in the Favorites list, it cannot be saved again. The previously saved stations can be displayed in this menu. You can also press the FAV button to display the Favorites list. In the FAV list, select the station you want to listen to and press the NAVIGATE/VOL. button to conrm your selection. Radio station/music Radio stations are categorized into Global Top 20, Genre and Country/ Location (Africa, Asia, Europe, Middle East, North America, Atlantic/Pacic and South America). Enter the desired location, continue with the submenu and select the station you want to listen to. You can press the NAVIGATE/ VOL knob for any station on the unit to play the station directly. Local radio stations The stations are categorized according to the country/location where the device is used.27

Alarm tones You can choose between Birds, Lullaby, Piano, Rain, Spa, Space, Wave, White Noise, and Wave. History The 10 most recently listened to stations are displayed. AirMusic App Press the NAVIGATE/VOL button and scan the displayed QR code with your mobile device to download the app. USB PLAYBACK Menus are generated from the folders on the USB device. WMA/ MP3/ AAC/ AAC+/ FLAC and WAV formats are supported. FLAC supports 16 bit/ 8K ~ 48K sampling rate, 64 Kbps. Browse the folders using the NAVIGATE/ VOL. The name of the folder and the names of the les will be displayed on the screen (not necessarily the names of the tracks). Once you have found the song you want to play back, press the NAVIGATE/VOL. knob. Note: Data transfer with a PC is not possible via the USB port of the unit. LINE-OUT CONNECTION You can connect the unit to external speakers via the line-out connector. Note: The volume can then also be adjusted via the speakers.28

SETTINGS Device The factory default name for the unit is AirMusic. You can change the name in the DLNA settings of your computer or mobile device. Use the QR code to download the AirMusic App. Information about the device and the connected network can be displayed. This information includes the MAC address. Menu You can choose from "Sleep Radio" (time to auto power o), "Local Radio," "Internet Radio," "USB," "Alarm," and "Timer" and have your selection displayed on the main screen. Network Wireless network setting: Enable/disable wireless network. When you enable the wireless network, the unit automatically selects the AP you need. A WEP or WPA password is required to connect the device to the wireless network. Wireless network setting (WPS PBC): If you use a router with a WPS button, you can easily connect to the network using the WPS function. Open the WPS function and press the WPS button on your router within 120 seconds. The connection between the router and your device is established automatically. Manual setting: You can select DHPC (with automatic IP selection) or enter the IP address manually to establish the wireless connection. If you select manual setting, the following entries must be made: SSID (name of access point), IP address, subnet mask, default gateway, preferred DNS server, alternate DNS server. Network Check (Power On): Enables/disables the wireless network. When you enable the wireless network, the device automatically searches for available AP. Select the required AP.29

Dimming Saving energy/ Switching on Alarm The device has three independent alarms. Two alarms for setting the absolute time (Alarm 1 and Alarm 2) and one alarm for setting the relative time (NAP). The factory default alarm source is Internet radio. Only the same Internet radio station can be selected for Alarm 1 and Alarm 2. When the set alarm time is reached, the unit connects to the Internet if the set network is available. Depending on the availability of the network, there may therefore be a short delay of the alarm. If no network connection can be established within one minute, the alarm tone will automatically change to "Melody". The NAP alarm can be set to 5/ 10/ 20/ 20/ 30/ 60/ 60/ 90/ 120 minutes. After the set time has elapsed, the alarm tone you set will sound. Sleep timer You can use the Sleep Timer to set the time until the unit switches o automatically. You can choose between 15, 30, 60, 90, 120, 150 and 180 minutes. Once the sleep timer is activated, the corresponding icon and the remaining minutes are displayed in the real top corner of the screen. When the time is up, the unit will automatically go into sleep mode. Date and time You can set both 12-hour and 24-hour format. You can select from the date display YYYY/MM/DD, DD/MM/ YYYYY and MM/DD/YYYYY. Local radio settings In Internet radio mode, you can directly access the list of local stations. You can set your location manually or activate automatic location detection. The unit then determines your location based on the IP address of your network. Press Local Station to go directly to this station list.30

Weather You can enable or disable weather forecasting for the standby screen. To do this, rst select the temperature unit (°F or °C) and then proceed to set your location. When you have activated this setting, the standby screen alternately displays the time and the weather forecast (the display changes every 10 seconds). Playback setting Select the playback mode in the media center. You can choose from O (no repeat or shule), Repeat all, Repeat one, or Shule. Language English/ German/ Español/ Français/ Portugese/ Nederlands/ Italiano/ Pyccknn/ Svenska/ Norske/ Dansk/ Magyar/ Cesky/ Slovensky/ Polski/ Turkce/ Suomi software update If a new software version is available, your device will alert you. Before updating the software, make sure that a stable power connection is available. Unplugging the power plug from the wall outlet during the software update may damage the device. Reset to factory settings When the unit is reset to factory defaults, all settings you have made will be erased and the unit will return to the language selection.31

DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom Hereby, Chal-Tec GmbH declares that the radio equipment type TuneUp ST is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10034904 For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type TuneUp ST is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/1003490433
