Biggie Eco - Food container Klarstein - Free user manual and instructions

USER MANUAL Biggie Eco Klarstein

Preserving Machine & Beverage Dispenser

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

SICHERHEITSHINWEISE

VORSICHT

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 10

Befor first Use 10

Product Overview and Operation 11

Operation 12

Cooking Table 13

Cleaning and Care 14

Hints on Disposal 14

TECHNICAL DATA

Item number 10034147
Power supply 220-240 V ~ 50/60 Hz
Capacity 9 L

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

SAFETY INSTRUCTIONS

CAUTION

Risk of burns! The unit becomes hot during use. Only touch the controls and handles so that you do not burn yourself.

• Check the appliance and the power cord regularly for damage. Do not use the unit if the power cord or the appliance is damaged.
• When not in use, turn off the power and unplug the appliance. Allow the appliance to cool completely before cleaning and storing.
• Place the appliance on a stable, level and heat-resistant surface. Allow at least 20cm of space around the appliance to walls and other equipment.
• Never completely immerse the appliance in water or other liquids, as this may damage the electrical parts.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• Do not attempt to repair the appliance yourself. Repairs may only be carried out by qualified specialists.
• Do not move the appliance while it is in operation. Be very careful when moving equipment with hot liquids.
• Do not use any accessories other than those supplied.

Note: To enjoy boiled meat and vegetables safely, always boil these foods twice: The second heating after at least 24 hours. You can find more information about this at: https://www.bzfe.de/inhalt/einkochen-1348.html (Federal Centre for Nutrition)

BEFOR FIRSTUSE

1 Before using the cooker for the first time, boil fresh water to remove dust and production residues. Add 6 litres of water and set the thermostat to MAX.
2 Bring the water to the boil once.
3 Allow the appliance to cool down and remove the water.
4 You can now use the cooker.

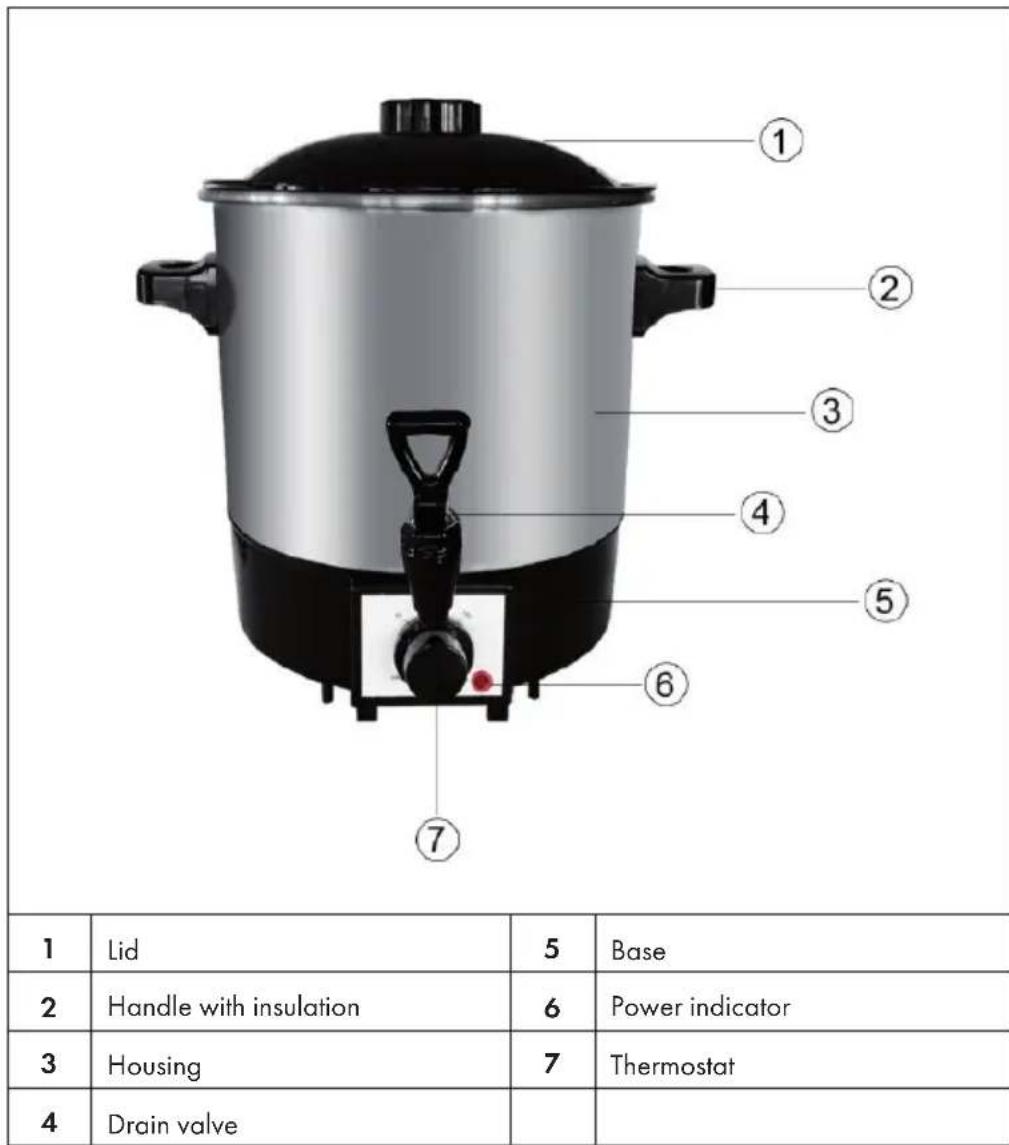

PRODUCT OVERVIEW AND OPERATION

To set the temperature

The adjustable temperature range of the thermostat is between 30 - 100^ . The temperature is maintained at ± 5^ . If the unit is connected to the mains, it switches on again and again as soon as the water temperature drops.

Note: The thermostat does not have an on/off switch. It is therefore important that the tank is always filled with water before the unit is connected to the mains. If the appliance is operated without water, the safety cut-out switches it off to prevent overheating. In this case, remove the plug from the socket and allow the appliance to cool down before refilling the container with water.

OPERATION

The appliance can be used both for boiling food and for heating water and other liquids.

Boiling

1. Place the rack in the cooker.
2. Fill the food into jars and close the jars.

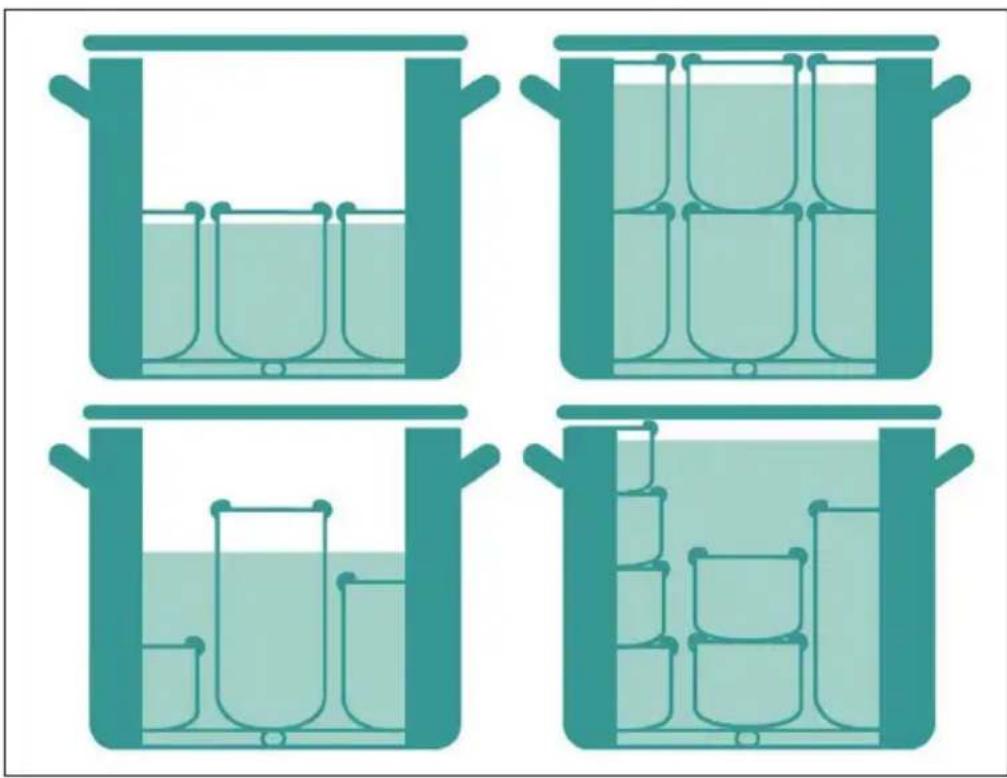

3. Stack the jars on the rack as shown in the illustration.

1. Fill the stove to 75% with water.
2. Put on the lid, plug it into the socket and set the temperature and time according to the cooking chart. The operating light turns on and the appliance begins to heat up. As soon as the set temperature is reached, the operating light goes out.

Note: The time indicated in the cooking chart applies from the point at which the target temperature is reached (after heating up).

Note: If the water boils even though the thermostat is set to a lower temperature, turn the thermostat back a little.

1. After the specified time has elapsed, turn the thermostat back completely and unplug the appliance from the wall outlet.
2. Place the appliance in a washbasin or tub and drain the water by pressing the tap downwards. Let the appliance cool down.
3. After the appliance has cooled down, remove the glasses with oven gloves or pliers as they will be hot for a long time. Allow the glasses to cool completely.

COOKING TABLE

Note: This information is recommendations.

Fruit °C Min Vegetables	°C Min
Apples soft / hard 90 30 Asparagus	100 90
Apple sauce	90	30
Apricots	80	30
Blueberries	90	30 Carrots
Cherries	80	25
Currants / cranberries	100	30
Mirabelles / greengages	80	30
Peaches	90	25
Pears soft / hard	90	30
Plums / prunes	90	30
Quince	90	30
Raspberries / gooseberries	90	30
Rhubarb	95	25
Strawberries / blackberries	85	25

Note: The preserving jars are hot after boiling. Use pliers or oven gloves to remove the jars. Keep preserves dry, cool and dark.

Beans	100	120
Brussels sprouts / cabbage	100	120
100 90
Cauliflower	90	30
Celery	90	30
Kohlrabi	100	90
Mushrooms	100	120
Peas	100	120
Pickled gherkins	100	110
Pumpkin	100	120
Tomatoes / tomato paste	90	30
Meat °C Min
Game / poultry, well-done	100	120
Meat broth	100	60
Meat, well-done	100	75
Minced sausage meat, raw	100	75
Roast meat, well-done	100	110

Heating Liquids

Note: When heating liquids, do not fill the stove more than 5cm below the top edge, otherwise liquid may leak during heating.

1. Add the desired drink or water to the stove.
2. Put on the lid, switch on the appliance and set the desired temperature. When the desired temperature is reached, the stove automatically switches to warm mode.
3. Stir the drink regularly to distribute the heat evenly.
4. If you want to fill the drink, hold a cup under the tap and push the tap down. When the cup is full, release the tap.

Note: Do not use the tap when heating liquids with pieces (fruit punch, soup). Otherwise it may clog.

CLEANING AND CARE

• Allow the unit and the unit to cool down completely before cleaning.
  Always unplug the appliance before cleaning.
• Clean the bottom of the pot with a soft brush or a damp cloth. Never use sharp or hard objects to avoid damaging the surface.
• Wipe the case with a damp, soft cloth. Then wipe with a dry cloth.

HINTS ON DISPOSAL

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
