USER MANUAL Virtuosa Slide Klarstein

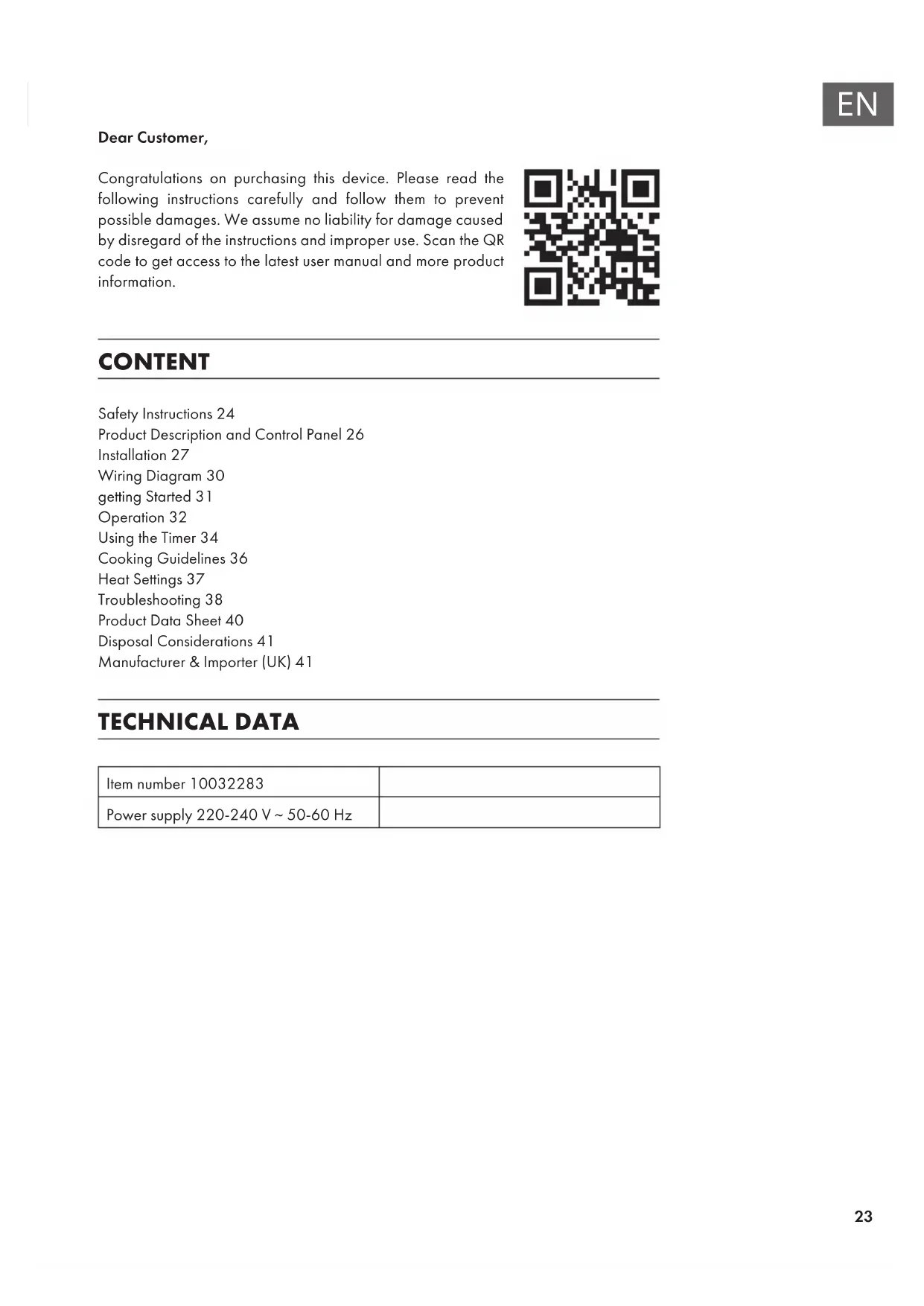

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. CONTENT Safety Instructions24 Product Description and Control Panel26 Installation27 Wiring Diagram30 getting Started31 Operation32 Using the Timer34 Cooking Guidelines36 Heat Settings37 Troubleshooting38 Product Data Sheet40 Disposal Considerations41 Manufacturer & Importer (UK)41 TECHNICAL DATA Item number 10032283 Power supply 220-240 V ~ 50-60 Hz24

• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.

• Connection to a good earth wiring system is essential and mandatory.

• Alterations to the domestic wiring system must only be made by a qualied electrician.

• Failure to follow this advice may result in electrical shock or death. Hints on Installation

• Read these instructions carefully before installing or using this appliance.

• No combustible material or products should be placed on this appliance at any time.

• Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.

• In order to avoid a hazard, this appliance must be installed according to these instructions for installation.

• This appliance is to be properly installed and earthed only by a suitably qualied person.

• This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.

• Failure to install the appliance correctly could invalidate any warranty or liability claims. important Hints on Use

• Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualied technician.

• Switch the cooktop off at the wall before cleaning or maintenance.

• Failure to follow this advice may result in electrical shock or death. Hot Surface Hazard

• During use, accessible parts of this appliance will become hot enough to cause burns.

• Do not let your body, clothing or any item other than suitable cookware contact the Induction glass until the surface is cool. Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot. Keep children away.

• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.

• Failure to follow this advice could result in burns and scalds.

• Take care - panel edges are sharp. Failure to use caution could result in injury or cuts.

• The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted.Use with extreme care and always store safely and out of reach of children. Failure to use caution could result in injury or cuts. General Hints

• Never leave the appliance unattended when in use. Boil over causes smoking and greasy spillovers that may ignite.

• Never use your appliance as a work or storage surface.

• Never leave any objects or utensils on the appliance.

• Never use your appliance for warming or heating the room.

• After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls).

• Do not allow children to play with the appliance or sit, stand, or climb on it. Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.

• Do not leave children alone or unattended in the area where the appliance is in use.

• Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be satised that they can use the appliance without danger to themselves or their surroundings.

• Do not repair or replace any part of the appliance unless specically recommended in the manual. All other servicing should be done by a qualied technician.

• Do not use a steam cleaner to clean your cook top.

• Do not place or drop heavy objects on your cooktop.

• Do not stand on your cooktop.

• Do not use pans with jagged edges or drag pans across the Induction glass surface as this can scratch the glass.

• Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the Induction glass.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• The aooliance is not designed for commercial use. It is intended for use in domestic households and in similar working and residential environments.26

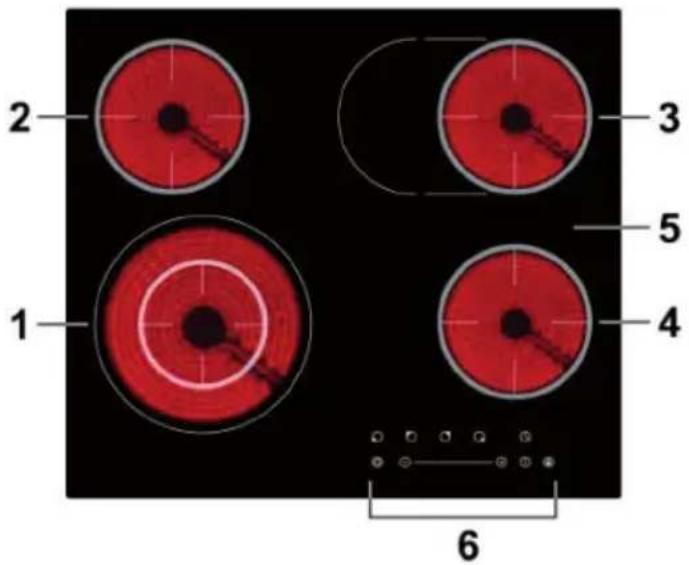

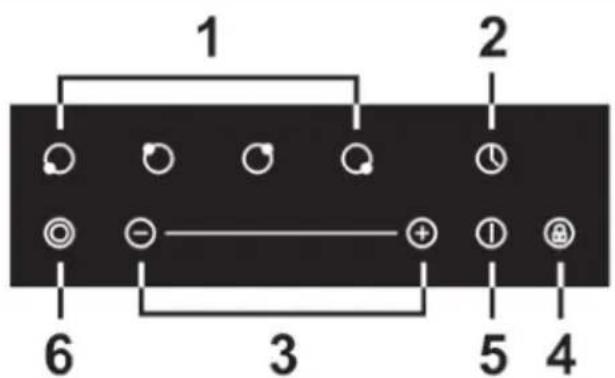

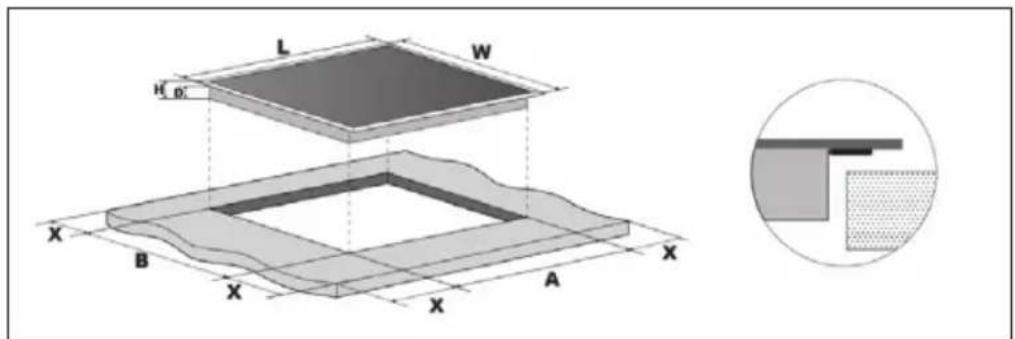

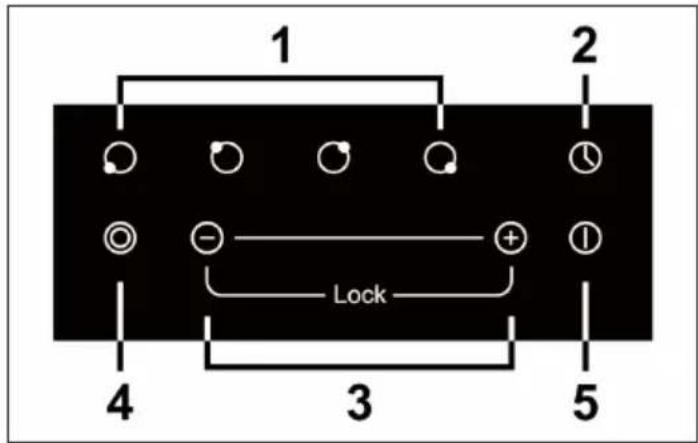

Control Panel - Variant 2 1 Heating zone selection controls 4 Dual/Oval zone control 2 Timer control 5 ON/OFF control 3 Power / Timer / Keylock control INSTALLATION Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below: L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm) 590 520 52 48 560 490 50 min28

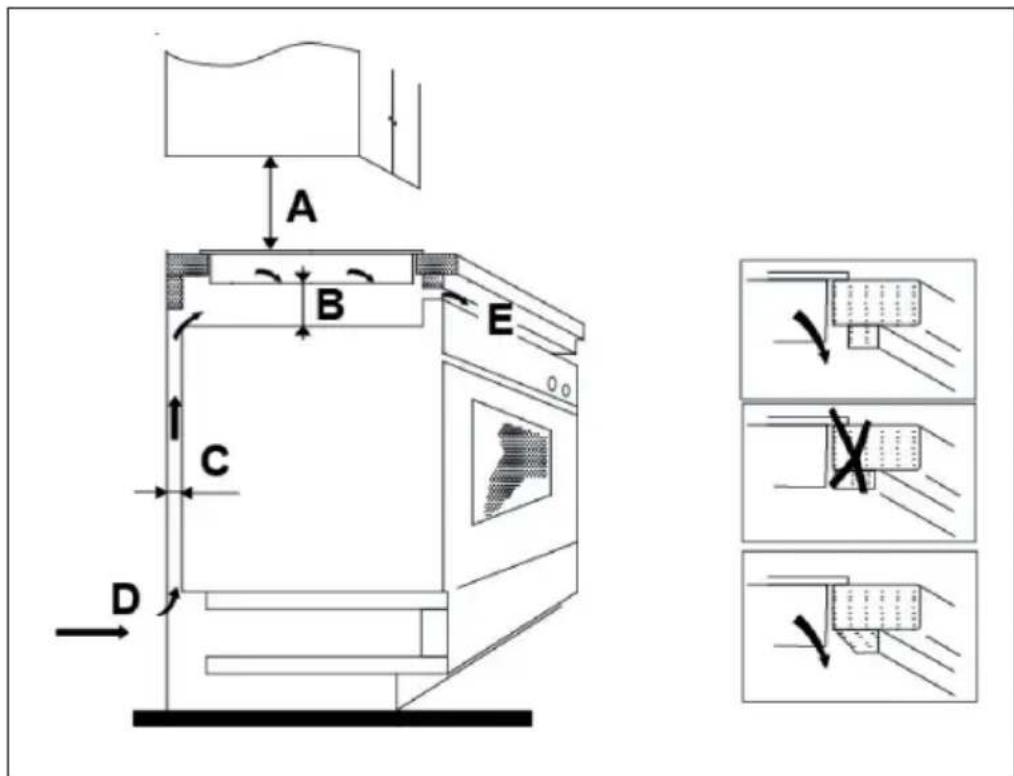

Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below. Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm. A (mm) B (mm) C (mm) D E 760 50 min 30 min Air intake Air exit 10 mm29

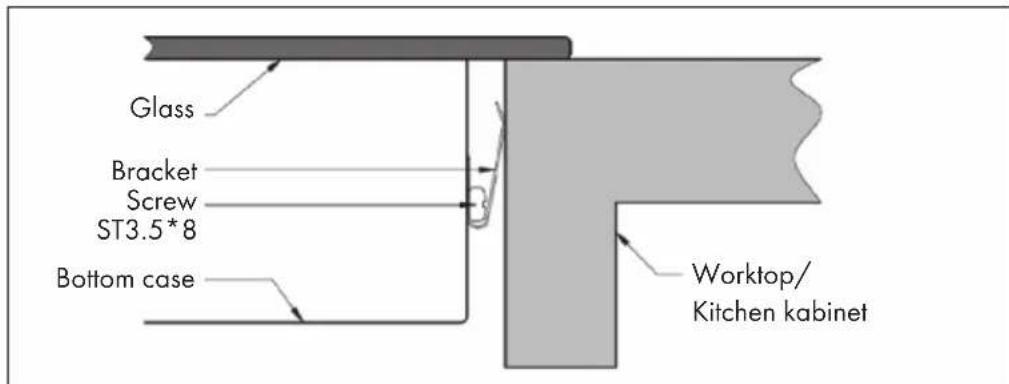

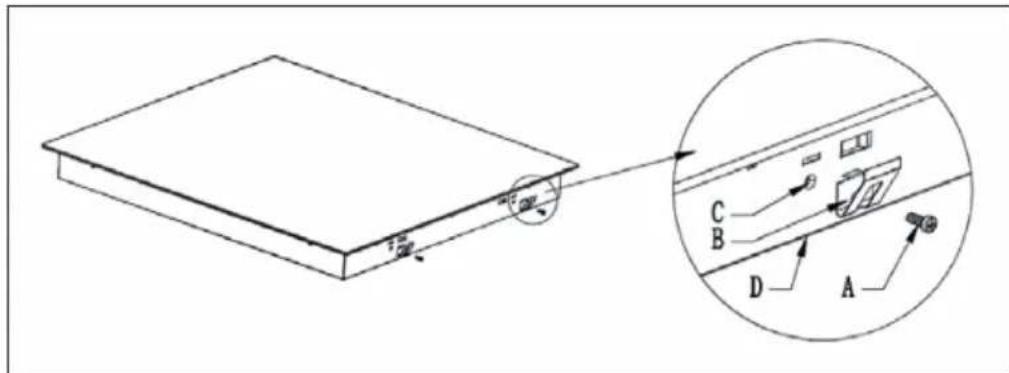

Before locating the xing brackets The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture) after installation. A B C D Screw Bracket Screw hole Base Glass Bottom case Worktop/ Kitchen kabinet Bracket Screw ST3.5*830

Important Hints on Installation

• The ceramic cooker hob must be installed by qualied personnel or technicians.

• The ceramic cooker hob shall not be mounted to cooling equipment, dishwashers and rotary dryers. The ceramic cooker hob shall be installed such that better heat radiation can be ensured to enhance its reliability.

• The wall and induced heating zone above the work surface shall withstand heat.

• To avoid any damage, the sandwich layer and adhesive must be resistant to heat.

• A steam cleaner is not to be used. WIRING DIAGRAM

• If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents.

• If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3 mm between the contacts.

• The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations.

• The cable must not be bent or compressed.

• The cable must be checked regularly and only replaced by a properly qualied person. Black Brown Grey Blue Yellow/Green Power cord Power cord Power cord Black Brown Grey Blue Yellow/Green Black Brown Grey Blue Yellow/Green Input Input Input31

GETTING STARTED Choosing the right Cookware Do not use cookware with jagged edges or a curved base. Make sure that the base of your pan is smooth, sits at against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone. Always lift pans off the ceramic hob – do not slide, or they may scratch the glass. Using the Touch Controls

• The controls respond to touch, so you don’t need to apply any pressure.

• Use the ball of your nger, not its tip.

• You will hear a beep each time a touch is registered.

• Make sure the controls are always clean, dry, and that there is no object ( e.g. a utensil or a cloth) covering them. Even a thin lm of water may make the controls difcult to operate.32

OPERATION To start cooking After power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that the ceramic hob has entered the state of standby mode. 1 Touch the ON/OFF control，all the indicators show [-] or [--], indicating that the ceramic hob has entered the state of standby mode. 2 Place a suitable pan on the cooking zone that you wish to use. Make sure the bottom of the pan and the surface Of the cooking zone are clean and dry. 3 Touching the heating zone selection control, and a indicator next to the key will ash. 4 Set a power level by touching the [-], [+], or slide along the [—]control, or just touch any point of the [—]: Important Notes

• If you don’t select a heat zone within 1 minute, the induction hob will automatically switch off. You will need to start again at step 1.

• You can modify the heat setting at any time during cooking.

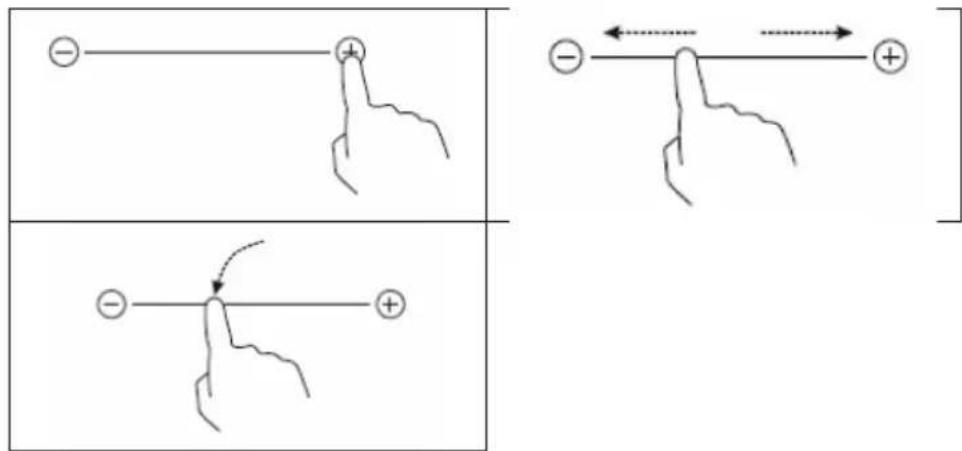

• If slide along the [—], power will vary from stage 2 to stage 8. Press [-], power will decrease by one stage each time till stage 0. Press [+], power will increase by one stage each time till stage 9.

• When zone 1 or 3 is working, activate dual zone or oval zone by pressing [ ], When dual zone or oval zone is working, turning off it by pressing [ ].33

When you have nished cooking 1 Turn the cooking zone off by scrolling down to [0]. Make sure the display shows [0]. 2 Turn the whole cooktop off by touching the ON/OFF control. 3 Beware of hot surfaces! [H] will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot. Locking the Controls You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). When the controls are locked, all the controls except the ON/OFF control are disabled. Control Panel - Varriant 1 Control Panel - Variant 2 To lock the controls: Touch the keylock control. The timer indicator will show [Lo]. To unlock the controls: Make sure the ceramic hob is turned on. Touch and hold the keylock control for a while. You can now start using your ceramic hob. To lock the controls: Touch the [+] & [-] control at the same time. The timer indicator will show [Lo]. To unlock the controls: Make sure the ceramic hob is turned on.Touch the [+] & [-] control at the same time for a while. You can now start using your ceramic hob. When the hob is in the lock mode,all the controls are disable except the ON/OFF , you can always turn the ceramic hob off with the ON/OFF control in an emergency, but you shall unlock the hob rst in the next operation. Safety Functions

• A temperature sensor equipped can monitor the temperature inside the ceramic hob. When an excessive temperature is monitored, the ceramic hob will stop operation automatically.

• When the hob has been operating for some time,there will be some residual heat. The letter “ ”appears to warn you to keep away from it.

• Another safety feature of the hob is auto shutdown.This occurs whenever you forget to switch off a cooking zone.The default shutdown times are shown in the table below: Power level 1 2 3 4 5 6 7 8 9 Default working time (h) 8 8 8 4 4 4 2 2 234

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.

• You can set it to turn one cooking zone off or more than one after the set time is up.

• You can set the timer for up to 99 minutes. Using the Timer as a Minute Minder without selecting any cooking zone 1 Make sure the cooktop is turned on. Note: you can use the minute minder even if you’re not selecting any cooking zones. 2 Touch timer control , The minder indicator will start ashing and [30] will show in the timer display. 3 Set the time by touching the [-] or [+] control, the minute minder indicator will start ashing and will show in the timer display. Touch the [-] or [+]control once to decrease or increase by 1 minute. Hold the [-] or [+] control of the timer to decrease or increase by 10 minutes. If the setting time exceeds 99 minutes, the timer will automatically return to 0 minute. 4 Touch the ‘Timer’, the timer is cancelled, and the [--] will show in the minute display. 5 When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will ash for 5 seconds. 6 Buzzer will beep for 30 seconds and the timer indicator shows [- -] when the set time nished.35

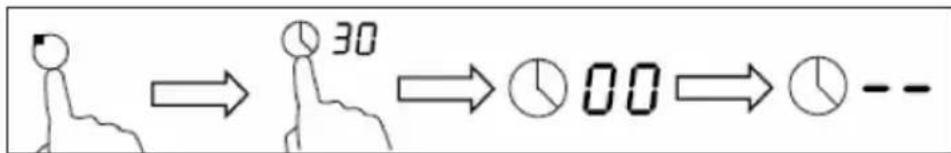

Setting the timer to turn one cooking zone off 1 Touching the heating zone selection control that you want to set the timer for. (e.g. zone 2#). 2 Touch timer control , The minder indicator will start ashing and [30] will show in the timer display. 3 Set the time by touching the [-] or [+] control, the minute minder indicator will start ashing and will show in the timer display. Touch the [-] or [+]control once to decrease or increase by 1 minute. Hold the [-] or [+] control of the timer to decrease or increase by 10 minutes. If the setting time exceeds 99 minutes, the timer will automatically return to 0 minute. 4 Touching the heating zone selection control, and then touch the [Timer], the timer is cancelled, and the [--] will show in the minute display. 5 When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator ash for 5 seconds. NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected. 6 When cooking timer expires, the corresponding cooking zone will be automatically switch off and show [H].36

Setting the timer to turn more than one cooking zone off 1 If more than one heating zone use this function, the timer indicator will show the shortest time. (e.g. zone 2# setting time of 3 minutes, zone 3# setting time of 6 minutes, the timer indicator shows [3].) NOTE: The ashing red dot next to power level indicator means the timer indicator is showing time of the heating zone. If you want to check the set time of other heating zone, touch the heating zone selection control. The timer will indicate its set time. 2 When cooking timer expires, the correspondin cooking zone will be switch off automatically and show [H] . NOTE: If you want to change the time after the timer is set, you have to start from step 1 COOKING GUIDELINES

• When food comes to the boil, reduce the temperature setting.

• Using a lid will reduce cooking times and save energy by retaining the heat.

• Minimize the amount of liquid or fat to reduce cooking times.

• Start cooking on a high setting and reduce the setting when the food has heated through. Simmering, cooking rice

• Simmering occurs below boiling point, at around 85°C, when bubbles are just rising occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because the avors develop without overcooking the food. You should also cook egg-based and our thickened sauces below boiling point.

• Some tasks, including cooking rice by the absorption method, may require a setting higher than the lowest setting to ensure the food is cooked properly in the time recommended.37

• Stand the meat at room temperature for about 20 minutes before cooking.

• Heat up a heavy-based frying pan.

• Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan.

• Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how cooked you want it. Times may vary from about 2 to 8 minutes per side. Press the steak to gauge how cooked it is – the rmer it feels the more ‘well done’ it will be.

• Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving. HEAT SETTINGS Power level Suitability 1-2

• delicate warming for small amounts of food

• melting chocolate, butter, and foods that burn quickly

• cooking rice 5-6 • pancakes 7-8

• stir-frying and searing

• bringing soup to the boil

TROUBLESHOOTING What? How? Important! Everyday soiling on glass (ngerprints, marks, stains left by food or non-sugary spillovers on the glass) 1 Switch the power to the cooktop off. 2 Apply a cooktop cleaner while the glass is still warm (but not hot!) 3 Rinse and wipe dry with a clean cloth or paper towel. 4 Switch the power to the cooktop back on.

• When the power to the cooktop is switched off, there will be no ‘hot surface’ indication but the cooking zone may still be hot! Take extreme care.

• Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scourer is suitable.

• Never leave cleaning residue on the cooktop: the glass may become stained. Boilovers, melts, and hot sugary spills on the glass Remove these immediately with a sh slice, palette knife or razor blade scraper suitable for ceramic glass cooktops, but beware of hot cooking zone surfaces: 1 Switch the power to the cooktop off at the wall. 2 Hold the blade or utensil at a 30° angle and scrape the soiling or spill to a cool area of the cooktop. 3 Clean the soiling or spill up with a dish cloth or paper towel. 4 Follow steps 2 to 4 for ‘Everyday soiling on glass’ above.

• Remove stains left by melts and sugary food or spillovers as soon as possible. If left to cool on the glass, they may be difcult to remove or even permanently damage the glass surface.

• Cut hazard: when the safety cover is retracted, the blade in a scraper is razor-sharp. Use with extreme care and always store safely and out of reach of children.39

What? How? Important! Spillovers on the touch controls. 1 Switch the power to the cooktop off. 2 Soak up the spill 3 Wipe the touch control area with a clean damp sponge or cloth. 4 Wipe the area completely dry with a paper towel. 5 Switch the power to the cooktop back on. The cooktop may beep and turn itself off, and the touch controls may not function while there is liquid on them. Make sure you wipe the touch control area dry before turning the cooktop back on. The cooktop cannot Be turned on. No power. Make sure the cooktop is connected to the power supply and that it is switched on. Check whether there is a power outage in your home or area. If you’ve checked everything and the problem persists, call a qualied technician. The touch controls are unresponsive. The controls are locked. Unlock the controls. See section ‘Using your ceramic cooktop’ for instructions. The touch controls are difcult to operate. There may be a slight lm of water over the controls or you may be using the tip of your nger when touching the controls. Make sure the touch control area is dry and use the ball of your nger when touching the controls. The glass is being scratched. Rough-edged cookware. Unsuitable, abrasive scourer or cleaning products being used. Use cookware with at and smooth bases. See ‘Choosing the right cookware’. See ‘Care and cleaning’. Some pans make crackling or clicking noises. This may be caused by the construction of your cookware (layers of different metals vibrating differently). This is normal for cookware and does not indicate a fault.40

Symbol Value Unit Model identication 10032283 Type of hob Built-In Hob Number of cooking zones and/or areas

Heating technology (induction cooking zones and cooking areas, radiant cooking zones, solid plates) Radiant cooking zones For circular cooking zones or area: diameter of useful surface area per electric heated cooking zone, rounded to the nearest 5 mm Ø 22, 15.5 , 15.5, 15.5 cm For non-circular cooking zones or areas: length and width of useful surface area per electric heated cooking zone or area, rounded to the nearest 5 mm

Energy consumption per cooking zone or area calculated per kg

Electric Cooking Hob 162, 209, 209, 203 Wh/kg Energy consumption for the hob calculated per kg

DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service. MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Chal-Tec UK limited Unit 6 Riverside Business Centre Brighton Road Shoreham-by-Sea BN43 6RE United Kingdom43
