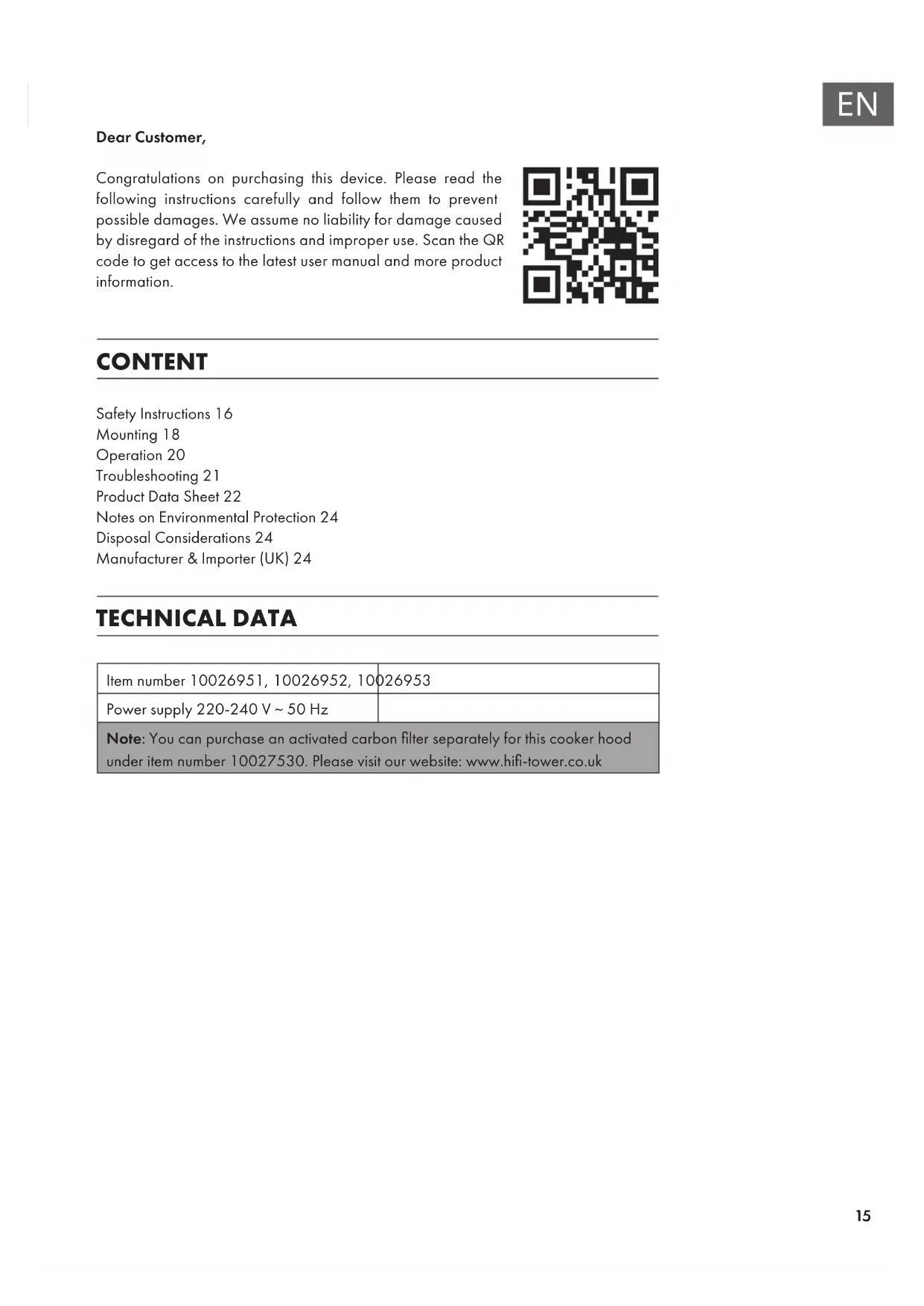

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. CONTENT Safety Instructions16 Mounting18 Operation20 Troubleshooting21 Product Data Sheet22 Notes on Environmental Protection24 Disposal Considerations24 Manufacturer & Importer (UK)24 TECHNICAL DATA Item number 10026951, 10026952, 10026953 Power supply 220-240 V ~ 50 Hz Note: You can purchase an activated carbon lter separately for this cooker hood under item number 10027530. Please visit our website: www.hi-tower.co.uk16

• Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.

• The installation work must be carried out by a qualied electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.

• The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.

• Children under the age of 8 must not use the cooker hood.

• The appliance is not intended for commercial use, but only for household and similar environments.

• The cooker hood and its lter mesh should be cleaned regularly in order to keep it in good working order.

• Before cleaning, switch the power off at the main supply.

• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.

• Prohibit putting the cooker hood by re.

• If the appliance does not function normally, contact the manufacturer or a specialist company.

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.

• Do not ambé under the range hood. Accessible parts may become hot when used with cooking appliances. Important hints on installation

• The air must not be discharged into a ue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

• Regulations concerning the discharge of air have to be fullled.17

Important notes about the extraction mode WARNING Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open flue appliance when there is not adequate airflow guaranteed. Open ue combustion equipment (for example, gas, oil, wood or coal- red heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms - without suf cient air intake this creates a vacuum. Toxic gases from the chimney or extraction ue can thereby be sucked back into the living spaces.

• Always ensure that a suf cient supply of fresh air is guaranteed and that the air can circulate.

• An air supply / extractor box alone does not ensure compliance with the limit value. Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can ow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a quali ed chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation. If the hood is used exclusively in the recirculation mode, unrestricted operation is possible. Important note on disassembly of the device

• Disassembly is similar to installation/assembly in reverse order.

• Take a second person to help you during disassembly to avoid injuries.18

• The cooker hood should be placed at a distance of 65-75 cm (26-30 inch) from the cooking surface for the best effect. See Pic 1.

• Install the hook on a suitable place once the installation height is xed, and keep it in line. The xed position of the inside chimney bracket is the place of chimney.19

• Fix the outside chimney bracket on the outside chimney, and be sure that the inside chimney can be adjusted the height in it freely as well as xing the extensible pipe. Afterwards, install the extensible pipe and chimney on the cooker hood. See Pic 3.

• Put the cooker hood on the hook. See Pic 4.

• Adjust the height of the inside chimney to the position of the inside chimney bracket and x on it by screw,after ajusting the position,x the body with safety screw. See Pic 5. Note: The two safety vents are positioned on the back casing, with diameter of 6 mm.20

OPERATION Power on: Connect the power, control panel will be lighting, cooker hood enter into standby mode. The light will shut off automatically after 5 seconds if without any operation.

• Light: Press the button, the LED light will turn on, and button indicator light will be lighting. Press it again, The LED light and indicator light will turn off.

• High speed: Press the button for high speed operation. Press it again, the motor stop working.

• Mid. speed: Press the button for mid. speed operation. Press it again, the motor stop working.

• Low speed: Press the button, for low speed operation. Press it again, the motor stop working.

• Timer: This is a 5 minute timer. When the hood is working, press the button to set a time for motor operation. The low speed, mid. speed and high speed can not be working at the same time. When the hood is working with high speed , press the low speed button , the hood will transfer to the low speed for working immediately; When the hood is working with low speed, press the low speed button , the hood will transfer to the high speed for working immediately. And so on.21

TROUBLESHOOTING Fault Cause Solution Light on, but motor does not work. The leaf blocked. Get rid of the blocking. The capacitor damaged. Replace capacitor. The motor us damaged. Replace motor. The internal with of motor off or a bad smell from the motor Replace motor. Light does not work, motor does not work. Beside the above mentioned, check the following: Light damaged Replace lights. Power cord looses Connect the wires as per the electric diagram. Oil leakage. Valve and the air ventilation entrance are not tightly sealed Take down the one way valve and seal with glue Leakage from the connection of U-shaped section and cover Take U-shaped section down and seal with soap or paint. Shake of the body. The leaf is damaged Replace the leaf The motor is not tightly hanged Lock the motor tightly. Insufcient suction. The distance between the body and the gas top too long Readjust the distance. Too much ventilation from open doors or windows Choose a new place and resemble the machine.22

Information according to Regulation (EU) No. 65/2014 Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:20 11+A11:2014+A12:2015 Item number 10026951, 10026952, 10026953 Description Symbol Value Unit Annual Energy Consumption AEC hood 56,3 kWh/Jahr Energy Efciency class B Fluid Dynamic Efciency FDE hood 26,3 Fluid Dynamic Efciency class B Lighting Efciency LE hood 32,1 Lux/W Lighting Efciency class A Grease Filtering Efciency GFE hood 79,8 % Grease Filtering Efciency class C air ow at minimum and maximum speed in normal use, intensive or boost excluded 359,1/630,5 m³/h air ow at intensive or boost setting - m³/h airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use 60/70 dB airborne acoustical A-weighted sound power emissions at intensive or boost setting - dB power consumption in off mode P

0 W power consumption in standby mode

Information according to Regulation (EU) No. 66/2014 Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:20 11+A11:2014+A12:2015 Item number 10026951, 10026952, 10026953 Description Symbol Value Unit Annual Energy Consumption AEC hood 56,3 kWh/Jahr Time increase factor f 1,1 Fluid Dynamic Efciency FDE hood 26,3 Energy Efciency Index EEI hood 62,2 Measured air ow rate at best efciency point

BEP 132,4 W Nominal power of the lighting system

3 W Average illumination of the lighting system on the cooking surface

middle 138 Lux Measured power consumption in standby mode

0 W Measured power consumption off mode

0 W Sound power level L

• During cooking, make sure that there is sufcient air supply so that the cooker hood can operate efciently and with low operating noise.

• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.

• If large amounts of steam are produced during cooking, select a higher fan speed in good time. If the cooking steam has already dispersed in the kitchen, the cooker hood must be operated longer.

• Switch off the cooker hood when you no longer need it.

• Switch off the lighting when you no longer need it.

• Clean the lter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent re hazards.

• Always put the lid on when cooking to reduce cooking steam and condensation. DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service. MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom25
