USER MANUAL Annabelle 90 Klarstein

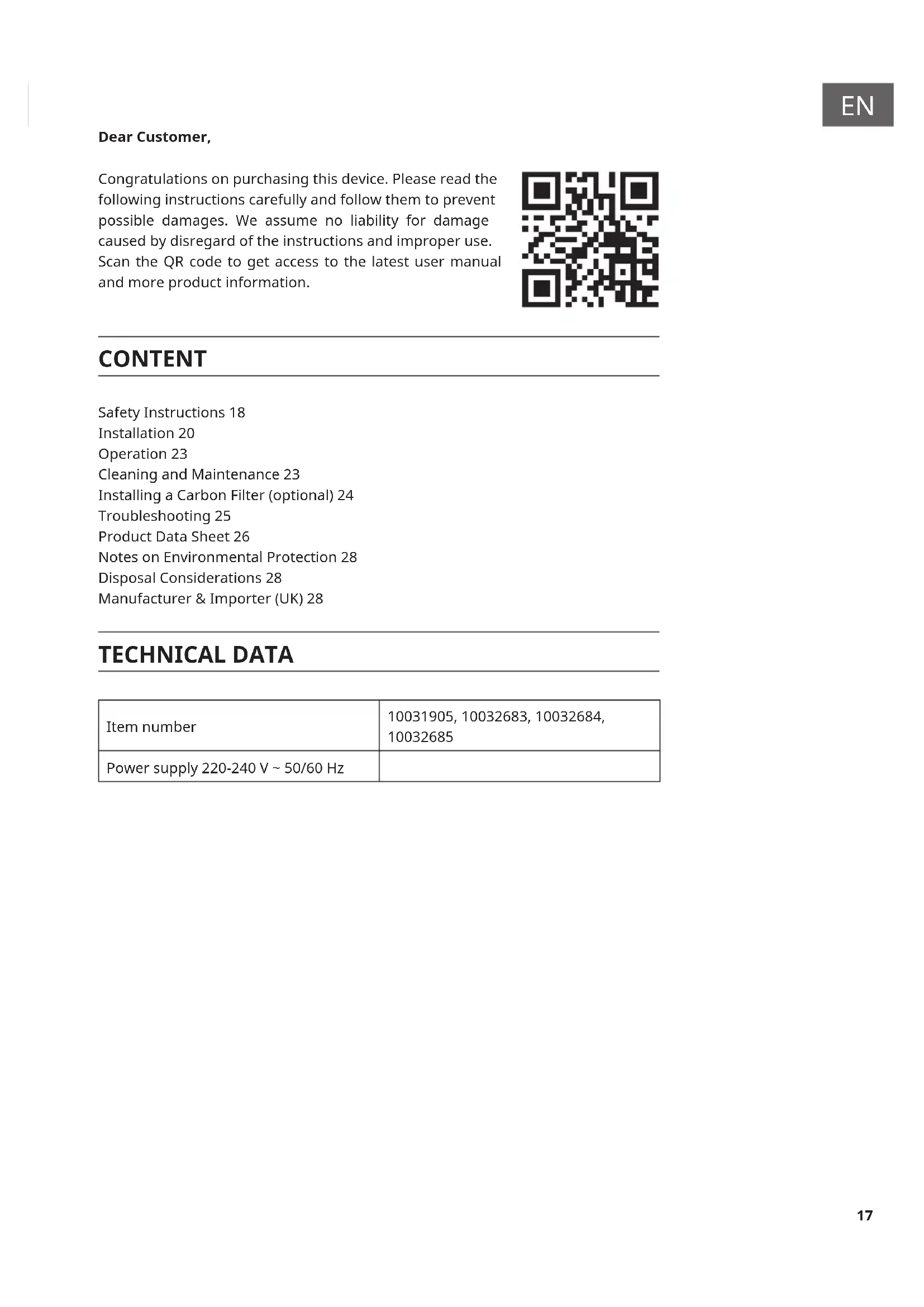

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. CONTENT Safety Instructions 18 Installation 20 Operation 23 Cleaning and Maintenance 23 Installing a Carbon Filter (optional) 24 Troubleshooting 25 Product Data Sheet 26 Notes on Environmental Protection 28 Disposal Considerations 28 Manufacturer & Importer (UK) 28 TECHNICAL DATA Item number 10031905, 10032683, 10032684,

• Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.

• The installation work must be carried out by a qualied electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.

• The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.

• Children under the age of 8 must not use the cooker hood.

• The appliance is not intended for commercial use, but only for household and similar environments.

• The cooker hood and its lter mesh should be cleaned regularly in order to keep it in good working order.

• Before cleaning, switch the power o at the main supply.

• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.

• Prohibit putting the cooker hood by re.

• If the appliance does not function normally, contact the manufacturer or a specialist company.

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.

• Do not ambé under the range hood. Accessible parts may become hot when used with cooking appliances. Important hints on installation

• The air must not be discharged into a ue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

• Regulations concerning the discharge of air have to be fullled.19

Important notes about the extraction mode WARNING Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open ue appliance when there is not adequate air ow guaranteed. Open ue combustion equipment (for example, gas, oil, wood or coal- red heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms - without su cient air intake this creates a vacuum. Toxic gases from the chimney or extraction ue can thereby be sucked back into the living spaces.

• Always ensure that a su cient supply of fresh air is guaranteed and that the air can circulate.

• An air supply / extractor box alone does not ensure compliance with the limit value. Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can ow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a quali ed chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation. If the hood is used exclusively in the recirculation mode, unrestricted operation is possible. Important note on disassembly of the device

• Disassembly is similar to installation/assembly in reverse order.

• Take a second person to help you during disassembly to avoid injuries.20

INSTALLATION Installation (Vent outside) Note: When the range hood and appliance supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must be not exceed 4 Pa (4 x 10

Bar). Installation (Vent inside) If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section “Installation (Vent outside)”. Important Information for the Installation of Exhaust Air Ducts The following rules must be strictly observed to ensure optimum air extraction. Failure to follow these instructions will reduce performance and increase the noise level of the cooker hood.

• Lay the exhaust pipe as short and straight as possible.

• Do not use a smaller exhaust duct and do not conne it.

• If exible ducts are used, the duct must always be mounted tightly in order to minimise pressure loss.

• All installation work may only be carried out by a qualied electrician or a qualied person.

• Do not connect the exhaust duct of the cooker hood to an existing ventilation system used for another appliance, such as a chimney.

• The angle of the exhaust pipe bend should not be less than 120°. Align the pipe horizontally. Alternatively, the duct should go up from the starting point and be led to an outer wall.

• After installation, make sure that the cooker hood is level to prevent grease from accumulating on one side.

• Make sure that the exhaust duct selected for the installation complies with the relevant standards and is re-resistant.21

Preparation If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminium, exible pipe or inammable material with an interior diameter of 150 mm).

• Before installation, turn the unit o and unplug it from the outlet.

• The cooker hood should be placed at a distance of 65~75 cm above the cooking plane for best eect. Installation with external venting

Drill 3 x 8 mm holes for the bracket. Fix the bracket to the wall using the dowels and screws supplied. Hang the exhaust hood on the hooks of the bracket.22

Insert the top chimney into the bottom chimney. Then pull the upper chimney out to the required height.

Fix the lower chimney with two 4 x 8 mm screws. Finally, x the hood with two screws.23

OPERATION 1 On/O Switches the fan on and o. 2 Light Switches the light on and o. 3 Level There are 3 fan levels: Low (1) - Medium (2) - High (3). Each time the button is pressed, the fan moves up one level. The display then shows the stage number (1, 2 or 3). 4 Timer The timer is set to 9 minutes. During operation, press this key to set the timer for the motor. The display will successively show 9, 8, 7, 6, until 0. Without input, the display illumination will turn o after 30 seconds.

CLEANING AND MAINTENANCE

Turn o the cooker hood before cleaning and maintenance and unplug the appliance from the wall outlet. The exterior surfaces are susceptible to scratches and stains. Therefore, do not use abrasive cleaners and wipe away any alkaline or acidic residue (lemon juice, vinegar) immediately after cleaning. Stainless Steel Surfaces The stainless steel must be cleaned regularly to ensure a long service life. Use stainless steel cleaner. Always wipe along the grain of the stainless steel to prevent scratching. Control Panel The control panel can be cleaned with a damp cloth and a mild dishwashing detergent. Before cleaning, make sure the cloth is clean and well wrung. Use a dry, soft cloth to remove excess moisture after cleaning.24

Monthly Cleaning for Grease Filter Clean the lter every month can prevent any risk of re. The lter collects grease, smoke and dust, so the lter is directly aecting the eciency of the cooker hood. If not cleaned, the grease residue (potential ammable) will saturate on the lter. Clean it with household cleaning detergent. INSTALLING A CARBON FILTER (OPTIONAL)

Activated carbon lter can be used to trap odours. In order to install the activated carbon lter, the grease lter should be detached rst. Press the lock and pull it downward.

Plug the activated carbon lter into the unit and turn it in clockwise direction. Repeat the same on the other side. Make sure the lter is securely locked. Otherwise, it would loosen and cause dangerous. When activated carbon lter attached, the suction power will be lower.25

TROUBLESHOOTING Fault Possible Cause Solution Light on, but motor does not work. The leaf blocked. Get rid of the blocking. The capacitor damaged. Replace capacitor. The motor jammed bearing damaged. Replace motor. The internal with of motor o or a bad smell from the motor. Replace motor. Light does not work, motor does not work. Light damaged. Replace lights. Power cord looses. Connect the wires as per the electric diagram. Shake of the body. The leaf damaged and causes shaking. Replace the leaf. The motor is not tightly hanged. Lock the motor tightly. The body is not tightly hanged. Fixed the body tightly. Insucient suction. The distance between the body and the gas top too long. Readjust the distance. Too much ventilation from open doors or windows. Choose a new place and resemble the machine.26

Information according to Regulation (EU) No. 65/2014 Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2 011+A11:2014+A12:2015 Item number 10031905, 10032683, 10032684, 10032685 Description Symbol Value Unit Annual Energy Consumption AEC hood 58,2 kWh/Jahr Energy Eciency class B Fluid Dynamic Eciency FDE hood 24,2 Fluid Dynamic Eciency class B Lighting Eciency LE hood 31,3 Lux/W Lighting Eciency class A Grease Filtering Eciency GFE hood 81 % Grease Filtering Eciency class C air ow at minimum and maximum speed in normal use, intensive or boost excluded 351,6 / 595,7 m³/h air ow at intensive or boost setting - m³/h airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use 57 / 69 dB airborne acoustical A-weighted sound power emissions at intensive or boost setting - dB power consumption in o mode P

0,38 W power consumption in standby mode

BEP 137,6 W Nominal power of the lighting system

4,0 W Average illumination of the lighting system on the cooking surface

middle 125 Lux Measured power consumption in standby mode

- W Measured power consumption o mode

• During cooking, make sure that there is sucient air supply so that the cooker hood can operate eciently and with low operating noise.

• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.

• If large amounts of steam are produced during cooking, select a higher fan speed in good time. If the cooking steam has already dispersed in the kitchen, the cooker hood must be operated longer.

• Switch o the cooker hood when you no longer need it.

• Switch o the lighting when you no longer need it.

• Clean the lter at regular intervals and replace it if necessary to increase the eectiveness of the ventilation system and prevent re hazards.

• Always put the lid on when cooking to reduce cooking steam and condensation. DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service. MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom29
