USER MANUAL V51 OneConcept

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information..

CONTENTS

Technical Data 12

Safety Instructions 13

Connections 14

Disposal Considerations 17

Declaration of Conformity 17

TECHNICAL DATA

Articlelummer 10009139

Stromversorgung

230V 50Hz

Frequency range 20 Hz-40 kHz
S/N Ratio ≥ 75dB
Separation ≥ 50dB
Speakers 1 x 4" + 5 x 3"
FM radio frequency range 87.5-108 MHz
Dimensions / weight Subwoofer: 33 x 21,5 x 31 cm (BxHxT) 5 Speakers: 11.5 x 22.5 x 9.5 cm
Scope of delivery 1 x device,5 x	speakers, 1x remote control, 1 x audio-to-RCA-cable, 1x AUX cable, 1x antenna cable

SAFETY INSTRUCTIONS

General information

• Lightning - If you are not going to use the device for a long time or if there is a storm, disconnect the plug from the electrical outlet and disconnect the device from the antenna connector. This will avoid damage to the product that may be caused by lightning or overvoltage.
• Overload - Do not overload power outlets, extension cords, or built-in power outlets, as this may result in a fire or electric shock.
• Foreign objects and liquid - Never push objects of any kind through openings in the device as they may touch dangerous voltage points or short out parts, which could result in a fire or electric shock. Never spill liquids of any kind on the device.
• Repairs and maintenance - Do not attempt to service this product yourself, as opening or removing covers will expose you to dangerous voltages or other hazards. Leave all maintenance to qualified service personnel.
• Damage requiring service - Disconnect the power plug from the outlet and consult a qualified specialist if any of the following conditions occur:

a) If the power cord or plug is damaged.
b) If liquid has been spilled or objects have fallen onto the product.
c) If the product has been exposed to rain or water.
d) If the product has been dropped or damaged.
e) If the product has a markedly reduced performance.

• Replacement parts - When replacement parts are required, make sure that the service professional who replaces the parts only uses replacement parts that have been approved by the manufacturer or that have the same characteristics as the original part. Unauthorized replacement may result in fire, electric shock or other hazards.
• Heat - Do not place the unit near heat sources such as radiators, heaters, stoves or other products (including amplifiers).

Note: This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

CONNECTIONS

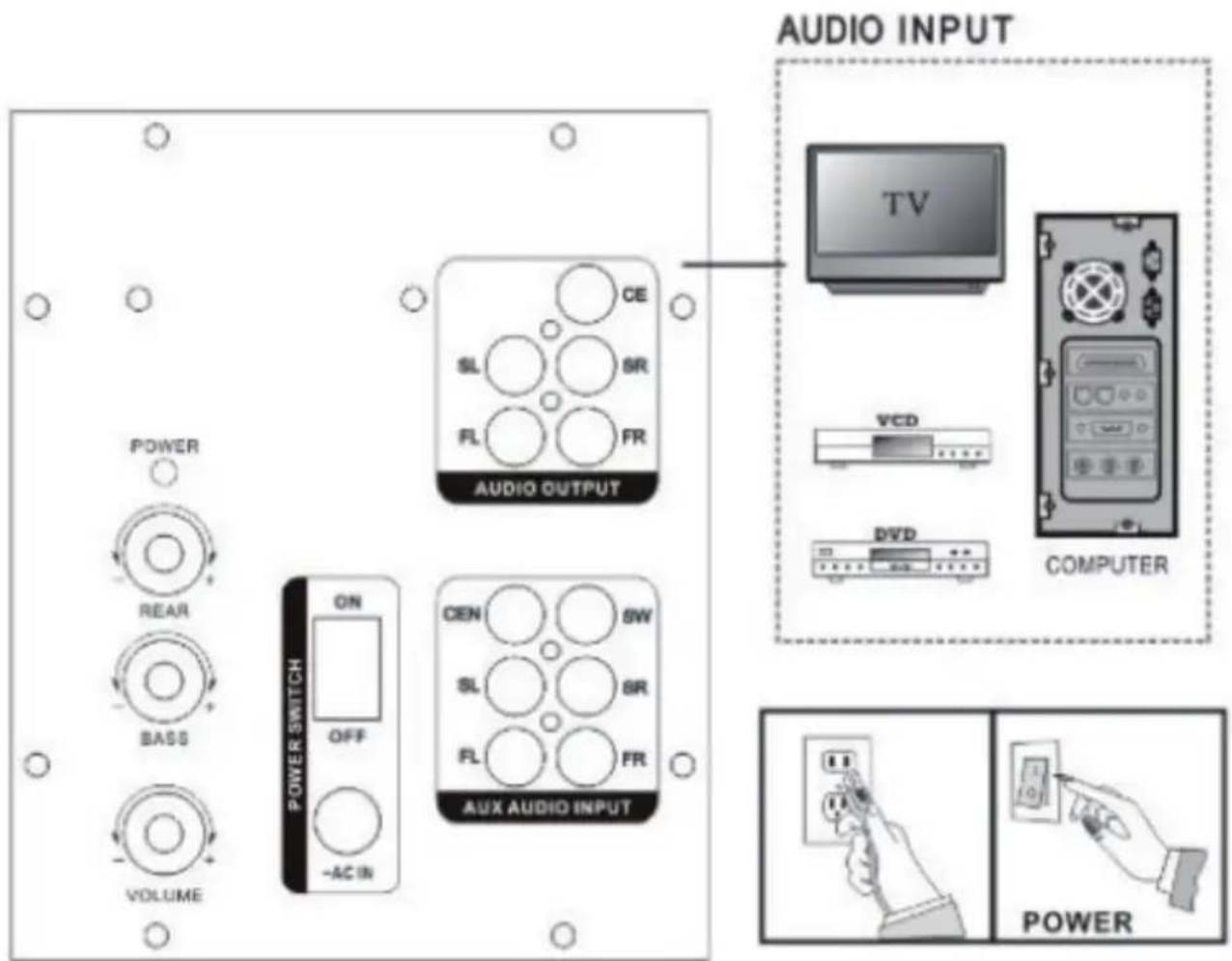

Connect the satellite speakers to the connections marked "AUDIO OUTPUT". Connect the speakers to the corresponding connections (CE (=Centre) to CE, FR (=Front Right) to FR, etc.).

Connect the sound source (i.e. TV set, computer with 5.1 sound outputs, VCD or DVD player) to the AUX AUDIO INPUT connectors.

The connection sockets and plugs of the connection cables are colour-coded.

• Red sockets and plugs: For the right audio channel signals.
• White sockets and plugs: For the left audio channel signals..

Note: Insert the plugs correctly into the connection sockets, otherwise a buzzing or other interference noise is audible.

Connect the mains plug to a household socket (220-240 V ~50-60Hz) and switch on the subwoofer by pressing the POWER SWITCH. Important: Connect the speakers and all other equipment first before connecting the unit to the power source.

Adjust the sound with the controls on the back: REAR controls the volume of the rear satellites. Adjust the overall volume with VOLUME and the bass with BASS..

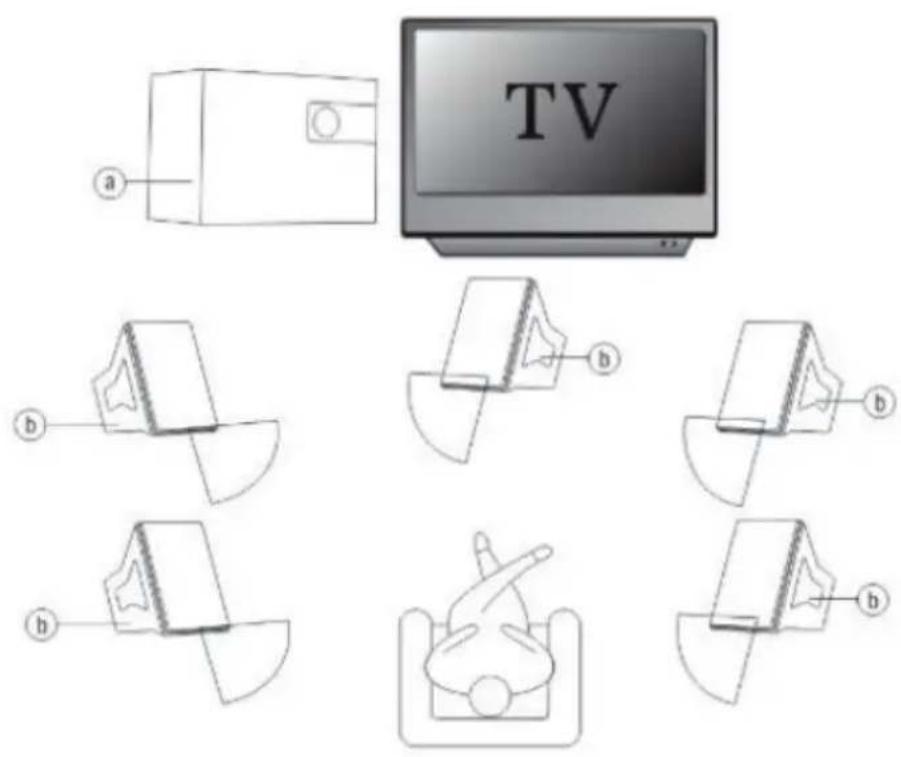

Positioning the speakers (schematic drawing):

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

The complete declaration of conformity of the manufacturer can be found at the following link: https://use.berlin/Artikelnummer
