U600 - Polisher H.KOENIG - Free user manual and instructions

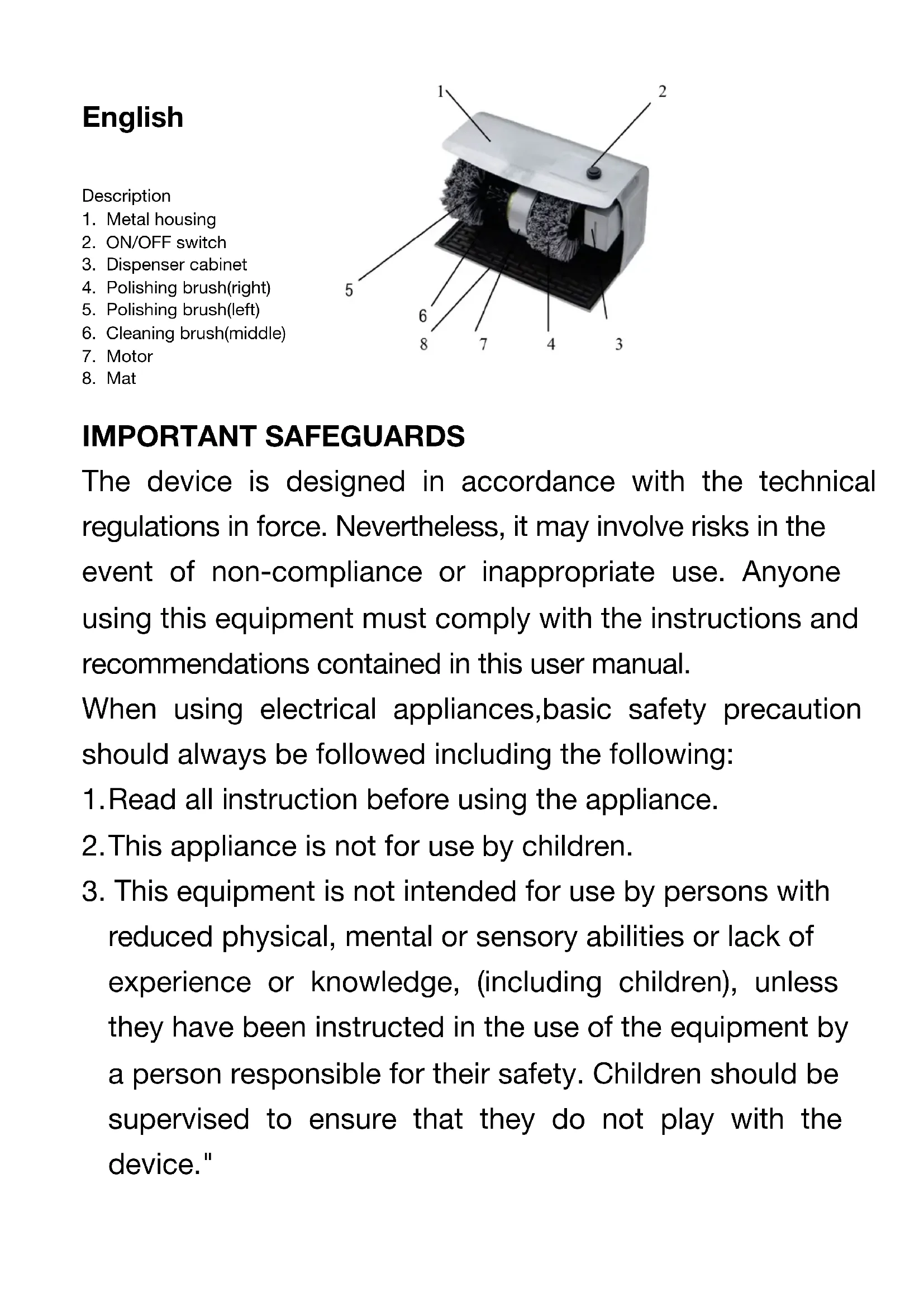

USER MANUAL U600 H.KOENIG

3. Dispenser cabinet

4. Polishing brush(right)

5. Polishing brush(left)

IMPORTANT SAFEGUARDS The device is designed in accordance with the technical regulations in force. Nevertheless, it may involve risks in the event of non-compliance or inappropriate use. Anyone using this equipment must comply with the instructions and recommendations contained in this user manual. When using electrical appliances,basic safety precaution should always be followed including the following:

1. Read all instruction before using the appliance.

2. This appliance is not for use by children.

3. This equipment is not intended for use by persons with

reduced physical, mental or sensory abilities or lack of experience or knowledge, (including children), unless they have been instructed in the use of the equipment by a person responsible for their safety. Children should be supervised to ensure that they do not play with the device."4. Please keep packaging materials such as plastic bags or expanded polyester elements out of reach of children. Risk of suffocation!

5. Close supervision is necessary when any appliances is

used by or near children.

6. Unplug from outlet before cleaning.

7. Do not operate any appliance with a damaged cord or

plug or after the appliance malfuctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination ,repair, mechanical or electrical adjustment.

8. The use of accessory attachments not recommended by

the appliance manufacturer may cause injuries.

9. Do not use outdoors.

10. Do not use in washroom or in wet areas.

11. The appliance is not suitable for installation in area

where a water jet could be used.

12. The appliance must not be cleaned by a waterjet.

13. Do not use the unit if its power cable or plug is

damaged, does not operate properly, has been damaged or dropped. If the power cable is damaged, it must be replaced by the manufacturer or its agent or by a qualified person to avoid any risk."

14. Do not use appliance for any other intended use.15. Never use the unit with wet hands or standing on wet

16. The safety of the device is only guaranteed if it is used

in accordance with its intended use and following the information presented in the operating instructions.

17. The manufacturer is not liable for any damage or

malfunction due to: - failure to comply with the instructions for commissioning and cleaning; - use not in accordance with basic use; - repairs carried out by the user; - use of unapproved spare parts.

18. This appliance may be used by children of at least

8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

19. Cleaning and maintenance should not be carried

out by children unless they are at least 8 years of age and are supervised by an adult.

20. Keep the appliance and its power cord out of reach of

children under 8 years of age.

21. When using electrical equipment, safety precautions

must always be taken to prevent the risk of fire, electricshock and/or injury in the event of misuse.

22. Make sure that the voltage rating on the typeplate

corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit

23. Never leave the unit unattended while in operation.

24. Please keep this document at hand and give it to the future

owner in case of transfer of your device.

SAVE THESE INSTRUCTIONS

Note: This model is a household shoe polishing machine and works with an intermitttent duty motor.The duty cycle of the motor is designed to run for 5 minutes continuously and then 5 minutes off before restarting again.The motor has an automatic overload thermal cutoff which stops the appliance in case of excessive force which may cause over-heating.In case the overload is tripped, you have to wait for approximately 10-15 minutes before resuming regular operation.( This depends on the ambient temperature.) How to use your shoe polishing machine

1. Press the ON/OFF button on the top of the housing to start the machine.This button is pressed

once for ON and again for OFF.

2. To apply polishing cream to your shoe,lift your shoe and stroke the tap of the dispenser

gently.Natural color shoe cream can be used for any colored shoes.

3. It is strongly recommended that one of the polishing brushes is used for shoes applied natural

color cream and another one, for colored cream. Do not mix use of these two brushes,or otherwise, it will affect the polishing result occasionally.

4. When polishing is done, press the ON/OFF button again to switch the machine off.

Refill the shoe cream

1. By looking through the wax box indication slot, you can notice when the shoe cream should be

2. Unlatch the dispenser and have it move outward to open the dispenser cabinet.

3. Take the bottle out, loose the tap and fill in cream of the same kind.Put the spring and steel ball

in proper position before recapping the tap tightly.Also, make sure the exhaust hole on top of the bottle is open.Or otherwise, shoe cream will not flow out smoothly when tap is stroked.Actually , you can take the blocking pin out from the exhaust hole and throw it away at the first time you have your bottle filled.

4. Put the cream bottle back into the cabinet and latch it in proper position on the machine.Cleaning and maintenance

1. Unplug the unit before cleaning and maintenance.

2. Do not clean the machine with water jet.

3. Dust and mud on the mat can be cleaned by simply taken

it out from the machine and have it washed or cleaned by vacuum cleaner.It is a good practice and important for safety to have the mat dry thoroughly in cool area before putting it back to the machine.Do not dry the mat under strong sunshine nor in hot area.

4. When changing brush is seemed necessary ,unscrew the

fixing screw on the brush and pull it sideway to take it out from the shaft.Replace the brush following the reversed procedure.Remember to have the screw fixed on the flat D-cut surface of the motor shaft. This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin - 77290 Mitry Mory - France www.hkoenig.com - sav@hkoenig.com - contact@hkoenig.com - Tél: +33 1 64 67 00 05FRANÇAIS Description
