USER MANUAL AXO720 H.KOENIG

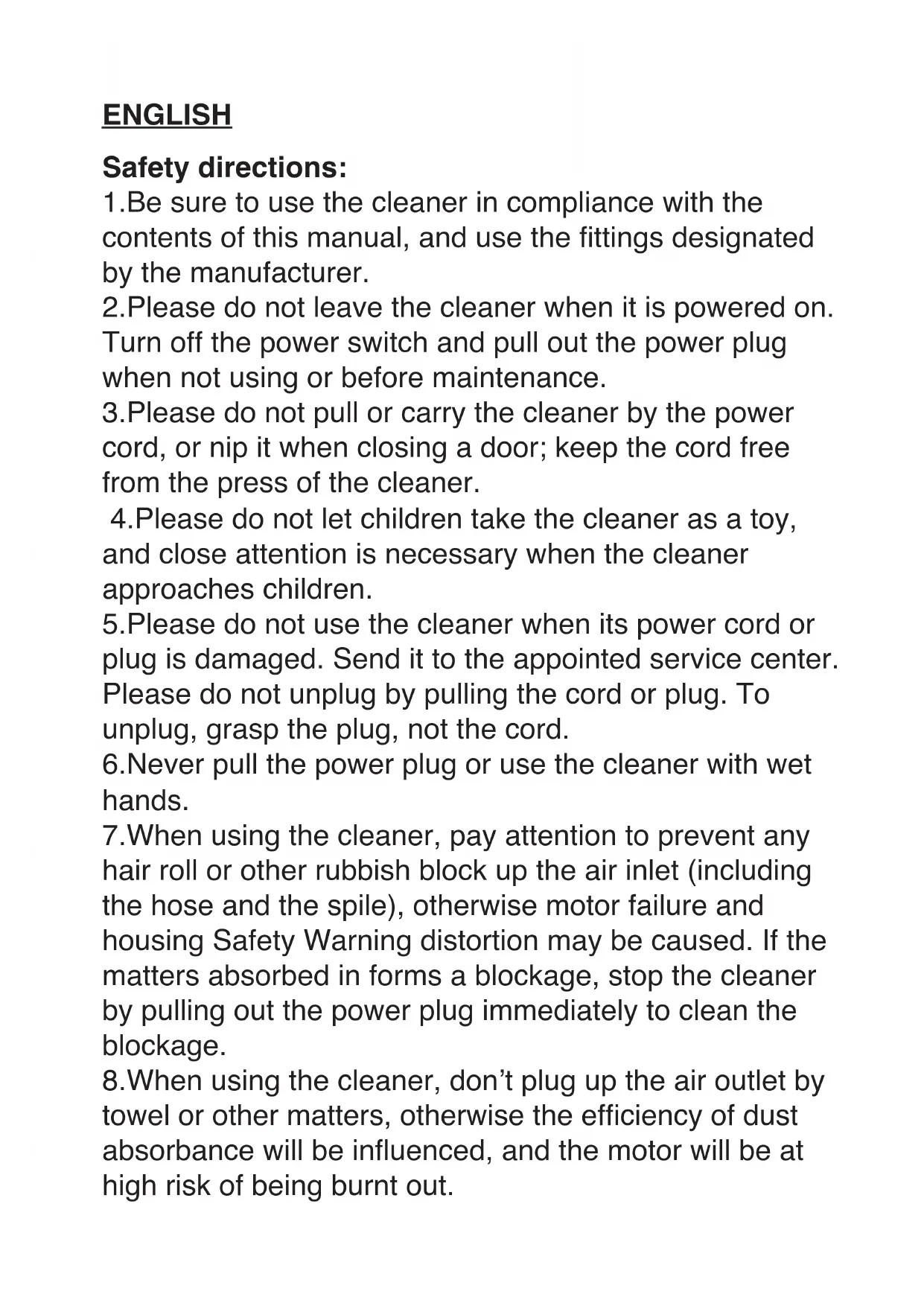

vacuum cleanerENGLISH Safety directions: 1.Be sure to use the cleaner in compliance with the contents of this manual, and use the fittings designated by the manufacturer. 2.Please do not leave the cleaner when it is powered on. Turn off the power switch and pull out the power plug when not using or before maintenance. 3.Please do not pull or carry the cleaner by the power cord, or nip it when closing a door; keep the cord free from the press of the cleaner. 4.Please do not let children take the cleaner as a toy, and close attention is necessary when the cleaner approaches children. 5.Please do not use the cleaner when its power cord or plug is damaged. Send it to the appointed service center. Please do not unplug by pulling the cord or plug. To unplug, grasp the plug, not the cord. 6.Never pull the power plug or use the cleaner with wet hands. 7.When using the cleaner, pay attention to prevent any hair roll or other rubbish block up the air inlet (including the hose and the spile), otherwise motor failure and housing Safety Warning distortion may be caused. If the matters absorbed in forms a blockage, stop the cleaner by pulling out the power plug immediately to clean the blockage. 8.When using the cleaner, don’t plug up the air outlet by towel or other matters, otherwise the efficiency of dust absorbance will be influenced, and the motor will be at high risk of being burnt out.9.Never use the cleaner at uneven floor or ground; and be very careful when cleaning stairs to prevent the cleaner from falling down.

10. Never absorb live stumps with the cleaner, otherwise

the motor may be damaged.

11. The cleaner should be kept far away from heat

sources (such as central heating, oven, etc) to avoid the distortion of plastic parts as well as the influence caused by such distortion.

12. Before using the cleaner, please remove big and

sharp matters on the floor to avoid damaging the plastic parts, filter gauzes and motor.

13. Never absorb water or other liquid with this cleaner,

otherwise, the motor will be damaged.

14. This device is not intended for use by persons with

reduced capacity on the physical, mental or sensory or lack of experience and knowledge (including children), unless he has them was asked to monitor or if they have had instructions on the use of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not play with the device.

15. If the power cord is damaged, it must be replaced

with an after-sales service to avoid any danger.

16. Do not operate this appliance if it has a damaged

cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

17. This appliance may be used by children of at least 8

years of age, as long as they are supervised and havebeen given instructions about using the appliance safely and are fully aware of the dangers involved.

18. Cleaning and maintenance should not be carried out

by children unless they are at least 8 years of age and are supervised by an adult.

19. Keep the appliance and its power cord out of reach of

children under 8 years of age.

20. When using electrical equipment, safety precautions

must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.

21. Make sure that the voltage rating on the typeplate

corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit

22. Never leave the unit unattended while in operation.

23. Make sure that the voltage rating on the typeplate

corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit.

24. Please keep this document at hand and give it to the

future owner in case of transfer of your device.

25. The device must not be used if it has been dropped, it

obvious signs of damage are visible or if it has leaks.

26. The device is not intended to be operated by external

timer means or a remote control system.

27. This appliance may be used by children of at least 8

years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

28. Cleaning and maintenance should not be carried out

by children unless they are at least 8 years of age andare supervised by an adult.

29. Keep the appliance and its power cord out of reach of

children under 8 years of age.

30. When using electrical equipment, safety precautions

must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse. 31.Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit.

32. Never leave the unit unattended while in operation.

33. The device must not be used if it has been dropped, it

obvious signs of damage are visible or if it has leaks.

34. The device is not intended to be operated by external

timer means or a remote control system.

35. This appliance is only intended for domestic and

indoor use.Failure clearance Less vacuum power of the cleaner

1. The cleaner can be used as tip the rubbish out of the full dust cup or the dust bag.

2. If blockage is found in ground brush, hose or tubes, the machine can be re-

operated only after the blockage is cleared away. Introduction of Product The vacuum cleaner of clear lines and structure can produce centralized wind with less noise, adjust the operation speed, indicate full dust, and automatically rewind the wire, multi-level filter exchange, dust cup and dust bag two in one. Being convenient and flexible in cleaning dust, it is reliable and ideal household cleaning tool. Welcome to purchase and use our products

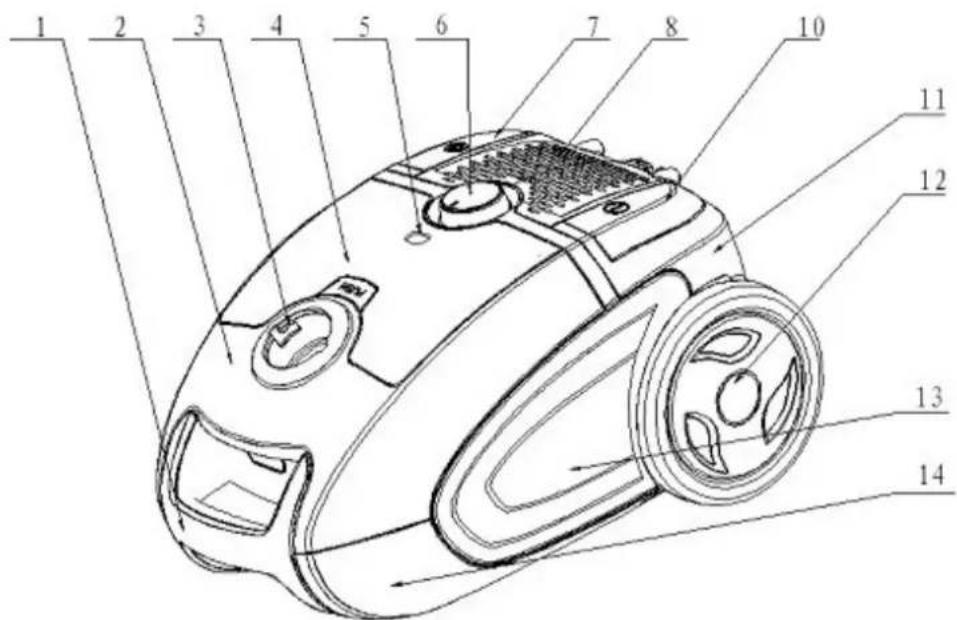

1. Handle front cover 2. Suck base 3. Front cover

4. Accessory cover 5. Dust full indicator 6.Speed control knob

Attached list A set of hose accessories, one extendible tube, one floor brush, one integrated brush & nozzle

1. Connects the hose accessories: insert the hose end into the hose socket at the front cover and

then hook it. (Fig1) Remove the hose accessories: press the adaptors at both side of the hose end and then pull the hose accessories. (Fig2)2. Connect the metal expansion tube to the curves end of the hose. (Fig3)

3. Connect different nozzle tools to the tube for different cleaning purpose: floor brush (adjusted to the

type of ground) for carpet or floor (Fig4,5); combined brush & nozzle for sofa, wall surface, curtain, corner or space between furniture and etc. (Fig6,7)

4. Turn on the machine: insert the plug of cord into the power socket which conform to that on the

label for power supply, and press the switch pedal, the machine could start working (Fig8).

5. Cord rewinding: hold the plug and pull out the cord; press the cord rewinding pedal, that

power cord will be drawn in.(Fig9)

6. The floor brush or nozzle can insert the brush hanger in the back of back cover

when it is out of use. (Fig10)

7. Press the "PUSH" button to open the accessory cover. (Fig 11)Maintenance

1. Change the dust bag: when the Dust full indicator

turns to be red, it is time to clear the dust or replace with a new bag. (Fig1) Open the front cover by clipping. (Fig2,3) Take out the bag holder then remove the full dust bag. (Fig4,5)

2. The motor protection filter should be removed and

rinsed once a year, and can use it after dry. If the filter is damage, a new filter should be replaced. (Fig6,7)

3. Wash or exchange the outlet filter (HEPA): clip down

and remove the outlet cover by hands for wash or exchange of filter. (fig8,9)WARRANTY The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery. If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com. By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs. If you still cannot find an answer to your question or problem, then click on “Did the answer solve your problem?”. This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help. WARRANTY CONDITIONS The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual. This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

- Accessories and wearing parts (*). - Normal maintenance of the device. - All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories. - Damage of external origin: fire, water damage, electrical surge, etc. - Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user). - The products whose serial number would be missing, deteriorated or illegible that would not allow its identification. - The products subjected to leasing, demonstration, or exhibition. (*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty. The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

Warning The plug must be removed from the power socket before any maintenance or replacement. If the power cord is damaged, replace them only by the factory or maintenance center or similarly qualified persons.ENVIRONMENT CAUTION: Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.
