USER MANUAL Definitive ZY403 KRUPS

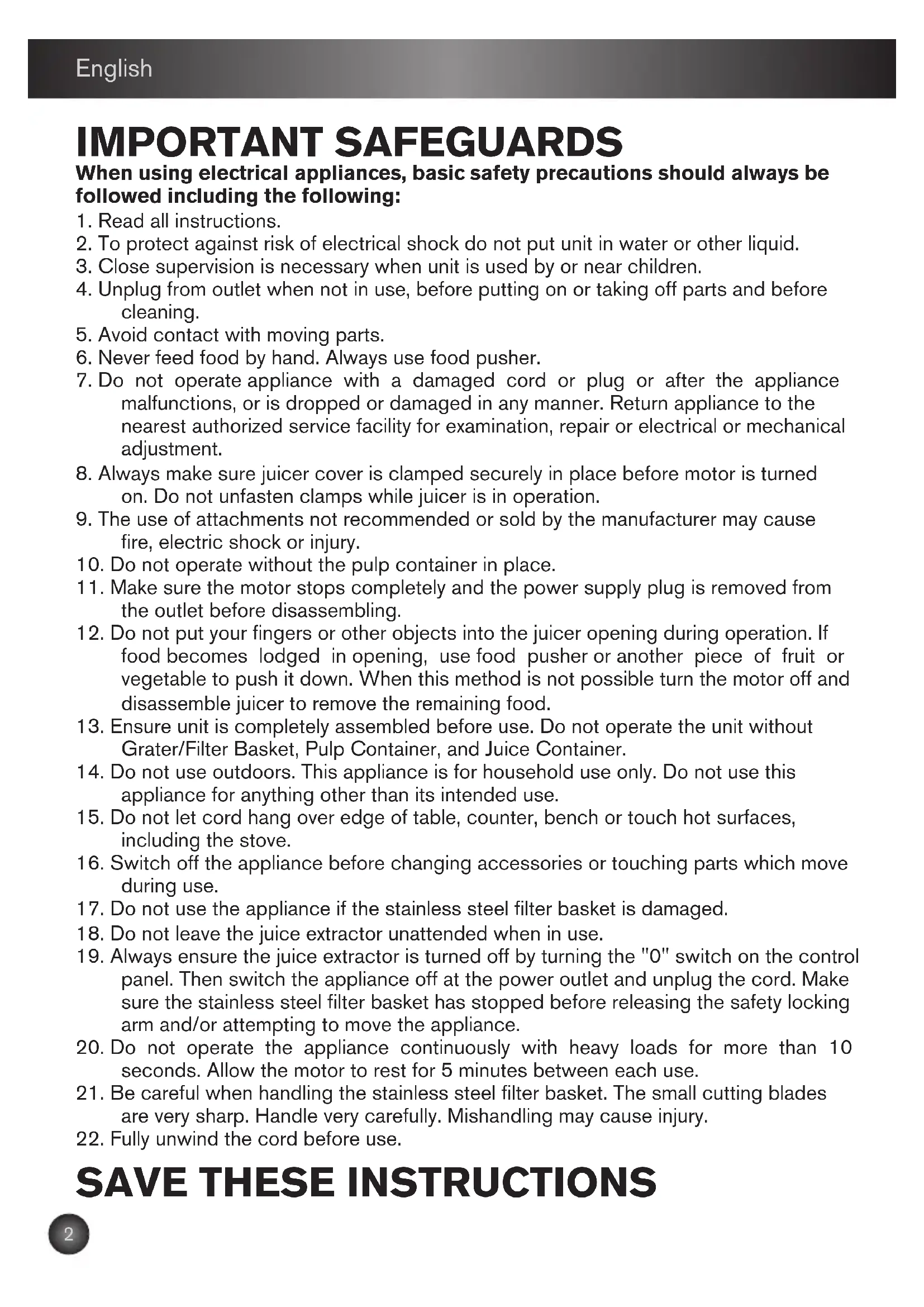

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions.
2. To protect against risk of electrical shock do not put unit in water or other liquid.
3. Close supervision is necessary when unit is used by or near children.
4. Unplug from outlet when not in use, before putting on or taking off parts and before cleaning.
5. Avoid contact with moving parts.
6. Never feed food by hand. Always use food pusher.
7. Do not operate appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
8. Always make sure juicer cover is clamped securely in place before motor is turned on. Do not unfasten clamps while juicer is in operation.
9. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
10. Do not operate without the pulp container in place.
11. Make sure the motor stops completely and the power supply plug is removed from the outlet before disassembling.
12. Do not put your fingers or other objects into the juicer opening during operation. If food becomes lodged in opening, use food pusher or another piece of fruit or vegetable to push it down. When this method is not possible turn the motor off and disassemble juicer to remove the remaining food.
13. Ensure unit is completely assembled before use. Do not operate the unit without Grater/Filter Basket, Pulp Container, and Juice Container.
14. Do not use outdoors. This appliance is for household use only. Do not use this appliance for anything other than its intended use.
15. Do not let cord hang over edge of table, counter, bench or touch hot surfaces, including the stove.
16. Switch off the appliance before changing accessories or touching parts which move during use.
17. Do not use the appliance if the stainless steel filter basket is damaged.
18. Do not leave the juice extractor unattended when in use.
19. Always ensure the juice extractor is turned off by turning the "0" switch on the control panel. Then switch the appliance off at the power outlet and unplug the cord. Make sure the stainless steel filter basket has stopped before releasing the safety locking arm and/or attempting to move the appliance.
20. Do not operate the appliance continuously with heavy loads for more than 10 seconds. Allow the motor to rest for 5 minutes between each use.
21. Be careful when handling the stainless steel filter basket. The small cutting blades are very sharp. Handle very carefully. Mishandling may cause injury.
22. Fully unwind the cord before use.

SAVE THESE INSTRUCTIONS

POLARIZATION PLUG

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electrical shock, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

DESCRIPTION

A Pusher
B Feed tube
C Cover
D Stainless steel filter basket
E Juice collector
F Pouring spout with flow stop system
G Pulp collector
H Safety clamp

Control switch (2 speeds)
Drive shaft
K Motor unit
L Juice container cover
M Foam separator
N Juice container
Brush
P Cord storage

SAFETY SYSTEM

This appliance is fitted with a safety mechanism. To start the juice machine, the cover (C) must be properly secured by the safety clamp (H). Opening the safety clamp (H) will stop the juice extractor. At the end of a cycle, place the control switch (I) to OFF and wait until the stainless steel filter basket (D) stops completely before removing the cover.

BEFORE FIRST USE

■Unpack the appliance and place it on a solid, stable work surface.
■Ensure that all packaging has been removed before starting the appliance.
We recommend that you wash all the removable parts (A, B, C, D, E, G, L, M, N) in warm soapy water (see paragraph "Cleaning"). Before the first use rinse and dry them carefully.

USING THE APPLIANCE

Fit the juice collector (E) onto the appliance, tipping it slightly forward to pass the pouring spout through the hole provided (see Fig. 1).
Place the stainless steel filter basket (D) in the juice collector (E). Ensure that the filter basket is properly clipped onto the drive shaft (J). You can hear an audible click when it is positioned correctly (see Fig. 2).
Fit the cover (C) on the appliance with the ejection spout to the back (see Fig. 3).
Push the safety clamp (H) towards the back of the machine until it locks into place. You will hear an audible "click" (see Fig. 4).
Fit the pulp collector (G) on the rear of the appliance (see Fig. 5).
- Slide the pusher (A) into the feed tube (B) aligning the groove on the pusher with the small ridge in the feed tube.
If you wish to separate the juice from the froth, slide the foam separator (M) in the juice container (N) (see Fig. 6). The foam separator allows you to keep the froth inside the jug when you pour the juice into a glass.
This appliance is fitted with a flow-stop system (F): push the pouring spout down to initiate the system and allow the juice to flow out (see Fig. 7).
Place the juice jug (N) under the pouring spout in front of the appliance (see Fig. 8).

Plug in the appliance.
To start the appliance, use the control switch (I) and choose either the "Lo" or "Hi" setting based on what you are juicing.
Insert the fruits or vegetables through the feed tube (B).
The fruits and vegetables must be inserted only while the motor is running.
■Do not press too hard on the pusher (A). Do not use any other utensil. NEVER push with your fingers.
■ When you have finished, stop the appliance by turning the "0" button on the control switch (I) and wait until the filter basket (D) stops completely.
- When the pulp collector (G) is full, or the juice flow slows down, empty the pulp collector and clean the filter basket and the cover.
After making your juice, activate the flow-stop system by pushing the pouring spout up before removing your glass to stop the flow of the juice (see Fig. 9).

WHICH SPEED TO USE?

Ingredients Speed	Speed App	Prox. weight (in lbs)	Quantity of juice obtained in cups (*)
Apples	2 2.2	2.7
Pears	2 2.2	2.5
Carrots	2 2.2	2.5
Cucumbers	1 2.2	(about 2 cucumbers) 2.5
Pineapple	2 2.2	1.3
Grapes	1 2.2	1.9
Tomatoes	1 3.3	3.8
Celery	2 3.3	1.5

Choosing the wrong speed may cause the appliance to vibrate abnormally.
■It is recommended that you use the appliance for no more than 2 minutes continuously.
To remove the filter, release it by pulling hard with both hands (see Fig. 11 and 12).

• The quality and quantity of juice varies greatly according to the date of harvest and the particular variety of fruit or vegetable. The quantities of juice indicated above are therefore approximate.

PRACTICAL TIPS

■Wash the fruit carefully before juicing.
In general, you do not need to remove the skin or peel. You only need to peel fruit with thick and/or bitter skin, like lemons, oranges, grapefruits or pineapple (remove the core).
Certain types of fruit like apples, pears, tomatoes etc. (with a diameter less than 3 inches) will fit in the feed tube whole, thanks to the "Direct Fruit System". So choose the appropriate type of fruit or vegetable. Fruits and vegetables should be inserted into the machine one piece at a time to avoid overheating.
It is difficult to extract juice from bananas, avocados, blackberries, figs, aubergines and strawberries.
The juice machine should not be used for sugar cane and excessively hard or fibrous fruit.
Choose fresh, ripe fruit and vegetables, they will yield more juice. This appliance is suitable for such fruits as apples, pears, oranges, grapes, pomegranates and pineapple and such vegetables as carrots, cucumbers, tomatoes, beets and celery.

If you use over-ripe fruit, the filter basket will be blocked more quickly.
Important: All juice must be consumed immediately. On contact with air, it quickly becomes oxidized, which can change its taste, color and nutritional value. Apple and pear juices quickly turn brown. Add a few drops of lemon juice to slow this discoloration.

CLEANING

■ All removable parts (A, B, C, D, G, L, M and N) may be cleaned in the dishwasher, except for the juice collector (E).
The juice collector (E) must be cleaned directly after use in soapy water.

This appliance is easier to clean immediately after use.
■Do not use scouring pads, acetone, alcohol, etc. to clean the appliance.
The filter basket must be handled with care (see Fig.10). Avoid any mishandling that may affect the performance of the appliance. The filter basket can be cleaned with the brush (O). Change your filter basket at the first sign of wear or damage.

Clean the housing with a damp cloth. Dry carefully.
■Never immerse the motor under running water.

TROUBLESHOOTING

PROBLEMS CAUSES	SES SOLUTIONS
The appliance does not work.	The plug is not inserted correctly; the control switch (I) is neither on “Lo” nor on “Hi”.	Plug the appliance into an outlet with the correct voltage. Turn the control switch to speed “Lo” or “Hi”.
	The cover (C) is not properly secured.	Check that the cover (C) is properly fitted and secured by the safety clamp (H).
The appliance is giving off a smell or is very hot to touch, is making an abnormal noise or smoking.	The filter basket (D) is not properly fitted.	Check that the filter basket (D) is fitted properly onto the drive shaft (J).
	The quantity of fruit or vegetables being processed is too great.	Allow the appliance to cool and reduce the quantity of fruit or vegetables being processed.
The flow of juice decreases.	The filter basket (D) is blocked.	Switch off the appliance, clean the feed tube (B) and the filter basket (D).

For any other problem or fault, please contact your approved Service center.

DISPOSING OF YOUR APPLIANCE

(i) Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point or at an approved service centre.

MANUFACTURER'S WARRANTY

: www.krups.com

With a strong commitment to the environment, most of Krups products are repairable during and after the warranty period. Before returning any defective products to the point of purchase, please call Krups consumer service directly at the phone number below for repair options.

Your help to sustain the environment is appreciated!

The Warranty

This product is guaranteed by Krups for a period of 2 years against any manufacturing defect in materials or workmanship, starting from the initial date of purchase.

The manufacturer's warranty by Krups is an extra benefit which does not affect consumer's Statutory Rights. The Krups warranty covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labor. At Krups's choice, a replacement product may be provided instead of repairing a defective product. Krups's sole obligation and your exclusive resolution under this warranty are limited to such repair or replacement.

Conditions & Exclusions

The Krups warranty only applies within USA, Canada & Mexico, and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorized service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a Krups authorized service centre. Full address details for each country's authorized service centre are listed on the Krups website (www.krups.com) or by calling the appropriate telephone number listed below to request the appropriate postal address.

Krups shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase.

This warranty will not cover any damage which could occur as a result of misuse, negligence, failure to follow Krups instructions, use on current or voltage other than as stamped on the product, or a modification or unauthorized repair of the product. It also does not cover normal tear and wear, maintenance or replacement of consumable parts, and the following:

-using the wrong type of water
-scaling (any de-scaling must be carried out according to the instructions for use);
-ingress of water, dust or insects into the product;
-mechanical damages, overloading
-damages or bad results due to wrong voltage or frequency
-accidents including fire, flood, lightning, etc
-professional or commercial use
-damage to any glass or porcelain ware in the product

This warranty does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier.

The Krups manufacturer's warranty applies only for products purchased and used in USA, Canada & Mexico. Where a product purchased in one country and then used in another one:

a) The Krups guarantee duration is the one in the country of usage of the product, even if the product was purchased in another listed country with different guarantee duration.
b) The Krups guarantee does not apply in case of non conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or other local technical specifications
c) The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by Krups
d) In cases where the product is not repairable in the new country, the Krups guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible.

Consumer Statutory Rights

This Krups manufacturer's warranty does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This warranty gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country or Province to Province. The consumer may assert any such rights at his sole discretion.

CANADA	GROUPE SEB CANADA345 Passmore AvenueToronto, ONM1V 3N8	MEXICO1800 1128	Groupe SEB MEXICO S.A. de C.V.Goldsmith 38 Desp.401 Col. PolancoDelegation MiguelHildalgo11 560 Mexico D.F.MEXICO	U.S.A.	GROUPE SEB USA2121 Eden RoadMillville, NJ 08332
	1-800-418-3325		325 800-526-5377

: www.krups.com
