Brand	Teka
Model	HRB 6300 ATS
Product type	Built-in cooker with oven
Cooking functions	Traditional cooking, Pizza, Maxi Grill with fan, Grill, Maxi Grill, Bottom heat, Eco mode, Defrost, Rapid preheat
Cleaning	Hydroclean®: low-temperature cleaning with 200 ml of water and a spoonful of dish soap
Electronic clock	Time setting, alarm/timer, delayed start and stop, manual mode
Power supply	Connection to electrical network (voltage and power not specified)
Included accessories	Grid, tray, tray supports (depending on model)
Oven door	Inner glass, hinge, oven seal
Installation	Built-in with furniture fixing
Maintenance	Regular cleaning, Hydroclean cycle, use of neutral detergents and soft sponges
Safety	Automatic stop at end of programmed cooking, audible signal, confirmation delay
Repairability	Spare parts available via Teka or after-sales service
Bulb	Interior oven lighting
Fan	For convection cooking (Maxi Grill with fan)
Cooling air outlet	Present for oven cooling
Control panel	Function selector, temperature selector, electronic clock
User manual	48 pages available in multiple languages

Frequently Asked Questions - HRB 6300 ATS TEKA

How to set the time on the electronic clock?

Press the control button (5) several times until the hour LED (4) flashes. Turn the button to set the hour, then press to confirm. The time can only be set when no alarm or cooking program is active.

How to use the Hydroclean® function?

Let the oven cool down, remove all accessories. Place a cloth at the bottom, pour 200 ml of water (add a spoonful of dish soap for better results). Set the function selector to 0, temperature to 90°C, and timer to 4 minutes. After the signal, wait 20 minutes, then wipe.

How to program a delayed start cooking?

First program the cooking start time by pressing the control button (5) until the LED (1) flashes, set the time. Then program the end time by pressing until the LED (2) flashes, set the time. Confirm each step.

How to set the timer (alarm)?

Press the control button (5) several times until the LED (3) flashes. Turn the button to set the desired time (up to 3 hours), then press to activate. The alarm symbol stays on.

What to do if the clock flashes after a power outage?

Press and hold the control button (5) for 3 seconds until the LED (4) turns off and standby mode is activated. The oven will work normally.

How to cancel a cooking program or the timer?

Press the control button (5) for three seconds to cancel the cooking program or timer. The oven returns to manual mode.

How much water to use for Hydroclean?

Pour 200 ml of water into the lower cavity of the oven. Use a cloth at the bottom to spread the water.

Do I need to add dish soap for Hydroclean?

For better results, add a spoonful of mild dish soap to the water before pouring it onto the cloth.

How to clean the oven after Hydroclean?

After the cycle and cooling (20 minutes), remove the cloth and wipe off dirt residues with a damp cloth. For deep cleaning, use neutral detergents and a soft sponge.

How to stop the audible signal?

Press the control button (5) to stop the audible signal immediately. Otherwise, it stops automatically after one minute.

USER MANUAL HRB 6300 ATS TEKA

Before using your oven for the first time, please carefully read the installation and maintenance instructions that come with it.

Depending on the model, the accessories included in your oven may vary from those shown in the pictures.

FRaNcals

PROGRAMAR LA FUNCION TEKA HYDROCLEAN

ATENCIón

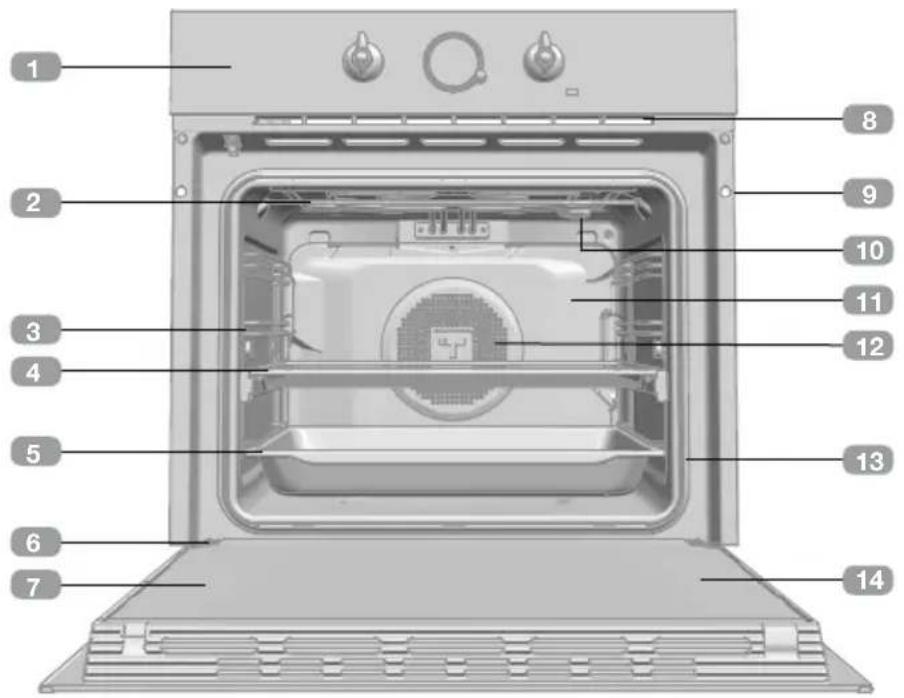

Description of the oven

1 Control panel
2 Grill element
3 Tray support
4 Grid shelf
5 Tray
6 Hinge
7 Inner Glass
Air cooling outlet
Unit mounting
10 Lamp
Back Wall Panel
12 Fan
13 Oven Seal
14 Door

Control panel

HRB 6300 Models

HRB 6316 Models

1 Function control dial
2 Electric clock/timer
3 Temperature control dial

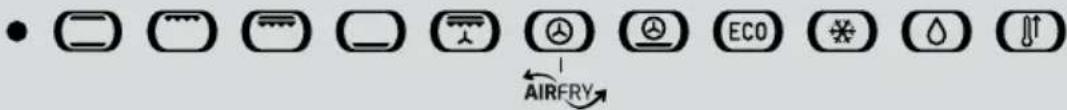

Function selector symbols

HRB 6300 Models

HRB 6316 Models

Oven functions

INFORMATION

For a description of how to use each of the features, see the cooking guide that comes with your oven.

MAXIGRILL WITH FAN

OVEN SWITCH-OFF

PIZZA

ECO ECO

CONVENTIONAL

DEFROSTING

GRILL

HYDROCLEAN

MAXIGRILL

FAST PREHEATING

LOWER ELEMENT

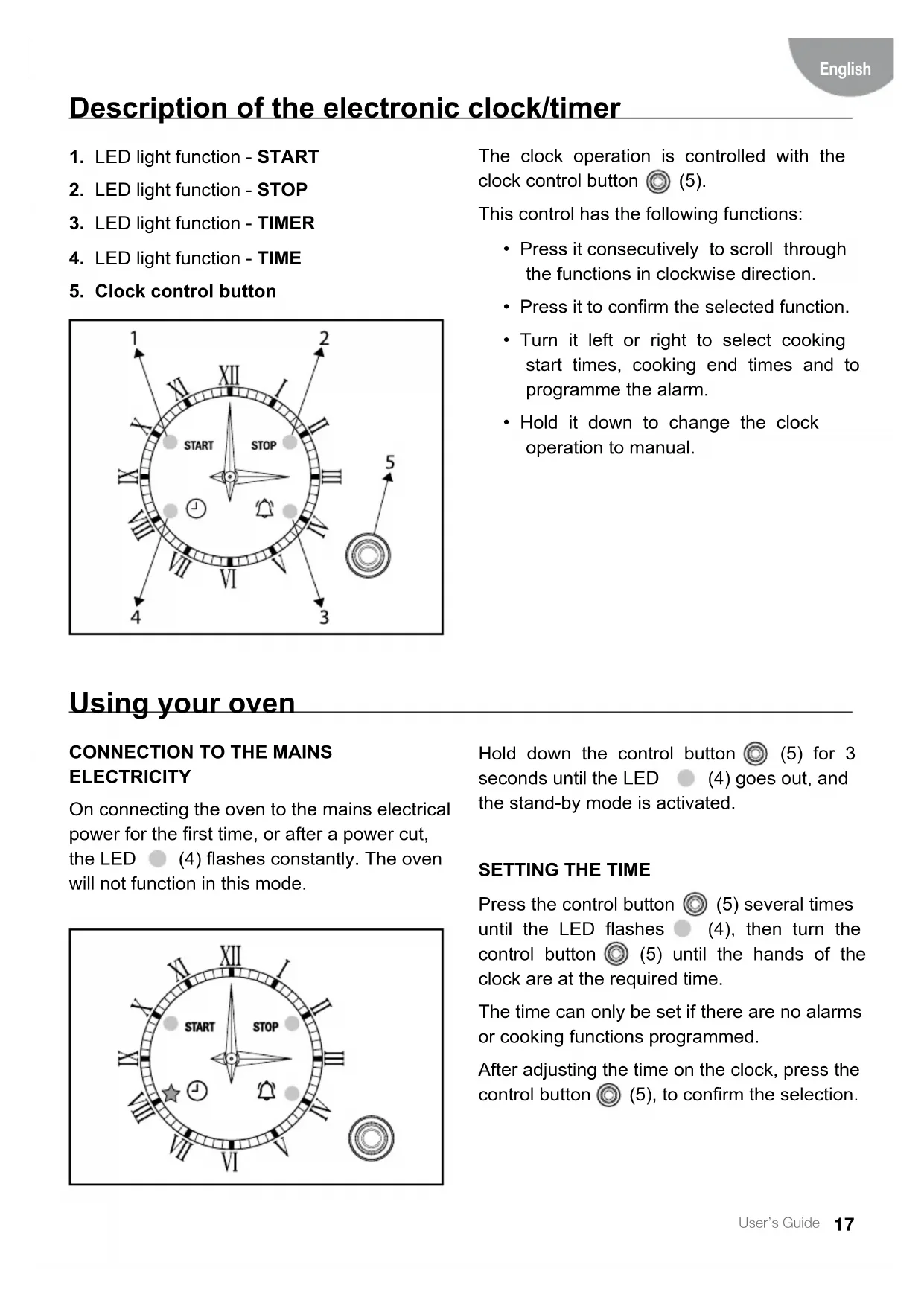

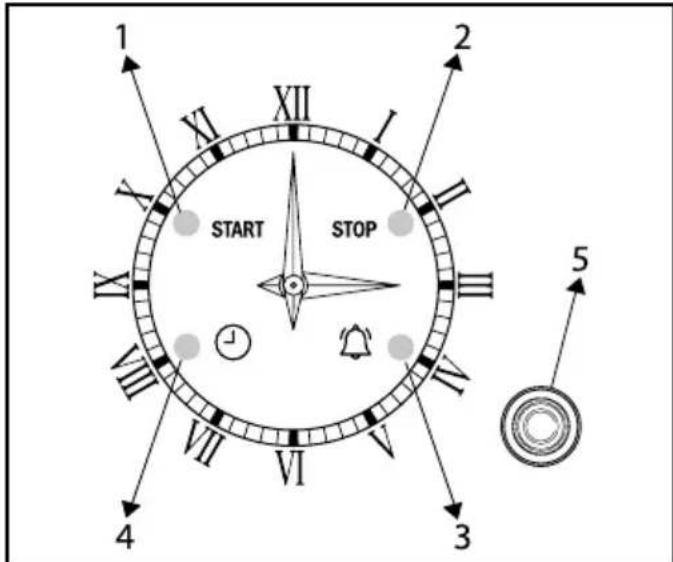

Description of the electronic clock/timer

1. LED light function - START
2. LED light function - STOP
3. LED light function - TIMER
4. LED light function - TIME
5. Clock control button

The clock operation is controlled with the clock control button (5).

This control has the following functions:

• Press it consecutively to scroll through the functions in clockwise direction.
• Press it to confirm the selected function.
• Turn it left or right to select cooking start times, cooking end times and to programme the alarm.
• Hold it down to change the clock operation to manual.

Using your oven

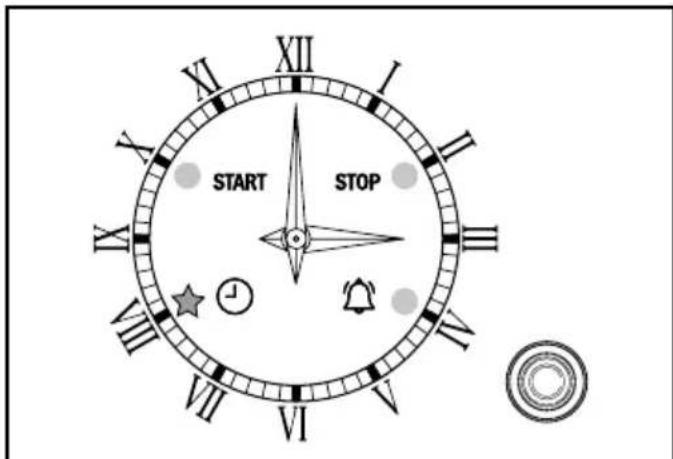

CONNECTION TO THE MAINS ELECTRICITY

On connecting the oven to the mains electrical power for the first time, or after a power cut, the LED (4) flashes constantly. The oven will not function in this mode.

Hold down the control button (5) for 3 seconds until the LED (4) goes out, and the stand-by mode is activated.

SETTING THE TIME

Press the control button (5) several times until the LED flashes (4), then turn the control button (5) until the hands of the clock are at the required time.

The time can only be set if there are no alarms or cooking functions programmed.

After adjusting the time on the clock, press the control button (5), to confirm the selection.

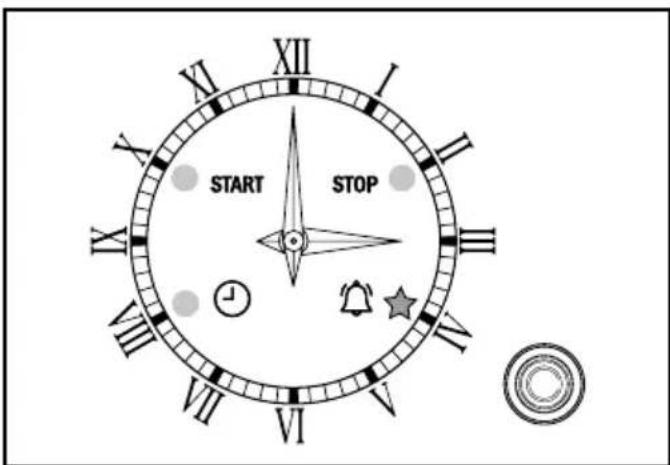

PROGRAMMING THE ALARM (TIMER)

Press the control button (5) several times until the LED flashes (3), then turn the control button (5) until the hands of the clock are at the required time.

After adjusting the alarm time on the clock, press the control button (5) to activate it.

If the alarm is not activated within 10 seconds of selecting the menu, it will be cancelled.

If the alarm is active, the alarm symbol on the clock remains lit.

Press and release the control button (5) to display the programmed time of the alarm. The hands will indicate the time selected for the alarm for 2 seconds and then return to the current time.

Press the control button (5) for 2 seconds to cancel the programmed alarm.

At most, the alarm can be set for up to 3 hours after the current time and at minimum, up to 2 minutes after the current time.

The alarm activation is independent to the oven operation. It is only an acoustic signal.

The oven does not turn off at the end of the timer period. This function can also be used while the oven is in use.

OVENTIMERFUNCTION

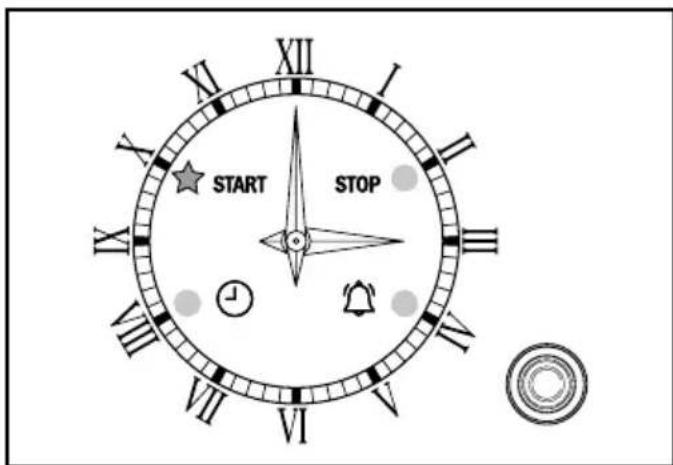

Programming the Cooking Start Time

Press the control button (5) several times until the LED (1) flashes.

Programme the cooking start time by turning the control button (5), to the right or left.

After adjusting the start time, press the control button (5) to confirm the selection.

If the selection is not confirmed within 10 seconds of selecting the menu, it will be cancelled.

The cooking end time must be programmed after setting the start time, otherwise the cooking start time will be deleted.

The cooking start time can be programmed for up to 12 hours after the current time.

The cooking start time can only be programmed from 2 minutes after the current time.

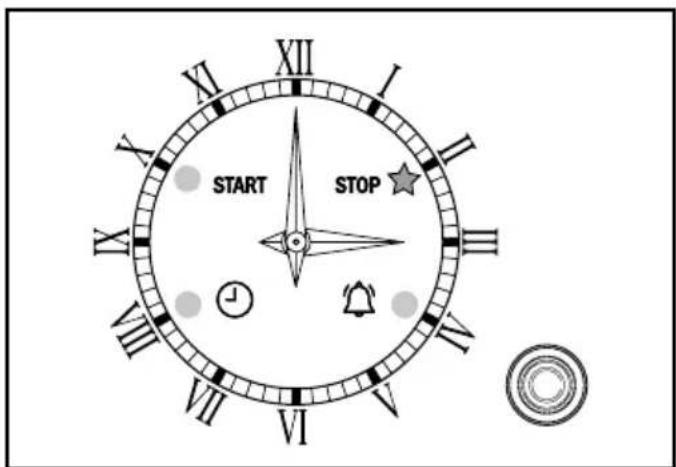

Programming the Cooking Stop Time

Press the control button (5) several times until the LED (2) flashes.

Programme the cooking stop time by turning the control button (5), to the right or left.

After setting the cooking stop time, press the control button (5), to activate the cooking programme.

If the selection is not activated within 10 seconds of selecting the menu, it will be cancelled.

The cooking stop time can be programmed for up to 15 hours after the current time.

The cooking stop time can only be programmed from 2 minutes after the current time.

Programming Cooking Time and Cooking Stop Time

For delayed start cooking, programme the cooking start and stop times in accordance with the instructions above.

MANUAL OPERATION

If no cooking times are programmed, the clock runs in manual mode.

If a cooking programme is defined, to activate the manual mode, press the control button (5) until the clock emits a buzzing sound.

If the manual mode is active, any previous cooking programme is cancelled.

When the clock is in manual mode, the oven is operative.

If the oven is not going to be used, the oven function selection switch should be in the OFF position.

In manual mode, the LED lights are off.

At the end of the programmed cooking time, or when the pre-established alarm time is reached, a buzzer is heard.

Press the control button (5) to stop the buzzer. Otherwise, after a minute from the start of the buzzing sound, the buzzer will stop automatically.

CANCELLATION OF THE PROGRAMMING OR TIMER

Press the control button (5) for three seconds to cancel the cooking programme or TIMER.

Teka Hydroclean® function

This function makes it easy to remove grease and other food debris that may have stuck to the sides of the oven.

For easier cleaning, do not allow dirt to accumulate. Clean the oven frequently.

PROGRAMMING THE TEKA HYDROCLEAN® FUNCTION

WARNING

Do not pour water into a hot oven as this can damage the enamel of the oven.

Always run the cycle on a cold oven. The result could be affected and the varnish damaged if it is run when the oven is too hot.

First remove the trays and all accessories from the oven interior, including the tray supports and telescopic guide rails.

To do this, follow the instructions in the installation and maintenance guide accompanying the oven.

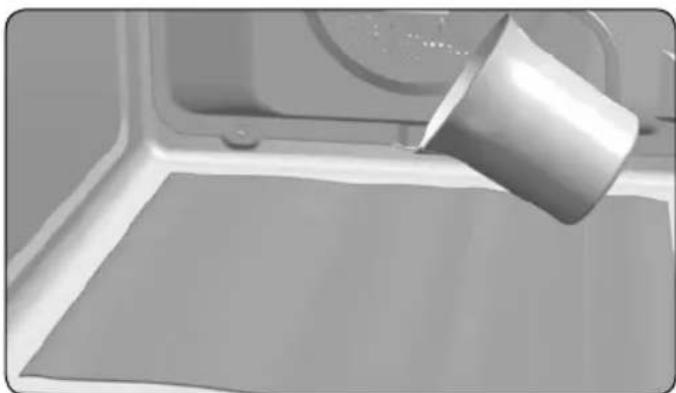

1. With the oven cold, spread a cloth out on the bottom of the oven.

1. Gently pour 200ml of water into the bottom of the oven cavity.

INFORMATION

For best results, add a teaspoon of mild washing up detergent to the glass of water before pouring onto the cloth

1. Turn the control dial to position ⑥

2. Set the temperature to 90^

3. Programme a duration of 4 minutes on the timer.

4. After 4 minutes, an alarm will sound and the oven will stop heating.

5. Turn the control dial to position o .

6. Wait for about 20 minutes for the interior of the oven to cool.

IMPORTANT

Do not open the oven until the cooling phase is complete.

This is necessary for the Hydroclean® function to work properly.

1. Any traces of dirt and excess water can now be removed from the oven with the damp cloth.

The Hydroclean® function takes place at a low temperature. However, cooling times can vary depending on the room temperature.

WARNING

Before touching the inside surface of the oven, make sure that it has cooled properly.

If a deeper clean is required after using the Hydroclean® function, use neutral detergents and non-abrasive sponges.
