Product type	Blender
Brand	Beko
Model	TBN81808BX
Rated power	800 W
Voltage and frequency	220-240 V~, 50-60 Hz
Insulation class	II
Container capacity	1.5 L
Container material	Glass
Blade type	Stainless steel
Speed setting	Variable speed with P (Pulse) position
Pulse function	Yes
Ice crushing	Yes, with water addition
Safety	Safety lock on lid (stops if open)
Measuring cap	Yes, for adding during operation
Cord storage	Under the appliance
Non-slip base	Yes
Cleaning of container and lid	Dishwasher safe
Cleaning of motor unit	Damp cloth
Intended use	Household use only

Frequently Asked Questions - TBN81808BX BEKO

How to use the Pulse function?

For high-speed pulse blending, set the speed control knob to the P position and hold it down. Release to stop; the knob automatically returns to the OFF position.

Can I blend hot food?

No, the maximum food temperature must not exceed 40 °C. Always pour liquids first to avoid splashes.

How to crush ice?

First add 15 ml of cold water to the container, then fill three-quarters full with ice cubes. Select a high speed. You can add ice cubes one by one through the measuring cap.

What to do if the blender does not start?

Check that the lid is properly closed and locked. The appliance will not operate if the lid is open for safety reasons. Also ensure the plug is connected.

How to clean the blades?

Never touch the blades with bare hands. To clean, pour hot water with a little detergent and run for a few seconds at maximum speed. Then rinse. The container is dishwasher safe.

What is the maximum capacity for a milkshake?

For fruit-milk mixtures, do not exceed 1000 ml to avoid overflow. The total container capacity is 1.5 L.

Can I blend dry fruits like almonds?

No, do not grind hard dry fruits (almonds, hazelnuts) as they can damage the blades. The appliance is designed for soft foods like onions, carrots, bananas.

How to add ingredients during operation?

Remove the measuring cap on the lid and insert ingredients cut into pieces of 2 to 5 cm. Add one at a time to avoid clogging.

Can the glass container go in the dishwasher?

Yes, the glass container and lids are dishwasher safe. Avoid boiling water which could damage the blade bearings.

How to store the appliance after use?

Unplug it, clean it, and store it in a cool, dry place. Wrap the cord under the base. Keep the appliance out of reach of children.

USER MANUAL TBN81808BX BEKO

TBN 81808 BX

EN/FR/IT/PL/SL/CS/SRB/SQ/MK/RO/AR

CONTENTS

ENGLISH	03-16
FRANÇAIS	17-31
ITALIANO	32-47
POLSKI	48-63
SLOVENŠČINA	64-77
CZECH	78-91
СРБИН	92-105
SHQIPTARE	106-119
MAKEДОНСКИ	120-137
ROMÂNĂ	138-155
ARABIC	156-169

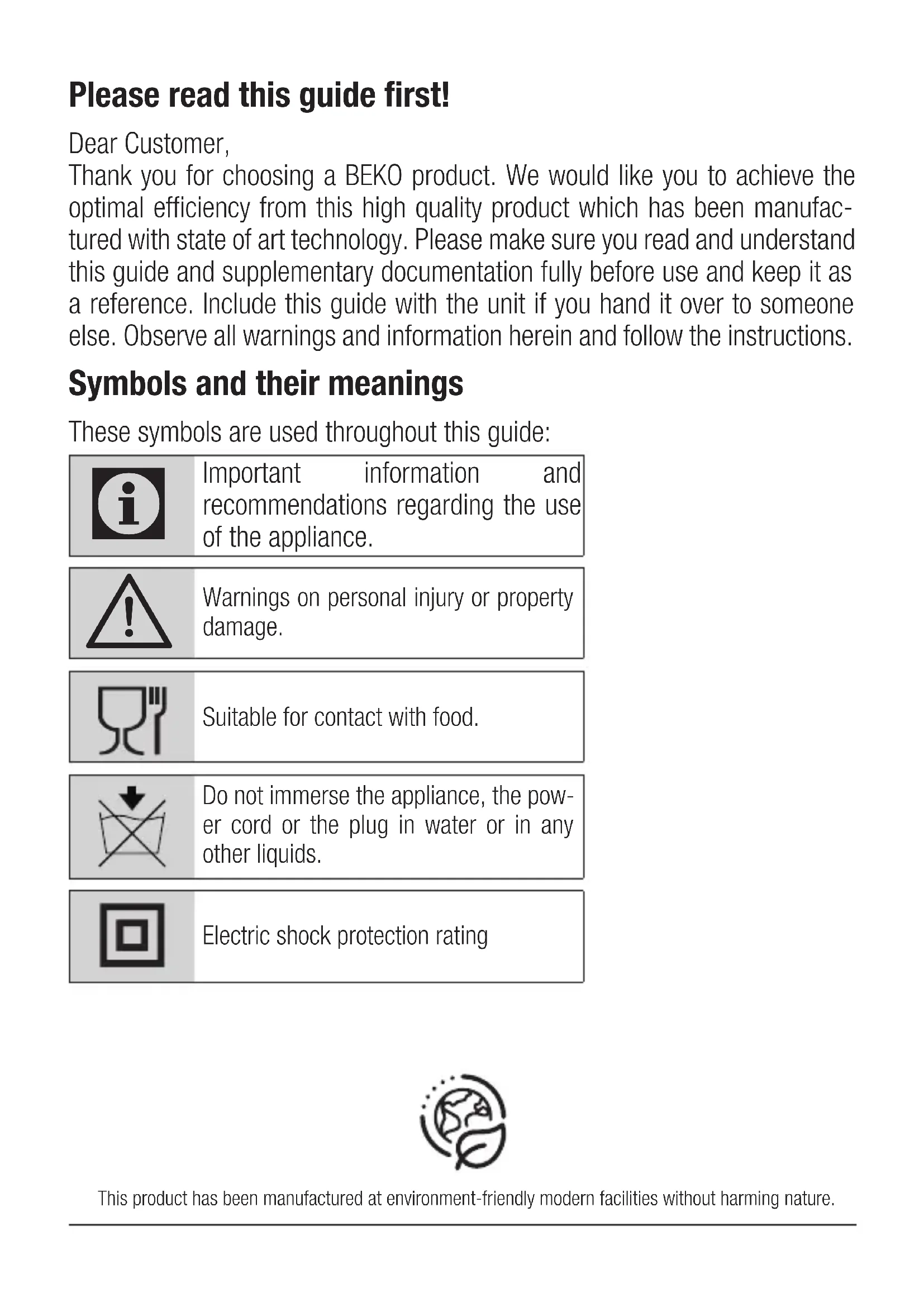

Please read this guide first!

Dear Customer,

Thank you for choosing a BEKO product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of art technology. Please make sure you read and understand this guide and supplementary documentation fully before use and keep it as a reference. Include this guide with the unit if you hand it over to someone else. Observe all warnings and information herein and follow the instructions.

Symbols and their meanings

These symbols are used throughout this guide:

Important information and recommendations regarding the use of the appliance.

Warnings on personal injury or property damage.

Suitable for contact with food.

Do not immerse the appliance, the power cord or the plug in water or in any other liquids.

Electric shock protection rating

This product has been manufactured at environment-friendly modern facilities without harming nature.

1 Important safety and environmental instructions

This section contains safety instructions to prevent hazards that can result in injury or property damage. Any warranty is void if these instructions are not followed.

1.1 General safety

• This appliance complies with international safety standards. • The appliance may be used by persons with limited physical, sensory, or mental abilities, or persons with a lack of experience and knowledge, if they are supervised or given instructions on the operation of the appliance and any relevant risks they may encounter. Children should not tamper with the device. - Do not use the appliance if the power cord, the appliance, or the appliance blade is damaged. Contact authorized service. - Use only original parts or parts recommended by the manufacturer. - Do not disassemble the appliance.

1 Important safety and environmental instructions

• Do not operate the appliance or its components over or near hot surfaces, and do not place them on such surfaces.
• Do not use the appliance for hot meals.
• For security reasons, the product will not operate if the lid is left open. - Your mains power supply must be in accordance with the specifications on the type tag.
• Do not use the appliance with an extension cord.
• Do not touch the plug of the appliance while your hands are damp or wet.
• Do not unplug the appliance by pulling on the cord.
• Prior to cleaning, removing accessories, or mounting accessories, unplug the appliance and wait for it to stop completely.
• Serious injury may result from misuse when emptying the container, during cleaning, and when touching the chopping blade with bare hands. Handle the chopping blade carefully, holding it only by its plastic part.

1 Important safety and environmental instructions

• Never touch the blades while using the appliance. There is a risk of injury due to improper usage. • After cleaning, prior to energizing or assembling the parts, dry the appliance and all of its parts.
• Do not immerse the appliance, the power cord, or the plug in water or any other liquids.
• If you keep the packaging materials, keep them out of the reach of children.
• Children must not use the device. Store the appliance and its electrical cord out of the reach of children. • Always use the appliance on a stable, flat, clean and dry surface. • This appliance is intended to be used in household and similar applications such as:
• staff kitchen areas in shops, offices and other working environments,
• farm houses, by clients in hotels, motels and other residential type environments,
• bed and breakfast type environments
• Do not squeeze or bend the power cord and do

1 Important safety and environmental instructions

not rub it on sharp edges in order to prevent any damage. Keep the cord away from hot surfaces and open flames.

• Before using the appliance for the first time, clean all parts carefully which come into contact with food. Please see full details in the “Cleaning” section.
• Do not touch any moving parts of the appliance. Do not attach or remove the parts until the device comes to a complete stop.

1.2 Compliance with the WEEE Regulations and Waste Disposal

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1 Important safety and environmental instructions

1.3 Packaging information

The product's packaging is made of recyclable materials, in accordance with the National Legislation. Do not dispose the packaging waste with the household waste or other wastes, dispose it to the packaging collection areas specified by local authorities.

1.4 What to do for energy saving

Before adding solid food to the appliance, cut them into small pieces as indicated in the manual. Follow the other instructions and durations specified in the manual. If it is applicable for the food to be prepared, select lower speed levels. Turn off and unplug the appliance after use.

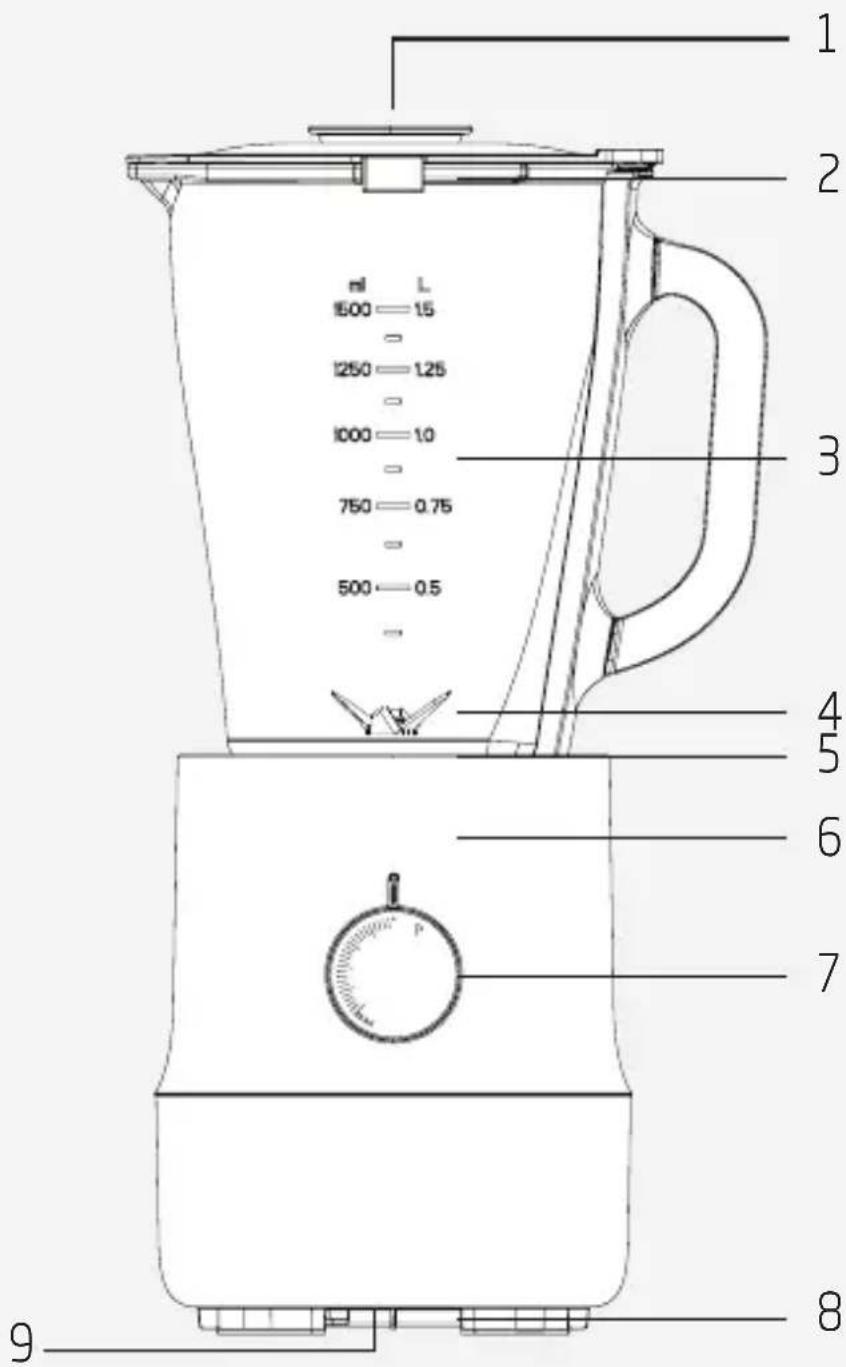

2 Your Blender

2.1 Overview

The values provided with the appliance or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.

2 Your Blender

1. Measuring cap
2. Lid
3. Glass container
4. Chopping blade
5. Silicone ring
6. Motor unit
7. Speed adjustment button
8. Non-slip base
9. Cable wrap (under the appliance)

Technical data

Voltage: 220-240 V~, 50-60 Hz

Power: 800 W

Insulation class: ||

The rights to make technical and design changes are reserved.

3 Operation

3.1 Intended use

The appliance is intended for home use only, it is not suitable for professional use.

The appliance is designed to chop small solid foods (e.g. onion, potato, carrot) and fruits (e.g. strawberries, banana).

3.2 First operation

Clean the parts of the appliance before the first use (see 3.1.)

3.3 Start Up

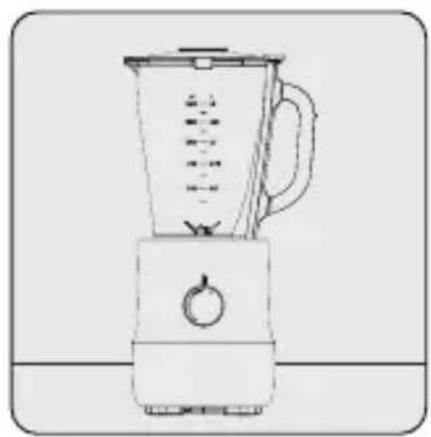

Place the appliance on a fixed and level surface.

To remove the glass container (3) from the motor unit (6), turn it to the “☐” symbol and take it out. Place the glass container (3) on a level surface and turn and lift the lid (2) clockwise to open.

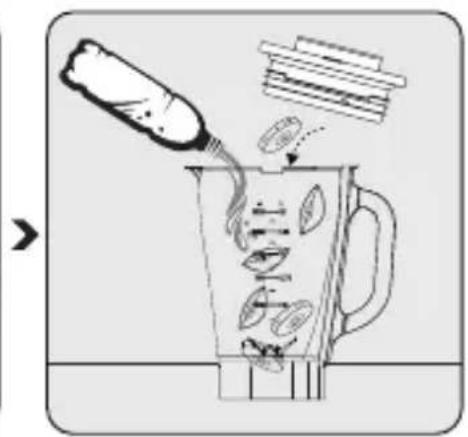

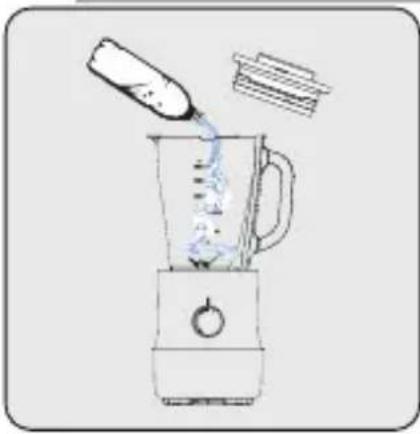

Place the ingredients you would like to prepare in the glass container (3) and close the lid (2).

WARNING:

• Do not operate the appliance empty or without a lid.
• Do not touch the blades with bare hands.
• For security reasons, the product will not operate if the lid is left open.

3 Operation

• In your fruit milk mixes (strawberry, banana, etc.), fill the milk up to a maximum of 1000 ml. Otherwise, overflows or leaks may occur during the process.
• Do not shred dried fruits such as almonds and hazelnuts with the device.
• You can process food at a maximum temperature of 40°C in the appliance.
• Do not insert any objects into the glass container (3) while the appliance is operating.
• Use the measuring cap (1) port to add material to the glass container during the mixing process.

WARNING: Do not remove the material from the glass container (3) before the chopping blade (4) stops completely.

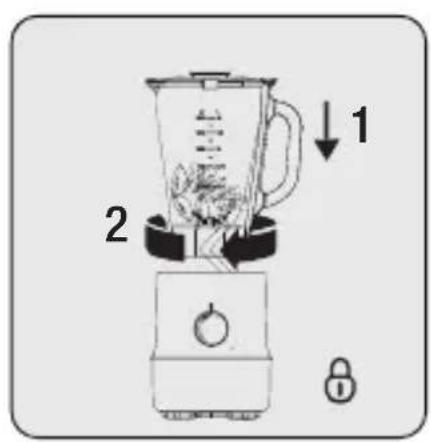

Place the glass container (3) upright on the motor unit (6), turn it to the “5” symbol to lock it in its place.

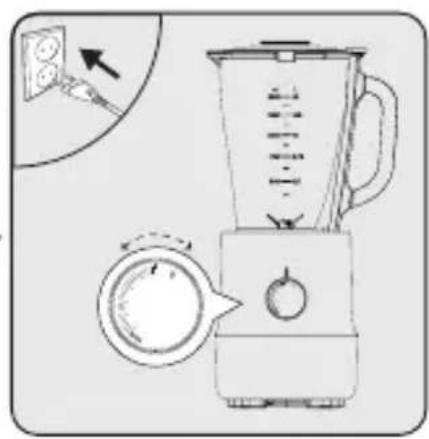

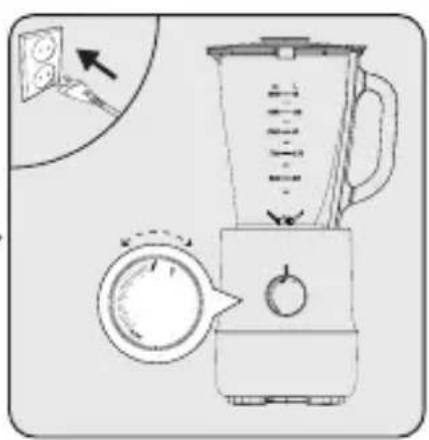

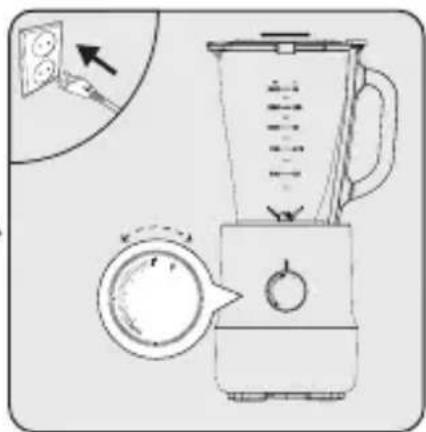

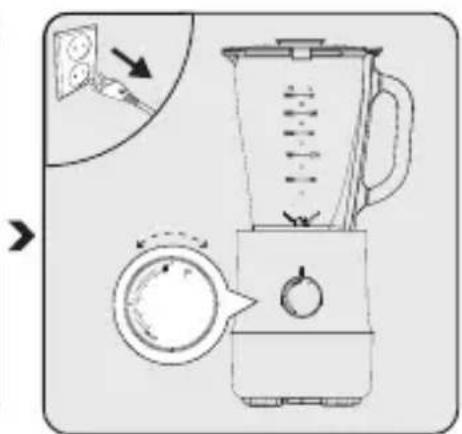

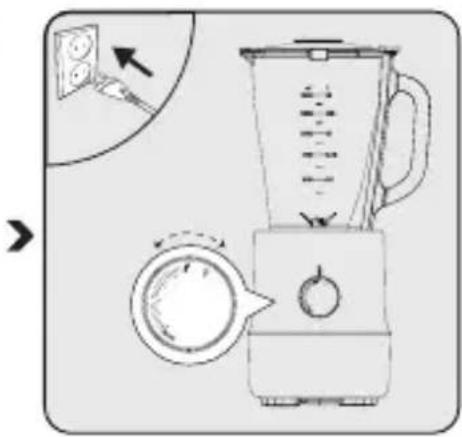

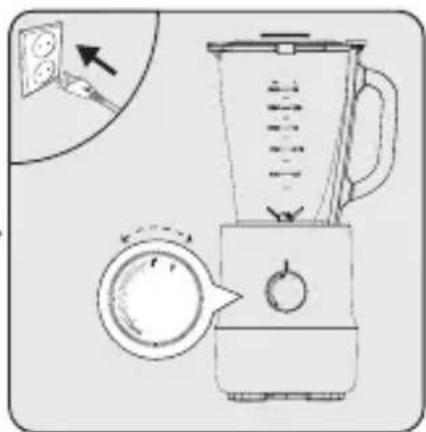

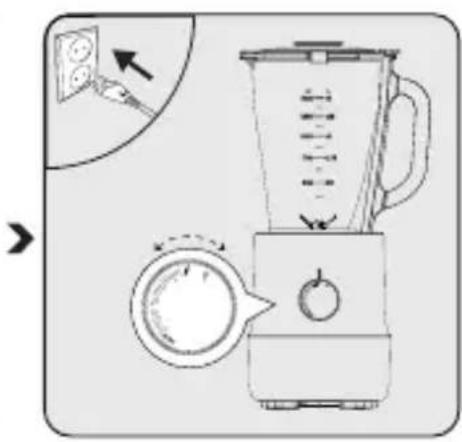

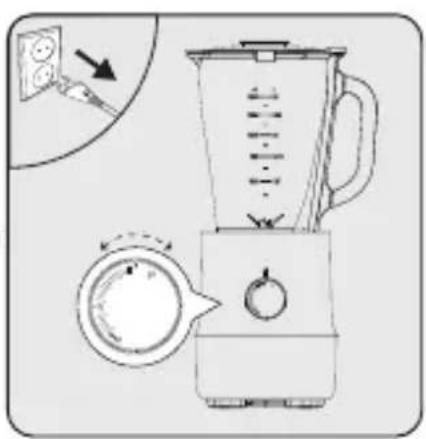

Plug the appliance into the socket and start operating by selecting the speed level (7).

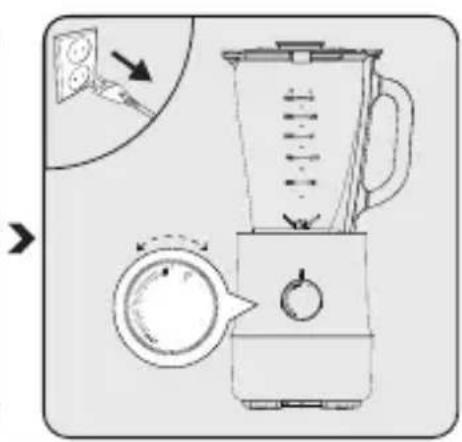

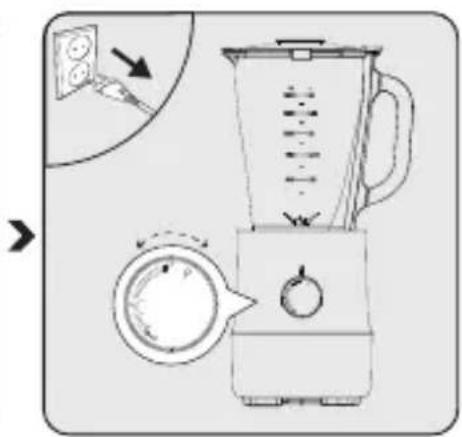

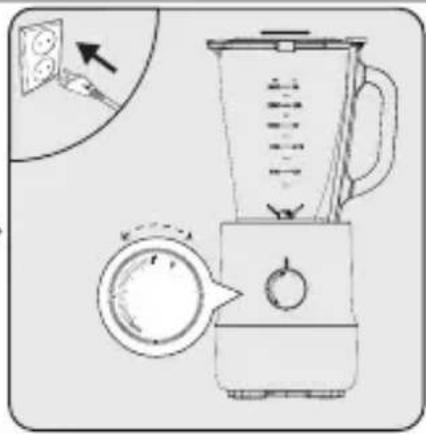

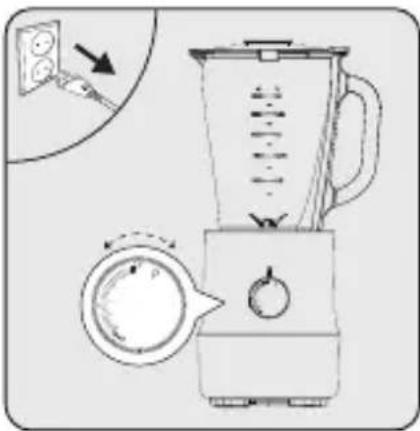

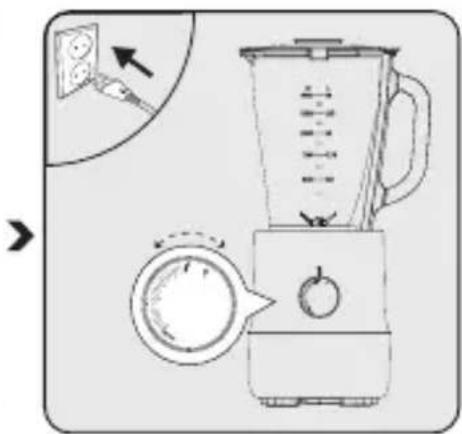

When mixing is complete, turn the speed adjustment knob (7) to the "0" position and remove the plug from the socket.

3 Operation

3.4 Crushing ice

WARNINGS:

• Add water to the glass container (3) to break ice in the appliance. • To process crushed ice, we recommend adding three quarters of ice and 15 ml of cold drinking water to the container.

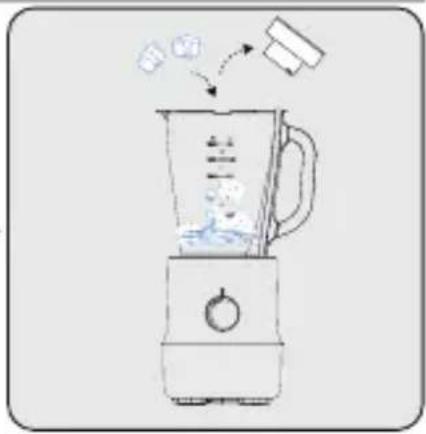

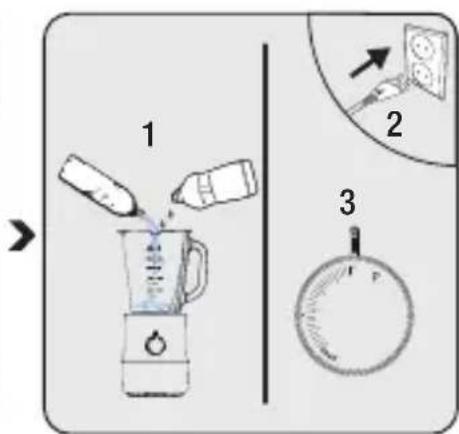

After adding 15 ml of water into the glass container (3), add 3/4 ice.

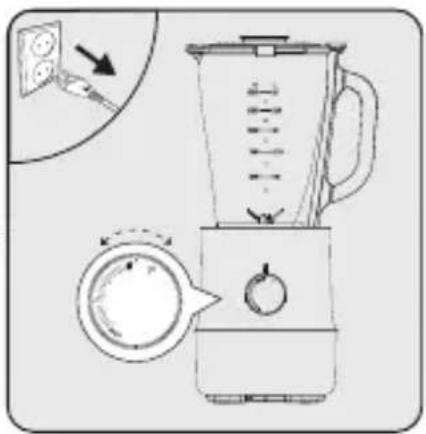

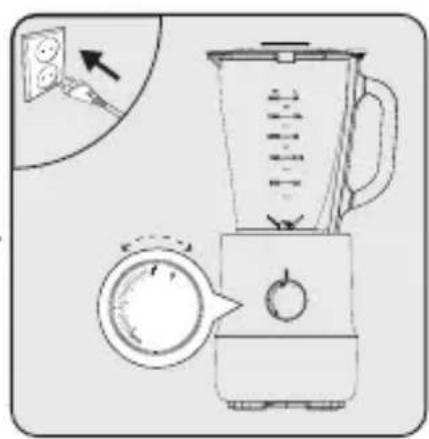

Plug the appliance into the socket and start operating by selecting the speed level (7).

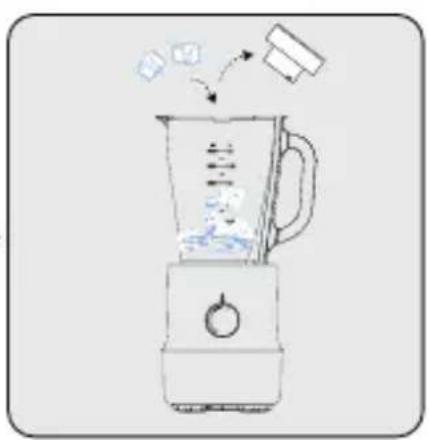

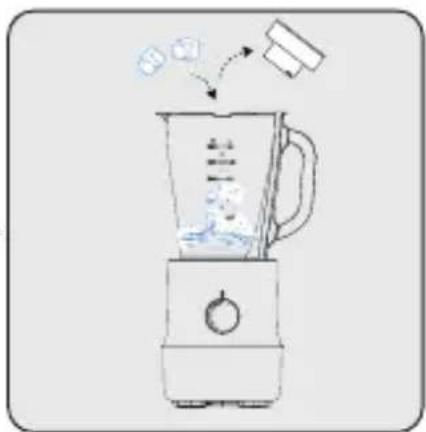

To add more ice during operation, open the measuring cap (1) and add ice cubes.

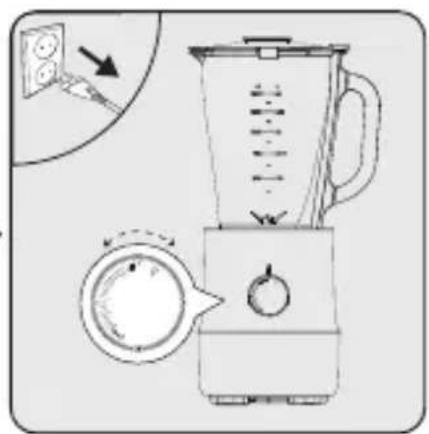

When mixing is complete, turn the speed adjustment knob (7) to the "0" position and remove the plug from the socket.

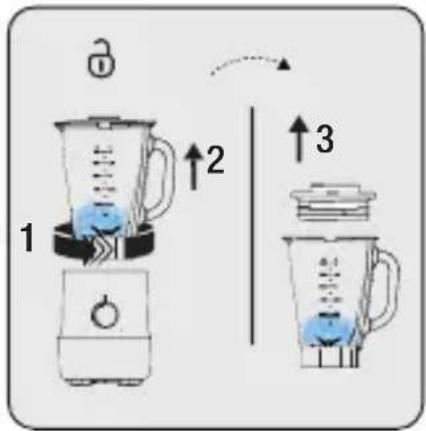

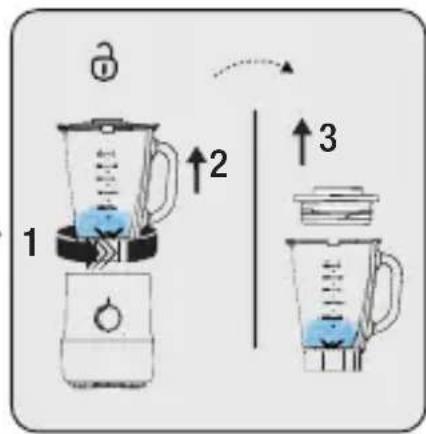

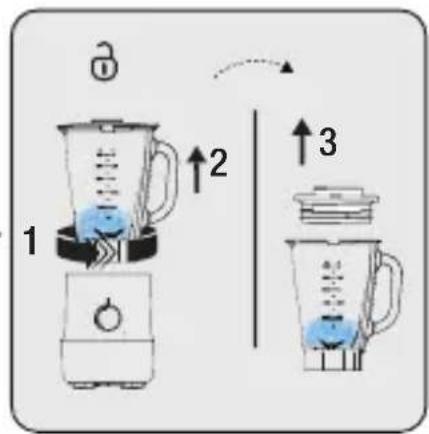

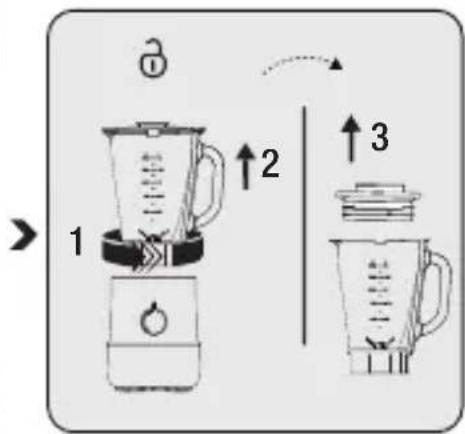

To remove the glass container (3) from the motor unit (6), turn it to the “♂” symbol and take it out. Place the container (3) on a level surface and turn and lift the lid (2) clockwise to open.

3 Operation

3.5 "P" position

The process of 1-2 seconds operation in the position "P" on the speed adjustment button (7) is called "PULSE".

For high speed mixing with short strokes, keep the speed adjustment knob (7) in the "P" position. When you release the button, the speed adjustment knob (7) automatically returns to the "OFF" position and the device starts to stop.

3.6 Tips for blending

1. To add ice cubes to the mixes while the blender is running, dispose of one ice cube at a time by removing the measuring cap (1). To make the blender mix the ice properly, wait for a few seconds before adding the next ice cube.
2. To add more food, remove the measuring cap (1) and insert the ingredients through the hole. Make sure the food is cut to a size of 2-5 cm to fit through the hole. Put back the cap (1) when you have finished adding ingredients.
3. While blending solid food like raw vegetables, cooked or raw meat, and fruits, always cut these materials into pieces of 2-5 cm length before putting them in the glass container (3). Do not put more than 2 units of such food at once in the blender. This will speed up the blending process and reduce the abrasion on the blender blades (8).
4. Unless otherwise described in the recipe, always add the liquid ingredient in the glass container (3) first.
5. To blend a drink, put all ingredients in the glass container (3) at once.
6. Avoid over-blending. It is usually enough to blend for a few seconds.
7. Over-blending turns food into mush.

4 Cleaning and maintenance

4.1 Cleaning

WARNINGS:

• Never use gasoline, solvents, abrasive cleaners, metal objects, or hard brushes to clean the appliance.
• Be careful when cleaning the chopping blades unit. The chopping blade (9) is sharp. Try not to hold it from the blade side and do not immerse it in water.
• Never clean the blades with bare hands.
• Clean the table blender after each use. Do not let any residual food dry on or in the blender. It will be harder to clean it if you do so.
• Do not use boiling water. The bearings of the blade assembly have a life-long lasting lubrication feature. Using boiling water damages these bearings and shortens the lifetime of the blender.

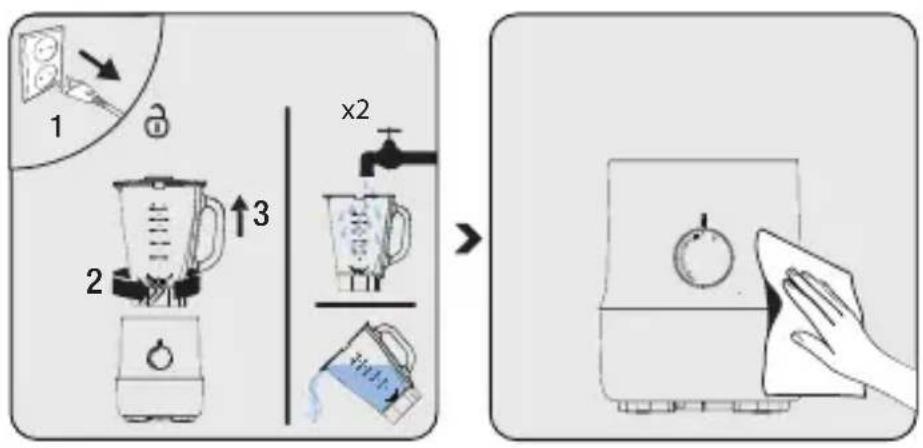

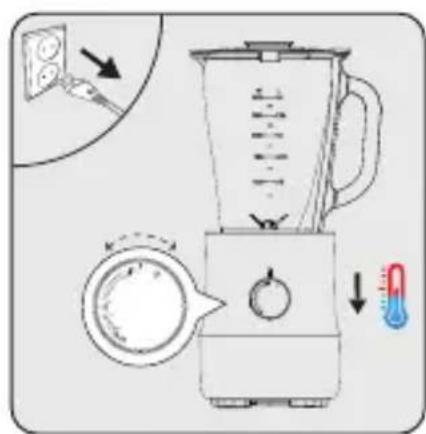

Turn the appliance off and unplug it. Wait for the appliance to cool down.

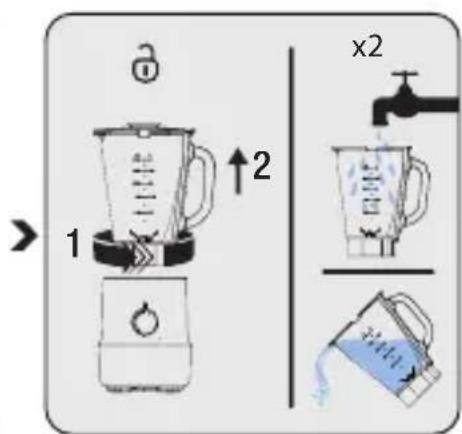

Remove the glass container (3) from the motor unit (6). Rinse with water to clean up large food residues that can pile up in the container.

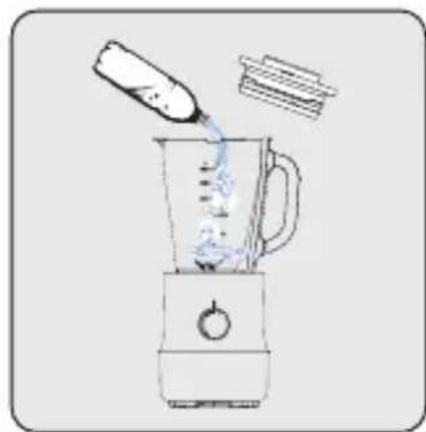

Place the glass container (3) in its place. Add warm water and 1 to 1 1/2 units of liquid detergent and operate the blender in high speed for a few seconds.

4 Cleaning and maintenance

You can wash the glass container (3) and lids in the dishwasher.

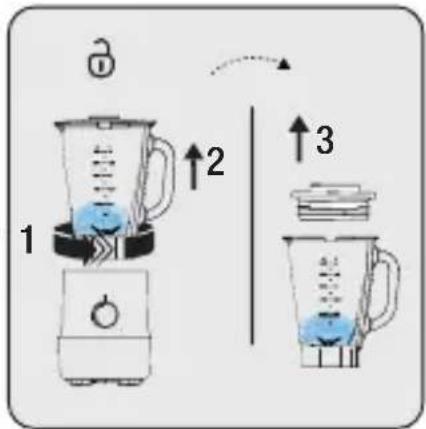

Unplug the appliance. Remove the glass container (3) from the motor unit (6) and rinse it with water. If necessary, repeat the same steps.

Use a soft and damp cloth and a mild amount of cleaning agent to clean the motor unit (6).

4.2 Storage

- If you do not intend to use the appliance for a long time, store it carefully.

• Unplug the appliance before storing.
• Store the appliance in a cool dry place.
• Store the appliance and its cord out of the reach of children.

4.3 Transport and shipping

• During transport and shipping, carry the appliance with its original packaging. The packaging of the appliance will protect the appliance against physical damage.
• Do not put heavy objects on the appliance or its packaging. Otherwise the appliance may be damaged.
• If the appliance is dropped, the appliance may not operate or permanent damage may occur.

Place the appliance on a solid and flat surface.

To remove the glass container (3) from the drive unit (6), turn it to the symbol “♂” and take it off. Place the glass container (3) on a flat surface and open it by turning and lifting the lid (2) clockwise.

Put the ingredients you want to prepare into the glass container (3) and close the lid (2).

WARNING:

First put 15 ml of water into the glass container (3), then add 3/4 ice.

When mixing is finished, turn the speed control knob (7) to the "0" position and unplug the appliance.

To remove the glass container (3) from the drive unit (6), turn it to the symbol “♂” and take it off. Place the container (3) on a flat surface and open it by turning and lifting the lid (2) clockwise.

3 Operation

3.5 Position "P"

This symbol indicates that this product must not be disposed of together with other household waste at the end of its service life. The used appliance must be returned to an official collection point for recycling electrical and electronic devices. To find these collection systems, contact your local authorities or the retailer where the product was purchased. Every household plays an important role in returning and recycling old appliances. Proper disposal of the used appliance helps prevent potential negative consequences for the environment and human health.

Place the appliance on a solid and flat surface.

To remove the glass container (3) from the motor unit (6), turn it to the mark “â” and take it out. Place the glass container (3) on a flat surface, then turn and lift the lid (2) clockwise to open it.

Put the ingredients you want to prepare into the glass container (3) and close the lid (2).

WARNING:

Place the glass container (3) upright onto the motor unit (6), turn it toward the "8" mark, and lock it into the appropriate position.

Plug the device into an outlet and start operation by selecting the speed level (7).

When you have finished blending, turn the speed adjustment knob (7) to the "0" position and then unplug the device from the outlet.

3 Operation

3.4 Crushing Ice

WARNINGS:

• Add water to the glass container (3) to defrost the ice in the device.
• For processing crushed ice, we recommend adding three-quarters of ice and 15 ml of cold drinking water to the container.

After adding 15 ml of water to the glass container (3), add 3/4 ice.

Plug the device into an outlet and start operation by selecting the speed level (7).

When you have finished blending, turn the speed adjustment knob (7) to the "0" position and then unplug the device from the outlet.

To remove the glass container (3) from the motor unit (6), turn it toward the "♂" mark and lift it out. Place the container (3) on a flat surface, then turn and lift the lid (2) counterclockwise to open it.

3 Operation

3.5 "P" Position

A process lasting 1 to 2 seconds in the "P" position via the speed adjustment button (7) is called "PULSE".

Unplug the device. Remove the glass container (3) from the motor unit (6) and rinse it with water. If necessary, repeat the same steps.

Clean the motor unit (6) with a soft, damp cloth and a small amount of mild detergent.

4.2 Storage

• If you do not intend to use the device for a long time, store it carefully.
• Unplug the device before storage.
• Store the device in a cool, dry place.
• Keep the device and its cable out of reach of children.

4.3 Transport and shipping

• During transport and shipping, carry the device in its original packaging. The packaging protects it from physical damage.
• Do not place heavy objects on the device or its packaging. Otherwise, the device may be damaged.
• If the device is dropped, it may not work or may suffer permanent damage.
