USER MANUAL Move BT TrekStor

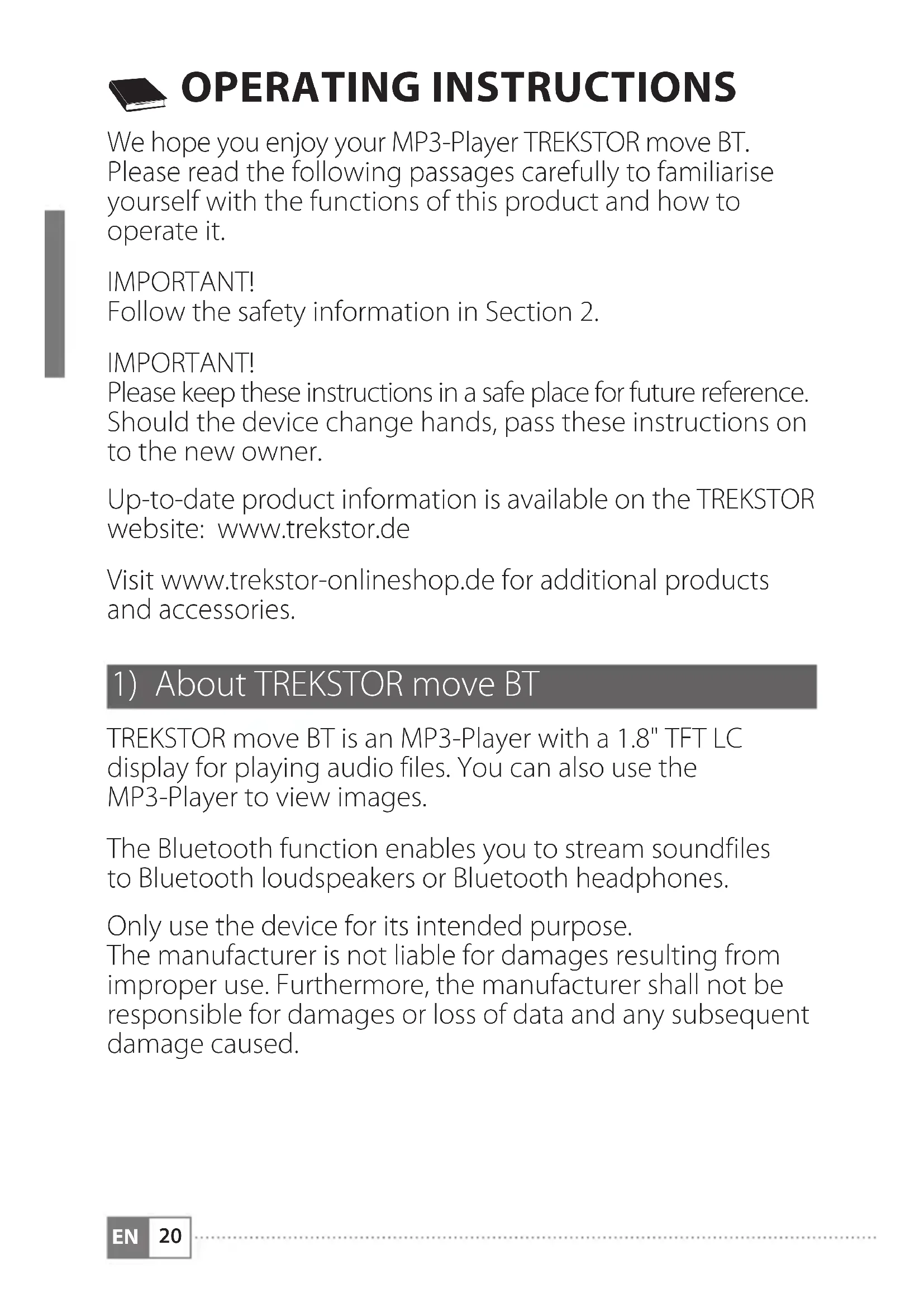

EN Operating instructions
We hope you enjoy your MP3-Player TREKSTOR move BT. Please read the following passages carefully to familiarise yourself with the functions of this product and how to operate it.
IMPORTANT!
Follow the safety information in Section 2.
IMPORTANT!
Please keep these instructions in a safe place for future reference. Should the device change hands, pass these instructions on to the new owner.
Up-to-date product information is available on the TREKSTOR website: www.trekstor.de
Visit www.trekstor-onlineshop.de for additional products and accessories.
1) About TREKSTOR move BT
TREKSTOR move BT is an MP3-Player with a 1.8" TFT LC display for playing audio files. You can also use the MP3-Player to view images.
The Bluetooth function enables you to stream soundfiles to Bluetooth loudspeakers or Bluetooth headphones.
Only use the device for its intended purpose.
The manufacturer is not liable for damages resulting from improper use. Furthermore, the manufacturer shall not be responsible for damages or loss of data and any subsequent damage caused.
2) Safety information
These instructions use the following warning symbols and key words:
DANGER
indicates possible danger to life and/or danger of severe, irreversible injuries.
CAUTION
Follow instructions to avoid injuries and material damage.
WARNING
Follow instructions to avoid material damage.
NOTE
Further information about the use of the device.
Operational safety
CAUTION
Those who, as a result of their physical, sensory or mental capabilities, or lack of experience or knowledge, are not in a position to use the product safely must not be allowed in the vicinity of the product without supervision or instruction by a person responsible for their safety. Supervise children around the product.
DANGER
Keep packaging materials out of reach of children (e.g., plastic sheets). There is a danger of suffocation.
DANGER
Some accessories can pose a choking hazard for babies and young children. Keep these accessories out of reach of babies and young children.
DANGER
Never open the casing of the device or the charger. This may cause an electrical shock, short circuit or fire!
DANGER
Do not insert any object into the ports or openings of the device or charger: This may cause an electrical shock, short circuit or fire!
DANGER
Do not cover the device or charger during operation or while charging. This may cause the device/charger to overheat and potentially catch fire!
CAUTION
This device can generate high sound volumes. Never listen at high volumes for long periods. Doing so can result in immediate or gradual hearing damage. Remember: Permanent hearing damage may only emerge later in life. You may become used to listening to high volumes over time, making them appear normal to you. However, your hearing may have already been damaged. The higher you set the volume, the more quickly your hearing can be damaged.
DANGER
Your safety is very important to us! Safety always has first priority in road transport. Protect yourself and other road users by operating the device only if the traffic situation allows it and you do not endanger or hinder anyone. Adjust the volume of the device for your safety so that you can continue to react to all the sounds around you. Local legislation in force applies.
WARNING
Do not exert excessive pressure on the display, as it may break.
Avoid using USB cables over 3m in length.
the computer or impair the functions of the device. Should this happen, disconnect the device from the USB port and reconnect it or rebuild the WiFi connection from scratch.
Repair
WARNING
No parts inside the device require maintenance or cleaning.
WARNING
Ensure the device is checked for operational safety before using it again.
Intended operating conditions
Protect the device from extremely high or low temperatures and fluctuations in temperature.
Use it at an ambient temperature between 10^ C and 40^ C .
Do not place the device near a heat source and protect direct sunlight.
Never expose the device to humidity, condensation, moisture.
Ensure you use and store the device in a dust-free environment.
Power supply
CAUTION
Do not use or charge the device if the battery is damaged or leaks.
Care and maintenance
products. Use a soft, dry cloth or a soft paintbrush.
Information on the memory capacities indicated
The storage capacity indicated on the packaging
n the technical specifications refers to the
total storage capacity of your device. The storage capacity of the device indicated by your operating system may differ from the stated storage capacity, as a portion of the total storage is also used by the operating system and system applications.
3) Technical specifications
Storage capacity: 8 GB
Display type: TFT LC display
Display size: 1.8'' (4.6 cm)
Display dimensions (W x H): 28.5 x 35 mm
Display resolution: 128 × 160 px
Display colours: 65.000
Interfaces: Micro-USB 2.0, Bluetooth®
audio out (3.5 mm jack),
microphone
Dimensions (W x H x D): 38.5 x 76 x 8.5 mm
Weight:
23.5 g
Housing material:
Plastic (rubber)
Recorder:
Integrated microphone
Playable audio formats: MP3,WMA, OGG, WAV, FLAC
Supported image formats: JPEG, BMP, GIF
File information: File name, ID3 tag
Power source: Lithium polymer battery
Battery recharged via: Micro-USB socket
Charging time: Approx. 1 hour
Maximum playing time: Approx. 24 hours
(in standard playback mode with
volume at 50% and display turned off)
4) Package contents
- TREKSTOR move BT
- Stereo headphones
- Micro-USB cable
- Operating instructions
5) Controls and ports
A) Display
B) = VOL button
C) OK button
D) l button
E) button
F) M button
G) ON/OFF switch
H) Headphone port
I) Micro-USB port
6) Charging the MP3-Player
First move the ON/OFF switch to ON. Then charge your MP3-Player by connecting it to the computer using the Micro-USB cable provided. Your MP3-Player is fully charged after approximately 1 hour.
Please fully charge your MP3-Player before using it for the first time. The maximum battery life is reached after approximately ten charging cycles.
7) Switching the MP3-Player on and off
Move the ON/OFF switch to ON. The MP3-Player will switch itself on.
From now on, you will also be able to switch on your MP3-Player using the OK button by keeping the button pressed for approximately 2-3 seconds.
In order to put your MP3-Player into standby mode, please keep the OK button pressed for approximately 2 seconds. If you want to switch off your MP3-Player altogether, move the ON/OFF switch to OFF.
If you would like to change the user settings, please switch off your MP3-Player using the OK button. Your current user settings are saved when your MP3-Player is in standby mode.
If your MP3-Player "freezes" and no longer responds, you can perform a reset by moving the ON/OFF switch to OFF and then back to ON.
8) Using the menu
Your MP3-Player has various modes which you can select from the main menu.
8.1) Main menu
The main menu offers six different modes:
Bluetooth, Music, Recording, Images, Explorer and Settings.
Select the desired mode by pressing the 14 or 15 button and confirm your selection by briefly pressing the OK button. You proceed in the same way in the submenus.
i You can always return to the previous menu level by pressing the l NOL button.
i You can activate a keylock in every menu. In order to activate the keylock, keep the M button pressed until the screen displays a closing lock. In order to deactivate the keylock, once more keep the M button pressed until the screen displays an opening lock.
8.2) Mode: Music
In Music mode, you can play back tracks via the music library, folder navigation or playlists.
Music library
The soundfiles in the music library are sorted according to various criteria using their ID3 tags: All tracks, Artists, Albums and Genres.
Selecting Music mode by pressing the OK button will take you directly to the music library. Here you can select the desired criterion using the or button.
The music library displays only the currently available files for the selected criterion.
For instance, selecting Artists will display the names of artists whose tracks you have loaded to your Player.
Select an artist and confirm your selection by briefly pressing the OK button. Now all albums by this artist that are available on the MP3-Player are displayed, from which you can make your selections.
Play and pause
Briefly press the OK button in order to start or pause playback of a soundfile.
Change track
Briefly press the button to play the next track. Press the button within 5 seconds of starting the new track in order to revert back to the previous track.
i If you briefly press the button after this time has elapsed, then your current track will start playing from the beginning again.
Fast forwarding or rewinding a track
Keep the or button pressed for longer during playback to fast forward or rewind the track respectively.
Controlling the volume
In order to control the volume, press and hold the 5 /VOL button. The volume bar will then be displayed on the screen. You can decrease the volume by pressing and holding the button. The button allows you to increase the volume.
Creating playlists
To add a track to a playlist, select the track from the music library or add the track in Playback mode by pressing the M button. Confirm the Add to Playlist option by pressing the OK button. Now select the desired playlist by pressing the OK or button and confirm. The track will be added automatically.
8.3) Mode: Bluetooth®
Your MP3-Player allows you to play music through Bluetooth loudspeakers or Bluetooth headphones.
To do this, switch to the Bluetooth mode. Confirm by pressing the OK button. Activate the Bluetooth function on the device you want to connect to. Select the Search for Devices option using the or button. Once the search is complete, select your chosen playback device and connect it to the MP3-Player.
You can specify directly in Bluetooth mode which tracks you would like to play. To do this, go back to the Bluetooth menu by pressing the l VOL button. Here you can use the music library.
Before searching for devices, please ensure Bluetooth is enabled on your MP3-Player under the Bluetooth function sub item.
Leaving Bluetooth mode will interrupt your Bluetooth transmission.
8.4) Mode: Recording
You can record voice memos on your MP3-Player using the integrated microphone.
To record a voice memo, go to Recording mode and select the Start Recording option. To pause the current recording, briefly press the OK button. To resume the current recording, briefly press the OK button once more. To save the recording, press the VOL button and confirm you wish to save.
The menu within Recording mode enables you to play back recordings and determine the quality of the recordings.
All voice recordings are stored in the MP3-Player's "RECORD" folder.
8.5) Mode: Pictures
Selecting the Pictures mode in the main menu will take you directly to the thumbnails view. Here you can select and display images stored on your MP3-Player.
i Images are displayed in reduced size if music is currently playing. The playing of music has to be stopped in order to view the images in full size.
8.6) Mode: Explorer
Explorer mode allows you to view all files stored on your MP3-Player. You can play files directly from the Explorer.
Use the 14 or 15 button to select the file you wish to play. Briefly press the OK button to confirm your selection.
Pressing the M button opens the Options menu in the Explorer, which allows you to delete files.
8.7) Mode: Settings
The Settings mode allows you to make settings for the following:
Audio: Equalizer, Volume limiting
Playback mode: Repeat modes
Shuffle mode: Shuffle on/off
Display: Brightness, Backlight
Power management: Time interval before powering down when not in use
Sleep timer: Time interval
Language: Menu language
Factory settings: Restore to factory settings
i Your saved data is retained if you restore to factory settings.
i By selecting System Info and Storage, you can call up the relevant data.
9) Transferring data to or from a computer
Connect the MP3-Player to a USB port on your computer using the Micro-USB cable provided.
9.1) Windows® 10 / 8.1 / 8 / 7 / XP
Your operating system automatically detects the device and adds a "DEVICE WITH REMOVABLE STORAGE" to "MY COMPUTER" /"COMPUTER".
a) Select the desired files (such as MP3) with the mouse. Copy these files by clicking them with your right mouse button ("COPY").
b) Under "MY Computer" or "COMPUTER", select the device with removable storage, "TREKSTOR".
c) Right-click the device and select " Paste", to start copying. After copying has completed, the data will be available on your MP3 player.
i You can also copy files with "DRAG & DROP".
9.2) Mac® OS X ab 10.6
Select the desired files (such as MP3) with the mouse. Drag and drop the files in the "FINDER" to the drive symbol of your MP3 player.
10) Logging off the MP3-Player from the computer
Please follow the recommended logout procedure to prevent damage to the device or data loss!
10.1) Windows® 10 / 8.1 / 8 / 7 / XP
At the bottom right on the task bar, left-click the "SAFELY REMOVE HARDWARE" icon. In the popup menu that appears, leftclick "SAFELY REMOVE MASS STORAGE DEVICE - DRIVE" to select it. You can now disconnect your MP3 player from the computer.
10.2) Mac OS X ab 10.6
You must remove the drive from the "DESKTOP" before you disconnect your MP3 player. Click the relevant drive icon and drag it to the trash icon.
11) Notes on copyright and trademarks
Copyright law prohibits the copying of the content of these operating instructions (illustrations, reference documents etc.), in whole or in part, without the permission of the copyright holder.
The Bluetooth word mark is a registered trademark owned by Bluetooth SIG, Inc.
Mac OS and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.
Microsoft, Windows and Windows 10 are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
TREKSTOR is a registered trademark of TREKSTOR Ltd. in the European Community and other countries.
Copyright © 2020 TREKSTOR GmbH. All rights reserved. Some product or company names mentioned elsewhere may be brand names or trade names of the respective proprietor.
12) Notes on disposal
Disposal
This symbol indicates that this product and/or the battery used contain components that are harmful to the environment and/or human health if not disposed of correctly. As the owner of a used electrical or electronic device, you may not dispose of this device together with unsorted domestic waste.
Remove the battery from the device before disposing of your old device. Contact your city or municipal authority for information on how to correctly dispose of the device and its battery.
Recycling
Your device and its sales packaging consist of valuable raw materials, which must be recycled in the interest of environmental protection. Contact your city or municipal authority for information on the correct method of disposal.
13) Notes on liability and warranty
The manufacturer shall reserve the right to constantly further develop the product. These changes may be made without any direct reference to them in the operating instructions. As a result, the information contained in the operating instructions does not need to reflect the current technical design.
The statutory warranty period for consumer products is 24 months. There is no warranty beyond this.
Unauthorised modifications to the device (particularly installing external firmware not approved by the manufacturer or modifications to the device hardware) may result in a loss of all warranty claims.
Interface: Micro-USB 2.0, Bluetooth®, uscita audio (jack da 3.5 mm),
microfono
Dimensioni (L x A x P): 38.5 x 76 x 8.5 mm
Peso:
23.5
g
The Bluetooth word mark is a registered trademark owned by Bluetooth SIG, Inc.
Mac OS and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.
Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
TREKSTOR is a registered trademark of TREKSTOR Ltd. in the European Community and other countries.
I) Conector Micro-USB
The Bluetooth word mark is a registered trademark owned by Bluetooth SIG, Inc.
Mac OS and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.
Microsoft, Windows and Windows 10 are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
TREKSTOR is a registered trademark of TREKSTOR Ltd. in the European Community and other countries.
Dimensions (I x H x P): 38.5 x 76 x 8.5 mm
Poids: 23.5 g
Formats image supports: JPEG, BMP, GIF
Creation de playlists
Mode shuffle: activation/désactivation
du mode
The Bluetooth word mark is a registered trademark owned by Bluetooth SIG, Inc.
Mac OS and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.
Microsoft, Windows and Windows 10 are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
TREKSTOR is a registered trademark of TREKSTOR Ltd. in the European Community and other countries.
The Bluetooth word mark is a registered trademark owned by Bluetooth SIG, Inc.
Mac OS and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.
Microsoft, Windows and Windows 10 are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
TREKSTOR is a registered trademark of TREKSTOR Ltd. in the European Community and other countries.
The Bluetooth word markis a registered trademark owned by Bluetooth SIG, Inc.
Mac OS and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.
Microsoft, Windows and Windows 10 are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
TREKSTOR is a registered trademark of TREKSTOR Ltd. in the European Community and other countries.
If you have any questions regarding your TREKSTOR product, please proceed as follows:
- Check the features as well as the functions of your device (apparent on the packaging), in order to use the correct settings.
- Read the manual carefully.
- Inform yourself on our website www.trekstor.de/en about the up-to-date information concerning your product (e.g. available most recent firmware releases).
In the case you have further questions regarding your product, please note the following TREKSTOR support options:
FAQ The FAQ area of our website offers you a wide range of problem solving hints. Here you can obtain answers to the most frequently asked questions concerning our products.
Support Please contact our website
http://www.trekstor.de/support
TREKSTOR GmbH
Berliner Ring 7
D-64625 Bensheim, Germany
