USER MANUAL FSA 86 R STIHL

• Introduction p. 17
• 2 Guide to Using this Manual p. 18
• 3 Overview p. 18
• 4 Safety Precautions p. 19
• 5 Preparing Trimmer for Operation p. 24
• 6 Charging the Battery, LEDs p. 24
• 7 Assembling the Trimmer p. 24
• 8 Adjusting Trimmer for User p. 26
• 9 Removing and Fitting the Battery p. 26
• 10 Switching the Trimmer On/Off p. 26
• 11 Testing the Trimmer and Battery p. 27
• 12 Operating the Trimmer p. 27
• 13 After Finishing Work p. 28
• 14 Transporting p. 28
• 15 Storing p. 28
• 16 Cleaning p. 29
• 17 Maintenance and Repairs p. 29
• 18 Troubleshooting p. 29
• 19 Specifications p. 30
• 20 Combinations of Cutting Attachments and Deflectors p. 30
• 21 Spare Parts and Accessories p. 31
• 22 Disposal p. 31
• 23 EC Declaration of Conformity 1 Introduction Dear Customer, Thank you for choosing STIHL. We develop and manufacture our quality products to meet our customers’ requirements. The products are designed for reliability even under extreme con‐ ditions. STIHL also stands for premium service quality. Our dealers guarantee competent advice and instruction as well as comprehensive service support. STIHL expressly commit themselves to a sus‐ tainable and responsible handling of natural resources. This user manual is intended to help you use your STIHL product safely and in an environmentally friendly manner over a long service life. We thank you for your confidence in us and hope you will enjoy working with your STIHL product. Dr. Nikolas Stihl p. 31

IMPORTANT! READ BEFORE USING AND

KEEP IN A SAFE PLACE FOR REFERENCE. English 0458-833-9621-B 17 © ANDREAS STIHL AG & Co. KG 2021 0458-833-9621-B. VA0.B21. Printed on chlorine-free paper Printing inks contain vegetable oils, paper can be recycled. Translation of Original Instruction Manual 0000009266_003_GB2 Guide to Using this Manual

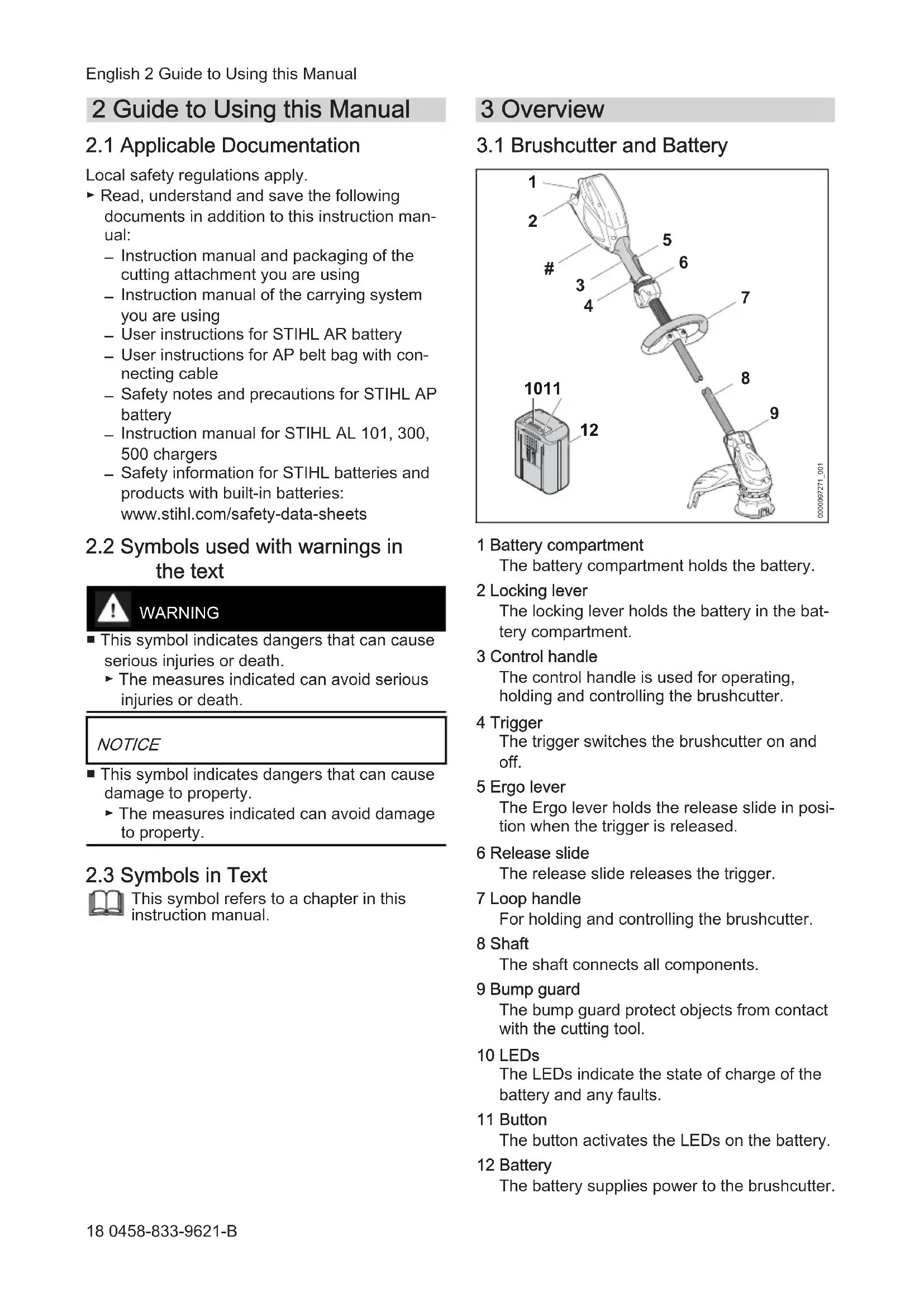

2.1 Applicable Documentation

Local safety regulations apply. ► Read, understand and save the following documents in addition to this instruction man‐ ual:

Instruction manual and packaging of the cutting attachment you are using

Instruction manual of the carrying system you are using

User instructions for STIHL AR battery

User instructions for AP belt bag with con‐ necting cable

Safety notes and precautions for STIHL AP battery

Safety information for STIHL batteries and products with built-in batteries: www.stihl.com/safety-data-sheets

2.2 Symbols used with warnings in

the text WARNING ■ This symbol indicates dangers that can cause serious injuries or death. ► The measures indicated can avoid serious injuries or death. NOTICE ■ This symbol indicates dangers that can cause damage to property. ► The measures indicated can avoid damage to property.

This symbol refers to a chapter in this instruction manual. 3 Overview

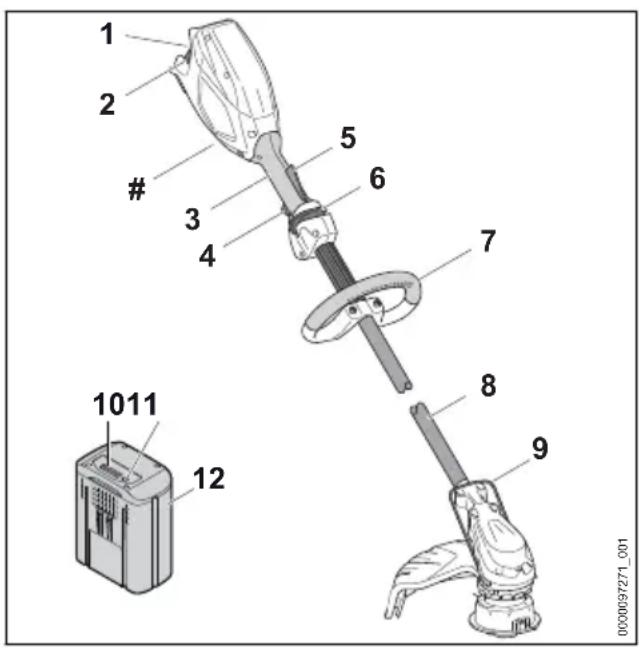

3.1 Brushcutter and Battery

0000097271_001 1 Battery compartment The battery compartment holds the battery. 2 Locking lever The locking lever holds the battery in the bat‐ tery compartment. 3 Control handle The control handle is used for operating, holding and controlling the brushcutter. 4 Trigger The trigger switches the brushcutter on and off. 5 Ergo lever The Ergo lever holds the release slide in posi‐ tion when the trigger is released. 6 Release slide The release slide releases the trigger. 7 Loop handle For holding and controlling the brushcutter. 8 Shaft The shaft connects all components. 9 Bump guard The bump guard protect objects from contact with the cutting tool. 10 LEDs The LEDs indicate the state of charge of the battery and any faults. 11 Button The button activates the LEDs on the battery. 12 Battery The battery supplies power to the brushcutter. English 2 Guide to Using this Manual 18 0458-833-9621-B# Rating plate with machine number

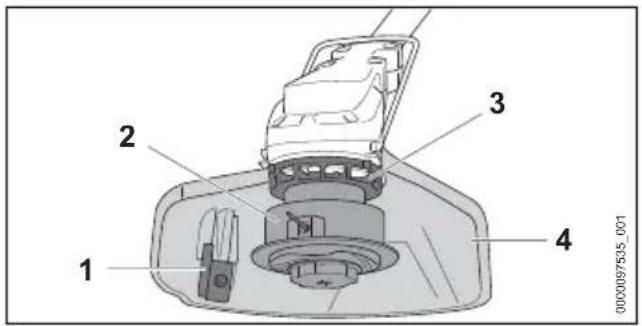

0000097535_001 1 Line limiting bladeLine limiting blade trims nylon lines to correctlength.2 Mowing headMoving head accommodates the mowinglines.3 FanwheelCools the electric motor.4 DeflectorProtects the user from flying debris and con‐tact with the cutting attachment.

Meanings of icons that may be on the brushcut‐ter, deflector and battery:1 LED emits red light. The battery istoo warm or too cold.4 LEDs flashing red. There is a fault inthe battery.This symbol indicates the direction therelease slide has to be pushed to.This icon shows the rated speed of the cut‐ting attachment.

Guaranteed sound power level inaccordance with Directive 2000/14/ECin dB(A) for the purpose of comparingthe sound emissions of products.The information next to the symbol indi‐cates the energy content of the batteryaccording to the cell manufacturer’s specifi‐cation. The energy content available inoperation is lower.Do not dispose of the product with domes‐tic waste. 4 Safety Precautions

Meanings of warning signs on the brushcutterand battery:Observe safety notices and take thenecessary precautions.Read, understand and keep the UserManual.Wear safety glasses.Observe the safety advice concerningflying objects and associated meas‐ures.Remove the battery during work stop‐pages, transport, storage, maintenanceor repair. 15m (50ft) Maintain a safety distance.Protect battery from heat and fire.Do not immerse battery in fluids.Observe the permitted battery temper‐ature range.

The STIHL FSA 86 brushcutter is designed formowing grass.The brushcutter may be used in the rain.The brushcutter is powered by a STIHL AP bat‐tery or a STIHL AR battery. WARNING

Batteries not explicitly approved for the brush‐cutter by STIHL may cause a fire or explosion.Persons may be seriously or fatally injuredand property may be damaged. Use the brushcutter with a STIHL AP bat‐tery or a STIHL AR battery.4 Safety Precautions English0458-833-9621-B 19■ Using the brushcutter or the battery for purpo‐ ses for which they were not designed can cause serious or fatal injuries and material damage.

Use the brushcutter as described in this User Manual. ► Use the battery as described in this User Manual or the User Manual for the STIHL AR battery.

WARNING ■ Users without adequate training or instruction cannot recognize or assess the risks involved in using the trimmer and battery. The user or other persons may sustain serious or fatal injuries. ► Read, understand and save the instruction manual. ► If the trimmer or battery are passed on to another person: Always give them the instruction manual.

Make sure the user meets the following requirements:

The user must be rested.

The user must be in good physical con‐ dition and mental health to operate and work with the trimmer and battery. If the user’s physical, sensory or mental abil‐ ity is restricted, he or she may work only under the supervision of or as instructed by a responsible person.

The user is able to recognize and assess the risks involved in using the trimmer and battery.

The user must be of legal age or is being trained in a trade under supervi‐ sion in accordance with national rules and regulations.

The user has received instruction from a STIHL servicing dealer or other experi‐ enced user before working with the trim‐ mer for the first time.

The user must not be under the influ‐ ence of alcohol, medication or drugs. ► If you have any queries: Contact a STIHL servicing dealer for assistance.

4.4 Clothing and equipment

Objects can be thrown at high speed during operation. This may result in injury to the user. ► Wear close-fitting safety glasses. Suitable safety glasses are tested in accordance with EN 166 or national regulations and available commer‐ cially with the corresponding mark‐ ing.

Wear face protection. ► Wear long trousers made from resistant material. ■ Dust can be whipped up during operation. Whipped up dust can damage the respiratory passages and cause allergic reactions.

If dust is generated: Wear a dust respirator mask. ■ Inappropriate clothing can snag on wood, brush or the brushcutter. Users not wearing suitable clothing are at risk of serious injury.

Wear close-fitting clothing. ► Remove scarves and jewelry. ■ The user may come into contact with the rotat‐ ing cutting attachment during operation. This may result in serious injury to the user.

Wear robust footwear. ► Wear long trousers made from resistant material. ■ There is a risk of the user coming into contact with the cutting attachment or the line limiting blade during cleaning and maintenance work and when the cutting attachment is mounted or removed. This may result in injury to the user.

Wear work gloves made from resistant material. ■ Wearing unsuitable footwear may cause the user to slip. This may result in injury to the user.

Wear sturdy, closed-toed footwear with high-grip soles.

4.5 Work Area and Surroundings

4.5.1 Working Area and Surroundings

Bystanders, children and animals are not aware of the dangers of the brushcutter or fly‐ ing debris. This may result in serious injury to bystanders, children and animals and damage to property. 15m (50ft) ► Do not allow bystanders, children or animals within 15 meters of the work area. ► Maintain a clearance of 15 meters from objects. ► Do not leave the brushcutter unattended. ► Make sure that children cannot play with the brushcutter. English 4 Safety Precautions 20 0458-833-9621-B■ Electrical components of the brushcutter can produce sparks. Sparks may cause fires and explosions in highly flammable or explosive environments. Persons may be seriously or fatally injured and property may be damaged.

Do not work in a highly flammable or explo‐ sive environment.

WARNING ■ Bystanding people, children and animals can‐ not recognise or evaluate the dangers posed by the battery. This may result in serious injury to bystanding people, children and animals.

Keep bystanding people, children and ani‐ mals out of the way. ► Do not leave the battery unattended. ► Make sure that children cannot play with the battery. ■ The battery is not protected against all ambi‐ ent conditions. If exposed to certain ambient conditions, the battery may catch fire or explode. This may result in serious injury to people and damage to property. ► Protect the battery from heat and fire. ► Do not throw the battery into a fire. ► Use and store the battery at temper‐ atures between ‑ 10 °C and + 50 °C. ► Do not immerse the battery in liq‐ uids. ► Keep the battery away from metallic objects. ► Do not expose the battery to high pressure. ► Do not expose the battery to microwaves. ► Protect the battery from chemicals and salts.

The brushcutter is in a safe condition if the fol‐ lowing points are observed:

The brushcutter is not damaged.

The brushcutter is clean.

The controls function properly and have not been modified.

A combination of cutting attachment and deflector recommended in this user manual is mounted.

The cutting attachment and deflector are prop‐ erly mounted.

Genuine STIHL accessories for this brushcut‐ ter are fitted.

The accessories are correctly attached. WARNING

If not in safe condition, components may no longer operate correctly and safety devices may be disabled. This may result in serous or fatal injury to people.

Work only with an undamaged brushcutter. ► If the brushcutter is dirty: Clean the brush‐ cutter. ► Never attempt to modify your brushcutter. Exception: Mounting one of the combina‐ tions of cutting attachment and deflector recommended in this user manual.

If the controls do not function properly: Do not use your brushcutter. ► Never mount metal cutting attachments. ► Fit genuine STIHL accessories for this brushcutter. ► Mount the cutting attachment and deflector as described in this user manual. ► Attach accessories as described in this User Manual or in the User Manual for the accessories.

Never insert objects in the openings of the brushcutter. ► Replace worn or damaged labels. ► If you have any doubts, be sure to consult a STIHL dealer.

The deflector is in a safe condition if the following points are observed:

The deflector is not damaged.

The line limiter blade is correctly installed. WARNING

If the product does not comply with safety requirements, components will no longer func‐ tion properly or safety devices may be ren‐ dered inoperative. This can result in serious injuries.

Work only with an undamaged deflector. ► Work with a correctly installed line limiter blade. ► If you have any queries: Contact your STIHL servicing dealer.

The mowing head is in a safe condition if the fol‐ lowing points are observed:

The mowing head is not damaged. 4 Safety Precautions English 0458-833-9621-B 21– The mowing head is not jammed.

The mowing lines are properly installed.

The wear limits are not exceeded. WARNING

If they are in an unsafe condition, parts of the mowing head or mowing lines may come off and be ejected at high speed. They may cause serious injury to persons.

Work only with an undamaged mowing head. ► Never use metal objects in place of the nylon mowing lines. ► Observe and remain inside the wear limits. ► If you have any doubts, be sure to consult a STIHL dealer.

The battery is in safe condition when the follow‐ ing conditions are met:

The battery is not damaged.

The battery is clean and dry.

The battery is working and has not been modi‐ fied. WARNING ■ The battery cannot function safely if it is not in safe condition. There is a risk of serious injury to persons.

Use an undamaged and functioning battery. ► Do not charge a damaged or defective bat‐ tery. ► If the battery is dirty or wet: clean the bat‐ tery and allow it to dry. ► Do not modify the battery. ► Do not insert objects into the apertures in the battery. ► Never connect the battery terminals to met‐ allic objects and cause a short circuit. ► Do not open the battery. ► Replace worn or damaged warning signs. ■ Fluid may leak from a damaged battery. If the fluid contacts the skin or eyes, this may cause irritation.

Avoid contact with the fluid. ► In the event of contact with the skin: wash the affected areas with plenty of soap and water.

In the event of contact with the eyes: rinse the eyes with plenty of water for at least 15 minutes and seek medical attention.

A damaged or defective battery may emit an unusual odour, smoke or catch fire. This may result in serious or fatal injury to people and damage to property.

If the battery emits an unusual odour or smoke: do not use the battery and keep it away from flammable materials.

If the battery catches fire: try to extinguish the battery using a fire extinguisher or water.

WARNING ■ The user cannot concentrate on the work in certain situations. The user may stumble, fall and be seriously injured.

Work calmly and carefully. ► If light and visibility are poor: Do not use your trimmer. ► Operate the trimmer alone. ► Keep the cutting attachment close to the ground. ► Watch out for obstacles. ► Stand on the ground while working and keep a good balance. ► If you begin to feel tired: Take a break. ■ The rotating cutting attachment can cut the user. This can result in serious injuries. ► Do not touch the rotating cutting attach‐ ment. ► If the cutting attachment is blocked by an object: Switch off the trimmer and remove the battery. Then remove the object caus‐ ing the blockage.

If the behavior of the trimmer changes during operation or feels unusual, it may no longer be in a safe condition. This can result in serious injuries and damage to property.

Stop work, remove the battery and contact your STIHL servicing dealer for assistance. ■ Trimmer vibrations may occur during opera‐ tion. ► Wear gloves. ► Take regular breaks. ► If signs of circulation problems occur: Seek medical advice. ■ If the cutting attachment makes contact with a foreign object during operation, the object or parts of it may be thrown at high speed. This may result in personal injuries and damage to property.

Clear away all foreign objects from the work area. ■ Note that the cutting attachment continues to rotate for a short period after you release the trigger. This can result in serious injuries.

Wait until the cutting attachment comes to a complete stop. English 4 Safety Precautions 22 0458-833-9621-B4.8 Transporting

The trimmer may turn over or shift during transport. This may result in personal injuries and damage to property. ► Remove the battery. ► Secure the trimmer with lashing straps or a net to prevent it turning over and moving.

WARNING ■ The battery is not protected against all ambi‐ ent conditions. The battery may be damaged if it is exposed to certain ambient conditions and damage to property may occur.

Never transport a damaged battery. ► Store the battery in non-conductive packag‐ ing. ■ The battery may turn over or shift during trans‐ port. This may result in personal injuries and damage to property.

Pack the battery in packaging in such a way that it cannot move. ► Secure the packaging so that it cannot move.

Children are not aware of and cannot assess the dangers of a trimmer and can be seriously injured. ► Remove the battery. ► Store the trimmer out of the reach of chil‐ dren. ■ Dampness can corrode the electrical contacts on the trimmer and metal components. This can damage the trimmer. ► Remove the battery. ► Store the trimmer in a clean and dry condi‐ tion.

Children are not aware of and cannot assess the dangers of the battery and can be seri‐ ously injured.

Store the battery out of the reach of chil‐ dren. ■ The battery is not protected against all ambi‐ ent conditions. The battery may be damaged if it is exposed to certain ambient conditions.

Store the battery in a clean and dry condi‐ tion. ► Store the battery in a confined space. ► Store the battery separately from the trim‐ mer and charger. ► Store the battery in non-conductive packag‐ ing. ► Use and store the battery at temperatures between -10°C and +50°C.

4.10 Cleaning, Maintenance and

Repair WARNING ■ The brushcutter may start up unintentionally if the battery is left in place during cleaning, maintenance or repair operations. This may result in serious injury to people and damage to property. ► Remove the battery. ■ Aggressive cleaning agents, a water jet or pointed objects can damage the trimmer, deflector, cutting attachment, battery and the charger. If the trimmer, deflector, cutting attachment, battery or charger are not cleaned correctly, components may no longer function properly or safety devices may be rendered inoperative. They may cause serious injury to persons. ► Clean the trimmer, deflector, cutting attach‐ ment, battery and charger as described in this instruction manual.

If the trimmer, deflector, cutting attachment, battery and charger are not properly serviced or repaired, components may no longer func‐ tion properly or safety devices may be ren‐ dered inoperative. This may result in serous or fatal injury to people.

Do not attempt to service or repair the trim‐ mer, deflector, cutting attachment, battery or charger. 4 Safety Precautions English 0458-833-9621-B 23► If the trimmer, deflector, cutting attachment,battery or the charger require servicing orrepairs: Contact your STIHL servicingdealer for assistance. 5 Preparing Trimmer for Operation

5.1 Preparing the Brushcutter for

Operation The following steps must be performed beforecommencing work:► Ensure that the following components are insafe condition: Brushcutter, 4.6.1. Deflector, 4.6.2. Mowing head, 4.6.3. Battery, 4.6.4. Check the battery, 11.2.► Fully charge battery as described in the UserManual for chargers STIHL AL 101, 300, 500. Clean the brushcutter, 16.1. Mount the spacer, 7.1. Mount the deflector, 7.2. Mount the loop handle, 7.3. Mount the mowing head, 7.4. Adjust the loop handle, 7.3. Check the controls, 11.1.► If 3 LEDs on the battery flash red while youare checking the controls: Remove the bat‐tery and contact your STIHL dealer forassistance.The brushcutter has a malfunction.► If you cannot carry out this work: Do not useyour brushcutter and contact your STIHLdealer for assistance. 6 Charging the Battery, LEDs

6.1 Charging the Battery

The charging time depends on several factors,e.g. temperature of the battery or the ambienttemperature. The actual charging time may differfrom the specified charging time. For specifiedcharging times see www.stihl.com/charging-times.► Recharge the battery fully as described in theinstruction manual for the STIHL AL 101, 300,500 chargers.

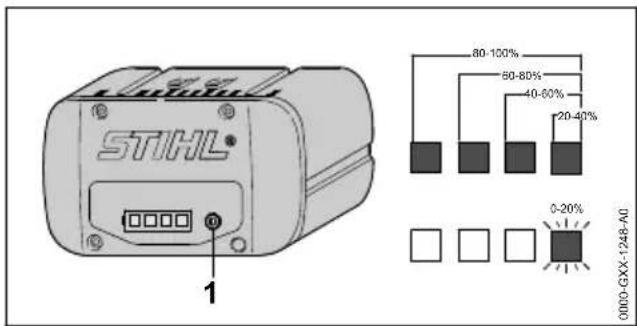

6.2 Displaying State of Charge

0000-GXX-1248-A020-40%40-60%60-80%80-100%0-20% ► Press the button (1).The LEDs (5) glow green for about 5 secondsand indicate the state of charge.► If the LED on the right flashes green: Chargethe battery.

The LEDs can show the state of charge or mal‐functions. The LEDs can glow or flash green or red. The state of charge is indicated when the LEDsglow or flash green.► If the LEDs glow or flash red: Troubleshooting, Malfunction in trimmer or battery. 7 Assembling the Trimmer

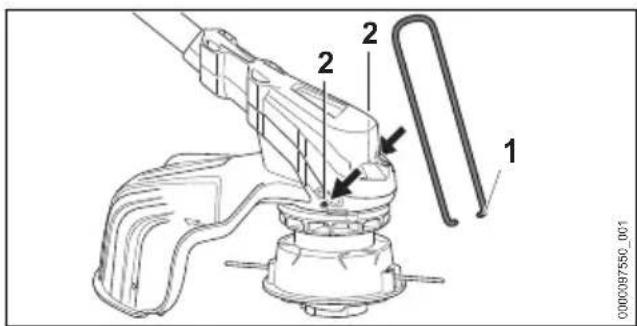

7.1 Mounting the bump guard

► Switch off the brushcutter and remove the bat‐tery.

0000097550_001 ► Insert the ends of the bump guard (1) into theholes (2) in the housing.The bump guard (1) need not be removed.

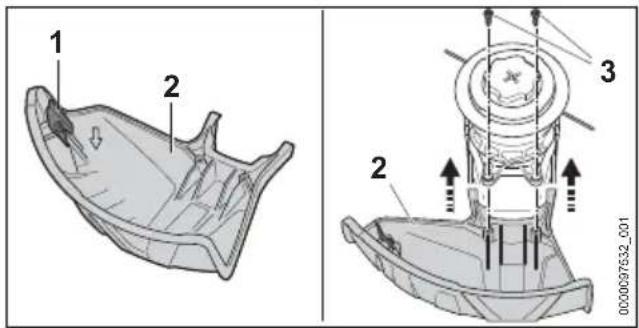

7.2 Mounting the guard

► Switch off the brushcutter and remove the bat‐tery.English 5 Preparing Trimmer for Operation24 0458-833-9621-B2

0000097532_001 The line limiting blade (1) has already been installed in the guard (2) and must not be removed. ► Push the guard (2) into the guides on the housing until it hits the limit stop. The guard (2) is flush with the housing. ► Insert and tighten down the screws (3). The guard (2) must not be removed.

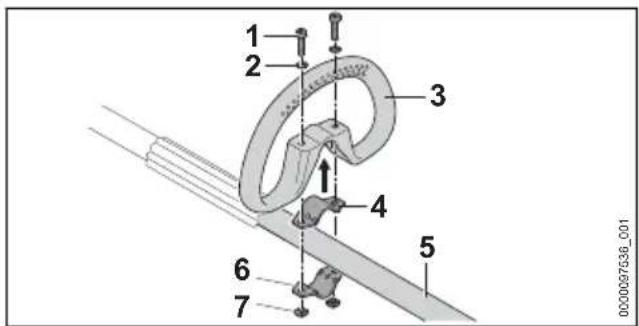

7.3 Mounting the Loop Handle

► Switch off the brushcutter and remove the bat‐ tery.

0000097536_001 ► Fit the clamp (4) in the loop handle (3). ► Place the loop handle (3) with clamp (4) on the shaft (5). ► Fit the washers (2) on the screws (1). ► Press the clamp (6) against the shaft (5). ► Insert the screws (1) through holes in the loop handle (3) and clamps (4 and 6). ► Fit and tighten down the nuts (7) firmly.

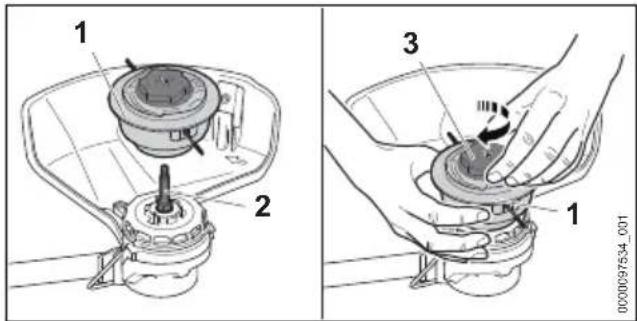

7.4 Mounting and Removing the

Mounting the Mowing Head ► Switch off the brushcutter and remove the bat‐ tery.

0000097534_001 ► Position the mowing head (1) on the shaft (2). ► Hold the mowing head (1) with your hand. ► Manually rotate the cap (3) clockwise and tighten it. Removing the Mowing Head ► Switch off the brushcutter and remove the bat‐ tery. ► Hold the mowing head with your hand. ► Manually rotate the cap counterclockwise until the mowing head can be removed.

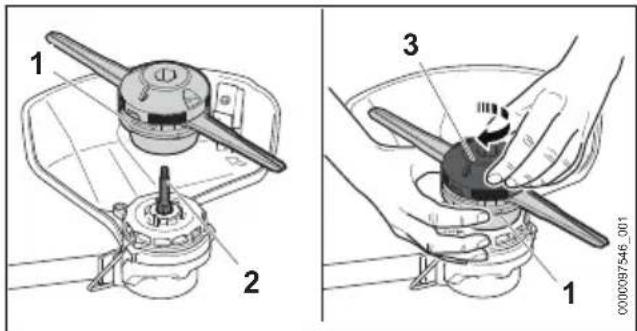

7.4.2 PolyCut 6-2 mowing head

Mounting the Mowing Head ► Switch off the brushcutter and remove the bat‐ tery.

0000097546_001 ► Position the mowing head (1) on the shaft (2). ► Hold the mowing head (1) with your hand. ► Manually rotate the upper part (3) clockwise and tighten it. Removing the Mowing Head ► Switch off the brushcutter and remove the bat‐ tery. ► Hold the mowing head with your hand. ► Manually rotate the upper part counterclock‐ wise until the mowing head can be removed.

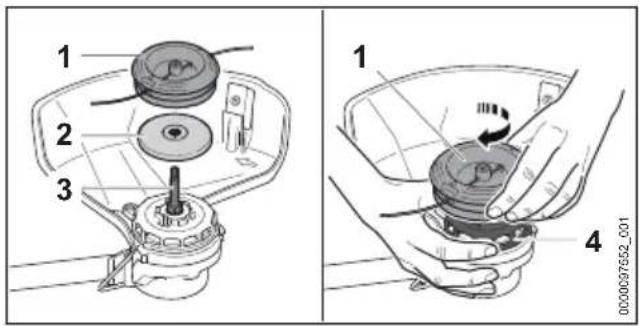

7.4.3 DuroCut 5-2 mowing head:

Mounting the Mowing Head ► Switch off the brushcutter and remove the bat‐ tery. 7 Assembling the Trimmer English 0458-833-9621-B 251

0000097552_001 ► Place the thrust plate (2) on the shaft (3) so that its smaller diameter faces up. ► Position the mowing head (1) on the shaft (3). ► Hold the fanwheel (4) with your hand. ► Manually rotate the mowing head (1) clock‐ wise and tighten it. Removing the Mowing Head ► Switch off the brushcutter and remove the bat‐ tery. ► Hold the fanwheel with your hand. ► Unscrew the mowing head counterclockwise. ► Remove the thrust plate. 8 Adjusting Trimmer for User

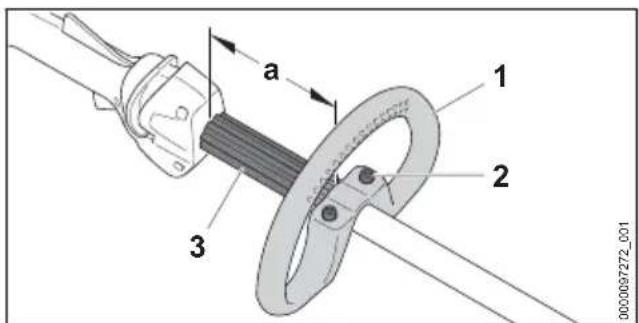

8.1 Adjusting and Setting the Loop

Handle The loop handle can be set to different positions to suit the height and reach of the user. ► Switch off the brushcutter and remove the bat‐ tery.

The bump guard (3) fits between the loop handle (1) and the control handle.

a = no more than 30 cm. ► Tighten down the screws (2) so that the loop handle (1) cannot be rotated on the shaft. 9 Removing and Fitting the Battery

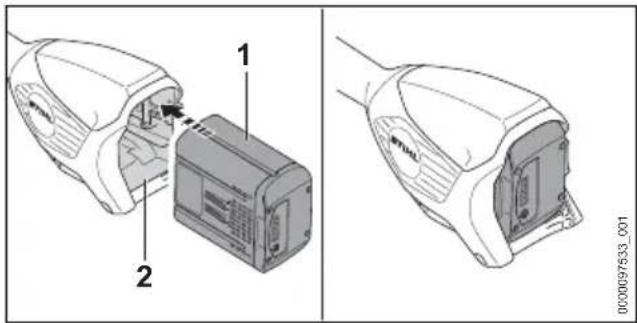

9.1 Inserting the battery

0000097533_001 ► Insert the battery (1) up to the limit stop into the battery compartment (2). The battery (1) engages with a click and is now locked.

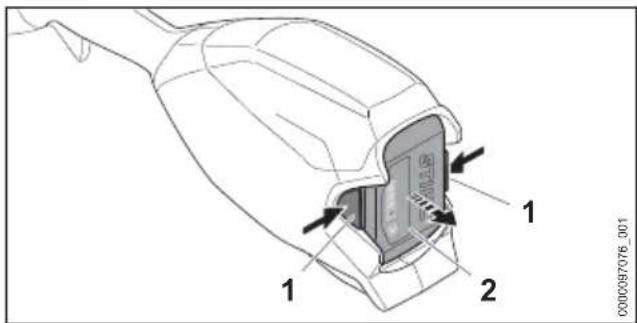

9.2 Removing the Battery

► Set the brushcutter on a level surface. ► Keep one hand in front of the battery compart‐ ment so that the battery (2) cannot fall out.

0000097076_001 ► Press both locking levers (1). The battery (2) is released and can be removed. 10 Switching the Trimmer On/Off

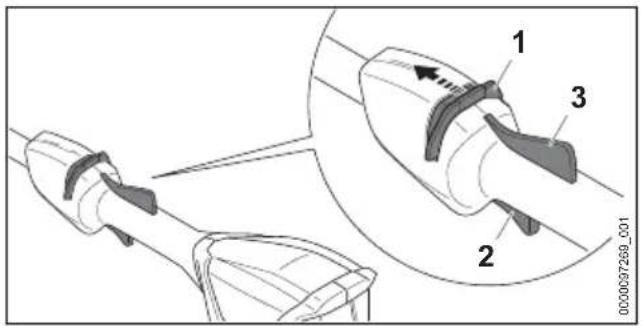

10.1 Switching the Brushcutter on

► Hold the brushcutter firmly with one hand on the control handle – wrap your thumb around the handle. ► Hold the brushcutter firmly with your other hand on the loop handle or the handle hose such that your thumb holds the loop handle or the handle hose. English 8 Adjusting Trimmer for User 26 0458-833-9621-B1

0000097269_001 ► Push the release slide (1) in the direction of the loop handle with your thumb and hold it there. ► Squeeze and hold the trigger (2) with your index finger. The brushcutter accelerates and the cutting attachment rotates. The release slide can be released (1). If the Ergo lever (3) is pressed, the trigger (2) remains unlocked. This means that the trigger can be released and pressed again without pushing the release slide again in the direction of the loop handle. If the trigger (2) and the Ergo lever (3) are released, the trigger (2) is locked. To unlock the trigger (2), push and hold the release slide (1) again towards the loop handle.

10.2 Switching off the brushcutter

► Release the trigger and the Ergo lever. ► Wait for the cutting attachment to stop rotat‐ ing. ► If the cutting attachment continues to rotate: Remove the battery and contact your STIHL dealer. The brushcutter is defective. 11 Testing the Trimmer and Battery

11.1 Checking the controls

Release slide, Ergo lever and trigger ► Remove the battery. ► Try squeezing the trigger switch without acti‐ vating the release slide. ► If you can press the trigger: Stop using your brushcutter and contact a STIHL dealer. The release slide is faulty. ► Push the release slide in the direction of the loop handle with your thumb and hold it there. ► Press and hold Ergo lever. ► Press the trigger. The release slide can be released. ► Release the trigger and the Ergo lever. ► If release slide, trigger or Ergo lever is stiff or does not spring back to the initial position: Stop using the brushcutter and contact a STIHL dealer. The release slide, trigger or the Ergo lever is defective. Switching the Brushcutter on ► Insert battery. ► Push and hold the release slide towards the loop handle. ► Press and hold the trigger. The cutting attachment rotates. ► If 3 LEDs flash red: Remove the battery and consult a STIHL dealer. The brushcutter has a malfunction. ► Release the trigger. The cutting attachment stops rotating after a brief delay. ► If the cutting attachment continues to rotate: Remove the battery and contact your STIHL dealer. The brushcutter is defective.

11.2 Testing the Battery

► Press button on battery. The LEDs glow or flash. ► If the LEDs do not glow or flash: Do not use the battery and contact your STIHL servicing dealer. There is a malfunction in the battery. 12 Operating the Trimmer

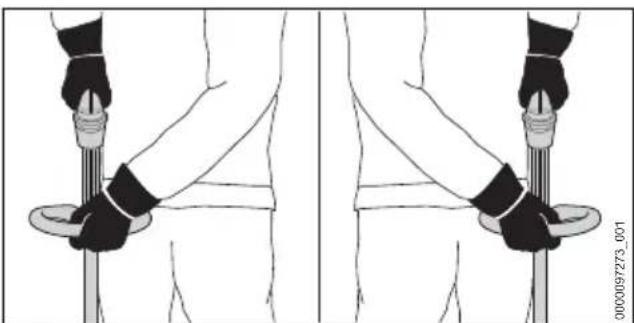

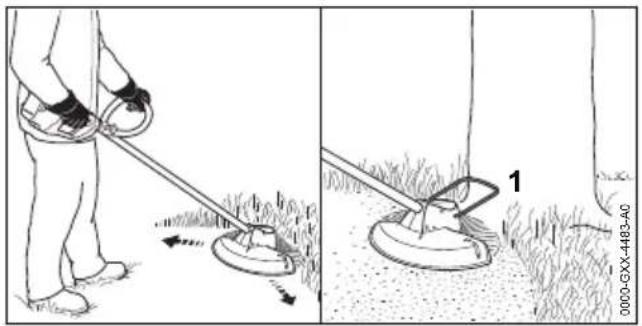

12.1 Holding and Controlling the

Brushcutter 0000097273_001 ► Hold the brushcutter firmly with one hand on the control handle – wrap your thumb around the handle. ► Hold the brushcutter with the other hand on the loop handle such that your thumb holds the loop handle.

The cutting height is determined by the distance of the cutting attachment from the ground. 11 Testing the Trimmer and Battery English 0458-833-9621-B 271 0000-GXX-4483-A0 ► Swing the brushcutter steadily back and forth in an arc. ► Move forward slowly in a controlled manner. ► If you work with a bump guard (1): Extend the bump guard (1) fully.

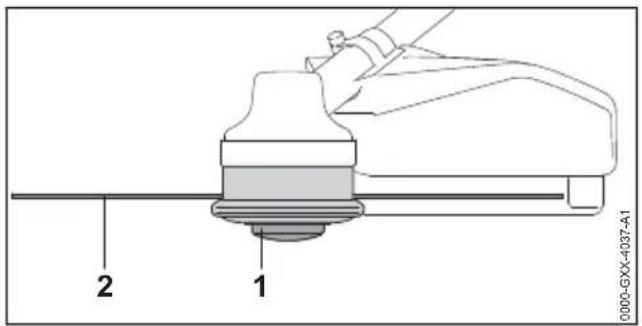

12.3 Line Feed on AutoCut Mowing

Heads ► Briefly tap the rotating mowing head on the ground. About 30 mm of fresh nylon line is advanced. The line limiting blade in the deflector auto‐ matically cuts the mowing lines to the correct length.

0000-GXX-4037-A1 Automatic feed will not take place if the mowing lines are shorter than 25 mm. ► Switch off the brushcutter and remove the bat‐ tery. ► Depress the spool (1) on the mowing head and hold it depressed. ► Pull out the mowing lines (2) by hand. ► If the mowing lines (2) cannot be pulled out to the required length: Replace the spool (1) or the mowing lines (2). The spool is empty. 13 After Finishing Work

13.1 After Finishing Work

► Switch off the trimmer and remove the battery. ► If the trimmer is wet: Allow the trimmer to dry. ► If the battery is wet: Allow the battery to dry. ► Clean the trimmer. ► Clean the deflector. ► Clean the cutting attachment. ► Clean the battery. 14 Transporting

14.1 Transporting the brushcutter

► Switch off the brushcutter and remove the bat‐ tery. Carrying the Brushcutter ► Carry the brushcutter in one hand properly balanced by the shaft, with the cutting attach‐ ment behind you. Transporting the brushcutter in the car ► Secure the brushcutter to prevent turnover and movement.

14.2 Transporting the Battery

► Switch off the trimmer and remove the battery. ► Make sure the battery is in a safe condition. ► Observe the following points when packing the battery:

The packaging must be non-conductive.

Make sure the battery cannot shift inside the packaging. ► Secure the packaging so that it cannot move. The battery is subject to the requirements for the transport of dangerous goods. The battery is classified as UN 3480 (lithium-ion batteries) and has been tested in accordance with UN Manual of Tests and Criteria, Part III, sub-section 38.3. For transport regulations see www.stihl.com/ safety-data-sheets 15 Storing

The trimmer is out of the reach of children.

The trimmer is clean and dry.

15.2 Storing the Battery

STIHL recommends that you store the battery with a charge between 40 % and 60 % (2 LEDs glow green). ► Observe the following points when storing the battery:

Battery is out of the reach of children.

Battery is clean and dry.

Battery is in an enclosed space.

Store the battery separately from the trim‐ mer and charger.

Battery is in non-conductive packaging.

Battery is in a temperature range between -10°C and +50°C. English 13 After Finishing Work 28 0458-833-9621-B16 Cleaning

16.1 Cleaning the Brushcutter

► Switch off the brushcutter and remove the bat‐ tery. ► Clean the brushcutter with a damp cloth. ► Clean vents with a paintbrush. ► Remove foreign objects from the battery com‐ partment and clean the battery compartment with a damp cloth. ► Clean the electrical contacts in the battery compartment with a paintbrush or soft brush. ► Clean the area underneath the fanwheel with a soft brush.

16.2 Cleaning the Deflector and Cut‐

ting Attachment ► Switch off the trimmer and remove the battery. ► Clean the deflector and cutting attachment with a damp cloth or a soft brush.

16.3 Cleaning the Battery

► Clean the battery with a damp cloth. 17 Maintenance and Repairs

17.1 Servicing and Repairing the

Trimmer The trimmer cannot be serviced or repaired by the user. ► If your trimmer has a malfunction or is dam‐ aged or requires servicing: Contact your STIHL servicing dealer.

17.2 Servicing and Repairing the

Battery The battery requires no servicing and cannot be repaired. ► If the battery has a malfunction or is damaged: Replace the battery. 18 Troubleshooting

18.1 Troubleshooting Brushcutter or Battery

Fault LEDs on the battery Cause Remedy The brushcutter does not start when switched on. 1 LED flashing green. State of charge of the battery is too low. ► Recharge the battery fully as described in the User Manual for the STIHL AL 101, 300, 500 chargers. 1 LED emits red light. The battery is too warm or too cold. ► Remove the battery. ► Allow the battery to cool down or warm up. 3 LEDs flash red. The brushcutter has a malfunction. ► Remove the battery. ► Clean electrical contacts in the battery compartment. ► Insert battery. ► Switch on the brushcutter. ► If 3 LEDs continue to flash red: Do not use your brushcutter and contact your STIHL dealer for assistance. 3 LEDs light up red. Trimmer is too hot. ► Remove the battery. ► Allow trimmer to cool down. 4 LEDs flash red. There is a fault in the battery. ► Remove battery and reinsert it. ► Switch on the brushcutter. ► If 4 LEDs continue to flash red: Do not use the battery and contact your STIHL dealer for assistance. No electrical contact between brushcutter and battery. ► Remove the battery. ► Clean electrical contacts in the battery compartment. ► Insert battery. The brushcutter or battery is damp. ► Allow the brushcutter or battery to dry. The brushcutter cuts out during operation. 3 LEDs light up red. Trimmer is too hot. ► Remove the battery. ► Allow trimmer to cool down. 16 Cleaning English 0458-833-9621-B 29Fault LEDs on the battery Cause Remedy There is an electrical, electromagnetic mal‐ function. ► Remove battery and reinsert it. ► Switch on the brushcutter. The runtime of the brushcutter is too short. The battery is not fully charged. ► Recharge the battery fully as described in the User Manual for the STIHL AL 101, 300, 500 chargers. The battery life has been exceeded. ► Replace battery. Mowing head cannot be unscrewed by hand. Mowing head over‐ tightened. ► Block the fanwheel with the stop pin. ► Unscrew mowing head by hand. ► Remove the stop pin. 19 Specifications

19.1 STIHL FSA 86 R Brushcutters

Permitted batteries:

Weight without battery, cutting tool and guard:

Length without cutting tool: 1,725 mm The running time is shown at www.stihl.com/ battery-life.

19.2 STIHL AP battery

Capacity in Ah: see rating label

Energy content in Wh: see rating label

Weight in kg: see rating label

Permissible temperature range for operation and storage: -10°C to +50°C

19.3 Sound Values and Vibration

Values K-value (uncertainty) for sound pressure levels is 2 dB(A). K-value for sound power levels is 2 dB(A). K-value for vibration level is 2 m/s². STIHL recommends wearing ear defenders.

Sound pressure level L

measured as speci‐ fied in EN 50636‑2‑91: 81 dB(A)

measured as specified in EN 50636-2-91: 94 dB(A)

measured as specified in EN 50636-2-91

Loop handle: 3.7 m/s². The vibration levels indicated were measured according to a standardized test method and can be used as a basis for comparing electric power tools. The vibration levels actually occurring may vary from the values indicated, depending on the type of application. The vibration levels indicated can be used for an initial estimate of the vibration stress. The actual vibration stress has to be esti‐ mated. The times when the power tool is switched off and the times when it is switched on but running under no load can be taken into account in the estimate. For information on compliance with Employers' Vibration Directive 2002/44/EC see www.stihl.com/vib.

REACH is an EC regulation and stands for the Registration, Evaluation, Authorisation and Restriction of Chemical substances. For information on compliance with the REACH regulation see www.stihl.com/reach. 20 Combinations of Cutting Attachments and Deflec‐ tors

20.1 STIHL FSA 86 R Brushcutters

The following mowing heads may be mounted together with the guard for mowing heads: STIHL AutoCut C 6-2 mowing head:

with round, low-noise mowing line with a diameter of 2.0 mm or 2.4 mm PolyCut 6-2 mowing head

with round, low-noise mowing line with a diameter of 2.0 mm or 2.4 mm DuroCut 5-2 mowing head:

with round, low-noise mowing line with a diameter of 1.6 mm, 2.0 mm or 2.4 mm English 19 Specifications 30 0458-833-9621-B21 Spare Parts and Accesso‐ ries

21.1 Spare parts and accessories

These symbols indicate original STIHL spare parts and original STIHL acces‐ sories. STIHL recommends the use of original STIHL spare parts and accessories. Despite ongoing market observation, STIHL is unable to judge the reliability, safety and suitabil‐ ity of other manufacturers' spare parts and accessories; accordingly, STIHL cannot warrant for the use of those parts. Original STIHL spare parts and original STIHL accessories are available from STIHL dealers. 22 Disposal

22.1 Disposing of Trimmer and Bat‐

tery Contact your STIHL servicing dealer for informa‐ tion on disposal. ► Dispose of the trimmer, deflector, cutting attachment, battery, charger, accessories and packaging in accordance with local regulations and environmental requirements. 23 EC Declaration of Con‐ formity

23.1 STIHL FSA 86 R Brushcutters

ANDREAS STIHL AG & Co. KG Badstraße 115 D-71336 Waiblingen Germany declare under our sole responsibility that

category: Cordless brushcutter

serial number: FA05 conforms to the relevant provisions of Directives 2011/65/EU, 2006/42/EC, 2014/30/EU and 2000/14/EC and has been developed and manu‐ factured in compliance with the following stand‐ ards in the versions valid on the date of produc‐ tion: EN 55014‑1, EN 55014‑2, EN 60335‑1 and EN ISO 12100 taking EN 50636‑2‑91 into account. The measured and guaranteed sound power lev‐ els were determined according to Directive 2000/14/EC, Annex VIII. Notified body involved: TÜV Rheinland Product Safety GmbH, Am Grauen Stein, 51105 Köln, Deutschland

Measured sound power level: 94 dB(A)

Guaranteed sound power level: 96 dB(A) The technical documents are stored at ANDREAS STIHL AG & Co. KG Produktzulas‐ sung. The year of manufacture, country of manufacture and serial number are specified on the rating plate of the brushcutter. Waiblingen, August 27, 2020 ANDREAS STIHL AG & Co. KG

De motorzeis is schoon.

Bedieningshandgreep: 2,0 m/s².
