Product type	Wireless laser pointer
Brand	Hama
Model	LP18
Power supply	2 LR03/AAA batteries (1.5 V) included
Operating voltage	3 V
Laser type	Class 2 laser according to EN 60825-1:2014
Maximum output power (laser)	< 1 mW
Wavelength	640-660 nm
Laser range	Not specified (typical range up to 50-100 m)
Housing material	Plastic
Color	Black (not specified, assumed)
Functions	Laser pointer with push button; belt clip
Package contents	LP18 laser pointer, 2 LR03/AAA batteries, warning sticker kit, instruction manual
Care and cleaning	Clean with a slightly damp, lint-free cloth; avoid harsh detergents
Laser safety	Do not look directly into the beam; do not point at eyes or optical instruments; multilingual warning stickers included
Battery safety	Observe polarity; do not mix used/new batteries; do not short-circuit; remove during prolonged non-use; keep out of reach of children
Operating temperature	Not specified (avoid extreme temperatures)
Admissible humidity	Dry rooms only
Recycling	Do not dispose of with household waste; device and batteries must be recycled according to European directives
Warranty	Statutory warranty; unauthorized modifications void warranty

Frequently Asked Questions - LP18 HAMA

How to insert the batteries into the Hama LP18 laser pointer?

Unscrew the device to open the battery compartment. Insert two LR03/AAA batteries, observing polarity (+/-). Carefully close the product.

Is the laser dangerous for the eyes?

Yes, it is a Class 2 laser. Never look directly into the beam and do not point it at the eyes of people or animals. In case of accidental exposure, close your eyes and turn away.

How to turn on the laser?

Press the laser button (B) on the side of the pointer to turn on the beam. Release to turn off.

What does the package of the Hama LP18 contain?

The package includes: LP18 laser pointer, 2 LR03/AAA batteries, a multilingual warning sticker kit, and the instruction manual.

How to clean the laser pointer?

Use a slightly damp, lint-free cloth. Avoid any harsh detergents that could damage the device.

Can I use the laser pointer outdoors?

Yes, but protect it from moisture and shocks. Use it only in dry rooms and avoid extreme temperatures.

What to do if I suspect a button battery has been swallowed?

Seek medical attention immediately. Button batteries can cause severe internal burns in less than 2 hours. Keep new and used batteries out of reach of children.

How to recycle the laser pointer and used batteries?

Do not dispose of the device or batteries with household waste. Take them to a collection point designated for this purpose or return them to the retailer in accordance with European directives 2012/19/EU and 2006/66/EC.

Why are warning stickers provided?

The sticker applied at the factory may not be in your language. Select the sticker in your language of choice and attach it to the pointer to comply with local safety instructions.

Does the laser pointer work without batteries?

No, the pointer requires 2 LR03/AAA batteries to operate. Insert them with correct polarity before use.

USER MANUAL LP18 HAMA

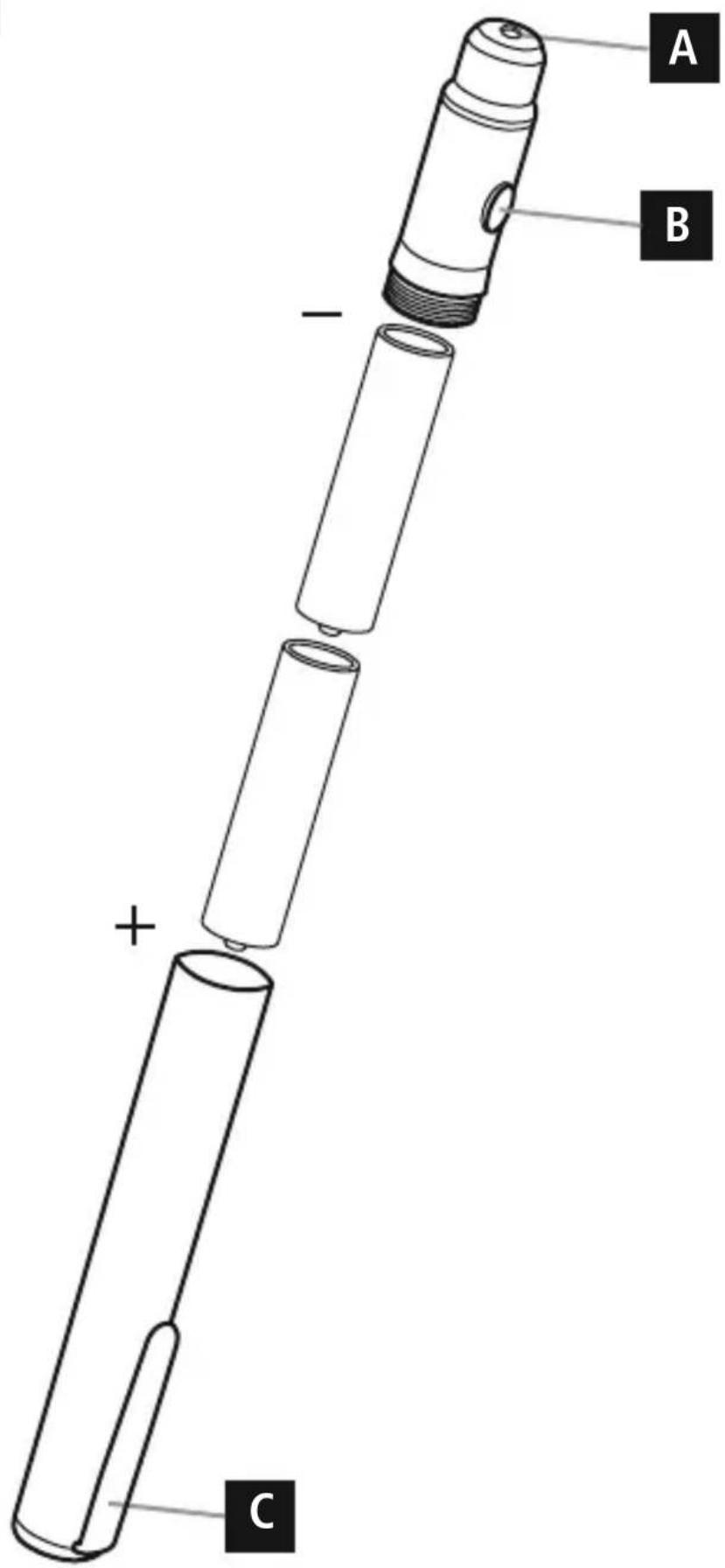

Line drawing of a cylindrical electronic device with a handle and top cap (no text or symbols)

OperatingInstructions

Bedienungsanleitung

Moded'emploi

Instruccionesdeuso

GB

D

F

E

Pic.1

Thankyouforchoosinga H amaproduct.

Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, please passtheseoperatinginstructionsontothenewowner.

1. ExplanationofWarningSymbolsandNotes

Warning

This symbol is used to indicate safety instructions to draw your attention to specific hazards and risks.

Note

This symbol is used to indicate additional information or important notes.

2.PackageContents

• L P18laserpointer
- 2 AAAbatteries
- S etwithwarninglabels
• Theseoperatinginstructions

3. SafetyNotes

• Theproductisintendedforprivate,non-commercialuseonly.
• Protect the product from dirt, moisture and overheating and use it in dry rooms only.
• D o n otdroptheproductanddonotexposeittoanymajorshocks.
• Do not operate the product outside the power limits given in the specifications.
• Do notcontinuetooperatethedeviceifitbecomesvisiblydamaged.
  • Children should be supervised to ensure that they do not play with the device.
• D isposeofpackagingmaterialimmediatelyaccordingtolocallyapplicableregulations.
• Do not modify the device in any way. Doing so voids the warranty.

Warning-Batteries

• When inserting batteries, note the correct polarity (+ and - markings) and insert the batteries accordingly. Failure to do so could result in the batteries leaking or exploding.
• Only use batteries (or rechargeable batteries) that match the specified type.
• Before you insert the batteries, clean the battery contacts and the polar contacts.
• Do not allow child rento change batteries without supervision.
• Do not mix old and new batteries or batteries of a different type or make.
• Remove the batteries from products that are not being used for an extended period(unlessthesare b eingkeptreadyforanemergency).
• Don otshort-circuitbatteries.
• Don otchargebatteries.

Warning-Batteries

• Do not throw batteries in a fire.
• Keepbatteriesoutofthereachofchildren.
• N everopen,damageorswallowbatteriesorallowthemtoenterthe environment.Theycancontaintoxic,environmentallyharmfulheavymetals.
• I immediately remove and dispose of dead batteries from the product.
• A voidstoring, chargingorusingthedeviceinextremetemperaturesand extremelylowatmosphericpressure (forexample,athighaltitudes).

Warning- B uttoncells

• Do not ingest battery, risk of burns due to dangerous substances.
• Thisproductcontainsbuttoncells.Ifswallowed,thebuttoncellcancausesevere internalburnswithinjusttwohoursandleadtodeath.
• Keepnewandusedbatteriesoutofthereachofchildren.
• If the battery compartment does not close securely, stop using the product and keepitoutofthereachofchildren.
• If you think that batteries were swallowed or are in a part of the body, seek medical assistance immediately.

Warning– Laser

• Do not look directly at the laser beam! Close your eyes and turn your head away ifyoureyesmeetthelaserbeam.
• Do n otshinelightatpersonsusingbinocularsortelescopes!
• Do not look directly at the laser beam! Do not look directly at the laser beam using optical instruments!
• This product contains a class 2 laser in accordance with EN60825-1:2014.
• The product comes with a set of warning labels in different languages. If the label on the product is not in your native language, please attach the corresponding label from the set to the product.

4.Controls

• L aserbeamoutlet(A)
• L aserbutton(B)
• C lip(C)

5.Operation

Insertingthebattery(pic.1)

• A IwaysusetwoAAAbatteries.
- To insert or change the batteries, unscrew the device and insert the AAA batteries with the correct polarity into the battery compartment.
- S crewthedevicebacktogether.

Operation

- P ressthelaserbutton(B)toactivatethebuilt-inlaser.

6. Care and Maintenance

Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaningagents.

7.WarrantyDisclaimer

Hama GmbH & Co. KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product from failure to o bservetheoperating instructions and/or safety notes.

8. Service and Support

PleasecontactHamaProductConsultingifyuhaveanyquestionsaboutthisproduct.

Hotline:[phone](German/English)

Furthersupportinformationcanbefoundhere:www.hama.com

9. Specifications

Operatingvoltage3 V o l t
Powersupply2 x 1 .5V/DCAAAbatteries
Maximumoutputpower(laser)< 1 m W
Wavelength640-660nm
Laserclass2

10. Recycling Information

Noteonenvironmentalprotection:

AftertheimplementationoftheEuropeanDirective 2012/19/EU and 2006/66/EUinthenationallegalsystem,thefollowingapplies:Electricand electronicdevicesaswellasbatteriesmustnotbedisposedofwith householdwaste.Consumersare o bligedbylawtoreturnelectricaland electronicdevicesaswellasbatteriesattheendoftheirservicelivestothe

publiccollectingpointsetupforthispurposeorpointofsale.Detailstothisare defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/Batteries, you are making an important contribution to protecting our environment.

All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes. Our general terms of delivery and payment are applied.
