TAB 10 4G S2 - Tablet Trevi - Free user manual and instructions

Product type	Tablet
Brand	Trevi
Model	TAB 10 4G S2
Operating system	Android 10.0 Go
Processor	1.3 GHz
Display	10.1 inch IPS LCD, 1280x800 resolution
Memory	Not specified (estimate: 1 GB RAM, 16 GB storage)
Front camera	0.3 MP
Rear camera	2 MP
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth, 4G LTE, GPS
SIM card slot	Micro SIM (voice and data)
Memory card slot	Micro SD (up to 32 GB)
Ports	Micro USB, 3.5 mm headphone jack
Power	5V adapter via micro USB
Battery	Rechargeable lithium-ion, capacity not specified (estimated 4000 mAh)
Dimensions (approx.)	240 x 170 x 10 mm
Weight (approx.)	500 g
Main functions	Internet browsing, phone calls, SMS/MMS, camera, video, Bluetooth
Maintenance and cleaning	Clean with a soft, dry cloth; avoid chemicals
Safety	Do not expose to moisture, do not disassemble, use original accessories
Repairability	Battery replaceable by qualified personnel
General information	Manual available in several languages, see www.trevi.it

Frequently Asked Questions - TAB 10 4G S2 Trevi

How to turn the Trevi TAB 10 4G S2 tablet on and off?

To turn on, press and hold the Power button for 3 seconds. To turn off, press and hold for 2 seconds, then select 'Power off' and confirm.

How to insert the SIM card and micro SD card?

Make sure the tablet is turned off. Insert the Micro SIM card into the designated slot and the micro SD card into the dedicated slot.

How to connect to Wi-Fi?

Go to Settings > Network & Internet > Wi-Fi, enable Wi-Fi, select your network, and enter the password if required.

How to use the 4G network?

Insert an activated 4G SIM card. Wi-Fi must be turned off to use 4G. Go to Settings > Network & Internet > Mobile network to enable data.

How to charge the battery correctly?

Use only the provided adapter. Connect the micro USB cable to the tablet and to a wall outlet. The indicator shows charging. Avoid using the tablet while charging to extend battery life.

What to do if the touch screen does not respond?

Try restarting the tablet by pressing and holding the Power button until it turns off, then turn it on again. If the problem persists, perform a reset via the reset hole using a paperclip.

How to take a photo or video?

Open the Camera app from the menu. Use the capture button for photos, switch to video mode to record. The rear camera is 2 MP, the front is 0.3 MP.

How to pair a Bluetooth device?

Go to Settings > Connected devices > Pair new device. Enable Bluetooth on the other device, select it from the list, and confirm the PIN if prompted.

What to do if the tablet heats up during charging?

This is normal to some extent. Make sure to charge in a well-ventilated area, between 5°C and 35°C. If excessive heat occurs, unplug and contact customer service.

How to reset the tablet to factory settings?

Go to Settings > System > Reset options > Erase all data (factory reset). Backup your data before proceeding.

USER MANUAL TAB 10 4G S2 Trevi

Abstract digital illustration with globe, network lines, and medical equipment (no readable text or symbols)

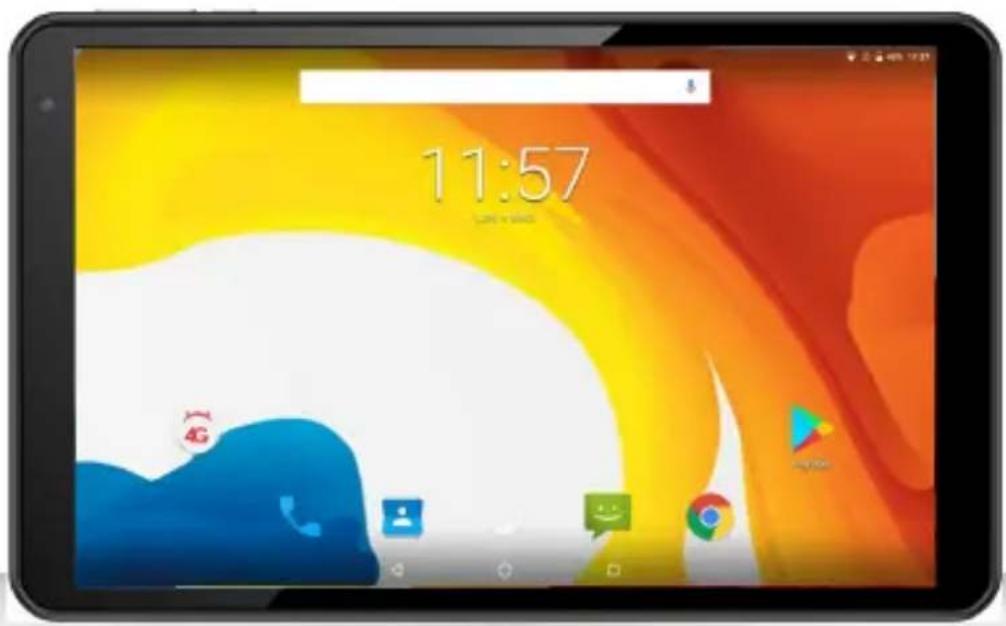

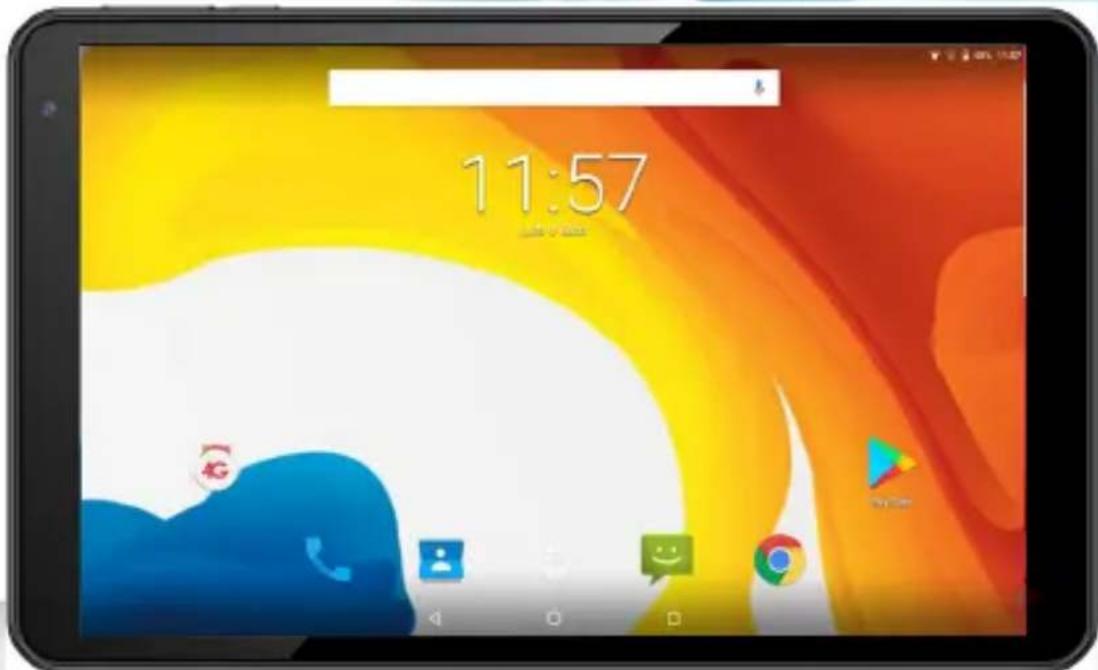

11:57 Google

Tab10 4G S2

Grid of nine country flags with speech bubbles, likely representing global or regional contexts.

EN If you will not find your language on the instruction manual, please go on our website: www.trevi.it to find it

GB TO SET YOUR LANGUAGE DEVICE

• Swicth on the appliance
• Go to the page with all applications
• Select the "IMPOSTAZIONI" icon
• Scroll through the list and select the icon - "Sistema"
• Select "Lingue e immissione", "Lingue" and find their own language from those available.

* For information and updates of this product: www.trevi.it

F POUR CONFIGURER LANGUE DE VOTRE APPAREIL:

Warning symbols: triangular warning triangle with 'I' and sound wave inside, and black exclamation mark

Simple line drawing of a device with a cable and connector, no text or symbols present

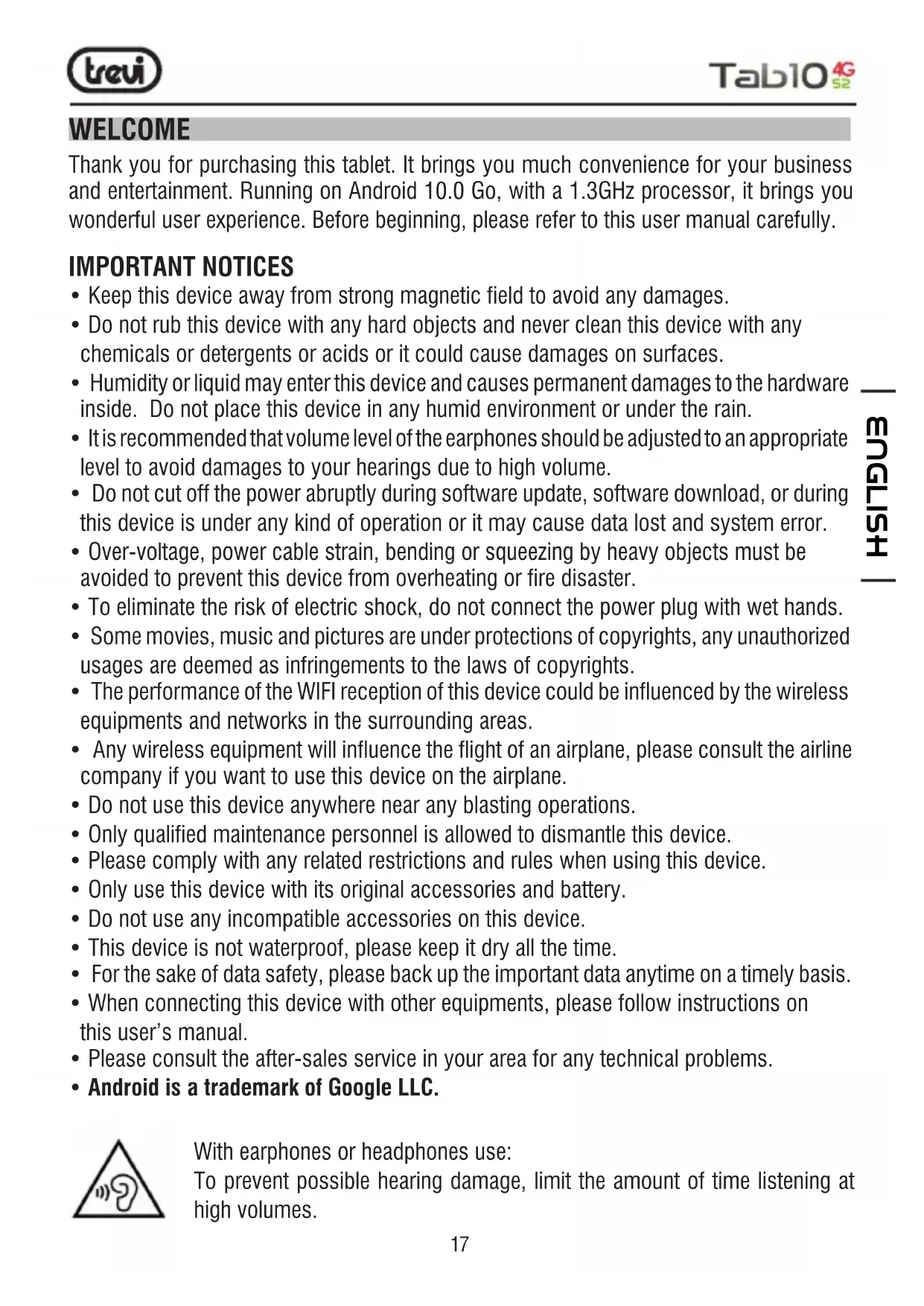

Thank you for purchasing this tablet. It brings you much convenience for your business and entertainment. Running on Android 10.0 Go, with a 1.3GHz processor, it brings you wonderful user experience. Before beginning, please refer to this user manual carefully.

IMPORTANT NOTICES

• Keep this device away from strong magnetic field to avoid any damages.
• Do not rub this device with any hard objects and never clean this device with any chemicals or detergents or acids or it could cause damages on surfaces.
• Humidity or liquid may enter this device and causes permanent damages to the hardware inside. Do not place this device in any humid environment or under the rain.
• It is recommended that volume level of the earphones should be adjusted to an appropriate level to avoid damages to your hearings due to high volume.
• Do not cut off the power abruptly during software update, software download, or during this device is under any kind of operation or it may cause data lost and system error.
  • Over-voltage, power cable strain, bending or squeezing by heavy objects must be avoided to prevent this device from overheating or fire disaster.
  • To eliminate the risk of electric shock, do not connect the power plug with wet hands.
• Some movies, music and pictures are under protections of copyrights, any unauthorized usages are deemed as infringements to the laws of copyrights.
• The performance of the WIFI reception of this device could be influenced by the wireless equipments and networks in the surrounding areas.
• Any wireless equipment will influence the flight of an airplane, please consult the airline company if you want to use this device on the airplane.
• Do not use this device anywhere near any blasting operations.
• Only qualified maintenance personnel is allowed to dismantle this device.
• Please comply with any related restrictions and rules when using this device.
• Only use this device with its original accessories and battery.
• Do not use any incompatible accessories on this device.
• This device is not waterproof, please keep it dry all the time.
• For the sake of data safety, please back up the important data anytime on a timely basis.
• When connecting this device with other equipments, please follow instructions on this user's manual.
• Please consult the after-sales service in your area for any technical problems.
• Android is a trademark of Google LLC.

With earphones or headphones use:

To prevent possible hearing damage, limit the amount of time listening at high volumes.

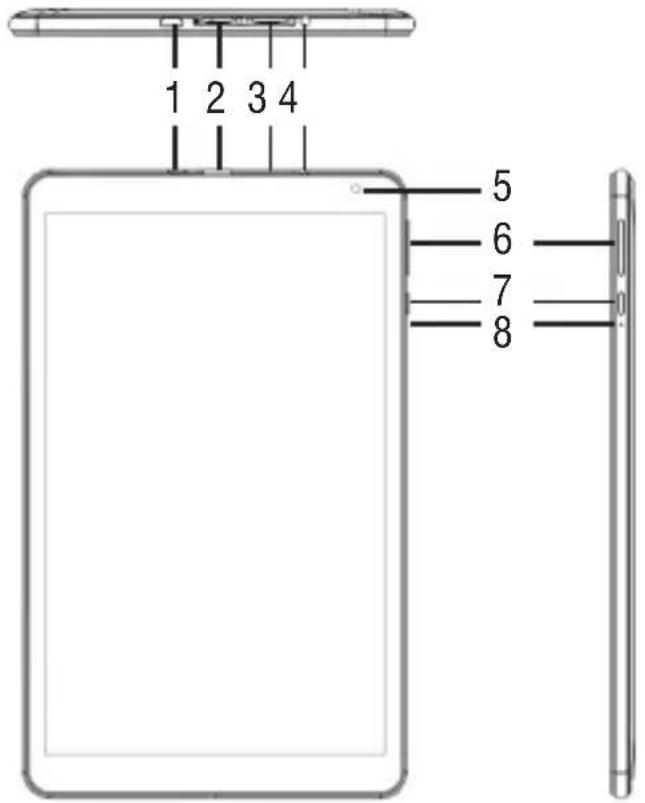

PRODUCT APPEARANCE

| ENGLISH |

1 2 3 4 5 6 7 8

1. Micro USB: to connect your device to PC. Connect the adapter 5V .---
2. TF Card Slot.
3. MICRO SIM Card Slot.
4. 3.5mm headphone jack.
5. Frontal Camera.

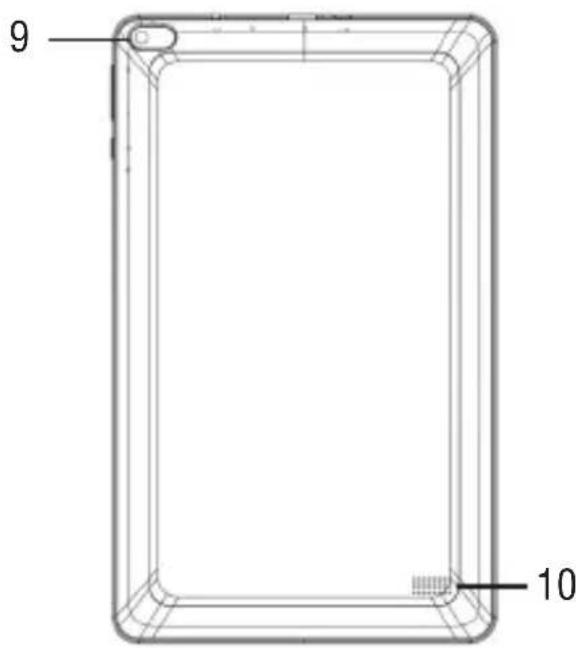

9 10

1. Volume +/- adjustment buttons.
2. On/Off button and lock/unlock Display.
3. Reset.
4. Rear Camera.
5. Speakers.

WARNINGS ABOUT SIM CARDS

Note on the use of micro/ nano SIM with adapter on TREVI products. The use of micro or nano SIM with its adapter is not recommended as they can cause breakage to the device and to the micro / nano SIM itself. TREVI is not liable for damage caused by the use of adapters to micro / nano SIMs. TREVI reserves the right not to provide free warranty assistance on products with defects in the SIM module caused by the use of adapters for micro / nano SIM.

BATTERY MANAGEMENT AND RECHARGING

1. With unit turned off, connect the Micro USB power socket (1) to the mains adapter included in the package;
2. The device will remain off, to view the charge status, lightly press the On/Off button (7) and the battery icon will appear with the charge status;

Simple line drawing of a tablet with a cable and connector, no text or symbols present

1. When the battery icon is no longer moving or the charge percentage will indicate 100%, disconnect the device from the power supply.

Note

• Use only the supplied power supply, different power supplies could damage the battery.
• The device is charged even when it is connected to the computer via USB cable.
• When using the device for the first time, it is recommended to fully charge the battery.
• You can use the device even when it is being charged, but, for a longer battery life, its use is not recommended; moreover, using the device, the charging times are extended.
• While recharging the battery, the controls on the Touch Screen may not work properly, this is due to the unstable power supply, just unplug the power supply to make the device work properly.
• During recharging, the device may increase in temperature, this does not affect the performance and life of the device.
• Before the complete exhaustion of the battery, the device will warn to connect the device to the power supply. When the battery is completely exhausted, the device will automatically turn off.

WARNING FOR CORRECT USE OF THE RECHARGEABLE BATTERY

• Recharge the battery at a temperature between 5^ and 35^ .
• Do not extend the recharge beyond the normal times, to avoid the risk of overheating and bursting.
• Charging the battery beyond normal times or a prolonged period of inactivity can shorten its life.
• The rechargeable battery is subject to wear and its capacity gradually decreases.

To extend the life of the battery, use it when it is fully charged until it is completely exhausted, then recharge it again before using the device again. By charging a battery that is not completely exhausted, its duration will be reduced, in this case, repeat the complete charging/discharging cycle several times.

BASIC OPERATIONS

Power On/Power Off

To turn on the device, press and hold the On/Off button (7) for 3 seconds. When the Home page appears:

- Select a point on the screen and swipe up to unlock the Tablet.

To turn off the device, press and hold the On/Off button (7) for 2 seconds, until the “Turn off” command appears, at this point touch it and confirm by selecting the “OK” icon.

Stand-by and Lock screen

To extend the battery life, you can put the device in sleep mode by deactivating the LCD display. To do this, press the On/Off button (7) and release it immediately. Repeat the operation to reactivate the display and bring up the screen lock mode.

Network Connection

The notification bar displays icons indicating:

Warns you that an unsecured Wi-Fi network is available.

Connected to a Wi-Fi network (waves indicate signal strength).

[no icon] There are no Wi-Fi networks available or the Wi-Fi circuit is off.

Wi-Fi

The Wi-Fi connection can be used with a Wi-Fi Access Point (AP) connection or with a connection without Wi-Fi hotpot security. Selecting this item accesses the wireless and networks settings. To access the Internet, first of all, you need to configure a Wireless network; to do this, you need to be in a Wi-Fi zone. Each time you are in a Wi-Fi zone that you have previously configured, the device will try to connect automatically (if the Wi-Fi function is active).

Warning: When you activate the Wi-Fi connection, the 4G data connection is disabled, while the telephone function remains enabled.

Wi-Fi activation/deactivation:

1. On the Applications page, select the "Settings" - "Network and internet" icon and then move the selector to the right side of the word Wi-Fi (activated green, deactivated gray);
2. To deactivate the WiFi connection, move the selector back to the left.

Note: To increase the battery life, it is recommended to turn off the WiFi connection when not in use.

Search for and connect to a Wi-Fi network:

1. As soon as the ON command is selected, the Tablet will automatically activate a search

for available Wi-Fi networks. Select the word Wi-Fi to view the complete list of networks found;

1. Select the desired network and, if protected, enter the password by touching the flashing part and using the virtual keyboard;
2. Touch the "Connect" key and wait for the symbol to appear on the status bar.

- It is also possible to manually configure a network if you know the network SSID by simply tapping, selecting the “Add network” item and entering and entering the SSID address using the virtual keyboard.

- It is also possible to make connections through VPN networks or use the device as a portable Tethering/Hotspot simply by configuring/activating these connections.

4G (LTE) network:

The 4G (LTE) network is the fourth generation mobile network that allows access to data at high speed thanks to the capacity of advanced networks. Compared to previous 2G / 3G networks this is equipped with a wider range of services and advanced network capabilities. To activate the 4G function, contact your service provider.

The TAB 10 4G S2 is able to internally support a Voice and Data SIM Card or a Data SIM and to connect to the 4G network thus allowing you to surf at high speed with your device even outside the areas covered by the WiFi network. and to be able to receive and make calls. If your SIM is not enabled to surf in 4G (LTE), the device is still able to surf in 3G. Insert the Micro Sim Card only with the device turned off.

Caution:

• If the Tablet has been turned off with the Wi-Fi connection activated, the Tablet will keep this connection when you turn it back on and therefore will not activate the 4G data connection.
  • Each time the Wi-Fi connection is activated, the Tablet will automatically deactivate the 4G data connection.

COMMUNICATION

PHONE

Make calls

1. Touch the icon to start the phone interface;
2. Select the icon to enter your address book and search for the name/number to call, or enter the number using the numeric keypad. To delete a number press ;
3. Touch the icon to start the call;
4. Touch the icon to end the call.

Note: To enter “+” and make international calls, touch and hold [0+].

Accept a call

1. When you receive a call, a window will appear with the name or number of the person calling and two buttons "Reject" and "Answer";
2. Select "Answer" to start the conversation;
3. Touch the icon to end the call.

Reject a call

When you receive a call, select the "Reject" key

Volume adjustment during the call

To adjust the volume during a call, use the Volume keys (6) up and down.

View your call history

By selecting the icon you can view missed calls, outgoing calls and received calls. The calling time of each phone call is displayed on each record.

Note:

- In the Telephone function it is recommended to use earphones (not supplied) as the audio of the hands-free, in very noisy environments, may not be sufficient.

MESSAGGES

TAB 10 4G S2 allows you to send text messages (SMS) and multimedia messages (MMS) to anyone of your contacts. Multimedia messages include photos, video clips, information, contacts, and voice memos. Also you can send messages to multiple contacts at the same time.

Note:

• The sending and receiving of roaming messages could result in additional costs. For information, contact your telephone company.
• Check with your manager the costs for sending SMS and MMS.

Send an SMS message:

1. On the Home screen, touch the icon

1. Select the icon

1. Select the recipients of the message;

2. Enter telephone numbers manually, separating them with a semicolon or a comma.

3. Select the phone numbers from the Address Book by selecting the icon.

4 Write the text message using the virtual keyboard;

To insert emoticons, select the icon on the text bar.

1. Select the icon to send the message.

INTERNET

Before connecting to the network, make sure that the Wi-Fi connection is active or that the 4G network is available.

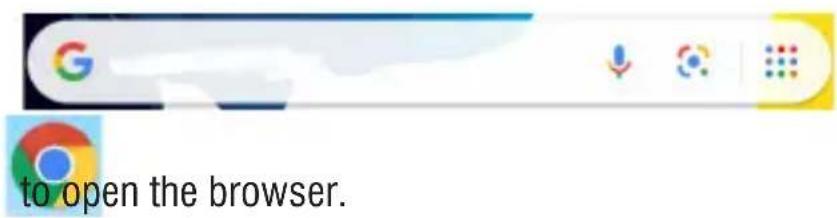

- On the main page, touch the Google ^TM search bar, the Android virtual keyboard will appear, where you can type the website address or search using the search engine.

to open the browser.

FUNCTIONS

Camera/Camcorder

Select the “Camera” icon to activate it. The TAB 10 4G S2 has a 0.3Mpxl front camera and a 2Mpxl rear camera, with these you can take pictures or shoot videos.

Turn off the Camera/Camcorder

To exit the Camera/Camcorder function, select the "return to previous page" command.

Bluetooth:

Bluetooth is a short-range wireless communication technology that can exchange data over distances of approximately 10 meters without requiring a wired connection.

There is no need to align devices to transmit data via Bluetooth. If the devices are paired, you can exchange data with each other even if they are in different rooms.

Note:

• Always make sure you are sharing and receiving data from reliable and properly protected devices.
- If there are obstacles between the devices, the operating distance may decrease.
- Some devices may be incompatible with your device.

Activating the Bluetooth function:

1. Select the "Settings" icon;
2. Select the item "Connected devices";
3. Select the item "Pair new device".

Search and pair with Bluetooth devices:

1. Once the "Pair new device" item has been selected, the list of available Bluetooth devices will be displayed;
2. Select the device from the list and enter the Bluetooth PIN of the external device if requested;
3. Select "OK" to start pairing.

Note:

• If the pairing is successful, the device will automatically search for available services.
• Some devices, especially headsets or hands-free car kits, may have a fixed Bluetooth PIN code, for example "0000". If the other device has a PIN, you must enter it.

Information Note on the Removal and Disposal of Batteries

Warning: Only high-qualified personnel should perform this operation! Battery Removal

The appliance should not be plugged to the mains socket when performing this operation!

1. Remove the rear part of the appliance;
2. Select the battery;
3. Disconnect and remove the battery.
   Used batteries should not be disposed of with household waste or thrown into fire or water. Used batteries should be recycled or disposed of in separate waste collection centres.

INFORMATION TO USERS

pursuant to Legislative Decree No. 49 of March 14, 2014

"Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)"

This wheeled bin symbol on the product indicates that at the end of its life must be collected separately from other waste. The user must, therefore, take the remote control integrates the essential components that got to its life to the appropriate differentiated collection centers for electronic and electro-technical waste, or return it to the dealer when purchasing a new appliance of equivalent type, in terms of one to one, or one to zero for equipment having longer side of less than 25 cm. Appropriate separate collection for the decommissioned equipment for recycling, processing and environmentally compatible disposal helps prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. Illegal dumping of the product by the user entails the application of administrative sanctions stated in Legislative Decree n. Legislative Decree No. 49 of March 14, 2014.

TREVI pursues a policy of continuous research and development, the products may show different characteristics from those described.

TECHNICAL SPECIFICATIONS

DISPLAY	10.1-inch LCD IPS
RESOLUTION	1280x800
CPU	Quad Core, SC9832E, 1,3GHz, 64bit
RAM	2GB
MEMORY	16GB
OPERATIVE SISTEM	Android 10.0 Go
POWER SUPPLY	5V 2A with external adapter lithium rechargeable battery 3,7V, 5000mAh
WIRELESS NETWORK	IEEE (802.11 b/g/n)
GSM BANDS	850/900/1800/1900MHz
3G BANDS	900/2100MHz
4G (LTE) BANDS	800/1800/2600MHz
BLUETOOTH PEAK TRANSMISSION POWER	1mW
BLUETOOTH MAX POWER TRANSMISSION	0,8mW
BLUETOOTH TRANSMISSION BAND	2,4GHz
DIMENSIONS	251x 153x 9,8mm
WEIGHT	485gr

BIENVENUE

Simple line drawing of a device with a cable and pointer, no text or symbols present

Screenshot of a mobile browser toolbar with Google, download, and control icons

CPU Quad Core, SC9832E, 1,3GHz, 64bit

RAM 2 GB

MÉMOIRE 16 GB

DISPOSITIF SISTEM Android 10.0 Go

SOURCE DE COURANT .... 5V 2A-avec alimentation externe .....batterie rechargeable au lithium 3,7V, 5000mAh

RESEAU SANS FIL IEEE (802.11 b/g/n)

FRÉQUENCE GSM 850/900/1800/1900MHz

DIMENSIONS....251x 153x 9,8mm

POIDS 485gr

WILLKOMMEN

Simple line drawing of a tablet connected to a cable with a connector (no text or symbols)

Screenshot of a mobile browser toolbar with Google, download, refresh, and control icons

Simple line drawing of a tablet device with a cable and connector, no text or symbols present

Screenshot of a mobile browser toolbar with Google, Google logo, download icon, and UI icons

CPU Quad Core, SC9832E, 1,3GHz, 64bit

RAM 2GB

MEMORIA 16GB

OPERATIVA SISTEM Android 10.0 Go

4G (LTE) 800/1800/2600MHz

https://www.trevi.it/dms/zidi/TREVI/DOCTAB104GS2.pdf

Simplified EU Declaration Of Conformity

Hereby TREVI S.p.a declares the model TAB 10 4G S2 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address https://www.trevi.it/dms/zidi/TREVI/DOCTAB104GS2.pdf

11:57 Google

Trevi S.p.A.

Strada Consolare Rimini-San Marino, 62

47924 RIMINI (RN) Italy

Tel. [phone] - Fax [phone]

www.trevi.it - E-mail: [e-mail]
