USER MANUAL CMCCS660E1 Craftsman

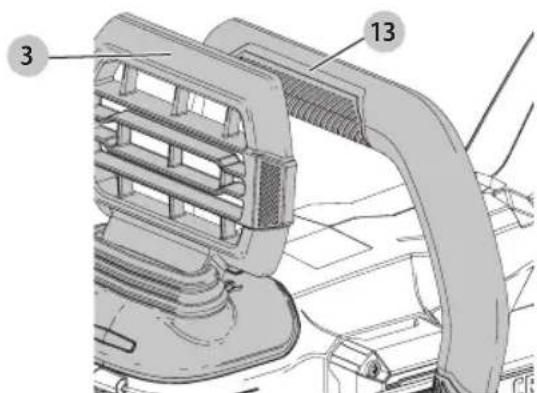

Chain brake / front hand guard

Battery release button

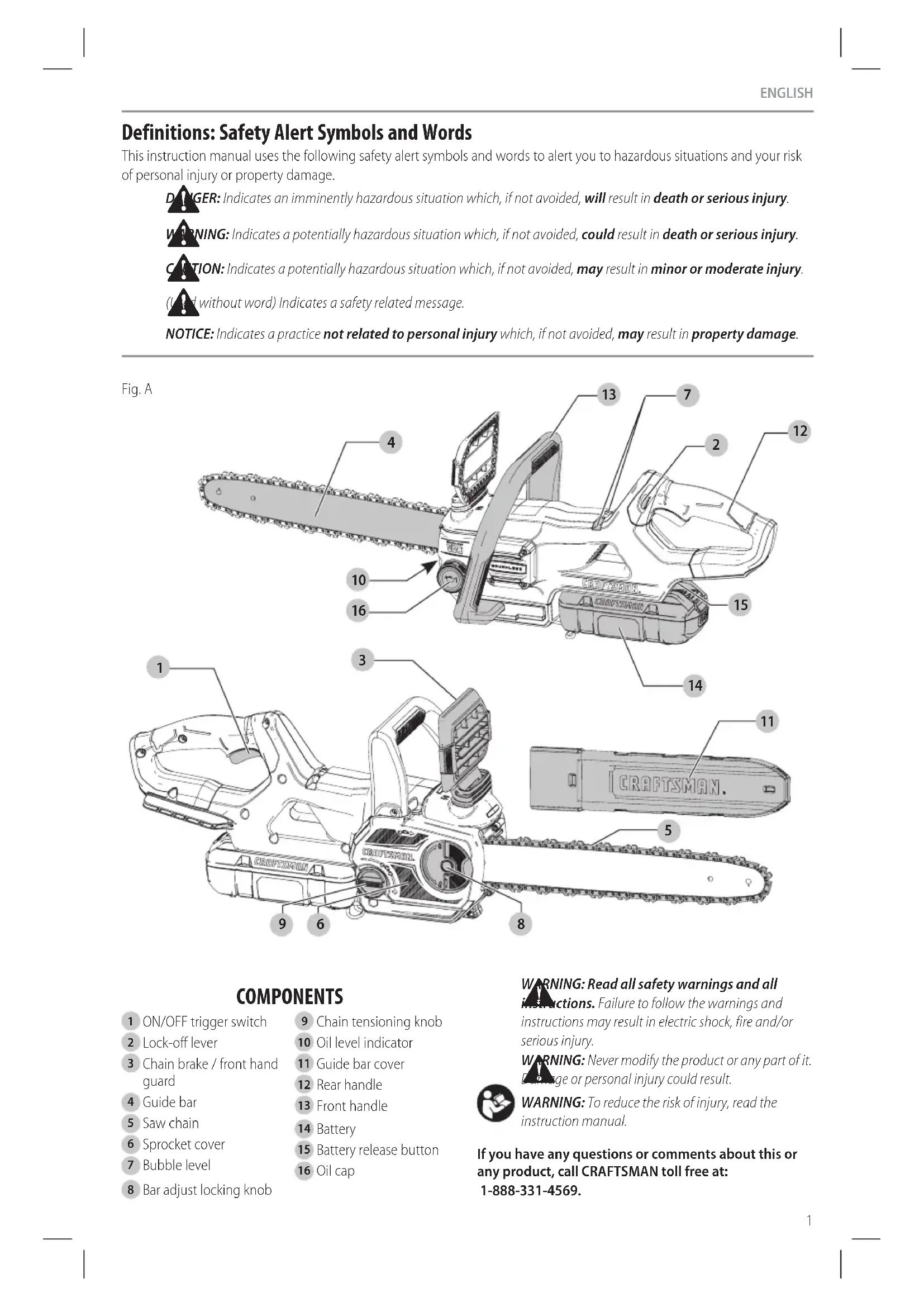

Oil cap Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety related message. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.

WARNING: Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

WARNING: Never modify the product or any part of it.

Damage or personal injury couldresult.

WARNING: To reduce the risk of injury, read the

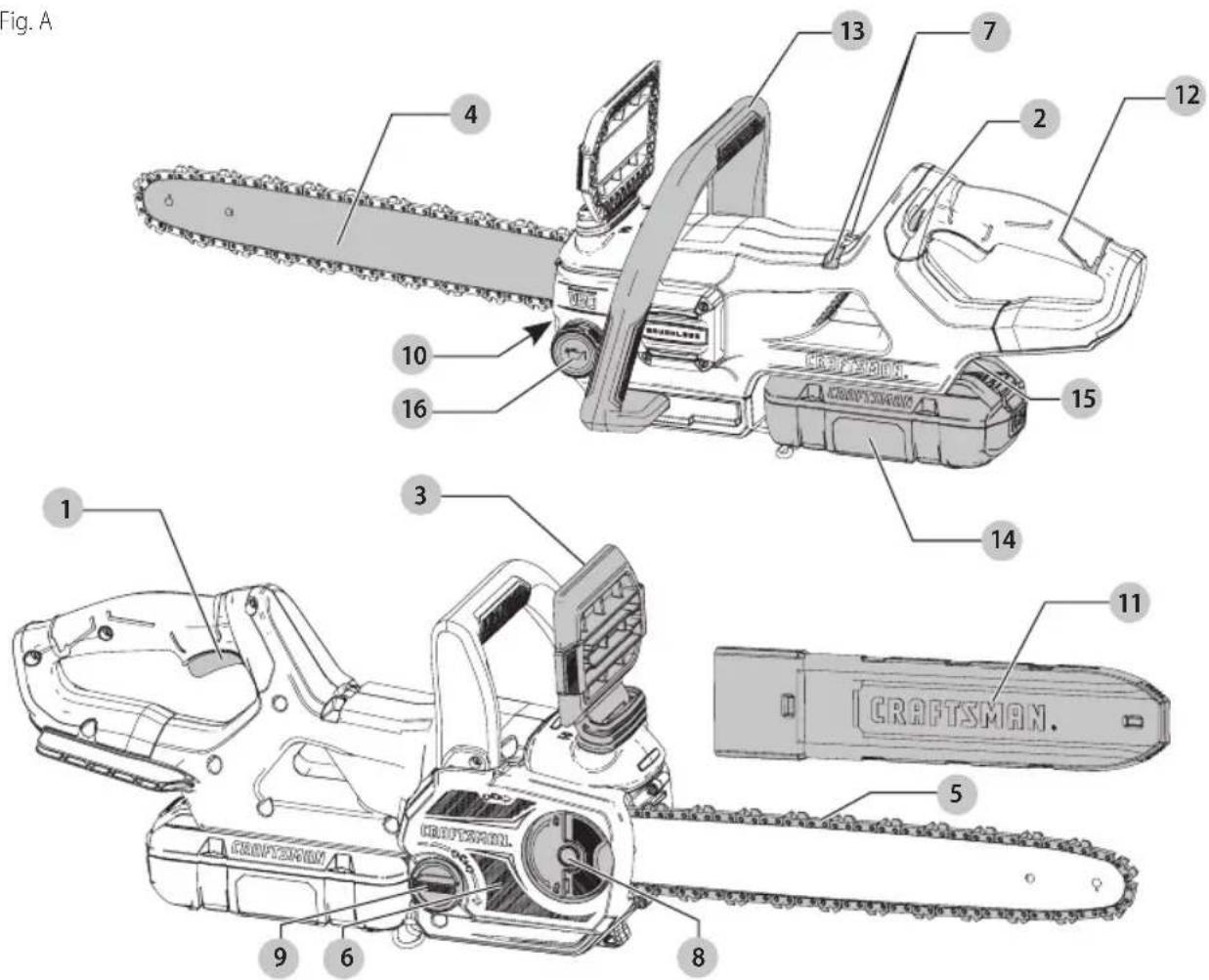

Fig. A English (original instructions)English

WARNING: Read all safety warnings,

instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or seriousinjury.

REFERENCE The term “power tool” in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) powertool.

a ) Keep work area clean and well lit. Cluttered or dark areas inviteaccidents. b ) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust orfumes. c ) Keep children and bystanders away while operating a power tool. Distractions can cause you to losecontrol.

2) Electrical Safety

a ) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electricshock. b ) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed orgrounded. c ) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electricshock. d ) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electricshock. e ) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock. f ) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electricshock.

a ) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personalinjury. b ) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personalinjuries. c ) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invitesaccidents. d ) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personalinjury. e ) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpectedsituations. f ) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in movingparts. g ) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-relatedhazards. h ) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power Tool Use and Care

a ) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it wasdesigned. b ) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must berepaired. c ) Disconnect the plug from the power source and/ or remove the battery, pack if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power toolaccidentally. d ) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrainedusers. e ) Maintain power tools and accesories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If3 English damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained powertools. f ) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier tocontrol. g ) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardoussituation. h ) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery Tool Use and Care

a ) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another batterypack. b ) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury andfire. c ) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or afire. d ) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation orburns. e ) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. f ) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265 °F (129 °C) may causeexplosion. g ) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

a ) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b ) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. Chain Saw Safety Warnings a ) Keep all parts of the body away from the saw chain when the chain saw, is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saws may cause entanglement of your clothing or body with the sawchain. b ) Always hold the chain saw with your right hand on the rear handle and your left hand on the front handle. Holding the chain saw with a reversed hand configuration increases the risk of personal injury and should never be done. c ) Hold the power tool by insulated gripping surfaces only, because the saw chain may contact hidden wiring. Saw chains contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. d ) Wear safety glasses and hearing protection. Further protective equipment for head, hands, legs and feet is recommended. Adequate protective clothing will reduce personal injury by flying debris or accidental contact with the saw chain. e ) Do not operate a chain saw in a tree. Operation of a chain saw while up in a tree may result in personalinjury. f ) Always keep proper footing and operate the chain saw only when standing on fixed, secure and level surface. Slippery or unstable surfaces such as ladders may cause a loss of balance or control of thechain saw. g ) When cutting a limb that is under tension be alert for spring back. When the tension in the wood fibres is released the spring loaded limb may strike the operator and/or throw the chain saw out of control. h ) Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain and be whipped toward you or pull you offbalance. i ) Carry the chain saw by the front handle with the chain saw switched off and away from your body. When transporting or storing the chain saw always fit the guide bar cover. Proper handling of the chain saw will reduce the likelihood of accidental contact with the movingsaw chain. j ) Follow instructions for lubricating, chain tensioning and changing accessories. Improperly tensioned or lubricated chain may either break or increase the chance for kickback. k ) Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery causing loss of control. l ) Cut wood only. Do not use chain saw for purposes not intended. For example: do not use chain saw for cutting plastic, masonry or non-English

wood building materials. Use of the chain saw for operations different than intended could result in a hazardoussituation. Causes and Operator Prevention of Kickback Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards theoperator. Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards theoperator. Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw. As a chain saw user, you should take several steps to keep your cutting jobs free from accident or injury. Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below: a ) Maintain a firm grip, with thumbs and fingers encircling the chain saw handles, with both hands on the saw and position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of thechain saw. b ) Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chain saw in unexpectedsituations. c ) Only use replacement bars and chains specified by the manufacturer. Incorrect replacement bars and chains may cause chain breakage and/ orkickback. d ) Follow the manufacturer’s sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback. 6 . Use devices such as low kickback saw chain and reduced kickback guide bars that reduce the risks associated withkickback. 7 . Only use replacement bars and saw chains specified by the manufacturer or the equivalent. 8 . Never let the moving saw chain contact any object at the tip of the guide bar. 9 . Keep the working area free from obstructions such as other trees, branches, rocks, fences, stumps, etc. Eliminate or avoid any obstruction that your saw chain could hit while you are cutting through a particular log or branch. 10 . Keep your saw chain sharp and properly tensioned. A loose or dull chain can increase the chance of kickback. Check tension at regular intervals with the motor stopped and battery removed, never with the motor running. 11 . Begin and continue cutting only with the saw chain moving at full speed. If the saw chain is moving at a slower speed, there is a greater chance for kickback tooccur. 12 . Cut one log at a time. 13 . Use extreme caution when re-entering a previous cut. Engage ribbed bumpers into wood and allow chain to reach full speed before proceeding with cut. 14 . Do not attempt plunge cuts or bore cuts. 15 . Watch for shifting logs or other forces that could close a cut and pinch or fall into chain. Kickback Safety Features

WARNING: The following features are included

on your saw to help reduce the hazard of kickback; however such features will not totally eliminate this dangerous reaction. As a chain saw user do not rely only on safety devices. You must follow all safety precautions, instructions, and maintenance in this manual to help avoid kickback and other forces which can result in serious injury.

• Reduced-Kickback Guide Bar, designed with a small radius tip which reduces the size of the kickback danger zone on bar tip. A reduced - kickback guide bar is one which has been demonstrated to significantly reduce the number and seriousness of kickbacks when tested in accordance with safety requirements for electric chain saws.

• Low-Kickback Chain, designed with a contoured depth gauge and guard link which deflect kickback force and allow wood to gradually ride into the cutter. A low-kickback chain is a chain which has met kickback performance requirements of ANSI B175.1–2012.

• Do not operate chain saw while in a tree, on a ladder, on a scaffold, or from any unstable surface.

• Hold tool by insulated gripping surfaces when performing an operation where the chain saw may contact hidden wiring. Contact with a “live” wire will make exposed metal parts of the tool “live” and shock theoperator. The Following Precautions Should Be Followed to Minimize Kickback: 1 . Grip Saw Firmly. Hold the chain saw firmly with both hands when the motor is running. Use a firm grip with thumbs and fingers encircling the chain saw handles. Chain saw will pull forward when cutting on the bottom edge of the bar, and push backward when cutting along the top edge of the bar. 2 . Do not over reach. 3 . Keep proper footing and balance at all times. 4 . Don’t let the nose of the guide bar contact a log, branch, ground or other obstruction. 5 . Don’t cut above shoulder height.5 English Chainsaw Names and Terms

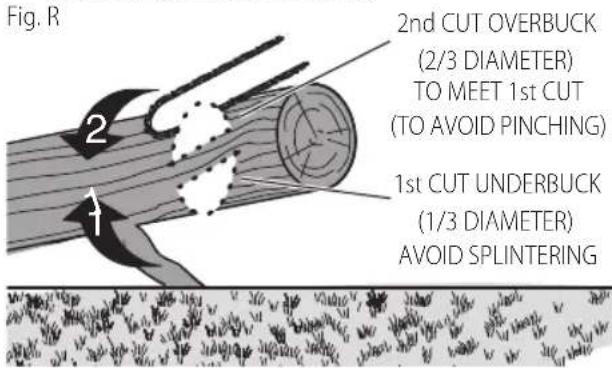

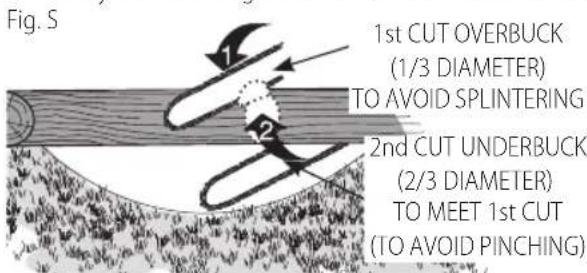

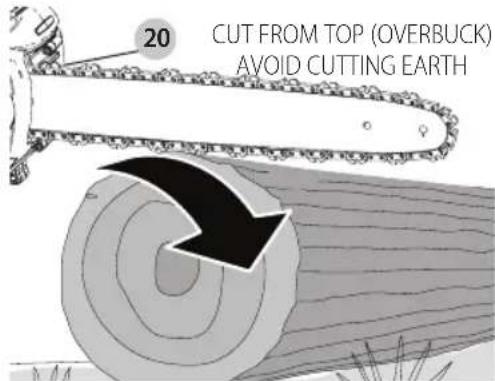

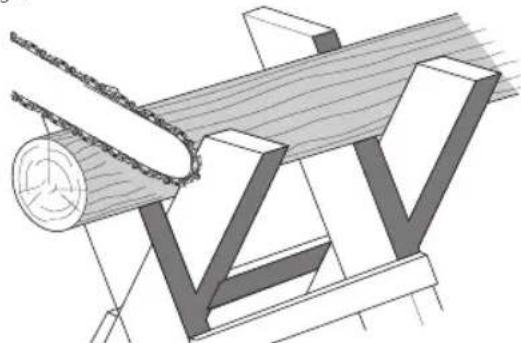

• Bucking - The process of cross cutting a felled tree or log intolengths.

• Motor Brake - A device used to stop the saw chain when the trigger isreleased.

• Chain Saw Powerhead - A chain saw without the saw chain and guidebar.

• Drive Sprocket or Sprocket - The toothed part that drives the sawchain.

• Felling - The process of cutting down atree.

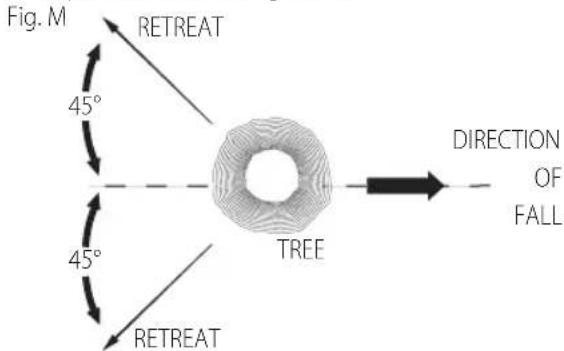

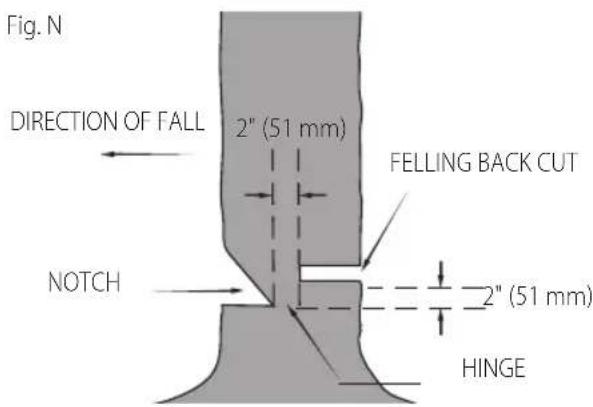

• Felling Back Cut - The final cut in a tree felling operation made on the opposite side of the tree from the notchingcut.

• Front Handle - The support handle located at or toward the front of the chainsaw.

• Front Hand Guard - A structural barrier between the front handle of a chain saw and the guide bar, typically located close to the hand position on the fronthandle.

• Guide Bar - A solid railed structure that supports and guides the sawchain.

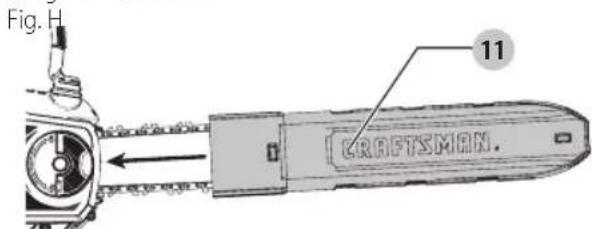

• Scabbard/Guide Bar Cover - Enclosure fitted over guide bar to help prevent tooth contact when saw is not inuse.

• Kickback - The backward or upward motion, or both of the guide bar occurring when the saw chain near the nose of the top area of the guide bar contacts any object such as a log or branch, or when the wood closes in and pinches the saw chain in thecut.

• Do not attempt operations beyond your capacity or experience. Read thoroughly and understand completely all instructions in this manual.

• Before you start chain saw, make sure saw chain is not contacting any object.

• Do not operate a chain saw with one hand! Serious injury to the operator, helpers, or bystanders may result from one handed operation. A chain saw is intended for two-handed use only.

• Keep the handles dry, clean, and free of oil orgrease.

• Do not allow dirt, debris, or sawdust to build up on the motor or outside air vents.

• Stop the chain saw before setting it down.

• Do not cut vines and/or small under brush.

• Use extreme caution when cutting small size brush and saplings because slender material may catch the saw chain and be whipped toward you or pull you off balance.

• Keep the working area free from obstructions such as other trees, branches, rocks, fences, stumps, etc. Eliminate or avoid any obstruction that your saw chain could hit while you are cutting through a particular log orbranch.

• Cut one log at atime.

• Use extreme caution when re-entering a previous cut. Engage ribbed bumpers into wood and allow saw chain to reach full speed before proceeding withcut.

• Do not attempt plunge cuts or borecuts.

• Watch for shifting logs or other forces that could close a cut and pinch or fall intosaw chain.

• Kickback, Pinch - The rapid pushback of the saw which can occur when the wood closes in and pinches the moving saw chain in the cut along the top of the guidebar.

• Kickback, Rotational - The rapid upward and backward motion of the saw which can occur when the moving saw chain near the upper portion of the tip of the guide bar contacts an object, such as a log orbranch.

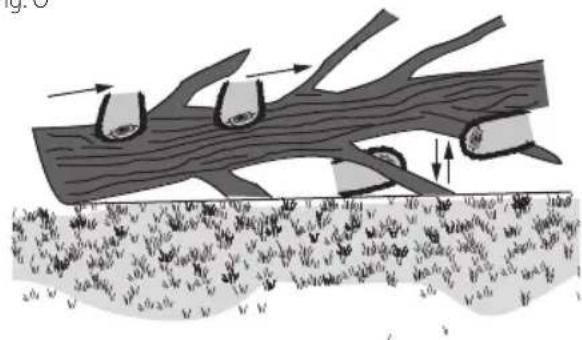

• Limbing - Removing the branches from a fallen tree.

• Low-Kickback Chain - A chain that complies with the kickback performance requirements of ANSI B175.1–2012 (when tested on a representative sample of chain saws.)

• Normal Cutting Position - Those positions assumed in performing the bucking and fellingcuts.

• Notching Undercut - A notch cut in a tree that directs the tree’sfall.

• Rear Handle - The support handle located at or toward the rear of thesaw.

• Reduced Kickback Guide Bar - A guide bar which has been demonstrated to reduce kickbacksignificantly.

• Replacement Saw Chain - A chain that complies with kickback performance requirements of ANSI B175.1–2012 when tested with specific chain saws. It may not meet the ANSI performance requirements when used with othersaws.

• Saw Chain - A loop of chain having cutting teeth, that cut the wood, and that is driven by the motor and is supported by the guidebar.

• Ribbed Bumper - The ribs used when felling or bucking to pivot the saw and maintain position whilesawing.

• Switch - A device that when operated will complete or interrupt an electrical power circuit to the motor of the chainsaw.

• Switch Linkage - The mechanism that transmits motion from a trigger to theswitch.

• Switch Lockout - A movable stop that prevents the unintentional operation of the switch until manuallyactuated. Additional Safety Information

WARNING: ALWAYS use safety glasses. Everyday

eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETYEQUIPMENT:

WARNING: Some dust created by power sanding,

sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicalsare:

• lead from lead-based paints,

• crystalline silica from bricks and cement and other masonry products, andEnglish

• arsenic and chromium from chemically- treatedlumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopicparticles.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmfulchemicals.

WARNING: Use of this tool can generate and/

or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face andbody.

WARNING: Always wear proper personal hearing

protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearingloss.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools will stand upright but may be easily knocked over.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in movingparts.

READ ALL INSTRUCTIONS

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings,

instructions, and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust orfumes.

• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries andchargers.

• Charge the battery packs only in CRAFTSMAN chargers.

• DO NOT splash or immerse in water or otherliquids.

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104°F (40°C) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, drylocation. NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ONposition.

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and

BATTERIES AND CHARGERS

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging proceduresoutlined. When ordering replacement battery packs, be sure to include the catalog number andvoltage. CSPM .................. Cut strokes per minute ..................... Do not leave in rain ..................... Tip contact can cause the guide bar to move suddenly upward and backward, which can cause serious injury .................... Contact of the guide bar tip with any object should be avoided .................. Rotational direction of the saw chain .............. Always use two hands when operating the chain saw7 English materials are created when lithium-ion battery packs areburned.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medicalattention.

WARNING: Burn hazard. Battery liquid may be

flammable if exposed to spark orflame.

WARNING: Fire hazard. Never attempt to open the

battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center forrecycling. Storage Recommendations

1. The best storage place is one that is cool and dry, away

from direct sunlight and excess heat or cold.

2. For long storage, it is recommended to store a fully

charged battery pack in a cool dry place out of the charger for optimal results. nOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use. Battery Pack Cleaning Instructions Dirt and grease may be removed from the exterior of the battery using a cloth or soft non-metallic brush. Do not use water or any cleaningsolutions. The RBRC® Seal The RBRC® (Rechargeable Battery Recycling Corporation) Seal on the nickel cadmium, nickel metal hydride or lithium-ion batteries (or battery packs) indicates that the costs to recycle these batteries (or battery packs) at the end of their useful life have already been paid by CRAFTSMAN. In some areas, it is illegal to place spent nickel cadmium, nickel metal hydride or lithium-ion batteries in the trash or municipal solid waste stream and the Call2Recycle® program provides an environmentally consciousalternative. Call 2 Recycle, Inc., in cooperation with CRAFTSMAN and other battery users, has established the program in the United States and Canada to facilitate the collection of spent nickel cadmium, nickel metal hydride or lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC® is a registered trademark of Call 2 Recycle,Inc. Transportation

WARNING: Fire hazard. Do not store or carry the

battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc. Transporting batteries can possibly cause fires if the battery terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the like. The US Department of Transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes in carry-on baggage UNLESS they are properly protected from short circuits. So when transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE:LI-ion batteries should not be put in checkedbaggage. Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings, instructions,

and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

• DO NOT attempt to charge the battery pack with any chargers other than a CRAFTSMAN charger. CRAFTSMAN charger and battery pack are specifically designed to worktogether.

• These chargers are not intended for any uses other than charging CRAFTSMAN rechargeable batteries. Any other uses may result in risk of fire, electric shock orelectrocution.

• Do not expose the charger to rain orsnow.

• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug andcord.

• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage orstress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock orelectrocution.

• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18gauge. An undersized cord will cause a drop inENGLISH

line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier thecord. Minimum Gauge for Cord Sets Volts Total Length of Cord in Feet (meters) 120 V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7) 240 V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4) Ampere Rating American Wire Gauge More Than Not More Than

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of thehousing.

• Do not operate the charger with a damaged cord orplug–have them replaced immediately.

• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized servicecenter.

• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.

• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce thisrisk.

• NEVER attempt to connect 2 chargerstogether.

• The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicularcharger.

WARNING: Shock hazard. Do not allow any liquid to

WARNING: Burn hazard. Do not submerge the

battery pack in any liquid or allow any liquid to enter the battery pack. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling.

CAUTION: Burn hazard. To reduce the risk of injury, charge only CRAFTSMAN rechargeable battery packs. Other types of batteries may overheat and burst resulting in personal injury and propertydamage.

CAUTION: Under certain conditions, with the charger plugged into the power supply, the charger can be shorted by foreign material. Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting toclean. Charging a Battery NOTE: To ensure maximum performance and life of lithium-ion battery packs, charge the battery pack fully before firstuse.

1. Plug the charger into an appropriate outlet before

inserting batterypack.

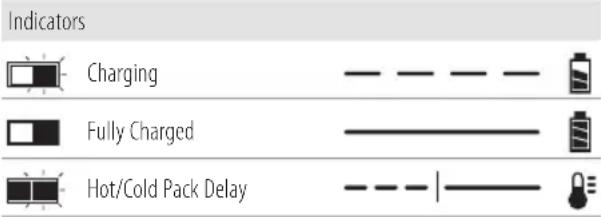

2. Connect the charger and battery pack, making sure

the battery is fully seated. The (charging) light will blink continuously indicating that the charging process hasstarted.

3. The completion of charge will be indicated by the light

remaining ON continuously. The battery pack is fully charged and may be removed and used at this time or left in the charger. NOTE: To remove the battery pack, some chargers require the battery pack release button to bepressed. Indicators Charging Fully Charged Hot/Cold Pack Delay A charger will not charge a faulty battery pack. The charger refusing to light could indicate a problem with the charger. NOTE: If the charger refuses to light, take the charger and battery pack to be tested at an authorized servicecenter. Hot/Cold Pack Delay When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery packlife. A cold battery pack may charge at a slower rate than a warm batterypack. Important Charging Notes

1. Longest life and best performance can be obtained if

the battery pack is charged when the air temperature is between 65°F – 75°F (18° C– 24°C). DO NOT charge when the battery pack is below +40°F (+4.5°C), or above +104°F (+40°C). This is important and will prevent serious damage to the batterypack.

2. The charger and battery pack may become warm to the

touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of9 English the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulatedtrailer.

3. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance; b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights; c. Move the charger and battery pack to a location where the surrounding air temperature is approximately 65°F – 75°F (18°C – 24°C); d. If charging problems persist, take the tool, battery pack and charger to your local servicecenter.

4. The battery pack should be recharged when it fails to

produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse effect on the batterypack.

5. Foreign materials of a conductive nature such as, but

not limited to, grinding dust, metal chips, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting toclean.

6. Do not freeze or immerse the charger in water or any

otherliquid. Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger

from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaningsolutions.

SAVE THESE INSTRUCTIONS FOR

FUTURE USE COMPONENTS (FIG. A) Intended Use This chain saw is designed for pruning applications and cutting logs up to 14" (355 mm) indiameter. DO nOT use under wet conditions or in presence of flammable liquids orgases. DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury. Installing the Guide Bar and Saw Chain (Fig. A, B–D)

CAUTION: Sharp chain. Always wear protective gloves when handling the chain. The chain is sharp and can cut you when it is notrunning.

WARNING: Sharp moving chain. To prevent

accidental operation, ensure that battery is removed from the tool before performing the following operations. Failure to do this could result in serious personalinjury. If the saw chain

are packed separately in the carton, the chain has to be attached to the bar, and both must be attached to the body of thetool.

1. Place the saw on a flat, firmsurface.

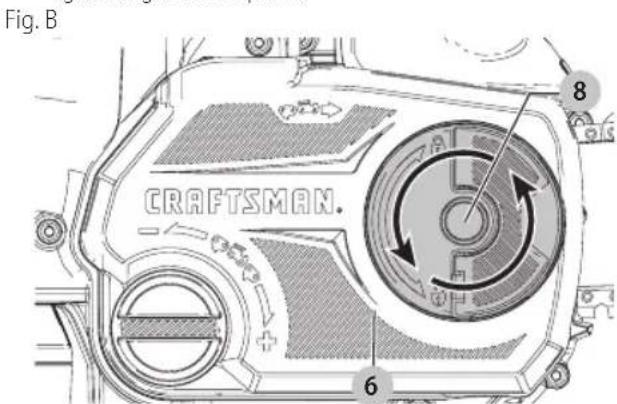

2. Flip up locking lever and rotate the bar adjust locking

counterclockwise as shown in FigureB to remove sprocket cover

3. Wearing protective gloves, grasp the saw chain

and wrap it around the guide bar

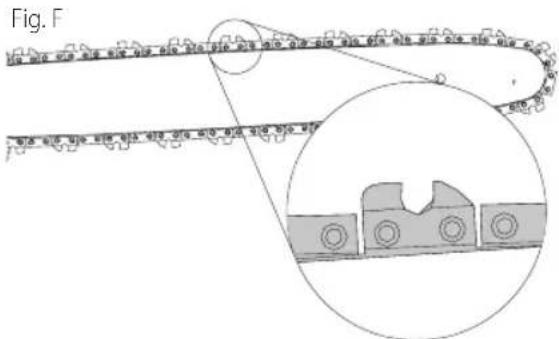

, ensuring the teeth are facing the correct direction.

4. Ensure the chain is properly set in the slot around the

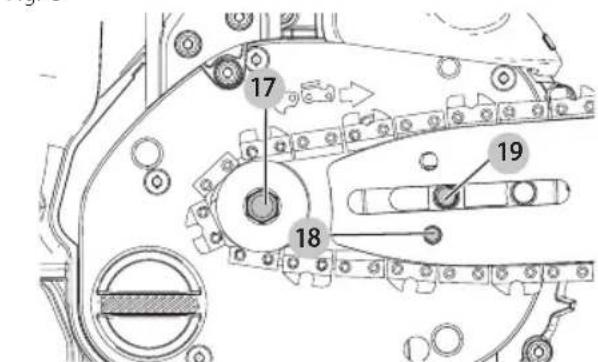

5. Place the saw chain around the sprocket

. While lining up the slot on the guide bar with chain tensioning pin

, on the base of the tool.

. Make sure tool-free tension assembly bolt hole on the cover lines up with the bolt

, in the main housing. Flip up locking lever and rotate the bar adjust locking knob

clockwise until it clicks, then loosen knob one full turn, so that the saw chain can be properlytensioned.

clockwise to increase tension as shown in FigureD. Make sure the saw chain

is snug around the guide bar

. Tighten the bar adjust locking knob until it clicks. The bar is secure after three audible clicks are heard. Further tightening is notrequired. Fig. B

Components Tool Use chain saw xxxxxxxxxxxENGLISH

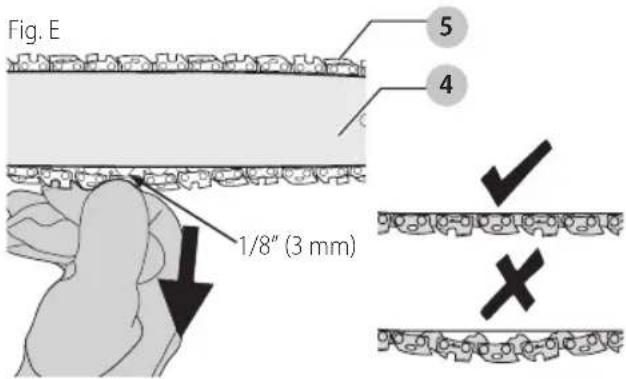

Adjusting Chain Tension (Fig. A, E )

CAUTION: Sharp chain. Always wear protective gloves when handling the chain. The chain is sharp and can cut you when it is notrunning.

WARNING: Sharp moving chain. To prevent

accidental operation, ensure that battery is removed from the tool before performing the following operations. Failure to do this could result in serious personalinjury.

1. With the saw on a flat, firm surface, check the saw chain

tension. The tension is correct when the chain snaps back after being pulled 1/8" (3mm) away from the guide bar

with light force from the index finger and thumb as shown in FigureE. There should be no “sag” between the guide bar and the chain on the underside as shown in FigureE.

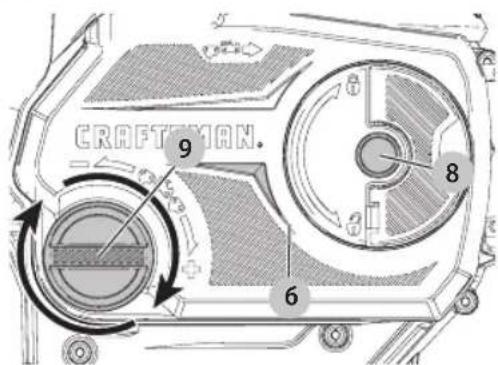

2. To adjust saw chain tension, flip up locking tab and

counterclockwise one full turn. Rotate the chain tensioning knob

clockwise until the chain tension is correct as instructedabove.

3. Do not over-tension the chain as this will lead to

excessive wear and will reduce the life of the bar andchain.

4. Once chain tension is correct, securely tighten bar adjust

lockingknob. NOTE: The bar adjust locking knob has a detent tightening system. The sprocket cover is secure after three audible clicks are heard. Further tigtening is notrequired.

5. When the chain is new, check the tension frequently

(after removing battery) during the first 2 hours of use as a new chain stretchesslightly. Fig. E 1/8” (3mm)

CAUTION: Sharp chain. Always wear protective gloves when handling the chain. The chain is sharp and can cut you when it is notrunning.

WARNING: Sharp moving chain. To prevent

accidental operation, ensure that battery is removed from the tool before performing the following operations. Failure to do this could result in serious personalinjury.

counterclockwise to release chaintension.

as described in Installing the Guide Bar and Saw Chainsection.

3. Lift the worn saw chain

4. Place the new chain in the slot of the guide bar, making

sure the saw teeth are facing the correct direction by matching the arrow on the chain with the graphic on the sprocket cover

5. Follow instructions for Installing the Guide Bar and

SawChain. Fig. F Replacement chain and bar are available from your nearest authorized servicecenter.

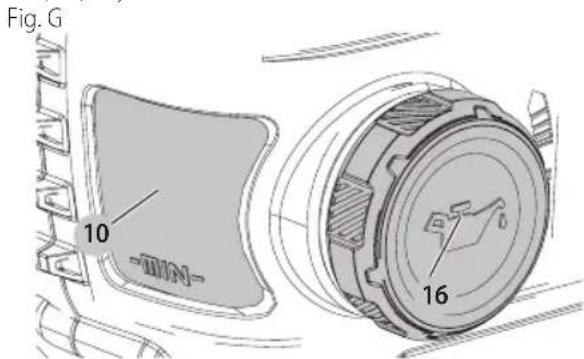

• This chain saw requires replacement 16” (406 mm) chain CMZCSC16. Replacement 16” bar CMZCSB16. Saw Chain and Guide Bar Oiling (Fig. G) Auto Oiling System This chain saw is equipped with an auto oiling system that keeps the saw chain and guide bar constantly lubricated. The oil level indicator

shows the level of the oil in the chain saw. If the oil level is less than a quarter full, remove the battery from the chain saw and refill with the correct type of oil. Always empty oil tank when finishedcutting.11 ENGLISH NOTE: Use a high quality bar and chain oil for proper saw chain and bar lubrication. As a temporary substitute, a non- detergent SAE30 weight motor oil can be used. The use of a vegetable based bar and chain oil is recommended when pruning trees. Mineral oil is not recommended because it may harm trees. Never use waste oil or very thick oil. These may damage yourchain saw. Filling the Oil Reservoir

1. Unscrew counterclockwise and then remove the oil cap

. Fill the reservoir with the recommended bar and chain oil until the oil level has reached the top of the oil level indicator

2. Refit the oil cap and tighten clockwise.

3. Periodically switch the chain saw off and check the oil

level indicator to ensure the bar and chain are being properlyoiled. Fig. G

• Always remove the battery from the tool and cover the guide bar

with the guide bar cover

(see FigureH) when transporting thesaw.

• Engage chain brake by pushing chain brake / front hand guard

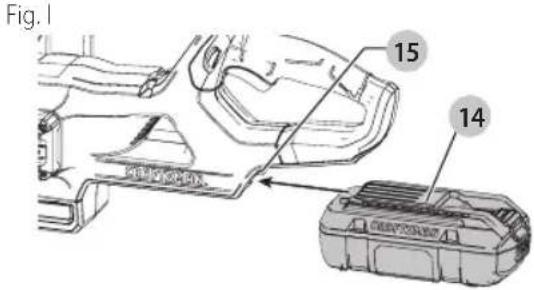

To remove the battery pack from the tool, press the release button

and firmly pull the battery pack out of the tool handle. Insert it into the charger as described in the charger section of thismanual. Fig. I

WARNING: To reduce the risk of serious personal injury,

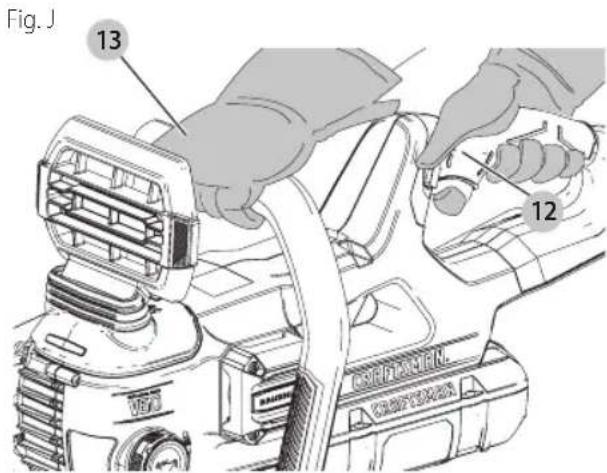

Always use proper hand position as shown.

To reduce the risk of serious personal injury, always hold securely in anticipation of a suddenreaction. Proper hand position requires the left hand on the front handle

, with the right hand on the rear handle

WARNING: Read and understand all instructions.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious personalinjury.

• Guard Against Kickback which can result in severe injury or death. See General Power Tool Safety Warnings and Causes and Operator Prevention of Kickback and Kickback Safety Features, to avoid the risk ofkickback.

• Do not overreach. Do not cut above chest height. Make sure your footing is firm. Keep feet apart. Divide your weight evenly on bothfeet.

• Use a firm grip with your left hand on the front handle

and your right hand on the rear OPERATION

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can causeinjury. Installing and Removing the Battery Pack (Fig. I) NOTE: For best results, make sure your battery pack is fullycharged. To install the battery pack

into the tool handle, align the battery pack with the rails inside the tool’s handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does notdisengage.English

so that your body is to the left of the guidebar.

• Do not hold chain saw by chain brake / front hand guard

. Keep elbow of left arm locked so that left arm is straight to withstand akickback.

WARNING: Never use a cross-handed grip (left

hand on the rear handle and right hand on the fronthandle).

WARNING: Never allow any part of your body to

be in line with the guide bar

when operating the chainsaw.

• Never operate while in a tree, in any awkward position or on a ladder or other unstable surface. You may lose control of saw causing severeinjury.

• Keep the chain saw running at full speed the entire time you arecutting.

• Allow the saw chain to cut for you. Exert only light pressure. Do not put pressure on chain saw at end ofcut.

WARNING: When not in use always have the

chain brake engaged and batteryremoved. Setting the Chain Brake (Fig. K) Your chain saw is equipped with a motor chain braking system which will stop the chain quickly in case ofkickback.

1. Remove the battery from thetool.

2. To engage the chain brake, push the chain brake / front

forward until it clicks intoplace.

3. Pull the chain brake / front hand guard

towards the front handle

into the “set” position as shown in FigureK.

4. The tool is now ready touse.

nOTE: In the event of kickback, your left hand will come in contact with the front guard, pushing it forward, toward the workpiece. This will stop thetool. Fig.K

Testing the Chain Brake Test the chain brake before every use to make sure it operatescorrectly.

1. Place the tool on a flat, firm surface. Make sure the saw

is clear of theground.

2. Grip the tool firmly with both hands and turn the chain

3. Rotate your left hand forward around the front handle

so the back of your hand comes in contact with the chain brake / front hand guard

and push it forward, toward the workpiece. The saw chain should stopimmediately. nOTE: If saw does not stop immediately, stop use of tool and bring it to an authorized service center nearestyou.

WARNING: Make sure to set chain brake

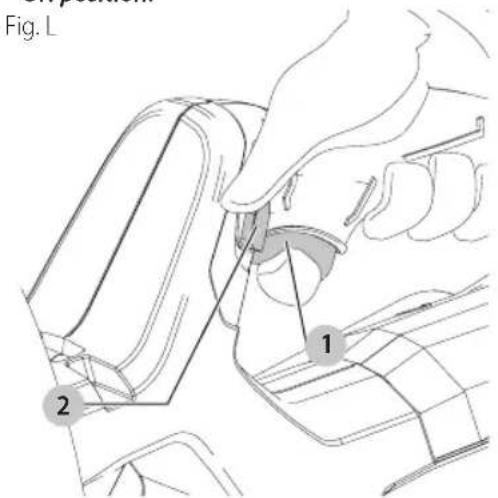

beforecutting. ON/OFF Switch (Fig. L) Always be sure of your footing and grip the chain saw firmly with both hands with the thumb and fingers encircling bothhandles. To turn the unit on, ensure chain brake is not engaged. Push the lock off lever

and squeeze the On/Off trigger switch

. Once the unit is running, you may release the lock offlever. In order to keep the unit running you must continue to squeeze the trigger. To turn the unit off, release thetrigger. nOTE: If too much force is applied while making a cut the saw will turn off. To restart saw, you must release the On/Off trigger switch

before the saw will restart. Begin your cut again this time with less force. Allow the saw to cut at its ownpace.

WARNING: Never attempt to lock a switch in the

WARNING: Do not operate above shoulder height

Align bubble levels prior to making a cut. Ideal for vertical cutting to ensure a straight, flat cut.

2. Always start a cut with the saw chain running at

of the chain saw behind the area of the initial cut.

4. Once a cut has begun and a notch is established in the

material, do not change the angle of the cut. nOTE: Changing the angle will cause the bar to bend.13 ENGLISH Common Cutting Techniques (Fig. A, M–S) Felling The process of cutting down a tree. Be sure battery is fully charged before felling a tree so you can finish on a single charge. Do not fell trees in high windconditions.

WARNING: Felling can result in injury. It should only

be performed by a trainedperson.

• A retreat path should be planned and cleared as necessary before cuts are started. The retreat path should extend back and diagonally to the rear of the expected line of fall (FigureM). DIRECTION

• Before felling is started, consider the natural lean of the tree, the location of larger branches and the wind direction to judge which way the tree will fall. Have wedges (wood, plastic or aluminum) and a heavy mallet handy. Remove dirt, stones, loose bark, nails, staples, and wire from the tree where the felling cuts are to bemade.

• Notching Undercut - Make the notch 1/3 of the diameter of the tree, perpendicular to the direction of the fall. Make the lower horizontal notching cut first. This will help to avoid pinching of either the saw chain or the guide bar when the second notch cut is being made (FigureN).

• Felling Back Cut - Make the felling back cut at least 2" (51mm) higher than the horizontal notching cut. Keep the felling back cut parallel to the horizontal notching cut. Make the felling back cut so enough wood is left to act as a hinge. The hinge wood keeps the tree from twisting and falling in the wrong direction. Do not cut through the hinge (FigureN).

• As the felling cut gets close to the hinge the tree should begin to fall. If there is any chance that the tree may not fall in the desired direction or it may rock back and bind the saw chain, stop cutting before the felling cut is complete and use wedges to open the cut and drop the tree along the desired line of fall. When the tree begins to fall remove the chain saw from the cut, stop the motor, put the chain saw down, then use the retreat path planned. Be alert for overhead limbs falling and watch yourfooting. 2" (51 mm)

Fig. N Limbing Removing the branches from a fallen tree. When limbing, leave larger lower limbs to support the log off the ground. Remove the small limbs in one cut. Branches under tension should be cut from the bottom of the branch towards the top to avoid binding the chain saw as shown in FigureO. Trim limbs from opposite side keeping tree stem between you and saw. Never make cuts with saw between your legs or straddle the limb to becut. Fig. O Bucking

WARNING: Recommend that first time users should

practice cutting on a sawhorse. Cutting a felled tree or log into lengths. How you should cut depends on how the log is supported. Use a saw horse (FigureP) wheneverpossible. Fig. P

1. Always start a cut with the saw chain running at

of the chain saw behind the area of the initial cut as shown in FigureQ.

3. Turn the chain saw on then rotate the saw chain and bar

down into the tree, using the spike as ahinge.ENGLISH 4. Once the chain saw gets to a 45 degree angle, level the chain saw again and repeat steps until you cut fullythrough.5. When the tree is supported along its entire length, make a cut from the top (overbuck), but avoid cutting the earth as this will dull your sawquickly.CUT FROM TOP (OVERBUCK) AVOID CUTTING EARTHFig. Q

• FigureR- When supported at one end First, cut 1/3 the diameter from the underside (underbuck). Then make the finishing cut by overbucking to meet the firstcut.

2nd CUT OVERBUCK(2/3 DIAMETER) TO MEET 1st CUT (TO AVOID PINCHING) 1st CUT UNDERBUCK(1/3 DIAMETER) AVOID SPLINTERINGFig. R• FigureS- When supported at bothends. First, cut 1/3 down from the top overbuck. Then make the finished cut by underbucking the lower 2/3 to meet the firstcut.2nd CUT UNDERBUCK (2/3 DIAMETER) TO MEET 1st CUT (TO AVOID PINCHING) 1st CUT OVERBUCK (1/3 DIAMETER) TO AVOID SPLINTERINGFig. S• When on a slope always stand on the uphill side of the log. When “cutting through”, to maintain complete control reduce the cutting pressure near the end of the cut without relaxing your grip on the chain saw handles. Don’t let the chain contact the ground. After completing the cut, wait for the saw chain to stop before you move the chain saw. Always stop the motor before moving from cut tocut. MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can causeinjury.Regular maintenance ensures a long effective life for your chainsaw. Saw Chain and Guide Bar After every few hours of use, remove the sprocket cover, guide bar and chain and clean thoroughly using a soft bristle brush. Ensure oiling hole on bar is clear of debris. When replacing dull chains with sharp chains it is good practice to flip the chain bar from bottom totop. Saw Chain Sharpening

CAUTION: Sharp chain. Always wear protective gloves when handling the chain. The chain is sharp and can cut you when it is notrunning. WARNING: Sharp moving chain. To prevent accidental operation, ensure that battery is removed from the tool before performing the following operations. Failure to do this could result in serious personalinjury.NOTE: The cutters will dull immediately if they touch the ground or a nail whilecutting.To get the best possible performance from your chain saw it is important to keep the teeth of the saw chain sharp. Follow these helpful tips for proper saw chain sharpening:1. For best results use a 4.5mm file and a file holder or filing guide to sharpen your saw chain. This will ensure you always get the correct sharpeningangles.2. Place the file holder flat on the top plate and depth gauge of thecutter.3. FigureT- Keep the correct top plate filing angle line of 30° on your file guide parallel with your chain (file at 60° from chain viewed from the side).4. Sharpen cutters on one side of the chain first. File from the inside of each cutter to the outside. Then turn your saw around and repeat the processes (2, 3, 4) for cutters on the other side of thechain. NOTE: Use a flat file to file the tops of the rakers (portion of chain link in front of the cutter) so they are about .025" (.635 mm) below the tips of the cutters as shown in FigureU.5. FigureV- Keep all cutter lengthsequal.6. If damage is present on the chrome surface of the top plates or side plates, file back until such damage isremoved. CAUTION: After filing, the cutter will be sharp, use extra caution during thisprocess.NOTE: Each time the chain is sharpened, it loses some of the low kickback qualities and extra caution should be used. It is recommended that a saw chain be sharpened no more than fourtimes.15 English 60° Fig. T .025" (0.635mm)Fig. UFig. V Accessories

WARNING: Since accessories, other than those

offered by CRAFTSMAN, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with thisproduct.Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569.

WARNING: When hanging objects on a Versatrack™ Trackwall rail, adequately space the tools in order to not exceed 75 lb (35 kg) per linear foot. WARNING: Before using the tool make sure that the Versatrack™ integral hang hook is returned to its original position.iMPORTAnT: Versatrack™ accessories mount compatible tools securely to the Versatrack™ Trackwallsystem.1. Turn tool off, remove the battery pack and removeaccessories. CAUTION: Any product with exposed cutting teeth must have them covered securely if it is to be on theVersatrack™ Trackwall.2. Flip or pull open the integral hang hook . It clicks when locked into position.3. Mount the integral hang hook to the Versatrack™Trackwall.nOTE: Versatrack™ accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569.Fig.W

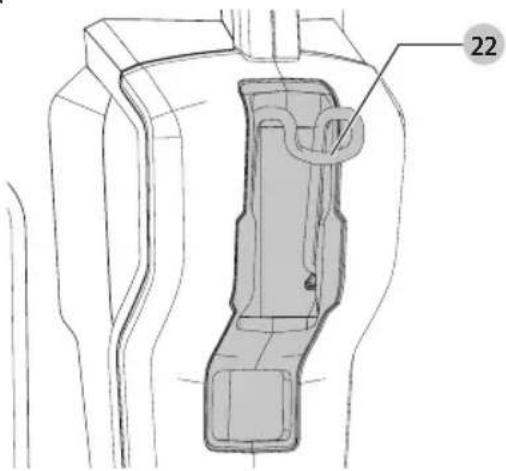

Versatrack™ (Fig. W)

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can causeinjury. WARNING: To reduce the risk of serious personal injury, do not use a damaged Versatrack™ integral hang hook or Versatrack™ Trackwall. A damaged Versatrack™ integral hang hook or Versatrack™ Trackwall will not support the weight of the tool. WARNING: To reduce the risk of serious personal injury, DO NOT suspend tool overhead or suspend objects from the integral hang hook. ONLY suspend tool on the Versatrack™ Trackwall using the integral hang hook. WARNING: The Versatrack™ integral hang hook is intended to mount the tool onto a Versatrack™ Trackwall rail. Do not use the integral hang hook to mount the tool to any other surface.

WARNING: The Versatrack™ integral hang hook is not a belt hook.

Repairs The charger and battery pack are notserviceable. There are no serviceable parts inside the charger or battery pack. WARNING: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacementparts. Cleaning

WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performingthisprocedure.ENGLISH

WARNING: Never use solvents or other harsh

chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. Register Online Thank you for your purchase. Register your product nowfor:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with yourproduct.

• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof ofpurchase.

• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer SafetyAct. Register online at www.craftsman.com/registration FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a freereplacement. Four Year Limited Warranty CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for four years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call 1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL

OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states orprovinces. NOTE: Battery warranty voided if the battery pack is tampered with in any way. CRAFTSMAN is not responsible for any injury caused by tampering and may prosecute warranty fraud to the fullest extent permitted bylaw.

90 DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questionsasked. LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warrantyinformation.17 FRANÇAIS Français (traduction de la notice d’instructions originale) LangRef_U_NA_U_U-FRE DESCRIPTION

• Maximum initial battery voltage (measured without a workload) is 60 volts. Nominal voltage is 54.
