CMEE531 - Heat gun Craftsman - Free user manual and instructions
Find the device manual for free CMEE531 Craftsman in PDF.
| Product type | Heat gun |
| Brand | Craftsman |
| Model | CMEE531 |
| Power source | 120 V AC |
| Estimated power | 1500 W |
| Maximum temperature | Above 468 °C (875 °F) |
| Minimum temperature (estimated) | Approximately 250 °C |
| Air speeds | Two speeds (low and high) |
| Trigger | Two-speed with off position |
| Temperature adjustment | Rotary knob |
| Hanging loop | Yes (Versatrack compatible) |
| Included nozzle | Standard hot air nozzle |
| Compatible accessories (sold separately) | Fan jet nozzle, glass protector, cone nozzle, coil reflector |
| Main uses | Paint stripping, plastic welding, PVC shrinking, drying, defrosting |
| Warranty | 3-year limited + 90-day money-back guarantee |
| Double insulation | Yes (Class II) |
| Safety certifications | ANSI Z87.1 (eye protection), NIOSH/OSHA (respiratory) |
| Maintenance | Clean with dry air, avoid solvents |
| Repairability | Repair by authorized Craftsman service center |
| Cooling time before storage | 30 minutes minimum |
Frequently Asked Questions - CMEE531 Craftsman
User questions about CMEE531 Craftsman
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Heat gun in PDF format for free! Find your manual CMEE531 - Craftsman and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CMEE531 by Craftsman.
USER MANUAL CMEE531 Craftsman
INSTRUCTION MANUAL GUIDE D'UTILISATIONMANUAL DE INSTRUCTIONES
Cored Heat Gun
English (original instructions) 1
Francais (traduction de la notice d'instructions originale) 9
Definitions: Safety Alert Symbols and Words
This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.
SER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
ING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
ION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
without word) Indicates a safety related message.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

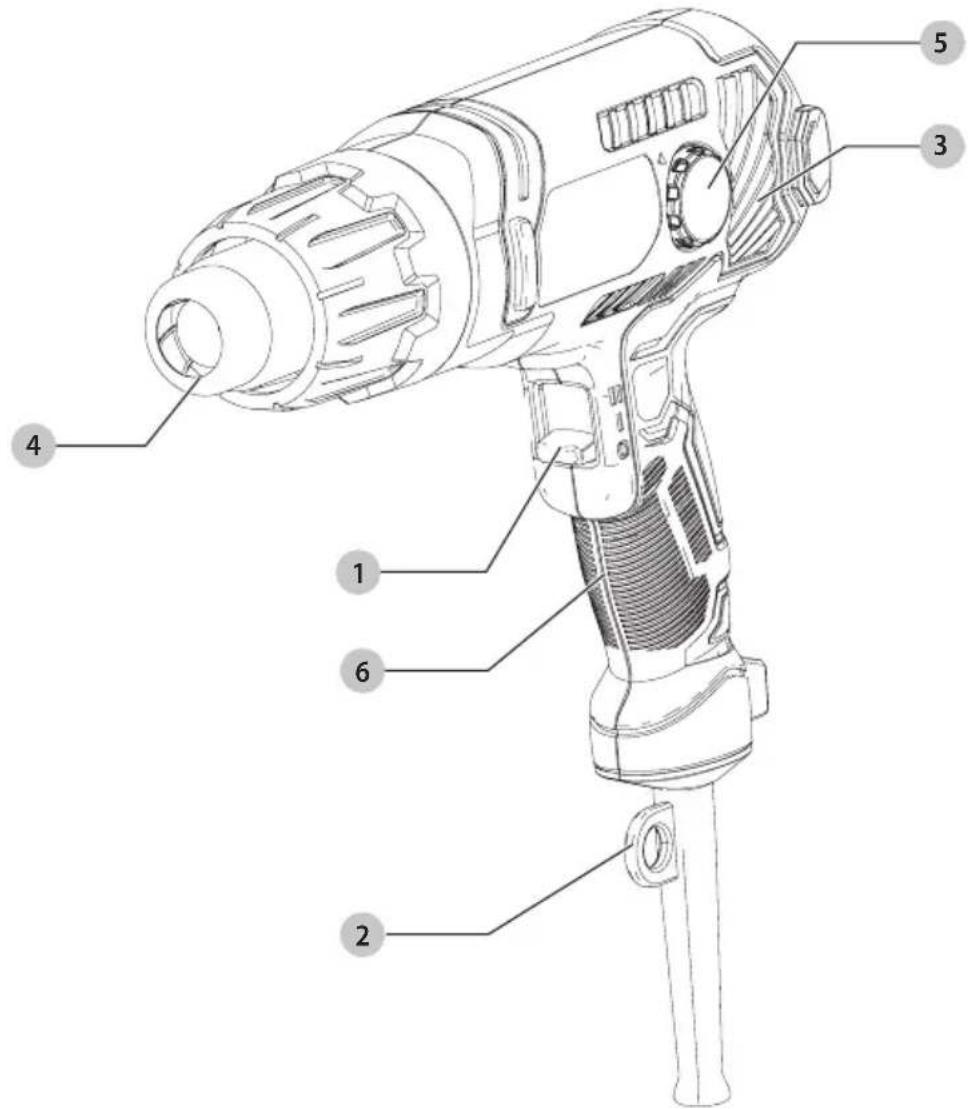

Fig. A
1 Two speed switch
2 Hang loop
3 Air vents
4 Hot air nozzle
5 Temperature adjustment knob
6 Main handle
WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
WARNING: To reduce the risk of injury, read the instruction manual.
If you have any questions or comments about this or any product, call CRAFTSMAN toll free at: 1-888-331-4569.
Cored Heat Gun CMEE531
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings and all
Instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
SAVE ALL WARNING AND INSTRUCTIONS FOR FUTURE REFERENCE
IMPORTANT SAFETY INSTRUCTIONS
Safety Instructions for Heat Guns
- This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.
- DO NOT use this tool to remove paint containing lead. The peelings, residue and vapors of paint may contain lead which is poisonous.
- Hidden areas such as behind walls, ceilings, floors, soffit boards and other panels may contain flammable materials that could be ignited by the heat gun when working in these locations. The ignition of these materials may not be readily apparent and could result in property damage and injury to persons. When working in these locations, keep the heat gun moving in a back-and-forth motion. Lingering or pausing in one spot could ignite the panel or the material behind it.
NOTE: These heat guns are capable of producing temperatures in excess of 875^ (468^)
DO NOT use this tool as a hair dryer.
DO NOT use this tool to heat food.
- DO NOT lay the heat gun on flammable surfaces when operating the gun or immediately after shutting it off. Allow the tool to cool before storing. Always set the gun on a flat level surface so that the nozzle tip is pointed upward.
DO NOT use in the presence of explosive materials.
- Keep moveable items secured and steady while scraping.
- NEVER obstruct the air intake or nozzle outlet. This may cause excessive heat build up resulting in damage to the tool.
- Be sure to direct the hot air blast in a safe direction; away from other people or flammable objects.
DO NOT remove the heat barrel cover during use.
- KEEP FINGERS AWAY FROM METAL NOZZLE; it becomes very hot during use and remains hot for 30 minutes after use. Wear gloves to protect hands
ALWAYS keep nozzle away from cord.
- DO NOT touch the nozzle to any surface while running or shortly after running.
- DO NOT place anything inside the nozzle as it could cause an electric shock. Do not look down the nozzle while the unit is turned on due to the high temperatures being produced.
- Splinters and small particles of stripped paint can be ignited and blown through holes and cracks in the surface being stripped.
DO NOT apply heat to the same area for a long period of time. - DO NOT burn the paint. Use the scraper and keep the nozzle at least 1^ (25.4 mm) away from the painted surface. When working in a vertical direction, work downwards to prevent paint from falling into the tool and burning.
- DO NOT allow paint to adhere to the nozzle or scraper. It could ignite.
- ALWAYS use good quality scrapers and stripping knives.
DO NOT use the heat gun in combination with chemical strippers.
DO NOT use accessory nozzles as scrapers. - DO NOT direct heatgun airflow directly on glass. The glass may crack and could result in property damage or personal injury.
- Maintain labels and nameplates. These carry important information.
- Place the heat gun on a stable, level surface when not hand held. Place the cord in a position that won't cause the heat gun to tip over.
- Be constantly aware that this tool can ignite flammable materials, soften or melt others. Regardless of the task you are performing, shield or keep the heat gun away from these materials.
- You may occasionally notice some slight smoking of the tool after it is turned off. This is the result of heating the residual oil that was deposited on the heating element during the manufacturing process.
- Use eye protection and other safety equipment.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
- When operating a tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
- Do not expose tools to rain or wet conditions. Water entering a tool will increase the risk of electric shock.
-
Do not overreach. Keep proper footing and balance at all times. This enables better control of the tool in unexpected situations.
-
Store idle tools out of the reach of children. Do not allow persons unfamiliar with the tool or these instructions to operate the tool. Tools are dangerous in the hands of untrained users.
- Have your tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the tool is maintained.
DO NOT wrap the cord on the tool body
Persons Removing Paint Should Always Follow These Guidelines:
WARNING: Extreme care should be taken when stripping paint. The peelings, residue and vapors of paint may contain lead, which is poisonous. Any pre-1977 paint may contain lead and paint applied to homes prior to 1950 is likely to contain lead. Once deposited on surfaces, hand to mouth contact can result in the ingestion of lead. Exposure to even low levels of lead can cause irreversible brain and nervous system damage; young and unborn children are particularly vulnerable.
Before beginning any paint removal process you should determine whether the paint you are removing contains lead. This can be done by your local health department or by a professional who uses a paint analyzer to check the lead content of the paint to be removed. LEAD-BASED PAINT SHOULD ONLY BE REMOVED BY A PROFESSIONAL AND SHOULD NOT BE REMOVED USING A HEAT GUN. Persons removing paint should follow these guidelines:
- Move the workpiece outdoors. If this is not possible, keep the work area well ventilated. Open the windows and put an exhaust fan in one of them. Be sure the fan is moving the air from inside to outside.
- Remove or cover any carpets, rugs, furniture, clothing, cooking utensils and air ducts.
- Place drop cloths in the work area to catch any paint chips or peelings. Wear protective clothing such as extra work shirts, overalls and hats.
- Work in one room at a time. Furnishings should be removed or placed in the center of the room and covered. Work areas should be sealed off from the rest of the dwelling by sealing doorways with drop cloths.
- Children, pregnant or potentially pregnant women and nursing mothers should not be present in the work area until the work is done and all clean up is complete.
- Wear a dust respirator mask or a dual filter (dust and fume) respirator mask which has been approved by the Occupational Safety and Health Administration (OSHA), the National Institute of Safety and Health (NIOSH), or the United States Bureau of Mines. These masks and replaceable filters are readily available at major hardware stores. Be sure the mask fits. Beards and facial hair may keep masks from sealing properly. Change filters often. DisPOsABIE PAPER MAAsKs ARE NOT ADEQUATE.
-
Use caution when operating the heat gun. Keep the heat gun moving as excessive heat will generate fumes which can be inhaled by the operator.
-
Keep food and drink out of the work area. Wash hands, arms and face and rinse mouth before eating or drinking. Do not smoke or chew gum or tobacco in the work area.
- Clean up all removed paint and dust by wet mopping the floors. Use a wet cloth to clean all walls, sills and any other surface where paint or dust is clinging. DO NOT sWEEP, DRY DUsT OR VACUUM. Use a high phosphate detergent or trisodium phosphate (TSP) to wash and mop areas.
- At the end of each work session put the paint chips and debris in a double plastic bag, close it with tape or twist ties and dispose of properly.
- Remove protective clothing and work shoes in the work area to avoid carrying dust into the rest of the dwelling. Wash work clothes separately. Wipe shoes off with a wet rag that is then washed with the work clothes. Wash hair and body thoroughly with soap and water.
IMPORTANT NOTICE
In order for this tool to be an effective paint stripper, it must produce extremely high temperatures. As a consequence, the stripper is capable of igniting paper, wood, paint and varnish residue and similar materials.
As you become more familiar with the tool and develop the proper technique, the danger of accidental ignition will be greatly reduced. In establishing the proper technique, the best thing to do is PRACTICE! Work on simple stripping projects, preferably outdoors, until you get a "feel" for how to use your stripper safely and effectively.
As You Practice, Observe the Following Procedures for Safety
- Always be sure the tool is turned off and disconnected from power supply when unattended.
- Clean the scraper blade often during use. Built up residue on the blade is highly flammable.
- Experiment to find the optimum distance from the tool's nozzle to the surface being stripped. This distance [1^ - 2^ (25.4mm - 50.8mm)] will vary depending on the material being removed.
- Keep the heat gun moving ahead of the scraper blade at all times.
- As you work, clean up loose pieces of paint as they accumulate around the work area.
- When working indoors, keep away from curtains, papers, upholstery and similar flammable materials.
- Above all, remember that this is a serious tool that is capable of producing excellent results when used properly. Practice on simple projects until you feel comfortable with your stripper. Only then will you have mastered the proper technique.
SAVE THESE INSTRUCTIONS FOR FUTURE USE
Additional Safety Information
WARNING: Never modify the power tool or any part of the damage or personal injury could result.
WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if operation is dusty. ALL USERS AND BYSTANDERS MUST ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:
ANSI Z87.1 eye protection (CAN/CSA Z94.3)
ANSI S12.6 (S3.19) hearing protection,
- NIOSH/OSHA/MSHA respiratory protection.
WARNING: Some dust created by power sanding, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
- lead from lead-based paints,
crystalline silica from bricks and cement and other masonry products, and - arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
- Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals.
WARNING: Use of this tool can generate and/ or diffuse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.
WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19)
during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.
CAUTION: When not in use, place tool on its surface in a stable surface where it will not cause
a tripping or falling hazard. Some tools will stand upright but may be easily knocked over.
Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.
An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity
than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord.
Minimum Gauge for Cord Sets
| Volts | Total Length of Cord in Feet(meters) | ||||
| 120V 25 (7.6) | 50 (15.2) 100 (30.5) 150 (45.7) | ||||
| 240V 50 (15.2) | 100 (30.5) 200 (61.0) 300 (91.4) | ||||
| Ampere Rating | American Wire Gauge | ||||
| More Than | Not More Than | ||||
| 0 6 18 | 16 16 14 | ||||
| 6 10 18 | 16 14 12 | ||||
| 10 12 | 16 16 14 12 | ||||
| 12 16 | 14 12 Not Recommended | ||||
The label on your tool may include the following symbols. The symbols and their definitions are as follows:
V..... volts
Hz .........hertz
min.........minutes
or DC....direct current
Class I Construction (grounded)
.../min.....per minute
BPM... .beats per minute
IPM............impacts per minute
RPM... revolutionsperr minute
sfpm surface feet per minute
SPM.........strokes per minute
OPM............oscillationsper minute
A. amperes
W.....watts
or AC......alternating current
or AC/DC....alternatingor
direct current
ClassII
Construction
(double insulated)
n_0 no load speed
n............rated speed
...earthing terminal
A .safety alert symbol
A visible radiation
avoid staring at light
...wearrespiratory protection
weareye protection
O............wearhearing protection
...readall documentation
IPXX............IPsymbolo
Motor
Be sure your power supply agrees with the nameplate marking. Voltage decrease of more than 10% will cause loss of power and overheating. These tools are factory tested; if this tool does not operate, check power supply.
Intended Use
Your heat gun has been designed for stripping paint, soldering pipes, shrinking PVC, welding and bending plastics as well as general drying and thawing purposes.
DO NOT use under wet conditions or in presence of flammable liquids or gases.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use this tool.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.
An accidental start-up can cause injury.
Air Temperature (Fig. A)
Air Temperature Adjustment Knob
The air temperature can be adjusted to suit a wide range of applications. Turn the temperature adjustment knob 5 clockwise or counterclockwise for higher or lower heat.
Applications
The table below suggests settings for different applications.
Setting Applications
Low - Drying paint and varnish
- Removing stickers
- Waxing and dewaxing
- Drying wet timber prior to filling
- Shrinking PVC wrapping and insulation tubes
- Thawing frozen pipes
High - Welding plastics
- Bending plastic pipes and sheets
- Loosening rusted or tightly fastened nuts and bolts
- Removing paint and lacquer
- Soldering plumbing joints
- Removing linoleum or vinyl floor tiles
- Heat shrink wrap around wires.
- Removing/ melting glue/ adhesive
OPERATION
WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.
An accidental start-up can cause injury.
WARNING: Make sure the nozzle ALWAYS points away from you and any bystander.
WARNING:DO NOT drop anything into nozzle.

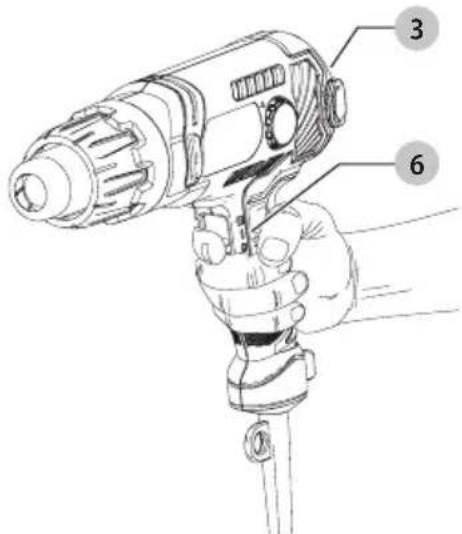

Proper Hand Position (Fig. B)
WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.
Proper hand position requires one hand on the main handle 6. Do not place other hand over the air vents 3.
Fig.B

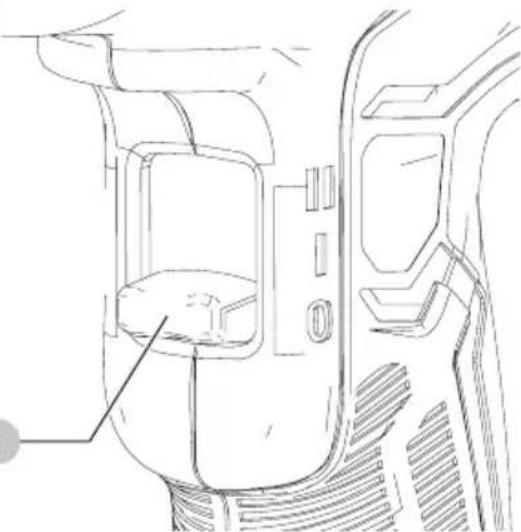

Switch (Fig. C)
The position of the two speed switch 1 controls both the fan speed and the heat output of the gun.
- To turn the tool on in low speed, low heat, slide the switch to the position marked "l".
- To turn the tool on in high speed, high heat, slide the switch to the position marked "ll".
To turn the tool off, slide the switch to the position marked "O".
Fig. C
Prior to Operation (Fig. A)
- Attach the correct accessory recommended for the application.
- Turn the temperature adjustment knob 5 to desired air temperature.
Removing Paint (Fig. A)
WARNING: Refer to Important Notice under Safety Instructions for Heat Guns before using the tool to remove paint.
WARNING: Do not strip metal window frames as the heat may crack the glass.
- When stripping other window frames, use a glass protection nozzle.
- To prevent igniting the surface, do not keep the tool directed at one spot too long.
ENGLISH
-
Avoid collecting paint on the scraper accessory, as it may ignite. If necessary, carefully remove paint debris from the scraper accessory using a knife.
-
Attach the appropriate accessory.
- Turn the temperature adjustment knob 5 to high.
- Direct the hot air onto the paint to be removed. Best results will be achieved if the heat gun is moved slowly, but CONSTANTLY, from side to side to evenly distribute heat. DO NOT LINGER OR PAUSE IN ONE SPOT.
- When the paint softens, scrape the paint away using a hand scraper.
REMEMBER: Splinters and small particles of stripped paint can be ignited and blown through holes and cracks in the surface being stripped.

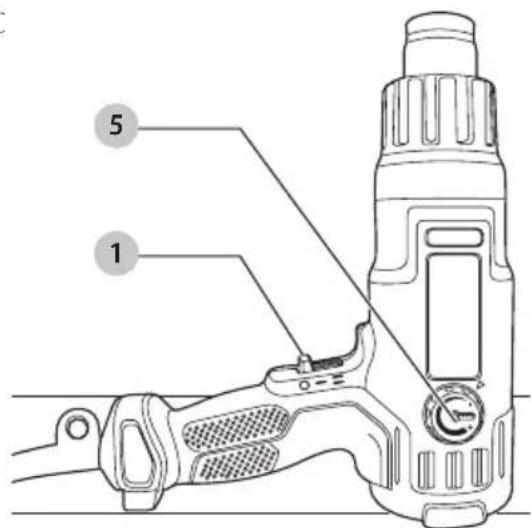

Stationary Use (Fig. C)
This tool can also be used in stationary mode.
- Set the tool onto a level, stable workbench. Ensure the tool will not tip over.
- Secure the power cord to prevent entanglement or pulling the tool off the workbench.
- Select the air temperature using the temperature adjustment knob 5 and turn the tool on to the appropriate speed using the two speed switch 1.
Fig.C
Cool Down Period (Fig. A)
The nozzle and accessory becomes very hot during use.
Turn heat gun off, disconnect from the power source and let the tool cool down for at least 30 minutes before moving or storing it.
NOTE: To reduce the cooling time, switch the tool on at the lowest air temperature setting and let it run for a few minutes before turning the heat gun off.
MAINTENANCE
WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.
An accidental start-up can cause injury.
Cleaning
WARNING: Blow dirt and dust out of all air vents with a dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection and proper NIOSH/OSHA/MSHA respiratory protection when performing this procedure.
WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.
Accessories
WARNING: Since accessories, other than those used by CRAFTSMAN, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with this product.
Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN call 1-888-331-4569.
Fan Nozzle
Wider distribution of the hot air, for working on large surfaces- floors, doors, etc.
Glass Protector
Safer working near glass. Distributes heat away from area to be protected.
Cone Nozzle
For precise operations- concentrates the air onto a smaller surface area.
Spool Reflector
Evenly dispenses air around whole object. Ideal for soldering pipework, shrink sealing electrical cable.
CAUTION: These nozzles remain hot after use. Use in handling them.
VersatrackTM (Fig. D)
WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.
WARNING: Never hang the heat gun when operating while it is still warm after operating. Exterior surfaces of the heat gun may still be hot enough to ignite materials near the heat gun's exterior. Turn off heat gun, disconnect it from power source, and let it cool down for at least 30 minutes before hanging.
WARNING: To reduce the risk of serious personal injury, do not use a damaged VersatrackTM peg hook or VersatrackTM Trackwall. A damaged VersatrackTM peg hook or VersatrackTM Trackwall will not support the weight of the tool.
WARNING: To reduce the risk of serious personal injury, DO NOT suspend tool overhead or suspend objects from the peg hook. ONLY suspend tool on the VersatrackTM Trackwall using the peg hook.
WARNING: Ensure that the tool weight does not exceed the maximum rated weight of 20 lb (9 kg) for the selected Versatrack™ hook.
WARNING: When hanging objects on a Versatrack™ trackwall rail, adequately space the tools in order to not exceed 75 lb (35 kg) per linear foot.
IMPORTANT: Versatrack™ accessories mount compatible tools securely to the Versatrack™ Trackwall system.
- Turn the tool off, disconnect it from power source and accessories.
CAUTION: Any product with exposed cutting teeth must have them covered securely if it is to be on the VersatrackTM Trackwall.
- Mount the peg hook 3 to the VersatrackTM Trackwall with the CRAFTSMAN logo properly oriented as shown.
- Slide the tool loop 4 to the base of the peg hook.
NOTE: Ensure that the tool loop slides all the way to the base of the peg hook. This relieves strain on the peg hook and trackwall and may prevent the tool from falling.
NOTE: VersatrackTM accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569.
Repairs
WARNING: To assure product SAFETY and BILITIES, repairs, maintenance and adjustment (including power cord repairs, and brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacement parts.
Register Online
Thank you for your purchase. Register your product now for:
-
WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act. -
Register online at www.craftsman.com/registration
Three Year Limited Warranty
CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call
1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDING ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.
90 DAY MONEY BACK GUARANTEE
If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund - no questions asked.
LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.
FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a free replacement.
TROUBLESHOOTING GUIDE
BE SURE TO FOLLOW SAFETY RULES AND INSTRUCTIONS
For assistance with your product, visit our website at www.craftsman.com for a list of service centers, or call CRAFTSMAN at 1-888-331-4569.
PROBLEM CAUSE CORRECTION
| Unit will not start. Cord not plugged in. Plug tool into a working outlet. |
| Circuit fuse is blown. Replace circuit fuse. (If the product repeatedly causes the circuit fuse to blow, discontinue use immediately and have it serviced at an authorized service center.) |
| Circuit breaker is tripped. Reset circuit breaker. (If the product repeatedly causes the circuit fuse to blow, discontinue use immediately and have it serviced at an authorized service center.) |
| Cord or switch is damaged. Have cord or switch replaced at an authorized service center. |
IPXX............symbole IP
Moteur
Air Temperature Adjustment Knob
This tool can also be used in stationary mode.
PROBLEM CAUSE POSSIBLE SOLUTION POSSIBLE
=or DC....directcurrent
Construccione
Construccione Clase I (tierra)
PROBLEMA CAUSA POSIBLE SOLUCION POSIBLE
- Cored Heat Gun
- Definitions: Safety Alert Symbols and Words
- Cored Heat Gun CMEE531
- GENERAL POWER TOOL SAFETY WARNINGS
- SAVE ALL WARNING AND INSTRUCTIONS FOR FUTURE REFERENCE
- IMPORTANT SAFETY INSTRUCTIONS
- Safety Instructions for Heat Guns
- Persons Removing Paint Should Always Follow These Guidelines:
- IMPORTANT NOTICE
- As You Practice, Observe the Following Procedures for Safety
- SAVE THESE INSTRUCTIONS FOR FUTURE USE
- Additional Safety Information
- Motor
- Intended Use
- ASSEMBLY AND ADJUSTMENTS
- Air Temperature (Fig. A)
- Air Temperature Adjustment Knob
- Applications
- OPERATION
- Proper Hand Position (Fig. B)
- Switch (Fig. C)
- Prior to Operation (Fig. A)
- Removing Paint (Fig. A)
- ENGLISH
- Stationary Use (Fig. C)
- Cool Down Period (Fig. A)
- MAINTENANCE
- Cleaning
- Accessories
- Fan Nozzle
- Glass Protector
- Cone Nozzle
- Spool Reflector
- VersatrackTM (Fig. D)
- Repairs
- Register Online
- Three Year Limited Warranty
- DAY MONEY BACK GUARANTEE
- TROUBLESHOOTING GUIDE
- BE SURE TO FOLLOW SAFETY RULES AND INSTRUCTIONS
- Moteur
Brand : Craftsman
Model : CMEE531
Category : Heat gun
