USER MANUAL CMHT77638 Craftsman

• Tool Information
• User Safety
• Setup
  Operation
  Warranty
• Specifications
  Information Codes

Retain all sections of this manual for future reference.

Tool Information

The CMHT77638 tool is a Class 2 laser product that is used to measure distances up to 65ft, area, volume, or the height of a tall object.

User Safety

WARNING:

Carefully read the Safety Instructions and Product Manual before using this product. The person responsible for the product must ensure that all users understand and adhere to these instructions.

WARNING:

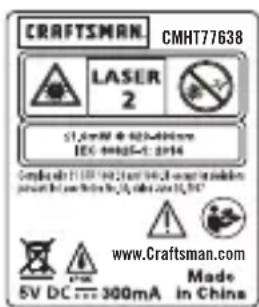

The following label information is placed on your laser tool to inform you of the laser class for your convenience and safety.

WARNING:

If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

The CMHT77638 tool emits a visible laser beam, as shown in Figure A. The laser beam emitted is Laser Class 2 per IEC 60825-1 and complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

WARNING:

While the laser tool is in operation, be careful not to expose your eyes to the emitting laser beam (red light source). Exposure to a laser beam for an extended time period may be hazardous to your eyes. Do not look into the beam with optical aids.

WARNING:

To reduce the risk of injury, user must read the Product User manual and the Safety manual.

FCC Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a different circuit (not the circuit to which the receiver is connected).
• Consult the dealer or an experienced radio/TV technician for help.

E

Canada, Industry Canada (IC) Notices

Class B digital circuitry of this device complies with Canadian ICES-003. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, the radio transmitter(s) in this device may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

Setup

Attaching the Wrist Strap

1. While facing the front of the tool, insert the thin end of the wrist strap through one of the holes in the bottom of the tool (Figure A 5).
2. Push the thin end of the wrist strap until it goes through the other hole.
3. Separate the two wires, which make up the thin end of the wrist strap, to form a loop.
4. Insert the thick end of the wrist strap all the way through the loop in the thin end, so the wrist strap is securely fastened to the tool (Figure C).

Charging the Battery

Fully charge the battery before initial use and whenever the tool has not been used for 6 months or longer.

1. Locate the port cover on the side of the tool (Figure D 1).
2. Using your finger, gently pull the port cover up (Figure D 1).
3. Insert the small end of the USB Recharge Cable into the port on the side of the tool, making sure to insert the flat side of the cable into the flat side of the port (Figure D 2).

4. Insert the USB end of the cable into a USB port in a computer or USB power outlet (Figure D 3).

5. Wait approximately 2.5 hours for the battery to fully charge and then disconnect the USB Recharge Cable.

When the tool is ON, the battery level appears in the display window (Figure F 1).

Operation

Measuring the Distance to an Object

1. Point the laser at the top of the tool (Figure A 1) toward the wall or object whose distance you need to measure (Figure E 1).
2. Press figure A 3 to turn the tool on and display the red laser dot.
3. Press measure the distance from the bottom of the tool to the wall or object (Figure 2).
4. At the bottom of the display window (Figure A2), view the current measurement (Figure F3).

To take a new measurement, press to move the current measurement up to the previous line on the display window (Figure F2). Then repeat steps 2-4.

Measuring Distances Continuously

To take a series of measurements as you move around, change to Continuous Measure mode.

1. Point the laser at the top of the tool (Figure A 1) toward the wall or object whose distance you need to measure (Figure E 1).
2. Press figure A 3 to turn the tool on and display the red laser dot.
3. Press and hold for 4 seconds to turn on the Continuous Measure mode.
4. At the bottom of the display window (Figure A 2), view the current measurement (Figure F 3), which will keep changing as you move the tool.
5. To take the current measurement (from the bottom of the tool to the wall or object) and exit Continuous Measure mode, press

To take a new measurement, press to move the current measurement up to the previous line on the display window. Then repeat steps 1-5.

Measuring Area

You can measure the area of a wall, floor, or object.

1. Point the tool's laser (Figure A ①) toward a wall or object, and not toward anyone's eyes.
2. Press figure A 3) to turn the tool on and display the red laser dot.
3. Press FUMCT to show on the display window (Figure F 4.

4. Measure the width.

5. Point the top of the tool at one side of the target (wall, floor, or object).

6. Position the bottom of the tool at one end of the target and point the laser dot across the width (Figure G 1).

7. Press to display the width measurement at the top of the display window.

8. Measure the length.

9. Position the bottom of the tool at one end of the target and point the laser dot across the length (Figure 2).

10. Press to display the length measurement on the second line of the display window.

11. View the Area measurement at the bottom of the display window (Figure F 3).

Measuring Volume

You can measure the volume of a room or object.

1. Point the tool's laser (Figure A 1) toward a wall or object, and not toward anyone's eyes.
2. Press figure A 3 to turn the tool on and display the red laser dot.
3. Press FUMCT. twice to show on the display window (Figure F 4).

4. Measure the width.

5. Point the top of the tool at one side of the target (room or object).

6. Position the bottom of the tool at one end of the target and point the laser dot across the width (Figure H 1).

7. Press to display the width measurement at the top of the display window.

8. Measure the length.

9. Position the bottom of the tool at one end of the target and point the laser dot across the length (Figure 12).

10. Press to display the length measurement on the second line of the display window.

11. Measure the height.

12. Positon the bottom of the tool at one end of the target and point the laser dot across the height (Figure ③).

13. Press to take the measurement.

View the Volume measurement at the bottom of the display window (Figure F 3).

Measuring the Height of a Tall Object

If you need to measure the height of a tall object (e.g., a tall building), you can calculate the height based on the distances from the same point to 2 or 3 points on the object. The tool will use the Pythagorean Theorem (C^2 = A^2 + B^2) to calculate the height.

Distances to 2 Points

You can use the distance to two points on a tall object (Double Indirect Height) to determine its height (Figure ①①).

1. Point the tool's laser (Figure A ①) toward a wall or object, and not toward anyone's eyes.
2. Press figure A 3 to turn the tool on and display the red laser dot.
3. Press FUnCT. three times to show on the display window (Figure 4).
4. Position the tool opposite the bottom of the building or object whose height you need to measure (Figure 12).
5. Aim the laser at the highest point of the building or object (Figure 12).
6. Press measure the distance.
7. From the same point, aim the laser straight ahead toward the lowest point of the building or object (Figure 1 3).
8. Press measure the distance.

E

1. On the bottom line of the screen, view the height of the building or object.

Distances to 3 Points

You can use the distance to three points on a tall object to determine its height (Figure ①).

1. Point the tool's laser (Figure A 1) toward a wall or object, and not toward anyone's eyes.
2. Press figure A 3) to turn the tool on and display the red laser dot.
3. Press FUNDIT four times to show on the display window (Figure 4).
4. Position the tool opposite the approximate center of the vertical height to be measured (Figure 2).
5. Aim the laser at the highest point of the building or object (Figure 2).
6. Press measure the distance.
   From the same point, aim the laser straight ahead toward the center of the building or object (Figure 3).
7. Press measure the distance.
8. From the same point, aim the laser at the lowest point of the building or object (Figure J 4).
9. Press to measure the distance.
10. On the bottom line of the screen, view the height of the building or object.

Changing the Unit of Measure

Once the current measurement is taken (the device is not in Continuous Measure mode), you can change the unit of measure from fractional inches (7'04 7/8") to decimal inches (88.8 in), decimal inches to feet (7.40 ft), or feet to meters (2.257 m).

Press and hold Funct. until you see the measurement change (2-3 seconds).

Turning Off the Tool

The tool can be turned off in either of these ways:

• Press and hold for several seconds (until the display window clears).
• If you do not use the tool for 120 seconds, it will automatically turn off.

Limited Warranty

Go to www.CRAFTSMAN.com for the latest warranty information.

Specifications

Range 11.8in to 65ft (0.3m to 20m)
Measuring Accuracy* ± 1/8in (± 3mm)*
Smallest Unit Displayed ± 1/16in (± 1mm)
Laser Class Class 2 (IEC/EN60825-1: 2014)
Laser Type ≤ 1.0mW @ 620-690nm
Laser/Backlight Automatic Switch-off 60s
Unit Automatic Switch-off 120s after the Laser is Off
Continuous Measuring Yes
Area/Volume Yes
Indirect Height/Double Indirect Height Yes
Battery Life Up to 3000 Measurements
Dimension (H x D x W) 4.63 x .81 x 1.75in (118 x 21 x 44.45mm)
Weight	2.4oz (68g)
Storage Temperature Range	14°F ~ 140°F (-10°C ~ +60°C)
Operating Temperature Range	32°F ~ 104°F (0°C ~ +40°C)
Protection class	IP40
*Measuring Accuracy depends on the current conditions: ·Under favorable conditions (good target surface and room temperature), up to 30ft (10m). ·Under unfavorable conditions (bright sunlight, a very weak reflecting target surface, or large temperature fluctuations), the error can increase by to ± 0.002 in/ft (± 0.15mm/m) for distances over 30ft (10m).

Information Codes

If IC appears on the display window with a Code number, perform the corresponding Corrective Action.

Code Description	Corrective Action
255	Cannot Measure
301	Trigonometric
401	Communication
501	Out of Temperature Range
