USER MANUAL Orbitor RORB400 Oreck

• IMPORTANT• SAVE THIS BOOKLET! Includes:

• Operating Instructions

INSTRUCTIONS IN THIS

Use indoors only.• Risk of explosion - Floor sanding can result in anexplosive mixture of fine dust and air. Use floorsanding machine only in well ventilated area.• Do not allow to be used as a toy. Close attention isnecessary when used by or near children.• Do not leave appliance unattended when pluggedin. Unplug from outlet when not in use and beforeservicing.• Use only as described in this manual. Use onlymanufacturer’s recommended attachments.• Do not use with a damaged cord or plug. Ifappliance is not working as it should, has beendropped, damaged, left outdoors, or dropped intowater, return it to a service center or call customerservice at:US: 1-800-989-3535 Canada: 1-888-676-7325Commercial: 1-800-242-1378• Do not pull or carry by cord, use cord as a handle,close door on cord, or pull cord around sharp edgesor corners. Keep cord away from heated surfaces.• Do not run cleaner over cord. Do not use on stairs.• Connect to a properly grounded outlet only. See ounding instructions.• Unplug before installing or removing pads/cleaningbrushes.• Warning - To reduce the risk of fire, use onlycommercially available floor cleaners and waxesintended for machine application.• Do not unplug by pulling on cord. To unplug, graspthe plug, not the cor

• Do not handle plug or cleaner with wet hands.• Do not put any object into openings. Do not use withany opening blocked; keep free of dust, lint, hairand anything that may reduce air flow.• Keep hair, loose clothing, fingers and all parts ofbody away from openings and moving par ts.
• Turn off all controls before unplugging.• Do not use appliance in an enclosed space whereflammable, explosive or toxic vapors are given offby oil base paint, paint thinner, some mothproofingsubstances, or in an area where flammable dust ispresent. Safety & General Information ENGLISH 2Grounding Information s CAUTION s This appliance must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electrical current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. s WARNING s Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is for use on a nominal 120-volt circuit, and has a grounded plug that looks like the plug illustrated in Sketch A (see next column). A temporary adapter that looks like the adapter illustrated in Sketch B (see next column) may be used to connect this plug to a 2-pole r eceptacle, if a pr operly grounded outlet is not available. The temporar y adapter should be used only until a properly grounded outlet can be installed by a qualified electrician. The green colored rigid ear, lug, or the like extending fr om the adapter must be connected to a per manent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal scr

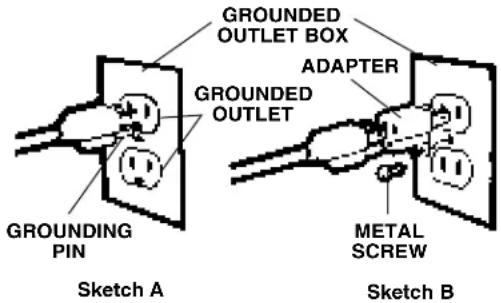

NOTE: In Canada, the use of a temporar y adapter is not permitted by the Canadian Electrical Code. Grounding Methods

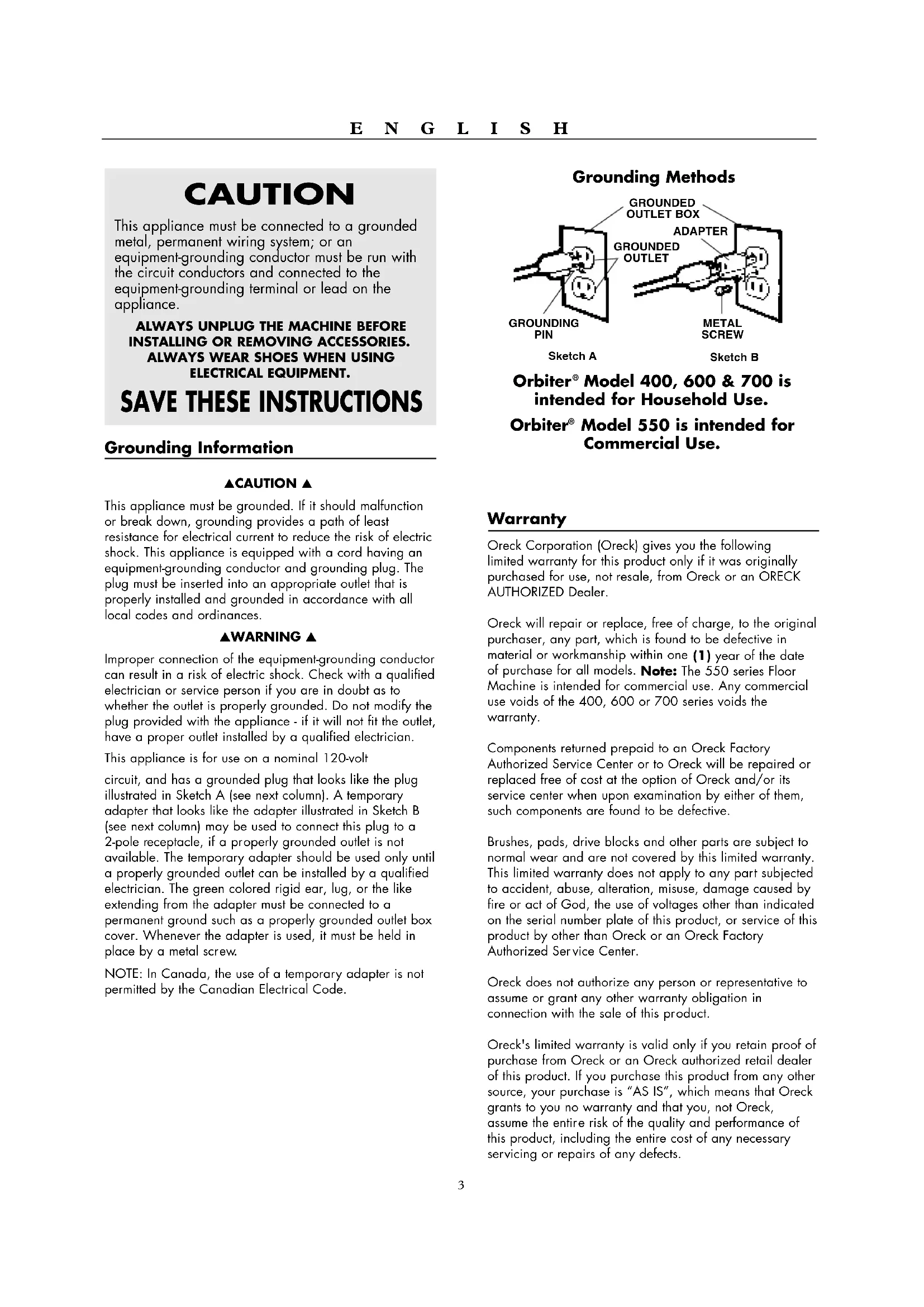

Model 400, 600 & 700 is intended for Household Use. Orbiter

Model 550 is intended for Commercial Use. ENGLISH CAUTION This appliance must be connected to a grounded metal, permanent wiring system; or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

ALWAYS UNPLUG THE MACHINE BEFORE

INSTALLING OR REMOVING ACCESSORIES.

ALWAYS WEAR SHOES WHEN USING

SAVE THESE INSTRUCTIONS

Warranty Oreck Corporation (Oreck) gives you the following limited warranty for this product only if it was originally purchased for use, not resale, from Oreck or an ORECK AUTHORIZED Dealer. Oreck will repair or replace, free of charge, to the original purchaser, any part, which is found to be defective in material or workmanship within one (1) year of the date of purchase for all models. Note: The 550 series Floor Machine is intended for commercial use. Any commercial use voids of the 400, 600 or 700 series voids the warranty. Components returned prepaid to an Oreck Factory Authorized Service Center or to Oreck will be repaired or replaced free of cost at the option of Oreck and/or its service center when upon examination by either of them, such components are found to be defective. Brushes, pads, drive blocks and other parts are subject to normal wear and are not covered by this limited warranty. This limited warranty does not apply to any par t subjected to accident, abuse, alteration, misuse, damage caused by fire or act of God, the use of voltages other than indicated on the serial number plate of this pr oduct, or service of this product by other than Oreck or an Oreck Factory Authorized Ser vice Center. Oreck does not authorize any person or representative to assume or grant any other warranty obligation in connection with the sale of this pr oduct. Oreck's limited warranty is valid only if you retain proof of purchase from Oreck or an Oreck authorized retail dealer of this product. If you purchase this product from any other sour ce, your purchase is “AS IS”, which means that Oreck grants to you no warranty and that you, not Oreck, assume the entir e risk of the quality and per formance of this product, including the entire cost of any necessary ser vicing or r epairs of any defects. 3The Orbiter

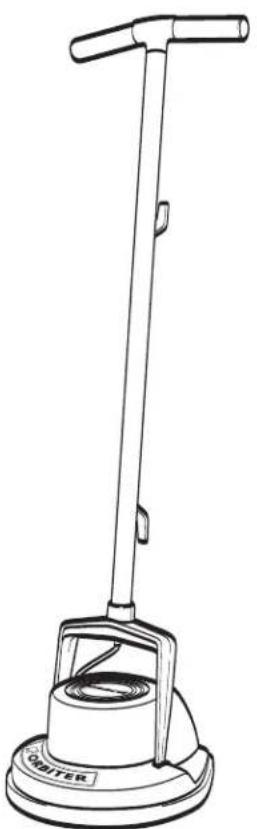

Multi-Floor Machine is the most advanced,

asiest to use machine of its kind. With proper care and use, your Orbiter

Multi-Floor Machine will last a lifetime. This booklet will tell you how to care for the Orbiter

Multi-Floor Machine and all about its features, accessories and their uses.

EVER SERVICE THE MACHINE WHILE IT IS PLUGGED IN - ALWAYS DISCONNECT it from the electrical outlet. When leaving machine unattended, be sure to disconnect it. For more information see the

ection. Your Orbiter

Multi-Floor Machine comes completely assembled and ready to operate once the proper accessories are attached. The off/on switch has international symbols (O) OFF and ( l ) ON. Attaching Accessories The Orbiter

Multi-Floor Machine can be used on almost any surface with the right accessories. A complete list and description of the available accessories is included on page 10 under “Accessories”. To attach a pad, bonnet, or sand screen:

Multi-Floor Machine on its back with the handle lying on the floor.

2. Attach the pad or bonnet to the black drive pad

holder using the teeth of the black drive pad holder. If attaching a sand screen, first attach the pad to the black drive pad holder. Then place the sand screen on the floor-side of the pad.

3. Place the black drive pad holder on the beige holder

pan found on the bottom of the Orbiter

Multi-Floor Machine upright with the pad, bonnet, or sand screen sitting on the floor. To attach a brush:

Multi-Floor Machine on its back with the handle lying on the floor.

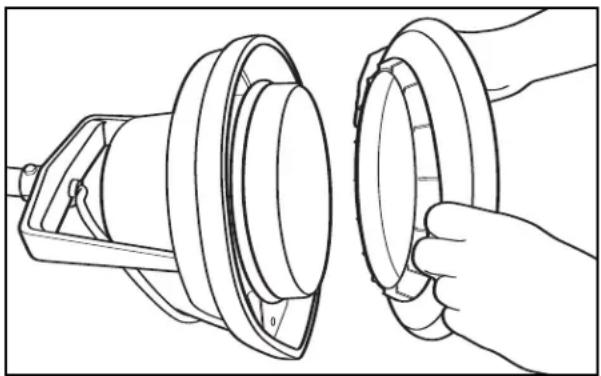

2. With the bristles pointed away from the unit, place

the br ush on the beige holder pan found on the bottom of the Orbiter

Multi-Floor Machine upright with the brush sitting on the floor. CAUTION: NEVER put the brush or black drive pad holder on the machine by placing it on the floor and moving the running machine over it, or by placing the machine over the brush or black drive pad holder and then starting the motor. ENGLISH Customer Service Your ORECK floor cleaner is a product of precise engineering. If you require additional information or have problems with your ORECK appliance, you may call ORECK customer service at:

Multi-Floor Machine. Save your sales or purchase slip. Should your ORECK appliance require warranty service in the U.S.A., present this slip to the Authorized Service Center as your proof of purchase date or, in Canada, call customer service. Oreck's liability for damages to you for any cost whatsoever, arising out of this statement of limited warranty shall be limited to the amount paid for this

roduct at the time of original purchase, and Oreck shall not be liable for any direct, indirect, consequential or incidental damages arising out of the use or inability to use this product. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

PRODUCT, INCLUDING IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD, AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD. Some jurisdictions do not allow limitations on the duration of implied warranties so the above limitation may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary from jurisdiction to jurisdiction. Introduction Getting Started 4ENGLISH Dry Carpet Cleaning (For deep cleaning carpet and rugs) The Oreck Dry Carpet Cleaning System

is the easiest and most effective way to keep your carpet and rugs looking

lean and beautiful. It effectively removes dirt and grime that vacuums cannot. Unlike many carpet extractors, steam cleaners or steam cleaning services, it will not leave a soapy or sticky residue on your carpet that will attract dirt and cause rapid resoiling. It is safe for use in homes with children and pets. Equipment and Material Required:

• White Terrycloth Bonnet (for berber or low-pile carpets) or Black Carpet Brush (for medium- or high- pile carpets)

Soil Release Pre-Spray

• Oreck Dry Carpet Cleaner Procedure:

Soil Release Pre-Spray on the carpet in a 6 ft by 6 ft area.

2. Sprinkle Dry Carpet Cleaner over the treated area

3. Work the Dry Carpet Cleaner into the carpet with the

Multi-Floor Machine and the white terrycloth bonnet (for berber or low-pile carpets) or black carpet brush (for medium- or high-pile carpets).

4. Repeat steps 1 through 3 until the whole carpet has

been treated. The carpet can be walked on during or immediately after the treatment with no ill effects.

5. When the white terrycloth bonnet becomes soiled,

turn it over. When the job is complete, clean the white terrycloth bonnet in the washing machine using cold water or hose off and allow to air dry.

6. After waiting at least 30 minutes, vacuum the treated

areas with an Oreck vacuum cleaner. See Dry Carpet Cleaner packaging for complete instr uctions. Bonnet Cleaning (For surface cleaning carpet and rugs) This procedur e can be used on most types of carpets (follow manufacturer’s recommendations for handmade, silk and oriental rugs or carpets). Equipment and Material Required:

• White Terrycloth Bonnet

Soil Release Pre-Spray Procedure:

Lightly spray Premist

Soil Release Pre-Spray over the soiled ar ea in the carpet or high traf fic ar ea. To Guide the Floor Machine Grasp the unique “T” handle and glide the machine across the floor in a side to side motion. The patented “T” handle featur e gives you complete control. The Orbiter's per fectly balanced counter-weight system gives smooth and easy action with fingertip control. CAUTION: IMPORTANT - Always wear shoes when using your Orbiter

Multi-Floor Machine. Befor e completing any of the following procedures for the first time, test a small hidden area to ensure color-fastness of the material and that the accessory used is not too aggr essive for the sur face. ON/OFF Switch CAUTION: Oreck recommends removing brushes and pads when storing the Orbiter

Multi-Floor Machine. Accessories (especially brushes) can become deformed if stored on the machine. Removing Accessories Lay the Orbiter

Multi-Floor Machine on its back and pull the brush or the black drive pad holder off the beige holder pan. CAUTION: Oreck recommends removing brushes and pads when storing the Orbiter

Multi-Floor Machine. Accessories (especially brushes) can become deformed if stored on the machine. Turning Floor Machine On and Off The on-off switch is located on the back side of the motor housing (400) or on the handle (550, 600, 700). It has been designed to be conveniently activated. On (I) - Off(O) is printed on the switch. (See Figure 2.) BE CAREFUL that the switch is in the OFF (O) position before you plug the electrical cord into the outlet. Before turning the machine on, be sure there is a bonnet pad or brush in place on the machine.

Multi-Floor Machine On/Off switch Carpet and Area Rug Applications

Multi-Floor Machine and the white terrycloth bonnet to lift dirt from the treated area. Work terrycloth bonnet over the treated area.

urn terrycloth bonnet over when soiled and continue to clean carpet.

4. When the job is complete, clean the white terrycloth

bonnet in the washing machine using cold water or hose off and allow to air dry. Surface Cleaning Timberworks

Floor Cleaner restores the natural beauty of all your hard flooring (not for use on stone, tile, or waxed floors) . It safely and effectively removes the dirt, scuffs and grime from your floors to reveal their original and beautiful luster. Equipment and Material Required:

• White Terrycloth Bonnet

• White Polish Pad (optional) Procedure: To clean hard flooring, including polyurethane-coated wood, laminate, vinyl and linoleum floors, use the Timberworks

Floor Cleaner and the Orbiter

Multi-Floor Machine with the white terrycloth bonnet.

1. Lightly mist a 6 ft by 6 ft area with Timberworks

Floor Cleaner (a little goes a long way).

2. Clean the treated area with the Orbiter

Multi-Floor Machine and the white terrycloth bonnet.

3. Floors should shine with a beautiful luster.

Floor Cleaner will not leave a residue; any streaking or clouding may be the result of a build-up of other floor cleaners. If necessar

, repeat procedure until floor shines.

ed, vin yl and laminate flooring can be polished to a higher luster using the white polish pad after cleaning. See Timberworks

bottle for complete instructions. Scrubbing This procedure can be used on hard floor surfaces, EXCEPT WOOD FLOORS. Equipment and Material Required:

own Strip Pad or Blue Scr ub Pad depending on floor surface

Vacuum, Broom or Dust Mop

Interior Cir cle (Donut Hole) from Brown Strip Pad or Blue Scr ub Pad

• Mops - 2 (1 to apply/pick up Cleaning Solution and 1 to rinse floor)

Wet-Dry Vacuum (optional) Procedure:

Vacuum or sweep floor area to be cleaned with broom or dust mop.

2. Mix cleaning solution according to manufacturer’s

pply cleaning solution in a 6 ft by 6 ft area.

4. Let solution stand for 5 minutes, scrub floor with

Multi-Floor Machine and brown strip pad or blue scrub pad.

5. Use orange scrub brush on floors with cracks,

crevices, and grout.

6. Use interior circle (donut hole) from the brown strip

pad or blue scrub pad to clean in corners and around door jambs by hand.

7. Pick up dirty solution with mop or wet-dry vacuum.

DO NOT ALLOW CLEANING SOLUTION TO

Repeat Steps 3-6 until all floor area is cleaned.

Multi-Floor Machine with the white terrycloth bonnet and clean water to rinse the floor area. Precautions:

Do not flood the floor area with cleaning solution or allow solution to dry before pick-up.

2. Use clean mop for final rinse.

3. Change rinse water frequently.

4. Use damp cloth to wipe off any splashes on walls

or furniture. Stripping This procedur e can be used on most types of har d floor surfaces, EXCEPT WOOD & STONE FLOORS, to remove buffable floor wax or coatings. Equipment and Material Required:

acuum, Broom or Dust Mop

• Interior Circle (Donut Hole) from Brown Strip Pad

• Mops - 2 (1 to apply/pick up Cleaning Solution and 1 to rinse floor)

• Wet-Dry Vacuum for dirty and rinse water pick-up (optional)

Vacuum or sweep floor area to be stripped with broom or dust mop.

2. Mix stripping solution according to manufacturer’s

instructions on container label.ENGLISH Surface Cleaning Sealed Floors This procedure is for polyurethane-sealed hard wood floors, not waxed hard wood floors. Timberworks

Floor Cleaner restores the natural beauty of all your hard flooring (not for use on stone, tile, or waxed floors) . It safely and effectively removes the dirt, scuffs and grime from your floors to reveal their original and beautiful luster. Equipment and Material Required:

• White Terrycloth Bonnet

• White Polish Pad (optional) Procedure: To clean hard flooring, including polyurethane-coated wood, laminate, vinyl and linoleum floors, use the

Floor Cleaner and the Orbiter

Multi-Floor Machine with the white terrycloth bonnet. Vinyl and laminate flooring can be polished to a higher luster using the white polish pad after cleaning.

1. Lightly mist a 6 ft by 6 ft ar

ea with T imber works

Floor Cleaner (a little goes a long way).

eated ar ea with the Orbiter

Multi-Floor Machine and the white ter

ycloth bonnet. Sealed Hard Wood Floor Applications

3. Dip mop in stripping solution and apply to floor in a

6 ft by 6 ft area. Apply along baseboard edges first or where there is a wax or dirt build-up.

et solution stand for 5 minutes, scrub floor with Orbiter

Multi-Floor Machine and the brown strip pad. Use interior circle (donut hole) from the brown strip pad to reach in corners and around door jambs.

o pick up dirty solution, use a mop or wet-dry

acuum. DO NOT ALLOW STRIPPING SOLUTION TO DRY ON FLOOR.

6. Repeat steps 3-5 until the entire floor is completely

7. Rinse area TWICE with clean water and clean mop.

Pick up water with mop or wet-dry vacuum.

8. Allow floor to dry before applying new floor finish.

Do not flood the floor with stripping solution or allow solution to dry before pick-up.

2. Use clean mop for final rinse.

3. Change rinse water frequently.

4. Use damp cloth to wipe off any splashes on walls

or furniture. Refinishing This procedure can be used on most types of hard floor surfaces, EXCEPT WOOD & STONE FLOORS. Equipment and Material Required:

• White Polish Pad or Lamb’s Wool Bonnet

• Disposable plastic bag Procedure:

Place disposable bag inside of bucket with wringer. This will protect floor finish from being contaminated and chemical residue remaining in bucket.

2. Pour quart size container of floor finish into the

disposable bag. Amount of floor finish depends on size of floor ar ea to be covered and number of coats to be applied.

Y dip the mop tip into the floor finish and wring out lightly. Avoid dripping floor finish or splashing on walls.

4. Apply floor finish in thin even coats. Apply FIRST

COAT of floor finish along baseboard edges and cover remaining floor area in an left-right direction. HINT: Only the first coat of floor finish needs to be applied to baseboar d edges.

5. Allow floor finish to dry for 20 minutes before

applying a second coat.

6. Apply the second coat of floor finish 1 tile width

from baseboard. Application should be in a crossing direction to the preceding coat.

7. Additional coats (3 and 4) of floor finish should be

applied to achieve the level of appearance desired. Four coats of floor finish will provide extra protection

o the floor surface.

8. Allow 24 hours for floor finish to harden before

9. Buff floor to higher shine using Orbiter

Multi-Floor Machine and white polish pad or lamb’s wool

When using NEW mops to apply floor finish, make sure to rinse mop first. Foreign chemicals will affect the floor finish.

2. Completely submerging mop head into the floor

finish is a waste of product.

3. Turn mop over frequently for even distribution of

4. Do not allow mop to become dry; this will cause

5. Apply floor finish in thin even coats.

6. Do NOT pour floor finish directly on the floor and

attempt to spread evenly. This will cause dark spots and delay drying time. 7Deep Cleaning Equipment and Material Required:

• White Terrycloth Bonnet

Tile Floor Cleaner Procedure:

ile Floor Cleaner lifts dirt, grime and grease from tile floors and grout, leaving sparkling results.

Tile Floor Cleaner into a separate spray bottle according to the instructions on the bottle.

2. Lightly spray a 6 ft by 6 ft area with diluted Grunge

3. Clean with the Orbiter

Multi-Floor Machine and an orange scrub brush for ceramic tile floors or concr ete. Use Orbiter

Multi-Floor Machine and the black carpet brush for delicate or glazed ceramic or porcelain tile floors.

4. Repeat steps 1 through 3 until the whole floor has

5. Go back over the cleaned floor with the Orbiter

Multi-Floor Machine and white ter

emove all dirt lifted by the orange scrub brush. Wet floor as necessary with water or diluted Grunge Attack

Tile Floor Cleaner bottle for complete instructions. ENGLISH Tile Floor Applications

3. Floors should shine with a beautiful luster.

Floor Cleaner will not leave a residue; any streaking or clouding may be the result of a

uild-up of other floor cleaners. If necessary, repeat procedure until floor shines. See Timberworks

bottle for complete instructions. Sandscreening (Wood Floors) Sandscreening is ideal for refinishing the polyurethane

oating on hard wood floors. The procedure is not designed to totally remove the old polyurethane, but smooth out imperfections and prime the floor for a new fresh coating. However, polyurethane coatings are generally very durable and look good for a long time - try a thorough cleaning before refinishing the polyurethane coating to see if the luster can be restored. Equipment and Material Required:

• Tack Rags Procedure:

Multi-Floor Machine and the brown strip pad.

2. Place #60 grit sand screen disc under brown strip

pad. Sand the floor. Remove residue by vacuuming or sweeping the floor in the same direction as the boards.

3. Place a #80 sand screen disc under the brown strip

pad. Sand the floor.

4. Sweep and vacuum the floor, then tack rag

5. Apply finish according to manufacturer’s

nish between coats with #100 grit sand screen disc and tack rag. Surface Cleaning and Waxing Waxed Hard Wood Floors This procedure should be used on WAX FINISH floors only. Equipment and Material Required:

• Tan Polish Brush (Union Mix)

White Polish Pad (optional)

Waxed Hard Wood Floor Applications

• Buffable Wax Procedure:

ompletely dust mop floor.

ipe up spills with a dry cloth or paper towel. Use a slightly damp cloth for sticky spills. Hint: Buff with white polish pad to restore luster.

f paste wax on 4 sections of white polish pad. Place white polish pad on floor and center black drive pad holder onto pad. Work Orbiter

Multi-Floor Machine in a forward/back motion and spread out the paste wax to a thin coat. Allow paste wax to dry for 5 minutes. Turn white polish pad over to clean side and buff. Use tan polish brush or lamb’s wool bonnet to obtain a higher luster. Helpful Hints:

When floor looks dull, try buffing first to see if that will restore the luster before re-waxing.

eas of heavy use no longer respond to buffing, wax only those areas and buff all of the floor to an even luster.

3. Use clear paste wax to retain the floor’s natural color.

Use Indian Sand Paste Wax to add a little color and help blend in blemishes on old floors.ENGLISH Light Cleaning Equipment and Material Required:

White Terrycloth Bonnet

Tile Floor Cleaner lifts dirt, grime and grease from tile floors and grout, leaving sparkling results.

Tile Floor Cleaner according to the instructions on the bottle.

ightly spray a 6 ft by 6 ft area with Grunge Attack

3. Clean with the Orbiter

Multi-Floor Machine and white terrycloth bonnet. This bonnet is designed to lift and remove dirt from hard surfaces. See Grunge Attack

Cleaner bottle for complete instruc- tions. Stone Floor Applications Deep Cleaning For cleaning all types of stone floors, including marble, granite, slate and other stone floors. Equipment and Material Required:

• Tan Polish Brush (Union Mix)

• Vacuum, Broom or Dust Mop

• Mop and Bucket Procedure: Stone Clear Bottom

Stone Floor Cleaner is a pH neutral balanced daily cleaner designed to safely clean all stone surfaces without damaging the stone’s natural crystalline surface.

1. Clean the floor with vacuum, broom or dust mop to

ensure that all grit is removed.

Stone Floor Cleaner according to the instructions on the bottle.

o clean stone floors and gr out, use the Orbiter

Multi-Floor Machine and the tan polish brush (union mix).

4. To remove dirt and grime lifted by the brush, mop

floors with clean water or with Stone Clear Bottom

Cleaning Solution. See Stone Clear Bottom

bottle for complete instr uctions. Marble Restoration Michaelangelo’s Marble Restorer

polishing cream is a unique blend of microabrasives that safely restores the

he marble once had. It will safely and effectively revive dull marble surfaces, light surface scratches, abrasions, etch marks, shower wall streaks, water marks, and glass rings. Equipment and Material Required:

• Vacuum, Dust Mop or Broom

Clean the floor with vacuum, broom or dust mop to ensure that all grit has been removed. All topical coatings need to be removed.

2. Spray water on the floor and then apply a dab

(2 in diameter) per 16 sq ft of surface of Michaelangelo’s Marble Restorer

polishing cream. Using Orbiter

Multi-Floor Machine and beige marble pad, begin buffing the area. Buff for five or more passes, keeping the product in a wet slurry. Do not let the product dry on the floor, and spray additional water if necessary.

3. Check results by moving the slurry with a squeegee.

Reapply or continue to buff if necessary. Remove slurry with squeegee, wet/dry vacuum or clean mop.

4. Immediately mop the floor with a mix of 2 oz of

Stone Floor Cleaner and 1 gallon of water, making sur e all of the Michaelangelo’s Marble Restorer

5. Let the floor dry completely. Buff the floor with an

bottle for complete instructions.

ENGLISH Concrete and Asphalt Applications Removing Oil and Dirt Greaselock

Absorbent Powder effectively and safely cleans concrete and asphalt without solvents. Greaselock

application is a natural mineral that absorbs and captures oil and dirt so it can be safely discarded or rinsed away.

quipment and Material Required:

• Orange Scrub Brush Procedure:

o clean oil, dirt, mold and mildew from smooth concrete, use the Greaselock

Absorbent Powder and the orange scrub brush.

1. For fresh stains or spills that have not dried, use the

Absorbent Powder as a dry powder. For dry stains, add a little water during mixing or scrubbing stage.

Absorbent Powder to spill or area to clean, completely covering it. Allow five to ten minutes to absorb for fresh stains, overnight for dried stains.

Multi-Floor Machine and brown strip pad or orange scrub brush to agitate the powder on the floor. Mop or hose off floor if necessary. See Greaselock

Absorbent Powder packaging for complete instructions. Accessories Note: Oreck recommends removing brushes and pads when storing the Orbiter

Multi-Floor Machine. Accessories can become deformed if stored on the machine. General Black Drive Pad Holder 53178-51-0327

Black plastic with teeth)

• Holds pads and bonnets in place Bonnets Bonnets are designed to surface clean most surfaces. They are washable and can be reused. White Terrycloth Bonnet

• This bonnet cleans the traffic lane and spots in the carpet without wetting the entire carpet.

• Use with Oreck Premist

Soil Release Pre-Spray and Dry Carpet Cleaner.

• When one side of bonnet is dirty, flip it over and use the other side.

• When job is complete, clean terrycloth bonnet in washing machine using cold water or hose off and allow to air dry. Lamb’s Wool Bonnet 437054

• Designed to provide the best possible shine on wood, tile and vinyl floors.

• Use the bonnet for everyday buffing to remove scuff marks.

• When job is complete, clean lambs wool bonnet in washing machine using cold water or hose off and allow to air dry. To use a bonnet, see “Attaching Accessories” on page 4 and “Removing Accessories” on page 5 Pads Pads are designed to be porous and open-weave (except the beige pad) so that when it loosens dirt it can pick it up. The dir t goes inside the pad (i.e. of

the floor). All pads can be turned over and the other side used before cleaning or disposing. Pads may be hosed of f in some instances and re-used. The pads are color coded depending on how aggressive they are (except for the beige marble pad): White is the softest, followed by blue medium aggr essive, and brown being the most aggressive. White Polish Pad 437051 (least aggressive)

• Clean and polish wood (coated & uncoated),linoleum, and laminate.

• Cleans all surfaces except stone. Oreck offers a full line of accessories to give you the tools you need for the job! Depending on the unit purchased, some of the accessories below may be included with your Orbiter

Multi-Floor Machine. All of these accessories ar e available at one of our over 450 Oreck retail Stores or on our website, www .oreck.com

When choosing different pads and brushes for the Orbiter

, ther e is no exact science to selecting an accessor y for a particular floor . Bonnets ar e good for surface cleaning most floor types. Pads are good for scrubbing and polishing flat surfaces. Brushes work well for getting into r ecesses in non-flat sur faces, like tile, wher

the bristles can get into grout lines. When you choose an accessory, remember you want one aggressive enough to do the job but gentle enough not to damage the floor. Use common sense. For example, do not use a brown strip pad (aggressive) on a wood floor (soft floor). Start with what is safe and move to a mor e aggr essive accessor

, if needed.11 ENGLISH Maintenance & Troubleshooting Car e of Y our Oreck

Multi-Floor Machine This is a precision machine. Dropping, unreasonable bumping or rough handling may result in damage to the balanced counter-weight system. Wrap your cord loosely around the two hooks on the handle. Remove brushes after use. The bristles may be damaged due to the weight of the machine. Store your machine in the upright position. After each use, remove wax or cleaning solutions from the unit. After sanding, blow sawdust off motor. Clean housing and bumper with damp cloth after each use. A little care will keep your Orbiter

looking like new. User Maintenance The Orbiter

motor bearings are factory lubricated and sealed. All other ser vicing should be perfor med by an authorized service center. There are no user serviceable parts inside. Sand Screens Sand screens offer the very best in floor sanding. For all sand screens, place the black drive pad holder on Orbiter

Multi-Floor Machine. Then place the sand screen under any floor

ad on floor and center Orbiter

or Questions or Information about Oreck’s Line of Cleaning Products, Please Call or Visit Your Local Oreck Dealer. RESIDENTIAL

Cleans tile and concrete. Brown Strip Pad 437049 (most aggressive)

• Strips linoleum, vinyl, laminate and tile floors.

• Cleans and scrubs tile and grout.

Can be used on commercial vinyl.

• Use on smooth concrete.

• Use with Sand Screens.

• Scrubs and cleans wood decks.

• For restoring and cleaning marble floors. To use a floor pad, see “Attaching Accessories” on page 4 and “ Removing Accessories” on page 5. Brushes Brushes are designed to get into grooves and recesses on non-flat surfaces. Brushes lift and remove ground-in dirt and grime. Brushes are coded depending on how aggressive they are with the black carpet brush being the least aggressive, followed by the tan polish brush (union mix) and the orange scrub brush the most aggressive. Black Carpet Brush 237049 (least aggressive)

• Use with Oreck Dry Shampoo.

• Safe, soft action needed for carpet cleaning.

• Use on textured linoleum.

• Use for cleaning delicate or glazed ceramic or porcelain tile. Tan Polish Brush (Union Mix) 237048 (medium aggressive)

Use to polish wood floors.

• Will “blend” in excess floor wax, maintain an even coat of wax and eliminate wax build-up.

• Use for getting inside cracks of a wood floor.

Use to polish waxed wood floors.

• Use for marble, stone, and delicate tile floors Orange Scr ub Brush

Used to clean ceramic tile or concrete and many tough stains.

o use a br ush, see “Attaching Accessories” on page 4 and “ Removing Accessories” on page 5.12

PROBLEM POSSIBLE SOURCE AREAS TO CHECK

PROBLEM POSSIBLE SOURCE AREAS TO CHECK

Troubleshooting Guide Whenever calling, please be sure to have your model andserial number from data plate. CALL CUSTOMER SERVICE HOT LINE

oile abrasive grain 80

machine multi-sols Orbiter

PROBLEM POSSIBLE SOURCE AREAS TO CHECK

TOUTES LES AUTRES RÉPARATIONS DOIVENT ÊTRE FAITES DANS UN CENTRE DE RÉPARATION AUTORISÉ. ©2008 Oreck Holdings, LLC. All Rights Reserved. All word marks, logos,product configurations, and registered trademarks are owned and used underthe authority of Oreck Holdings, LLC. Printed in America.53367-01 REV F03/08 ECN# R-8997
