USER MANUAL CMXEVBE17656 Craftsman

WET/DRY VAC WITH CART

ASPIRATEUR DE LIQUIDES ET DE POUSSIÈRES DE 75 Litres (20 GALLONS) AVEC CHARIOT

ASPIRADORA PARA MOJADO/SECO DE 75 Litros (20 GALONES) CON CARRITO

CMXEVBE176560

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: injury.

Indicates a hazardous situation which, if not avoided, will result in death or serious

WARNING:

Indicates a hazardous situation which, if not avoided, could result in death or serious

CAUTION:

Indicates a hazardous situation which, if not avoided, may result in minor or moderate

(Used without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

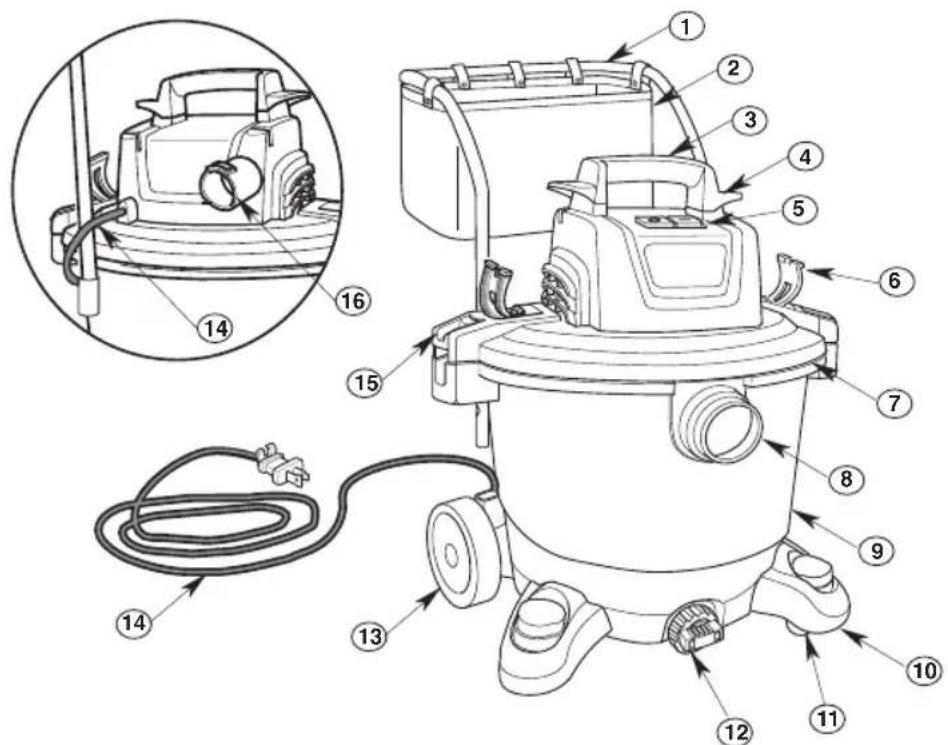

Fig.A

Components

Metal Handle
2 Accessory Storage Bag
3 Carry Handle
4 Power Cord Wrap
5 ON/OFF Switch
6 Hose Clips (2)
7 Powerhead Assembly
8 Vac Inlet
Dust Drum
Caster Foot w/Storage (2)
1 Casters (2)
⑫ Drain
⑬Cart Wheels (2)
14 Power Cord
15 Drum Latches (2)
16 Blowing Port

WARNING: Read all safety

warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: Never modify the product or any part of it. Damage or personal injury could result.

WARNING: To reduce the risk of injury, read the instruction manual.

If you have any questions or comments about this or any product, call CRAFTSMAN toll free at: 1-888-331-4569.

IMPORTANT SAFETY INSTRUCTIONS

When using this Vac, always follow basic safety precautions including the following:

WARNING:

To reduce the risk of fire, electric shock, or injury:

• Read and understand this manual and all labels on the Vac before operating.
• Use only as described in this manual.
• Do not leave Vac running while unattended - you may fail to notice important signs indicating abnormal operation such as loss of suction, debris/liquid exiting exhaust, or abnormal motor noises. Immediately stop using Vac if you notice these signs.
• Do not leave Vac when plugged in. Unplug from outlet when not in use and before servicing.
• Sparks inside the motor can ignite flammable vapors or dust. To reduce the risk of fire or explosion, do not use near combustible liquids, gases, or dusts, such as gasoline or other fuels, lighter fluid, cleaners, oil-based paints, natural gas, coal dust, magnesium dust, grain dust, aluminum dust, or gun powder.
• Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• To avoid the risk of self-ignition of drum debris, empty drum after each use. Combustible materials, such as rags or saw dust containing stain or urethane, can be sources of such overheating.
• Do not vacuum drywall dust, cold fireplace ash, or other fine dusts with standard filter. These may pass through the filter and be exhausted back into the air. Use a fine dust filter instead.
• To reduce the risk of inhaling toxic vapors, do not vacuum or use near toxic or hazardous materials.
• This Wet/Dry Vac is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• To reduce the risk of electric shock, do not expose to rain or allow liquid to enter motor compartment. Store indoors.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Do not use with a torn filter or without the filter installed except when vacuuming liquids as described in this manual. Dry debris ingested by the impeller may damage the motor or be exhausted into the air.

• Turn off Vac before unplugging.

• To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use with damaged cord, plug, or other parts. If your Vac is not working as it should, has missing parts, has been dropped, damaged, left outdoors, or dropped into water, call customer service at 1-888-331-4569 (Mexico 001-881-331-4569).
• Do not handle plug, switch, or the Vac with wet hands.
• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or corners. Do not run Vac over cord. Keep cord away from heated surfaces.
• Use only extension cords that are rated for outdoor use. Extension cords in poor condition or too small in wire size can pose fire and shock hazards. To reduce the risk of these hazards, be sure the cord is in good condition and that liquid does not contact the connection. Do not use an extension cord with conductors smaller than 1,3mm^2 (16 AWG) in size.
• This Vac is double-insulated, eliminating the need for a separate grounding system. Use only identical replacement parts. Read the instructions for Servicing Double-Insulated Wet/Dry Vacs.
• Do not put any object into ventilation openings. Do not vacuum with any ventilation openings blocked; keep free of dust, lint, hair, or anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• To reduce the risk of falls, use extra care when cleaning on stairs.
  To reduce the risk of back injury or falls, do not lift a Vac that is heavy with liquid or debris. Partially empty by scooping debris or draining liquid.
  To reduce the risk of personal injury or damage to Vac, use only CRAFTSMAN recommended accessories.

• When using as a blower:

• Direct air discharge only at work area.

• Do not direct air at bystanders.
• Keep children away when blowing.
• Do not use blower for any job except blowing dirt and debris.
• Do not use as a sprayer.

To reduce the risk of eye injury, wear safety eyewear. The operation of any utility Vac or blower can result in foreign objects being blown into the eyes, which can result in severe eye damage.
- To reduce the risk of being struck by, or pulled down by, a rolling Vac, block the casters when using on any uneven or sloped surface.

CAUTION:

To reduce the risk of hearing damage, wear ear protectors when using for an extended time or in a noisy area.
- For dusty operations, wear dust mask.
Static shocks are common when the relative humidity of the air is low. Vacuuming fine debris with your Vac can deposit static charge on the hose or Vac. To reduce the frequency of static shocks in your home or when using this Vac, add moisture to the air with a humidifier.

Observe the following warnings that appear on the motor housing of your Vac:

DOUBLE INSULATED - GROUNDING NOT REQUIRED.
WHEN SERVICING USE ONLY IDENTICAL REPLACEMENT PARTS.

WARNING:

• For your own safety, read and understand Instruction Manual.
• Do not run unattended.
• Do not pick up hot ashes, coals, flammable, combustible/self-igniting, toxic, or other hazardous materials.
• Do not use around explosive liquids or vapors.

WARNING:

To reduce the risk of electric shock - do not expose to rain - store indoors.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a free replacement.

SAVE THESE INSTRUCTIONS

INTRODUCTION

This Wet/Dry Vac with Cart is intended for house-hold use. It may be used for vacuuming of wet or dry media and may be used as a Blower.

Read this Instruction Manual to familiarize yourself with the product features and to understand the specific usage of your new Wet/Dry Vac.

TABLE OF CONTENTS

Important Safety Instructions. 2-4

Introduction 4

Carton Contents 5

Installation 6-9

Drum/Wheel Assembly 6
Metal Handle Assembly. 7
Accessory Storage Bag Assembly 7
Hose Clips Assembly 8
Carry Handle Assembly 8
Powerhead Assembly. 8
Insert Hose. 9
Accessory Storage 9
Hose Storage 9
Cord Storage 9

Operation 10-12

Polarized Plug 10
Power Switch 10
Vacuuming Dry Materials 10
Vacuoming Liquids. 11
Emptying the Drum 11

Section

PageSection

Moving the Wet/ Dry Vac 12

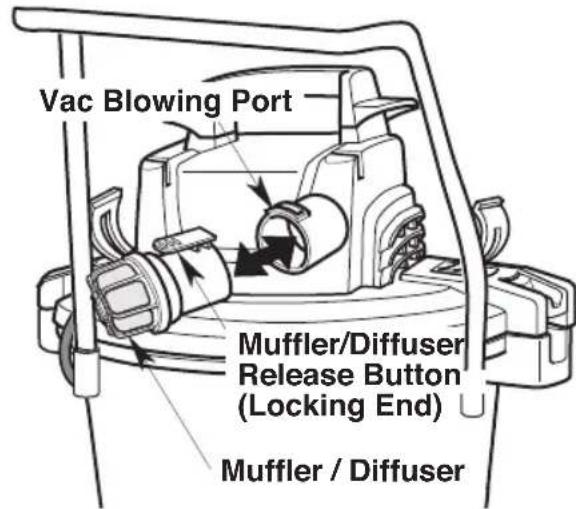

Muffler / Diffuser. 12
Blowing Feature 12

Maintenance. 13-15

Filter 13
Removal and Installation of Qwik Lock FilterTM 13

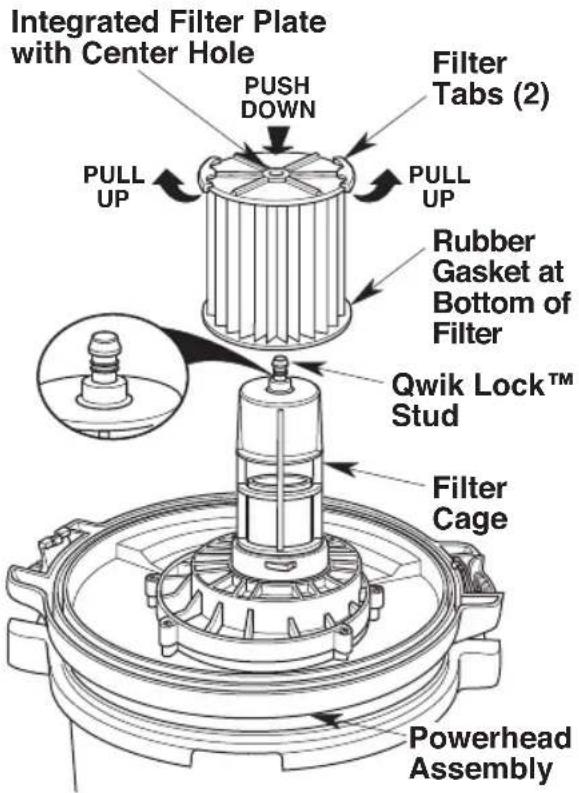

Filter Installation. 13
Filter Bag 14

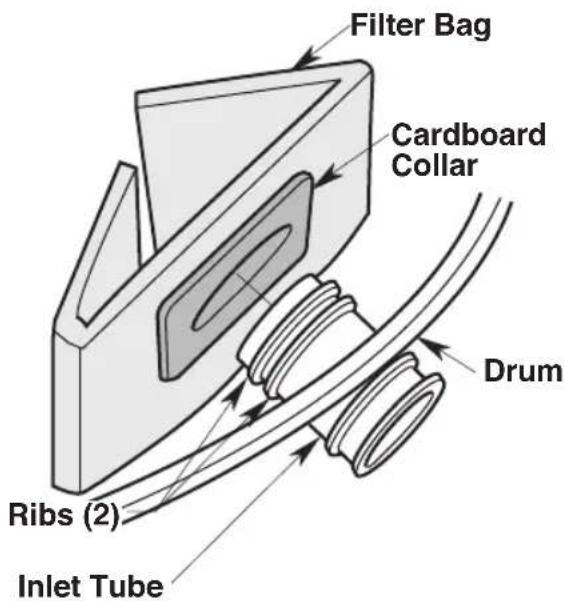

Filter Bag Installation 14

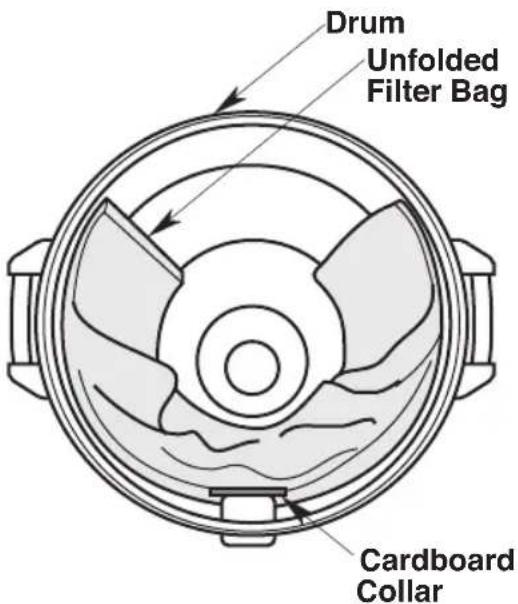

Filter Bag Removal 14
Filter Cleaning. 15
Cleaning a Dry Filter. 15
Cleaning a Wet Filter 15
Cleaning and Disinfecting the Wet/Dry Vac 15
Casters 15
Storage. 15

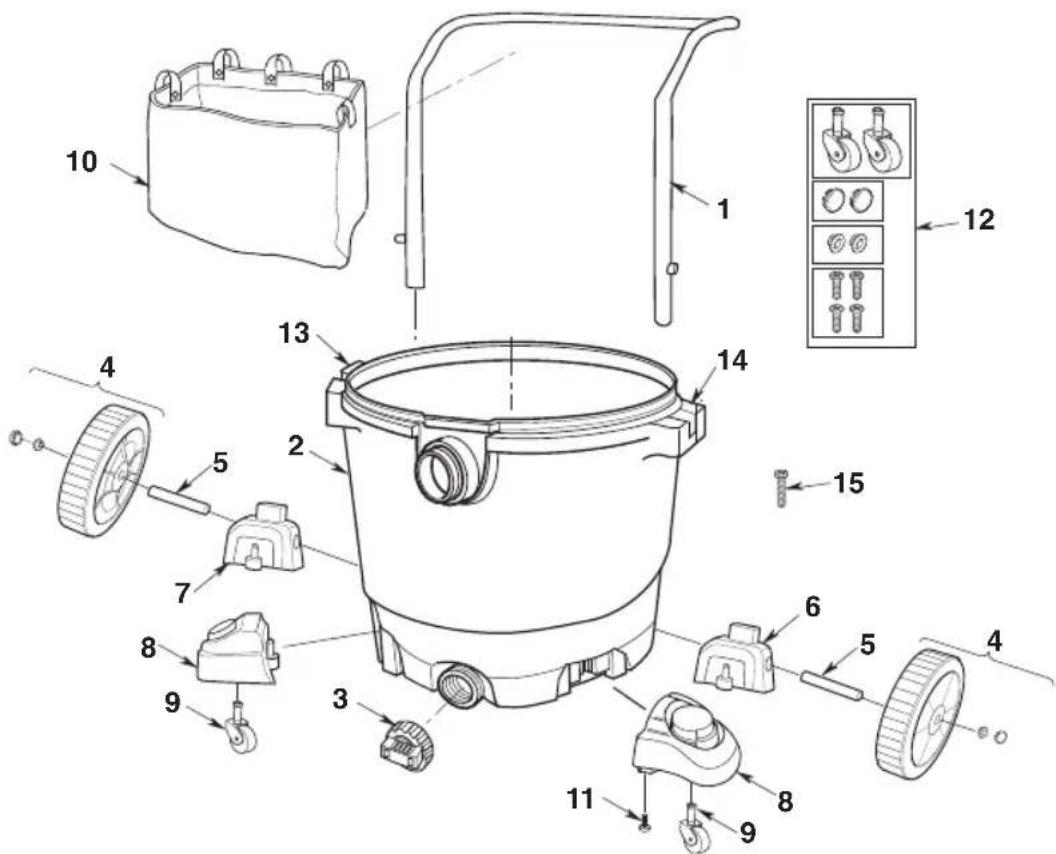

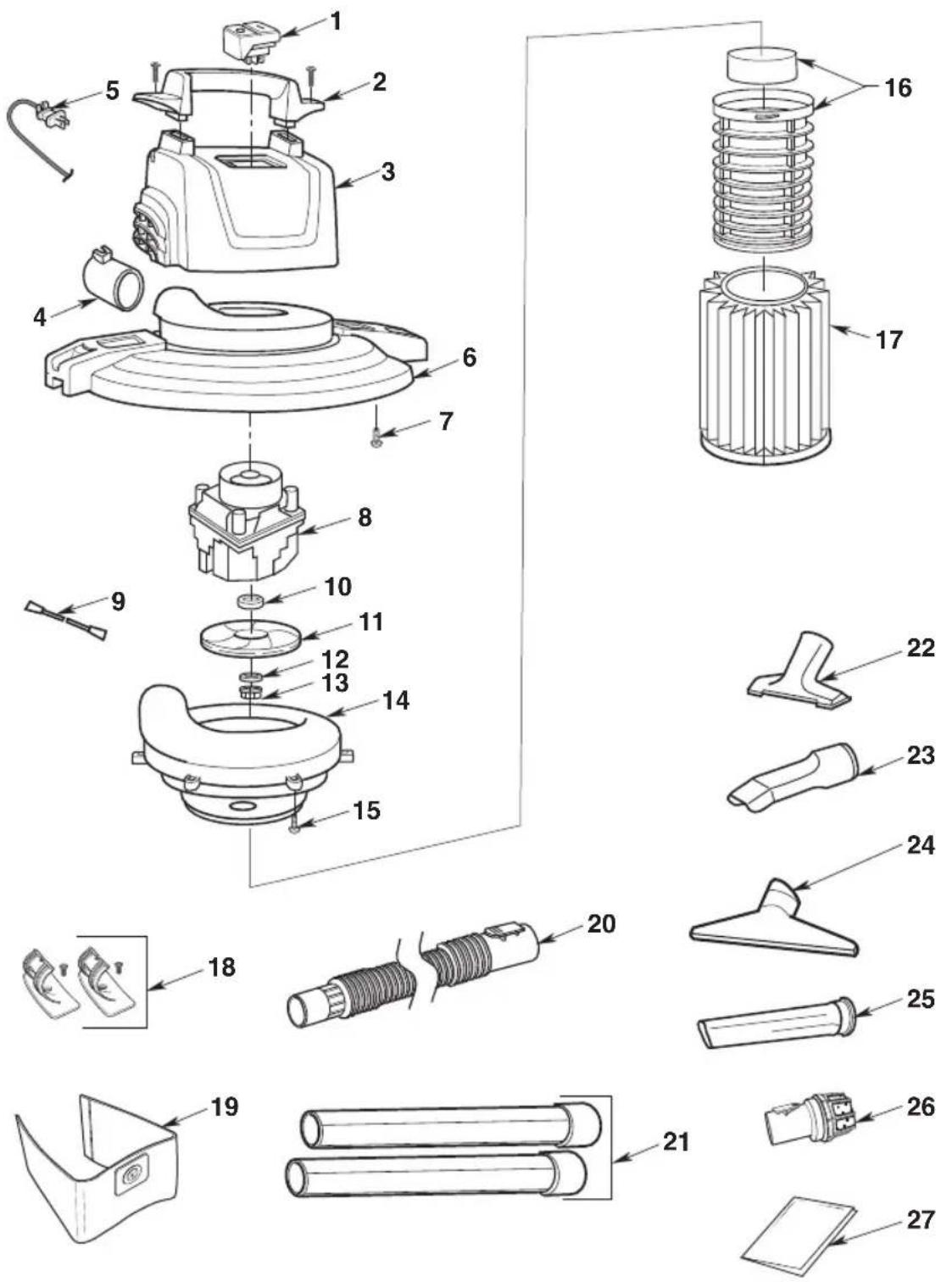

Service/Repair Parts. 16-18
Servicing Double Insulated Wet/Dry Vacs. 16
Warranty 19

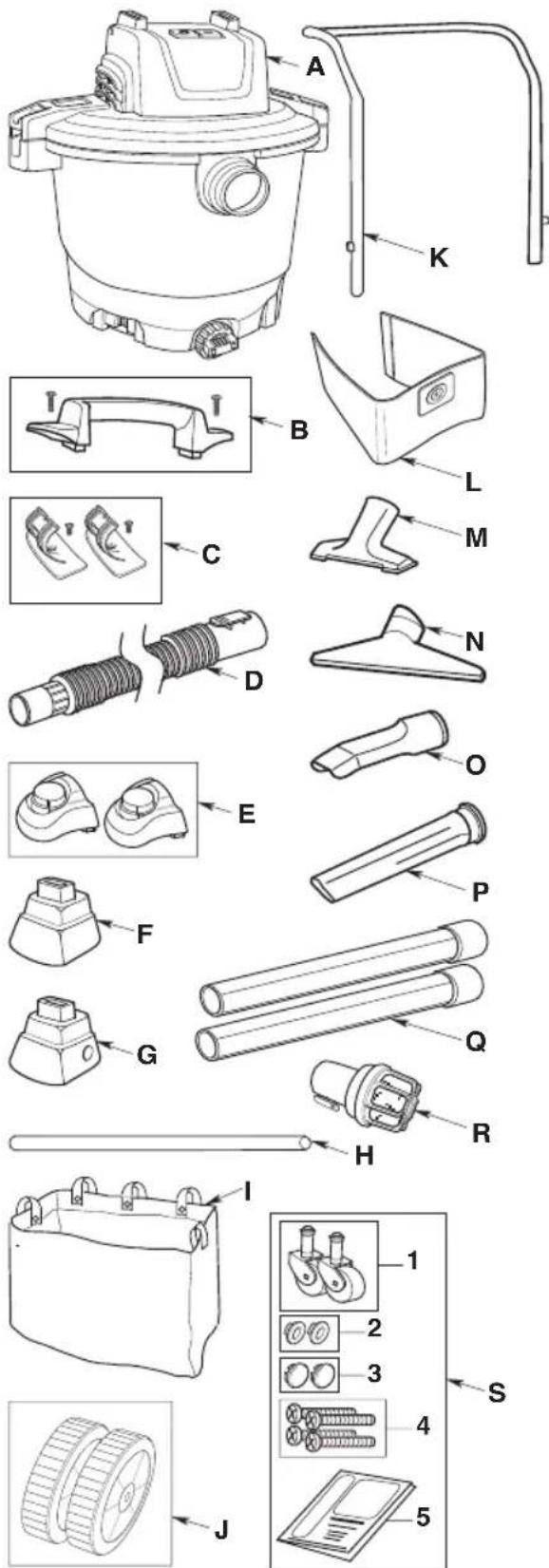

CARTON CONTENTS (Fig. B)

Remove entire contents of carton. Check each item against the Carton Contents List.

If any parts are damaged or missing, immediately call customer service at 1-888-331-4569 (Mexico 001-881-331-4569).

Fig. B

Key	Description Qty.
A Vac Assembly 1
B Carry Handle 1
C Hose Clips 2
D Hose 1
E Caster Foot with Storage 2
F Foot Wheel, Right 1
G Foot Wheel, Left 1
H Shaft 1
I Accessory Storage Bag		1
J 8" (20 cm) Wheels		2
K Metal Handle 1
L Disposable Filter Bag		1
M Utility Nozzle		1
N Wet Nozzle 1
O Car Nozzle		1
P Crevice Tool		1
Q Extension Wands		2
R Diffuser		1
S Loose Parts Bag		1
1. 2" (5 cm) Casters		2
2. 1/2" (50 mm) Cap Nuts		2
3. Wheel Caps 2
4. #10 x 1-3/4" (25 mm) Screws		4
5. Instruction Manual		1

Tools Required:

Phillips Screwdriver
Mallet

Hammer

INSTALLATION

Drum/Wheel Assembly

Do not assemble Wet/Dry Vac until you have all the parts.

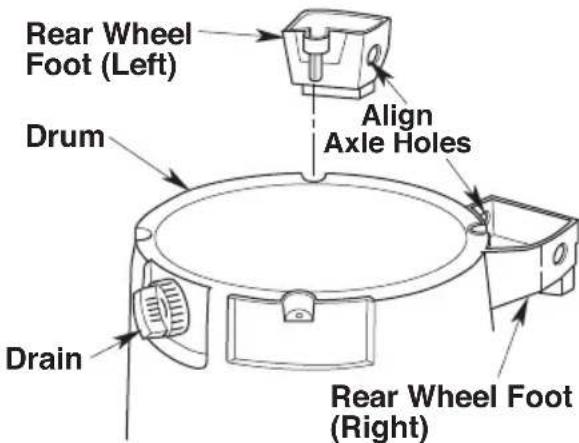

Rear Wheel Feet Assembly (Fig. C):

1. Insert the Left Rear Wheel Foot and the Right Rear Wheel Foot into the bottom of Drum (opposite side of the Drain). Check to make sure Axle Holes align. Light taps with a Mallet or Hammer may be needed to fully seat both Wheel Feet.

Fig. C

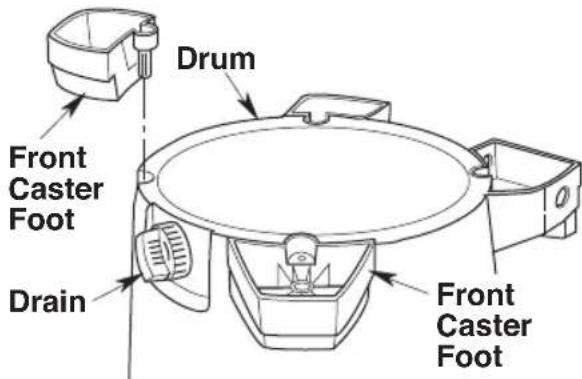

Rear Wheel Feet Assembly (Fig. D):

1. Insert the Two Caster Feet into the bottom of Drum (Close to the Drain). Light taps with a Mallet or Hammer may be needed to fully seat both Caster Feet.

Fig. D

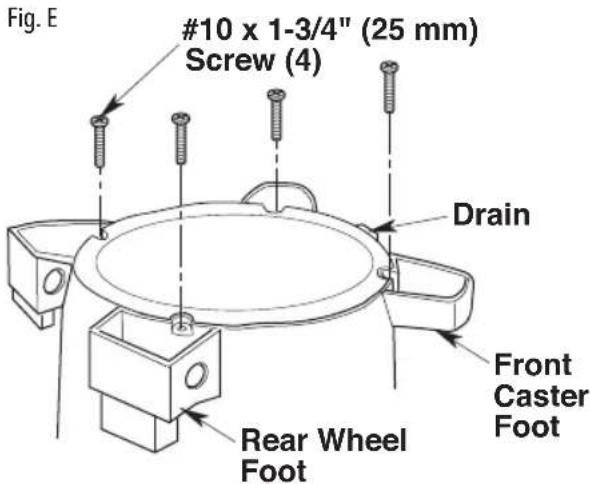

Hardware Assembly (Fig. E):

1. Install (4) #10 x 1-3/4" (25 mm) Screws into the Holes on each of the Rear Wheel Feet and Front Caster Feet, securing them to the bottom of the Drum. Tighten Screws until just snug. Do not over tighten as this may tend to deform the Feet.

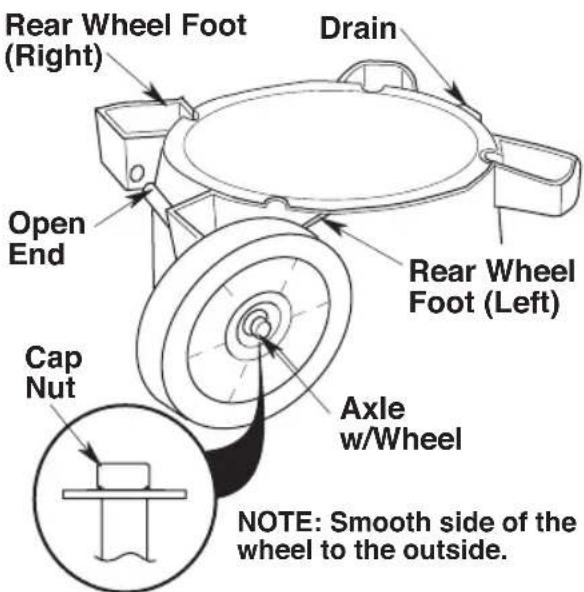

Axle & Wheel Assembly (Fig. F):

1. Installing Cap Nut

a. Place Cap Nut on end of Axle.
b. Tap gently with Hammer until fully seated.
c. Place the Wheel on the Axle with smooth portion of Wheel facing outward.

1. Slide open end of Axle through Left Rear Wheel Foot Hole. Slide all the way through the Hole in the Right Rear Wheel Foot. Light taps with a Mallet may be required to fully insert Axle.
2. Install Second Wheel onto Axle with smooth portion of Wheel facing outward.
3. Install the Second Cap Nut. Tap gently until Cap Nut is firmly seated.

Fig. F

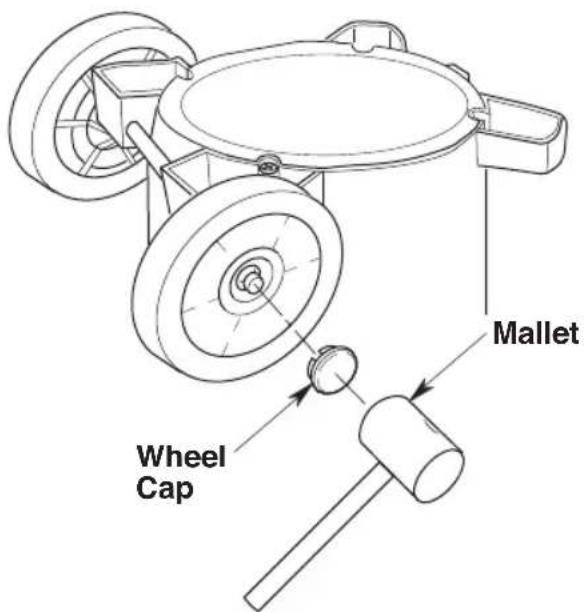

Wheel Cap Assembly (Fig. G):

1. Using a Rubber Mallet or Hammer, gently tap the Wheel Cap onto the Right Wheel until the Wheel Cap is firmly seated onto the Wheel. This is required on both Left and Right Wheels.

Fig. G

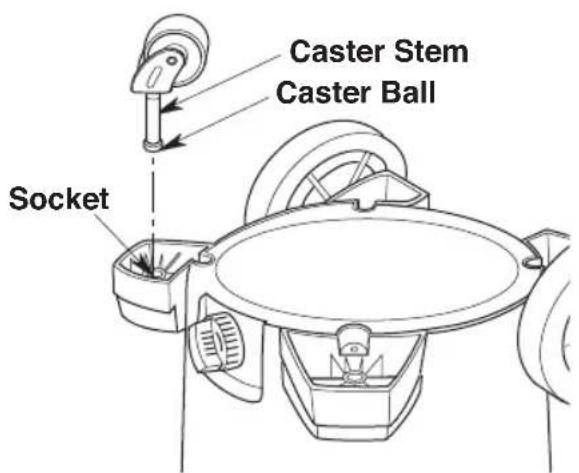

Caster Ball Assembly (Fig. H):

1. Insert the Caster Stem into the Socket of the Two Front Caster Feet.

2. Push on the Caster until the Ball on the Caster Stem is inserted all the way into the Socket. You will be able to hear the Ball snap into the Socket and the Caster will swivel easily when positioning is correct.

Fig. H

Metal Handle Assembly (Fig.1)

Press and hold Release Buttons while installing Metal Handle into Drum Handle Receptacles.

NOTE: An audible snap of Release Buttons indicates successful engagement of the Metal Handle.

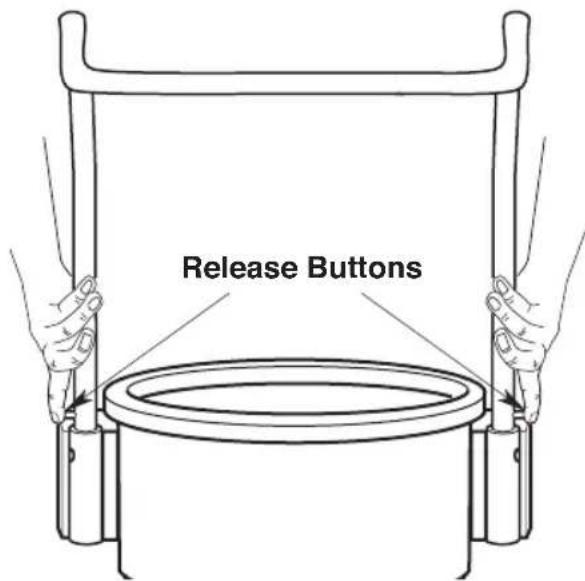

Removing Metal Handle

Press and hold the Release Buttons. While firmly pushing in on the Release Buttons, pull Metal Handle upwards to remove.

Fig.1

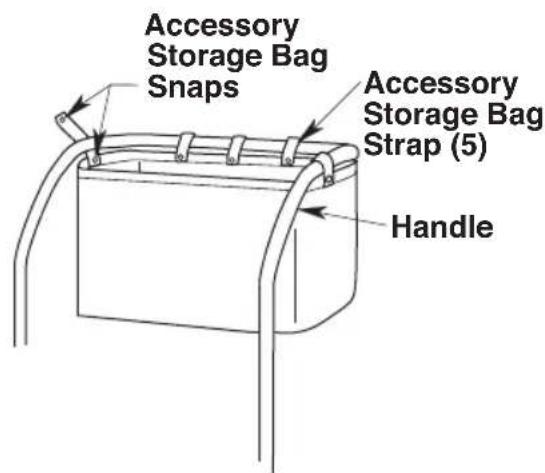

Accessory Storage Bag Assembly (Fig. J)

Install Accessory Storage Bag by wrapping the Five Storage Bag Straps around the Metal Handle and snap each Strap in place.

Fig. J

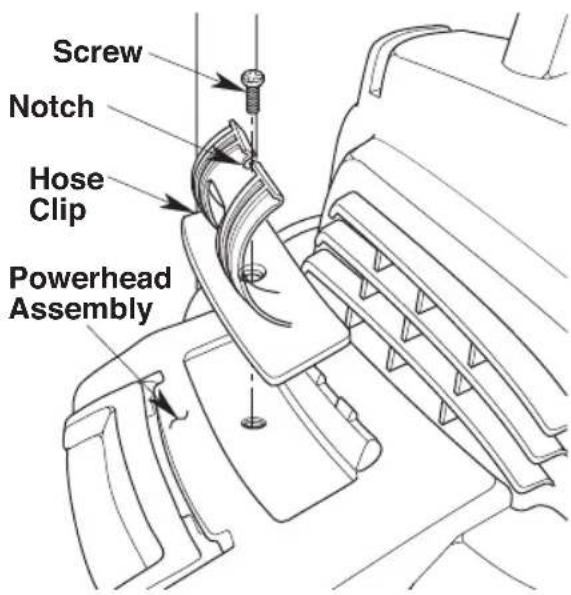

Hose Clips Assembly (Fig. K)

1. Align the Hose Clips in the recessed areas on the Powerhead Assembly.
2. Insert Screw and tighten to fasten the Hose Clips to the Powerhead Assembly.

NOTE: The Hose Clip has a Screwdriver Notch for ease of assembly.

Fig. K

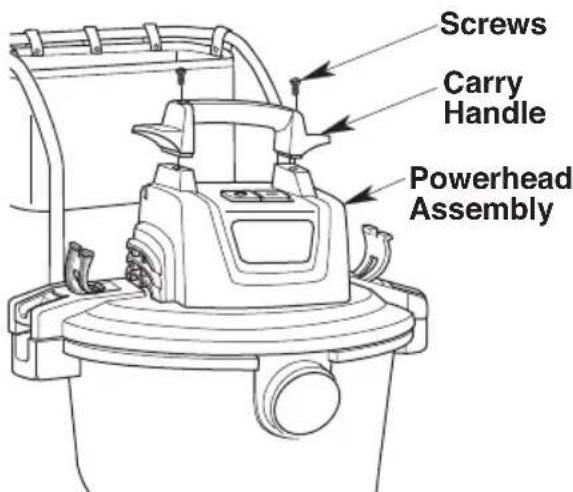

Carry Handle Assembly (Fig. L)

1. Place the Carry Handle on the Wet/Dry Vac Powerhead Assembly.
2. Tighten Two Screws to assemble the Carry Handle on the Powerhead Assembly.

Fig. L

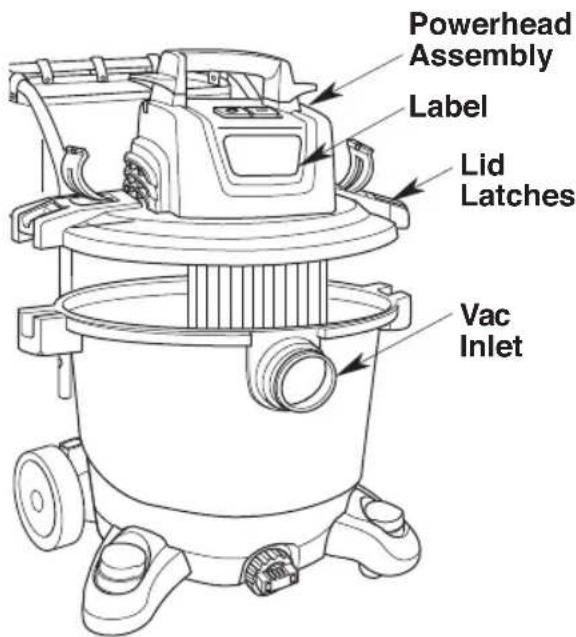

Powerhead Assembly (Fig. M)

1. Line up front (label side) of Powerhead Assembly with Vac Inlet Port, located on the front of the Drum.

NOTE: Powerhead Assembly must be aligned with Drum for proper attachment.

1. Place Powerhead Assembly on top of Drum.
2. Be sure Powerhead Assembly completely covers the top of the Drum so leakage does not occur.
3. Press down on the Powerhead Latches to securely attach the Powerhead Assembly to the Drum.
4. To remove the Powerhead Assembly, first unplug the unit from the electrical outlet. Then lift up on the Powerhead Assembly Latches and remove from Drum.

Fig. M

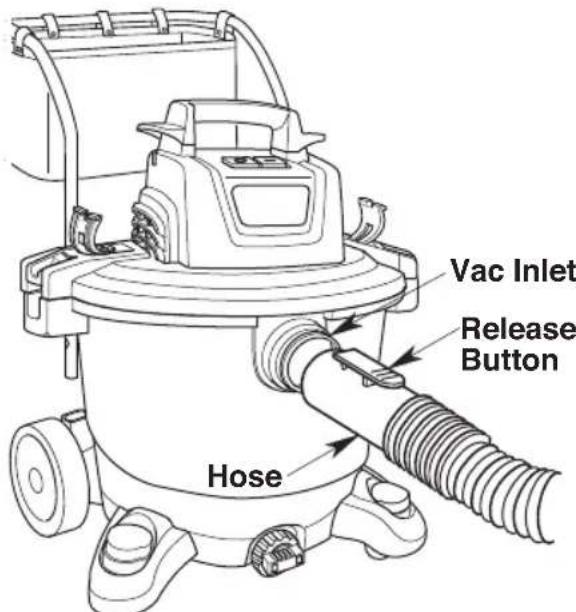

Insert Hose (Fig. N)

1. Insert the Locking End of the Hose Assembly into the Vac Inlet Port. The Hose should snap into place.
2. To remove the Hose from the Vac, press the Release Button and pull the Hose out of the Vac Inlet Port.

Fig. N

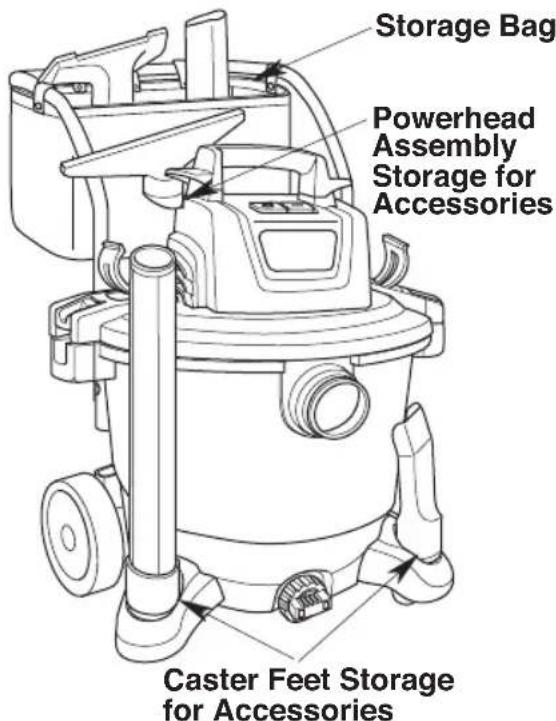

Accessory Storage (Fig. 0)

Your Accessories may be stored in the Caster Feet, Storage Locations on the Powerhead Assembly or in the Accessory Storage Bag.

Fig. 0

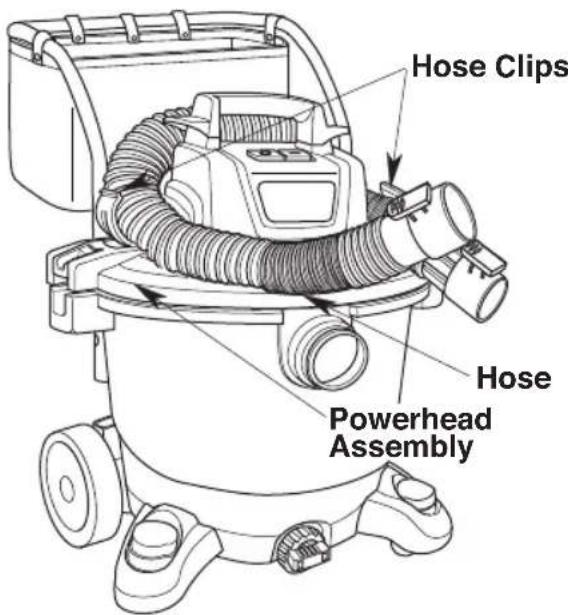

Hose Storage (Fig. P)

The Hose may also be stored by wrapping it around the Powerhead Assembly and securing it into the Hose Clips.

Fig. P

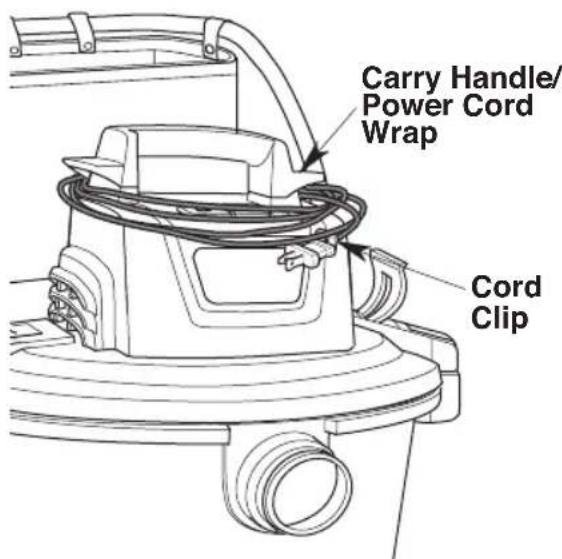

Cord Storage (Fig. 2)

Wrap the Power Cord around the Carry Handle/Power Cord Wrap located on the Powerhead Assembly Carry Handle. Snap the Power Cord into the Cord Clip to secure.

Fig. Q

OPERATION

WARNING:

To reduce the risk of fire, explosion, or damage to Vac

• Do not leave Vac running while unattended - you may fail to notice important signs indicating abnormal operation such as loss of suction, debris/liquid exiting the exhaust, or abnormal motor noises. Immediately stop using Vac if you notice these signs.
• Do not leave Vac plugged in when not in use.
• Do not continue running when float has cut off suction.
• Sparks inside the motor can ignite airborne flammables. Do not operate Vac near flammable liquids or in areas with flammable gases, vapors, or explosive/airborne dust. Flammable liquids, gases, and vapors include: lighter fluid, solvent-type cleaners, oil-based paints, gasoline, alcohol, and aerosol sprays. Explosive dusts include: coal, magnesium, aluminum, grain, and gun powder.
• Do not vacuum up explosive dusts, flammable liquids, or hot ashes.
• Do not leave sawdust or rags with stain or polyurethane residue inside Vac. Empty drum after picking up these potentially self-heating materials.

WARNING:

To reduce the risk of electric shock or injury:

• Do not expose to rain or allow liquid to enter motor compartment. Store indoors.
• Do not handle plug, switch, or Vac with wet hands.
• Unplug Vac before servicing. If your Vac is not working as it should, has missing parts, has been dropped, damaged, left outdoors, or dropped into water, call customer service at 1-888-331-4569 (Mexico 001-881-331-4569).
• When using an extension cord, use only outdoor-rated cords that are in good condition. Do not allow the connection to come into contact with liquid.

CAUTION:

To reduce the risk of hearing damage, wear ear protectors when using the Vac/Blower for an extended time or in a noisy area.

Polarized Plug

To reduce the risk of electric shock, this Vac has a Polarized Plug (one blade is wider than the other). This Plug will fit in a Polarized Outlet only one way. If the Plug does not fit fully in the Outlet, reverse the Plug. If it still does not fit, contact a qualified electrician to install the proper Outlet. Do not change the Plug in any way.

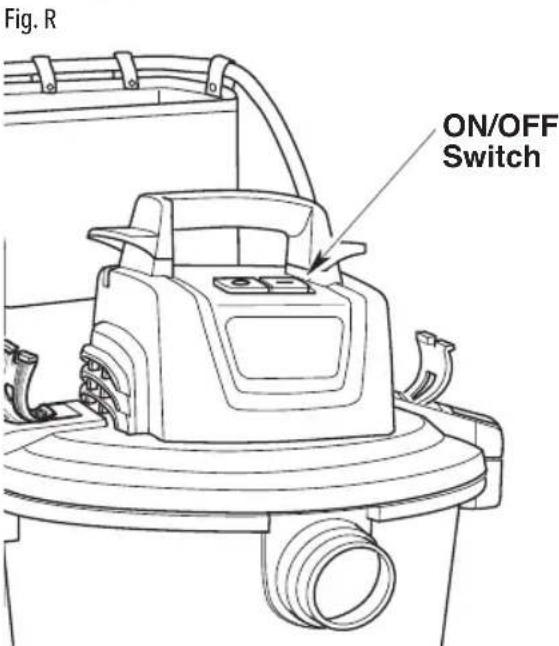

Power Switch (Fig. R)

After you Plug the Power Cord into the Outlet, turn the Unit on by pushing the Switch from position "O" to position "I". The symbols used on the Switch Actuator are International "On & Off" Symbols:

$$ \bigcirc = O F F \quad | = O N $$

Vacuuming Dry Materials

1. The Filter must always be in correct position to reduce the risk of leaks and possible damage to Vac.
2. When using your Vac to pick up very fine dust, it will be necessary for you to empty the Vac Drum and clean the Filter at more frequent intervals to maintain peak Vac performance. Quick Lock™ Filter plus a Filter Bag is recommended for improved Fine Dust Vac performance.

NOTE: A dry Filter is necessary to pick up dry material. If you use your Vac to pick up dust when the Filter is wet, the Filter will clog quickly and be very difficult to clean.

Vacuuming Liquids

WARNING:

Do not operate without filter cage and float, as they prevent liquid from entering the impeller and damaging the motor. For dry material pick-up, do not operate without the filter in place to reduce the risk of damage to the motor.

WARNING:

To reduce the risk of fire or explosion, do not vacuum flammable or combustible liquids, gases or dust.

1. When picking up small amounts of liquid the Filter may be left in place.
2. When picking up large amounts of liquid we recommend that the Filter be removed. If the Filter is not removed, it will become saturated and misting may appear in the exhaust.
3. After using the Vac to pick up liquids, the Filter must be dried to reduce the risk of possible mildew and damage to the Filter.
4. When the liquid in the Drum reaches a predetermined level, the Float mechanism will rise automatically to cut off air-flow. When this happens, turn off the Vac, unplug the Power Cord, and empty the Drum. You will know that the Float has risen because Vac airflow ceases and the Motor noise will become higher in pitch, due to increased Motor Speed.

IMPORTANT: To reduce the risk of damage to the Vac do not run Motor with Float in raised position.

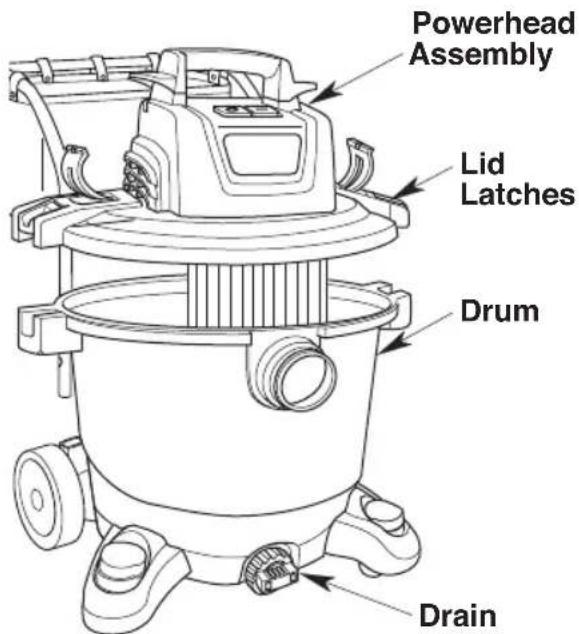

Emptying the Drum (Fig. S)

WARNING:

To reduce the risk of injury from accidental starting, unplug power cord before emptying the drum.

1. Remove the Powerhead Assembly. Pull Latches to release from the Drum.
2. Lift the Powerhead Assembly up and away from the Drum.
3. Lay Powerhead Assembly upside down on a clean area while emptying the Drum.
4. Dump the Drum contents into the proper waste disposal container.
5. The Vac comes equipped with a Drain, simply unscrew the Drain Cap and lift the opposite side slightly to empty the Drum.

WARNING:

To reduce the risk of back injury or falls, do not lift a Vac heavy with liquid or debris. Scoop or drain enough contents out to make the Vac light enough to lift comfortably.

Fig. S

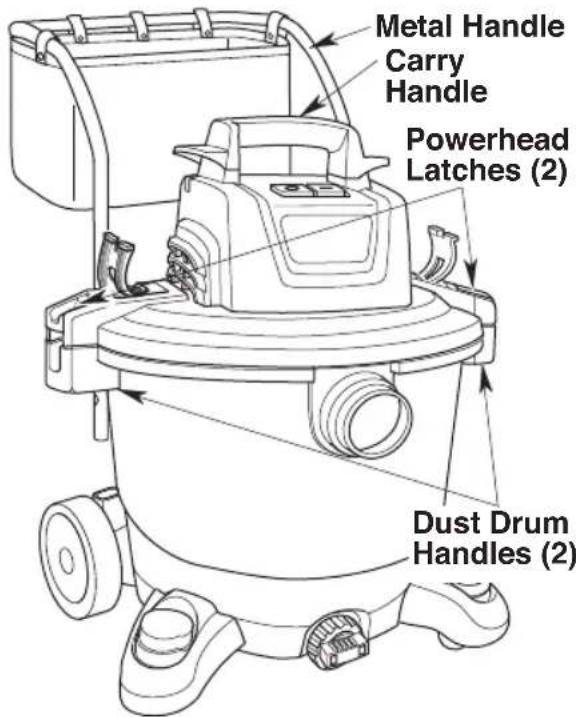

Moving the Wet/ Dry Vac (Fig. T)

Should it become necessary to pick the Vac up to move it, use the Carry Handle and/or the Dust Drum Handles.

NOTE: Do not move Vac by the Powerhead Latches.

To maneuver the Vac, use the Metal Handle and/or the Carry Handle.

Fig. T

Muffler / Diffuser (Fig. U)

Insert the Locking End of the Muffler / Diffuser into the Blowing Port of the Vac. The Muffler / Diffuser should snap into place.

The Muffler / Diffuser suppresses motor noise and diffuses the exhaust air and can be used while vacuuming indoors or outdoors.

Fig. U

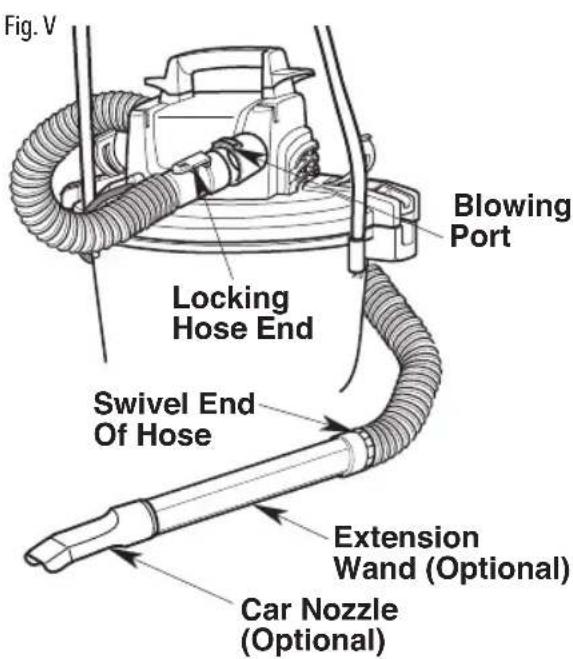

Blowing Feature (Fig. V)

Your Vac features a Blowing Port. It can blow sawdust and other debris. Follow the steps below to use your Vac as a Blower.

1. Locate Blowing Port of your Vac, located at the back of the Powerhead Assembly.
2. Insert the Locking End of the Hose Assembly into the Vac Blowing Port. The Hose should snap into place. To remove the Hose from the Vac, press the Release Button in the Hose Assembly and pull the Hose out of the Vac Inlet Port.
3. (Optional) Attach Extension Wand to opposite end of Hose, then place the Car Nozzle on the Wand.
4. Turn Vac on and you are ready to use your Vac as a Blower.

WARNING:

Always wear safety eyewear complying with ANSI Z87.1 (or in Canada, CSA Z94.3) before using as a blower.

WARNING:

To reduce the risk of injury to bystanders, keep them clear of blowing debris.

CAUTION:

Wear a dust mask if blowing creates dust which might be inhaled.

CAUTION:

To reduce the risk of hearing damage, wear ear protectors when using the Vac/Blower for an extended time or in a noisy area.

MAINTENANCE

Filter

WARNING:

To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter.

NOTE: This Filter is made of high quality paper designed to stop very small particles of dust. The Filter can be used for wet or dry pick up. Handle the Filter carefully when removing to install or clean. Creases in the Filter pleats may occur from installation but creases will not affect the performance of the Filter.

Removal and Installation of the Qwik LockTM Filter (Fig. W)

IMPORTANT: To reduce the risk of damage to the Blower Wheel and Motor, always reinstall the Filter before using the Vac for dry material pickup.

Filter Removal

1. Hold the Filter Tabs of the Qwik Lock™ Filter in each hand.
2. With one thumb on the Qwik Lock™ Stud, which protrudes through the integrated Filter Plate, lift up on the Filter Tabs while pushing down on the Stud.
3. This action will cause the Filter to release from the Filter Cage. Slide Filter off Cage.

WARNING:

Do not operate without a filter cage and float, as they prevent liquid from entering the impeller and damaging the motor.

Filter Installation

1. Carefully slide the Qwik Lock™ Filter over the Filter Cage and press down on the outside edge of the Filter until the Rubber Gasket on the bottom of the Filter seats securely around the base of the Filter Cage and against the Powerhead Assembly.
2. Align the small Center Hole in the top of the Filter over the Qwik LockTM Stud on the Filter Cage. Press firmly on top of the Filter near the Stud to allow the Filter to snap over the Ball on the end of the Stud. The Filter is now attached.

NOTE: Failure to properly seat the bottom Gasket could result in debris bypassing the Filter.

Fig. W

Filter Bag

WARNING:

To avoid health hazards from vapors or dust, do not vacuum toxic, carcinogenic or other hazardous materials such as asbestos, arsenic, barium, beryllium, lead, pesticides or other health endangering materials.

CAUTION:

To avoid spilled debris, when picking up heavy or sharp material, monitor bag volume and do not overfill.

Filter Bag Installation (Fig. X)

A Filter Bag may be used in place of or in addition to the Qwik Lock™ Cartridge Filter.

NOTE: See Repair Parts List for Part Number.

NOTE: When picking up dry debris a Filter Bag or Cartridge Filter must be properly installed.

1. Filter Bag to be used to pick up dry debris only.
2. Correct positioning of Cardboard Collar is required to assure proper seal.
3. Locate two Ribs on Inlet Tube, inside Drum.
4. Slide Cardboard Collar onto Inlet Tube and position Cardboard Collar between the two Ribs.
5. With the Cardboard Collar securely installed, unfold and position Filter Bag inside Drum.

Fig. X

Filter Bag Removal (Fig. Y)

1. Slide Cardboard Collar toward center of Vac Drum.
2. Remove Filter Bag from Vac Drum and discard.
3. Install new Filter Bag.

Fig. Y

Filter Cleaning

Your Filter should be cleaned often to maintain peak Vac performance.

Cleaning A Dry Filter

1. Some removal of dry debris can be accomplished without removing the Filter from the Vac. Slap your hand on top of the Powerhead Assembly while the Vac is turned OFF.
2. For best cleaning results due to accumulated dust, clean the Filter in an open area. Cleaning SHOULD be done outdoors and not in the living quarters.
3. After Filter removal from Vac, remove the dry debris by gently tapping Filter against the inside wall of your Dust Drum. The debris will loosen and fall.
4. For thorough cleaning of dry Filter with fine dust (no debris), run water through it as described under "Cleaning A Wet Filter".

Cleaning A Wet Filter

After Filter is removed, run water through the Filter from a hose or spigot. Take care that water pressure from the hose is not strong enough to damage Filter.

IMPORTANT: After cleaning, check the Filter for tears or small holes. Tears and holes in the Filter can cause debris and dust to be blown from the Vac. Do not use a Filter with holes or tears. Replace immediately.

Allow the Filter to dry before reinstalling and storing the Vac or picking up dry debris.

Cleaning and Disinfecting the Wet/Dry Vac

To keep your Wet/ Dry Vac looking its best, clean the outside with a cloth dampened with warm water and mild soap.

To clean the Drum:

1. Dump debris out.
2. Wash Drum thoroughly with warm water and mild soap.
3. Wipe out with dry cloth.

Before prolonged storage or as needed (i.e., waste water pick up) the Drum should be disinfected.

To disinfect the Drum:

1. Pour 1 gallon (4~L) of water and 1 teaspoon (5~mL) chlorine bleach into the Drum.
2. Let solution stand for 20 minutes, carefully swishing every few minutes, making sure to wet all inside surfaces of the Drum.
3. Empty Drum after 20 minutes. Rinse with water until bleach smell is gone. Allow Drum to dry completely before sealing the Motor on the Drum.

Casters

If your Casters are noisy, you may put a drop of oil on the Roller Shaft to make them quieter.

Storage

Before storing your Vac, the Drum should be emptied and cleaned. The Power Cord should be wrapped around the Carry Handle. The Hose Assembly should be stored as described in this manual. Accessories should be kept in the same area as the Vac so they can be readily available. The Vac should be stored indoors.

WARNING:

To assure product SAFETY and RELIABILITY, any other maintenance, repairs and adjustments should be performed by Authorized Service Centers, always using CRAFTSMAN replacement parts.

SERVICE / REPAIR PARTS

20 Gallon (75 Liter) Wet/Dry Vac With Cart

Model Number: CMXEVBE176560

Electrical Rating: 120V 12A60Hz

WARNING: SERVICING OF DOUBLE-INSULATED WET/DRY VAC

In a double-insulated Wet/Dry Vac, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added. Servicing a double-insulated Wet/Dry Vac requires extreme care and knowledge of the system, and should be done only by qualified service personnel. Replacement parts for a double-insulated Wet/Dry Vac must be identical to the parts they replace. Your double-insulated Wet/Dry Vac is marked with the words "DOUBLE INSULATED" and the symbol (square within a square) may also be marked on the appliance.

To reduce the risk of injury, unplug power cord before servicing the Wet/Dry Vac.

Key No.	Part No. Description
1	841579-1	Switch
2 510701	Top Handle & Hardware	(2 screws)
3 510706	Motor Cover with Labes
4 829719-1	7 Cord with Terminal
5 841364-1	Duct, Exhaust
6 820563-4	Screw, Pan Hd Tp "AB" 10 x 3/4" (19 mm) Ser.
7 819260-1	3 Lead Assembly
8 510379	Motor Assembly
9	818961	Spacer
10	818413 Blower Wheel
11	315534-1	Washer
12	826817 Nut, Hex Flange 5/16 -18
13	510582 Hose Clip Assembly with Screws
14	510567 Lid / Lid Assembly
15	840321	Collector
16	820563-5	Screw, Pan Hd Tp "AB" 10 x 1-1/4" (31 mm) Ser.
17 823	201-2 Filter Cage Assembly
18	CMXZVBE38754	Replacement Filter
19	CMXZVBE38749	Disposable Filter Bag
20	CMXZVBE38630	Utility Nozzle
21	CMXZVBE38620	Car Nozzle
22	CMXZVBE38621	Wet Nozzle
23	CMXZVBE37035	Crevice Tool
24	CMXZVBE38660	Diffuser
25	CMXZVBE38763	Hose Assembly
26	CMXZVBE38606	Extension Wand
27	SP7091 Instruction Manual

20 Gallon (75 Liter) Wet/Dry Vac With Cart Model Number: CMXEVBE176560

Always order by Part Number - Not by Key Number

20 Gallon (75 Liter) Wet/Dry Vac Model Number: CMXEVBE176560

WARNING: To reduce the risk of injury, unplug power cord before servicing the Wet/Dry Vac.
WARNING: All disassembly and repairs should be performed by qualified personnel.

Always order by Part Number - Not by Key Number

Key No. Part No.	Description
1 831805 Handle Assembly
2 510710 Dust Drum Assembly
3 73185 Drain Cap
4 830682 8" 20 cm) Wheel Assembly
5 831024-1 Shaft
6 831732 Foot Wheel, Right
7 831731 Foot Wheel, Left
8 828460 Foot, Caster with Storage
9 73102		Caster
10 831807-1 Accessory Storage Bag
11 820563-12 Screw Type "AB" # 0 x 1-3/4" (25 mm)
12 509748-4 Bag of Loose Parts (Includes Casters, Button Caps, Nut Caps & Screws)
13 831733 Handle, Left
14 831734 Handle, Right
15 820563-008 Screw, Pan Head Type "AB" #10 x 2-3/4" (69 mm)

CRAFTSMAN® LIMITED WARRANTY - 3 YEARS

This limited warranty is provided by Emerson Tool Company, a division of Emerson Electric Co., ("We" or "Our" or "Us") to the original consumer owner ("Customer" or "You" or "Your") of the CRAFTSMAN product with which this limited warranty is provided (the "CRAFTSMAN Product").

What is Covered

We warrant to You that your CRAFTSMAN Product will be free from defects in materials and workmanship when used under normal conditions in accordance with the terms of the Instruction Manual provided to You with the CRAFTSMAN Product, subject to the exclusions described below, for a period of three years commencing on the date of purchase by You (the "Warranty Period"). This limited warranty terminates if the original purchaser transfers the CRAFTSMAN Product to any other person or entity.

What is not Covered

This limited warranty does not extend to and expressly excludes:

• Normal wear and tear and/or replacement attachments or accessories, including, without limitation, power cords, hoses, filters, and other attachments or accessories that may be offered for sale by Us for use with the CRAFTSMAN Product.
• Damage or burnout of the CRAFTSMAN Product motor resulting from failure to clear a blockage occurring during the normal course of use.
• Loss or damage to the CRAFTSMAN Product resulting from conditions beyond Our control including without limitation, misuse, accident, abuse, neglect, negligence (other than Our's), overuse beyond intended capacity as set forth in the Instruction Manual, or modifications or alterations made by anyone other than Us.
• Loss or damage to the CRAFTSMAN Product resulting from failure to use the CRAFTSMAN Product in accordance with the written instructions, guidelines, and terms and conditions set forth in the Instruction Manual.
• TO THE EXTENT PERMITTED BY LAW, IN NO EVENT SHALL WE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, INCLUDING ANY ECONOMIC LOSS, WHETHER RESULTING FROM NONPERFORMANCE, USE, MISUSE OR INABILITY TO USE THE CRAFTSMAN PRODUCT OR FOR THE NEGLIGENCE OF ETC.

How to Obtain Service

US and Canada - To obtain warranty benefits contact us toll free at 1-888-331-4569 (Mexico 001-881-331-4569). We will direct you to the nearest service center to review your vacuum for inspection, repairs or replacement.

Mexico - To obtain warranty benefits contact us toll free at 001-881-331-4569. We will direct you to the nearest service center to review your vacuum for inspection, repairs or replacement.

No Other Express Warranty Applies

This limited warranty is the sole and exclusive warranty provided to You. No other express warranty, written or verbal, applies including, WITHOUT LIMITATION, WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. No employee, agent, dealer, or other person is authorized to alter this limited warranty or make any other warranty on behalf of Us.

What We will do to Correct Problems

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE LIMITED TO REPAIR, REPLACEMENT, REFUND OF THE CRAFTSMAN PRODUCT.

After You have contacted CRAFTSMAN Product Customer Service Department, We will initiate warranty proceedings, including a physical inspection, subject to the exclusions and the Warranty Period stated herein, to determine whether to repair or replace the CRAFTSMAN Product or provide You with a refund.

The decision to repair or replace your CRAFTSMAN Product or to provide a refund is at Our sole discretion. Repair or replacements provided to You by ETC are at no cost to You if covered under this limited warranty.

If we are unable to provide You with a suitable repaired or replacement CRAFTSMAN Product, we will provide you with a refund equal to the purchase price of your CRAFTSMAN Product or a credit to be used toward the purchase of a new CRAFTSMAN Product.

In the event of any dispute between CUSTOMER AND US, either party may choose to resolve the dispute by binding arbitration. THIS MEANS IF EITHER CUSTOMER OR US CHOOSE BINDING ARBITRATION, NEITHER PARTY SHALL HAVE THE RIGHT TO LITIGATE SUCH CLAIM IN COURT OR HAVE A JURY TRIAL. DISCOVERY AND APPEAL RIGHTS ARE LIMITED.

This limited warranty gives you specific legal rights, and you may also have other rights, which vary from State to State. Some states do not allow the exclusion of incidental or consequential damages, so the above limitation may not apply.

CRAFTSMAN

is a registered trademark of Stanley Block & Decker, Inc., used under license. es una marca registrada de Stanley Black & Decker, Inc., utilizes bajo licencia. est une marque deposee de Stanley Block & Decker, Inc., utilise sous licence.

C 2019 CRAFTSMAN

Product Manufactured by: EMERSON TOOL COMPANY
Producto fabricado par: B100 W. Florissant • St. Louis, MO 63136
Produit fabrique par: U.S. & Canada Only • E.-U. et Canada seulement

Product Manufactured by: EMERSON TOOL COMPANY

Poniente 146 No. 669, Col. Industrial Vallejo,

is a registered trademark of Stanley Block & Decker, Inc., used under license.

Product Manufactured by: EMERSON TOOL COMPANY
