USER MANUAL CMXEVBCB1260L Craftsman

INSTRUCTION MANUAL | GUIDE D'UTILISATION | MANUAL DE INSTRUCTIONES

12 U.S. GALLON* WET/DRY VAC WITH DETACHABLE BLOWER

IF YOU HAVE QUESTIONS OR COMMENTS, CONTACT US.

SI TIENE DUDAS O COMENTARIOS, CONTACTENOS.

POUR TOUTE QUESTION OU TOUT COMMENTAIRE, NOUS CONTACTER.

1-888-331-4569

WWW.CRAFTSMAN.COM

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

A UTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

(Used without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Filters Included:

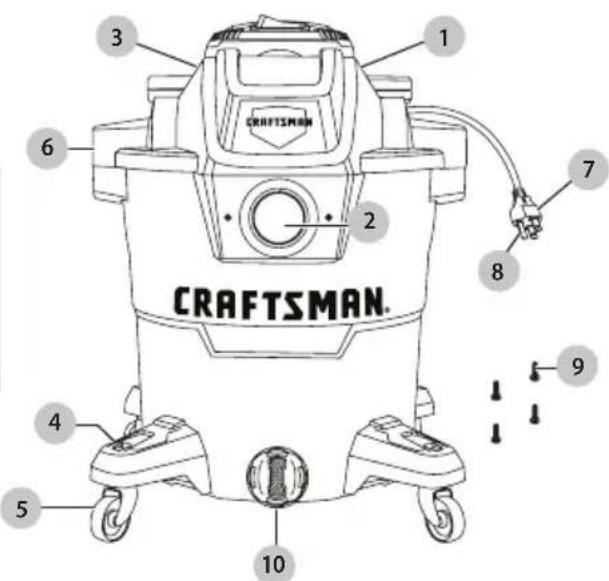

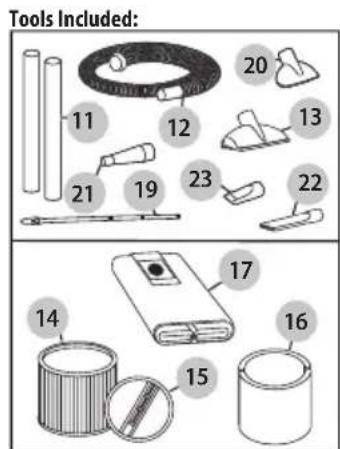

COMPONENTS

1 Vacuum
2 Hose Inlet
3 Detachable Blower
4 Caster Feet (4)
5 Casters (4)
6 Lid Latches

7 Plug
8 Grounding Pin
9 Screws (4)
10 Tank Drain
11 Extension Wands (2)
12 Hose

13 14" Floor Nozzle
14 Cartridge Filter
15 Retainer
16 Foam Sleeve
17 Filter Bag
18 Tool Holder

19 Hose Strap
20 8" Utility Nozzle
21 Concentrator Nozzle
22 Crevice Tool
23 Blower Nozzle

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: Never modify the product or any part of it. Damage or personal injury could result.

WARNING: To reduce the risk of injury, read the instruction manual.

If you have any questions or comments about this or any product, call CRAFTSMAN toll free at: 1-888-331-4569.

CMXEVBCB1260L

IMPORTANT SAFETY INSTRUCTIONS

Read all safety rules carefully before attempting to operate.

ANGER: Never operate this unit when flammable materials or vapors are present.

What can happen How to prevent it

Because electrical devices produce arcs or sparks, flammable materials and vapors can cause a fire or explosion.

Never use the vacuum around flammable materials or vapors.

WARNING: ALWAYS DISCONNECT THE PLUG FROM THE WALL OUTLET BEFORE REMOVING THE TANK COVER.

What can happen How to prevent it

Vacuum could turn on.

Always unplug power cord from the wall outlet before removing the tank cover.

WARNING: ALWAYS WEAR EYE PROTECTION.

What can happen How to prevent it

Rocks or debris can be blown or ricochet into the eyes or face which can result in serious injury.

Always wear eye protection while operating vacuum.

When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

WARNING: TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK OR INJURY:

a) Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing. Connect to a properly grounded outlet only. See Grounding Instructions.
b) Do not expose to rain - store indoors.
c) Do not allow to be used as a toy. Close attention is necessary when used by or near children.
d) Use only as described in this manual. Use only Manufacturer's recommended attachments.
e) Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return

to service center.
f) Do Not: pull or carry by cord, use cord as a handle, close a door on cord or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
g) Do not unplug by pulling on cord. To unplug, grasp the plug; not the cord.
h) Do not handle plug or appliance with wet hands.
i) Do not put any object into openings. Do not use with any openings blocked; keep free of dust, lint, hair and anything that may reduce air flow.
j) Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.
k) Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
1) Do not use without dust bag and/or filters in place.
m) Turn off all controls before unplugging.
n) Use extra care when cleaning on stairs.
o) Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
p) Do not use the cleaner as a sprayer of flammable liquids such as oil base paints, lacquers, household cleaners, etc.
q) Do not vacuum toxic, carcinogenic, combustible or other hazardous materials such as asbestos, arsenic, barium, beryllium, lead, pesticides or other health endangering materials. Specially designed units are available for these purposes.
r) Do not pick up soot, cement, plaster or drywall dust without cartridge filter and collection filter bag in place. These are very fine particles that may pass through the foam and affect the performance of the motor or be exhausted back into the air. Additional collection filter bags are available.
s) Do not leave the cord lying on the floor once you have finished the cleaning job. It can become a tripping hazard.
t) Use special care when emptying heavily loaded tanks.
u) To avoid spontaneous combustion, empty tank after each use.
v) The operation of a utility vac can result in foreign objects being blown into eyes, which can result in eye damage. Always wear safety goggles when operating vacuum.
w)STAY ALERT. Watch what you are doing and use common sense.Do not use vacuum cleaner when you are tired, distracted or under the influence of drugs, alcohol or medication causing diminished control.
x) WARNING: Do NOT use this vacuum cleaner to vacuum lead paint debris because this may disperse fine lead particles into the air. This vacuum cleaner is not intended for use under EPA Regulation 40 CFR Part 745 for lead paint material cleanup.

SAVE ALL WARNING AND INSTRUCTIONS FOR FUTURE REFERENCE

WARNING: DON NOT LEAVE VACUUM UNATTENDED WHEN IT IS PLUGGED IN AND/OR OPERATING.

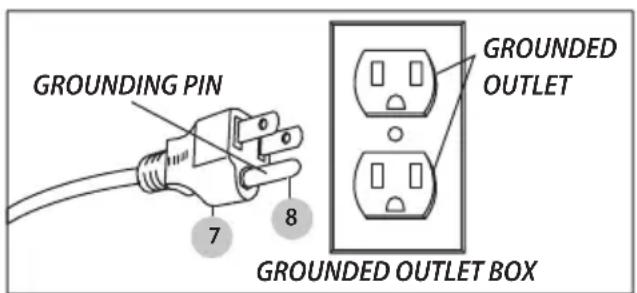

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING: IMPROPER CONNECTION OF THE EQUIPMENT-GROUNDING CONDUCTOR CAN RESULT IN A RISK OF ELECTRIC SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE PERSON IF YOU ARE IN DOUBT AS TO WHETHER THE OUTLET IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH THE APPLIANCE - IF IT WILL NOT FIT THE OUTLET, HAVE A PROPER OUTLET INSTALLED BY A QUALIFIED ELECTRICIAN.

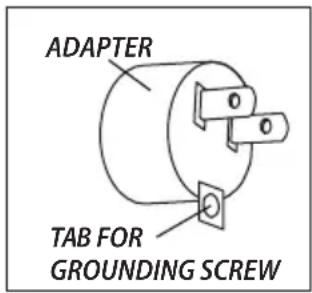

This appliance is for use on a nominal 120-volt circuit, and has a grounded plug 7 and grounding pin 8 that looks like the plug illustrated in Sketch A. A temporary adapter that looks like the adapter illustrated in Sketch B and C may be used to connect this plug to a 2-pole receptacle as shown in Sketch B if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet (Sketch A) can be installed by a qualified electrician. The green colored rigid ear, lug or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw.

Sketch A

Sketch CSketch B

IN CANADA, THE USE OF A TEMPORARY ADAPTER IS NOT PERMITTED BY THE CANADIAN ELECTRICAL CODE. Make sure that the appliance is connected to an outlet having the same configuration as the plug. No adapter should be used with this appliance.

EXTENSION CORDS

When using the appliance at a distance where an extension cord becomes necessary, a 3-conductor grounding cord of adequate size must be used for safety, and to prevent loss of power and overheating. Use TABLE A to determine A.W.G. wire size required. To determine ampere rating of the vacuum, refer to nameplate located on motor housing.

Before using appliance, inspect power cord for loose or exposed wires and damaged insulation. Make any needed repairs or replacements before using the appliance. Use only three-wire outdoor extension cords, which have three-prong grounding-type plugs and three-pole receptacles which accept the extension cord's plug. When vacuuming liquids, be sure the extension cord connection does not come in contact with the liquid.

NOTE:STATIC SHOCKS ARE COMMON IN DRY AREAS OR WHEN THE RELATIVE HUMIDITY OF THE AIR IS LOW. THIS IS ONLY TEMPORARY AND DOES NOT AFFECT THE USE OF THE APPLIANCE. TO REDUCE THE FREQUENCY OF STATIC SHOCKS IN YOUR HOME, THE BEST REMEDY IS TO ADD MOISTURE TO THE AIR WITH A CONSOLE OR INSTALLED HUMIDIFIER.

TABLE A

Volts	Total length of cord in feet
120V	25 50	100		150
Ampere Rating More Not More Than Than	AWG
0 - 6	18	16	16	14
6 - 10	18	16	14	12
10 - 12	18	16	14	12

UNPACKING

Pull lid latches 6 in an outward motion and remove tank cover. Remove any accessories and literature that may have been packed in the vacuum tank.

ASSEMBLY Caster System Assembly

You will find four casters 5, four caster feet 4 and four screws with this wet/dry vacuum.

Assemble as follows:

1. With cord disconnected from the receptacle and tank cover removed, turn tank upside-down so bottom is facing up.

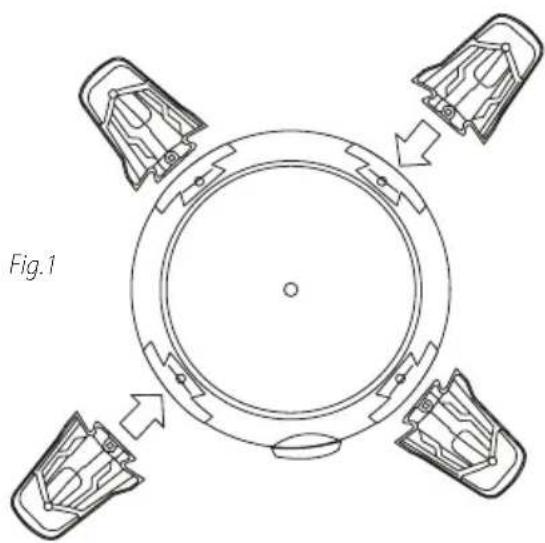

2. Take caster feet 4 and place into slots on tank. Fig. 1.

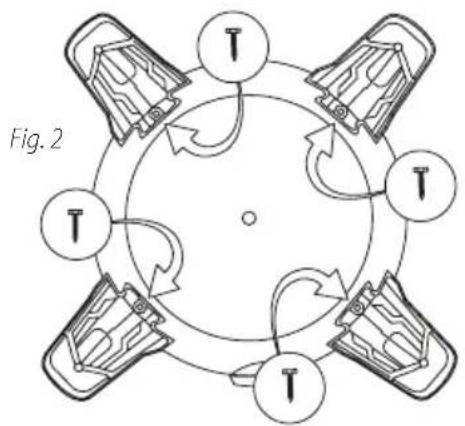

1. Secure caster feet 4 to tank with screws 9 provided. Fig.2.

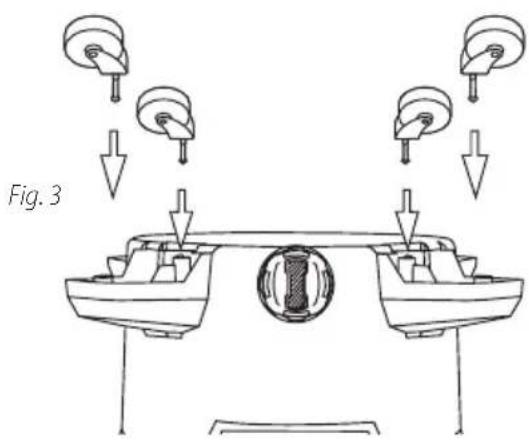

1. Insert casters 5 into caster feet 4 by placing the caster stems into the holes provided. Apply pressure and twisting motion until casters 5 snap into place. Fig.3.

1. Return tank to upright position.

GENERAL SETUP

1. Before replacing tank cover, refer to Dry Pick Up or Wet Pick Up Operation in user manual to ensure you have the proper filters installed for this cleaning operation.
2. Replace tank cover, and apply pressure with thumb to each latch until it snaps tightly into place. Make certain all lid latches are clamped securely.
3. Insert hose 12 into inlet of tank 2. Do not over-tighten.
4. Attach the extension wands 11 to the accessory end of the hose. Twist slightly to tighten the connection. Fig. 4.

1. Attach one of the cleaning accessories (depending on your cleaning requirements) on the extension wands 11. Twist slightly to tighten the connection. Fig. 4.
2. Plug the cord 7 into the wall outlet. Your cleaner is ready for use. I = ON, O = OFF

1. Never operate the portable blower 3 in wet or damp conditions. Do not use in rain.
2. Keep area of operation clear of all persons, particularly small children and pets.
3. Dress properly. Do not wear loose clothing or jewelry. Always wear substantial footwear and long pants. Secure loose hair with a hat or hair net to avoid hair being caught in moving parts.
4. Never blow debris in direction of bystanders.
5. Do not overreach or use blower 3 from unstable surface such as ladders, trees, steep slopes, roof tops, etc. Always be sure of your footing.
6. Inspect the area before using the blower 3 . Remove all debris and hard objects such as rocks, glass, wire, etc. that can be blown or cause damage during operation.
7. Always wear a respirator or face mask when working in dusty environments.
8. Keep vents clean and clear of dirt and debris.

ENGLISH

Assembly Instructions

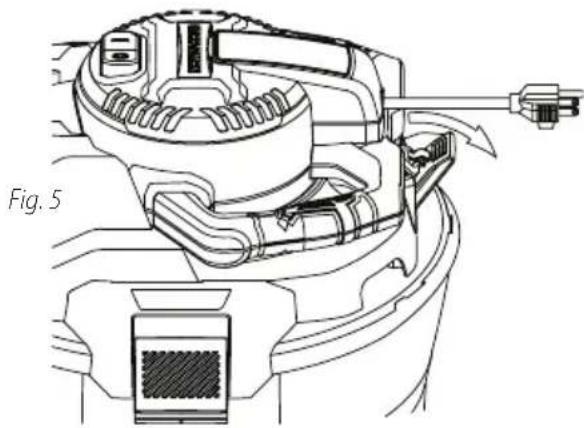

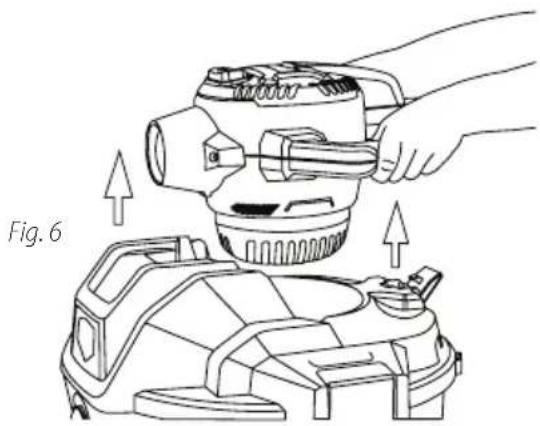

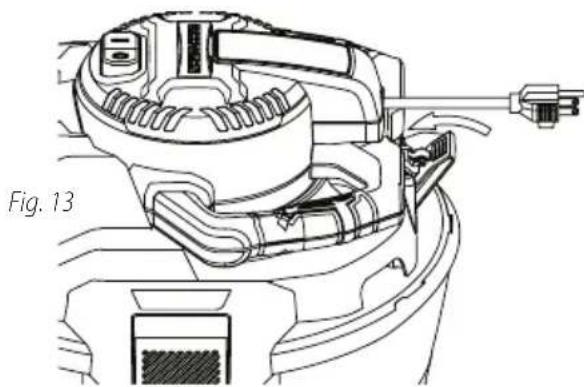

1. To remove portable blower 3 from tank cover, pull blower latch down to unlock blower 3 Fig.5, grasp both blower handles and pull in an upward motion. Fig.6.

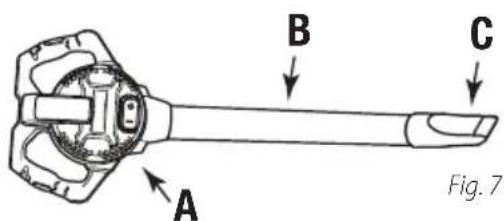

1. Insert 2-1/2" extension wand 11 (B) into the blower exhaust (A). Push firmly into place by twisting wand 11 slightly. Attach desired accessory (C). Fig. 7.

1. Plug the cord into an electrical outlet. Your portable blower 3 is ready for use. NOTE: If an extension cord is used, use only an approved outdoor extension cord. To prevent extension cord from pulling away from appliance cord, tie cords as shown. Fig. 8.

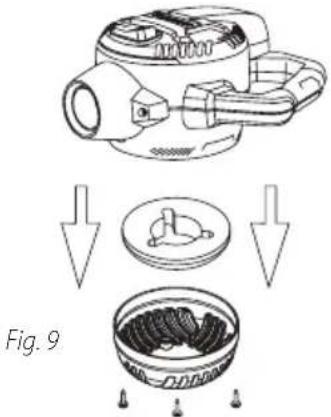

1. To clean inlet shield and foam pad, disconnect cord from receptacle and remove screws on bottom side of power unit. Fig. 9.

1. Once removed, run foam pad under running water and blot with clean towel to dry.

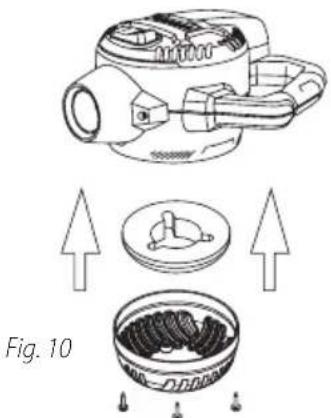

   25 After cleaning, replace inlet shield and foam pad and secure with screws. NOTE: Inlet shield will only fit properly one way. Fig. 10.

AUTION: DO NOT OPERATE BLOWER WITHOUT INLET SHIELD AND FOAM IN PLACE.

BLOWER OPERATION

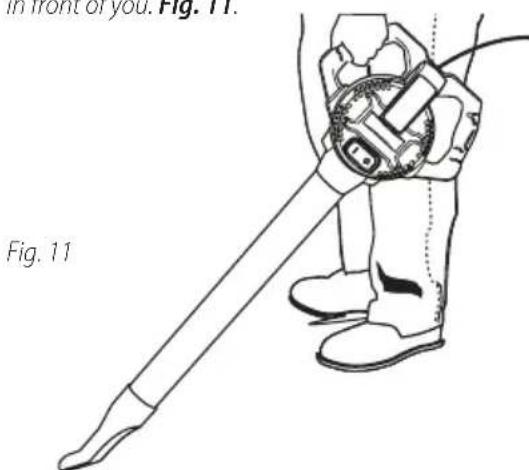

1. The correct operating position is to hold the portable blower 3 in either hand, at arms length at your side. Your portable blower 3 has been designed with the necessary angle to direct the air blast toward the ground in front of you. Fig. 11.

1. Always work going away from solid objects such as walls, large stones, automobiles and fences.
2. Clean spaces with corners by starting in corners and moving outward to open areas to prevent an accumulation of debris which could fly into your face.
3. Be careful when working near valuable plants. The force of the air could damage tender plants.
4. Use both handles when working above the waist or when two-handed grip is desired.
5. Reattach blower 3 for wet/dry operation by placing blower back into nest on tank cover. Fig. 12. Pull blower latch to lock blower in nest. Fig. 13.

FILTER INSTALLATION AND CLEAN UP Dry Pick Up Operation

NOTE: Never use the vacuum for dry pick up without a dry use filter installed on the lid cage. Using the vacuum without a filter will cause dust to discharge and cause damage to motor.

INSTALLING AND CLEANING THE CARTRIDGE FILTER14, 15:

WARNING: ALWAYS DISCONNECT THE PLUG FROM THE WALL OUTLET BEFORE REMOVING THE TANK COVER.

NOTE: If foam sleeve 16 is installed on lid cage, remove before installing the cartridge filter 14.

1. The cartridge filter 14 can be used for dry pick up and small quantities of wet pick up. Installation is the same for both. When picking up large quantities of water we recommend using a foam sleeve 16 instead of the cartridge filter. When picking up fine dust or powders a high efficiency filter bag (not standard with all models) must be used with the cartridge filter 14.

NOTE: If cartridge filter 14 has been used for wet pick up, it must be cleaned and dried before using it for dry pick up.

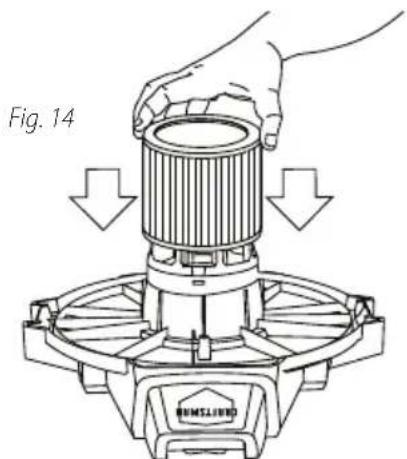

1. With the tank cover in an upside down position, slide the cartridge filter 14 down over the lid cage, pushing until the filter seals against the cover. Fig. 14.

1. Place filter retainer15 into the top of the cartridge filter 14.Fig.15.

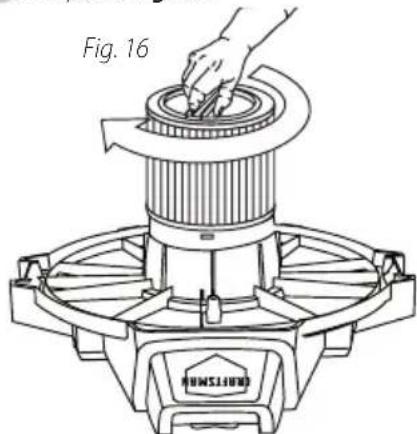

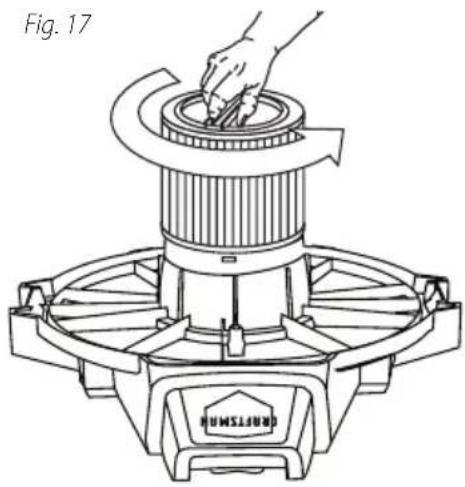

1. Hold the tank cover with one hand, turn the handle on the filter retainer 15 clockwise to tighten, locking the filter 14 into place. Fig. 16.

ENGLISH

1. To remove the cartridge filter 14 for cleaning, again hold the tank cover and turn the filter retainer 15 counterclockwise to loosen and remove. Fig. 17.

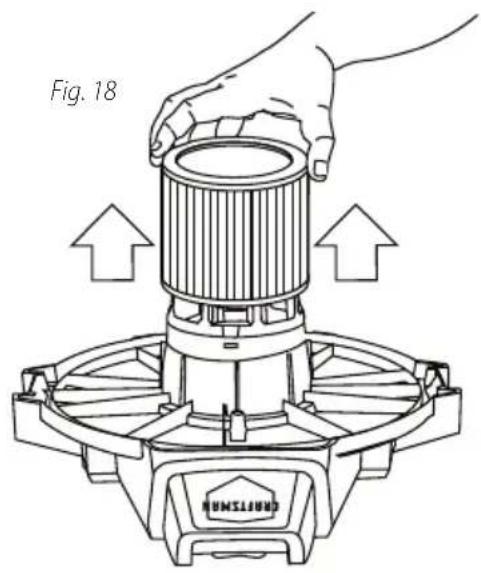

1. Slide the cartridge filter 14 off the lid cage. Fig. 18.

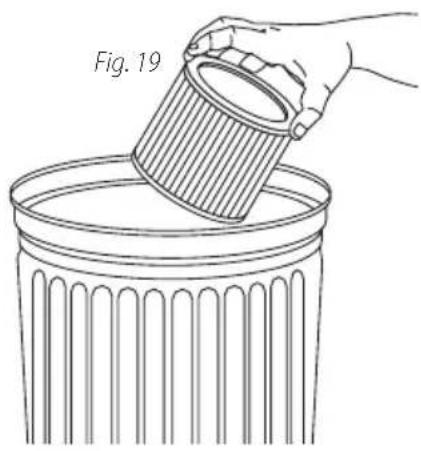

38 To clean cartridge filter 14 shake or brush off excess dirt. Fig. 19.

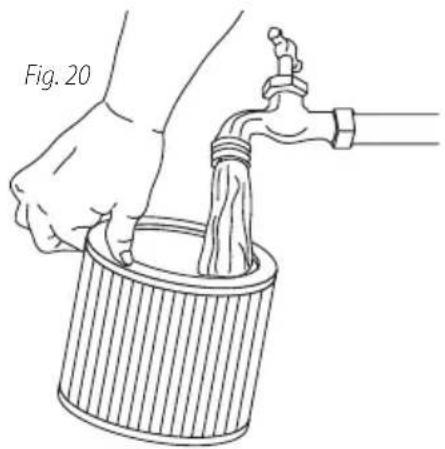

1. Or rinse (from the inside of the filter 14) with water. Fig.20.Dry completely (approximately 24 hours).

INSTALLING FILTER BAG17:

Use the filter bag 17 in conjunction with the cartridge filter 14 for easy disposal of the debris. The bag is not required for normal dry pick up. When picking up fine dust or powders a high efficiency filter bag must be used. NOTE: For dry use only.

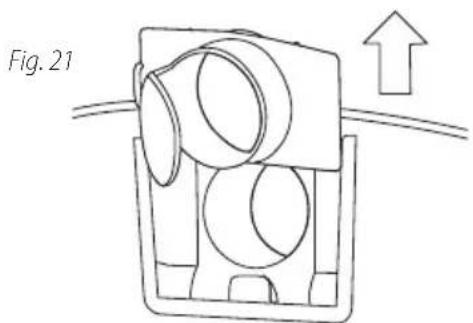

1. Remove inlet deflector from deflector guide. NOTE: Hose 12 must be removed before inlet deflector can be taken out. Fig. 21.

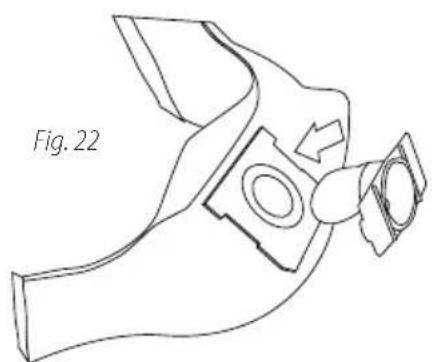

1. With the opening of the inlet deflector facing the left or right side of the filter bag 17, slide filter bag 17 collar over deflector matching notches of bag collar to tabs on inlet deflector. Bag will only fit properly one way. Fig. 22.

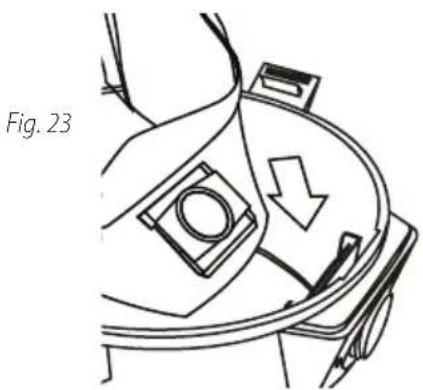

1. Slide deflector with filter bag 17 attached into deflector guide. Fig. 23.

1. Reinsert hose 12 into inlet and tighten locking-nut. When secured in place expand bag 17 and position around inside of tank.
2. NOTE: When removing filter bag 17 from tank, remove inlet deflector from filter bag collar and reinstall into deflector guide. Inlet deflector should always be in place for any type of cleaning.

WARNING: KEEP FILTERS CLEAN. EFFICIENCY OF THE VACUUM IS LARGELY DEPENDENT ON THE FILTER. A CLOGGED FILTER CAN CAUSE OVERHEATING AND POSSIBLY DAMAGE THE CLEANER. CHECK THE FILTER PERIODICALLY AND REPLACE AS REQUIRED.
WARNING:FOR FINE DUST POWDERS

When vacuuming fine dust, or powders of any kind (plaster, drywall dust, cold ashes, concrete dust, etc.) a high efficiency drywall filter bag must be used. When vacuuming normal household dust and debris, standard household disposable filter bags may be used.

1. Check the filter 17 for tears or small holes. If none are found, reinstall the filter. To prevent damage to this vacuum, do not use a filter with a hole or a tear.

1. Your vacuum can be used for wet pick up. Remove ALL dirt and debris found in the tank. Remove all dry use only filters, including the filter bag, 17 from this vacuum.
2. A clean cartridge filter 14 may be used to pick up small quantities of liquid. To use the cartridge filter 14; follow the cleaning and installation instructions under dry pick up.
3. For vacuuming large quantities of liquid use a foam sleeve 16. To use the foam sleeve; follow the installation instructions in this section.

4. Misting in the exhaust air or dripping of liquid around the tank cover may occur if the filter becomes saturated during wet pick up. If this occurs, remove the filter 16 and allow to dry, or replace with another dry filter.

5. Turn the unit off immediately upon completing a wet pick up job or when tank is full and ready to be emptied. When the tank is full, suction will drastically reduce. Refer to "automatic suction shut off" in this manual. Raise the hose 12 to drain any excess liquid into the tank. Follow the "emptying liquid waste" section in this manual.

6. Before storing the vacuum cleaner or using for dry pick up, clean and dry the interior of the tank and the underside of the tank cover. Clean and allow the filters to dry completely.

NOTE: WET PICK UP ACCESSORIES SHOULD BE WASHED PERIODICALLY; ESPECIALLY AFTER PICKING UP WET, STICKY ACCIDENTS. THIS CAN BE ACCOMPLISHED WITH A WARM SOLUTION OF SOAP AND WATER.

FOAM SLEEVE INSTALLATION AND CLEANING:

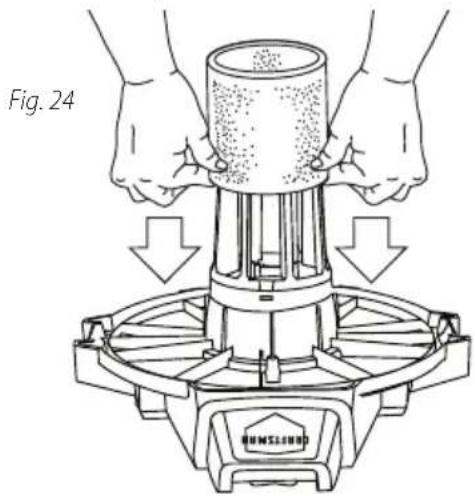

1. With tank cover in an upside down position, slide foam sleeve 16 down over lid cage pulling until foam sleeve 16 completely covers lid cage. Fig. 24.

WARNING: TO CLEAN THE FOAM SLEEVE, DISCONNECT THE PLUG FROM THE WALL OUTLET. REMOVE THE TANK COVER AND PLACE THE COVER IN AN UPSIDE-DOWN POSITION. REMOVE FOAM SLEEVE BY SLIDING IT UP AND OFF THE LID CAGE.

1. Shake excess debris off of the foam sleeve 16 with a rapid up and down movement.
2. Hold foam sleeve 16 under running water for a minute or two, rinsing from the inside of the filter. A water wash is not always required, depending on the condition of the foam sleeve 16.
3. Check the filter 16 for tears. If any are found, replace with a new filter.

WARNING: ALWAYS WEAR EYE PROTECTION TO PREVENT ROCKS OR DEBRIS FROM BEING BLOWN OR RICOCHETING INTO THE EYES OR FACE WHICH CAN RESULT IN SERIOUS INJURY.

ENGLISH

EMPTYING LIQUID WASTE FROM THE TANK

1. Your wet/dry vacuum can be emptied of liquid waste by removing the drain cap 10. To empty, turn unit off and remove plug from the wall receptacle. Remove the drain cap and deposit the liquid waste contents in a suitable drain. After the tank is empty, return the drain cap to its original position. To continue use, plug the cord into the wall receptacle and turn the unit on. Use side carry handles for lifting vac when draining tank into drains that are located above floor level.

AUTOMATIC SUCTION SHUT-OFF

1. The vacuum is equipped with an automatic suction shut-off that operates when picking up liquids. As the level of the liquid rises in the tank, an internal float rises until it seats itself against a seal at the intake of the motor, shutting off suction. When this happens, the motor will develop a higher than normal pitch noise and the suction is drastically reduced. If this occurs, turn unit off immediately. Failure to turn unit off after float rises and shuts off suction will result in extensive damage to the motor. To continue use, empty the liquid waste from the tank as outlined in the previous section.

NOTE: IF ACCIDENTALLY TIPPED OVER, THE VACUUM COULD LOSE SUCTION. IF THIS OCCURS, TURN UNIT OFF AND PLACE VAC IN UPRIGHT POSITION. THIS WILL ALLOW THE FLOAT TO RETURN TO ITS NORMAL POSITION, AND YOU WILL BE ABLE TO CONTINUE OPERATION.

LUBRICATION

1. No lubrication is necessary as the motor is equipped with lifetime lubricated bearings.

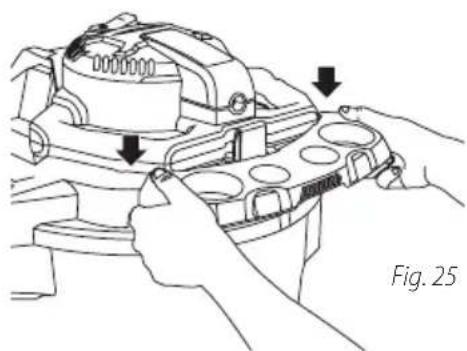

TOOL STORAGE

1. Set tank cover onto the tank. Position back of tank facing you.
2. Take tool holder 18 and slide over notches located on rear of tank. Fig. 25.

HOSE STRAP

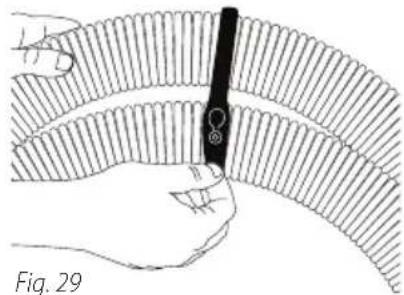

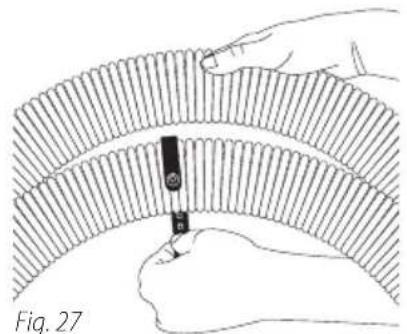

1. Wrap hose strap 19 Fig. 26 around hose 12 aligning raised areas on back of strap 19 into a groove on hose 12 Fig. 27.

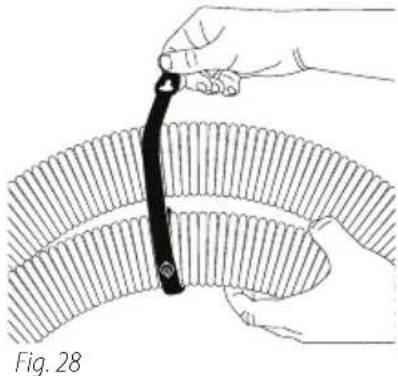

2. Insert button #1 into button hole #1 Fig. 28 (this may be difficult at first), continue to wrap hose strap 19 around hose 12 Fig. 28. Insert button #2 into button hole #2 Fig. 29.

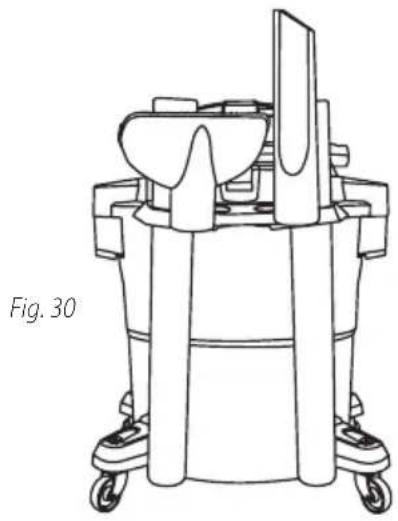

1. Place vacuum tools in tool holder 18. Fig. 30. The vacuum should be stored indoors.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
  CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
  FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.

Register online at www.craftsman.com/registration

Three Year Limited Warranty

CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call

1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDING ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

90 DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your CRAFTSMAN Wet Dry Vacuum for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund - no questions asked.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a free replacement.

TROUBLESHOOTING GUIDE

BE SURE TO FOLLOW SAFETY RULES AND INSTRUCTIONS

For assistance with your product, visit our website at www.craftsman.com for a list of service centers, or call CRAFTSMAN at 1-888-331-4569.

PROBLEM CAUSE CORRECTION

Loss of suction wet pick up Clogged filter. Clean filter, see steps 52-54 on page 8.

Full tank. Empty tank, see step 56 on page 9.

Loss of suction dry pick up Full tank. Empty tank.

Clogged filter. Clean filter, see steps 36-39 on pages 7.

Loss of suction or misting Full tank. Drain and clean tank, see step 56 on page 9.

during wet pick up Saturated filter. Clean filter, see step 49 on page 8.

*Tank capacity refers to actual tank volume, and does not reflect capacity available during operation.

Register online at www.craftsman.com/registration

PROBLEM CAUSE CORRECTIF
