USER MANUAL CMXEVBE17925 Craftsman

IF YOU HAVE QUESTIONS OR COMMENTS, CONTACT US.

POUR TOUTE QUESTION OU TOUT COMMENTAIRE, NOUS CONTACTER.

SI TIENE DUDAS O COMENTARIOS, CONTÁCTENOS.

1-888-331-4569

WWW.CRAFTSMAN.COM

Part No. SP7085 Printed in Mexico

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: injury.

Indicates a hazardous situation which, if not avoided, will result in death or serious

WARNING: serious injury.

Indicates a hazardous situation which, if not avoided, could result in death or

CAUTION: injury.

Indicates a hazardous situation which, if not avoided, may result in minor or moderate

(Used without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

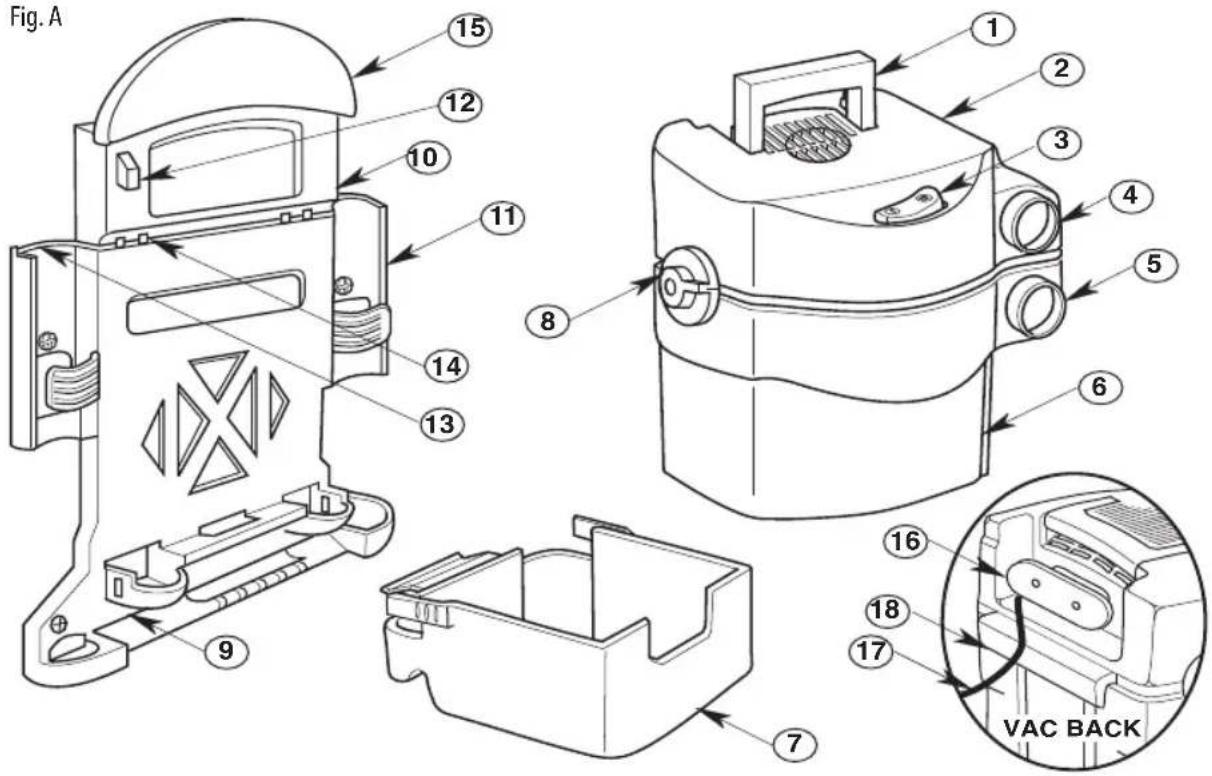

Fig. A 15 12 10 11 14 13 8 1 2 3 4 5 6 9 16 18 17 7 VAC BACK

Components

① Carry Handle

② Vac Motor Assembly

3 ON/OFF Switch

④ Blowing Port

⑤ Vac Inlet Port

⑥ Vac Dust Drum

⑦ Accessory Storage Bin

⑧ Vac Drum Locks (2)

9 Storage Lower Rack

⑩ Storage Upper Rack

⑪ Wand Slots (2)

⑫ Vac Release Tab

⑬ Cord Keeper

⑭ Cord Retainer

⑮ Hose Storage Area

⑯ Cord Wrap Area

⑰ Power Cord

⑱ Vac Upper Hook

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: Never modify the product or any part of it. Damage or personal injury could result.

WARNING: To reduce the risk of injury, read the instruction manual.

If you have any questions or comments about this or any product, call CRAFTSMAN toll free at: 1-888-331-4569.

IMPORTANT SAFETY INSTRUCTIONS

When using this Vac, always follow basic safety precautions including the following:

WARNING:

To reduce the risk of fire, electric shock, or injury:

• Read and understand this manual and all labels on the Vac before operating.
• Use only as described in this manual.
• Do not leave Vac running while unattended - you may fail to notice important signs indicating abnormal operation such as loss of suction, debris/liquid exiting exhaust, or abnormal motor noises. Immediately stop using Vac if you notice these signs.
• Do not leave Vac when plugged in. Unplug from outlet when not in use and before servicing.
• Sparks inside the motor can ignite flammable vapors or dust. To reduce the risk of fire or explosion, do not use near combustible liquids, gases, or dusts, such as gasoline or other fuels, lighter fluid, cleaners, oil-based paints, natural gas, coal dust, magnesium dust, grain dust, aluminum dust, or gun powder.
• Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• To avoid the risk of self-ignition of drum debris, empty drum after each use. Combustible materials, such as rags or saw dust containing stain or urethane, can be sources of such overheating.
• Do not vacuum drywall dust, cold fireplace ash, or other fine dusts with standard filter. These may pass through the filter and be exhausted back into the air. Use a fine dust filter instead.
• To reduce the risk of inhaling toxic vapors, do not vacuum or use near toxic or hazardous materials.
• This Wet/Dry Vac is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• To reduce the risk of electric shock, do not expose to rain or allow liquid to enter motor compartment. Store indoors.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Do not use with a torn filter or without the filter installed except when vacuuming liquids as described in this manual. Dry debris ingested by the impeller may damage the motor or be exhausted into the air.

• Turn off Vac before unplugging.

• To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use with damaged cord, plug, or other parts. If your Vac is not working as it should, has missing parts, has been dropped, damaged, left outdoors, or dropped into water, call customer service at 1-888-331-4569 (Mexico 001-881-331-4569).
• Do not handle plug, switch, or the Vac with wet hands.
• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or corners. Do not run Vac over cord. Keep cord away from heated surfaces.
• Use only extension cords that are rated for outdoor use. Extension cords in poor condition or too small in wire size can pose fire and shock hazards. To reduce the risk of these hazards, be sure the cord is in good condition and that liquid does not contact the connection. Do not use an extension cord with conductors smaller than 1,3 mm ^2 (16 AWG) in size.
• This Vac is double-insulated, eliminating the need for a separate grounding system. Use only identical replacement parts. Read the instructions for Servicing Double-Insulated Wet/Dry Vacs.
• Do not put any object into ventilation openings. Do not vacuum with any ventilation openings blocked; keep free of dust, lint, hair, or anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• To reduce the risk of falls, use extra care when cleaning on stairs.
• To reduce the risk of personal injury or damage to Vac, use only CRAFTSMAN recommended accessories.
• Do not mount storage rack over 5 feet (152 cm) from the ground.
• Do not attach screws to drywall only. Make sure screws are attached to studs on 16 inch (41 cm) centers.
• Do not sit or hang on storage rack.
• Do not exceed maximum weight limit of 40 pounds on storage rack.
• When using as a blower:
• Direct air discharge only at work area.
• Do not direct air at bystanders.
• Keep children away when blowing.
• Do not use blower for any job except blowing dirt and debris.
• Do not use as a sprayer.
• To reduce the risk of eye injury, wear safety eyewear. The operation of any utility Vac or Blower can result in foreign objects being blown into the eyes, which can result in severe eye damage.

CAUTION:

• To reduce the risk of hearing damage, wear ear protectors when using for an extended time or in a noisy area.
• For dusty operations, wear dust mask.
• Static shocks are common when the relative humidity of the air is low. Vacuuming fine debris with your Vac can deposit static charge on the hose or Vac. To reduce the frequency of static shocks in your home or when using this Vac, add moisture to the air with a humidifier.

Observe the following warnings that appear on the motor housing of your Vac:

DOUBLE INSULATED. GROUNDING NOT REQUIRED. WHEN SERVICING USE ONLY IDENTICAL REPLACEMENT PARTS.

WARNING:

• For your own safety, read and understand Instruction Manual.
• Do not run unattended.
• Do not pick up hot ashes, coals, flammable, combustible / self-igniting, toxic, or other hazardous materials.
• Do not use around explosive liquids or vapors.

WARNING:

To reduce the risk of electric shock - do not expose to rain - store indoors.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a free replacement.

SAVE THESE INSTRUCTIONS

INTRODUCTION

This Wet/Dry Vac is intended for household use. It may be used for light vacuuming of wet or dry media. The light weight design allows usage for most small household vacuuming chores.

Read this Instruction Manual to familiarize yourself with the product features and to understand the specific usage of your new Wet/Dry Vac.

TABLE OF CONTENTS

Section	Page
Important Safety Instructions	2-4
Introduction	4
Carton Contents	5
Installation	6-12
Assembling Upper & Lower Racks	6
Assembling Accessory Bin to Lower Rack	6
Mounting Storage Rack to Wall	7
Vac Assembly	8
Hanging Vac on Storage Rack	9
Insert Hose	10
Removing Vac from Storage Rack	10
Accessory Storage	11
Cord Storage	11
Diffuser Assembly	11
Hose Storage	12
Operation	13-15
Polarized Plug	13

Section	Page
Power Switch	13
Vacuuming Dry Materials	14
Vacuuming Liquids	14
Emptying the Drum	14
Blowing Feature	15
Maintenance	16-17
Filter	16
Filter Removal	16
Filter Installation	16
Filter Cleaning	17
Cleaning A Dry Filter	17
Cleaning A Wet Filter	17
Cleaning and Disinfecting the Wet/Dry Vac	17
Storage	17

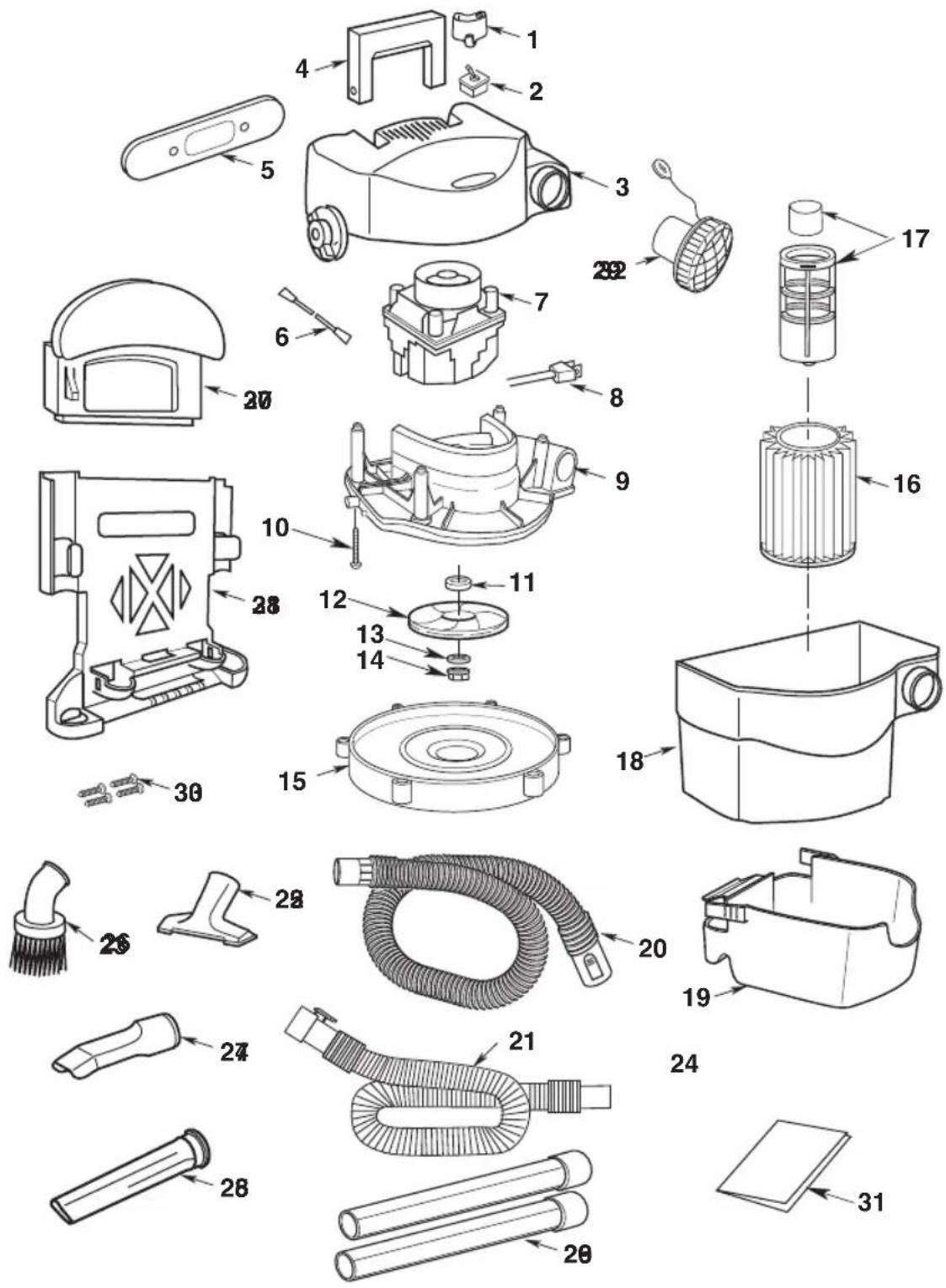

Service / Repair Parts	18-19
Warranty	21

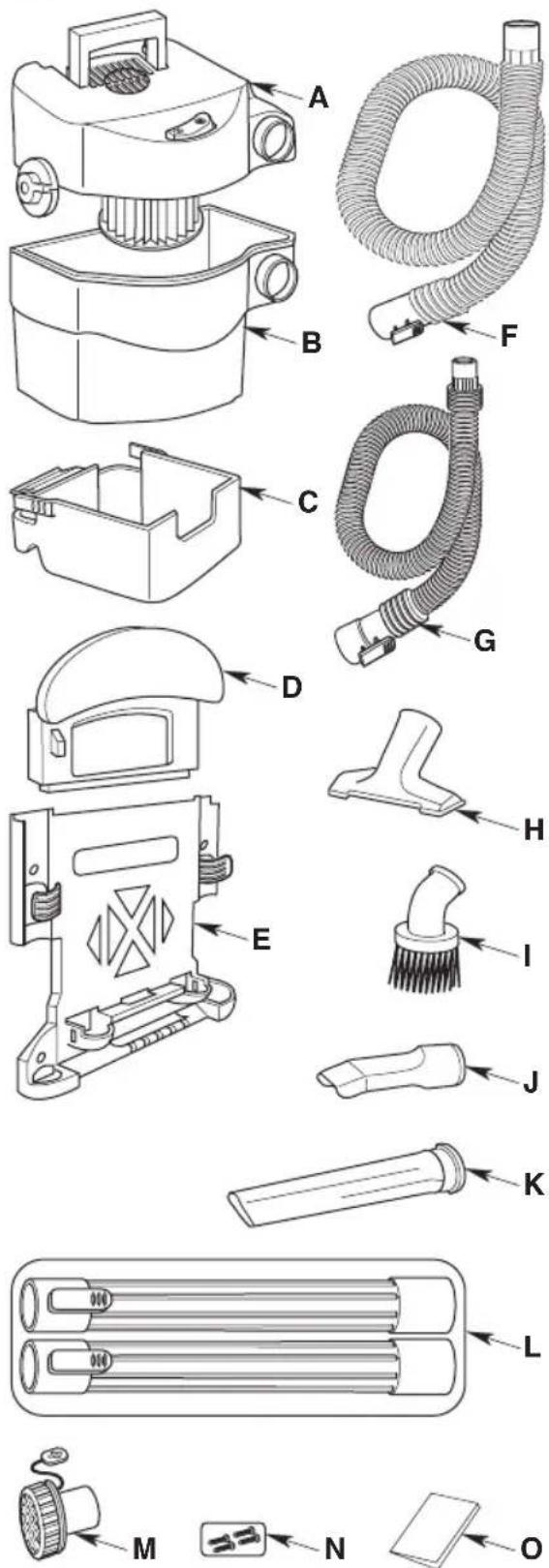

CARTON CONTENTS (Fig. B)

Remove entire contents of carton. Check each item against the Carton Contents List.

If any parts are damaged or missing, immediately call Customer Service at 1-888-331-4569 (Mexico 001-881-331-4569).

Fig. B

Technical diagram of a hair dryer with labeled parts including motor, hose, and accessories

CMX5GallonKey Description (18 Liter)
A Vac Motor Assembly 1
B Vac Dust Drum 1
C Accessory Storage Bin 1
D Storage Upper Rack 1
E	Storage Lower Rack	1
F	14-Foot (4.3 m) Pos-I-Lock®Hose Assembly	1
G 7	-Foot (2.1 m) Pos-I-Lock®Hose Assembly	1
H Utility Nozzle		1
I	Dusting Brush	1
J	Car Nozzle	1
K Crevice Tool		1
L	Extension Wands	2
M	Diffuser	1
N #	10 x 1-3/4" (25 mm)Wood Screws	4
O Instruction Manual		1

Filter may already be assembled. Replacement Filters are sold as Stock Number: CMXZVBE38741.

Tools Required:

Phillips Screwdriver

INSTALLATION

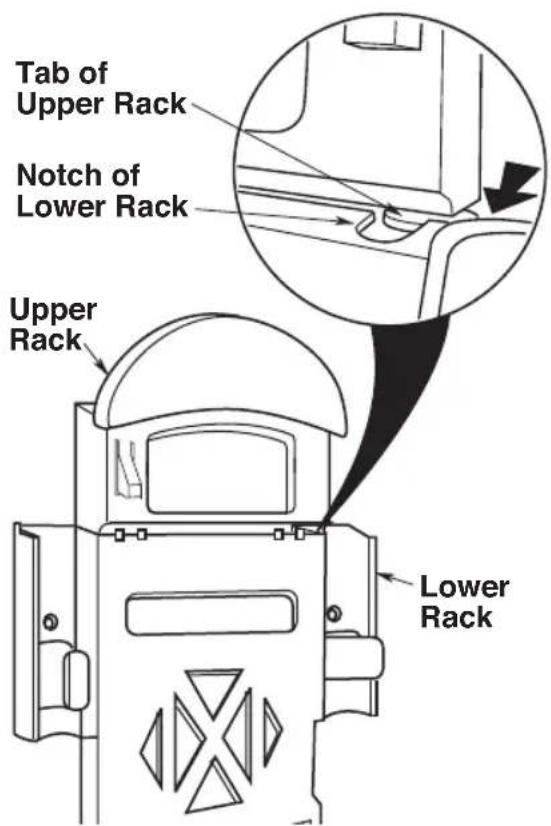

Assembling Upper and Lower Racks (Fig. C)

1. Align the Tabs in the Upper Rack with Notches in Lower Rack.
2. Slide Upper Rack forward until the center Hook on the Lower Rack engages the bottom flange of the Upper Rack. You will hear an audible click when the Lock engages.

WARNING:

To reduce the risk of fire or electric shock, unplug Vac when not in use. Never leave running while unattended.

Fig. C

Tab of Upper Rack Notch of Lower Rack Upper Rack Lower Rack

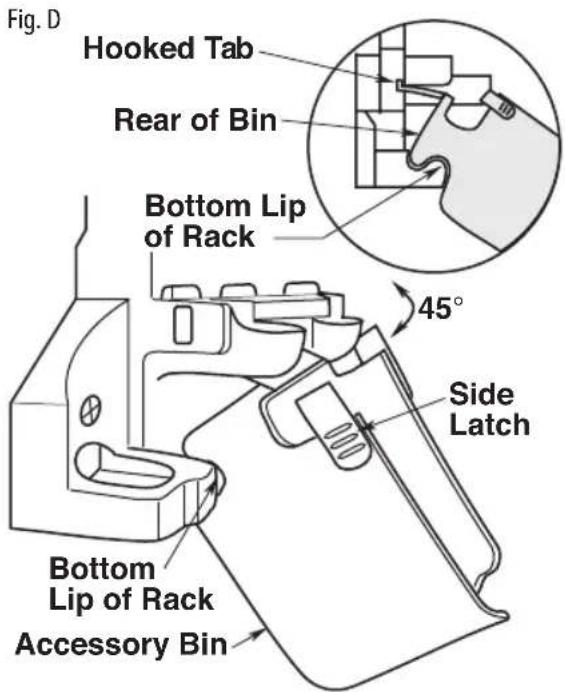

Assembling Accessory Bin to Lower Rack (Fig. D & E)

1. With the Accessory Bin angled down approximately 45^ , hook the rear of the Bin over the bottom lip on the Rack.

Fig. D Hooked Tab Rear of Bin Bottom Lip of Rack 45° Side Latch Bottom Lip of Rack Accessory Bin

1. Depress Hooked Tab and rotate Accessory Bin up and back until Tab Snaps into the opening in the Lower Rack.
2. Continue to rotate the Bin until the side Latches engage openings in Rack and the Bin is in a horizontal position.

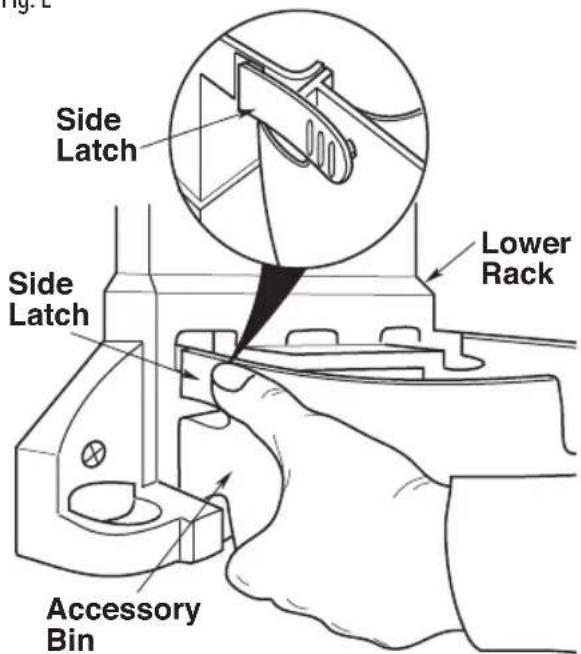

Fig. E

Side Latch Lower Rack Side Latch Accessory Bin

Mounting Storage Rack to Wall (Fig. F)

WARNING:

• Do not mount over 5-feet (152 cm) from the ground.
• Do not attach Screws to drywall only. Make sure Screws are attached to studs on 16-inch (41 cm) centers.
• Do not sit or hang on Storage Rack.

• Do not exceed maximum weight limit of 40 pounds.

• Choose a location that is indoors and not exposed to rain. For best performance and easy access, position the Storage Rack so the center of the Vacuum Inlet Port is no more that five feet from floor and no more than 18-inches (46 cm) from the electrical outlet.

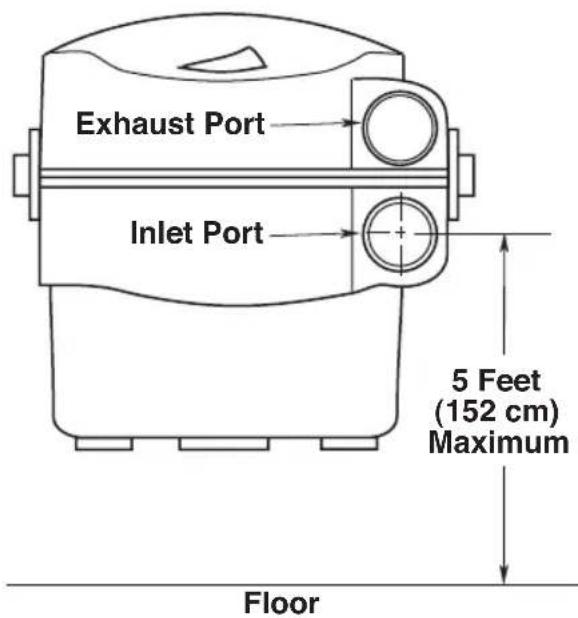

Fig. F

Exhaust Port Inlet Port 5 Feet (152 cm) Maximum Floor

1. The screw holes in the Storage Rack are spaced 16-inches (41 cm) apart to correspond with standard wall stud spacing. Locate two wall studs and position the Storage Rack so that all four screw holes are over the studs.
2. Level the Rack and mark the hole locations. Drill a 1/8-inch (3.2 mm) diameter pilot hole at each location.
3. Attach the Storage Rack to wall studs using the four Screws provided. Make sure all four Screws are driven securely into the wall studs.
4. Use Drywall Anchor (provided) to secure Upper Rack to wall. Drill 1/4-inch (6.5 mm) diameter pilot hole in drywall. Insert Anchor and drive metal head tight against plastic washer.
5. If your wall studs are not located 16-inches (41 cm) apart or the desired location does not align with the wall studs, a 1/2-inch (12.7 mm) thick plywood panel 30-inches wide, must be attached to the studs with the four screws provided.
6. The Storage Rack may then be attached to the plywood panel with five 1-inch (25.4 mm) #10 Pan or Round Head Wood Screws (not provided).

NOTE: Supplied wood screws are intended for mounting to typical wall construction consisting of 5/8-inch (15.9 mm) drywall or less.

CAUTION:

To prevent plywood, Storage Rack, or Wet/Dry Vac from falling, make sure you have selected the proper length of fastener for the secure mounting of storage rack to the wall.

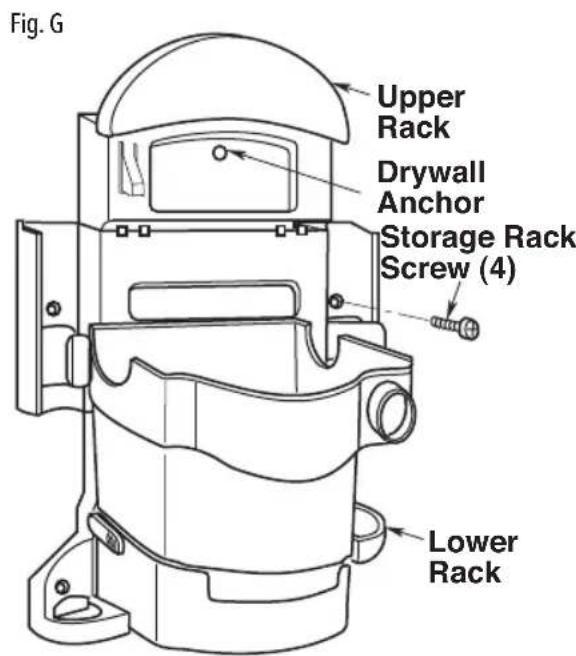

Fig. G Upper Rack Drywall Anchor Storage Rack Screw (4) Lower Rack

Vac Assembly (Fig. H, I, J & K)

1. Wind the Power Cord clockwise (from the rear) around the Cord Wrap Area on back of Vac Motor Assembly.

Fig. H

Cord CLOCKWISE Cord Wrap Area

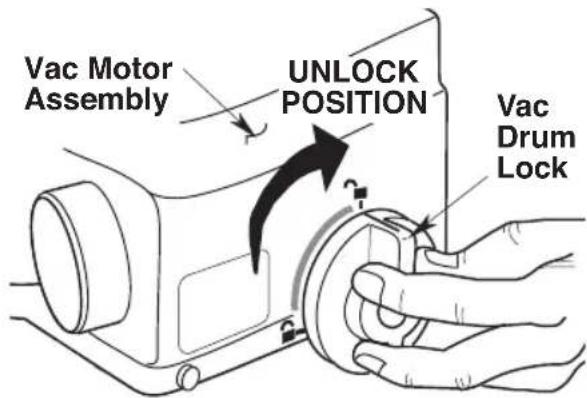

1. Position the Vac Drum Lock in the unlock position.

Fig.1

Vac Motor Assembly UNLOCK POSITION Vac Drum Lock

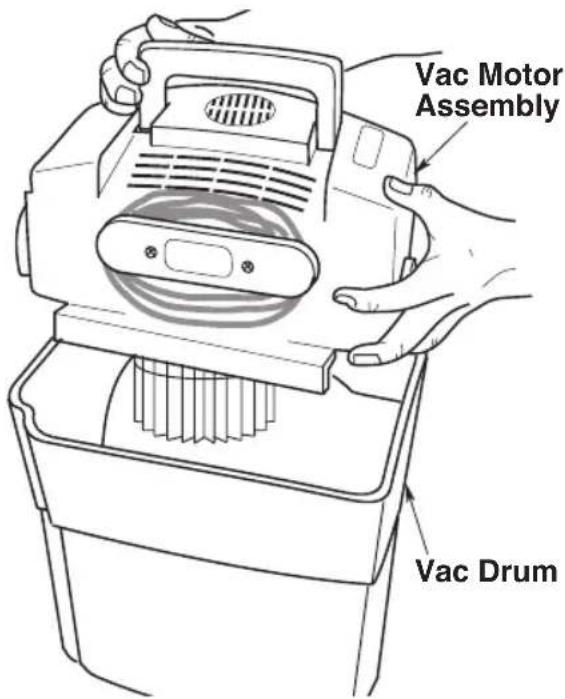

1. Place Vac Motor Assembly onto Vac Drum Assembly.

Fig. J

Vac Motor Assembly Vac Drum

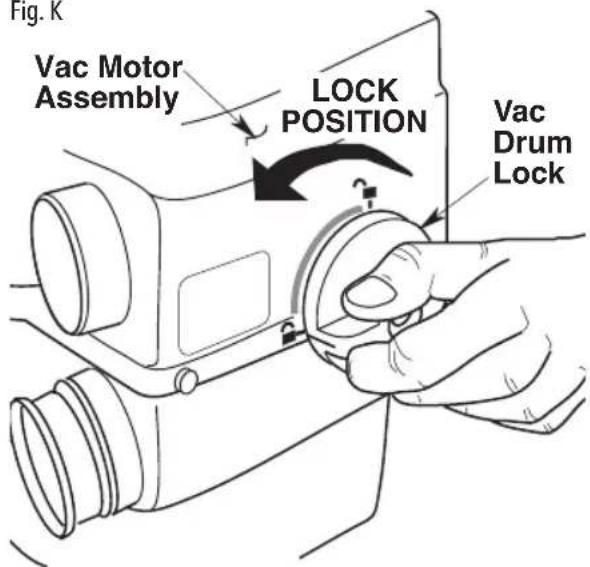

1. Turn Vac Drum Lock into locked position.

NOTE: There is a detent at the end of travel in both the locked and unlocked position. Continue to turn knob until it "clicks" into the desired position. You should feel and hear the "click".

Fig. K

Fig. K Vac Motor Assembly LOCK POSITION Vac Drum Lock

Hanging Vac on Storage Rack (Fig. L, M, N, O & P)

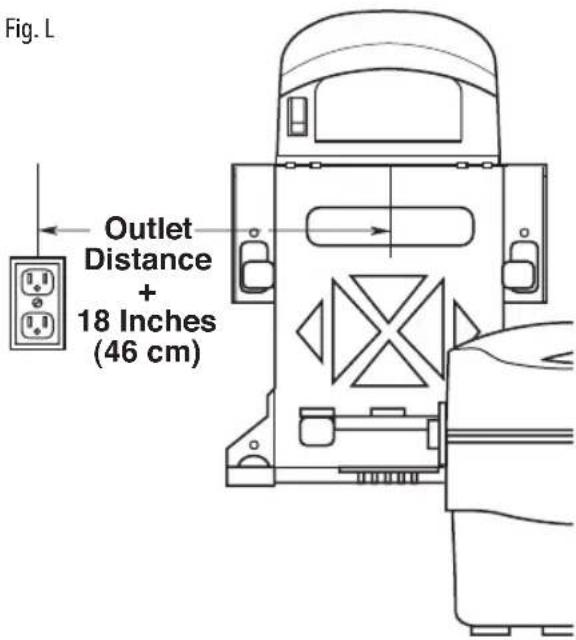

1. Set the Vac on the floor near the Storage Rack. Measure the distance from center of Storage Rack to the closest electrical outlet and add 18-inches (46 cm).

Fig. L Outlet Distance + 18 Inches (46 cm)

1. Uncoil that amount of Power Cord from the Cord Wrap. Drape the loose Cord over the top of the Vacuum and down the front.
2. Grasp the Handle with one hand and the bottom of the Vac Drum with the other hand. Always lift the Vac with both hands. Lift the Vac up to the Storage Rack.

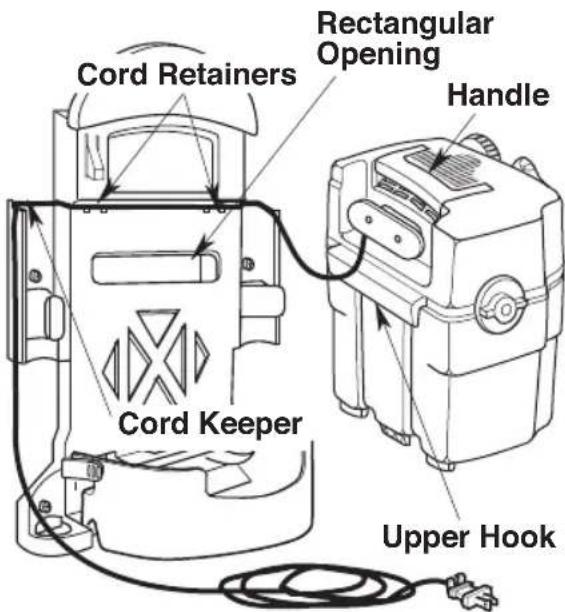

Fig. M

Cord Retainers Rectangular Opening Handle Cord Keeper Upper Hook

1. Align the Upper Hook on the Vac with the rectangular opening in the Storage Rack. Push the Vac against the Storage Rack.

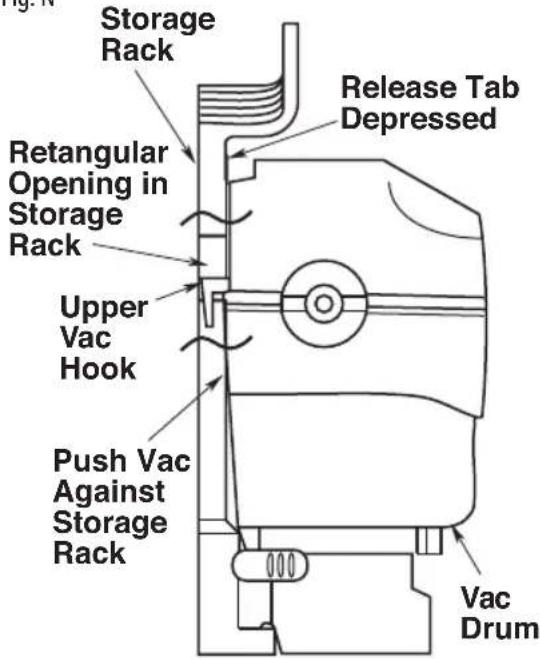

Fig. N

Storage Rack Release Tab Depressed Retangular Opening in Storage Rack Upper Vac Hook Push Vac Against Storage Rack Vac Drum

1. Lower the Vac until the Upper Vac Hook and Lower Hook are engaged and the bottom of the Vac Drum rests on the Rack. The Release Tab will pop out over top of Vac.

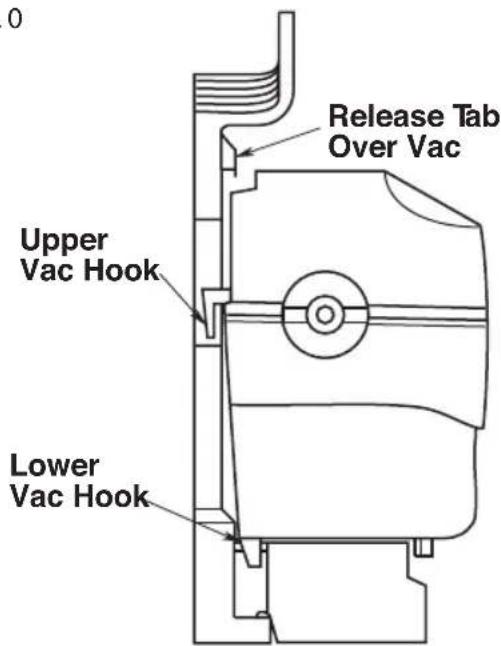

Fig. 0

Release Tab Over Vac Upper Vac Hook Lower Vac Hook

1. Snap the Power Cord into the Cord Retainers in the front surface of the Rack and loop around the Cord Keeper behind the Wand Storage Area.

The Cord may exit on either the left or right side. Plug the Power Cord into the electrical outlet. Do not fasten Power Cord to wall in any way.

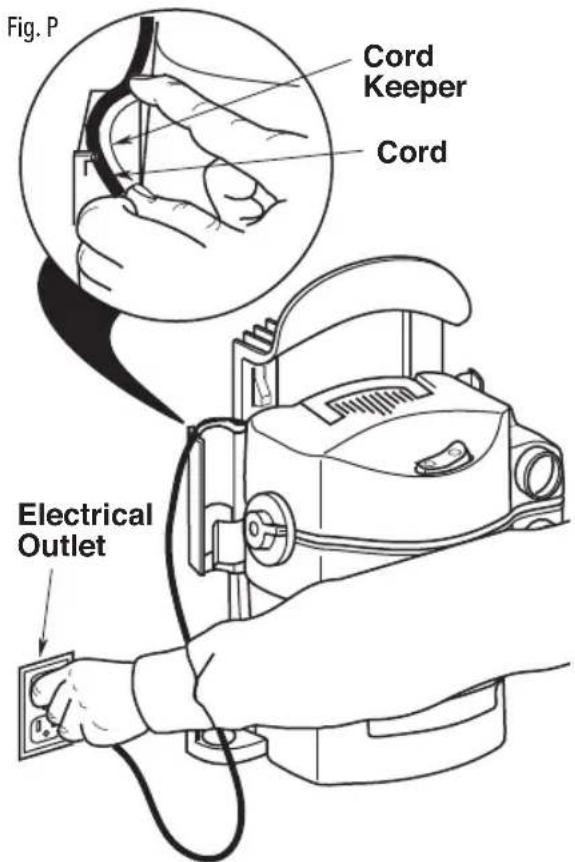

Fig. P Cord Keeper Cord Electrical Outlet

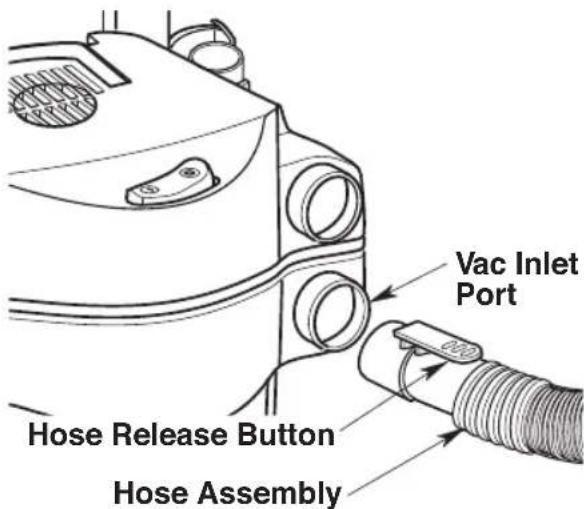

Insert Hose (Fig. Q)

Insert the Hose Locking End of the Hose into the Vac Inlet Port. The Hose should snap into place.

To Remove the Hose from the Vac, press the Release Button in the Hose Assembly and pull the Hose out of the Vac Inlet Port, as shown.

Fig. Q

Vac Inlet Port Hose Release Button Hose Assembly

10

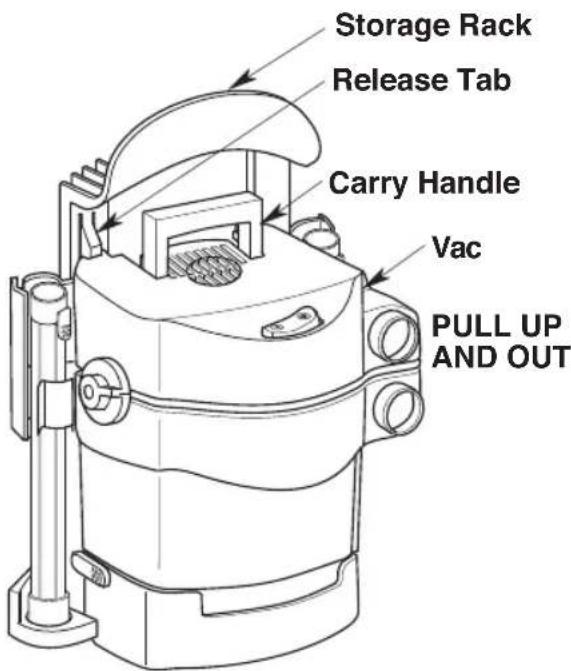

Removing Vac from Storage Rack (Fig. R)

WARNING:

Unplug Vac and remove power cord from rack before removing Vac.

1. With your right hand, raise the Carry Handle.
2. With your left hand, depress the Release Tab located on the upper left corner of the Storage Rack.
3. Lift up on the Carry Handle, and pull the Vac up and out of the Storage Rack.

Fig. R

Storage Rack Release Tab Carry Handle Vac PULL UP AND OUT

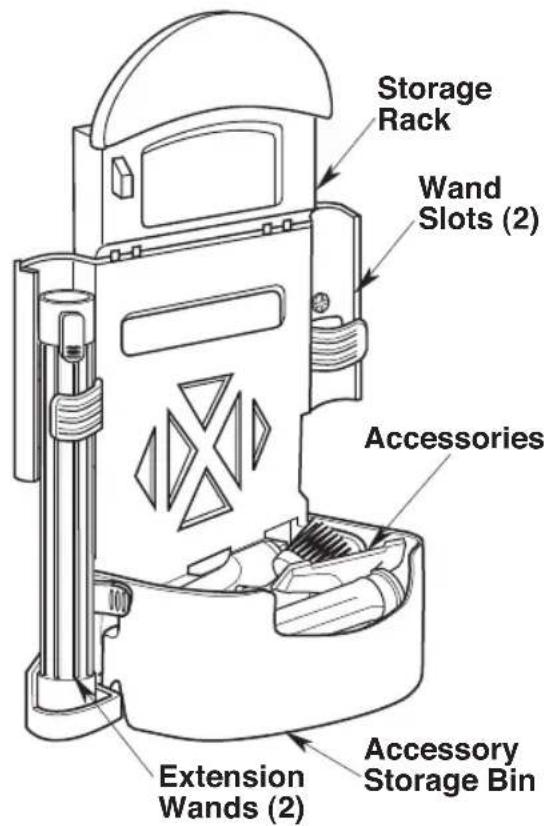

Accessory Storage (Fig. S)

The Accessories: Utility Nozzle, Dusting Brush, Car Nozzle, and the Crevice Tool, may be stored at the bottom of the Storage Rack, in the Accessory Storage Bin.

The Two Extension Wands may be stored in the Wand Slots, located on either side of the Storage Rack.

Fig. S

Storage Rack Wand Slots (2) Accessories Extension Wands (2) Accessory Storage Bin

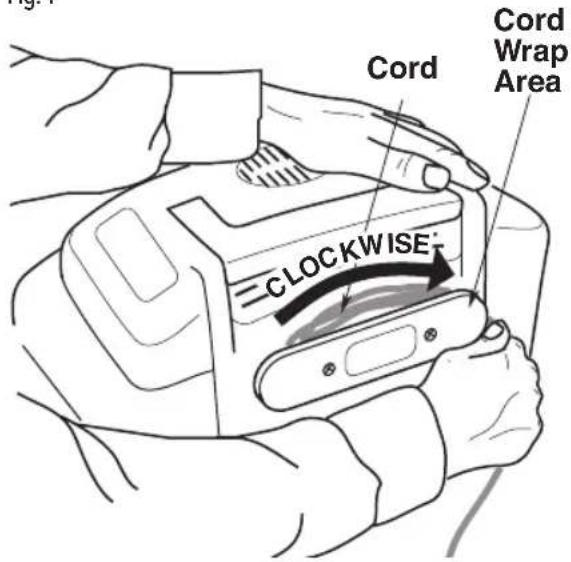

Cord Storage (Fig. T)

When your Wet/Dry Vac is not in use, it should be unplugged from the outlet.

1. Wind the Power Cord clockwise (from the rear) around the Cord Wrap area on back of Vac Motor Assembly.
2. To secure the cord, Snap the Power Cord into the Cord Clip.

NOTE: The entire length of the cord should be wound around the Cord Wrap Area to eliminate any tripping hazard created by a loosely hanging cord.

Fig. T

CLOCKWISE Cord Cord Wrap Area

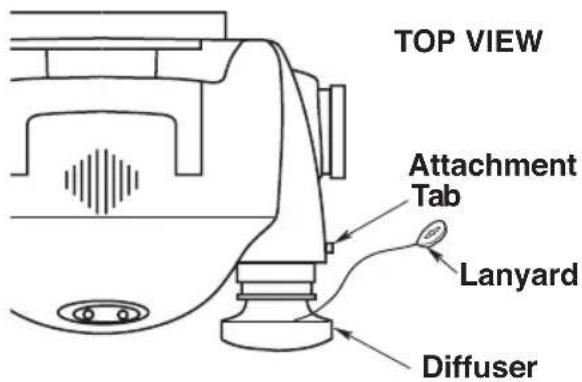

Diffuser Assembly (Fig. U)

Connect the Lanyard to the Attachment Tab on the Vac Motor Assembly to keep the Diffuser attached to Vac when using the Blower Port.

The Diffuser Cap can be used in the Exhaust Port of the Wet/Dry Vac. Installing the Diffuser Cap will allow you to diffuse the exhaust air in any direction and reduce the intensity of the exhaust force.

Fig. U

TOP VIEW Attachment Tab Lanyard Diffuser

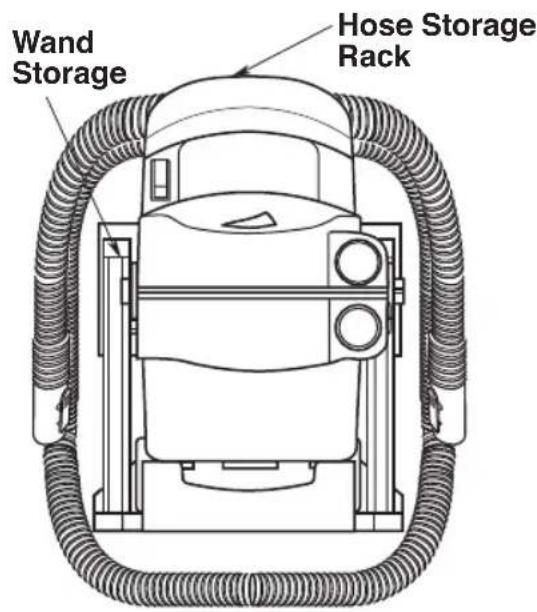

Hose Storage (Fig. V & W)

Wrap the Pos-I-Lock® Hoses around the Upper Storage Rack and around the Wet/Dry Vac unit, as shown.

CAUTION:

Do not operate vacuum while the hose is still wrapped around the powerhead assembly in the storage position.

WARNING:

Do not put any object into ventilation openings. Do not vacuum with any ventilation openings blocked; keep free of dust, lint, hair or anything that may reduce air flow.

Fig. V

Wand Storage Hose Storage Rack

NOTE: The Pos-I-Lock® Hose has an Adaptor that can be used to connect the Hose to the Female Port on the Vac or to the Male End of another Hose. Both 7-foot (2.1 m) and 14-foot (4.3 m) Hoses can be used either connected together or independently from one another.

The 14-foot (4.3 m) Hose has a Locking Adaptor at one end that will connect to the Vac, and a Friction Fit Connector at the other end, which will connect to all the 1-7/8-inch (2.5 cm) Accessories or a Second Hose.

The 7-foot (2.1 m) Hose has a Locking End at both ends of the Hose. The larger of these Ends is sized to connect to the Vac or to the Friction Fit End of the 14-foot (4.3 m) Hose and the smaller of these Ends is sized to Lock to all the 1-7/8-inch (2.5 cm) Accessories.

To connect these Two Hoses together, first connect the 14-foot (4.3 m) Hose to the Wet/Dry Vac. Next connect the 7-foot (2.1 m) Hose to the 14-foot (4.3 m) Hose by inserting the Friction End of the longer Hose into the larger Locking End of the shorter Hose. This will create a Friction Connection.

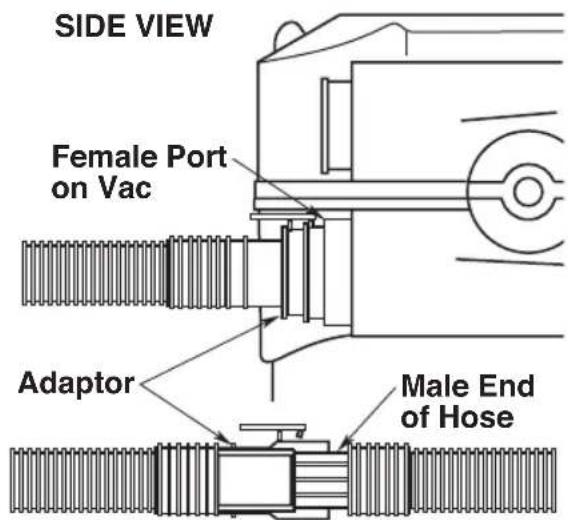

Fig. W

SIDE VIEW Female Port on Vac Adaptor Male End of Hose

OPERATION

WARNING:

To reduce the risk of fire, explosion, or damage to Vac:

• Do not leave Vac running while unattended - you may fail to notice important signs indicating abnormal operation such as loss of suction, debris/liquid exiting the exhaust, or abnormal motor noises. Immediately stop using Vac if you notice these signs.
• Do not leave Vac plugged in when not in use.
• Do not continue running when float has cut off suction.
• Sparks inside the motor can ignite airborne flammables. Do not operate Vac near flammable liquids or in areas with flammable gases, vapors, or explosive/airborne dust. Flammable liquids, gases, and vapors include: lighter fluid, solvent-type cleaners, oil-based paints, gasoline, alcohol, and aerosol sprays. Explosive dusts include: coal, magnesium, aluminum, grain, and gun powder.
• Do not vacuum up explosive dusts, flammable liquids, or hot ashes.
• Do not leave sawdust or rags with stain or polyurethane residue inside Vac. Empty drum after picking up these potentially self-heating materials.

WARNING:

To reduce the risk of electric shock or injury:

• Do not expose to rain or allow liquid to enter motor compartment. Store indoors.
• Do not handle plug, switch, or Vac with wet hands.
• Unplug Vac before servicing. If your Vac is not working as it should, has missing parts, has been dropped, damaged, left outdoors, or dropped into water, call customer service at 1-888-331-4569 (Mexico 001-881-331-4569).
• When using an extension cord, use only outdoor-rated cords that are in good condition. Do not allow the connection to come into contact with liquid.

CAUTION:

To reduce the risk of hearing damage, wear ear protectors when using the Vac/Blower for an extended time or in a noisy area.

Polarized Plug

To reduce the risk of electric shock, this Vac has a Polarized Plug (one blade is wider than the other). This Plug will fit in a Polarized Outlet only one way. If the Plug does not fit fully in the Outlet, reverse the Plug. If it still does not fit, contact a qualified electrician to install the proper Outlet. Do not change the Plug in any way.

Power Switch (Fig. X)

After you Plug the Power Cord into the Outlet, turn the Unit on by pushing the Switch from position "O" to position "I". The symbols used on the Switch Actuator are International "On & Off" Symbols:

Fig. X ON/OFF Switch

Vacuuming Dry Materials

1. The Filter must always be in correct position to reduce the risk of leaks and possible damage to Vac.
2. When using your Vac to pick up very fine dust, it will be necessary for you to empty the Drum and clean the Filter at more frequent intervals to maintain peak Vac performance.

NOTE: A dry Filter is necessary to pick up dry material. If you use your Vac to pick up dust when the Filter is wet, the Filter will clog quickly and be very difficult to clean. Dry the Filter before storing.

Vacuuming Liquids

WARNING:

Do not operate without filter cage and float, as they prevent liquid from entering the impeller and damaging the motor. For dry material pick-up, do not operate without the filter in place to reduce the risk of damage to the motor.

WARNING:

To reduce the risk of fire or explosion, do not vacuum flammable or combustible liquids, gases or dust.

1. When picking up small amounts of liquid the Filter may be left in place.
2. When picking up large amounts of liquid, it is recommended, that the Filter be removed. If the Filter is not removed, it will become saturated and misting may appear in the exhaust.
3. When picking up large amounts of liquid, it is recommended that you remove the Vac from the storage rack and place it on the floor. When full of water the Vac will weigh approximately 40 pounds and may be difficult to remove from the storage rack. Always empty Vac immediately after picking up liquids.

4. When the liquid in the Drum reaches a predetermined level, the float mechanism will rise automatically to cut off air-flow. When this happens, turn off the Vac, unplug the Power Cord, and empty the Drum. You will know that the Float has risen because Vac airflow ceases and the motor noise will become higher in pitch, due to increased motor speed.

5. After using the Vac to pick up liquids, the Filter must be dried to reduce the risk of possible mildew and damage to the Filter.

IMPORTANT: To reduce the risk of damage to the Vac do not run Motor with Float in raised position.

Emptying the Drum (Fig. Y)

WARNING:

To reduce the risk of injury from accidental starting, unplug power cord before emptying the drum.

1. With the Vacuum removed from the Storage Rack (see Removing Vac from Storage Rack Section), remove the Vac Motor Assembly from the Vac Drum Assembly.
2. Lay Vac Motor Assembly upside down on a clean area while emptying Vac Drum.
3. Dump the Vac Drum contents into the proper waste disposal container.

WARNING:

To reduce the risk of back injury or falls, do not lift a Vac heavy with liquid or debris. Scoop or drain enough contents out to make the Vac light enough to lift comfortably.

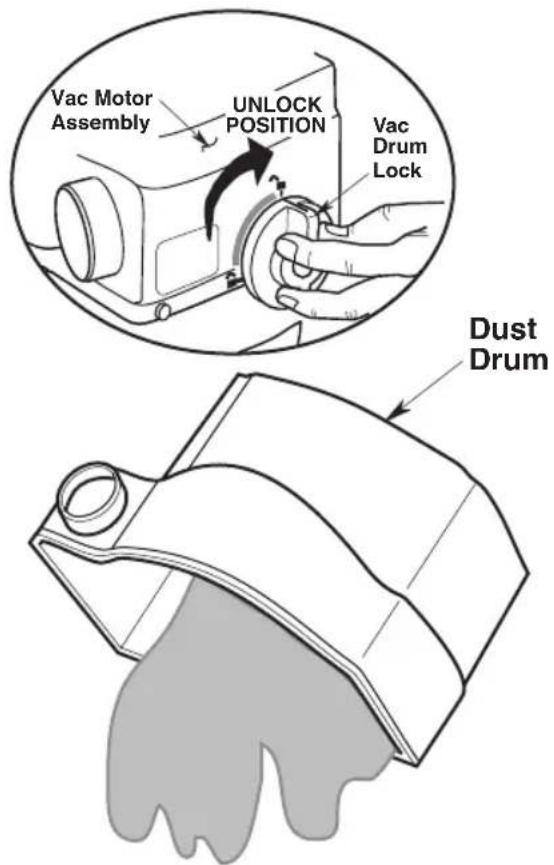

Fig. Y

Vac Motor Assembly UNLOCK POSITION Vac Drum Lock Dust Drum

Blowing Feature (Fig. Z)

Your Vac features a Blowing Port. It can blow sawdust and other debris. Follow the Steps below to use your Vac as a Blower.

1. Locate Blowing Port (on Vac Motor Assembly - Top Inlet) of your Vac.
2. Insert the Locking End of the "Pos-I-Lock®" Hose into the Blowing Port of the Vac. The Hose should snap into place. To remove the Hose from the Vac, press the Release Button in the Hose Assembly and pull the Hose out of the Vac Inlet Port.
3. (Optional) Attach Extension Wand to opposite end of Hose, then place the Car Nozzle on the Wand.
4. Turn Vac on and you are ready to use your Vac as a Blower.

WARNING:

Always wear safety eyewear complying with ANSI Z87.1 (or in Canada, CSA Z94.3) before using as a blower.

WARNING:

To reduce the risk of injury to bystanders, keep them clear of blowing debris.

CAUTION:

Wear a dust mask if blowing creates dust which might be inhaled.

CAUTION:

To reduce the risk of hearing damage, wear ear protectors when using the Vac / Blower for an extended time or in a noisy area.

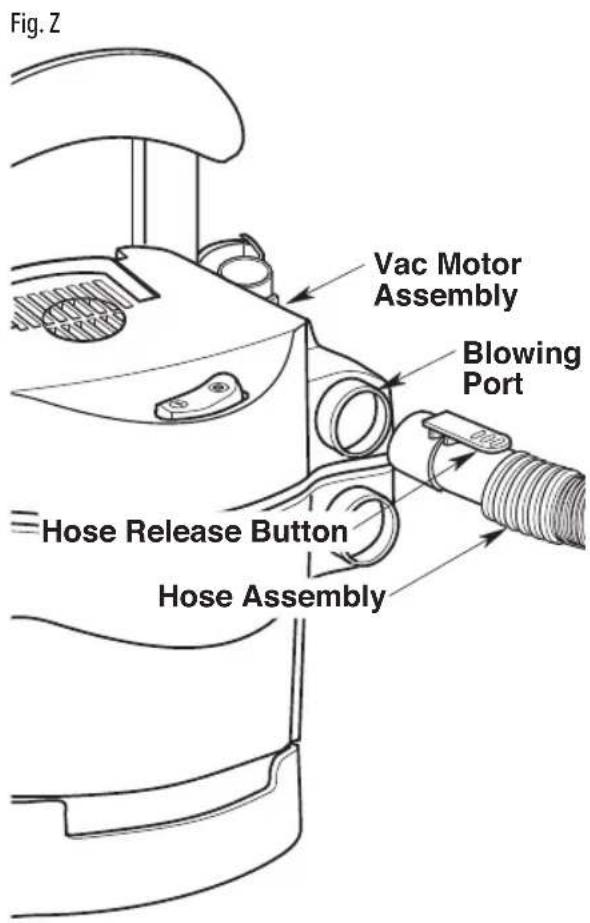

Fig. Z Vac Motor Assembly Blowing Port Hose Release Button Hose Assembly

MAINTENANCE

Filter

WARNING:

To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter.

NOTE: This Filter is made of high quality paper designed to stop very small particles of dust. The Filter can be used for wet or dry pick up. Handle the Filter carefully when removing to install or clean. Creases in the Filter pleats may occur from installation but creases will not affect the performance of the Filter.

Removal and Installation of the Qwik Lock™ Filter (Fig. AA)

IMPORTANT: To reduce the risk of damage to the Blower Wheel and Motor, always reinstall the Filter before using the Vac for dry material pickup.

Filter Removal

1. Hold the Filter Tabs of the Qwik Lock™ Filter in each hand.
2. With one thumb on the Qwik Lock™ Stud, which protrudes through the integrated Filter Plate, lift up on the Filter Tabs while pushing down on the Stud.
3. This action will cause the Filter to release from the Filter Cage. Slide Filter off Cage.

WARNING:

Do not operate without a filter cage and float, as they prevent liquid from entering the impeller and damaging the motor.

Filter Installation

1. Carefully slide the Qwik Lock™ Filter over the Filter Cage and press down on the outside edge of the Filter until the Rubber Gasket on the bottom of the Filter seats securely around the base of the Filter Cage and against the Powerhead Assembly.
2. Align the small Center Hole in the top of the Filter over the Qwik Lock™ Stud on the Filter Cage. Press firmly on top of the Filter near the Stud to allow the Filter to snap over the Ball on the end of the Stud. The Filter is now attached.

NOTE: Failure to properly seat the bottom Gasket could result in debris bypassing the Filter.

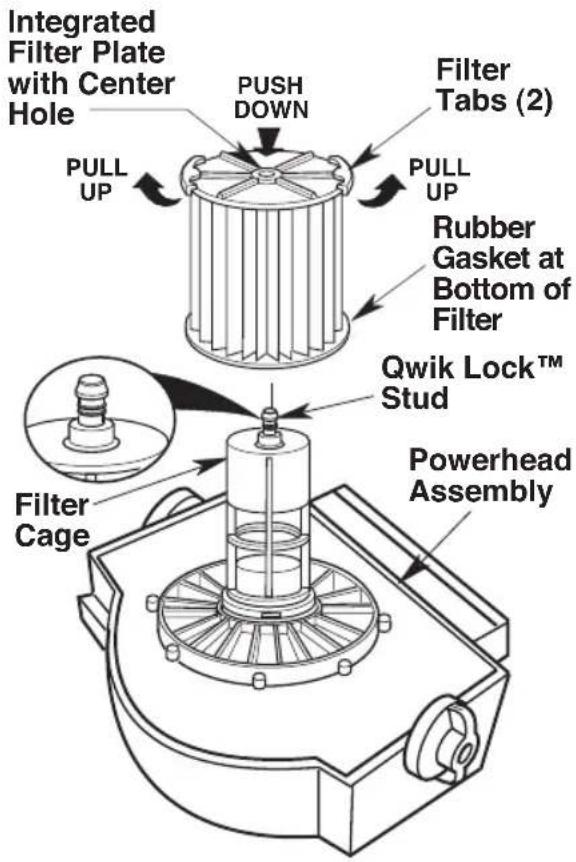

Fig. AA

Integrated Filter Plate with Center Hole PULL UP PUSH DOWN Filter Tabs (2) PULL UP Rubber Gasket at Bottom of Filter Qwik Lock™ Stud Powerhead Assembly Filter Cage

Filter Cleaning

Your Filter should be cleaned often to maintain peak Vac performance.

Be sure to dry the Filter before storing or picking up dry debris.

IMPORTANT: After cleaning, check the Filter for tears or small holes. Do not use a Filter with holes or tears in it. Even a small hole can cause a lot of dust to come out of your Vac. Replace it immediately.

Cleaning A Dry Filter

Some removal of dry debris can be accomplished without removing the Filter from the Vac. Slap your hand on top of the Powerhead while the Vac is turned OFF.

For best cleaning results due to accumulated dust, clean the Filter in an open area. Cleaning SHOULD be done outdoors and not in the living quarters.

After Filter removal from Vac, remove the dry debris by gently tapping the Filter against the inside wall of your Dust Drum.

The debris will loosen and fall. For thorough cleaning of dry Filter with fine dust (no debris), run water through it as described under "Cleaning A Wet Filter".

Cleaning A Wet Filter

After Filter is removed, run water through the Filter from a Hose or Spigot. Take care that water pressure from the Hose is not strong enough to damage Filter.

Cleaning and Disinfecting the Wet/Dry Vac

To keep your Wet/Dry Vac looking its best, clean the outside with a cloth dampened with warm water and mild soap.

To clean the Drum:

1. Dump debris out.
2. Wash Drum thoroughly with warm water and mild soap.
3. Wipe out with dry cloth.

Before prolonged storage or as needed (i.e., waste water pick up) the Drum should be disinfected.

To disinfect the Drum:

1. Pour 1 gallon (4 L) of water and 1 teaspoon (5 mL) chlorine bleach into the Drum.
2. Let solution stand for 20 minutes, carefully swishing every few minutes, making sure to wet all inside surfaces of the Drum.
3. Empty Drum after 20 minutes. Rinse with water until bleach smell is gone. Allow Drum to dry completely before sealing the Motor on the Drum.

Storage

Before storing your Vac, the Dust Drum should be emptied and cleaned. The Power Cord should be wrapped around the Cord Wrap Areas and secure the Cord using the Plug Cord Clip. The Hose should be stored as described in this manual. Accessories should be kept in the same area as the Vac so they can be readily available. The Vac should be stored indoors.

WARNING:

To assure product SAFETY and RELIABILITY, any other maintenance, repairs and adjustments should be performed by Authorized Service Centers, always using CRAFTSMAN replacement parts.

SERVICE / REPAIR PARTS

5 Gallon (18 Liter) Wet/Dry Vac

Model Number: CMXEVBE179250

Electrical Rating: 120 V\~ 8.5 A 60 Hz

WARNING: SERVICING OF DOUBLE-INSULATED WET/DRY VAC

In a double-insulated Wet/Dry Vac, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added. Servicing a double-insulated Wet/Dry Vac requires extreme care and knowledge of the system, and should be done only by qualified service personnel. Replacement parts for a double-insulated Wet/Dry Vac must be identical to the parts they replace. Your double-insulated Wet/Dry Vac is marked with the words "DOUBLE INSULATED" and the symbol (square within a square) may also be marked on the appliance.

To reduce the risk of injury, unplug power cord before servicing the Wet/Dry Vac.

WARNING: To reduce the risk of injury, unplug power cord before servicing the Wet/Dry Vac.

⚠ WARNING: All disassembly and repairs should be performed by qualified personnel.

Always order by Part Number - Not by Key Number

Key No.	Part No.	Description
1	830953	Actuator, Switch
2	73180	Switch, Toggle
3	509864	Motor Cover(Includes Keys 1, 2, 4, 5, & 8)
4	830663	Handle, Carry
5	830666	Retainer Cord
6	819260-5	Lead Assembly
7	509776-19	Motor Assembly(Includes Keys 6, 11, 12, 13, & 14)
8	833270	Cord Assembly
9	509863	Lid Assembly
10	820563-4	Screw, Pan HeadType "AB" 10 x 3/4" (19 mm)
11	818961	Spacer
12	818413-3	Blower Wheel
13	315534-1	Washer
14	826817	Nut, Hex Flange 1/4-20
15	828838	Collector
16	CMXZVBE38754	Filter

Key No.	Part No.	Description
17	823201-2	Filter Cage Assembly
18	509862-1	Vac Drum
19	830672	Accessory Storage Bin
20	830673	14-Foot (4.3 m)
	Pos-I-Lock® Hose
21	CMXZVBE38761	7-Foot (2.1 m)
	Pos-I-Lock® Hose
22	CMXZVBE38676	Utility Nozzle
23	CMXZVBE38725	Dusting Brush
24	CMXZVBE38681	Car Nozzle
25	CMXZVBE38680	Crevice Tool
26	CMXZVBE38675	Extension, Wands
27	830670	Storage Upper Rack
28	830671	Storage Lower Rack
29	830675	Diffuser
30	820563-12	#10 - 1-3/4" (25 mm)
	Wood Screws
31	SP7085	Instruction Manual

Exploded view diagram of a cleaning or cleaning device with numbered parts for identification

NOTES

CRAFTSMAN® LIMITED WARRANTY - 3 YEARS

This limited warranty is provided by Emerson Tool Company, a division of Emerson Electric Co., ("We" or "Our" or "Us") to the original consumer owner ("Customer" or "You" or "Your") of the CRAFTSMAN product with which this limited warranty is provided (the "CRAFTSMAN Product").

What is Covered

We warrant to You that your CRAFTSMAN Product will be free from defects in materials and workmanship when used under normal conditions in accordance with the terms of the Instruction Manual provided to You with the CRAFTSMAN Product, subject to the exclusions described below, for a period of three years commencing on the date of purchase by You (the "Warranty Period"). This limited warranty terminates if the original purchaser transfers the CRAFTSMAN Product to any other person or entity.

What is not Covered

This limited warranty does not extend to and expressly excludes:

• Normal wear and tear and/or replacement attachments or accessories, including, without limitation, power cords, hoses, filters, and other attachments or accessories that may be offered for sale by Us for use with the CRAFTSMAN Product.
• Damage or burnout of the CRAFTSMAN Product motor resulting from failure to clear a blockage occurring during the normal course of use.
• Loss or damage to the CRAFTSMAN Product resulting from conditions beyond Our control including without limitation, misuse, accident, abuse, neglect, negligence (other than Our's), overuse beyond intended capacity as set forth in the Instruction Manual, or modifications or alterations made by anyone other than Us.
• Loss or damage to the CRAFTSMAN Product resulting from failure to use the CRAFTSMAN Product in accordance with the written instructions, guidelines, and terms and conditions set forth in the Instruction Manual.
• TO THE EXTENT PERMITTED BY LAW, IN NO EVENT SHALL WE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, INCLUDING ANY ECONOMIC LOSS, WHETHER RESULTING FROM NONPERFORMANCE, USE, MISUSE OR INABILITY TO USE THE CRAFTSMAN PRODUCT OR FOR THE NEGLIGENCE OF ETC.

How to Obtain Service

US and Canada - To obtain warranty benefits contact us toll free at 1-888-331-4569 (Mexico 001-881-331-4569). We will direct you to the nearest service center to review your vacuum for inspection, repairs or replacement.

Mexico - To obtain warranty benefits contact us toll free at 001-881-331-4569. We will direct you to the nearest service center to review your vacuum for inspection, repairs or replacement.

No Other Express Warranty Applies

This limited warranty is the sole and exclusive warranty provided to You. No other express warranty, written or verbal, applies including, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. No employee, agent, dealer, or other person is authorized to alter this limited warranty or make any other warranty on behalf of Us.

What We will do to Correct Problems

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE LIMITED TO REPAIR, REPLACEMENT, REFUND OF THE CRAFTSMAN PRODUCT.

After You have contacted CRAFTSMAN Product Customer Service Department, We will initiate warranty proceedings, including a physical inspection, subject to the exclusions and the Warranty Period stated herein, to determine whether to repair or replace the CRAFTSMAN Product or provide You with a refund.

The decision to repair or replace your CRAFTSMAN Product or to provide a refund is at Our sole discretion. Repair or replacements provided to You by ETC are at no cost to You if covered under this limited warranty.

If we are unable to provide You with a suitable repaired or replacement CRAFTSMAN Product, we will provide you with a refund equal to the purchase price of your CRAFTSMAN Product or a credit to be used toward the purchase of a new CRAFTSMAN Product.

In the event of any dispute between CUSTOMER AND US, either party may choose to resolve the dispute by binding arbitration. THIS MEANS IF EITHER CUSTOMER OR US CHOOSE BINDING ARBITRATION, NEITHER PARTY SHALL HAVE THE RIGHT TO LITIGATE SUCH CLAIM IN COURT OR HAVE A JURY TRIAL. DISCOVERY AND APPEAL RIGHTS ARE LIMITED.

This limited warranty gives you specific legal rights, and you may also have other rights, which vary from State to State. Some states do not allow the exclusion of incidental or consequential damages, so the above limitation may not apply.

CRAFTSMAN®

is a registered trademark of Stanley Black & Decker, Inc., used under license. es una marca registrada de Stanley Black & Decker, Inc., utilizada bajo licencio. est une marque déposée de Stanley Black & Decker, Inc., utilisée sous licence.

© 2019 CRAFTSMAN

Product Manufactured by: EMERSON TOOL COMPANY

Part No. SP7085 Form No. SP7085-2 Printed in Mexico 10/2019

Technical diagram of a hair dryer with labeled parts including printer, hose, and accessories

Exploded view diagram of a cleaning or cleaning device with numbered parts for identification

GARANTIE LIMITÉE CRAFTSMAN® - 3 ANS

VOTRE REMÈDE UNIQUE ET EXCLUSIF EN VERTU DE LA PRÉSENTE GARANTIE LIMITÉE EST LIMITÉ À LA RÉPARATION, AU REMPLACEMENT OU AU REMBOURSEMENT DU PRODUIT CRAFTSMAN.

Product Manufactured by: EMERSON TOOL COMPANY

Technical diagram of a hair dryer with labeled parts from A to N, showing exploded and assembled views.

Exploded view diagram of a cleaning or cleaning device with numbered parts for identification

NOTAS

GARANTÍA LIMITADA DE CRAFTSMAN® DE 3 AÑOS

Poniente 146 No. 669, Col. Industrial Vallejo,

is a registered trademark of Stanley Black & Decker, Inc., used under license.

Product Manufactured by: EMERSON TOOL COMPANY
