RPE02 - Alarm Clock BIGBEN - Free user manual and instructions

Product type	Alarm clock with projector and backlit LCD screen
Brand	Bigben
Model	RPE02
Power supply	3 alkaline LR06 AA batteries (not included)
Main functions	Dual alarm, multicolor projector, multicolor light, sound recording (30 sec), nap/sleep mode, alarm snooze, 24-hour clock
Preset sounds	Lullaby (SD1), Zen (SD2), recorded sound (REC), buzzer (BB)
Display	Backlit LCD (turns off after 30 s)
Projection	3 removable projection slides included, color change every 12 seconds
Volume adjustment	Yes, Volume - / + buttons
Nap/sleep timer	From 10 to 90 minutes (in 10-minute increments)
Alarm snooze	9 minutes, up to 3 repetitions
Voice recording	1 recording max 30 seconds
Dimensions	Not specified in the manual
Weight	Not specified in the manual
Package contents	Main unit, user manual, 3 projection slides
Care and cleaning	Remove batteries before cleaning; use a soft, damp cloth; no harsh products
Safety	Do not open, do not expose to water or heat, use only identical batteries
Spare parts / repairability	Repair by a qualified professional; use only specified accessories
General information	Imported by Bigben Interactive FRANCE; made in China; customer service at 09 69 39 79 59

Frequently Asked Questions - RPE02 BIGBEN

How to set the time on the RPE02 alarm clock?

Press the clock setting button (6). The display flashes. Use the HR (7) and MIN (8) buttons to set hours and minutes, then press the setting button again to confirm.

How to set an alarm?

Press and hold the Alarm 1 (9) or Alarm 2 (10) button for 3 seconds. Select the desired sound (BB, SD1, SD2, REC or OFF), then set the hour and minutes. Confirm each step with the same alarm button.

How to use the snooze function (alarm reminder)?

When the alarm sounds, press the SNOOZE button (3). The alarm stops and automatically reactivates every 9 minutes, up to 3 times. To stop it completely, press the sound stop button (4).

How to record a custom sound?

Press the REC button (11) to start recording (max 30 seconds). Speak into the microphone (MIC) located on the front. Press REC again to save. A new recording erases the previous one.

How to turn on the projector and backlit screen?

Press the ON/OFF button for the projector and LCD screen (13). The projector turns on and changes color every 12 seconds. The screen turns off after 30 seconds. You can place the supplied projection slides to change the projected image.

How to change the alarm clock batteries?

Make sure the device is off. Open the battery compartment cover on the back. Insert 3 alkaline LR06 AA batteries respecting polarity (+/-). Close the cover. The display flashes and shows 12:00.

Can I use the alarm clock with a mains power source?

No, the RPE02 only works on batteries (3 LR06 AA batteries). No mains input is provided.

How to set the nap or sleep mode?

Press the timer button (5) to activate nap mode (if no sound) or sleep mode (if sound is playing). Select the duration (10 to 90 min) and the sound. The timer stops automatically after the chosen duration.

What to do if the alarm doesn't ring?

Check that the batteries are inserted correctly and sufficiently charged. Make sure the alarm icon is displayed on the screen (alarm enabled). Also check that the volume is not at minimum.

How to clean the alarm clock?

Remove the batteries before cleaning. Use a soft, damp cloth (lint-free). Do not use harsh or abrasive cleaning products.

USER MANUAL RPE02 BIGBEN

RPE REVEIL PROJECTEUR

MODE D'EMPLOI

LISEZ COMPLETÉMENT CE MANUEL D'UTILISATION AVANT D'UTILISER CET APPAREIL ET CONSERVEZ CE LIVRET POUR VOUS Y RÉFÉRER ULTÉRIEUREMENT.

Table des matieres

Démarrage

1 Regler l'horloge

[e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www/bigben.eu

Model no. RPE

PROJECTOR DUAL ALARM CLOCK

OPERATING INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE OPERATING THIS UNIT AND RETAIN FOR FUTURE REFERENCE.

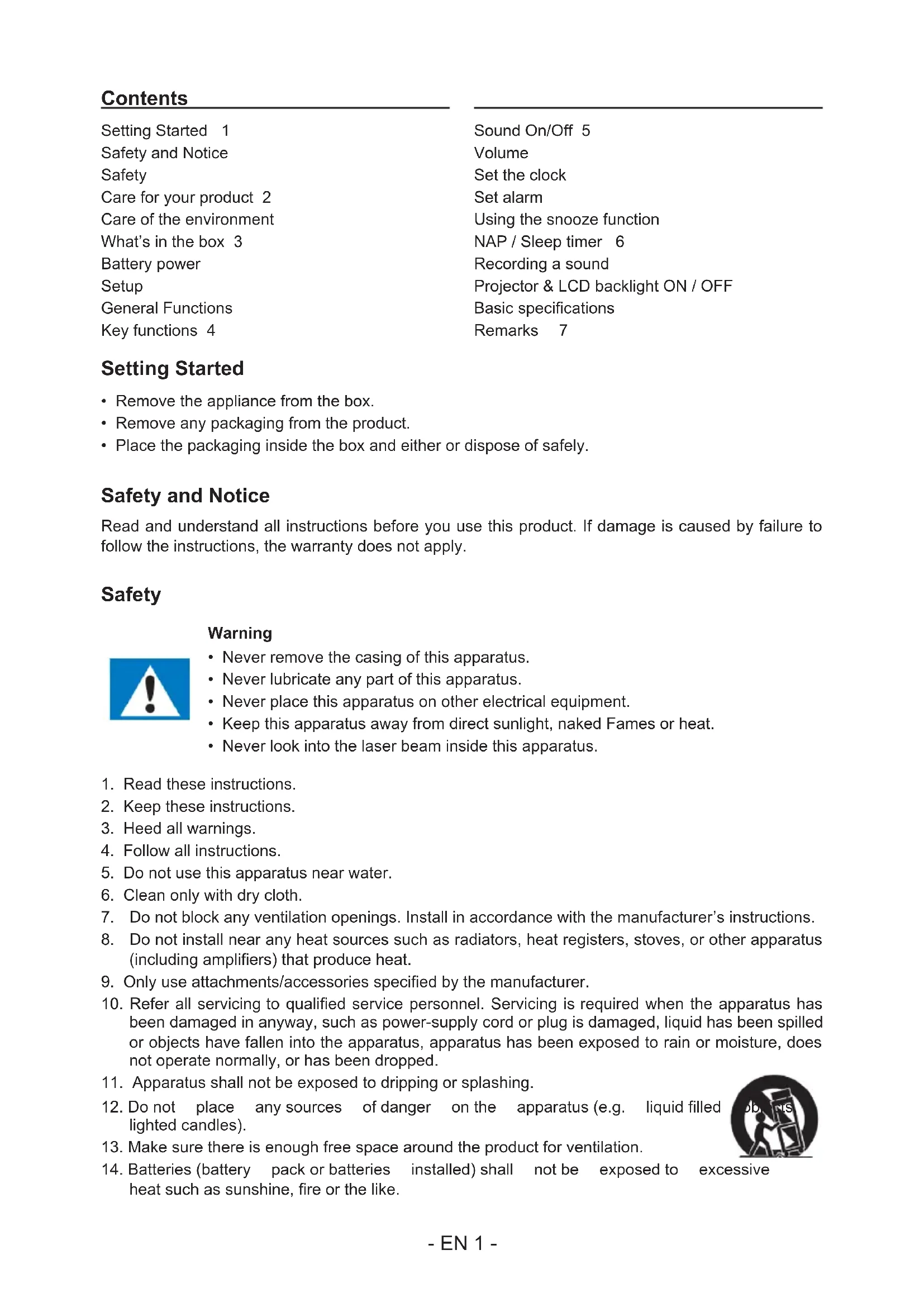

Contents

Setting Started 1

Safety and Notice

Safety

Care for your product 2

Care of the environment

What's in the box 3

Battery power

Setup

General Functions

Key functions 4

Sound On/Off 5

Volume

Set the clock

Set alarm

Using the snooze function

NAP / Sleep timer 6

Recording a sound

Projector & LCD backlight ON / OFF

Basic specifications

Remarks 7

Setting Started

• Remove the appliance from the box.
• Remove any packaging from the product.
• Place the packaging inside the box and either or dispose of safely.

Safety and Notice

Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply.

Safety

Warning

• Never remove the casing of this apparatus.
• Never lubricate any part of this apparatus.
• Never place this apparatus on other electrical equipment.
• Keep this apparatus away from direct sunlight, naked Fames or heat.

• Never look into the laser beam inside this apparatus.

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Only use attachments/accessories specified by the manufacturer.

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in anyway, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Apparatus shall not be exposed to dripping or splashing.

• Do not place any sources of danger on the apparatus (e.g. liquid filled lighted candles).

• Make sure there is enough free space around the product for ventilation.

• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Care for your product

1. Always remove the batteries when not in use and before cleaning.
2. Do not play music at excessive volume levels as damage to hearing and or the equipment may occur.
3. Do not use this unit in wet or damp conditions.
4. Always disconnect the unit from the mains power supply before cleaning. Clean the appliance with a soft, damp, lint free cloth. Do not use abrasives or harsh cleaners.

Care of the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health

What's in the box

Check and identify the contents of your package:

• Main unit
• User manual
  3 projection plates.

Battery power

Be sure that the batteries are inserted correctly to avoid damage to the appliance. Always remove the batteries when appliance will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your set.

Use batteries of the same type. Never use different types of batteries together.

Do not throw the battery into the fire, or exposed to sunshine or the like.

If the liquid contained in the batteries comes in contact with eyes or skin, wash the area immediately and carefully with clear water and consult a doctor.

Setup

Insert or Replace clock batteries

Make sure the unit is turned OFF
- Insert 3x LR06 AA Alkaline batteries only (not included). Check the polarity (+ and - at ends of the battery) and follow the instructions on the diagram near the battery compartment. Close the battery cover. The display will flash and show 12:00.

NOTE: Please make sure you properly dispose of batteries (see your local regulations).

General Functions

1. Digital projector alarm clock & LCD backlight screen
2. Light with built-in color change
3. Sound ON/OFF (2 preset songs + 1 record sound)
4. Dual Alarm set
5. Clock Set
6. Nap / Sleep
7. Snooze
8. 24-hour clock display
9. Recording sound (1 recording only)

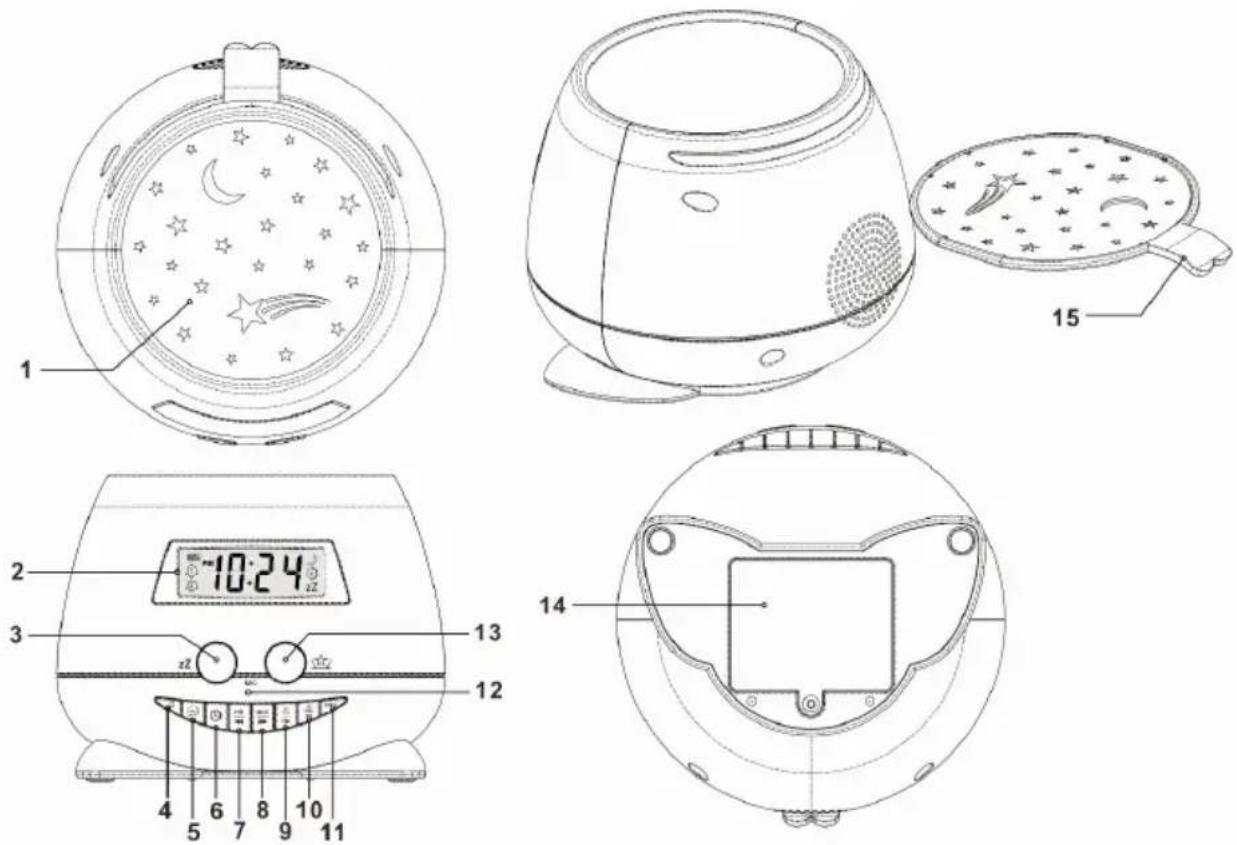

Key functions

1. Projection
2. LCD Display
3. 600ze
4. Sound On/Off (2 preset sounds + 1 record sound)
5. Nap / Sleep Timer
6. Clock Set
7. Hour and minute SET (-)/HR
8. Hour and minute SET (+) /MIN
9. Alarm 1 Set / Volume -
10. Alarm 2 Set / Volume +
11. REC Record (1 record only)
12. MIC
13. Projector & LCD backlight ON / OFF
14. Battery cover
15. Removable Projection Plate

1. Sound On/Off (2 preset songs + 1 record sound)

• Press the Bound (4).
  Press Skip (7-8) to select sound:

SD1 Lullaby, SD2 Zen, Rec (1 recorded sound)

• Press Sound (4) again to turn off the function

2. Volume - (1) + (9) 10)

Press Volume - / + to turn the volume down or up on the sound that is playing.

3. Set the clock

• Press Clock Set (6). The display will flash and show 12:00.
• Press or set the clock, then press Clock set (6) to confirm the hour.
• Press to set the clock, then press Clock set (6) to confirm the minutes.
• Press and hold to change the 24-hour/12-hour clock format

4. Set alarm

• Press & hold Alarm1 (9) for 3 seconds. The icon will show on the LCD display.
• Unit switches to sound output mode:

BB sound, SD1 Lullaby, SD2 Zen, Rec (1 recording), and "off" for user to select.

• Press alarm 1 (9) to confirm
• Unit switches to Time mode

Press on Alarm 1 (9) and press on confirm the hour.

Press on Alarm 1 (9) and press on confirm the minutes

Press again on Alarm 1 (9) to confirm.

• Unit switches to volume mode.

Press 8) to select the volume and Press Alarm 1 (9) to confirm.

The sound with the projection light will ring at the selected time.

There is a dual alarm. Repeat the above steps to set Alarm 2

Turn off the alarm

To turn off the sound, press sound OFF (4).
- The Alarm clock will resume the function at the same time the next day.

Cancel / Disable alarm function:

• To cancel the alarm function, press and hold Alarm 1 or 2 (9, 10) for 3 seconds. Unit switches to sound output mode as per the steps in point 4 and select OFF.
• Press Alarm 1 or 2 again to confirm
  The alarm icon or will disappear.

If no key is pressed for 10 seconds, the system will go back to normal mode.

Alarm will switch off automatically after rings 15 minutes.

5. Using the snooze function

When the alarm rings, press (3) "SNOOZE". The alarm icon will flash & the sound will stop, but rings and the projection light comes on again every 9 minutes. Press Sound OFF (4) to turn off the alarm and the Snooze sign will disappear. Snooze function will switch off automatically after the alarm rings 3 times.

6. NAP / Sleep timer

NAP Timer

• When there is no music, press [5] to activate the NAP timer. The sound will ring after the selected time.
• Press (7,8) to select sound: SD1 Lullaby, SD2 Zen, Rec (1 recording), Press NAP Timer (5) again to confirm & select the timer
• It will start to count down from the default 90 minutes. There are options for user: 90, 80, 70, 60, 50, 40, 30, 20, 10 & OFF.
• When the sound with the projection light rings, press Sound OFF (4) to turn off the sound.
• If the user wants to cancel the function, press NAP timer (5) again and select "OFF".

Sleep Timer

• When the music/ sound is playing, press [5] to activate the Sleep timer. The sound will stop after the selected time.
• It will start to count down from the default 90 minutes. There are options for user: 90, 80, 70, 60, 50, 40, 30, 20, 10 & OFF.
• If user wants to cancel the function, press the Sleep timer (5) again and select "OFF".

7. Recording a sound

The user can also record a favourite sound for a maximum of 30 seconds.

Press REC (11) to start the recording. LCD display shows "REC".

The user has to face MIC (13) on the front panel and speak loudly for the desired sound to record. Press REC (11) again to save the recording.

The unit can store 1 recording only. When the user records a new sound, it will overwrite the old file.

8. Projector & LCD backlight ON/OFF

Press (13) Projector & LCD backlight On/Off. Both the LCD backlight and projector will switch on. The projector will project colorful diagrams onto the wall and ceiling.

Press Projector & LCD backlight (13) again to turn off the light.

The projection light will be change color every 12 seconds.

There are 2 additional removable projection plates (15) for the user to replace on the unit top to display the desired projections.

• The backlight of the LCD display will turn off after 30 seconds, even though the projection light is still on.

When the projector is ON with music, press [5] Sleep timer

• It will count down from the default 90 minutes. There are options for user: 90, 80, 70, 60, 50, 40, 30, 20, 10 & OFF.
• Projection will stop after the selected time.
• If the user wants to cancel the function, press Sleep timer (5) again and select "OFF".

9. Basic specifications:

DC only

Battery: 3x LR06 AA Alkaline battery only (not included)

CAUTION:

Batteries must be installed by an adult.

Replace batteries when sounds play slowly or are distorted, or when the unit works erratically.

Remarks:

Don't discard the electrical and electronic appliances in the regular waste disposal.

Take them to a collection point.
- Some components in these appliances may be hazardous to health and the environment.

Imported by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2-FRETIN

CS 90414

59814 LESQUIN Cedex - France

www/bigben.eu

Made in China

o bigben

[e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www/bigben.eu

N.° de modelos RPE

DESPERTADOR DOBLE CON PROJECTION

[e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www/bigben.eu

Modello n. RPE

DOPPIA RADIOSVEGLIA CON PROIETTORE

ISTRUZIONI D'USO

PRIMA DI UTILIZZARE L'APPARECCHIO, LEGGERE PER INTERO IL PRESENTE MANUALE E CONSERVARLO PER CONSULTAZIONI FUTURE.

Index

Per iniziare 1

[e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www/bigben.eu

Modelo n° RPE

RELÓGIO COM DUPLO DESPERTADOR E PROJETOR

[e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www/bigben.eu

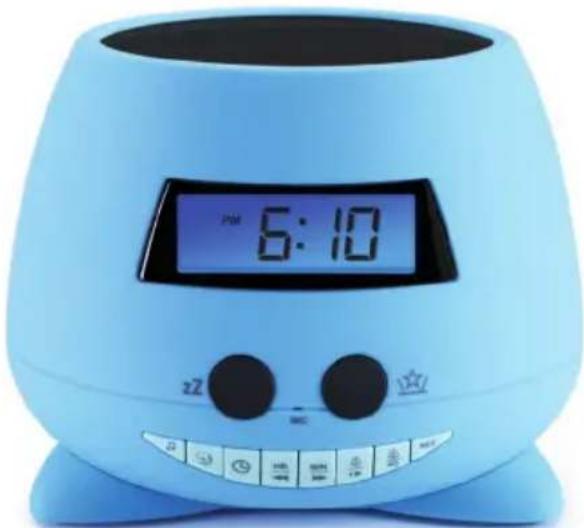

DUAL-WECKER MIT PROJEKTOR
