USER MANUAL GIS 160WIGHF Güde

Translation of the original instructions

Read and understand the operating instructions before using the appliance. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties. In case of any doubts about connection and operation refer please to our customer center Specied Conditions Of Use The device is an arc welding device with a limited duty cycle and corresponds to class A according to standard 60974-10. The device is suitable for occasi- onal industrial and commercial purposes, as well as occasional short work in the hobby and DIY sector. We have made technical documentation for dismant

ling, spare parts lists, circuit diagrams and a list of recyclable materials available for you on the Internet. You can access the technical documents using the QR code or the corresponding link below the techni- cal Data of these instructions. No additional gas is required. The protective gas is contained in the wire in powdered form, is thus fed directly into the arc and this makes the device resistant to wind when used outdoors. Only wire electrodes which are suitable for the device may be used. Observing the safety instructions, the assembly in

structions and the operating instructions in the user manual also constitutes part of the proper use. The valid accident prevention regulations must be adhered to strictly.. The welding device may not be used:

• in rooms that do not have sucient ventilation

• in a damp or wet environment,

• in an explosive environment,

• close to people who have a pacemaker and

• close to ammable materials Please note that our equipment has not been designed for commercial, craft or industrial use. If the equipment is used in commercial, craft or industrial operation or for similar activities, we cannot assume any liability. Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages. Safety instructions WARNING! Electric shock! There is a risk of an injury caused by electric shock! ENGLISH Technical Data

• Actual working time and total working time ratio. Switch-on time determined at 40°C using simulation. This device consists of the following recyclable materials: Sheet steel, Copper, Aluminum, , ABS, PE19

are open, containing materials able to explode due to heat or moisture or able to cause other dangerous reactions. Never use the welder to defrost frozen pipes. Before putting into operation, a qualied electrician must check whether electric safety measures required are in place.Any national regulations in this regard must be complied with. Protect the circuit with slow-acting fuses of an appro

priate size and a mains breaker switch. Class A (IEC 60974-10): If you intend to use the apparatus in residential sur

roundings supplied by the low voltage mains supply, an electromagnetic lter may be required to suppress electrical disturbance to a level where they will no longer be a nuisance to the user. The apparatus may be used in industrial or other areas where power is not supplied by municipal LV mains. Class A apparatus are not intended for use in resi

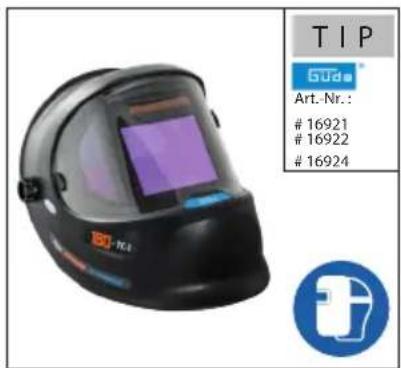

dential areas where power is supplied via municipal LV mains, since unfavourable power conditions may cause interference. As a user, you must make sure, after consultation with your energy provider, if necessary, that your point of connection on which the machine is to be operated meets the requirements above. The user is responsible for faults arising from the welding. Symbols Caution! Read the Operating Instruc- tions! Wear personal protective equipment. Welding mask to be used! Special welding gloves to be worn at all times. Wear safety cut through resistant shoes with safety sole and steel toe ! Protective apron to be used Before carrying out any work on the machine, disconnect the plug from the socket. Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA). IP21 protection degree of the welder. The welder must not be exposed to rain and moisture when being operated or stored. Check the voltage. Technical data given on the type label must correspond with electric network voltage. Insert the plug of the electrical cable in a socket of suitable shape, voltage and frequency complying with current regulations. Use extension cables with a maximum length of 5 meters and with a cable cross-section of not less than

1.5 mm2. Use of extension cables of dierent length

and cross-section and also of adapters and multiple sockets should be avoided. Check the cable and/or socket for damages before the appliance putting into operation. Defective cable or plug may cause electric shock. Do not pull the service cable to pull the plug out of socket. Do not expose yourself or other persons without pro

tection to electric arc or hot metal. Spraying welding pearls may cause burns. A suitable welding shield, protective clothes and protective gloves to be worn at all times. Long-term inhalation of welding gases may be harm

ful to your health. Work with an exhaust system or in well ventilated spaces. Avoid direct inhalation of gases. Contact with the hose bundle nozzle and the material being processed may cause burns. Special welding gloves to be worn at all times. Let the hose bundle nozzle and the material being processed cool down after being operated. Long-term working with the appliance may damage hearing. Hearing protection to be used at all times. Make sure the welding smoke is exhausted or the place of welding ventilated well. Hot slag and sparks may cause re or explosion. Never use the appliance in a ammable environment. Wood, sawdust, „varnishes“, petrol, kerosine, natural gas, acetylene, propane and similar ammable materials must be removed from the place of work and the surrounding area or protected against sparks ying away. To extinguish re, a suitable re extinguisher must be made ready nearby. No welding or cutting on closed vessels and pipes. No welding or cutting on vessels and pipes if they ENGLISH20

Warning against dangerous voltage Risk of explosion Caution - hot surface! Warning against toxic fumes!Not to be used in enc- losed spaces Protect against humidity Never expose tool to rain. Prohibition for persons with a pacemaker! Keep distance of persons Observe to keep out of dangerous zone Prior to every use, visually check the ma- chine to rule out any defects, in particular on the power cable and the plug. Single-phase static frequency converter transformer rectier Direct current Fan CE marking MMA (electrode welding) Suitable for welding with an increased electric risk. Single-phase alternating current with rated frequency of 50 Hz ENGLISH Do not put electrical appliances to household waste - use collection centres in your town. Ask the municipality authorities where such collection centres can be found. If electrical appliances are disposed in an uncontrolled manner, ha- zardous substances can get into ground water through the weather and - as a result - penetrate the food chain or poison the ora and fauna for a number of years. When the appliance is to be changed for a new one, the seller is legally obliged to accept the old appliance, at least for free disposal. Protect against humidity This side up Requirements for operating sta The operating sta must carefully read the Opera- tingInstructions before using the appliance. Qualication: Apart from the detailed instructions by aprofessional, no special qualication is necessary forappliance using. Minimum age: Persons over 18 years of age can only workon the appliance.An exception includes youngsters trained in order to reachknowledge under supervision of the trainer duringoccupational education. Training: Using the appliance only requires corre- spondingtraining by a professional or the Operating Instructions. Nospecial training is necessary. Emergency procedure Conduct a rst-aid procedure adequate to the injury and summon qualied medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, inaccordance with DIN13164, a workplace has to be ttedwith a rst-aid kit. It isessential to replace any usedmaterial in the rst-aid kitimmedia- tely after it has been used. If you seek help,state the following pieces ofinfor- mation

1. Accident site 2. Accident type

3. Number of injured persons 4. Injury type(s)21

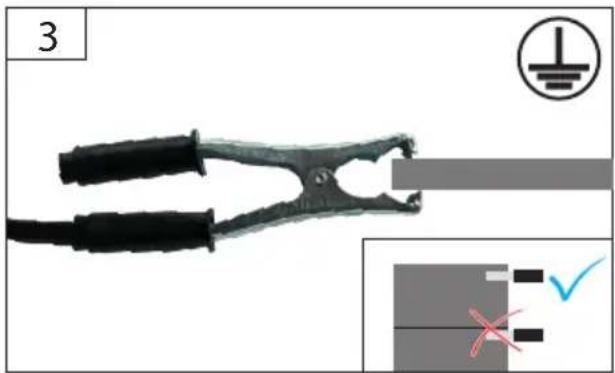

Failure removal Failures Causes Removal Electric arc turned o Poor contact between earth pliers and the respective part Tighten the pliers and check them Remove paint and rust Welder suddenly stops working after longer operation Welder has overheated due to too long use and the thermal protection has activated Let the welder cool down

ENGLISH Maintenance Before carrying out any work on the machine, disconnect the plug from the socket. Prior to every use, visually check the machine to rule out any defects, in particular on the power cable and the plug. The machine must not be used under any circum

stances if the machine or the safety devices are damaged. If the device is defective, the repair has to be made exclusively by the customer service. Use only original accessories and original spare parts. Never clean the machine and its components with solvents, ammable or toxic liquids. Us only a damp cloth making. Use a soft brush to remove the deposited dust from the ventilation hole and moving parts after each use. All moving metal parts, e.g. wheels and the side cover, to be regularly lubricated with oil. Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insucient mainte

nance and care can lead to unforeseen accidents and injuries. If necessary, a list of spare parts can be found at www. guede.com. Guarantee Warranty period of 12 months applies to commercial use and 24 months applies to private use and com- mences on the day of purchase of the device. The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be sub

mitted for any claim in the guarantee period. The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the ope

rating and assembly instructions and common wear are also not included in the guarantee. Service Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bure- aucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference Serial No. Art. No Year of production Important information for the customer Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.22
