VPC-12

Voltage & Continuity Tester

with VolTect™ Non-contact Voltage Detection

CONTENTS

SYMBOL 3

SAFETY INFORMATION 3

UNPACKING AND INSPECTION 5

FEATURES 5

Automatic Operation 6

Voltage Measurement 6

Continuity Testing 8

Non-contact Voltage Detection 8

Flashlight 9

DETAILED SPECIFICATIONS 9

MAINTENANCE 10

Cleaning 10

Replacing the Battery. 10

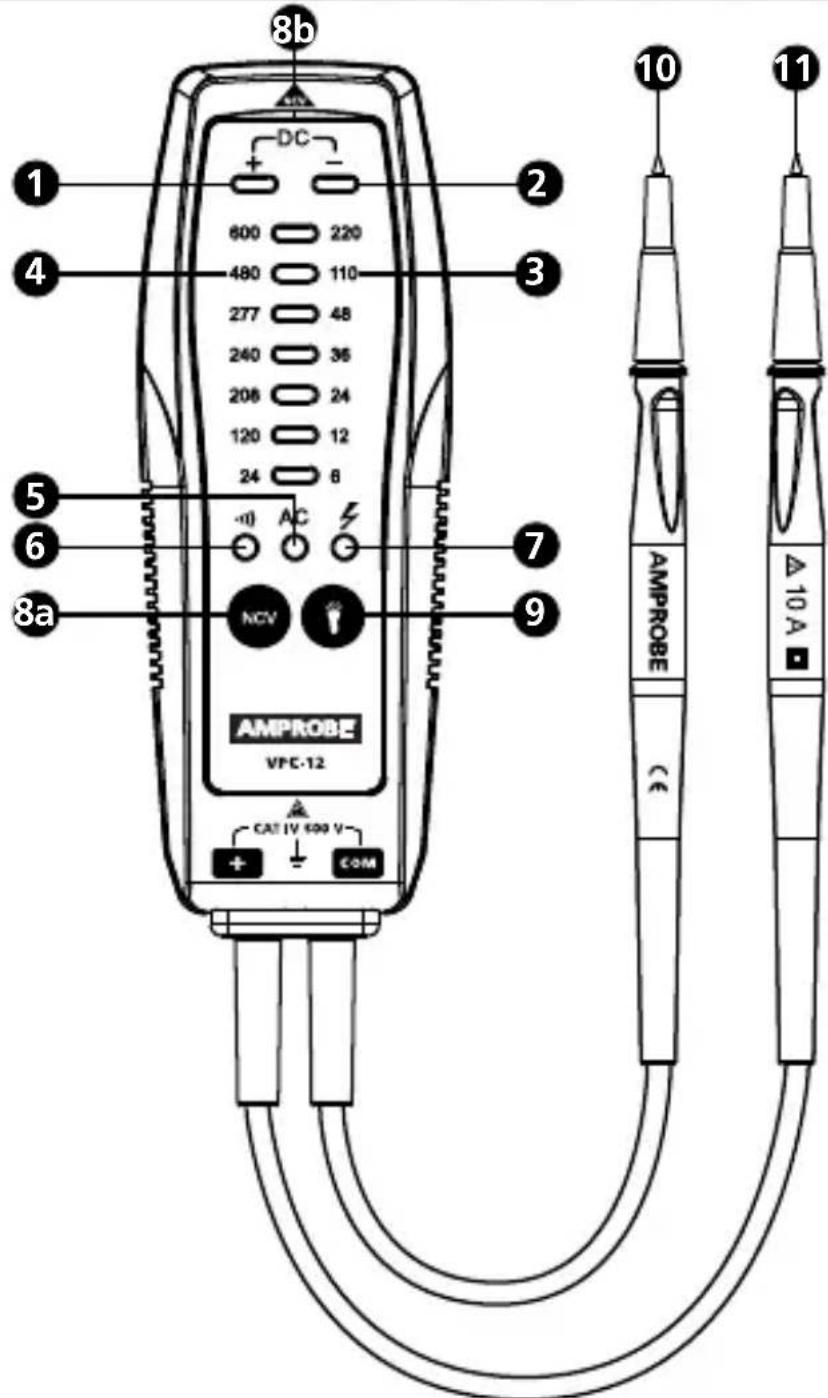

Positive DC voltage LED indicator
Negative DC voltage LED indicator
3 DC voltage range
4 AC voltage range
5 AC voltage LED indicator
Continuity LED indicator
7 Hazardous voltage LED indicator

8a Non-Contact voltage detection button
8b Voltect(TM) Non-Contact Voltage Sensor
9 Flashlight button
10 Measuring probe (COM)
11 Measuring probe (+)

SYMBOLS

4	Caution! Risk of electric shock
1	Caution! Refer to the explanation in this manual
☐	The equipment is protected by double insulation or reinforced insulation
⊥	Earth (Ground)
CAT IV	Overvoltage category IV is for equipment installed at or near the original electrical supply to a building, between the building entrance and the main distribution board. Such equipment may include electricity tariff meters and primary overcurrent protection devices
~	Alternating Current (AC)
=	Direct Current (DC)
-AAA+	Battery
CE	Complies with European Directives
	Conforms to relevant Australian standards
US	Independently certified for U.S. and Canadian markets
	Do not dispose of this product as unsorted municipal waste. Follow your local recycling laws.

SAFETY INFORMATION

The meter complies with:

IEC/EN 61010-1 3rd Edition, UL61010-1 3rd Ed., CAN/CSA C22.2 No. 61010-1-

12 + CAN/CSA C22.2 No. 61010-2-033 to CAT IV 600 V, pollution degree 2.

IEC/EN 61010-2-033

IEC/EN 61010-2-31 for test leads

EMC IEC/EN 61326-1

This product has been tested to the requirements of CAN/CSA-C22.2

No. 61010-1-12 third edition, or a later version of the same standard incorporating the same level of testing requirements

CENELEC Directives

The instruments conform to CENELEC Low-voltage directive 2014/35/EU and Electromagnetic compatibility directive 2014/30/EU

Warning

To prevent possible electrical shock, fire, or personal injury:

• Carefully read all instructions. Read safety information before using or servicing the tester.
• Comply with local and national safety codes. Use personal protective equipment (approved rubber gloves, face protection, and flame retardant clothing) to prevent shock and arc blast injury where hazardous live conductors are exposed.
• In CAT III or CAT IV environments, use the test probes with the probe cap on. This decreases the exposed probe tip to reduce the possibility of arc flash from short circuits. When the probe cap off, the probe tip is 18 mm and rated to 1000V CAT II.
• Use the product only as specified, or the protection supplied by the product can be compromised.
• Do not work alone.
• Do not use the tester or test leads if they appear damaged. Examine the instrument and test leads for damaged insulation or exposed metal. Check test lead continuity.
• Do not touch voltages >30V AC rms, 42 V AC peak, or 60 V DC. These voltages pose electrical shock hazards. Keep fingers behind the finger guard on the probe.
• To avoid false readings, which could lead to possible electric shock or personal injury, check the battery and verify operation on a known source prior to measuring hazardous voltages (voltages above 30V AC rms, 42 V AC peak and 60 V DC).
• indicates hazardous voltage present if the LED turns on.
• Do not exceed the measurement category (CAT) rating of the lowest rated individual component of a product, probe, or accessory.
• If the tester is used in a manner not specified in the user manual, the protection provided by the equipment may be impaired.
• Measurements can be adversely affected by impedances of additional operating circuits connected in parallel or by transient currents.
• Disconnect the test leads from energized circuits and from the tester before replacing the battery.
• Do not use the tester with battery door removed.
• Do not use the instrument around explosive gas, vapor, or in damp or wet environments.
• For indoor use only.

Your shipping carton should include:

1 VPC-12 Voltage & Continuity tester with VolTectTM non-contact voltage detection
3 Batteries 1.5V IEC LR03 AAA
1 User manual

If any of the items are damaged or missing, return the complete package to the place of purchase for an exchange.

FEATURES

The Amprobe VPC-12 voltage and continuity tester is designed to be rugged and easy to use for testing voltage and continuity. It offers seven different voltage indicators clearly differentiating between key voltage levels and a buzzer alert indicating the presence of dangerous voltages and continuity.

• Check for voltage presence in receptacles, light fixtures or extension cords
• Test continuity of fuses, light bulbs and electrical connections
• Automatically selects AC voltage, DC voltage or continuity
• LED lights indicate 7 levels of AC and DC voltages:
• V AC: 24, 120, 208, 240, 277, 480, 600
• V DC: 6, 12, 24, 36, 48, 110, 220
  Full range polarity detection
• Continuity buzzer and visual continuity indication
• Built-in VolTect™ non-contact voltage detection and flashlight

1. Do not use on a voltage source higher than AC 600 V and/or DC 600V between any terminal and earth ground.

2. Connecting test lead.

3. Connect the common (COM) test lead to the circuit before connecting the live lead.

4. After measuring, remove live lead before removing the common (COM) test lead from the circuit.

5. Test on a known live source within the rated AC/DC voltage range of the instrument, both before and after use to ensure the instrument is in good working condition.

6. Indicates hazardous voltage levels if the LED turns on.

7. Do not touch voltages >30V AC rms, 42V AC peak, or 60V DC. These voltages pose electrical shock hazards. Keep fingers behind the finger guard on the probe.

Automatic Operation

The tester automatically turns on when you place the probes across a complete circuit. The tester selects AC or DC voltage or continuity mode based on the resistance or voltage between the probes. The tester automatically turns off when you remove the probes from the circuit being measured.

Voltage Measurement

Connect test leads across the source or load to be measured. The LEDs turn on at between 70% and 100% of their rated voltages.

Note: The maximum testing voltage of this product is 600Vac/220Vdc. It will indicate 600Vac/220Vdc LED even if the testing voltage is greater than this limit. In this case, users should beware of electric shock, and operate with care or stop testing.

AC Voltage: 600V rms maximum, 50 to 60Hz

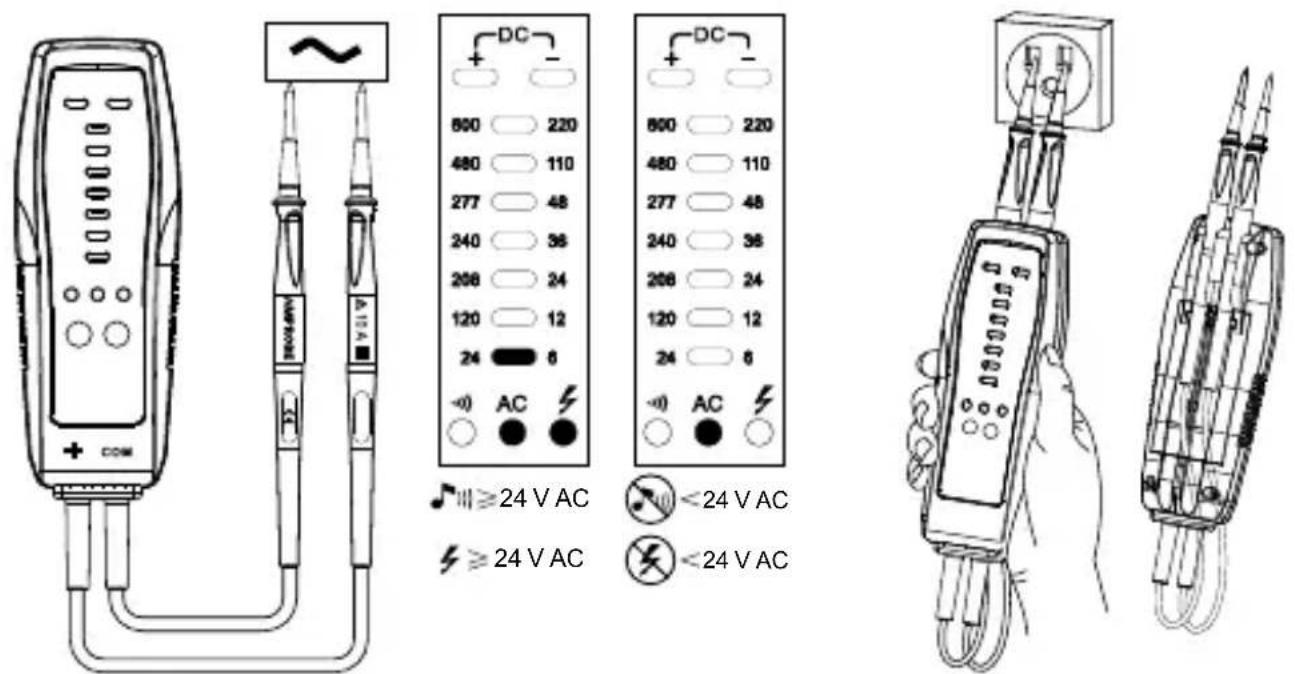

Figure 1: AC Voltage measurement Figure 2: Check for voltage presence in electrical outlets

6VDC

6VDC

48 V DC

48 V DC

Figure 3: +DC voltage measurement

-6VDC

-6VDC

-48VDC

-48V DC

Figure 4: -DC voltage measurement

Continuity Testing

Disconnect circuit power and discharge all high-voltage capacitors before testing continuity. Short circuit=0-45kΩ

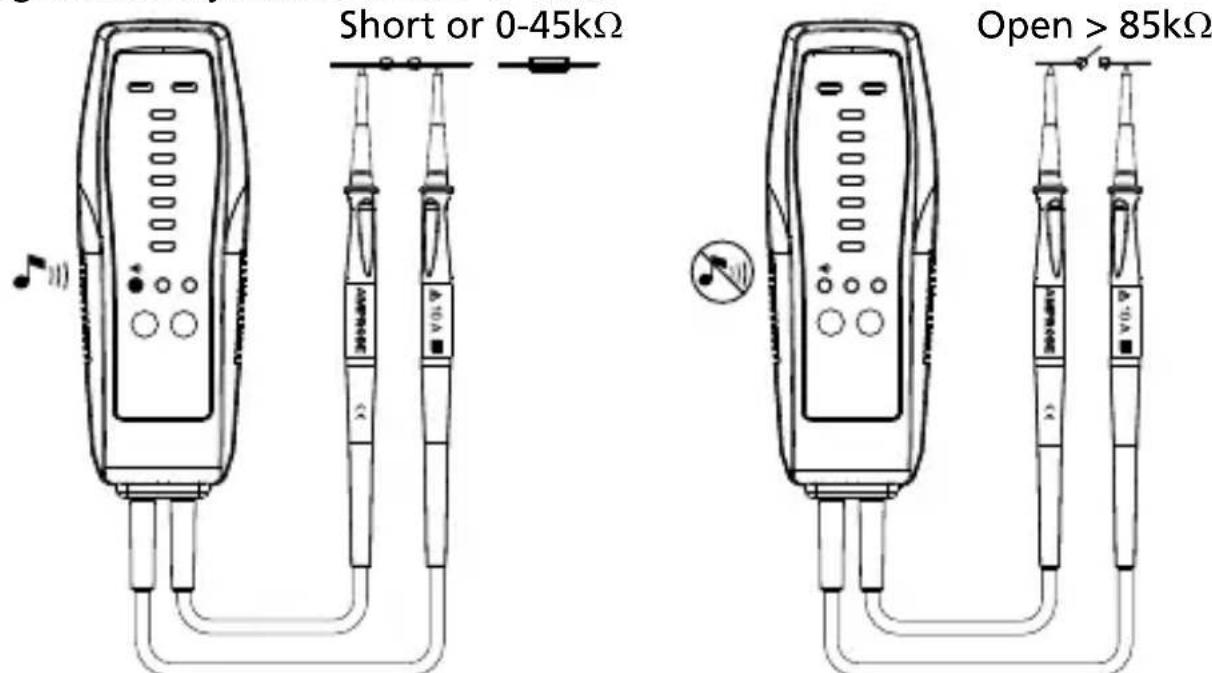

Figure 5: Continuity testing

VolTect™ Non-contact Voltage Detection

Press and hold down "NCV" button while placing the tester near AC voltages within the specified voltage range. The tester will continually beep and vibrate while AC voltage is detected.

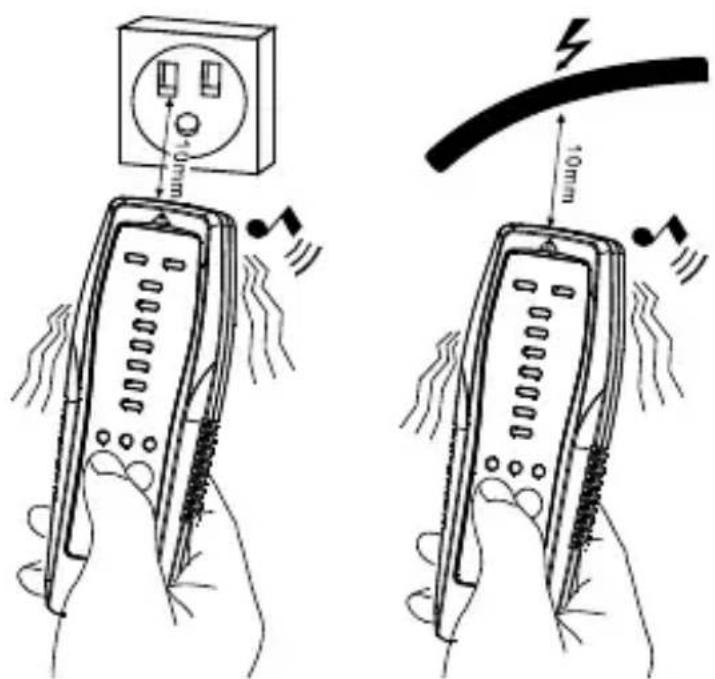

Figure 6: Checking for the presence of AC voltage

Flashlight

Press turn on the flashlight. Press agn to switch it off.

DETAILED SPECIFICATIONS

LED voltage range	24...600 VAC 6...220 VDC
LED indicator	AC volts: 24 V, 120 V, 208 V, 240 V, 277 V, 480 V, 600 V DC volts: 6 V, 12 V, 24 V, 36 V, 48 V, 110 V, 220 V
Frequency range 50 to 60 Hz
Acoustic and vibration indication	≥ 24 VAC, ≥ 6 VDC
Tolerances LEDs -30% to 0% of reading
Voltage detection Automatic
Range detection Automatic
Hazardous voltage indication	≥ 24 V AC, ≥ 48 V DC
Polarity detection Full range
Continuity range 0 – 45 kΩ
Continuity tolerances 0% to +50%
Continuity buzzer 3 kHz
Continuity indication	LED, buzzer and vibration 0 - 45 kΩ ON; >85 kΩ OFF
VolTectTM non-contact voltage detection	90 – 600 VAC Sensitivity: beeps and vibrates ≤ 10 mm (0.39 in) distance from a wire carrying 100 VAC.
Flashlight Yes
Input impedance 1 MΩ
Operating time	30 seconds ON maximum and wait for 5 minutes before making another measurement
Operating altitude Up to 2000 m / 6561 feet
Operating temperature	41°F to 122°F / 5°C to 50°C
Storage conditions -22	°F to 140°F / -30°C to 60°C
Humidity (without condensation)	≤ 80% RH at 41°F to 104°F / 5°C to 40°C; ≤ 50% RH at 104°F to 122°F / 40°C to 50°C
Pollution degree 2
Power supply Three 1.5 x D	V batteries, AAA, LR03, UM4
Battery life 40 hours (all kline) (typical)
Dimensions (H x W x D)	5.90 x 2.13 x 1.34 in 150 x 54 x 34 mm
Weight	Approximately 0.45 lb (205 g) with batteries installed
Electrical safety	CAN/CSA-C22.2 No. 61010-1-12, UL Std. No. 61010-1 (3rd Edition), CAN/CSA-C22.2 No. 61010-031-07,UL 61010-031 (1st Edition - 2007), CAN/CSA-C22.2 No. 61010-2-030-12, UL 61010-2-030(1st Edition -2012)
Overvoltage category CAT IV 600 V
EMC Conforms to IEC 61326-1
Agency approvals	C US C E

MAINTENANCE

Caution - To prevent damage to the VPC-12:

• Do not attempt to repair or service the VPC-12 unless qualified to do so.
• Make sure that the relevant calibration, performance tests, and service information is being utilized.
• Do not use abrasives or solvents.

Cleaning

The only maintenance the VPC-12 requires is inspection and cleaning. Periodically wipe the case with a mild solution of detergent and water. Apply sparingly with a soft cloth and allow time to dry completely before using. Do not use aromatic hydrocarbons, gasoline or chlorinated solvents for cleaning.

Replacing the Battery

Replace the batteries immediately if the continuity LED doesn't turn on when touching both probes together.

Warning

• To avoid electric shock, disconnect the test leads from the source before opening the VPC-12 for battery replacement.
• To avoid false readings, which could lead to possible electric shock or personal injury, replace the battery as soon as the battery is low or dead.

The VPC-12 uses three 1.5V batteries. To replace the batteries, follow these steps and refer to Figure 7:

1. Disconnect test leads from any power source.
2. Place the VPC-12 face down on a non-abrasive surface and loosen the battery-door screw with a Phillips screwdriver.
3. Lift the battery cover away from the VPC-12.
4. Replace the battery as shown in Figure 7. Observe the battery polarity shown in the battery compartment.
5. Secure the battery cover back in position with the screw.

Battery: 1.5V IEC LR03 AAA

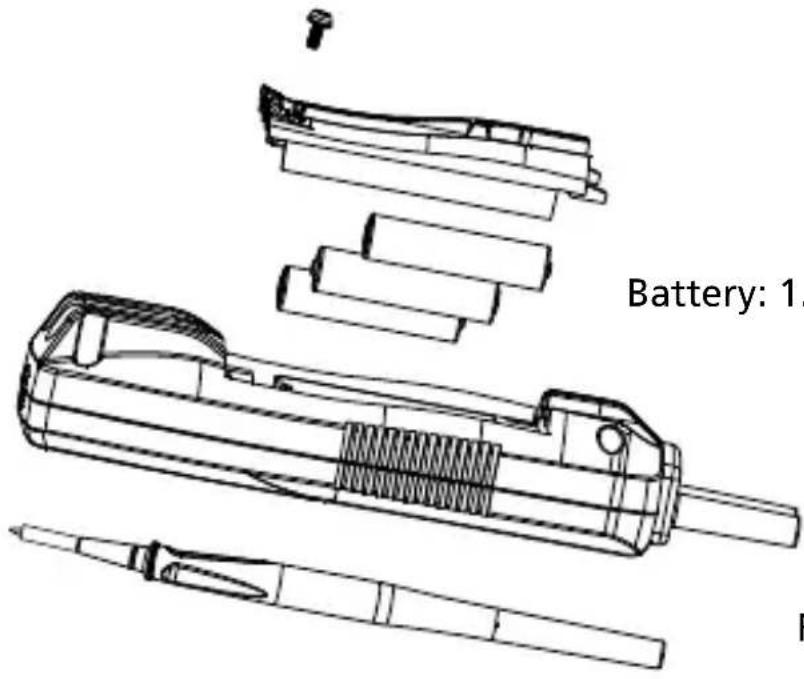

Figure 7: Replacing the batteries

VPC-12
