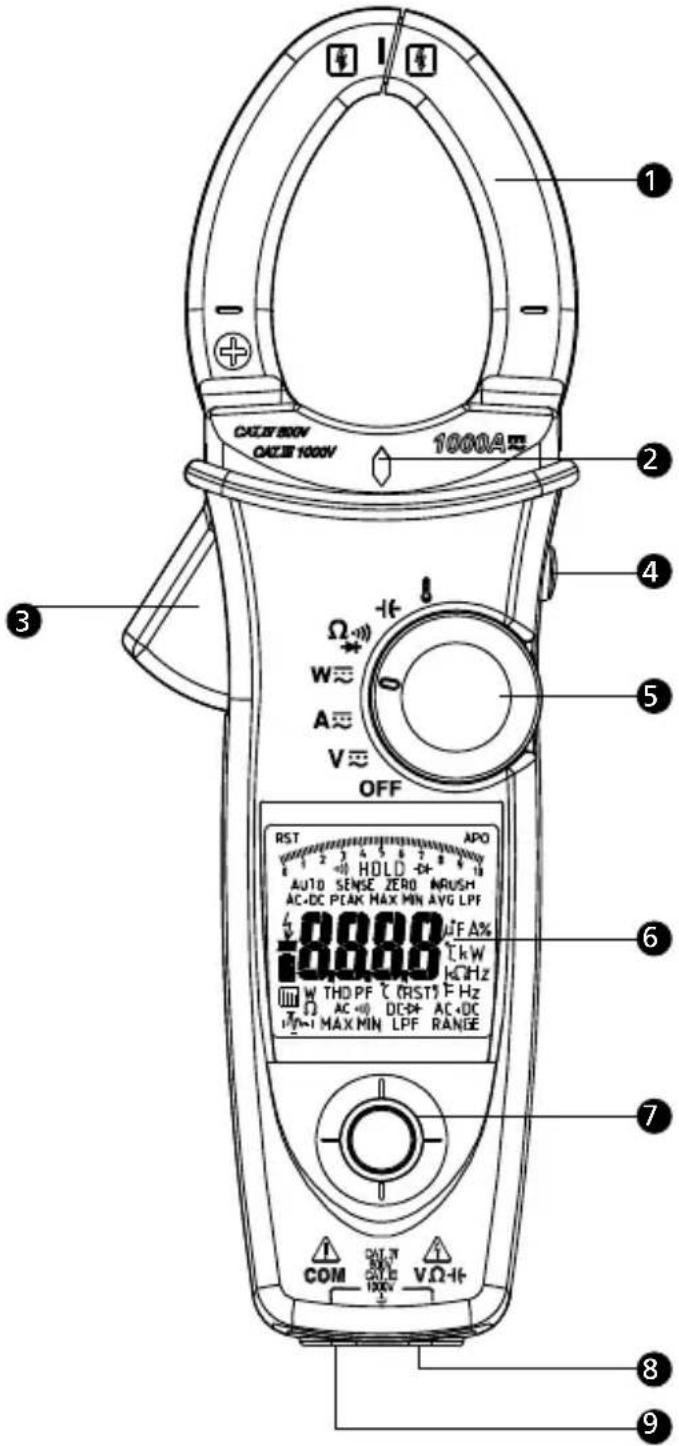

1 Jaw
2 Voltsense Light
3 Trigger
4 Hold/DCA Zero Key
5 Rotary Switch
6 Display
7 Navigator Key
8 V/Ω+Input
Common Input

SYMBOLS 1
UNPACKING AND INSPECTION 2
FEATURES 2
OPERATION 3

Making Basic Measurement 4
Measuring Voltage 5
Measuring Current 6
Auto Sense Mode 7
Peak Hold 7
Inrush Current 8
DC A ZERO 9
Measuring Frequency 9
MAX/MIN/AVG. 9
THD Measurement 10
LPF 11
Measuring Active Power (W) / Power factor (PF) 12
Phase Rotation 14
OHM Measurements 15
Measuring Capacitance 16
Measuring Temperature ^ C / ^ F 17
Measuring A Current 18
AUTO/Manual Range 19
HOLDKey 19
VoltSense 20
Buzzer 20
Power-up Option 20
Battery State Display 20

SPECIFICATION 21

MAINTENANCE AND REPAIR 27

Trouble Shooting 27
Cleaning and Storage 27
Battery Replacement 27

SYMBOLS

4	Caution! Risk of electric shock	A	Caution! Refer to the explanation in this Manual
5	Application around and removal from hazardous live conductors is permitted.	☐	Equipment protected by double or reinforced insulation
~	Alternating Current (AC).	---	Direct Current (DC).
8	Temperature Measurement	Ω	Resistance Measurement
+/-	Capacitance Measurement	→	Diode Measurement
||||)	Continuity Beeper	½	Earth (Ground)
4	To alert you to the presence of a potentially hazardous voltage, when the Meter detects a voltage ≥30 V or a voltage overload (OL) in V. This symbol is displayed.	CE	Complies with European Directives
C	Conform to relevant Australian standards		Battery
	Do not dispose of this product as unsorted municipal waste. Contact a qualified recycler

Safety Information

• Individual protective equipment should be used if HAZARDOUS LIVE parts in the installation where measurement is to be carried out could be ACCESSIBLE
• This manual contains information and warnings that must be followed for operating the instrument safely and maintaining the instrument in a safe operating condition. If the instrument is used in a manner not specified by the manufacturer, the protection provided by the instrument may be impaired.
• The meter is intended only for indoor use.
• The meter protection rating, against the users, is double insulation per IEC/EN 61010-1 3rd Ed, Category III 1000 Volts AC & DC and Category IV 600 Volts AC & DC.
• Disconnect the test leads from the test points before changing the position of the function rotary switch.
• Never connect a source of voltage with the function rotary switch in , , A, position.
• Do not expose Meter to extremes in temperature or high humidity.
• Never set the meter in , , A, function to measure the voltage of a power supply circuit in equipment that could result in damage the meter and the equipment under test.

Measurement category:

V: Category III 1000 Volts AC & DC, and Category IV 600 Volts AC & DC.

A: Category III 1000 Volts AC & DC, and Category IV 600 Volts AC & DC.

Per IEC 61010-1 3rd Ed. Measurement Category

Measurement Category IV (CAT IV) is for measurements performed at the source of the low-voltage installation. Examples are electricity meters and measurements on primary overcurrent protection devices and ripple control units.

Measurement Category III (CAT III) is for measurements performed in the building installation. Examples are measurements on distribution boards, circuit-breakers, wiring, including cables, bus-bars, junction boxes, switches, socket-outlets in the fixed installation, and equipment for industrial use and some other equipment, for example, stationary motors with permanent connection to the fixed installation.

WARNING

To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. To avoid electrical shock hazard, observe the proper safety precautions when working with voltages above 60 VDC or 30 VAC rms. These voltage levels pose a potential shock hazard to the user. Do not touch test lead tips or the circuit being tested while power is applied to the circuit being measured. Keep your fingers behind the finger guards of the test leads during measurement. Inspect test leads, connectors,

and probes for damaged insulation or exposed metal before using the instrument. If any defects are found, replace them immediately. Only use the accompanied test leads, or replace with the same rating or better.

UNPACKING AND INSPECTION

Your shipping carton should include:

1 Power clamp meter
1 Test leads (1 pair)
1 Temp. adapter and probe (for ACD-51NAV and ACDC-54NAV only)
1 Users Manual
1 Carrying case
1 9V alkaline battery (installed)

If any of the items are damaged or missing, return the complete package to the place of purchase for an exchange.

FEATURES

True RMS
- Measurements:

o Voltage up to 1000V AC/DC, Resistance, Frequency, THD (Total Harmonics Distortion) and Individual Harmonics 1 to 25, Power, Power Factor
o AC Current

• Up to 600A (ACD-50NAV, ACD-51NAV, ACDC-52NAV)
• Up to 1000A (ACD-53NAV, ACDC-54NAV)

o DC Current

• Up to 600A (ACDC-52NAV)
• Up to 1000A (ACDC-54NAV)

o Capacitance

o Temperature Measurement in ^ C / ^ F (ACD-51NAV, ACDC-54NAV only)-Temp. adapter and probe included
o DC Micro Amps (ACD-51NAV only)

Phase Rotation Indication
Non-contact voltage detection
- Inrush Current measurement for motors
- Low Pass Filter for variable frequency drives
Continuity Beeper
Min, Max and Smart Data Hold
Peak Hold
- Auto torch-light when clamping
- Large 10000 count display with active backlight and analog Bar graph
- Auto Power Off
Maximum Jaw Opening 1.77" (45mm)
- 4 feet Drop Proof
- Deluxe Carrying Case Included
- CAT IV 600V/CAT III 1000V Safety Standard

OPERATION

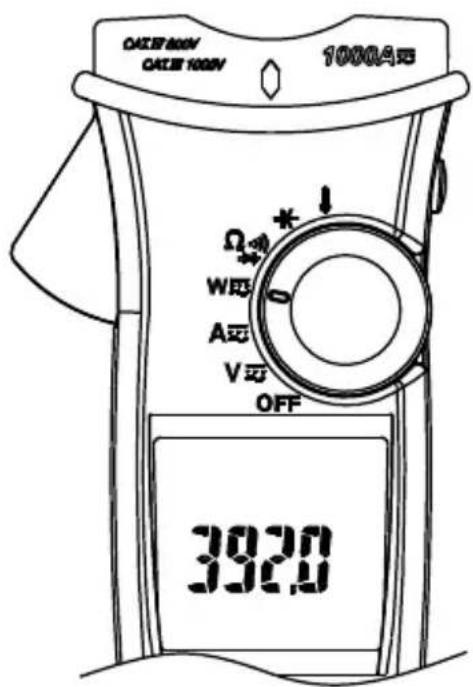

Power On / Off

Power on

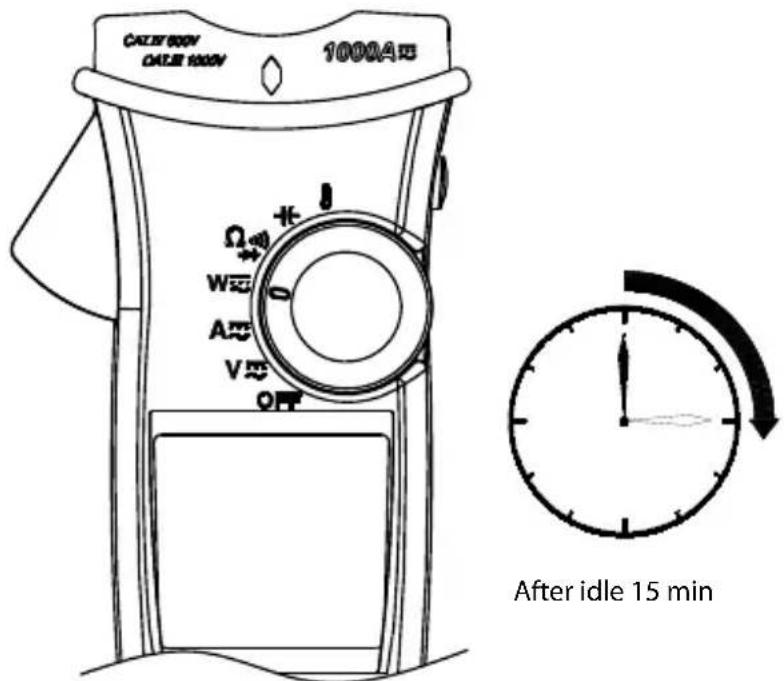

Auto Power Off

The meter can work again by turning it on from the OFF position.

Auto Power Off (APO) disable : Press "Downward" of Navigator key while tuning meter on from OFF position.

Navigator Key

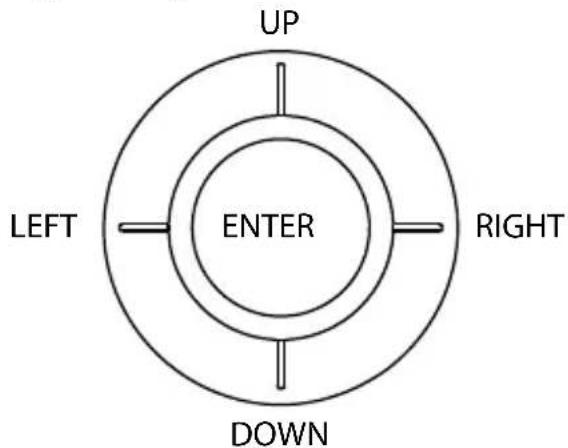

The Navigator Key has 5 directions of switch on the display, toggle the navigator key to select the desired feature to activate the feature by a simple click.

Making Basic Measurements

CAUTION

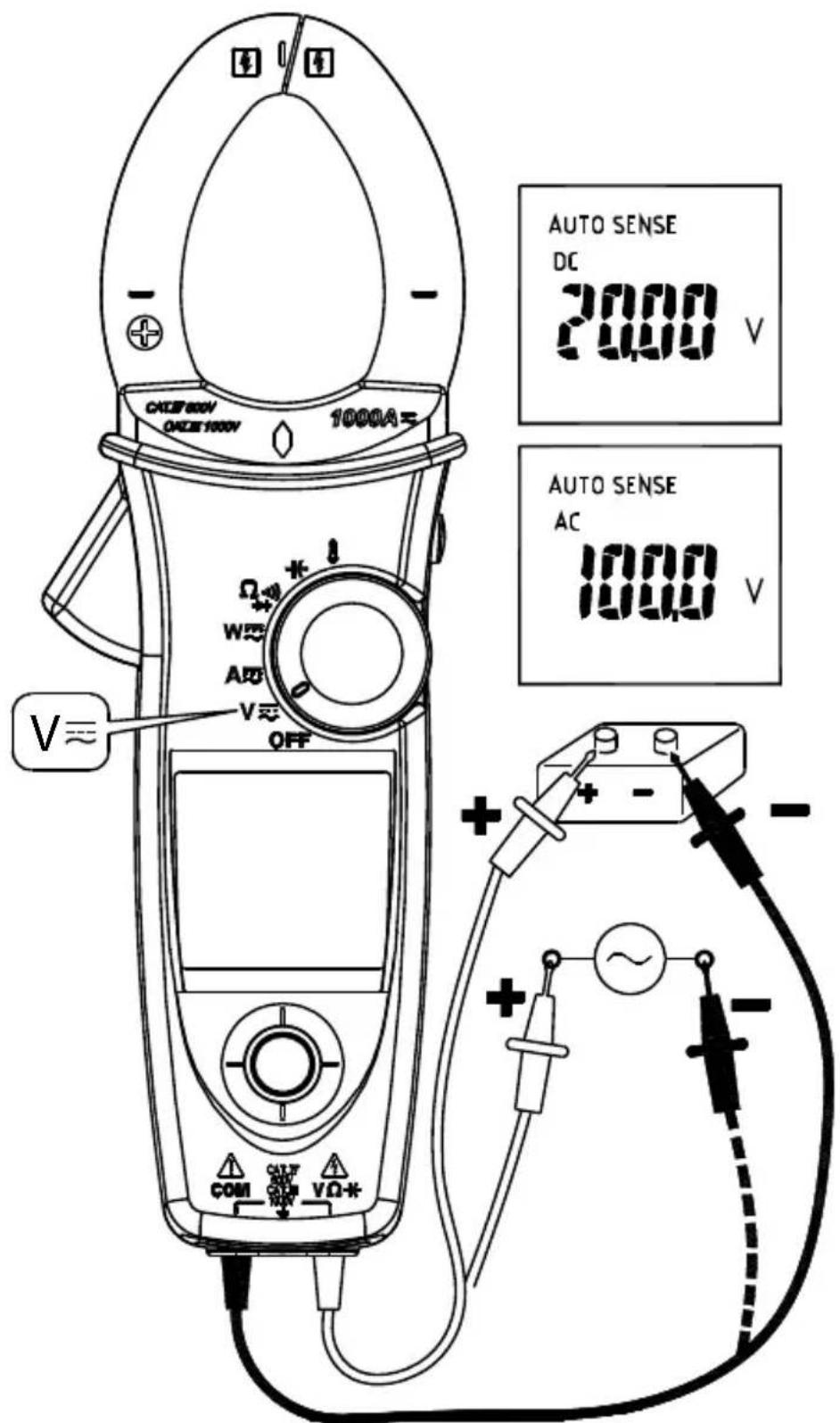

Before and after hazardous voltage measurements, test the voltage function on a known source such as line voltage to determine proper meter functioning.

When connecting the test leads to the EUT (Equipment Under Test) connect the common test lead before connecting the live lead; when removing the test leads, remove the test live lead before removing the common test lead.

WARNING

To avoid electrical shock, hazard or damage to meter, do not attempt to measurement that might exceed 1000 V DC or AC RMS. Do not apply more than 1000 V DC or AC RMS to the input terminals.

Note - If the measured voltage is higher than 30 V DC or AC RMS, the display will show "h" symbol.

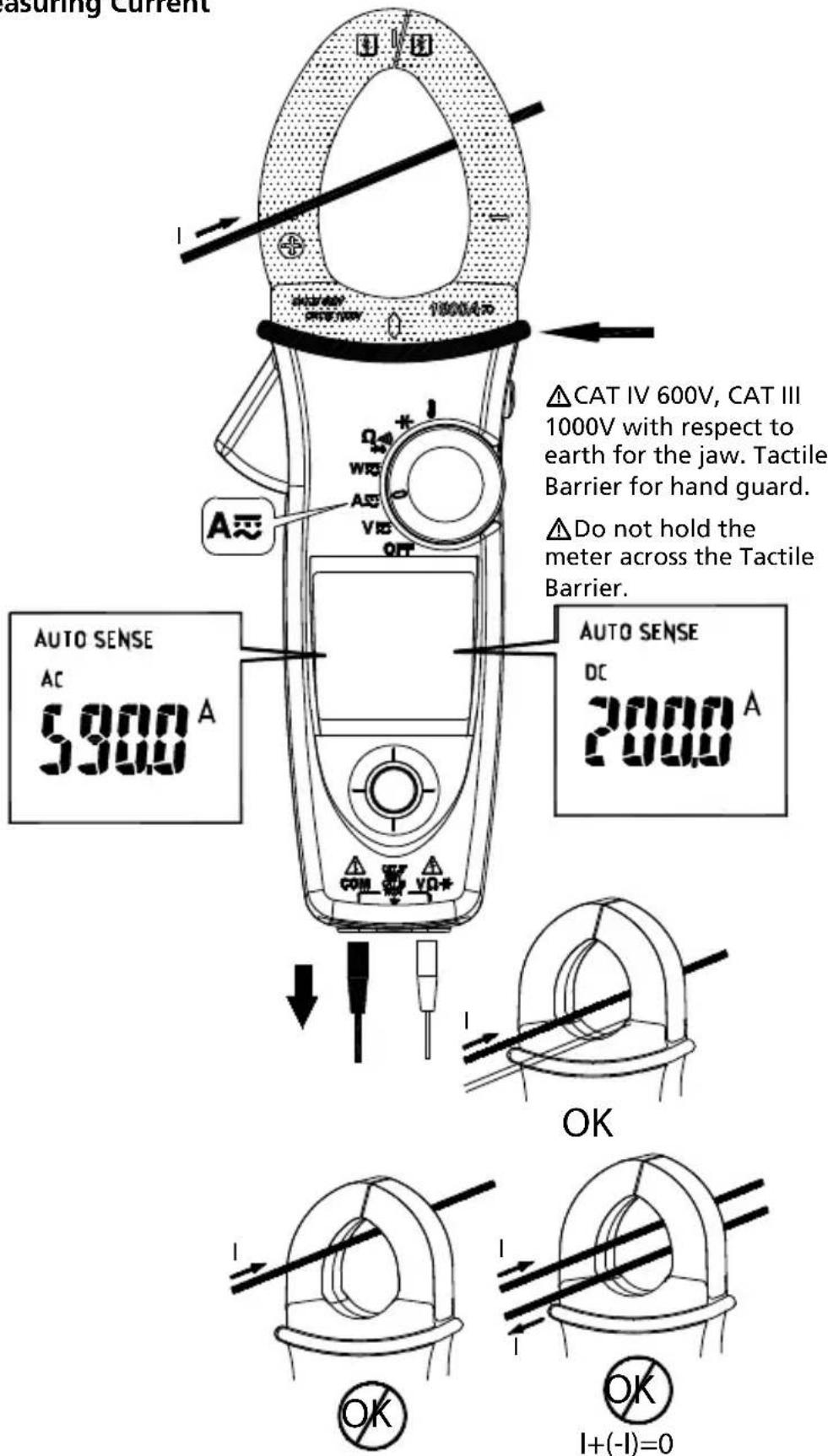

Measuring Current

• Don't clamp on any conductor while the meter power on.
• ACD-50NAV, ACD-51NAV or ACD-53NAV has only AC current measurement mode.
• Torch lighting when clamping.

CAUTION

Please do not measure current from clamp jaw when temperature probe is connected to meter.

AUTO SENSE mode:

Display measurement result at AC only with RMS value or DC value, it depends on whichever is greater.

AC mode: AC only with RMS value.

DC mode: DC value.

AC+DC mode: AC+DC RMS value.

Note:

• Select "AC", "DC" or "AC+DC" indicator then press the navigator key to enter the AC/DC/AC+DC mode.
• Select "AC", "DC" or "AC+DC" indicator then press the navigator key for more than 2 seconds to return to the AUTO SENSE mode.

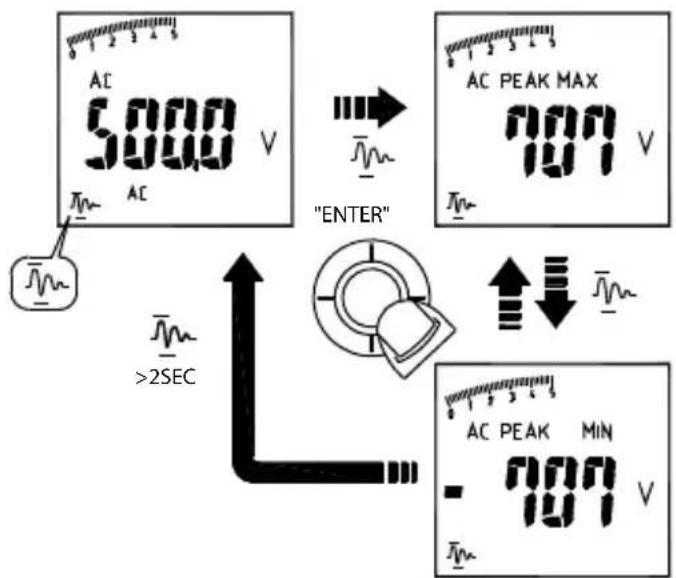

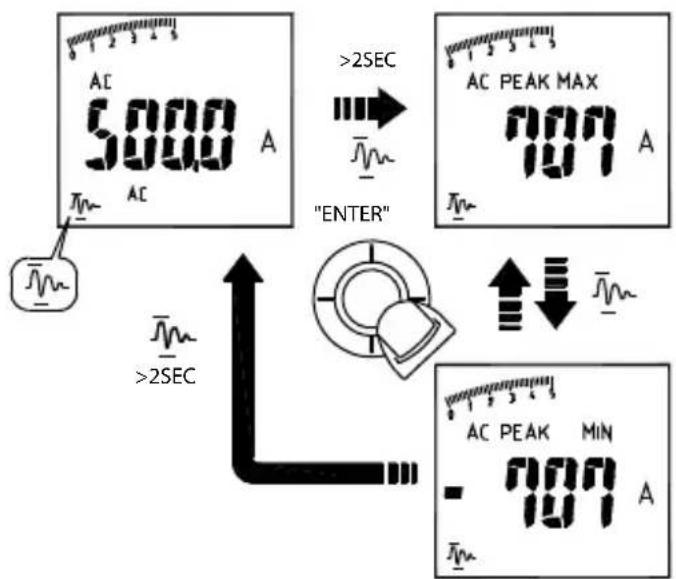

PEAK HOLD AC mode only)

1. In ACV mode, select "indicator on the display to enter PEAK HOLD mode. To exit PEAK HOLD mode, press the navigator key for more than 2 seconds.

1. In AC A mode, select "W indicator then press the navigator key for more than 2 seconds to enter PEAK HOLD mode. To exit PEAK HOLD mode, just press the navigator key for more than 2 seconds to return to the "W" indicator.

In PEAK HOLD mode, the meter is activated to save the positive peak value and negative peak value. Positive peak value is displayed in PEAK MAX mode. Negative peak value is displayed in PEAK MIN mode.

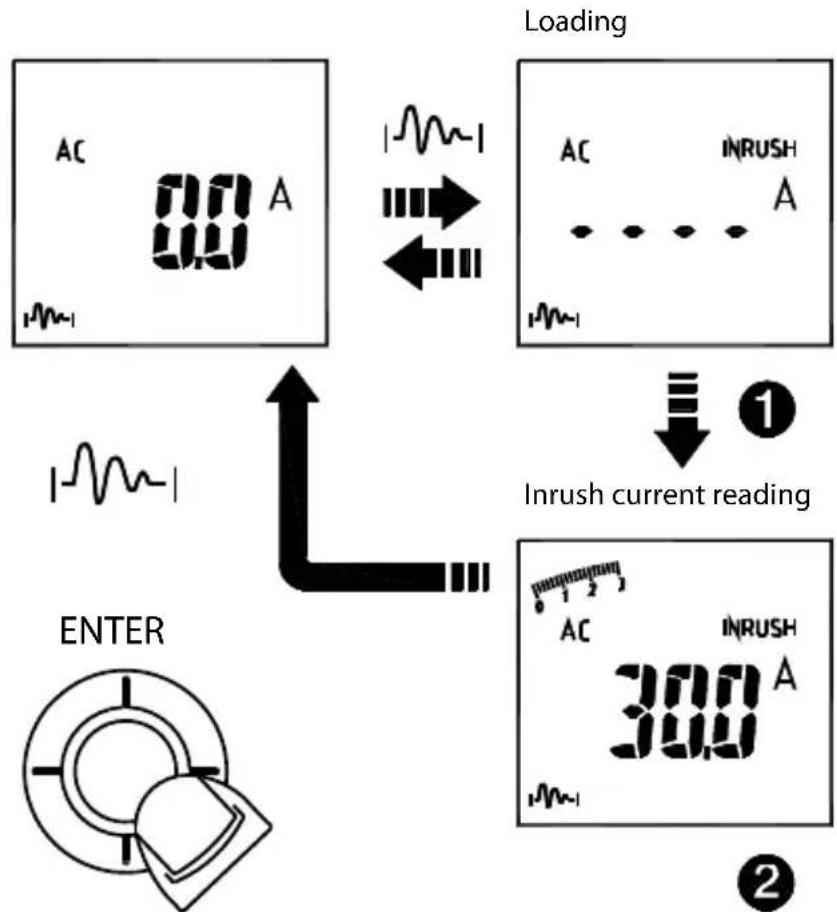

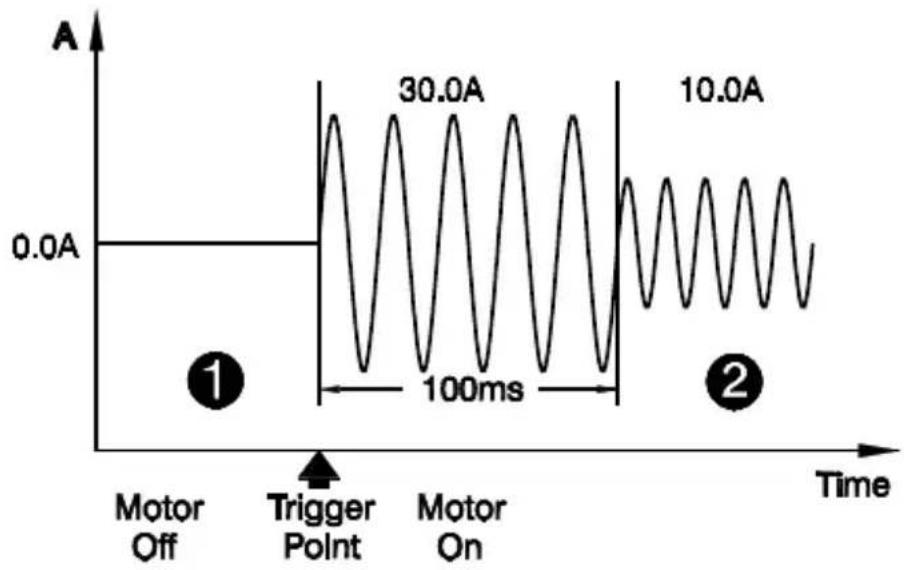

Inrush Current AC mode only)

If the under testing inrush current could be bigger than 100A ac, please select the range to 600A/1000A in advance before activating inrush current. In ACA mode, select "M1" indicator on the display to enter Inrush Current mode. To exit Inrush Current mode, press the navigator key again.

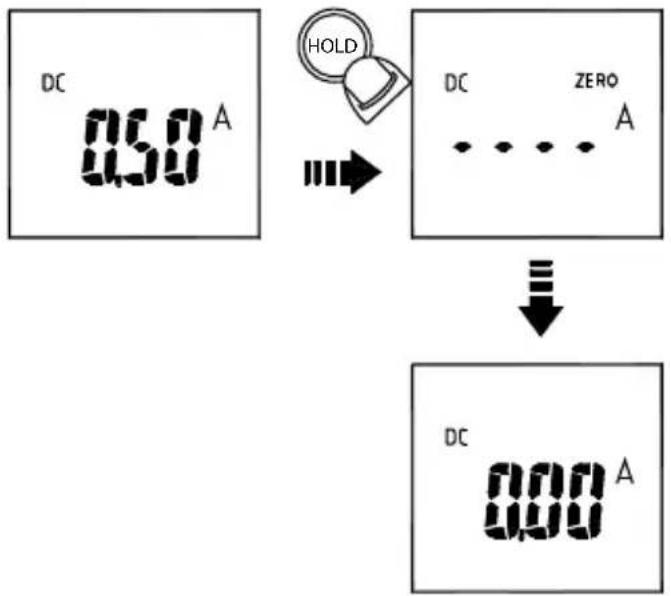

DC A ZERO (For ACDC-52NAV, ACDC-54NAV Only)

Remove the jaw out of the conductor.

Press HOLD Key >2 seconds to compensate the residual magnetism.

HOLD>2 Sec

• DC A Zero is only available in Auto Sense, DC and AC+DC mode.

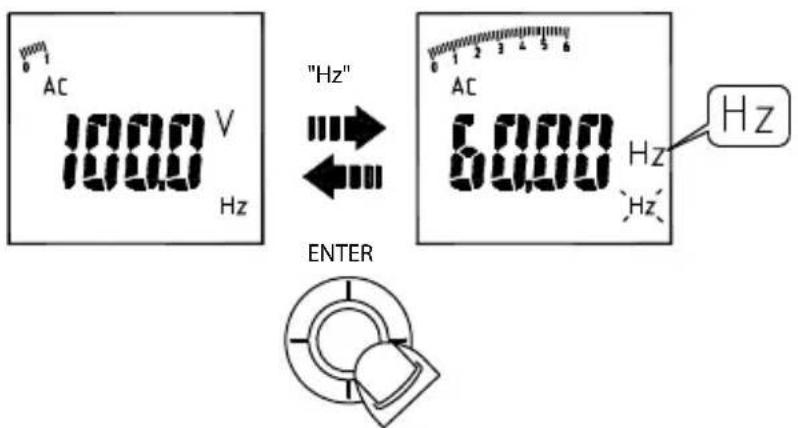

Measuring Frequency (AC mode only)

Select the "Hz" indicator then press the navigator key to enter/exit the frequency measurement mode.

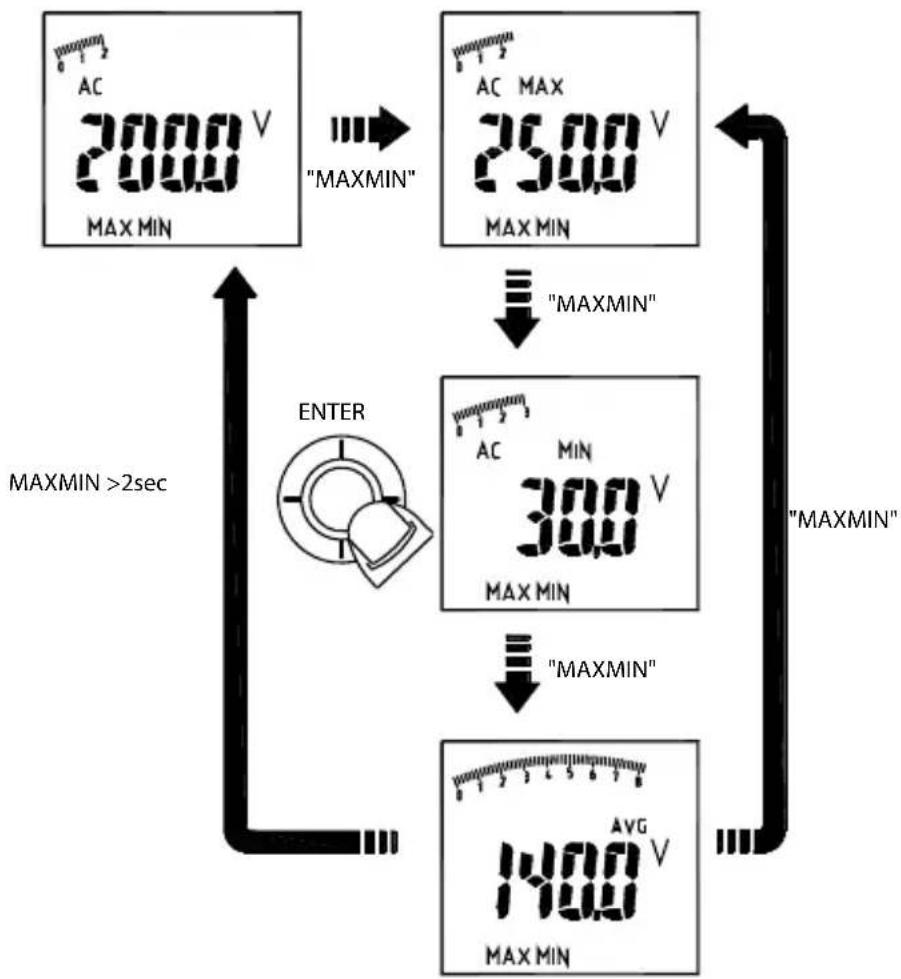

MAX/MIN/AVG

Select the "MAX MIN" indicator then press the navigator key to enter the MAX/MIN/AVG mode. To quit from the MAX/MIN/AVG mode, press the navigator key for more than 2 seconds.

The MAX/MIN/AVG mode records the minimum and maximum input values. When the inputs go below the record minimum value or above the record maximum value, the meter records the new value. The MAX/MIN/AVG mode can also calculate the average of the maximum value and the minimum value.

Note :

• Press HOLD key in MAX MIN mode to make the meter stop updating the maximum and minimum value. When the HOLD mode is activated in MAX MIN mode, the HOLD mode must be deactivated before the MAX MIN mode.

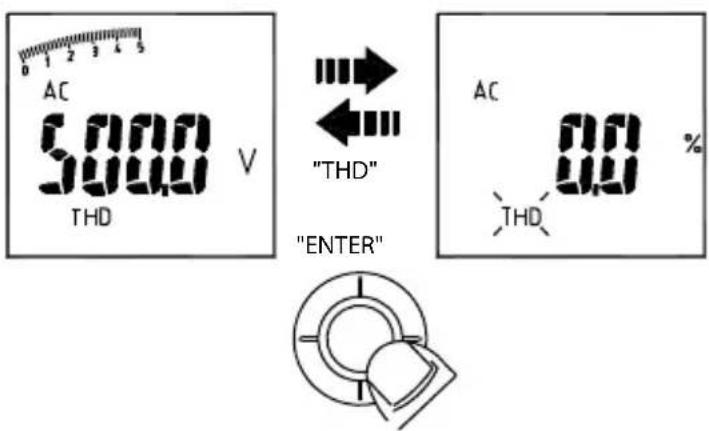

THD Measurement (AC mode only)

Select the "THD" indicator then press the navigator key to enter the THD mode. THD-F=RMS of Harmonics ÷ RMS of fundamental × 100% . (harmonics up to the 25th)

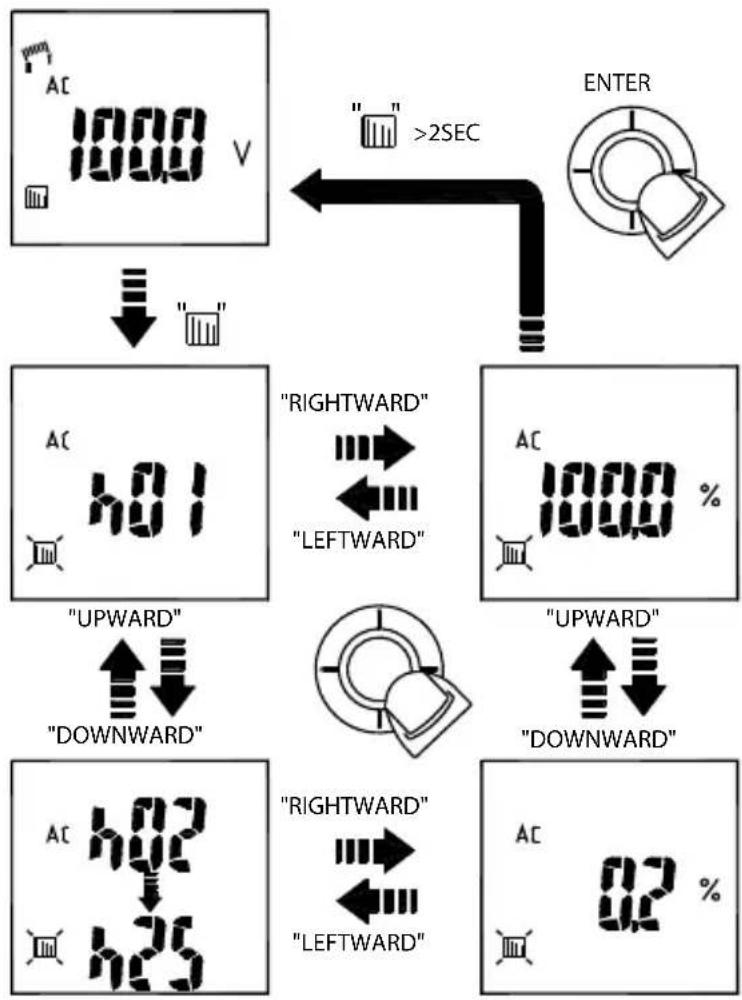

Individual Harmonic Measurement (AC mode only)

Select the "indicator then press the navigator key to enter the individual harmonic mode. To quit from the individual harmonic mode, press the navigator key for more than 2 seconds.

Hn=RMS of Individual Harmonic ÷ RMS of fundamental × 100%

LPF (AC mode only)

Select the "LPF" indicator then press the navigator key to eliminate high frequency noise

Note: Peak Hold, Inrush, THD, HZ, individual Harmonic and LPF mode are only available in AC mode.

Measuring Active Power (W) / Power factor (PF)

1. Single Phase Power Measurement

Step1. Set the rotary switch to the "W" position.

Step2. Connect the Red test lead to the Line conductor, and the Black test lead to the Neutral conductor.

Step3. Press the trigger to open the transformer jaws and clamp one conductor only, make sure that the jaw is firmly closed around the conductor.

Step4. Using the Navigator key to choose the "W/PF" mode.

Note :

• The "+" symbol on the jaw must face on the power source side.
• In AutoSense mode, the meter will displays ACW/DCW depends on if there is AC frequency detected.
• ACD-50NAV, ACD-51NAV and ACD-53NAV offer AC power measurement mode only.

Active power sign :

No sign : Indicates the power flows from the power source to the load. " _ " sign : Indicates the power flows from the load to the power source.

Power factor sign :

No sign : The phase of the current signal is lagging behind the voltage signal (inductive load).

"_" sign : The phase of the current signal is leading the voltage signal (capacitive load).

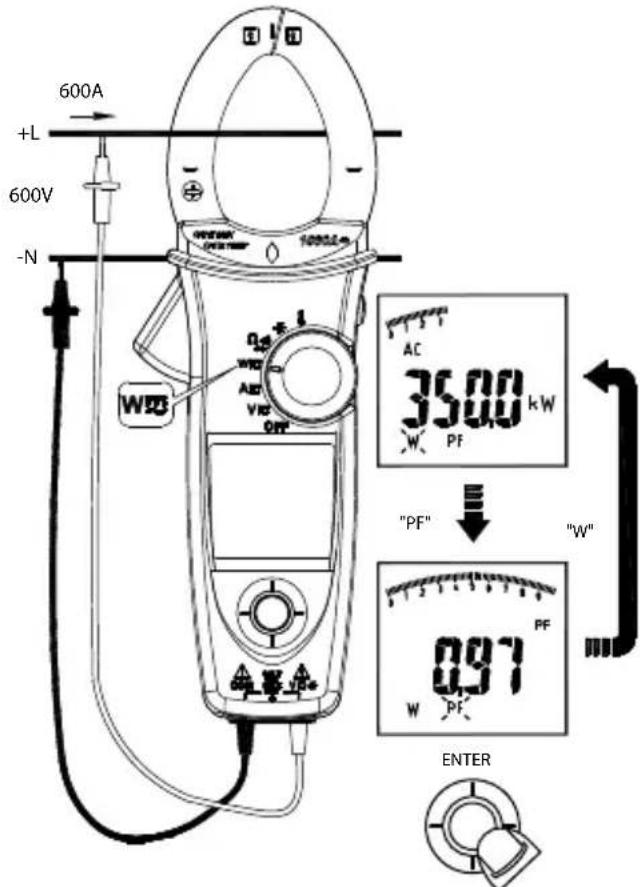

Overrange display :

OLU : Voltage overload

OL.A : Current overload

OLUA : Both Voltage and current overload.

± OL kW: Active Power >1000kW or -1000kW .

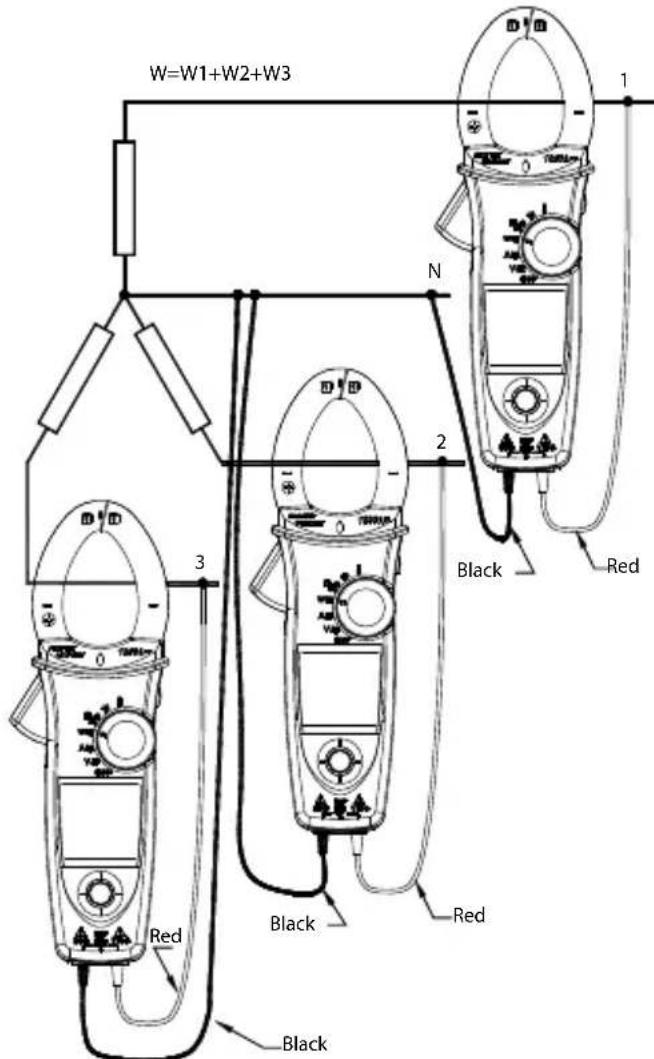

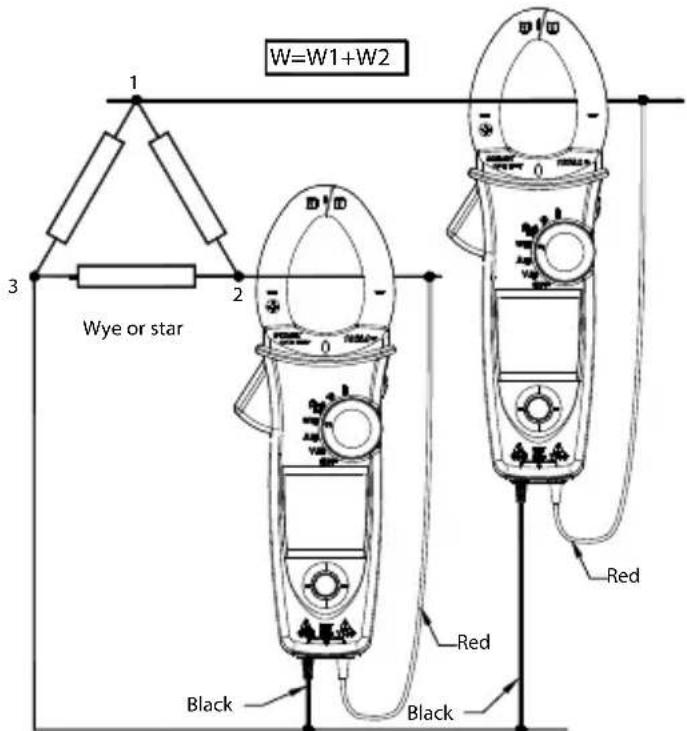

2. Three Phase Power Measurement

A. 3 phase 3 wire balanced / unbalanced
Step 1. Set the rotary switch to the "W" position
Step 2. Using the Navigator key to choose the "W" mode.

B. 3 phase 4 wire balanced / unbalanced

Step1. Set the rotary switch to the "W" position

Step2. Using the Navigator key to choose the "W" mode.

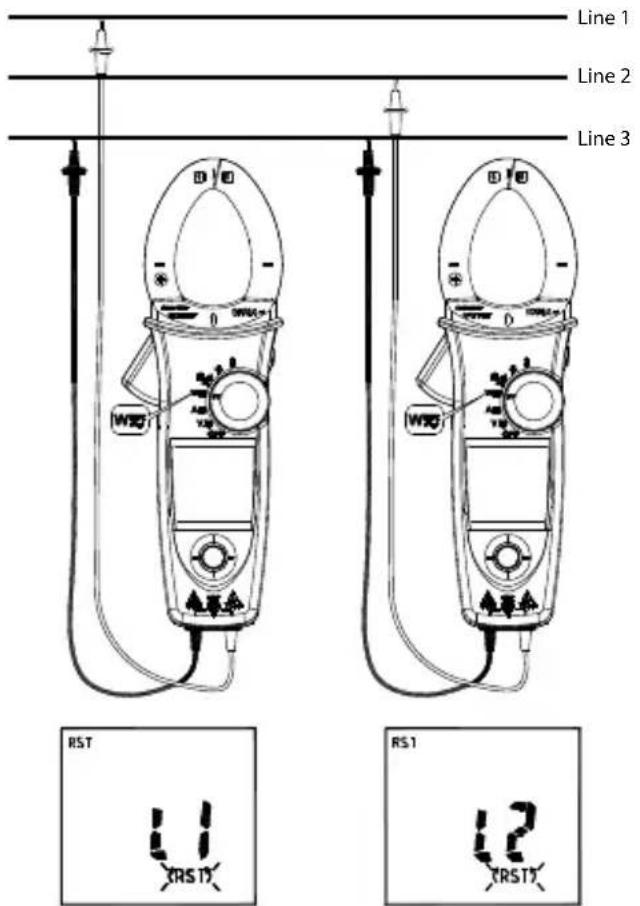

Phase Rotation

Note:

• Connect three phase of power source as shown above.
• The test is only available while the system frequency is stable.

Step 1. Set the rotary switch to the "W" position.

Step 2. Using the Navigator key to choose the "RSTI" mode

Step 3. Connect the Red test lead and Black test lead to any of the line conductor (e.g. Red test lead to the phase Line 1, and Black test lead phase Line 3).

Note: If the followings occur, the meter will not be able to determine the line phase:

The screen displays "OLU" and blinking: voltage >1000V

The screen displays "LoU" and blinking: voltage < 30V

The screen displays "outF" and blinking: frequency >65Hz or < 45Hz

Step 4. When the BUZZER beeps twice, change one of the test leads to another line conductor within 3 seconds

The screen will display the result as below:

a) If it displays " 1 2 3 ", then the phase sequence is forward sequence

b) If it displays " 3 2 1 ", then the phase sequence is reversed sequence

c) When displayed "---" means it is unable to determine line phases.
d) If it displays "LoU", it is possible that you remove the test leads before the meter completing its testing procedures.

Step 5. To repeat the test, using the Navigator key and choose the "RST" mode again.

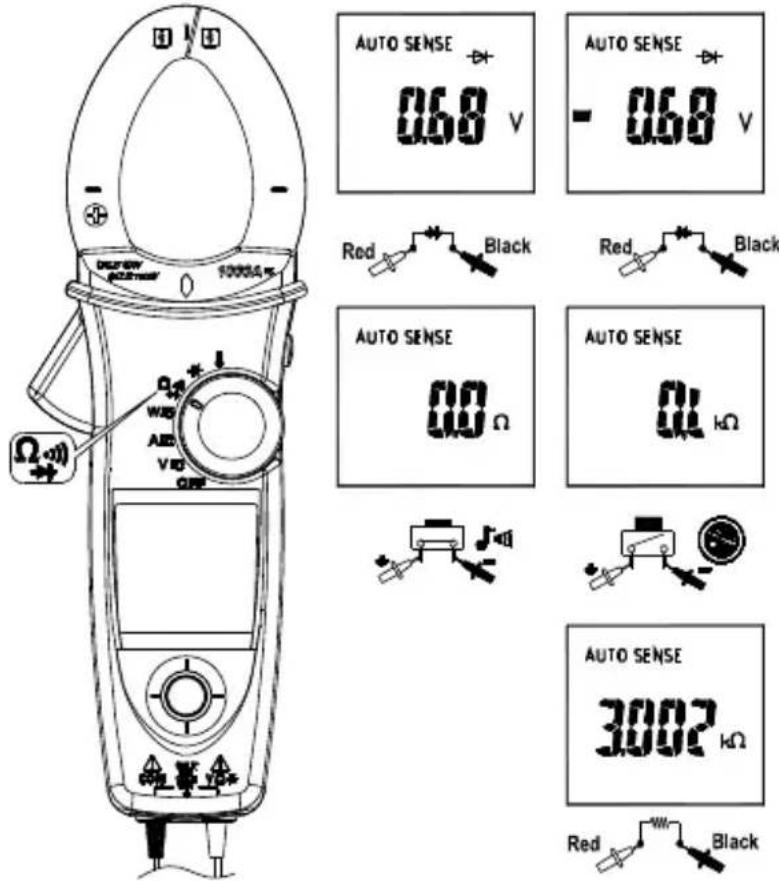

OHM Measurement

CAUTION

To avoid possible damage to the Meter or to the equipment under test, disconnect circuit power and discharge all high-voltage capacitors before measuring resistance and diode.

Note:

• Select / / indicator then press the navigator key to enter the / mode.
• Select / 串串 / indicator then press the navigator key for more than 2sec to return to the AUTO SENSE mode.

Note: Under diode mode: when the screen displays "bad" when measuring a diode, the diode may have been damaged.

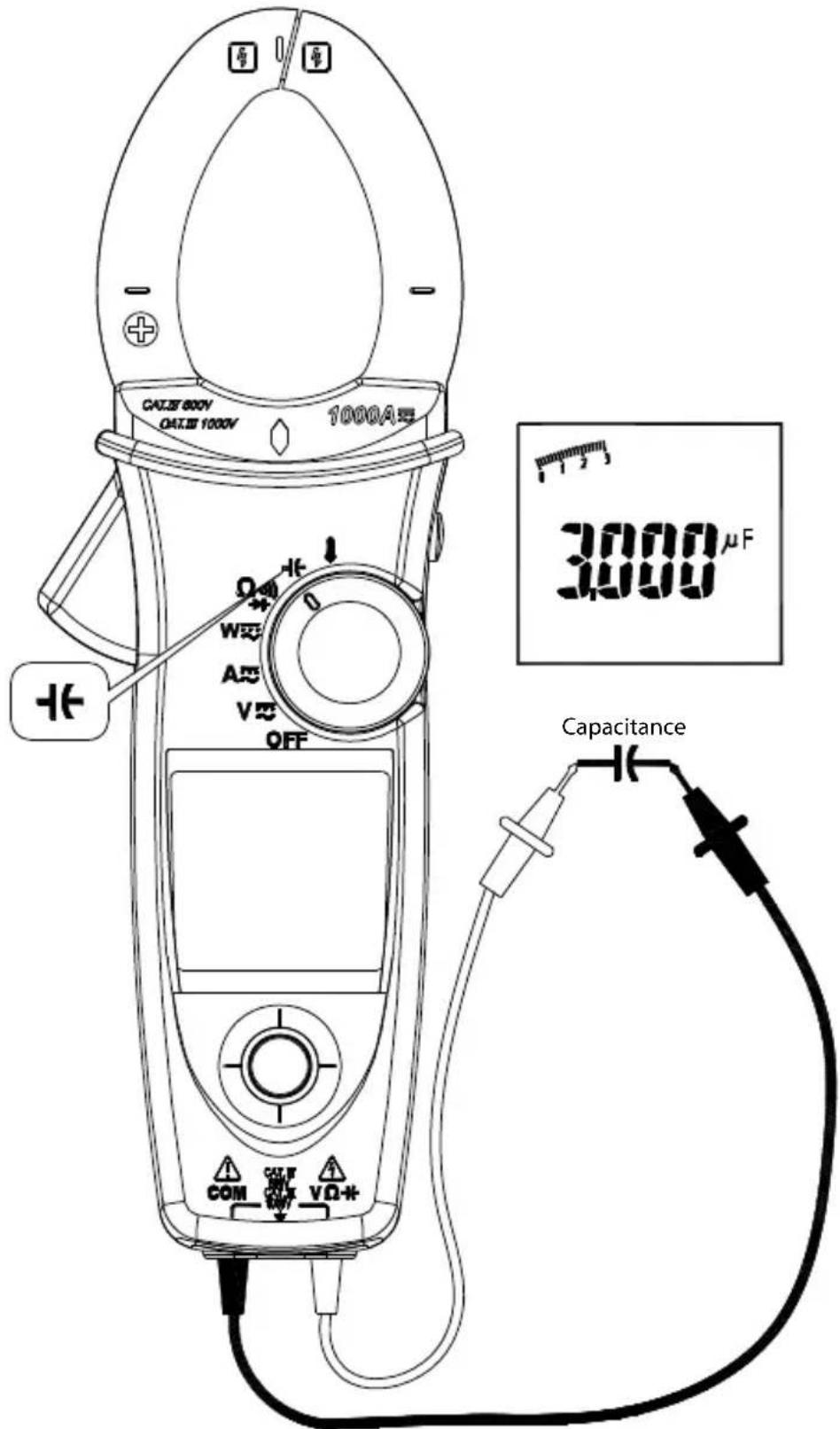

Measuring Capacitance

Set the rotary switch to the "--" position.

CAUTION

To avoid possible damage to the meter or to the equipment under test, disconnect circuit power and discharge all high-voltage capacitors before measuring capacitance. Use the DC voltage function to confirm that the capacitor is discharged.

Note: The meter will display "diSC" while discharging the capacitor.

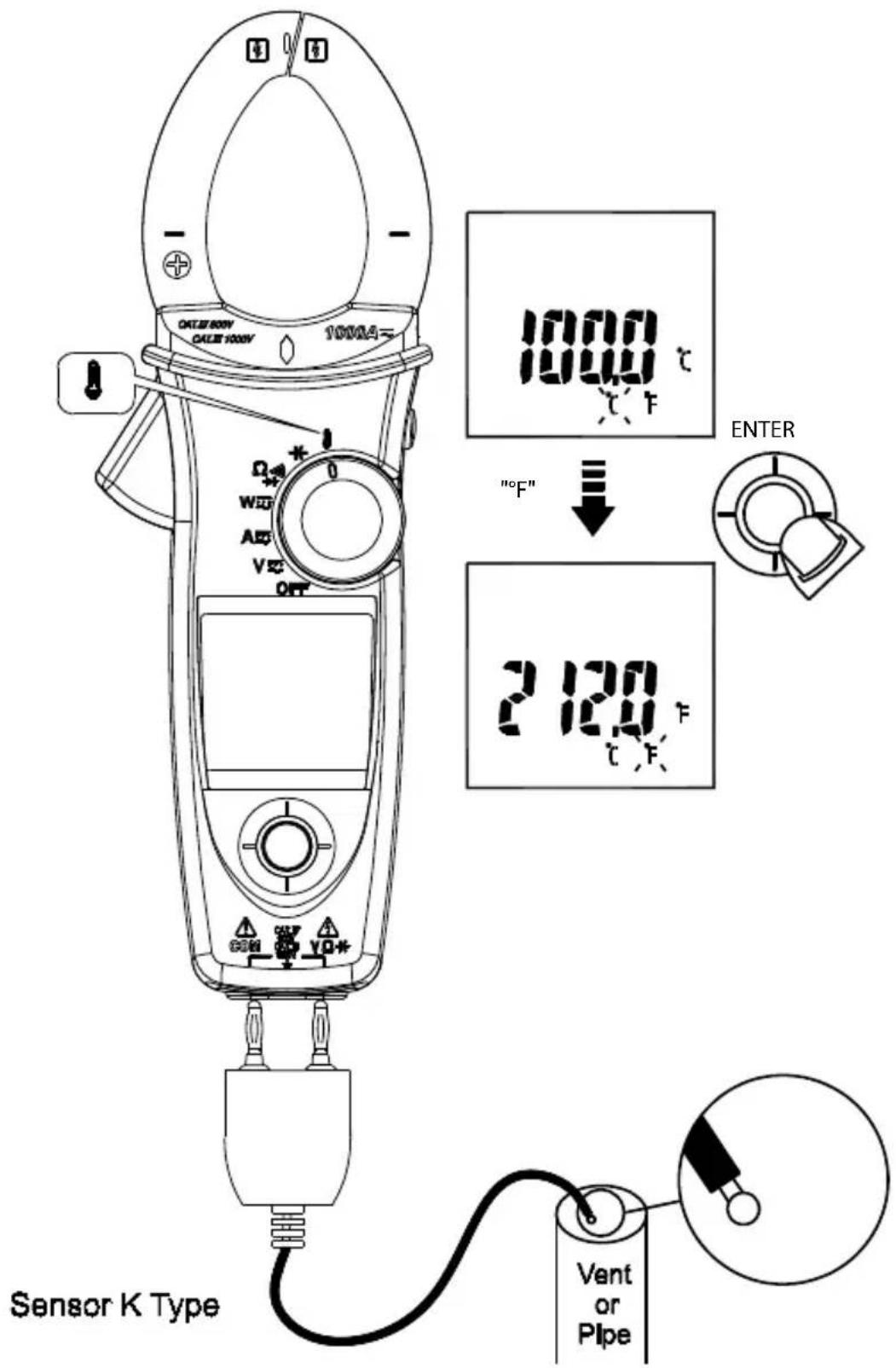

Measuring Temperature ^ C / ^ F (For ACD-51NAV and ACDC-54NAV Only) Set the rotary switch to the " position.

Don't take any high voltage measurement prior to accurate ^ C / ^ F measurements.

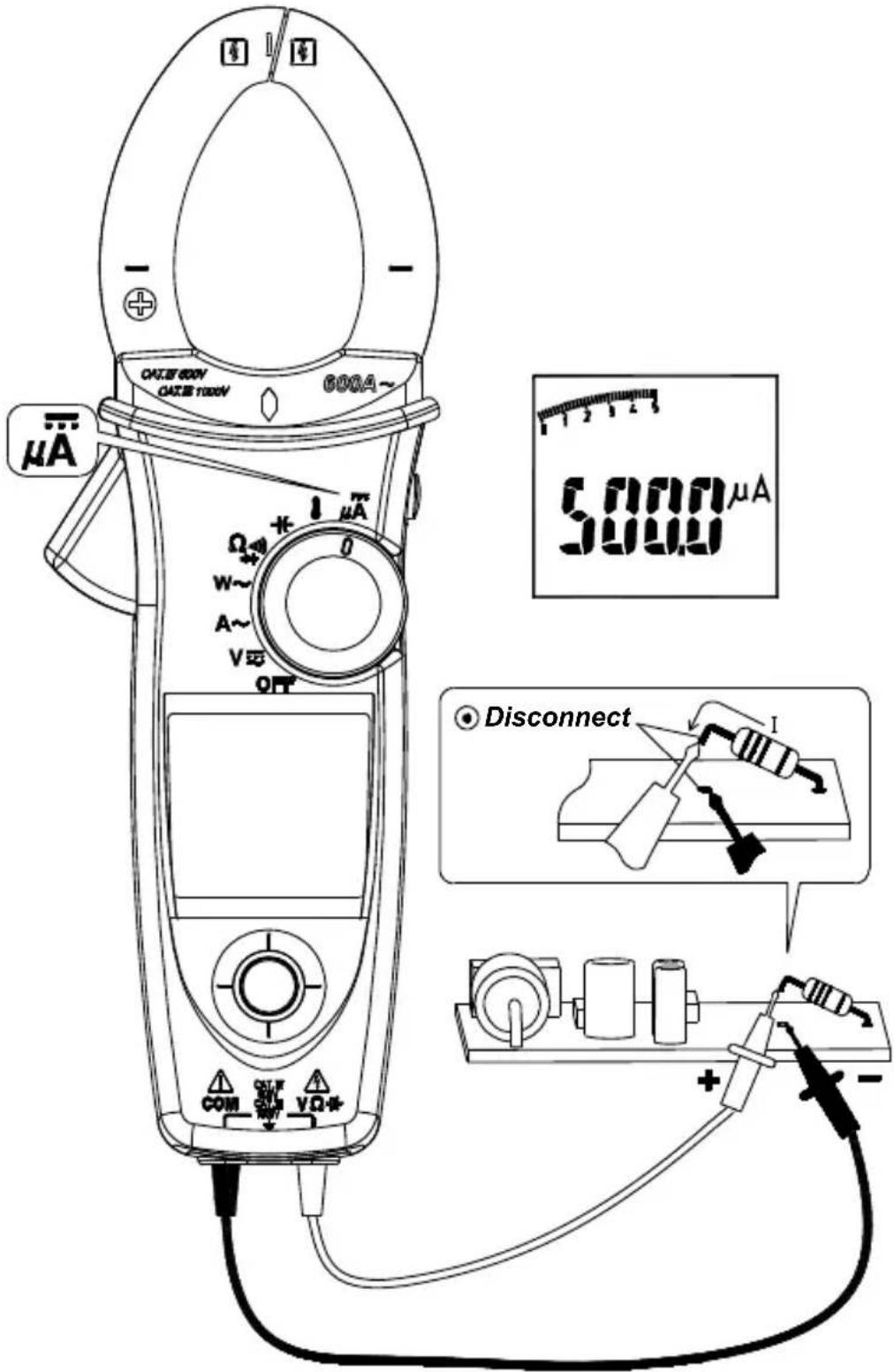

Measuring A Current (For ACD-51NAV Only)

Set the rotary switch to the A position.

C

VoltSense

The red diamond shape of LED will illuminate, if there has electric field been detected from the jaw.

Buzzer

The Meter beeps once for every valid key-press, and beeps twice for every invalid key-press.

Power-up options

Press one of the following keys while turning meter on from OFF position.

Upward of Navigator key: Display of the software version.

Downward of Navigator key: Disable auto power off.

Leftward of Navigator key: Disable active backlight.

HOLD KEY: Display all LCD symbols approx 10 seconds.

Battery State display

User can know the battery state from the battery indicator

Batter State Description

The battery is fully charged

The battery is remained 2/3 power

The battery is remained 1/3 power

Replace the battery as soon as the low battery indicator appears, to avoid inaccurate reading.

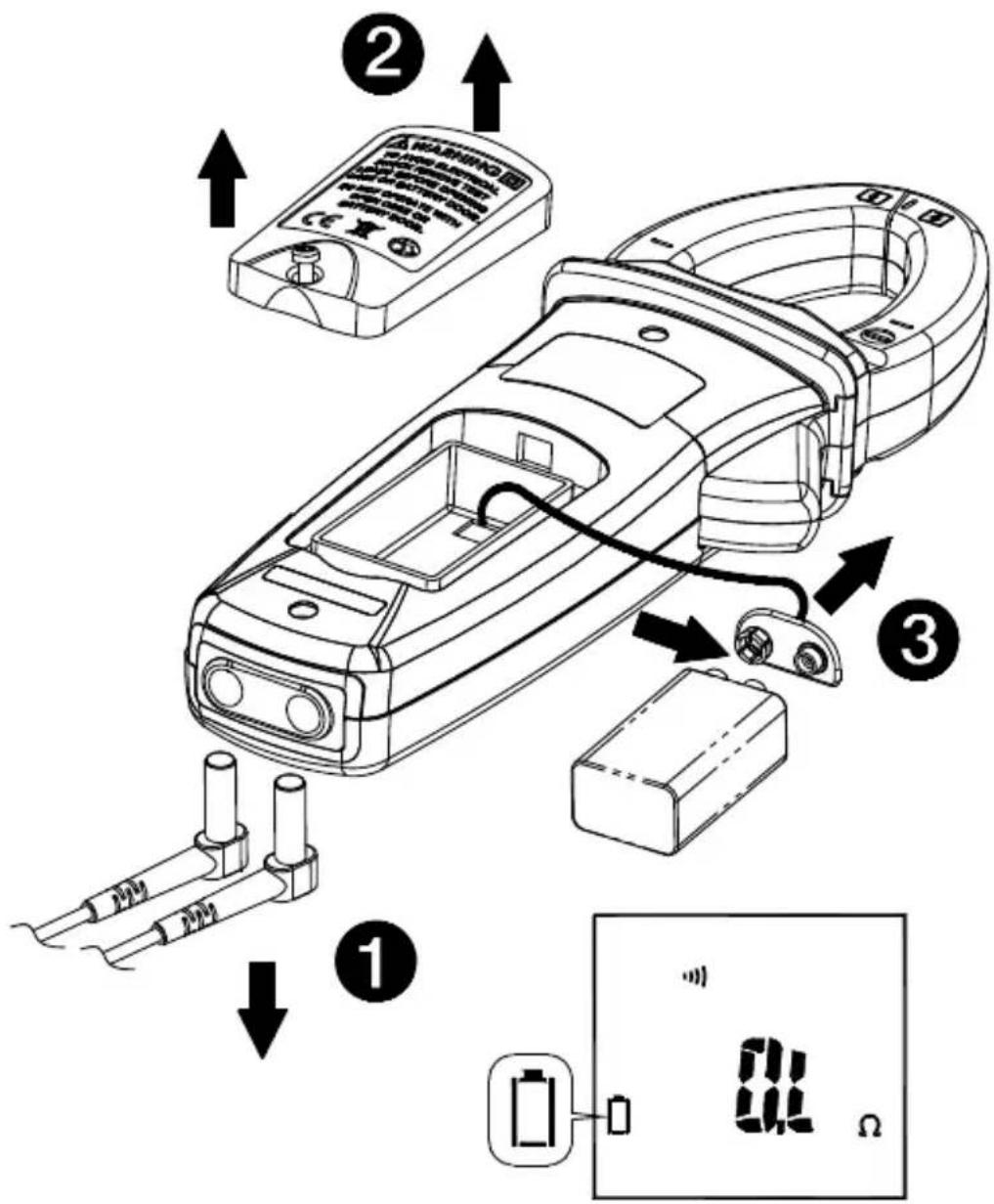

Refer to MAINTENANCE AND REPAIR section for battery replacement.

SPECIFICATIONS

General Specifications

Display count : 10000 or 4000

Measuring rate: 3 times / per second

Overrange display : "OL" or "-OL".

Auto Power Off : Approx. 15 minutes.

Low battery indicator: is displayed. Replace the battery when the indicator appears in the display.

Power requirement : 9V battery.

Battery life : ALKALINE 9V 50 hours (without Backlight).

Environmental Conditions

Indoor Use

Calibration: One year calibration cycle.

Operating temperature: 0^ 10^

11°C ~ 30°C (≤80% RH)

30^ 40^(≤ 75% RH)

40°C ~ 50°C (≤45%RH)

Storage temperature: -10 to 50^ for current,

-20 to 60^ for other function,

0 to 80% RH (batteries not fitted).

Temperature coefficient: 0.2 × (Specified accuracy) / °C, < 18°C, > 28°C.

Over voltage category: CAT IV 600 V, CAT III 1000 V : IEC61010-2-030 and 61010-2-032

CAT A	Application field
IThe	circuits not connected to mains.
IIThe	circuits directly connected to Low-voltage installation.
IIIThe	building installation.
IVThe	source of the Low-voltage installation.

CENELEC Directives: The instrument conforms to CENELEC Low-voltage directive 2006/95/EC and Electromagnetic compatibility directive 2004/108/EC.

Safety Compliance:

• IEC/EN 61010-1 Ed. 3.0, UL 61010-1(2nd Ed.), CAN/CSA-C22.2 No.61010-1-04 to Measurement Category III 600 V, Pollution Degree 2
• IEC/EN 61010-2-030
• IEC/EN 61010-2-032, CAN/CSA-C22.2 No.61010-2-032-04
• IEC/EN 61010-031 (test leads)

EMC: meets all applicable requirements in IEC/EN 61326-1

Operating altitude: up to 2000m (6562 ft)

Conductor Size:

37mm diameter for ACD-50NAV, ACD-51NAV, ACDC-52NAV

42mm diameter for ACD-53NAV, ACDC-54NAV

Shock vibration: Sinusoidal vibration per MIL-T-28800E (5 ~ 55 Hz, 3g maximum).

Drop Protection: 4 feet drop to hardwood on concrete floor.

Electrical Specifications

Accuracy is ± (% reading ^+ number of digits) at 23^± 5^ < 80% RH

(1) Voltage

ACD-50NAV, ACD-51NAV, ACDC-52NAV, ACD-53NAV, ACDC-54NAV
Function Range Accuracy*
DC V	99.99V	± (0.7% + 2dgt)
	999.9V
AC V	99.99V	± (1.0% + 5dgt)
	999.9V	50 ~ 500Hz
LPF	99.99V	50 ~ 60Hz ± (1% + 5dgt)
	999.9V	61 ~ 400Hz ± (5% + 5dgt)

• DCV <1000dgt, add 6 dgt to the accuracy. ACV <1000dgt, add 3 dgt to the accuracy.

Overload protection: 1000Vrms

Input Impedance: 3.5M // < 100pF

AC Conversion Type: AC Conversions are ac-coupled, true RMS responding, calibrated to the RMS value of a sine wave input. Accuracies are given for sine wave at full scale and nonsine wave below half scale. For non-sine wave (50/60Hz) add the following Crest Factor corrections:

For Crest Factor of 1.4 to 2.0, add 1.0% to accuracy.

For Crest Factor of 2.0 to 2.5, add 2.5% to accuracy.

For Crest Factor of 2.5 to 3.0, add 4.0% to accuracy.

CF 3 @ 460V,460A (for ACD-53NAV, ACDC-54NAV),

280A (for ACD-50NAV, ACD-51NAV, ACDC-52NAV)

2 @ 690V, 690A (for ACD-53NAV, ACDC-54NAV),

420A (for ACD-50NAV, ACD-51NAV, ACDC-52NAV)

AC+DC Vrms Accuracy: same as ACV spec. +DCV spec.

(2) Current

ACD-50NAV, ACD-51NAV, ACD-53NAV
Function Range Accuracy
AC A	99.99A	50 ~ 60Hz ± (1.5% + 5dgt) **
	599.9A / 999.9A*	61 ~ 400Hz ± (2% + 5dgt) **
LPF	0.10A ~ 99.99A	50 ~ 60Hz ± (1.5% + 5dgt) **
AC A	599.9A / 999.9A*	61 ~ 400Hz ± (5% + 5dgt) **

• ACD-50NAV, ACD-51NAV: 599.9A; ACD-53NAV : 999.9A
  ** The measured value < 1000dgt ,add 5 dgt to the accuracy.

ACDC-52NAV, ACDC-54NAV
Function Range Accuracy
DC A	99.99A ± (1.5% + 0.2A)
	599.9A / 999.9A* ± (1.5% + 5dgt) **
AC A	0.10A ~ 99.99A	50 ~ 60Hz ± (1.5% + 5dgt) **
	599.9A / 999.9A*	61 ~ 400Hz ± (2% + 5dgt) **
LPF	0.10A ~ 99.99A	50 ~ 60Hz ± (1.5% + 5dgt) **
AC A	599.9A / 999.9A*	61 ~ 400Hz ± (5% + 5dgt) **

• ACDC-52NAV: 599.9A; ACDC-54NAV: 999.9A
  ** The measured value < 1000dgt ,add 5 dgt to the accuracy.

Overload protection: 1000Arms For ACD-53NAV, ACDC-54NAV

600Arms For ACD-50NAV, ACD-51NAV, ACDC-52NAV

Position Error: ± 1% of reading.

AC Conversion Type and additional accuracy is same as AC Voltage.

AC+DC Arms Accuracy: Same as ACA spec + DCA spec.

• For better measurement accuracy of high current, do not measurement more than 10 minutes (for ACD-50NAV, ACD-51NAV, ACD-53NAV)
• DC A affected by the temperature and the residual magnetism.

Press HOLD key >2 seconds to compensate it.

(3) Peak Hold: Peak MAX / Peak MIN

ACD-50NAV, ACD-51NAV, ACDC-52NAV
Function Range Accuracy
AC V	140.0V	± (3.0% + 15dgt)
	1400V
AC A	140.0A	± (3.0% + 15dgt)
	850A

ACD-53NAV, ACDC-54NAV
Function Range Accuracy
AC V	140.0V	± (3.0% + 15dgt)
	1400V
AC A	140.0A	± (3.0% + 15dgt)
	1400A

Overload protection: 1000 Vrms

600 Arms For ACD-50NAV, ACD-51NAV, ACDC-52NVA

1000 Arms For ACD-53NAV, ACDC-54NAC

Accuracy defined for:

Sine wave, ACV>5Vrms/ACA≥5Arms, Freq. 50~400Hz.

• Only suitable for the repetitive events.

(4) Frequency

ACD-50NAV, ACD-51NAV, ACDC-52NAV, ACD-53NAV, ACDC-54NAV
Function Range Accuracy
Frequency	20.00 ~ 99.99Hz	± (0.5% + 3dgt)20.0 ~ 999.9Hz
	0.020 ~ 9.999KHz

Overload protection : 1000 Vrms

600 Arms For ACD-50NAV, ACD-51NAV, ACDC-52NAV

1000 Arms For ACD-53NAV, ACDC-54NAV

Sensitivity :

10~100Vrms for AC 100V range

10~100Arms for AC 100A range ( >400Hz Unspecified)

100~1000Vrms for AC 1000V range

100~600/1000Arms for AC 600A/1000A range (>400Hz Unspecified)

• Reading will be 0.0 for signals below 10.0Hz

(5) Total Harmonic Distortion:

ACD-50NAV, ACD-51NAV, ACDC-52NAV, ACD-53NAV, ACDC-54NAV
Function Range Accuracy
AC A / AC V 99	9% ± (3.0% + 10dgt)

Harmonic distortion measurement:

ACD-50NAV, ACD-51NAV, ACDC-52NAV, ACD-53NAV, ACDC-54NAV
Harmonic order	Range Accuracy
H01 ~ H12	99.9%	± (5% + 10dgt)
H13 ~ H25 ± (10% + 10dgt)

Overload protection: 1000 Vrms

600 Arms For ACD-50NAV, ACD-51NAV, ACDC-52NAV

1000 Arms For ACD-53NAV, ACDC-54NAV

• If ACV<10Vrms or ACA <10Arms, it will display "rdy".
• If the fundamental frequency out of range 45 65Hz , it will display "out.F".

(6) Inrush Current:

ACD-50NAV, ACD-51NAV, ACDC-52NAV, ACD-53NAV, ACDC-54NAV
Function Range Accuracy
AC A	99.99A ± (2.5% + 0.2A)
	599.9A / 999.9A * ± (2.5% + 5dgt)

• ACD-50NAV, ACD-51NAV, ACDC-52NAV: 599.9A

ACD-53NAV, ACDC-54NAV:999.9A

Overload protection: 1000 Vrms

600 Arms For ACD-50NAV, ACD-51NAV, ACDC-52NAV

1000 Arms For ACD-53NAV, ACDC-54NAV

Accuracy defined for:

Sine wave, ACA ≥ 10 Arms, Freq. 50 / 60Hz

• Integration time about 100m seconds

(7) Active Power : Watt (DC/AC)

ACD-50NAV, ACD-51NAV, ACDC-52NAV, ACD-53NAV, ACDC-54NAV
Function Range Accuracy
AC W / DC W	9.999KW**	A,error×V,reading+V,error×A,reading
	99.99KW
	599.9KW / 999.9KW*

• ACD-50NAV, ACD-51NAV, ACDC-52NAV: 599.9KW
  ACD-53NAV, ACDC-54NAV: 999.9KW
  ** The measured value < 1.000kW , add 10 dgt to the accuracy.

Overload protection : 1000 Vrms

600 Arms For ACD-50NAV, ACD-51NAV, ACDC-52NAV

1000 Arms For ACD-53NAV, ACDC-54NAV

Accuracy defined for :

ACW:

Sine wave, ACV≥ 10 Vrms, ACA≥ 5 Arms

Freq. 50 60Hz PF = 1.00

DCW (For ACDC-52NAV, ACDC-54NAV only):

DCV ≥ 10V DCA ≥ 5 A

(8) Power Factor:

ACD-50NAV, ACD-51NAV, ACDC-52NAV, ACD-53NAV, ACDC-54NAV
Function Range Accuracy*
PF -1.00 ~	0.00 ~1.00 ±3°±1dgt

• ACA<100A, add ±2° to the accuracy (For ACD-50NAV, ACD-51NAV, ACD-53NAV)

Overload protection : 1000 Vrms

600 Arms For ACD-50NAV, ACD-51NAV, ACDC-52NAV

1000 Arms For ACD-53NAV, ACDC-54NAV

(9) Resistance & Continuity & Diode:

ACD-50NAV, ACD-51NAV, ACDC-52NAV, ACD-53NAV, ACDC-54NAV
Function Range Accuracy
Resistance	999.9 Ω ± (1.0% + 5dgt)
	9.999 kΩ	± (1.0% + 3dgt)
	99.99 kΩ
Continuity	999.9 Ω ± (1.0% + 5dgt)
Diode 0.4V ~ 0.80V ± 0.1V

Overload protection : 1000Vrms

Max. Test Current : Approx. 0.5mA .

Maximum Open Circuit Voltage for _v Approx. 3V

Maximum Open Circuit Voltage for diode: Approx. ±1.8V

Continuity check :

Continuity Threshold: < 30 ohm Beep On.

<100 ohm Beep Off.

Continuity Indicator : 2 KHz Tone Buzzer

(10) Capacitance:

ACD-50NAV, ACD-51NAV, ACDC-52NAV, ACD-53NAV, ACDC-54NAV
Function Range Accuracy
Capacitance	3.999 μF	± (1.9% + 8dgt)
	39.99 μF
	399.9 μF
	3999 μF

Overload protection : 1000Vrms

(11) Temperature :

ACD-51NAV, ACDC-54NAV
Function Range Accuracy
°C	-50 °C ~ 99.9 °C ±	(1% + 2°C)
	100 °C ~ 399.9 °C	± (1% + 1°C)
	400 °C ~ 1000 °C
°F	-58°F ~ 211.9°F ±	(1% + 4°F)
	212.0°F ~ 751.9°F	± (1% + 2°F)
	752°F ~ 1832°F

Overload protection : 1000 Vrms

• The above specification is assumed at the ambient temperature stability within ± 1^ . In addition, the temperature probe has to be connected to meter for more than 1 hour before taking measurement.
• The meter needs 2 hours for stability for ambient temperature variation more than ± 5^ .

(12) DC μA:

ACD-51NAV
Function Range Accuracy
DCμA 999.9	μADC ± (1.7% + 2dgt)*

^* < 1000dgt, add 3 dgt to the accuracy.

Overload protection : 1000 Vrms

MAINTENANCE AND REPAIR

CAUTION

To avoid electrical shock, disconnect the meter from any circuit, remove the test leads from the input jacks and turn OFF the meter before opening the case. Do not operate with open case. Install only the same type of battery or equivalent

Trouble Shooting

If the instrument fails to operate, check battery, leads, etc., and replace as necessary. Double check operating procedure as described in this user's manual. If the instrument voltage-resistance input terminal has subjected to high voltage transient (caused by lightning or switching surge to the system) by accident or abnormal conditions of operation, the series fusible resistors will be blown off (become high impedance) like fuses to protect the user and the instrument. Most measuring functions through this terminal will then be open circuit. The series fusible resistors and the spark gaps should then be replaced by qualified technician. Refer to the LIMITED WARRANTY section for obtaining warranty or repairing service.

Cleaning and Storage

Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or solvents. If the meter is not to be used for periods of longer than 60 days, remove the battery and store it separately.

Battery Replacement

1. Remove test leads and turn the Meter OFF.

2. Loosen the screw from the battery access door of the case. Lift the battery access door and thus the battery compartment up.

3. Replace the battery (9V alkaline battery NEDA1604A, JIS6AM6 or IEC6LF22).

4. Put the battery access door back and re-fasten the screw.

CAUTION

Remove test leads from Meter before opening the battery cover or Meter case.

AMPROBE

ACD-50NAV

Pince de navigation 600 A c.a.

ACD-51NAV

Amprobe Test Tools Amprobe Test Tools

Everett, WA 98203 Mississauga, ON L4Z 1X9

Tél: [phone] Tél: [phone]

Fax:[phone] Fax:[phone]

Min/Moy/Max (MAX/MIN/AVG)

(7) Puissance active: Watt (c.c./c.a.)

Amprobe Test Tools Amprobe Test Tools

Everett, WA 98203 Mississauga, ON L4Z 1X9

Tel.: [phone] Tel.: [phone]

Fax: [phone] Fax: [phone]

Amprobe Test Tools Amprobe Test Tools

Everett, WA 98203 Mississauga, ON L4Z 1X9

Tel: [phone] Tel: [phone]

Fax: [phone] Fax: [phone]

Amprobe Test Tools Amprobe Test Tools

Everett, WA 98203 Mississauga, ON L4Z 1X9

Tel: [phone] Tel: [phone]

Fax: [phone] Fax: [phone]

Visit www.Amprobe.com for

• Catalog
  Application notes
• Product specifications
• User manuals
