USER MANUAL WN54G1X0 SIEMENS

Cross-sectional diagram of a mechanical device showing internal components and mounting points (no text or symbols)

1. Откачете маркуча.
2. Свалете винтовете.
3. Освободете крепежния елемент.
4. Свалете капака на основата.

Interior view of a washing machine showing internal components and mounting points (no text or labels visible)

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Interior view of a washing machine showing internal components and ventilation slots (no text or labels visible)

3D mechanical assembly diagram showing a circular component with red fasteners and mounting brackets (no text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and housing (no text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and mounting points (no text or symbols)

1. Izrežite crijevo.
2. Uklonite vijke.
3. Otpustite zahvatni element.
4. Uklonite poklopac baze.

4.1.2 Postavljanje poklopca baze

▶ Postavite obratnim redoslijedom.

Popravak

Interior view of a washing machine showing internal components and labeled parts (no text or symbols visible)

1. Uklonite prednju ploču.

4.2.2 Postavljanje prednje ploče

▶ Postavite obratnim redoslijedom.

Popravak

4.3 Zamjena vrata

Zahtjev:

Uredaj je isključen iz napajanja.
Uređaj je isključen iz priključka za dovod vode.

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

4.3.2 Postavljanje vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.4 Zamjena brtve vrata

Oštri rubovi kućišta!

Porezotine

▶ Nosite zaštitne rukavice.

Opasnost od padanja dijelova zbog otpuštenih vijaka!

Interior view of a washing machine showing internal components and mounting points (no text or labels visible)

1. Otpustite vijke na stražnjoj strani uređaja.

2. Uklonite radnu ploču.

3. Otpustite zahvatne elemente ploče s gornje i desne strane.

4. Uklonite ploču.

5. Uklonite držač svjetla bubnja na vrhu.

6. Otpustite vijke kućišta dozatora.

8.

Opasnost od oštećene površine!

Mechanical assembly diagram showing a circular component with red arrows indicating force or movement (no text or symbols present)

1. Uklonite brtvu vrata.

Cross-sectional view of a mechanical device showing internal components and housing (no visible text or symbols)

4.5.2 Postavljanje zgloba vrata

▶ Postavite obratnim redoslijedom.

3D rendering of a speaker with visible sound waves and internal components (no text or symbols)

Interior view of a washing machine showing internal components and labeled parts (no text or symbols visible)

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

4.3.2 Montáž dvířek

Interior view of a washing machine showing internal components and ventilation slots (no text or labels visible)

Mechanical assembly diagram showing a circular component with red arrows indicating force or movement (no text or symbols present)

Cross-sectional view of a mechanical device with internal components (no visible text or symbols)

3D rendering of a speaker with visible sound waves and internal components (no text or symbols)

Interior view of a washing machine showing internal components and mounting points (no text or labels visible)

1. Fjern frontpanelet.

4.2.2 Montering af frontpanel

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Interior view of a washing machine showing internal components and labeled parts (no text or symbols visible)

Mechanical assembly diagram showing a circular component with red arrows indicating force or movement (no text or symbols present)

1. Fjern dørpakningen.

Technical illustration of a mechanical assembly showing cross-section and exploded view of internal components (no text or symbols)

3D rendering of a speaker with visible sound waves and internal components (no text or symbols)

Interior view of a washing machine showing internal components and labeled parts (no text or symbols visible)

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

4.3.2 Deur monteren

Interior view of a washing machine showing internal components and mounting points (no text or labels visible)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Cross-sectional view of a mechanical device with internal components (no visible text or symbols)

4.5.2 Deurscharnier monteren

1.2 Explanation of symbols 58

1.2.1 Danger levels....58

1.2.2 Hazard symbols 58

1.2.3 Structure of the warnings....59

1.2.4 General symbols....59

Safety....60

2.1 General Safety instructions 60

2.1.1 All domestic appliances 60

Tools and aids....61

Repair 62

4.1 Replacing base cover 62
4.1.1 Removing base cover 62
4.1.2 Installing base cover 62
4.2 Replacing front panel....63
4.2.1 Removing front panel 63
4.2.2 Installing front panel 63
4.3 Replacing door 64
4.3.1 Removing door 64
4.3.2 Installing door 64
4.4 Replacing door seal....65
4.4.1 Removing door seal 65
4.4.2 Installing door seal 66
4.5 Replacing door hinge....67
4.5.1 Removing door hinge 67
4.5.2 Installing door hinge 67

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observance of the warning message will result in death or serious injuries.
Warning	Non-observance of the warning message could result in death or serious injuries.
Caution	Non-observance of the warning message could result in minor injuries.
Notice	Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.

The following hazard symbols are used in this document:

	Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start]Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!

■ Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)!

- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Auxiliary tool[15000155]	Tool for loosening out of plastic parts
Screwdriver Torx T20 with bore hole [00340764]	100 mm, for screws with safety pin
Torque spanner [15000441]	Torque spanner 20 - 100 Nm
Slot screwdriver [00340854]	Blade 3.5 mm x 0.6 mm x 100 mm, Protective Insulation 1000 V AC
Slot screwdriver [00340855]	Blade 5.5 mm x 1.0 mm x 125 mm, Protective Insulation 1000 V AC
Needle-nose pliers, angled pattern [00341269]	Length 200 mm
Side-cutting pliers [00342182]	Length: 200 mm

Designation Details Images
Combination wrench[00340811]	Wrench size 10°mm, M6	[WAZX]
Combination wrench[00340814]	Wrench size 13°mm, M8
Combination wrench[00340817]	Wrench size 17 mm, M10
Combination wrench[15000459]	Wrench size 16°mm, M10

Repair

4.1 Replacing base cover

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

4.1.1 Removing base cover

1. Remove drain hose.
2. Remove drain cover.
3. Remove base cover.

3D rendering of a speaker with visible sound waves and internal components (no text or symbols)

1. Clip out hose.
2. Remove screws.
3. Release catch element.
4. Remove base cover.

4.1.2 Installing base cover

▶ Install in reverse order.

Repair

4.2 Replacing front panel

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Detergent drawer has been removed.
√ Fascia panel has been removed.
√ Door has been removed.
√ Door seal has been removed.
√ Base cover has been removed.→ Page 62

4.2.1 Removing front panel

Caution

Sharp housing edges!

Cut injuries

Wear protective gloves.

1.

Caution

Risk of falling parts due to released screws!

Injury because of falling parts.

▶ Secure component from falling down.

Notice

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bottom.

- Secure component from falling down.

Remove screws from in following order (1-2-3-4).

Interior view of a washing machine showing internal components and mounting points (no text or labels visible)

1. Remove front panel.

4.2.2 Installing front panel

▶ Install in reverse order.

Repair

4.3 Replacing door

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

4.3.1 Removing door

▶ 1. Remove two screws (1).
2. Release catch elements with slotted screwdriver (2).

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

▶ Install in reverse order.

Repair

4.4 Replacing door seal

Sharp housing edges!

Cut injuries

▶ Wear protective gloves.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot- tom.

- Secure component from falling down.

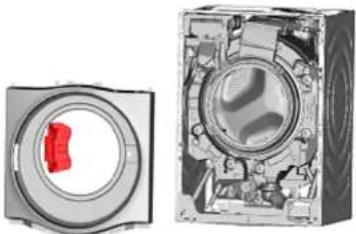

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Detergent drawer has been removed.
√ Door has been removed.
√ Base cover removed.→ Page 62

4.4.1 Removing door seal

1.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bottom.

▶ Secure component from falling down

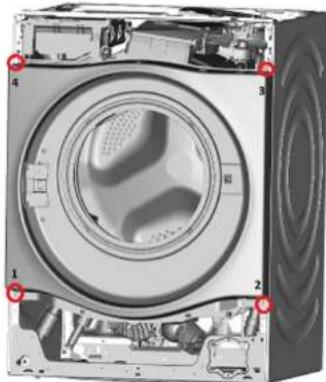

Remove screws from in following order (1-2-3-4).

Cross-sectional view of a washing machine showing internal components and casing (no text or labels visible)

1. Release screws at back of appliance.
2. Remove worktop.
3. Release catch elements of fascia panel at top and on right side.
4. Remove fascia panel.
5. Remove drum light holder at top.
6. Release screws of dispenser housing.

8.

Risk of damaged surface!

Surface of appliance can be scratched by using wrong tools.

▶ Only use plastic tools to replace the tension ring.

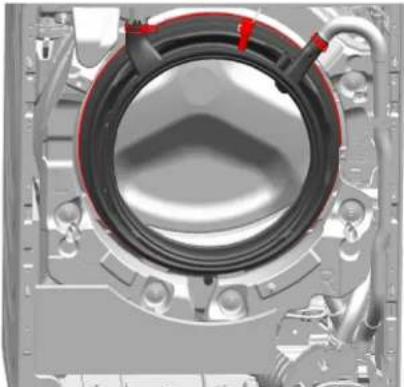

Remove tension ring from gasket with a plastic tool.

1. Release door seal from front panel.

2. Release cable connector from door lock.

3. Remove front panel.

Repair

1. Release all hose connections.

3D mechanical assembly diagram showing a circular component with red arrows indicating features (no text or symbols)

1. Remove door seal.

▶ Install in reverse order.

Repair

Finger crushing / entrapment

▶ Do not reach into the hinge area.

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Detergent drawer has been removed.
√ Door has been removed.
√ Door seal has been removed.
√ Base cover removed.→ Page 62
√ Front panel has been removed.

1. Remove two screws.
2. Remove door hinge.

Technical illustration of a mechanical assembly showing cross-sectional views of a device (no text or symbols present)

▶ Install in reverse order.

Remonditeave - Kuivatiga pesumasin

i Selle dokumendiga seoses 69

1.1 Tähtis teave 69

1.1.1 Eesmärk 69

1.2 Sümbolite selgitus 69

1.2.1 Ohutasemed....69

3D rendering of a speaker with visible sound waves and internal components (no text or symbols)

Interior view of a washing machine showing internal components and mounting points (no text or symbols visible)

1. Eemaldage esipaneel.

4.2.2 Esipaneeli paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

4.3 Ukse vahetamine

Nõue:

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

4.3.2 Ukse paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

Cross-sectional view of a washing machine showing internal components and casing (no text or labels visible)

3D mechanical assembly diagram showing a circular component with red arrows indicating features (no text or symbols)

Cross-sectional view of a mechanical device showing internal components and housing (no visible text or symbols)

4.5.2 Ukse hinge paigaldamine

▶ Paigaldage vastupidises järjekorras.

3D rendering of a speaker with visible sound waves and internal components (no text or symbols)

Interior view of a washing machine showing internal components and mounting points (no text or symbols visible)

1. Poista etupaneeli.

4.2.2 Etupaneelin asentaminen

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Cross-sectional diagram of a washing machine showing internal components and casing (no text or labels)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

1. Poista luukun tiiviste.

Technical illustration of a mechanical assembly showing cross-section and top view (no text or symbols)

3D rendering of a speaker with visible sound waves and internal components (no text or symbols)

Interior view of a washing machine showing internal components and labeled parts (no text or symbols visible)

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Interior view of a washing machine showing internal components and labeled parts (no text or symbols visible)

3D mechanical assembly diagram showing a circular component with red arrows indicating direction (no text or symbols)

1. Retirer le joint de porte.

Cross-sectional diagram of a mechanical device showing internal components and housing (no text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and mounting points (no text or symbols)

Interior view of a washing machine showing internal components and labeled parts (no text or symbols visible)

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Interior view of a washing machine showing internal components and labeled parts (no text or symbols visible)

3D mechanical assembly diagram showing a circular component with red arrows indicating direction (no text or symbols)

Cross-sectional view of a mechanical device with internal components (no visible text or symbols)

3D rendering of a speaker with visible sound waves and internal components (no text or symbols)

Interior view of a washing machine showing internal components and labeled parts (no text or symbols visible)

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Interior view of a washing machine showing internal components and mounting points (no text or labels visible)

3D mechanical assembly diagram showing a circular component with red arrows indicating force or movement (no text or symbols)

Technical illustration of a mechanical assembly showing cross-section and exploded view of internal components (no text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and mounting points (no text or symbols)

Interior view of a washing machine showing internal components and labeled parts (no text or symbols visible)

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Interior view of a washing machine showing internal components and ventilation duct (no text or labels visible)

3D mechanical assembly diagram showing a circular component with red arrows indicating force or movement (no text or symbols)

Technical illustration of a mechanical assembly showing cross-section and exploded view of internal components (no text or symbols)

3D rendering of a speaker with visible sound waves and internal components (no text or symbols)

Interior view of a washing machine showing internal components and labeled parts (no text or symbols beyond numbered labels)

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Interior view of a washing machine showing internal components and labeled parts (no text or symbols visible)

3D mechanical assembly diagram showing a circular component with red arrows indicating force or movement (no text or symbols)

Cross-sectional view of a mechanical device with internal components (no visible text or symbols)

3D rendering of a speaker with visible sound waves and internal components (no text or symbols)

Interior view of a washing machine showing internal components and labeled parts (no text or symbols visible)

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Interior view of a washing machine showing internal components and ventilation slots (no text or labels visible)

3D mechanical assembly diagram showing a circular component with red arrows indicating force or movement (no text or symbols)

Cross-sectional view of a mechanical device showing internal components and mounting holes (no visible text or symbols)

3D rendering of a speaker with visible sound waves and internal components (no text or symbols)

Interior view of a washing machine showing internal components and mounting points (no text or labels visible)

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Interior view of a washing machine showing internal components and labeled parts (no text or symbols visible)

Mechanical assembly diagram showing a circular component with red arrows indicating direction (no text or symbols)

Cross-sectional view of a mechanical device showing internal components and mounting holes (no visible text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and mounting points (no text or symbols)

Interior view of a washing machine showing internal components and mounting points (no text or symbols visible)

1. Demonter frontpanelet.

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Interior view of a washing machine showing internal components and mounting points (no text or labels visible)

3D mechanical assembly diagram showing a circular component with red arrows indicating features (no text or symbols)

Cross-sectional view of a mechanical device showing internal components and housing (no visible text or symbols)

4.5.2 Montering av dørhengsel

3D rendering of a speaker with visible sound waves and internal components (no text or symbols)

Interior view of a washing machine showing internal components and mounting points (no text or labels visible)

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

4.3.2 Montaż drzwi

Cross-sectional view of a washing machine showing internal components and casing (no text or labels visible)

3D mechanical assembly diagram showing a circular component with red arrows indicating force or movement (no text or symbols)

Cross-sectional view of a mechanical device with internal components (no visible text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and mounting points (no text or symbols)

1. Solte o tubo.
2. Remova os parafusos.
3. Solte o elemento de encaixe.
4. Remova a tampa da base.

4.1.2 Instalar a tampa da base

Interior view of a washing machine showing internal components and labeled parts (no text or symbols visible)

1. Remova o painel frontal.

4.2.2 Instalar o painel frontal

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

4.3.2 Instalar a porta

Interior view of a washing machine showing internal components and ventilation slots (no text or labels visible)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Technical illustration of a mechanical assembly showing cross-section and exploded view of internal components (no text or symbols)

4.5.2 Instalar a dobradiça da porta

3D rendering of a speaker with visible sound waves and internal components (no text or symbols)

Interior view of a washing machine showing internal components and mounting points (no text or symbols visible)

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

4.3.2 Montarea uşii

Interior view of a washing machine showing casing, vent, and mounting points (no text or symbols visible)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Cross-sectional view of a mechanical device showing internal components and mounting holes (no visible text or symbols)

3D rendering of a speaker with visible sound waves and internal components (no text or symbols)

Interior view of a washing machine showing internal components and labeled parts (no text or symbols visible)

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

4.3.2 Montáž dverí

Interior view of a washing machine showing internal components and labeled parts (no text or symbols visible)

3D mechanical assembly diagram showing a circular component with internal components and mounting brackets (no text or symbols)

Cross-sectional view of a mechanical device showing internal components and housing (no visible text or symbols)

3D rendering of a speaker with visible sound waves and internal components (no text or symbols)

1. Odpnite cev.
2. Odstranite vijake.
3. Sprostite držalni element.
4. Odstranite pokrov podstavka.

Interior view of a washing machine showing internal components and labeled parts (no text or symbols visible)

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Interior view of a washing machine showing internal components and casing (no text or labels visible)

3D mechanical assembly diagram showing a circular component with red arrows indicating direction (no text or symbols)

1. Odstranite tesnilo vrat.

Technical illustration of a mechanical assembly showing cross-section and exploded view of internal components (no text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and mounting points (no text or symbols)

Interior view of a washing machine showing internal components and labeled parts (no text or symbols visible)

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Cross-sectional diagram of a washing machine showing internal components and casing (no text or labels)

3D rendering of a mechanical component with concentric rings and mounting flanges (no visible text or symbols)

Cross-sectional view of a mechanical device showing internal components and housing (no visible text or symbols)

4.5.2 Montar la bisagra de la puerta

▶ Montar en orden inverso.

Reparationsinformation - Kombitvättmaskin

i Om detta dokument.... 245

1.1 Viktig information....245

1.1.1 Syfte 245

3D rendering of a speaker with visible sound waves and internal components (no text or symbols)

Interior view of a washing machine showing internal components and mounting points (no text or labels visible)

1. Ta bort frontpanelen.

4.2.2 Montera frontpanel

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

4.3.2 Montera lucka

Interior view of a washing machine showing internal components and labeled parts (no text or symbols visible)

3D mechanical assembly diagram showing a circular component with red arrows indicating force or movement (no text or symbols)

Cross-sectional view of a mechanical device showing internal components and housing (no visible text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and mounting points (no text or symbols)

Interior view of a washing machine showing internal components and mounting points (no text or labels visible)

1. Ön paneli sökünüz.

Close-up of a mechanical component with two labeled parts (1 and 2), no visible text or symbols.

Interior view of a washing machine showing internal components and labeled parts (no text or symbols visible)

3D mechanical assembly diagram showing a circular component with red arrows indicating direction (no text or symbols)

Cross-sectional view of a mechanical device with internal components (no visible text or symbols)
