USER MANUAL TRANSPORT QuietClean SC530B Sanitaire

We suggest you record the model, type and serial numbers below. They are located on the silver rating plate on your cleaner. For prompt and complete service information, always refer to these numbers when inquiring about service.

Model & Type

Serial No.

It is also important to keep your receipt as proof of date of purchase.

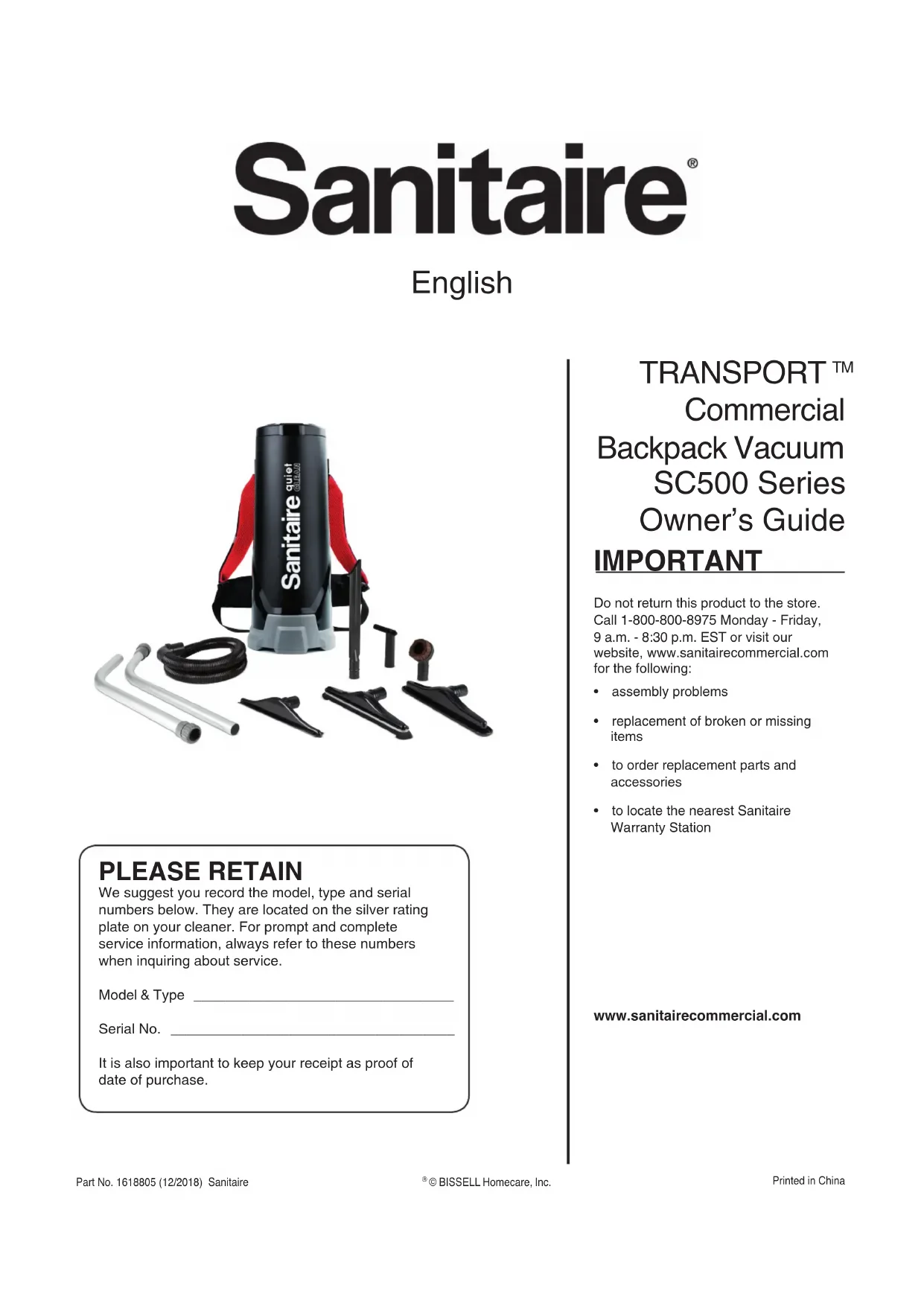

TRANSPORT

Commercial

Backpack Vacuum

SC500 Series

Owner's Guide

IMPORTANT

Do not return this product to the store. Call 1-800-800-8975 Monday - Friday, 9 a.m. - 8:30 p.m. EST or visit our website, www.sanitairecommercial.com for the following:

• assembly problems
• replacement of broken or missing items
  to order replacement parts and accessories
  to locate the nearest Sanitaire Warranty Station

Grounding Instructions 3

Identify Parts 3

Operating Instructions 4

Maintenance 5

Wearing the Backpack Vacuum 5

Warranty 6

Service Information

The instructions in this booklet serve as a guide to routine maintenance. If additional service is required, telephone toll free:

USA: 1-800-800-8975

IMPORTANT SAFEGUARDS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE

USING THIS VACUUM CLEANER.

WARNING

To reduce the risk of fire, electric shock or injury:

• Do not use outdoors or on wet surfaces.
• Do not leave vacuum cleaner unattended when plugged in. Turn off the switch, and unplug the electrical cord when not in use and before servicing.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors or dropped into water, return it to a service center before using.
• Do not pull or carry by cord, use cord as a handle, close a door on cord or pull cord around sharp edges or corners. Do not run over cord. Keep cord away from heated surfaces.
• Connect to a properly grounded outlet only. (Refer to grounding instructions).
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Turn off all controls before unplugging.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or vacuum cleaner with wet hands or operate without shoes.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce airflow.
• This vacuum cleaner creates suction. Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
• Do not use without dust bag or filter(s) in place.
• Use extra care when cleaning on stairs.
• Do not pick up flammable or combustible liquids such as gasoline, or use in areas where they may be present.
• Store your cleaner indoors in a cool, dry area.
• Keep your work area well lighted.
• Unplug electrical appliances before vacuuming them.

SAVE THESE INSTRUCTIONS

Commercial Backpack SC500 Series Owner's Guide

Grounding Instructions

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

DANGER

Improper connection of an equipment-grounding conductor can result in risk of electrical shock. Check with a qualified electrician or service person of you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance. If it will not fit the outlet, have a proper outlet installed by a qualified technician.

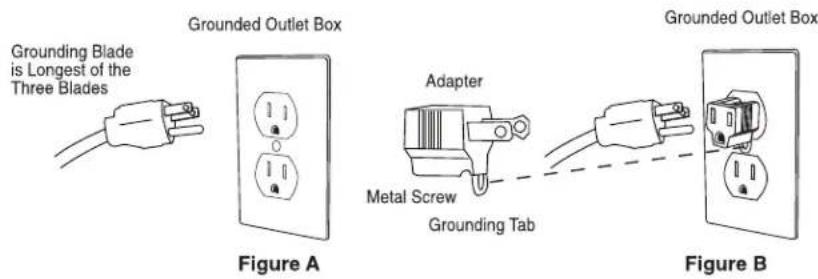

This appliance is for use on a nominal 120-volt circuit and has a grounding plug that looks like the plug illustrated in Figure A. A temporary adaptor which looks like the adapter illustrated in Figure B may be used to connect this plug to a two-pole receptacle, as shown, if a properly grounded outlet is not available. The temporary adaptor should be used only until a properly grounded outlet, Figure A, can be installed by a qualified electrician. The green-colored rigid ear lug, or the like, extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw.

NOTE: In Canada, the use of a temporary adaptor is not permitted by the Canadian Electrical Code.

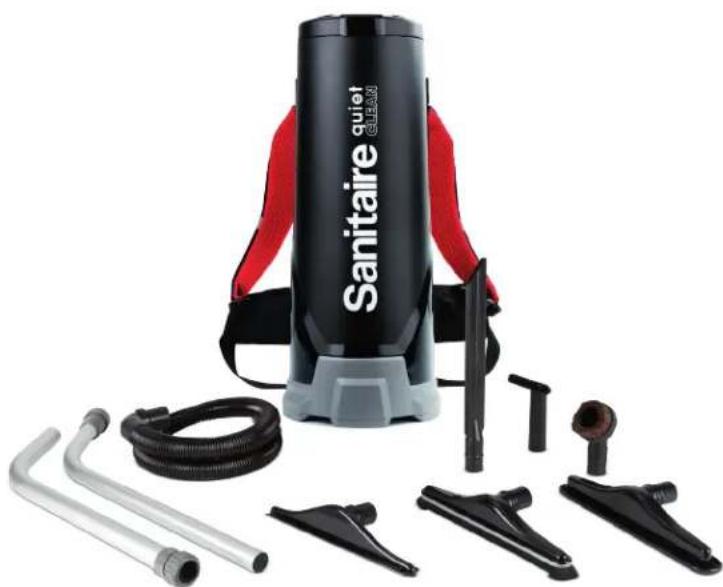

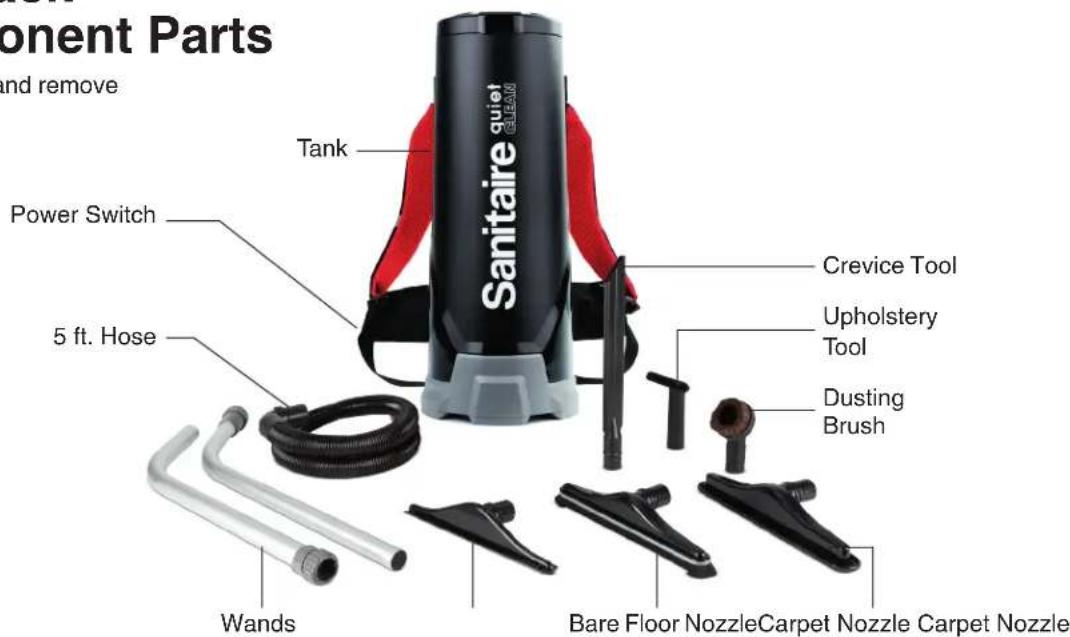

Identify Backpack Vacuum Component Parts

Unpack accessories from carton and remove vacuum cleaner.

Commercial Backpack SC500 Series Owner's Guide

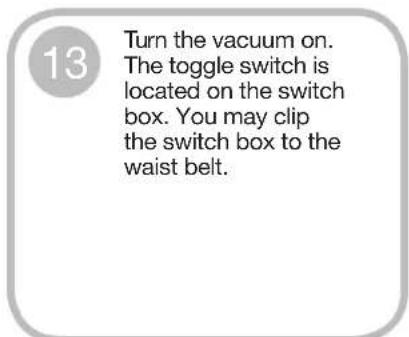

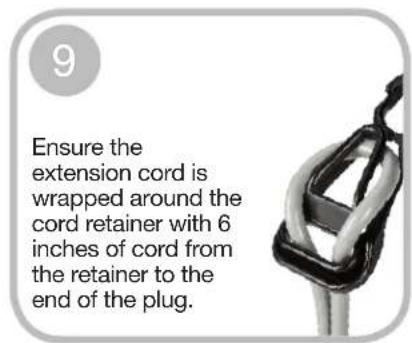

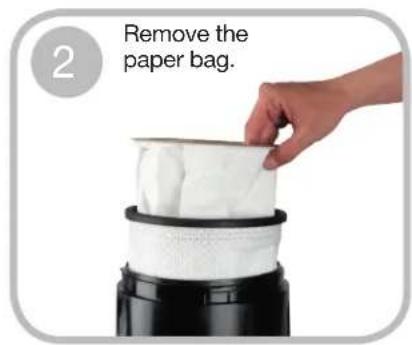

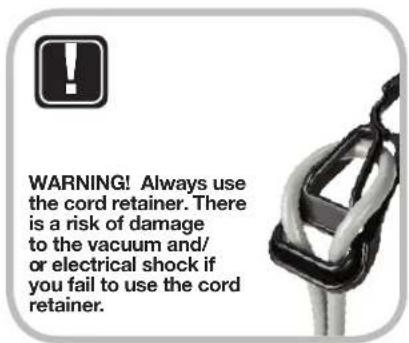

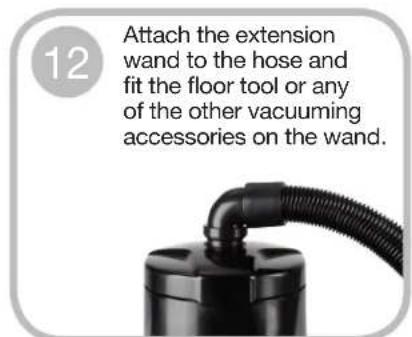

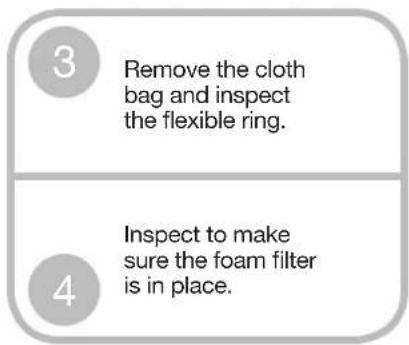

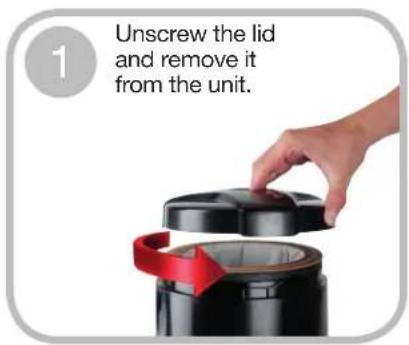

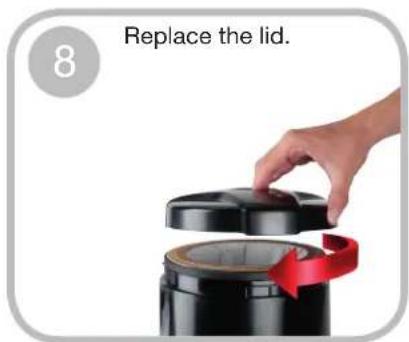

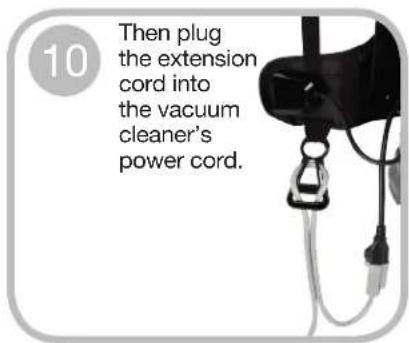

Operating Instructions & Quick Start Guide

Please read the following operating instructions carefully. They will help you get the best performance from this professional quality vacuum cleaner and also to maintain it in optimum condition.

Follow these simple steps for easy and effective operation of the Backpack Vacuum.

Commercial Backpack SC500 Series Owner's Guide

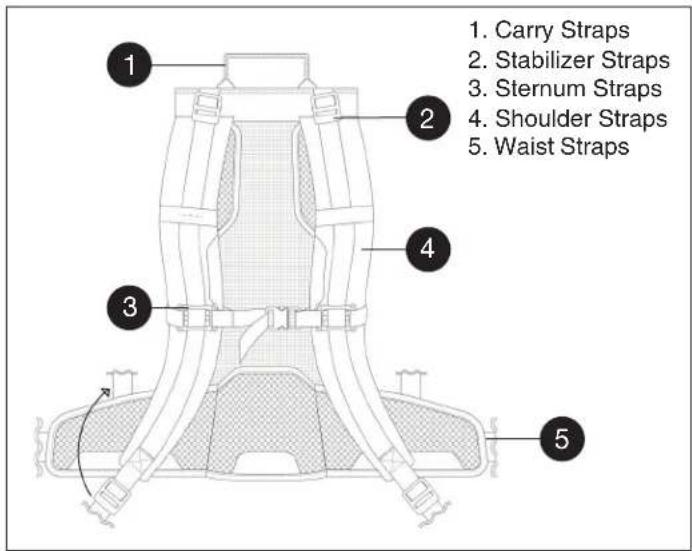

Wearing the Backpack Vacuum

The Backpack is designed to balance the weight of the vacuum on the hips, not the shoulders.

Maintenance

Warning! Always unplug vacuum before cleaning, or making any adjustments or repairs.

• Clean the cloth vacuum bag regularly. After emptying the vacuum bag, turn it inside out and shake out as much dust from the fabric as possible. Optimum performance is achieved by using a paper vacuum bag with the cloth bag.
• Check the power cord for damage. Always unwind the cable completely.
• Ensure that the vacuum hose, the extension wand and the vacuuming accessories are not blocked.
• Ensure that the electrical outlet and the plug are securely connected. Incorrect connections may cause sparking and damage to the cable socket.
• Have your machine serviced by an authorized repair service center if you suspect any potential problems.
• Use only approved paper vacuum bags.

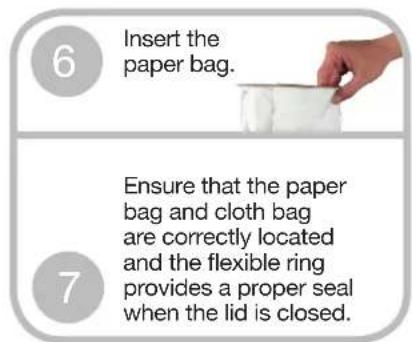

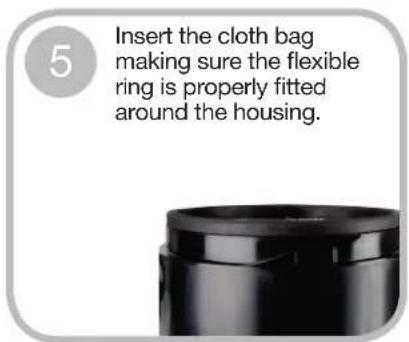

• Ensure that the flexible vacuum bag ring provides a proper seal before vacuuming.

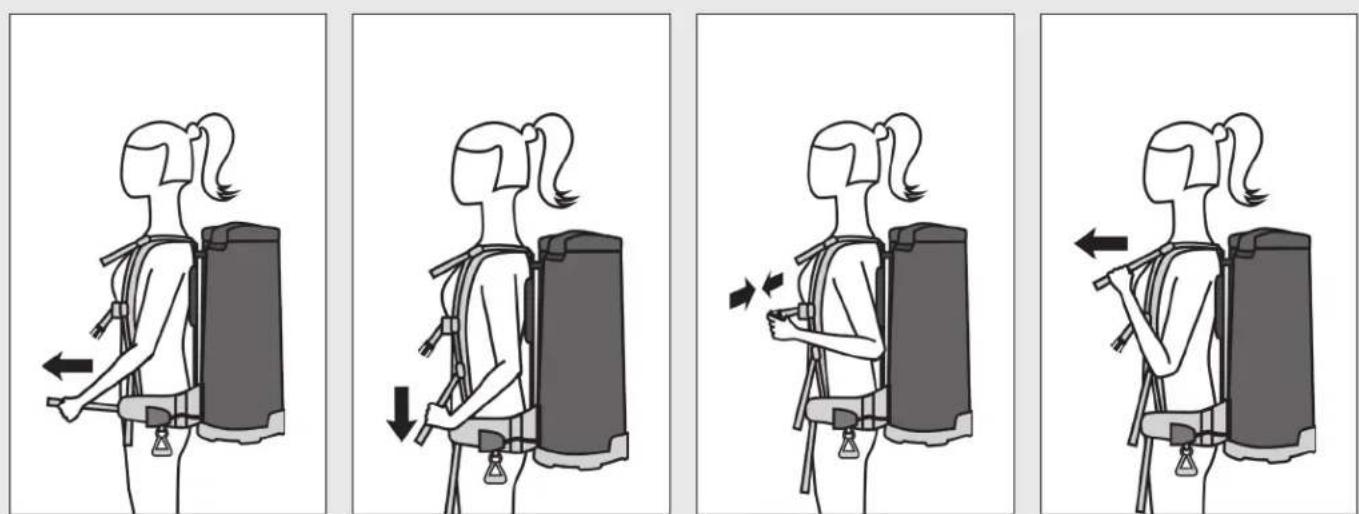

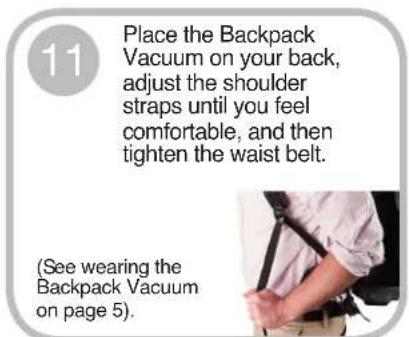

• Loosen all the straps and place the vacuum on your back.

• Place the waist straps over your hips and connect the buckle. Pull the straps forward to center the weight of the unit, so that it is concentrated on your hips. Fig (1)

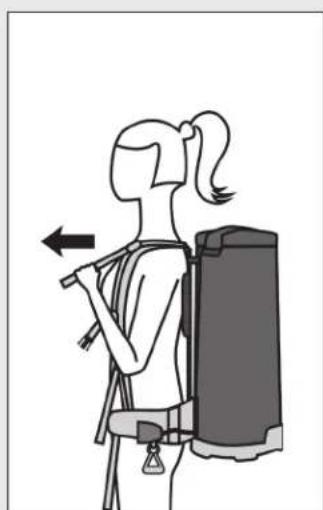

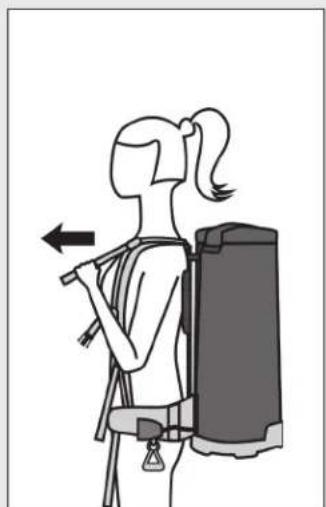

• Adjust the shoulder straps to tighten the Backpack on your shoulders, ensuring the weight is still concentrated on your hips. Fig (2)
• Connect the sternum straps, and adjust to fit comfortably across your chest. Fig (3)
• Adjust the stabilizer straps as needed. Fig (4)

Figure 1 Figure 2 Figure 3 Figure 4

The Sanitaire® commercial limited warranty

This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. If you need additional instruction regarding this warranty or have questions regarding what it may cover, please contact Sanitaire® Customer Service by E-mail or telephone as described below.

Limited two-year warranty

Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product Sanitaire will repair or replace (with new, refurbished, lightly used, or remanufactured components or products), at Sanitaire's option, free of charge from the date of purchase by the original purchaser, for two years any defective or malfunctioning part.

See information below on "If your Sanitaire product should require service."

This warranty does not apply to fans or routine maintenance components such as filters, belts or brushes. Damage or malfunction caused by negligence, abuse, neglect, unauthorized repair, or any other use not in accordance with the user guide is not covered.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

*EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES, EITHER ORAL OR WRITTEN. ANY IMPLIED WARRANTYES WHICH MAY ARISE BY OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE TWO YEAR DURATION FROM THE DATE OF PURCHASE AS DESCRIBED ABOVE.

Some states do not allow limitations on how long an implied warranty last so the above limitation may not apply to you.

NOTE: Please keep your original sales receipt. It provides proof of date of purchase in the event of a warranty claim.

If your Sanitaire product should require service

You will find the nearest Sanitaire Authorized Service Center in your area online at sanitairecommercial.com under service locator or contact Sanitaire Customer Service.

If you need information about repairs or replacement parts, or if you have questions about your warranty, contact Sanitaire Customer Service.

Website: www.sanitairecommercial.com

Call: Sanitaire Customer Service

1-800-800-8975

Monday - Friday 9 a.m. - 8:30 p.m. ET

Sanitaire®
