MEG065 - Microphone Vonyx - Free user manual and instructions

USER MANUAL MEG065 Vonyx

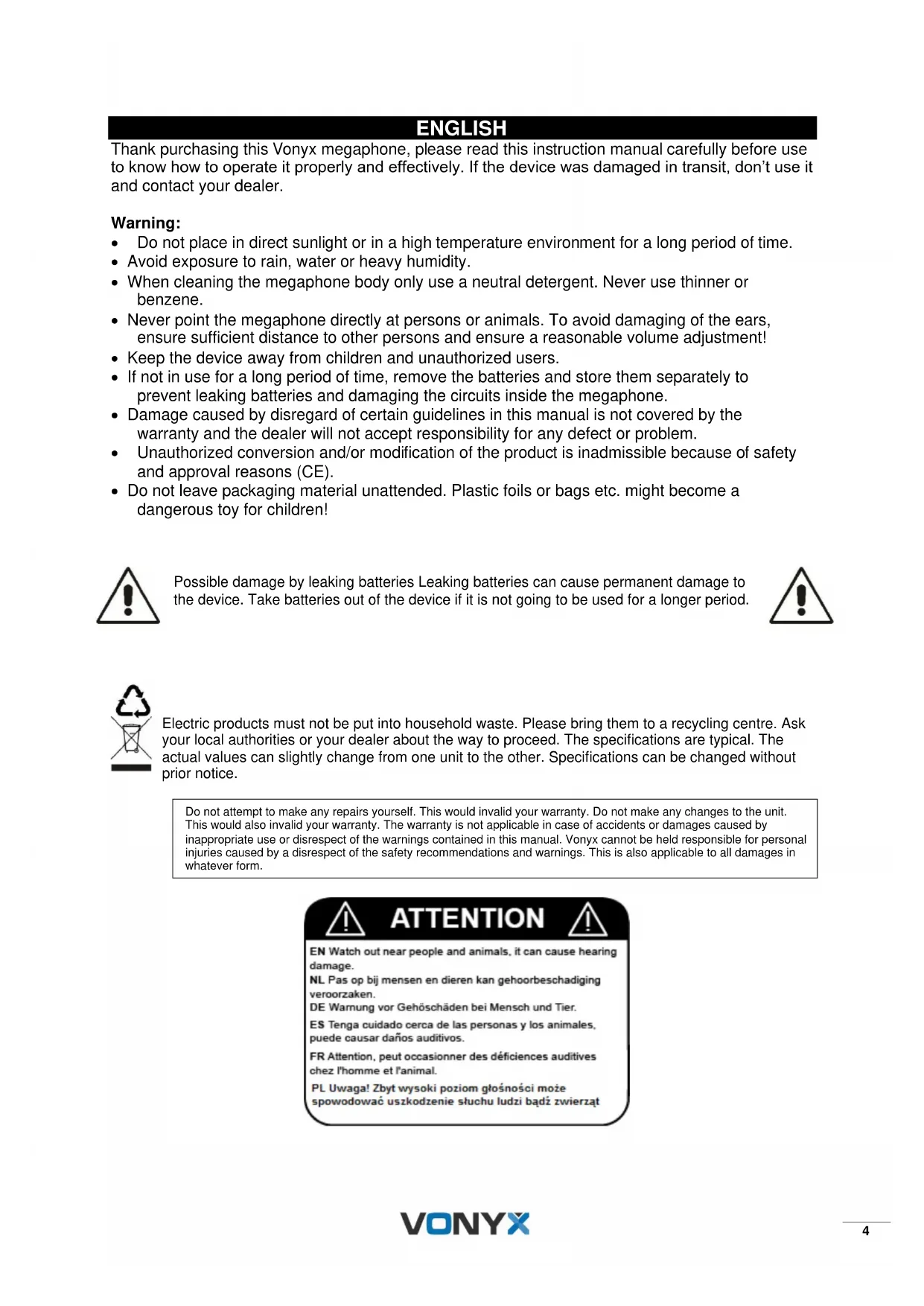

ENGLISH Thank purchasing this Vonyx megaphone, please read this instruction manual carefully before use to know how to operate it properly and effectively. If the device was damaged in transit, don’t use it and contact your dealer.

• Do not place in direct sunlight or in a high temperature environment for a long period of time.

• Avoid exposure to rain, water or heavy humidity.

• When cleaning the megaphone body only use a neutral detergent. Never use thinner or benzene.

• Never point the megaphone directly at persons or animals. To avoid damaging of the ears, ensure sufficient distance to other persons and ensure a reasonable volume adjustment!

• Keep the device away from children and unauthorized users.

• If not in use for a long period of time, remove the batteries and store them separately to prevent leaking batteries and damaging the circuits inside the megaphone.

• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any defect or problem.

• Unauthorized conversion and/or modification of the product is inadmissible because of safety and approval reasons (CE).

• Do not leave packaging material unattended. Plastic foils or bags etc. might become a dangerous toy for children!

Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.5

3. Press-to-talk switch: Press this

switch for announcing when holding the megaphone.

5. Battery compartment unlock

7. Battery compartment

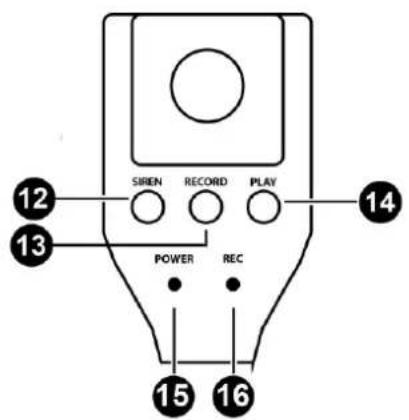

16. Record LED indicator: Light turns on when the

device is in record mode

1. Installing the batteries: Press the battery unlock button to open the top cover.

Put 8 pcs size C-batteries properly (+/- terminals must match) into the battery compartment and close the top cover and the latch.

2. Position the horn opening towards the audience, and speak through the

microphone. Bring the microphone close to your lips and speak normally.

3. Adjust the volume level to optimum without causing howling. Please note that

the closer the sound source is to the microphone the better the amplification is.

4. Switch the alarm switch to the alarm position, it will generate a continuous

5. If the megaphone is activated and the volume of the speaker is weak, the batteries might be empty.

Follow step 1 to replace the batteries.6

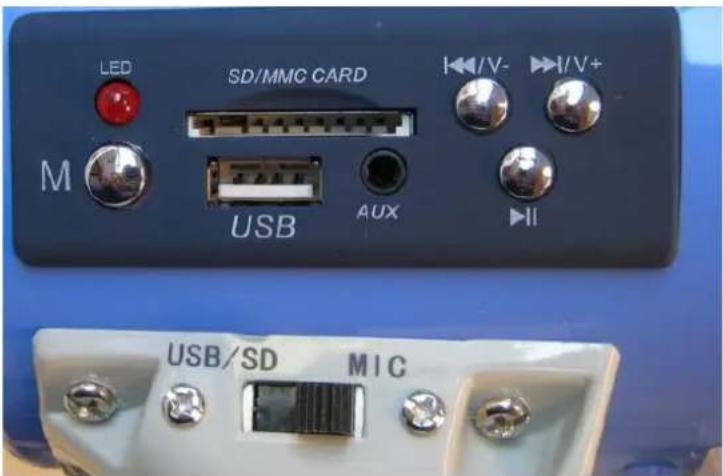

6. When a USB stick with MP3 files is inserted in the device, the device will begin to play the first track

7. By pressing the Next or PREV key you can select another track. Press Play/Pause to start/stop playing.

If you press and hold the next or PREV key you can change the volume of the MP3 player.

8. SD/MMC Card This works the same as for the USB-stick.

9. AUX - You can connect an external audio source with a 3.5jack plug.

10. Bluetooth By pressing the M (mode) you can select the BT mode (green led blinks), search with your

Bluetooth device for the Megaphone and connect, the Led will constant be lit green. You can use your Bluetooth device as the audio source. If you press the M key again you select the MP3 devices again, Led will be lit red.

• If the megaphone does not work, remove the batteries to check if the +/- terminals match correctly.

• If the terminal match correctly, place back the batteries and press them down into the battery compartment firmly, make sure the batteries are in contact properly

3. Interruptor-Press-to-talk: Pulse este

European Union United Kingdom

Tronios Ltd., 130 Harley Street, London W1G 7JU, United Kingdom

2014/30/EU S.I. 2016:1091 2011/65/EC S.I. 2012:3032 2014/53/EU S.I. 2017:1206Specifications and design are subject to change without prior notice..

Copyright © 2022 by TRONIOS the Netherlands
