Product type	4-channel DJ mixer
Brand	Resident DJ
Model	DJ405USBBK
Power supply	220-240 V ~ 50 Hz
Inputs	2x Aux, 2x MP3, 2x microphone (XLR and 6.3mm jack), 2x USB/SD (max 16 GB)
Outputs	Master (RCA), Booth (RCA), Record (RCA), Headphone (6.3mm jack, 300 mW/16-32 Ω)
Equalizer	3-band: bass, mid, treble, +/-12 dB
Frequency response	20 Hz - 20 kHz ±2 dB
Harmonic distortion	< 0.02%
Bluetooth	Yes, frequency 2402-2480 MHz, power 4 dBm
Functions	Talkover, Crossfader, Cue/PFL, Recording to USB/SD, MP3 playback (USB/SD/BT), LED fader lighting
Safety	Do not expose to rain or moisture, do not open the chassis
Maintenance	Clean with a dry cloth, avoid solvents
Recycling	Do not dispose of with household waste, deposit at a collection point
Country of origin	Made in China (MADE IN CHINA)

Frequently Asked Questions - DJ405USBBK Resident DJ

How to connect a Bluetooth device?

Activate Bluetooth mode by pressing the mode selection key (USB/SD/BT). On your device (phone, MP3 player), search for Bluetooth devices and select 'Bluetooth'. If a password is requested, enter 0000. The connection is established when the message 'connected' appears.

How to record a mix on a USB flash drive or SD card?

Insert a USB flash drive or SD card (max 16 GB) into the corresponding slot. Hold down the folder/record key (c3) to start recording. Press again to stop.

How to adjust the equalizer?

Use the three rotary knobs labeled LOW (bass), MID (mid), and HIGH (treble). Each knob allows a adjustment range of +12 dB to -12 dB.

What to do if the headphones produce no sound?

Check that the headphones are plugged into the 6.3mm jack. Make sure the PHONE knob (headphone volume) is turned up enough. Use the channel selector CHANNEL SELECTION to choose the audio source to listen to.

How to use the Talkover function?

Toggle the TALKOVER switch to ON. When you speak into the microphone, the volume of other sources is reduced by 14 dB so that your voice is clearly audible. In OFF position, everything returns to normal.

How to play MP3 files from a USB flash drive?

Insert the USB flash drive into the USB port of PLAYER 1 or 2 section. Briefly press the mode selection key until USB is selected. Use the |<< (previous track) and >>| (next track) keys to navigate.

What is the headphone output power?

The headphone output delivers 300 mW with an impedance of 16 to 32 Ω.

How to connect a microphone?

Use the MIC1 input (XLR) for a professional microphone or the MIC2 input (6.3mm jack) for a standard microphone. Adjust the volume with the MICROPHONE VOLUME knob.

How to activate track repeat mode?

Briefly press the Repeat/cancel key (c4) to cycle through modes: repeat all tracks, repeat one track, or random playback. An indicator on the screen shows the active mode.

What to do in case of sound distortion?

Check that the equalizer controls are not set to extremes. Reduce the master volume or the volume of the affected channels. Make sure the connected speakers have a suitable impedance and are not overloaded.

USER MANUAL DJ405USBBK Resident DJ

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

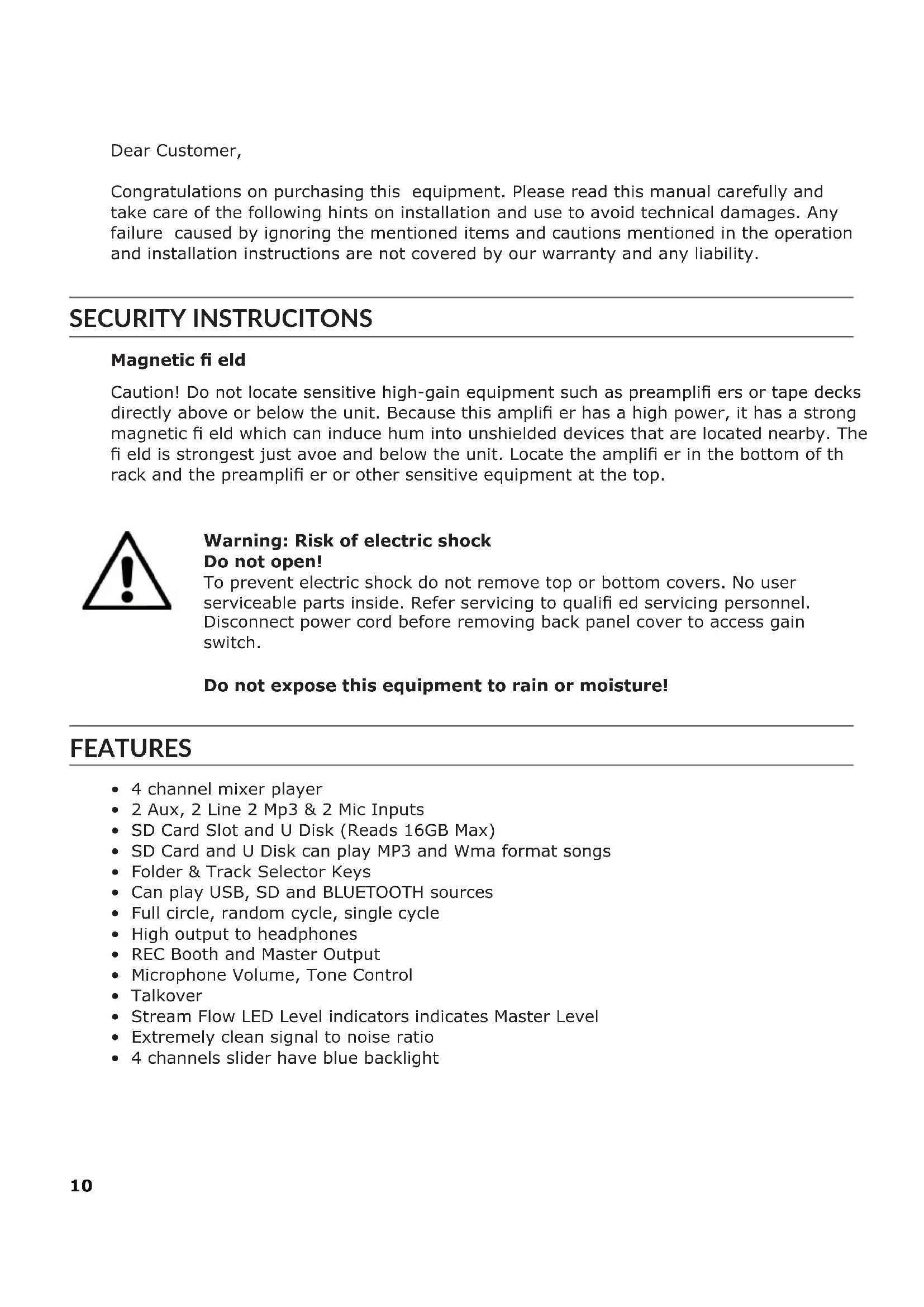

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

SECURITY INSTRUCITONS

Magnetic fi eld

Caution! Do not locate sensitive high-gain equipment such as preamplifi ers or tape decks directly above or below the unit. Because this amplifi er has a high power, it has a strong magnetic fi eld which can induce hum into unshielded devices that are located nearby. The fi eld is strongest just avoe and below the unit. Locate the amplifi er in the bottom of th rack and the preamplifi er or other sensitive equipment at the top.

Warning: Risk of electric shock Do not open!

To prevent electric shock do not remove top or bottom covers. No user serviceable parts inside. Refer servicing to qualified servicing personnel. Disconnect power cord before removing back panel cover to access gain switch.

Do not expose this equipment to rain or moisture!

FEATURES

• 4 channel mixer player
• 2 Aux, 2 Line 2 Mp3 & 2 Mic Inputs
• SD Card Slot and U Disk (Reads 16GB Max)
• SD Card and U Disk can play MP3 and Wma format songs
- Folder & Track Selector Keys
- Can play USB, SD and BLUETOOTH sources
• Full circle, random cycle, single cycle
• High output to headphones
• REC Booth and Master Output
- Microphone Volume, Tone Control
- Talkover
- Stream Flow LED Level indicators indicates Master Level
• Extremely clean signal to noise ratio
• 4 channels slider have blue backlight

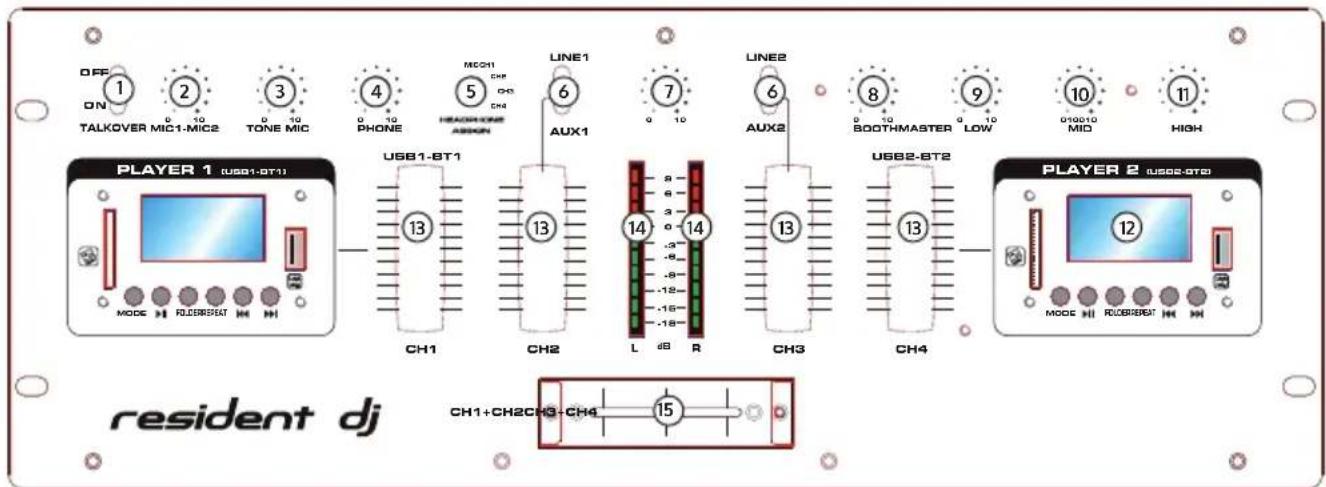

Top and front panel

OFF 1 ON TALKOVER MIC1-MIC2 2 0 10 TONE MIC 3 0 10 PHONE 4 MCH1 5 CH3 6 AUX1 LINE1 7 0 10 LINE2 8 0 10 BOOTHMASTER 9 0 10 LOW 10 D100-10 MID 11 HIGH PLAYER 1 (USB1-BT1) USB1-BT1 13 CH1 13 CH2 14 L dB R 15 CH3 13 CH4 U8B2-BT2 13 PLAYER 2 (USB2-BT2) 12 MODE HIO ROGB/SBFT HIOH resident dj CH1+CH2CH3+CH4

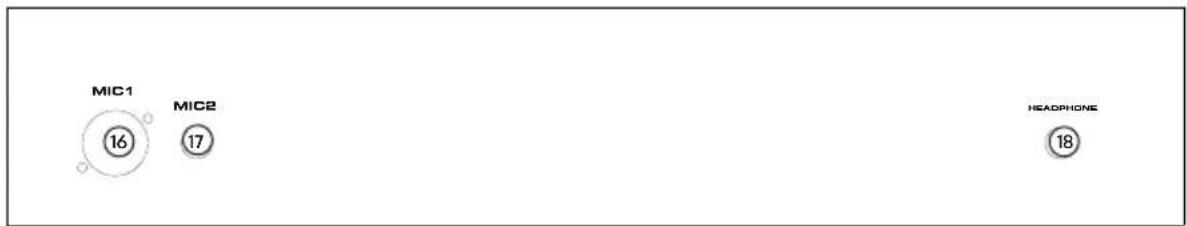

MIC1 16 MIC2 17 HEADPHONE 18

1. Talkover Button

Press this button if you want to use your microphone. When the button is pressed, all other signal sources will be attenuated by 14dB so that the microphone can be clearly heard. In the OFF position, all signals returns to their original level.

2. MIC Level Control

With this knob, you can adjust the microphone1-2 volume.

3. MIC TONE

Used to increase or lower the microphone's higher frequencies.

4. HEADPHONE LEVEL CONTROL

Let you control the volume level of headphone.

5. Cue select

Use this button in order to select the channel(s) to be monitored by headphones.

6. Aux/Line/Usb Switch

Use this switch to select the input to be sent to the individual channel.

7. Master Control

Adjust the level of the master-output.

8. BOOTH Control

Adjust the level of the booth-output.

9. Bass Control

Used to increase or lower the LOWS of the output channel

10. Middle Control

Used to increase or lower the MIDS of the output channel.

11. Treble Control

Used to increase or lower the HIGHS of the output channel.

12. MP3 PLAYBACK, RECORDING AND BT

a) USB/SD: Connect to USB stick and SD card.
b) ID3 Display: Display MP3's information.
c) The functions for six Buttons from left to right are following:

c1) Mode select

Shortly press to select the usb/sd and blue tooth function.long press to turn on/off the mode.

BT pairing

If you have activated BT via mode select, enter the BT settings of the device (mobile phone or mp3 player) that you would like to connect. For pairing select the 4-channel mixer with the BT name "Bluetooth". If a password is requires enter "0000". When the pairing has been done successfully, the status information will be "connected".

c2) Play/pause

Each time you press this button, the operation changes from play to Pause or from pause to play.

c3) Folder/recording

Shortly press to open the folder, long press to use the recording function.

c4) Repeat/delete

Shortly press to select the repeat mode (all, one and random). If hold the button longer, it will delete the recording file.

c5) |<< PREVIOUS

Use this button to re-start the track or select the previous track.

c6) >>| NEXT

Use this button to select the next track.

13. Channel Fader

Used to adjust each channel's level.

14. Master Level Display

The LED display shows the level of the left and right master output

15. Crossfader

Mix the signal of one channel with another. If the Crossfader is at the center position, the sound from both channels can be heard.

16. Mic 1 Socket

Connect your microphone with 1/4" or XLR jack plug here.

17. Mic 2 Socket

Connect your microphone with 1/4" jack plug here.

18. Headphone Socket

Connect your headphone with impedance between 8 and 600 Ohms to this connector.

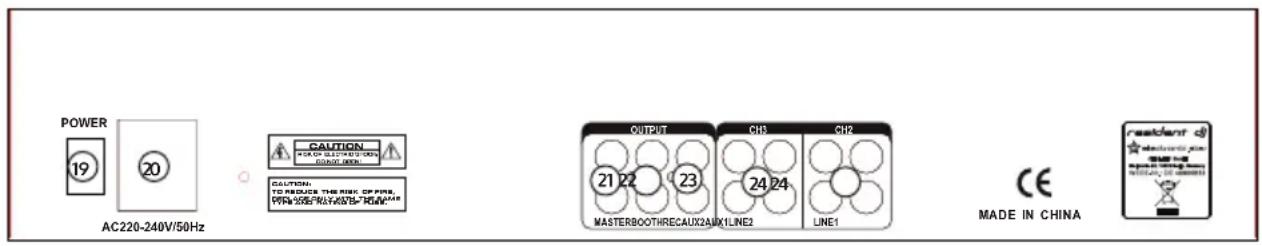

Back panel

POWER 19 20 AC220-240V/50Hz CAUTION FOR ALL EDITIONS CAUTION: TO REPROVE THE RISK OF PPE, PPE TO SATE FLOW ASSETS OUTPUT CH3 CH2 21 22 23 MASTERBOOTRECAUX2AUX1LINE2 LINE1 CE MADE IN CHINA resident d

19. Power Switch

Turns the mixer on or off when the power supply is connected.

20. AC Connection

This unit applies 220V-240V AC power source.

21. Master Output

Master output connects to the main amplifier (DJ final mix after crossfader section), and accepts RCA jacks.

22. BOOTH OUTPUT JACKS

Connect the mixer to a second receiver or amplifier powering speakers in the DJ booth or in a remote location

23. RECORD OUTPUT JACKS

Connect the mixer to a second receiver or amplifier powering speakers in the DJ booth or in a remote location.

24. Aux/Line Input Sockets

These inputs are for CH2-CH3 and accept RCA-plug connectors. Use AUX input sockets for CD players and MP3 players. Line level musical instruments with stereo outputs such as rhythm machines or samplers should also be connected with the line input socket.

OUTPUTS:

Master 0 dB / 1V 600 Ω

Booth....0 dB / 1V 600 Ω

Rec....-5 dB / 0.5V 600 Ω

PHONE 300 MW/16-32 Ω

INPUTS:

Microphone....3 mv / 2.2 kΩ

Aux 3.2 mv / 47 kΩ

Line 150 mv / 47 kΩ

Tone Control

Treble ....+12 dB/-12 dB

Middle....+12 dB/-12 dB

Bass ....+12 dB/-12 dB

GENERAL:

Frequency response 20 Hz\~20 KHz ±2 dB

Distortion ....<0.02%

BT frequency....2402-2480 MHz

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type DJ405USB-BK is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10028788

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type DJ405USB-BK is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10028788
