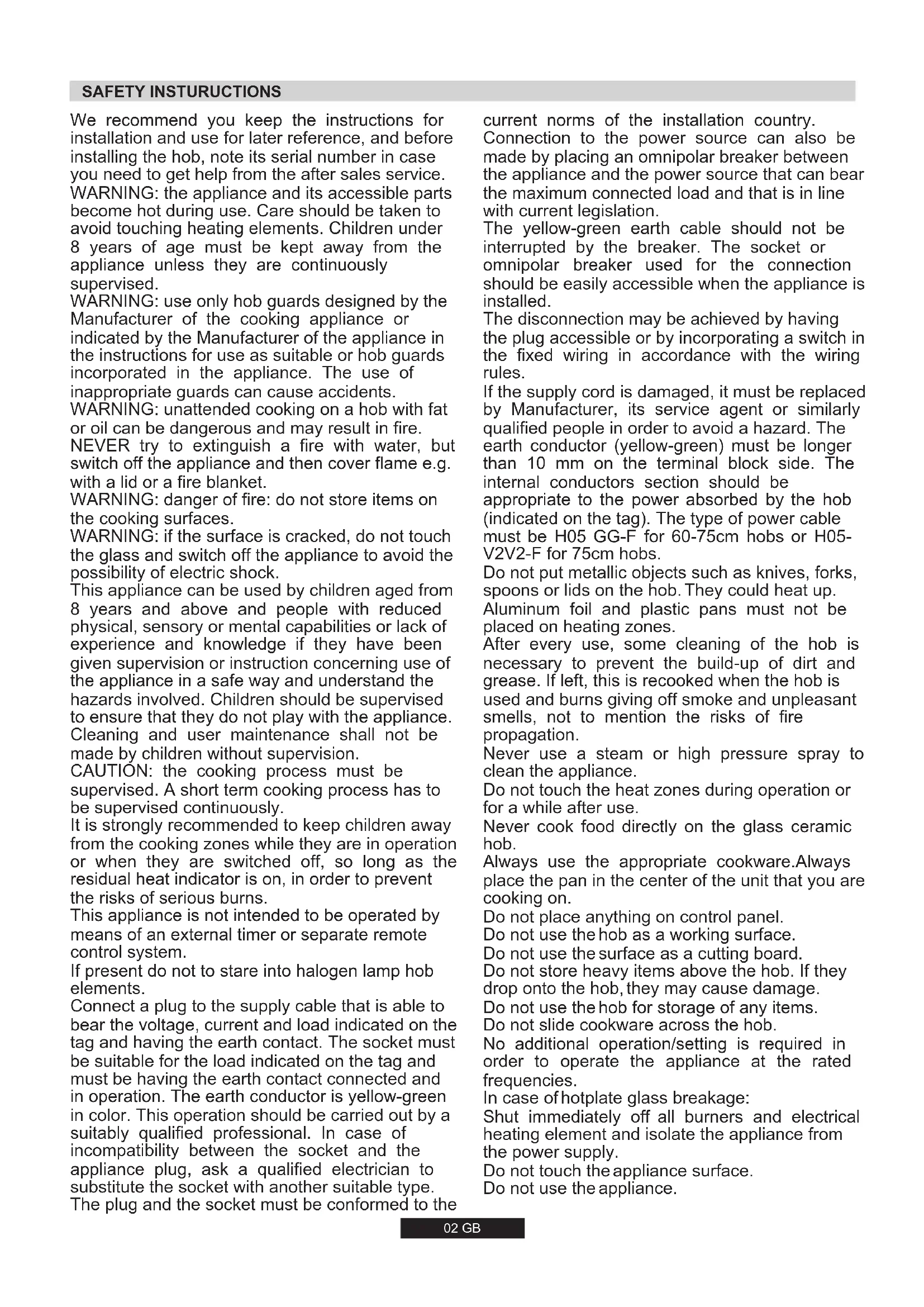

We recommend you keep the instructions for installation and use for later reference, and before installing the hob, note its serial number in case you need to get help from the after sales service. WARNING: the appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children under 8 years of age must be kept away from the appliance unless they are continuously supervised.

WARNING: use only hob guards designed by the Manufacturer of the cooking appliance or indicated by the Manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

WARNING: unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: danger of fire: do not store items on the cooking surfaces.

WARNING: if the surface is cracked, do not touch the glass and switch off the appliance to avoid the possibility of electric shock.

This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

CAUTION: the cooking process must be supervised. A short term cooking process has to be supervised continuously.

It is strongly recommended to keep children away from the cooking zones while they are in operation or when they are switched off, so long as the residual heat indicator is on, in order to prevent the risks of serious burns.

This appliance is not intended to be operated by means of an external timer or separate remote control system.

If present do not to stare into halogen lamp hob elements.

Connect a plug to the supply cable that is able to bear the voltage, current and load indicated on the tag and having the earth contact. The socket must be suitable for the load indicated on the tag and must be having the earth contact connected and in operation. The earth conductor is yellow-green in color. This operation should be carried out by a suitably qualified professional. In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the

current norms of the installation country.

Connection to the power source can also be made by placing an omnipolar breaker between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation.

The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.

The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

If the supply cord is damaged, it must be replaced by Manufacturer, its service agent or similarly qualified people in order to avoid a hazard. The earth conductor (yellow-green) must be longer than 10mm on the terminal block side. The internal conductors section should be appropriate to the power absorbed by the hob (indicated on the tag). The type of power cable must be H05 GG-F for 60-75cm hobs or H05-V2V2-F for 75cm hobs.

Do not put metallic objects such as knives, forks, spoons or lids on the hob. They could heat up. Aluminum foil and plastic pans must not be placed on heating zones.

After every use, some cleaning of the hob is necessary to prevent the build-up of dirt and grease. If left, this is recooked when the hob is used and burns giving off smoke and unpleasant smells, not to mention the risks of fire propagation.

Never use a steam or high pressure spray to clean the appliance.

Do not touch the heat zones during operation or for a while after use.

Never cook food directly on the glass ceramic hob.

Always use the appropriate cookware. Always place the pan in the center of the unit that you are cooking on.

Do not place anything on control panel.

Do not use the hob as a working surface.

Do not use the surface as a cutting board.

Do not store heavy items above the hob. If they drop onto the hob, they may cause damage.

Do not use the hob for storage of any items.

Do not slide cookware across the hob.

No additional operation/setting is required in order to operate the appliance at the rated frequencies.

In case of hotplate glass breakage:

Shut immediately off all burners and electrical heating element and isolate the appliance from the power supply.

Do not touch the appliance surface.

Do not use the appliance.

1. INSTRUCTIONS FOR THE INSTALLER

INSTALLING A DOMESTIC APPLIANCE CAN BE A COMPLICATED OPERATION WHICH IF NOT CARRIED OUT CORRECTLY, CAN SERIOUSLY AFFECT CONSUMER SAFETY. IT IS FOR THIS REASON THAT THE TASK SHOULD BE UNDERTAKEN BY A PROFESSIONALLY QUALIFIED PERSON WHO WILL CARRY IT OUT IN ACCORDANCE WITH THE TECHNICAL REGULATIONS IN FORCE. IN THE EVENT THAT THIS ADVICE IS Ignored and THE INSTALLATION IS CARRIED OUT BY AN UNQUALIFIED PERSON, THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR ANY TECHNICAL FAILURE OF THE PRODUCT WHETHER OR NOT IT RESULTS IN DAMAGE TO GOODS OR INJURY TO INDIVIDUALS.

1.1 BUILDING IN

The hob may be installed in any worktop which is heat resistant to a temperature of 100^ , and has a thickness of 25-45 mm. The dimensions of the insert to be cut out of the worktop are in shown in Figure 2.

When there is an accessible space between the built-in hob and the cavity below, a dividing wall made of insulating material should be inserted (wood or a similar material) (Figure 2).

If the Hob is fitted next to a cabinet on either side, the distance between the Hob and the cabinet must be at least 17cm (60cm) or 25 cm (75cm) (see Figure 2); while the distance between the hob and the rear wall must be at least .70 mm

The distance between the hob and any other unit or appliance above it (e.g. An extractor hood) must be no less than 70~cm . (Figure 4)

Metal objects in the drawer may reach high temperatures due to air recirculation. It is therefore recommended to use an intermediate wood panel.

Important - The diagram in figure 1 shows how the sealant should be applied.

The Hob unit is fitted by attaching the Fixing Clamps supplied, using the holes at the base of the unit.

When a 60~cm hob or a 75~cm hob is fitted over a built in oven, the latter must be fan cooled.

1.2. SUITABLE LOCATION

This appliance must be installed in accordance with the regulations in force and only used in a well ventilated space. Read the instructions before installing or using this appliance.

A gas-powered cooking appliance produces heat and humidity in the area in which it is installed. For this reason you should ensure good ventilation either by keeping all natural air passages open or by installing an extractor hood with an exhaust flue. Intensive and prolonged use of the appliance may require extra ventilation, such as the opening of a window or an increase in speed of the electric fan, if you have one.

If a hood can not be installed, an electric fan should be fitted to an outside wall or window to ensure that there is adequate ventilation. The electric fan should be able to carry out a complete change of air in the kitchen 3-5 times every hour. The installer should follow the relevant national standards.

2. ELECTRICAL CONNECTION (FOR U.K. ONLY)

Warning - this appliance must be earthed

This appliance is designed for domestic use only. Connection to the main supply must be made by a competent electrician, ensuring that all current regulations concerning such installations are observed.

The appliance must only be connected to a suitably rated spur point, a 3 pin 13 amp plug/socket is not suitable. A double pole switch must be provided and the circuit must have appropriate fuse protection. Further details of the power requirement of the individual product will be found in the users' instruction and on the appliance rating plate. In the case of built-in product you are advised, should you wish to use a longer cable than the one supplied, that a suitably rated heat resistant type must be used.

The wiring must be connected to the mains supply as follows: CONNECT TO SPUR TERMINAL

Green & Yellow Wire Blue Wire Brown Wire

Earth Connection Neutral Connection Live Connection

Note: We do not advocate the use of earth leakage devices with electric cooking appliances installed to spur points because of the «nuisance tripping» which may occur. You are again reminded that the appliance must be correctly earthed, the manufacturer declines any responsibility for any event occurring as a result of incorrect electrical installation.

2.1. ELECTRICAL CONNECTION

Check the data on the rating plate, located on the outside of the unit, to ensure that the supply and input voltage are suitable.

Before connection, check the earthing system.

By Law, this appliance must be earthed. If this regulation is not complied with, the Manufacturer will not be responsible for any damage caused to persons or property. If a plug is not already attached, fit a plug appropriate to the load indicated on the rating plate. The earth wire is coloured yellow/green. The plug should always be accessible.

Where the Hob is connected direct to the electricity supply, a circuit breaker must be fitted.

If the power supply cord is damaged this is to be replaced by a qualified engineer so as to prevent any potential risk.

The earth wire (green and yellow coloured) must be at least 10mm longer than the live and neutral wires.

The section of the cable used must be of the correct size in relation to the absorbed power of the hob.

Please check rating plate for the power details and ensure that the power supply cord is of the type 3 × 0.75 ~mm^2 H05 GG-F for 60-75cm hobs or H05-V2V2-F for 75cm hobs.

Mains Supply	LIVE	L	Brown Wire
	EARTH		Green/Yellow Wire
	NEUTRAL	N	Blue Wire

If an appliance is not fitted with a supply cord and a plug, or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, the instructions shall state that means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

2.2. GAS CONNECTION

These instructions are for qualified personnel, installation of equipment must be in line with the relevant national standard. (For U.K. only: by law the gas installation\commissioning must be carried out by a "Gas Safe" Installer)

All work must be carried out with the electricity supply disconnected. The rating plate on the hob shows the type of gas with which it is designed to be used. Connection to the mains gas supply or gas cylinder should be carried out after having checked that it is regulated for the type of gas with which it will be supplied. If it is not correctly regulated see the instructions in the following paragraphs to change gas setting.

For liquid gas (cylinder gas) use pressure regulators which comply with the relevant national standards.

Use only pipes, washers and sealing washers which comply with the relevant national standards.

For some models a conic link is furnished to outfit for the installation in the countries where this type of link is obligatory; in picture 8 it is pointed out how to recognize the different types of links (CY = cylindrical, CO = conic). In every case the cylindrical part of the link has to be connected to the hob.

When connecting the hob to the gas supply via use offlexible hoses please ensure that the maximum distance covered by the hose does not exceed 2 metres.

The flexible tube shall be fitted in such a way that it cannot come into contact with a moveable part of the housing unit (e.g. a drawer) and does not pass through any space where it may become crushed/ kinked or damaged in any way.

To prevent any potential damage to the hob please carry out the installation following this sequence (picture 6):

1)As illustrated, assemble parts in sequence:

A: 1/2 Male Adaptor Cylindrical

B:1/2 Seal
C: 1/2 Female Gas Adaptor Conical-Cylindrical or Cylindrical-Cylindrical

2) Tighten the joints with the spanner, remembering to twist the pipes into position.

3)Attach fitting C to mains gas supply using rigid copper pipe or flexible steel pipe.

IMPORTANT: carry out a final check for leaks on the pipe connections using a soapy solution. NEVER USE A FLAME. Also, make sure that the flexible pipe cannot come into contact with a moving part of the cabinet (eg.adrawer) and that it is not situated where it could be damaged.

Warning: If gas can be smelt in the vicinity of this appliance turn off the gas supply to the appliance and call the engineer directly. Do not search for a leak with a naked flame.

2.3. ADAPTING THE HOB TO DIFFERENT TYPES OF GAS

To adapt the Hob for use with different types of gas, carry out the following instructions:
- Remove the grids and burners
- Insert on hexagonal spanner (7 mm) into the burner support (Figure7)
- Unscrew the injector and replace it with one suitable for the gas to be used (see gas type table)

2.4. REGULATING THE MINIMUM FLAME

After lighting the burners, turn the control knob to the minimum setting and then remove the knob (this can easily be removed by applying gentle pressure).

Using a small «Terminal» type screwdriver the regulating screw can be adjusted as in Figure 9. Turning the screw clockwise reduces the gas flow, whilst turning it anticlockwise increases the flow - Use this adjustment to obtain a flame of approximately 3 to 4mm in length and then replace the control knob.

When the gas supply available is LPG - the screw to set the idle flame must be turned (clockwise) to the end stop.

When you have carried out the new gas regulation, replace the old gas rating plate on your appliance with one (supplied with hob) suitable for the type of gas for which it has been regulated.

3. USE OF HOB - USER INSTRUCTIONS

This appliance must only be used for the purpose for which it is intended, domestic cooking, and any other use will be considered improper and could therefore be dangerous. The Manufacturer will not be responsible for any damage or loss resulting from improper use.

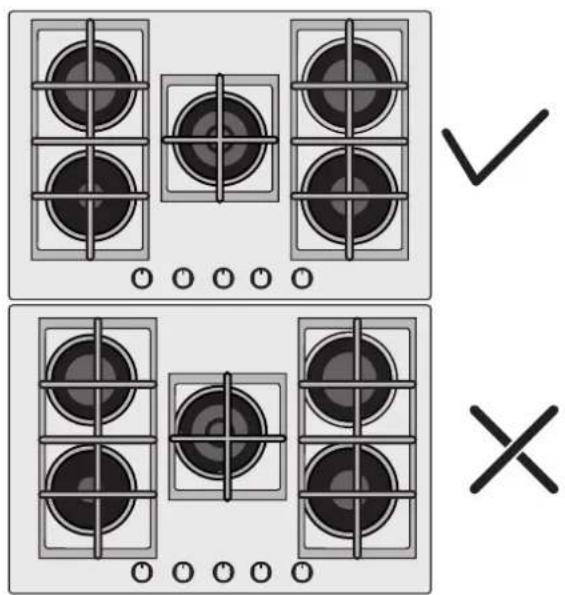

Before using burner, be sure, grid perimeters center the burner as below figure.

If you are using Cast Iron Grids, underneath the grid, position of it is stated. Be sure for the exact grid is used in correct position.

Prior to switching on the gas hob ensure that the burners and burner caps are correctly placed within their position.

This hob is fitted with electronic ignition to ignite the burner.

To ignite the burners carry out the following:

push in and turn the knob anticlockwise to the larger flame symbol and keep pushed 5 s after ignition.

The ignition system will continue to generate sparks as long as the control knob is being pressed

Warning: If there is no electricity on appliance to ignite the burner a match or a lighter should be used carrying out the following:

place a lighted match or lighter close to the burner

push in and turn the knob anticlockwise to the larger flame symbol and keep pushed 5 s after ignition.

Warning: In any case If after 5 s the burner has not lit, stop operating the device and wait at least 1 min before attempting a further ignition of the burner.

GENERAL ADVISE

For best results, use cooking vessels with a flat surface. The size of the surface should match the gas burner side as follows. Table A.

Burner Type	Ø pan/pot (cm)	Power (kW)	G20 20 mbar (methane)	G30 28-30 mbar (LPG)
AUX Auxiliary	10 - 18	1,00	95 l/h	73 g/h
SR Semi Rapid	12 - 22	1,75	167 l/h	127 g/h
R Rapid	16 - 26	2,70	257 l/h	196 g/h
DC 4 kW Mono	16 - 26	4,00	381 l/h	291 g/h
DC 4,2 kW Mono	16 - 26	4,20 NG 4,00 LPG	400 l/h	291 g/h
DC 4,5 kW Mono	16 - 26	4,50	429 l/h	327 g/h

Table A

The gas burner should be regulated so that the flame does not overlap the base of the pan. Vessels with a concave or convex base should not be used.

WARNING: If a flame is accidentally extinguished, turn the knob to the off position and do not attempt to re-ignite if for at least 1 minute.

If over the years the gas taps become stiff to turn it is necessary to lubricate them.

Such operation must be carried out only by qualified Service Engineers.

4. MAINTENANCE AND CLEANING

Before cleaning the hob, ensure the appliance has cooled down. Remove the plug from the socket or (if connected directly) switch off the electricity supply.

Cleaning and user maintenance shall not be made by children without supervision

Never use abrasives, corrosive detergents, bleaching agents or acids. Avoid any acid or alkaline substances (lemon, juice, vinegar etc.) on the enamelled, varnished or stainless steel sections.

When cleaning the enamelled, varnished or chrome sections, use warm soapy water or a non caustic detergent. For stainless steel use an appropriate cleaning solution.

The burners can be cleaned with soapy water. To restore their original shine, use a household stainless steel cleaner. After cleaning, dry the burners and replace.

It is important the Burners are replaced correctly.

Chromed grids and burners

Chromed grids and burners have a tendency to discolour with use.

This does not jeopardize the functionality of the hob.

Our After Sales Service Centre can provide spare parts if required.

5. AFTERCARE

Before calling out a Service Engineer please check the following:
- that the plug is correctly inserted and fused;
- that the gas supply is not faulty.

If the fault cannot be detected:

Switch off the appliance and call the After Service Centre. DO NOT TAMPER WITH THE APPLIANCE.

6. PROTECTION OF THE ENVIRONMENT

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all

the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• The WEEE should not be treated as domestic waste;

• The WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

SAVING AND RESPECTING THE ENVIRONMENT

Where possible use lid to cover the pan. Regulate the flame to not overlap the diameter of the pan.

7. DECLARATION OF COMPLIANCE

The appliance complies with European Directive 2009/142/EC (GAD) and starting from 21/04/2018 with Gas Appliances Regulation 2016/426 (GAR).

By placing the C mark on the product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

Table 1

Burner Plate	4Gas - L1 - STD	4Gas - L2 - 3 GAS	4Gas - L3 - Big Rear	5Gas - L4 - Central	5Gas - L5 - 4+1
Burner	AUX/SR/2R	SR/R/DC	AUX/SR/R/DC	AUX/SR/2R/DC	AUX/SR/2R/DC
Type	PVUH60MF	PVUH60MF	PVUH60MF	PVUH75MF	PVUH75MF
FFD	YES	YES	YES	YES	YES
AUX 1kW	1	1	1	1	1
SR 1,75 kW	2	-	1	1	2
R 2,7 kW	1	1	1	2	1
DC 4 kW Mono	-	-	1	-	-
DC 4,2 kW Mono	-	-	-	-	1
DC 4,5 kW Mono	-	1	-	1	-
Nominal Heat Input	7,2kW	8,2kW	9,45kW	12,65kW	NG 11,4kW LPG 11,2kW
G20/20 mbar	686 l/h	781 l/h	900 l/h	1204 l/h	1085 l/h
G30/28-30 mbar	524 g/h	596 g/h	688 g/h	920 g/h	814 g/h
Installation Class	3	3	3	3	3
Voltage V/Frequency Hz	220-240V 50/60Hz	220-240V 50/60Hz	220-240V 50/60Hz	220-240V 50/60Hz	220-240V 50/60Hz
Electrical Input Power	1	1	1	1	1
Electric Ignition	YES	YES	YES	YES	YES
Product Dimension	595x505x42	595x505x42	595x505x42	745x505x42	745x505x42

This appliance has been designed for non-professional, i.e. domestic, use.

CONSIGNES DE SECURITÉ

1.2 VHODNÉ MISTO INSTALACE

Tento spotbrebi musi byt instalovan v souladu s platnymi prdepisy a pouzivat na dobre vetranem miste. Pred instalaci a pouzitim spotbrebi ci prectete potkyny k pouziti.

Tel: [phone] Fax: [phone]

www.candy-group.com

Candy

GARANTI BELGESI

ANKASTRE OCAK

B cnyae ero haJIuHn, He peKOMeHdyetc CMOTpeTb Ha raJoreHHbIe 3JeMeHTbl.

IOncoeHNHe BnKy K UHpy NITaHn, CNOcObHOMy BblepKaat HaprJxHne, TOK n Harpy3ky, yKa3aHHbIe Ha Ta6nUcke DaHHbIX, n IMeHOUeMy npOBoHNK 3a3emJIeHn. Po3ETka DOJXHa 6bITb NOxOJaUe I dN Harpy3Kn, yKa3aHHoH Ha Ta6nUckE, n DOJXHa IMetb NCnPabHbI KOHTAKT 3a3emJIeHn. IpOBoHNK 3a3emJIeHn YBnRETCs XeJNTo-3eNEHbIM. DAnHyIO nepaunIO DOJXeH npOBoNTb CneuaJIncT, IMeOuNi COOTBetCTByIOUyIO KBaINOpkaUIO. B cIyuae HeCOBMeCTMOCtN MExdy PO3ETKO IN BnIKO, INonpocTe 3NeKtpnka 3AmeHntb PO3ETKY Ha Dpyry

nnpemmoro Tuna. Bnilka n po3etka doJXhbl OTBeuatab HopMaM, DeiCTByIOUcIMB CTpaHE MOHTaJa. NIOKIOUeHne K NCTOCHNY NITAHNA TAKKE MOXHO BBINOJHNTb NytEm yCTaHOBKn ABTOMATNUeCKOTO BIKIOUaTeJI MEXdy np6OpOM N ICTOCHNKOM INIHNA, CNOOCbHM BbIDepKAtb MaKcImaJIbHYIO NOI KJIIOU eHH YIO Ha rpy3 K y N OTBeu aIOUc IM TpeBOBaHNMA DeINCTBYIOUcero 3aKOHOdaTeJIbCTBA. XeJIto-3eJIeHbI pOBODHk 3a3EMJeHnE He DOJIXeH pa3Mbikatbc BIKIOUaTeJIeM. NcNoJIb3yEmble dIra COeDInHeHna PO3ETKa INN ABTOMATNUeCKNI BIKIOUaTeJI BONJHbI HAXOnITbcB yIooBH OHe IOcraeMOCTn Pn MoTAtke np6Opa.

IЯ OTKHueHn MOxHO Jn60 pa3MeCTnB po3eTky B XOHe DocraeMoCTn, N6o yCTaHOBnTB nepeKIOuataJIb Ha fNkCupOBaHHOM npOBoDE corlaCHO npabUNam UcTpoiCTBa 3NeKTpoyCTaHOBOK.

B cnyae NOBpeJdeHn Hhpya 3neKtpoNTaHnna, nocJeHN dONKeH 6bITb 3aMeHeH PpOn3BOOnTeJIeM, eO cepBnCHbIM aERHTOM NIN NInC0M, BbICTyNaIOUeM B CXOXem KaueCTBe, BO n36ExKaHHe PNCKOB. 3a3emJiaOuI npOBOD (XeJITo-3eJIeHbI) DOnKeH 6bITb DnIHHee Ha 10 MM CO CTOpOH b KNeMMHOJ KOJIOKn. BHyTpEnHHeceYeHne npOBOnHKOB DOJXHO COOTBcTBoBaT MoUHOCTN, NOTpe6JIaEmoB BapouHOn NaHeJIbIO (yka3aHa Ha Ta6NvUke DaHHbIX). Whyp nITaHnA dONKeH 6bITb TnPa H05 GG-F dNnT dNaMeTpOM 60-75 cm nnn H05-V2V2-F dNn T dNaMeTpOM 75 cm.

3anpeaetc nomeaTb Ha BapoyHyo naHeIb MeTaNueckne npedMeTbI, TaKe, KaK HOxN, BuJKN, JIOXNI KpbIuKN, NOCKOJIbky OHN MOrY T HarpeBaTbcr.

He KnaDnTe Ha 30HbI HarpeBa aIIOMNHeBvO fOpIbIy H He CTaBbTe Ha HIX PJIaCTMaCCOBYIO NocUy.

Iocne kaxdoRo nCnoB3OBAHn Hc06xOdmo npOBoHTb OuNCtky BapouHOHaHEJN C TeM, YTObHa He He octabannc bp3b N Jnp. B npOTNBOM clyuae np CNeDyIOUeM BKIOUeHn BapouHOHaHEJN MOryt BblJeJIaTbcr DbIM N HePnA rTHbI 3anax. Kpme TOrO, 3TO MoKeT PnBecTN K NoXApy.

3anpeaetc nCnoJb3oBaTb nap nnn ctpyn noD BbcOKIM daBleHem dIy OunchKn 3deNn.
3anpeaaetc npkacaTbcR K 3ohAm HarpBa BO BpEmpa60tbl n HeKOTOpoe BpEm nocne 3abepueHHa Pa60tbl.

HnkOrda He roTOBbTe NnUy HenocpeDCTBeHHo Ha cTeKIOkepAMueckO BapOuHO NaHeJI. Bcerda nCOnb3yIte dNra 3TOrO noDxOJaUO nocdy.

BceIa nomeuai Te no cydy no entpy HarpBeBaTeIbHoro 3JeMeHTa,Ha KOTOpOM Bby roTOBITE Nnuy. He nomeuaTe Ha naHeNb ynpabJIeHnKaKneJIn6o npedMeTbl.

He nCnoNb3yIte BapOHyIO nAHeJIb B KaueCTBe pa6ooye NOBepxHocTn.

He nCnoJb3yIte NOBepxHOCTb BApOuHoi NaHeiN B KaueCTBe pa3dJeNoUHOI DOCKN.

He xpaHnTe HaB BapOuHoN nAHeNbIO TAgKeIbIe npEdmTbI. B cnUyae naDeHnO Hn MOrY T NobpeDntb BapOHyIO nAHeNb.

He nCnoJb3yIte BapOchHyIO naHEnb B KaueCTBe MeCTaCKnAIDPOBaHnI npEIMeTOB.

HeDbirraTe nocyuNoBapouHOn naheJI.

Дя Экпунатуни рибoga с HOMHалььним NaCTOTAM He Tpe6yOTcЯ ДОПЛHNTeNBhIE DeIeCTBn/HaCTpOKn.

B cnyuae pa36nBaHHa CTeKNa BapOuHoi NaHeHN: HEmeJNeHHo BbIKIIOHTe BCE KOHOpKP N 7KeKtpnueckne HarpeBaTeJIbHbIe 3JeMeHtbl, a TaKKe OTCoEduHNTe np6Op OT CETN 3JeKTPoNTaHHa.

He npikacauTecb K NOBepxHocTn np6opa. He noJIb3yIeTcb np6Opom.

1. INHCTPYKUNI NO BbINOJIHEHNUO YCTAHOBKN

YCTAHOBKA BBITOBOI TEXHNKJ ABJRETCA CNOXHON PABOTOH, HENPABNJbHOE BBIIOJIHEHNE KOTOPOM MOKET OTPNUATEBHO CKA3ATbCJ HA BE30NACHOCTINONb3OBATEJN NO 3TOI PNUHNE YCTAHOBKA BBITOBI TEXHNKJ DOJNXHA BIIIOJIHTBCBBAICOKOBALNFNIPOBAHHBMN CIEUNAINCTAMN, KOTOPBJ E BIIIOJHRT YCTAHOBKY C COBJIOJEHMEM BCEX DEICTBYUOxN PPABNJ N HOPM. B TOM CNYAE, ECJN 3TO IPEIOCTEPEXEHNE BYDET IPONIHOPPOBAHO, U YCTAHOBKA BYDET BIIIOJIHEHA JINOCM, HE IMEIOUIM DOCTATOCHON KBALINKAUIN, IPONJBOINTEL HE BYDET IPINHMATb HNKAKNX IPIPENEH3NI OTHOCHTeBHO BbIXODA OBOPUDOBAHN IN3 CTPOJ HAHECEHHORI PPN 3TOM YUCEPB6A IMUYECTBY INN 3DOPOBBo JIODEI.

1.1.BCTPANBAEMbIE BAPOUHbIE NOBEPXHOCTN

Bapouhna NOBepxHocTb MOKeT yCtHaBnBaTbCra Ha IIO6o pa6OeH NoBepxHocTH KXoHHOro CTOnA, KOTOPa BbIpeKmBaET HarpeB do TempepaTypb1 100°C, nI MEET TOnUHy OT 25 Do 45 MM. Pa3Mpebl OTBepCTNa, KOTOpoe DOJONHXo 6bITb BbIpe3aHO B pa6OeH NoBepxHocTH KXoHHOro CTOnA, NOKa3aHbHa PnC.2.

EcnnoBapOohoNOBepxHocTbIO HMeETcraCBOOHOe npocptpahCTBO,T0nBapOohoNOBepxHocTbIO HyXHO yCTaHOBHTb pa3dntTeHyHO naHeNb,N3rTOBnEHHyIO N3 TeIINOn3IONUOHORo MATEpNaHa (HaPmEp, n3 DepeBa) (CM. pnc.2).

EcHn BapOuHn noBepxHOCTb yCTaHaBnBaETCaT, YTO no Obe ee cToPOHb paCOnNarAOTcI uKaΦbl, To pAcCToRHe MEXdy BAPOUHO nOBepxHOCTbIO uKApOM DoJXHO 6bITb HE MeHbUe 17 cm (60 cm) mN 25cm(75cm)(cm.pnc.2), a pacCToRHe MEXdy BAPOUHO nOBepxHOCTbIO n paCOnIOKeHHO C3aDn CTeHoi DoJXHO 6bITb He MeHbUe 70 mm.

PacctoHne MeKdy BapOCHNOBepxHOCTbIO N DpyTnM 3JIeKtponpNboOpm (HanpIMep, BbITJHKHO KONNAK) DOJIKHO 6bITb He MeHbue 70 cm (cm. pnc. 4).

MetaJIHueckne npEmdTeB I R uINKe MOrY T DOCTNAtb BbICOKNX TemnepaTp H3-3a peuHkyIauN BO3dyxa. PeKoMeHdyTeC nONb3OBATb pOMeKyTOHy DEpeBREHHyNo hEnb.

Baxhna HnΦopMaun Ha pnc. 1 noka3aHo, KaK HaHocNTcRepeMeTNK

BapouHaNoBepxHocTb KpeNTcC NOMOuBIO fNCKnpyUux 3aKIMOB, KOtOpBle BCTABNIAOTcB OTBepCTn, paONoXeHHbIe Ha OCHOBaHm BapouHO NoBepxHocTn.

EcnBapOCHaH NOBepxHOCTb 60 CM Hn7 5CM KpeINTCa HADyXOBKO, TO B DxyOBKe DOJIXHa 6bIT CNTema OXJaXDeHNr C BEHTNlAToPOM.

1.2.BbIbOP MECTA JIIYCTAHOBKIN BAPOCHONIOBEPXHOCTN

DaHHb 6bTOBOI npBOp DOJIKeH yCTaHaBnBaTbcra B COOTBeTcBm C DeIECTByUOuMMnpABUNAMN, IN ToIbKO B XoPoUO nPoBEpTuBaEMbIX NOMEeHnx. IpeP yCTaHOBko INI NcNOJb3OBAHneM 6bTOBOr npBOpBaNPOTHe NCHPTyKmIO.

B Mectax, rde yctaHOBneHb ra30Ble pntb, bIeJenrTcraNIO Bnara.
NoToTMy BblonKbHb ObcepeHTb XopoWHyo BEHTnIaHBO NOMEuEHIN
JI6O C NOMOUsbHO OTBePCTN DnIE cecteBHHOBEHTnIaHIN, IIOoC
NOMOUBIO 3NEkTPnuEckOBtJXKn. PpIn HNTeHCNBHO IN
npoONKHeBHO 3KcnNyatauINPiNTb MOKeT NOpeBOBaTcR
DOnONHHeBHa BEHTnIaUa, ObcepeuBaMaH, HApnPmep, C NOMOUsbIO
OTKpbBaHNOkHA, INPOBETPBAHNa NOMEeEHIN INC N NOMOBo
YBeVNeHEnC KOpocCTB BpaSeHNA 3NEkTPnuECKORo BEHTnIaTOPa CnCTEmb
pnuHNTeBHO BEHTnIaUH (ecn OH YcTaHOJIeH).

ECNI Het BO3MOXHOCTN yCTaHOBNT bBTJAKHON KOJNAK, TO B CTeHe NIN B OKOHOM IPOEMe HJXHO YCTaHOBNT 3JIeKTPUeCKN BTRKHON BEHTNJTTOP.

BbIaXHOB BeHTnIaTOp DoNKeH IMeTb MOUHOCTb, DocTaTOHyIO IToRTO, YTObO bO3dYx B KXYHe NIOHOCTbO 3aMeHJIncr 3-5 p3 B qac. YcTaHOBA Ka DOJHXBa BIIOINHrTcB C COOTBeTCTBm C Tpe6oBaHnMn HauHOHaNbHbIX npABUN HOPM.

2. NOДКЛЮЧЕНЕ K ЗЛЕKTPOCETN (TOЛьКО ДЛЯ BEЛИКOBРТAHПИ)

BHHMaHHe DaHHbI 3NeKTpponp6Op dOnJxHc6bITb 3a3eMnE

AnHHb 3NeKtpOnpBOp npEHa3HaueH ToIbKO nIa 6bIObBIX pnpMeHeH. IOpKnIOHeHne K 3NeKtpocETn DOJXHO BByIOJIHTBCs TOnbKO ONbIHbM 3NeKtpKOM C CoBIOJeHHeM BCEx DeIcTBYIOUHX pNBNH HOPM 3NeKtpOe3oNaCHOCTn.

JaHHb 3NeKtpnpBop DonKeH NoKKnHuaTbC K OTBHeHIO 3NeKtpocetn C DoCTatoH HArpy3oHcN CNOc6hOCTb.3- WtbpKOBa BnKaPozTeHa Ha 13 A He noDxOJNT Dn DaHORO 0NoKlnOHeH B NnHm AnEeKtponntAHn DOnKeH 6BtYcTaHOBHe DByXnIOChb BByKKnOHTeNB, N cIeB DOnXHa 6bITb 3AuINuHeA C NMOUIO NnAaKOro PpeOxApaHntEn CoOTBeTcTBHyOHe HOMHa. BOpEE NOpObHn INHOpMaunr OTHOCInTeBHO Tpe6oBaHn, npDeBraBEmBX K 3NeKtponntAHI nD KOHKpeTHorO N3dEnn, npDeCTaBHe B INCTpykUnn NO EKcnnytauMn B NaCnpToHoi Tabnue, 3akpeNneHnHO HA nDEnn, ECJI DNHa Ka6enPiTAnHn, NOCTaBnEMoro B KomnKeTc B BapOCHn NOBepXHoCTb, RABnETc

HeOCTaTOH0, TO CNeDyET NcNtOB3oBaTb 6Oone DnHHbIe TENNOCTOKK KabeNB NITAHIN C DOCTaTOHO HArpy3oHO CNOCOBHocTbIO. POnKIOUeHN K 3NeKTPocTeI DoJXHO 6BtB BBIIOJIHEO CNEyOuIM O6pA3OM:

IPODCOEHNHITE K KJEMME OTBODA 3JIKTKPOCETN 3eJeHo-JeJIbI npoBOD 3emJIa CnHn npoBOD HeITpaJIb

KopuHHeBbI npoBoD Φa3a

PnmeHHe npKIOaTe BapOHyo nobepxHocTb uepe3 yCTpOcTB0OBhApXeHnYteKu TOKaHa 3emNIO,TAk KaK 3TO MOKeT npBecTI K"NOKHBIM OTKNHOHNM".Eue pa3 HAnOMHaeM,TO 3NeKTponp6Op DOJenK 6bIb NpaBnIbHO 3a3EmHe,N TO npON3BOIDNTb He npINHMae HTNKAMNX pTeEH3N B CNYae NOBpeJHn IN HechactThbCnyaEB,BO3NHKmB Pe3yTaTe HnpabnIbHoro nokIOUeHn 3NEKtpOnp6OpKa 3NEKtpocTeH.

2.1. NOKJIIOUeHNE K 3JEKTPOCETN

PnoBepbTe daHbIe, npBBeHeHbIe B nacnOpTHo TabnUyke, 3aKpennHeH ChapxHa H BaOpHoi NOBepXHOCTN, DnT ToT, YTO6bl yEeNTbC8 B TOM, YTO BXOHOe HApnpKeHne BapOHn IOBepXHOCTN COOTBeTCTByeH AnpKeHIO 3JIeKTPOcTeN.

Ipeep noKJIouHeHnEM BapOuHoi NOBepxHOCTN K 3JKeKTpOcETn IpoBepbTe CNTeMY 3a3EmHeHn.

JaHHb 3NeKtpnpBop 063aTeNbHO DoJXeH 6bIb 3a3EmnH. B CNYae Hec6oHIODeHIN 3TO Tpe6OBAHn PpOn3BOuNTeN b CHMMAET C c6eOBtCTBeHNOCb 3a HaHeCHe N BPeDa 3DOpOBtIO JIOeN n NOBpeJHcNEH NmUyceCTBa.EcnN K Ka6eIIO NITAHn He NpOCoEiHHe BAIIka, NODcoEINHTE K Ka6eIIO NITAHn BUNKy, HarpY3OHTA CNOCo6HOCTb KOTOPOI COOTBEcTCTByET YkazAHNO B NacNOPTH O TabNIue. IpPOBd 3a3eMInHn IMeET XeNTo-3eJIeHb UCBET. K 3NeKTPnueckoi PO3ETKe DOnJXeH BCERda ObecneYBaTcBc CBO6OHDh IOCTyn.

Ecni Bapouhna NOBepxHocTb NODKNIOUaTeC K 3JIeKTPoCeTn HAnpMyO, TO DOJXKeH 6bIb YcTaHOBJIeH ABOTMATueckN BbIKIOUaTeIb.

IpypeoTbpaueHnOnaChocTe 3aMeHa NobpeKdeHHoro KaebnIITAHmIOJXHA BbIOJIHrTBcR ToJIbKO KBaINΦuNPOBaHHbIM CNEUANCTOM.

PpOoD 3a3eMneHnRA (KeITo-3eIeHbI) DOnKHeN 6bITb npu6Jn3nteJIbHO Ha 10 MM dINHHee PpOoBOD f3a3bI HneTpAa.

CeyHHe npoBOnHKOB Ka6eJI NaTAHN IOnKHO COOTBeCTByET MOUHOCTN, NOTpe6nREMOBAPOCHNOBepxHOCTbIO.

PpOBeBpTe 3HaueHHe MoUHocTn,Notpe6JIraEmo3JNeKTpOpnp6Opom, YkA3aHHoe B nacnpTOh TaNnKHe, a TaKke npOBeBpTe, TcIO NcNOb3yETcKa6eNb nITAHn TnIa 3x0.75 mm² H05 GG-F dnn PnINT DAmetPOM 60-75 cm HnH H05-V2V2-F nnPnNT DAmetPOM 75 cm.

BHMaHHe:Ecnn np6op He noKnHoyeK cnCTeMe

3JekTPOcH6KeHHN,NCONb3yTe CnUKN ININ 3aXnRANKY DnIPOKnra KOHOpOK CneJeuOUM ObaP3OM:

NoHecnte 3aKnraKy NIN TOpAuyO CnUky KaK MoXHO 6nKe K KOHOPKe;

PnPKMNTe NOBEPHnTe pyKy npOTNB YACOBO CTepeJKN DO CMBOJcNbHO rno nnameH (symbol) n yepknaBte ee HaxaToB TeueHne5 cekHynd nocne 3akrAHH.

BHMaHHe: B JIObOM cIyuae, ecIN B TeueHHe 5 cekHyd nIaM He IIOABnRETC, OTKIOUHTe np6Op IN IOdoXJNTe He MeHee 1 MInHyTbI, IpeXJe Yem NOBTOPAr Tb NOnbITky po3Knra.

NONE3HbIE COBETbl

IINI NOLUyHn HANJUYuXnpe3yJbTaTOB NOJIb3yITeCb CKOBOpOaMn IN KAcTpHOJMaN C IIOCKIM DHom, pa3MepbKOTopbIX COOTBeCTByIOT pa3MepaM ra3OBbX KOHΦopOK (CM. Ta6I. A).

Burner Type	Ø cKBoropdb/ kactprjnl (cm)	Mooshoctb (kBt)	G20/20 m6ap (Metah)	G30/28-30 m6ap (CHT)
AUX ManenbKaJa KOHΦoRka	10 - 18	1,00	95 l/h	73 g/h
SR ΠonybIcTpaJa KOHΦoRka	12 - 22	1,75	167 l/h	127 g/h
R ΜbIcTpaJa KOHΦoRka	16 - 26	2,70	257 l/h	196 g/h
DC 4 kW Mono	16 - 26	4,00	381 l/h	291 g/h
DC 4,2 kW Mono	16 - 26	4,20 NG 4,00 LPG	400 l/h	291 g/h
DC 4,5 kW Mono	16 - 26	4,50	429 l/h	327 g/h

TaBnua A

PnHcNoB3OBaHNCKOBOPDbIINKACTPNO MeHbWero pa3Mepa PnAmdOJNXHO bITbOTpeYIpOBAHO TaKIM Oba3OM, YTObI OHO He BbIXoNIO 3a npedeJIbI dHa cKOBOPDbI INKacTPOJI. He CneJeT NOB3OBaTBCNOCyDoC BbInyKnBIM NINBORHyTbIM DHom.

PPEyPPEKDEHNE:EcnnrpoEkaCnyaHNO norachET, ycTaHOBtpepyky perynpOBKn B noNoKeHne Bblk.,n He nbITaeTcB 3axeYb PJaMaB TeueHne, NO KpaHHe Mepe, ODHOn MNHyTbI.

EcnHpe3 HeckoIbKO JeT pa6OtbI BapOHyONOBepXHOCTn Ra3OBble KpaHb 6yDyT TyO NOBOPaYNBtBCr, TO IN He0xOIMCMA3aTB.

3ta pa6ota dOJXHa BblnNoHrTbC rToIbKo KBaIIuNCHUPOBAHbIM CneuaNNCTOM No 06cnyxHBHIO.

4. OBCJNYKMBAHNE N UNCTKA

Ipeed Tem KAK npncTyntb K BblonHeHHIO uNCTKN BapOCHNO NOBepxHocTN, npOBepbTe, YTO OHa ocTbIna. BblbTe BNkky n3 p03eTKn, INN (ecnn BApOCHNA NOBepxHOCtB NODcoEIMHEKA 3JNEKTPoceTe HAnpMaYIO), BblKNoHTne NTaUooee HAnpRKeHne. UcNtKa I o6CnyKBaHHe 6bITOBOro pnp6opa He DoJIKNbI BblINHJTBcA DeTBMn 6e3 HaD3Opa B3PocJbIX.

3anpeaaetcncnnoB3oBaTbabpa3nBhIeN Koppo3npyUOuue NCTaJIne CpeCTBA,OT6BNIbaIOUme BEUeCTBA,NIN KNCJNTb. He NOIb3yTEcBdNcTKn 3MaJInpOBaHHbIX N JaKIpOBaHHbIX DeTanei, a TaKKe Detanei N3 HEPKABeOUe CTAn KNCJNTaMn U IeNoaMn (JIMMOHbIcOK,YKCycN.T.I.)

OuHCTKa 3MaIInpoBaHHbIX, NaIKPOBaHHbIX IN xpOMIpOBAHHbIX NOBepxHOCTe IONKHA BblIOJIHTbcC NOMOUBMOblNBHO BObl IN HeITpaIbHoro MOIOUero CpeCDTa.ДЯ OUYcTKN NOBepxHOCTe IN HEPXABeIOUe CTaIN Heo6xoJIMoNlB3OBaTbCn IOXODJIMM YCHCTaIMPACTBOPOM.

KoHOpKn MoXHO OUYIaTb C NOMOuBb MOJIbHO BODbl. IIN BOCCTAHOBHeHnI INN PEPBOHaJbHOrO 6Necka IcNoJIb3yIte 6blTOBoe YICTaUe cpeCTBO dIe HepKaBeIOSe CTann. Iocne YICCTKN TOpELOK BbCyUInTe INY UcTaHOBtE Ha MeCTo.

PpocneDnte 3a TEM, yTo6bI KOHΦopKn 6bln co6paHbI npaBnJbHo.

XpomupoeaHbIe peuemku u KOHphiopku

XpOMnpoBaHHbIpeWETKIN KOHOpOPKn CO BPeMeHEm TeMHeOT. 3To HOpMaJIbHoe IN HeN36ExHKe ABLJeHne, KOTopoE He OKa3bIBaET HeratNBHOrO BnHnHa pa60Ty BapOHo NOBepxHocTn. Bbl MoTePnpo6PeCTn 3anachIbe qactn B OTdene nocJenpOdaXHOrO 06ClykBAHN HaLwe KOMnAHm.

5. NOCJIENPOJADXHOE OBCNJKBAHNE

Ipeid Tem kak Bb3BaTc cneuaancta no TexHueckomy 06cJyKBAHNIOI JnB bIIOJIHeHnpeMOHTa BapOHOI NOBepxHOCTN, BblONHtE CNeDyUoIe NpOBepKn:

• PpOBePbTe, YTO BnIka Ka6eIg NITaHIN NpaBnIbHO BCTaBNeHa B 3JIeKTpIuCeCKyIO p03eTKy, IN YTO He nepeOpel PnAbKn IpeDoxpaHITenb.

• PpOBePbTe, YTo ra3 noJaTcra.

EcnBbHe MoKeTe cAmOCToTeNbHO ONpeJeNtB npuHHy HeNCnpaBHOCTn:

BbIKIOHTe BapOHyo NOBepxHocTb n o6paTIteCB B cHTp
nocIe npod a KHO rO 6cnyKuBaHn. HE PbITAIITECb
OTPEMOHTIPOBATb 3JIIEKTPOPNIBOP CAMOCTOReTJIbHO.
CepnHbHomeP coontN 13 UΦp. NepBbE 8 uΦp - KoD
MoEi. CneIyUoHe 4 uΦpbl - daTa IpoIN3BOdCTBa (rOd, HeJeNa).
PiocNeHHe 4 uΦpbl- 3aBOdCKHe HOMepa.

6. Ytnn3aun OTXoOB n 3auNTa Okpykaoue Cpebl

Ja Hhbl np6 op m apkn poBaH c orn aCHO Tpe6oBaHnM DnpeKTHBb EC 2012/19/EU o8ytuN3aunm 3JeKTPnueCKoro n 3JeKTPPOHHORO 6obopyoBaHnra (WEEE).OTXoDbI 3JeKTPnueCKoro n 3JeKTPoHHORO 6obopyoBaHncoepkata KAK 3aqr3NaUJne BeueCTBa (KOTOpbe MOyT OKa3bIBaTb BpeDHO Bo3dEcTBnHa OOKpykaHou cypeD), TAK NOCOBHbte 3JIeMeHTb (KOTOpbe MOYr 6bItb NCNOB3oBaHb NIOBtPOHO. BaxHo, YTO6bl

OTXOdbI 3JIeKTPnueckoro N 3JIeKTPoHHOrO 6OpOpDobAHnI npoxoHnI npabINbHyIO npoeEpyy TUNN3aun C yHnTuTOxKeHNEM BCex 3aep3HNOUHX BEECTB INpepa60TKoBCExC MaTePnAnOB.JaXe OTDeNBhIE JIOHm MOYr INpTaB BaxHyIO pONB O6ecneHnN 3KONOrnCeCKoBe3OnaChocTn yTNIN3NPyeMORO 3JIeKTPnueckoro N 3JIeKTPoHHOrO 6OpOpDobAHn; BaxHO NIIuB BbINONHrTB HeKOTopbIX OCHOBHbIe npabINa:

• C O tXoDAMN 3IeKtpnueckoro n 3JIeKtpoHnro 06OpyDobAHn HHeJb3rO6paaTaBcRA KAK C O6bUHbIMN 6bITOBbIMN OTXoDAMN.

-OTXoBb 3JKeKtpnueckoro 3JKeKtpoHnHO o6OpyDobAHnI DOJKNbI cDaBaTcB C nEuaNbHbIe PyHKtBi npMeMa NpUnpAbeHnEM rOPOdCKo aDMNHnCTpaunu nn OphiuaNbHo 3apeHnCTpnpOBaHHO KOMPnAHm.

Bo MHOrnx cTpaHax KpynHbIe KOMnAHmNo yTuNn3aunn 3JekTpUcEckoro N 3JekTpOHHoro O6OpyDObAHm NOyT npOn3BOoNTb BBIO3 O6OpYDoBAHm I3 Doma. PpN pNooPteHm HOBO 3JekTpObIBTOBO rO6OpYDoBAHm, CTapoe O6OpyDoBAHne, OTHocAuneecr k Tomy Ke Knaccy n PpeHa3HaueHHe OE dnn BbINOJIHeHnTex Xe FyHKm, YTO n PnpO6PeTaembl npN6op, MOxHO BepHyTB npOdaBuCy, KOtOpBm o63anh BeCnNaTHo npNHArb erO.

COXPAHEHNEIYBAXHEHNE CPEbl

IIO BO3MOXHOCTN IICNOJB3yIte KpbIbIKy, YTO6bI HAKpbITb KaCTPOJIO. PerynpIte nIaM, YTO6bI He nepeKpbIBaT dIaMeTp cKOBOPObl.

7.ДЕКЛAPALUNCOOTBETCTBNA

YcTpoIcTBO COOTBeCTBye TnpeKtnBe Ebponeckoro CoO3a 2009/142/EC (GAD), a c 21/04/2018 r. - PernaMeHTy no ra3OBbIM npnbopam 2016/426 (GAR).

Pa3meuHa MapKnpOBky CHa 3ToI npOyKUIM, Mbl 3aBbIeM, NOI HaWY OTBeTCTBeHHOCtB, O COOTBeTCTBm BcEM EBpOeIKM HOpMa6 Be3ONaCHoCTH, OXpaHbI 3DopOBBy N 3KOJOrHHeCKIM Tpe6oBaHnM, I3IOKeHHbIM B 3aKoHOdaTeNbCTBe DnI DaHHOrO BnDa npOyKUIM.

3To IN3dJIeNIE COOTBETCTBYET TEXHnueckm perIameHTam TamoxKeHHoro Co03a:

• TP TC 004/2011 “O COOTBETCTBHN HN3KOBJbTHORO o6bpyoBaHn

• TP TC 016/2011 “O 6e3onacnoCTn annapaTOB, pa6oTaOuNX Ha ra3oo6pa3HOM TOnJIIBE"

-TP TC 020/2011 "3JneKtpomarHHTHna COBMeCTUMOCb TEXHNuecknx CpeDCTB"

PVC. ⅢdeneceptnΦnupoBaHO B opraHne no ceptnФkaun npodykun ycnyR «POCTECT-MOCKBA», r. MockBa.

KoNIO cepTnФИKaTc COOTBcTcTBn Bbl MoKeTe NOLyUHTb B MaRa3InHe, rIe npNo6peTanca TOBap HnHcAB 3aPoc Ha 3JIeKTPoHHyo NOUY [e-mail].

Ta6nua 1

Пл actina ropekni 4 ra3 - L1 - STD 4 ra3 - L2 - 3 ra3 4 ra3 - L3 - Big Rear 5 ra3 - L4 - Central 5 ra3 - L5 - 4+1
ropekniAUX/SR/2R SR/R/DC AUX/SR/R/DC AUX/	R/DC AUX/SR/2R/DC AUX/SR/2R/DC AUX/SR/2R/DC	R/DC AUX/SR/2R/DC	R/DC AUX/SR/2R/DC	R/DC AUX/SR/2R/DC	R/DC AUX/SR/2R/DC
Tin	PVUH60MF	PVUH60MF	PVUH60MF	PVUH75MF	PVUH75MF
FFD	ДА	ДА	ДА	ДА	ДА
AUX 1kW	1	1	1	1	1
SR 1,75 kW	2	-	1	1	2
R 2,7 kW	1	1	1	2	1
DC 4 kW Mono	-	-	1	-	-
DC 4,2 kW Mono	-	-	-	-	1
DC 4,5 kW Mono	-	1	-	1	-
HominaIbIy IbxOd TeIIa	7,2kW	8,2kW	9,45kW	12,65kW	NG 11,4kW LPG 11,2kW
G20/20 mbar	686 l/h	781 l/h	900 l/h	1204 l/h	1085 l/h
G30/28-30 mbar	524 g/h	596 g/h	688 g/h	920 g/h	814 g/h
Klacc yctanovkn	3	3	3	3	3
HapjexHeIe/Cactota B/Гц	220-240V 50/60Hz	220-240V 50/60Hz	220-240V 50/60Hz	220-240V 50/60Hz	220-240V 50/60Hz
Bxodnay Zlektprueckay MoUHocTb	1	1	1	1	1
Зл electropodжг	ДА	ДА	ДА	ДА	ДА
Размеры варочи постости	595x505x42	595x505x42	595x505x42	745x505x42	745x505x42

Dahnoe u3denue npedha3nape moIbko dny 6bimoebix npmuHeHui.

NAVODILA ZA VARNO UPORABO

7.VYHLASENIE O ZHODE

Spotrebic splna poziadavye europsej smernice 2009/142/ES (GAD) a od 21.04.2018 s nariadenim pre plynové spotrebic 2016/426 (GAR).

Efficiency Declaration 2016/426

PVUH60MF - STANDARD (L1)
SINGLE BURNER EFFICIENCY
AUX SR	SR R
-	60%	60% 54,3%
MEDIUM %58

PVUH60MF - 3 GAS (L2)
SINGLE BURNER EFFICIENCY
AUX	R	DC 4,5 kW
-	56% 55,8%
MEDIUM %55.9

PVUH60MF - BIG REAR (L3)
SINGLE BURNER EFFICIENCY
AUX SR	R	DC 4 kW
-	60%	54,3%	57,6%
MEDIUM %57.3

PVUH75MF - Central (L4)
SINGLE BURNER EFFICIENCY
AUX SR	R (Left)	R (Right)	DC 4,5 kW
-	60%	53%	55,9%	56,6%
MEDIUM %56.3

PVUH75MF - 4+1 (L5)
SINGLE BURNER EFFICIENCY
AUX	SR	SR R	DC 4,2	kW
-	60%	60% 54,3% 59,4%
MEDIUM %54.4

GB-IE

The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of con sumption, without prejudice to the characteri stics relating to safety or function.

FR
