USER MANUAL CEMB5B3 CONTINENTAL EDISON

IMPORTANT: SAFETY INSTRUCTIONS

The safety instructions in this manual are essential to the safe use of the device, read them, before using the device and keep the manual to refer to it if necessary.

• Before using, check that the power cable is properly connected.
• Before plugging in the device, make sure it is compatible with your electrical installation.
• Never plug in or unplug with wet hands.
• Place the device on a dry, flat surface.
• Be sure to leave at least 12cm around the device to allow air to circulate around.
• Don't leave it in the sun.
• Don't cover the device.
• Install the device in the air of elements such as wind, rain, water splashes.
• Unplug before cleaning the device. Clean the plugged-in device, could cause fatal electrocution damage.
• Never immerse the device or power cable in water or any other liquid.
• Do not use abrasive fabrics or products to clean the device.
• For instructions for cleaning surfaces in contact with food, please refer to the various sections later in the manual.
• Do not take the keg out of the box until it is empty.
• Don't let the children to use the device.

• This device is not intended to be used by persons with reduced physical, mental or sensory abilities or lack of experience or knowledge (including children) unless they are being monitored or have been instructed to use the device by a person responsible for their safety. Children should be supervised to ensure that they do not play with the device.

• If the power cord is damaged, it must be replaced by the manufacturer, its after- sales service or a similarly qualified person, in order to avoid any danger.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Keeping the device and its cable out of reach of children under the age of 8.
• Extended lid openings are likely to result in a significant increase in the temperature of the unit compartment.
• Regularly clean surfaces that may be in contact with accessible food and drainage systems.
• When using electrical appliances, safety precautions should always be taken to prevent any risk of fire, electric shock and/or injury in the event of misuse.
• Check that the voltage on the device's nameplate matches that of your electrical installation. If this is not the case, contact the dealer and do not plug in the device.
• Never leave the device unattended while in operation.
• This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments;

• catering and similar non-retail applications.
• Please keep this document available and hand it over to the future owner in the event of a transfer of your device.
• WARNING: Disposal must be carried out in accordance with local waste disposal regulations.
• Place the device in an authorized discharge. Don't leave it unattended for several days as it is potentially dangerous for children.
• For more information on disposal, recovery and recycling, please contact the relevant local authority, household waste collection service or your dealer.

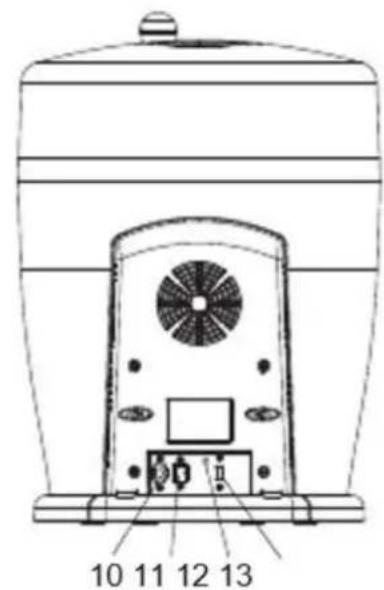

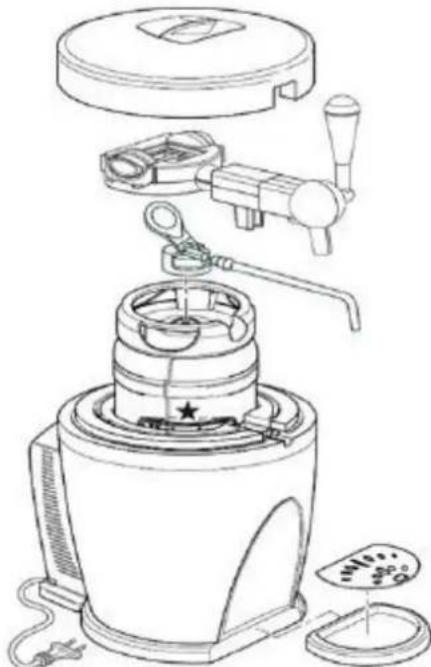

DESCRIPTION OF THE APPLIANCE

N.	Name of the part	N.	Name of the part
1	Plinth	8	12 V - (DC) cable with cigarette lighter plug
2	Lid with handle	9	AC cable with wall plug
3	Plug	10	AC connector
4	Pull mechanism	11	DC connector
5	Pull handle	12	On/Off indicator
6	Extension tube (x 15)	13	Voltage source selector (~ (AC) or = (DC))
7	Drip tray with grid

TECHNICAL CHARACTERISTICS

Description	Feature
MARK	Continental Edison
Reference	CEMB5B3
Model	KB-11B
Power supply	220-240V~ 50Hz; Or 12V = =
Available capacity	5L beer keg
Refrigeration capacity	Minimum temperature in the drum : 3 à 6°C (ambient temperature 25°C)
Dimensions	(W) 272*x (D) 414*x (H) 430 mm
Semiconductor refrigeration technology	✓
Detachable drip tray	✓
Temperature adjustment	✓

INSTALLATION

The beer dispenser must be installed in a clean and well ventilated room. The temperature of the room must be between 10^ and 32^ . Beyond this temperature range, a decrease in the performance of the device could be observed.

The appliance must be placed on a flat and clean surface.

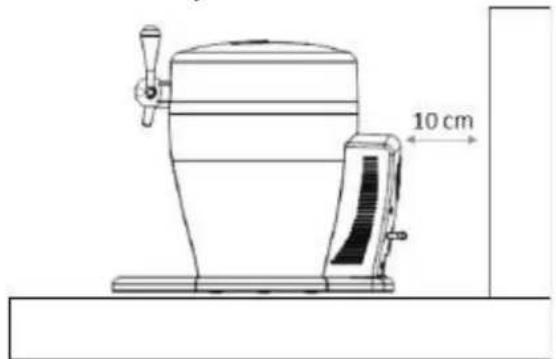

The beer blower fan is located on the back of the unit. To avoid the risk of overheating, you must leave a minimum distance of 10cm at the rear of the unit to allow air to circulate freely.

INSTRUCTION TO USE

IMPORTANT!

The beer dispenser allows you to keep a 5L beer keg at a temperature (between 3^ C and 6^ C). It is compatible only with 5-liter stand-alone drums equipped with a manual beer draft handle. Without the manual pull handle sold with the drum, the beer dispenser could not be used.

A. 2 Electrical connections :

1) Power outlet (220-240V~)

Plug the power cable (9) into the socket (10) and then put the voltage source selector (13) on position 220-240V. Then plug the plug into a wall socket. Press the AC ON/OFF button to turn on the device.

2) Cigarette lighter (12 V)

Plug the power cable (8) into the socket (11) and then put the voltage source selector (13) on the 12V = position . Then plug the plug into a cigarette lighter socket. If you want to turn off the device, put the voltage source selector (13) on DC OFF.

Remark :

Since the beer blower fan is located on the back of the appliance, you must leave a minimum distance of 10cm at the rear of the appliance to allow air to circulate freely.

B. Brewing the beer cask before use

To obtain perfect quality beer at ideal temperature, the drum must be kept cool for several hours. For this, you must put the beer keg to the refrigerator compartment for the time indicated on the drum (Follow the recommendations on the drum).

If you do not have a refrigerator, you can consider cooling the keg directly in the beer dispenser for a minimum of 48 hours. In this case, please note that the beer drawn will not be optimized, for example no foam or reduced

amount of foam.

ATTENTION

Never cool the drum in the freezer. The drum being under pressure, it may explode!

C. Installation of the pull mechanism (4)

The tube attached to the manual pull handle sold with the beer barrel is not suitable for the draw mechanism of your beer dispenser. It is necessary to replace this tube with one of the extension tubes (6) supplied with your appliance or sold separately.

IMPORTANT!

To avoid the risk of bacterial contamination, it is imperative to use a new extension tube (6) with each new drum.

• Put the keg of beer flat on the bottom of the base (1) of the beer dispenser.

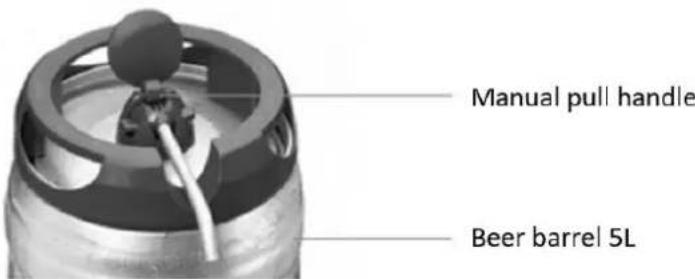

• Rinse the manual draft handle sold with the beer barrel, and then install it on the top of the barrel (see the installation instructions on the barrel).
• Install the pull mechanism (4) on the top of the beer barrel. The tab on the manual pull handle must be inserted into the manual pull mechanism. For this you must follow the following steps:

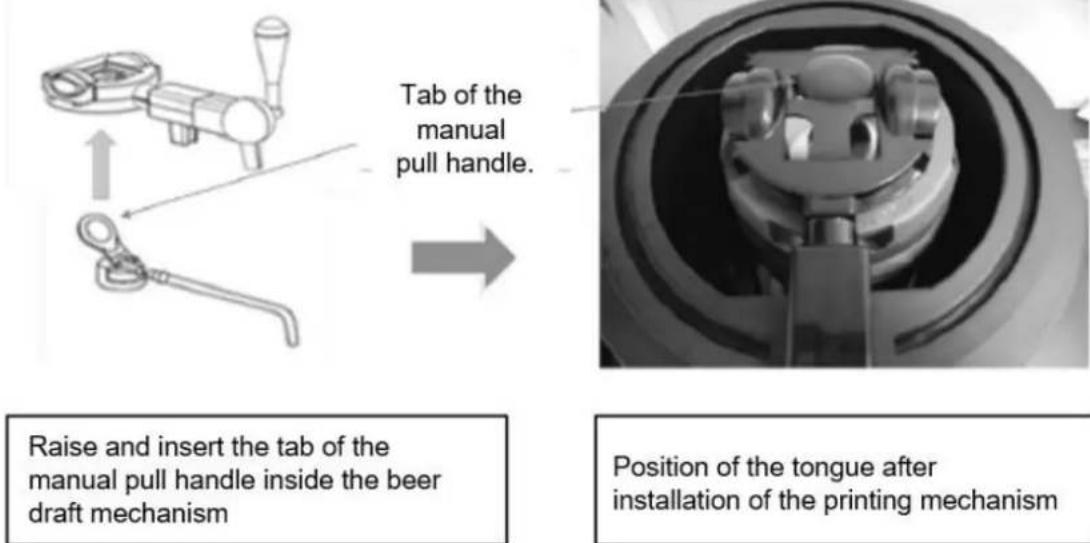

a. Raise the top of the manual pull handle.

b. Insert the tab inside the pull mechanism.

c. Clip the pull mechanism into the drum collar.

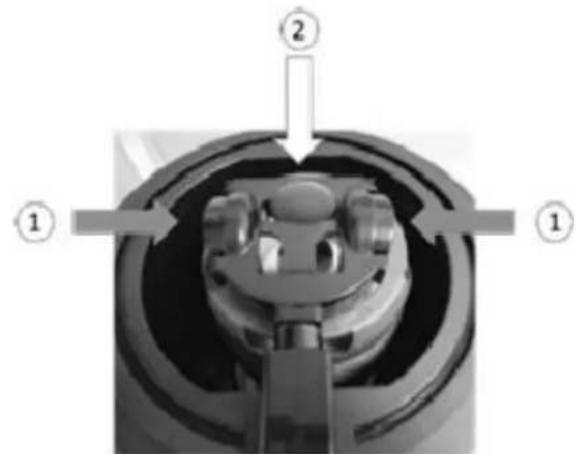

Press both buttons at the same time.
Put the mechanism on the collar of the drum then release the buttons.

Check that the pull mechanism is securely installed.

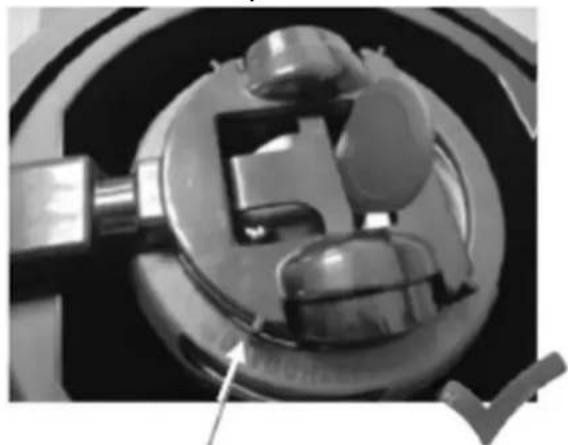

Mechanism properly fixed

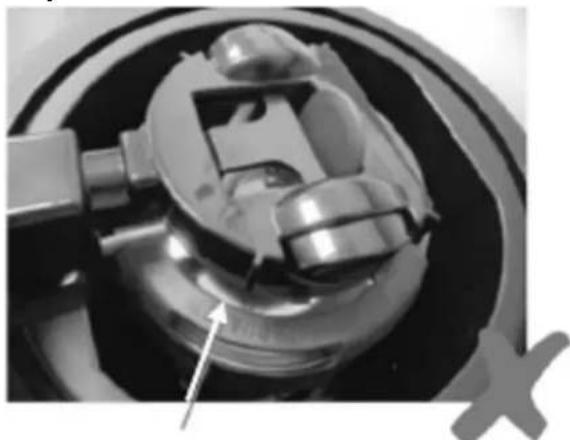

Mechanism not properly fixed

Put on the cover of the device.

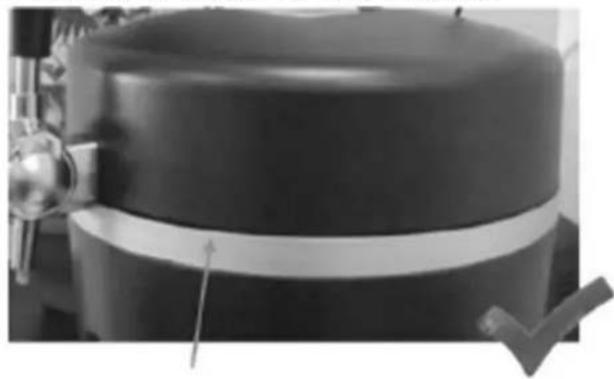

Hermetically sealed lid

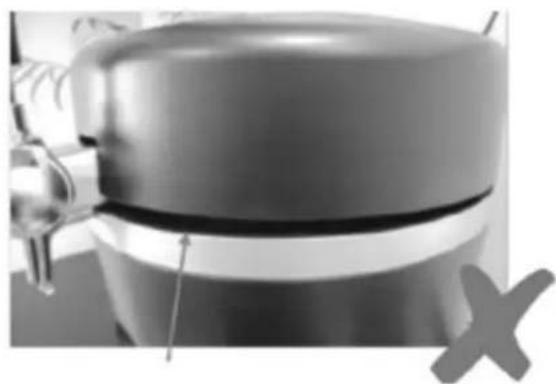

Non-hermetically sealed lid

Check that the lid is perfectly installed and that the appliance is

tightly closed. Improper installation of the drum inside the beer dispenser will not allow a tight seal, which would affect the performance of the appliance.

D. Draft beer

Check that the drum is at the correct temperature before use. If this is not the case, a total absence of foam or a large amount of foam could be observed.

When you serve the first glass of a new barrel of beer, this glass will be composed mainly of foam. This is a normal phenomenon that occurs with all types of draft beers.

Preparation of service glasses

Start by wetting the inside of the glasses in which you will serve the beer with cold water. Without this trick, the beer will not foam.

Draft beer

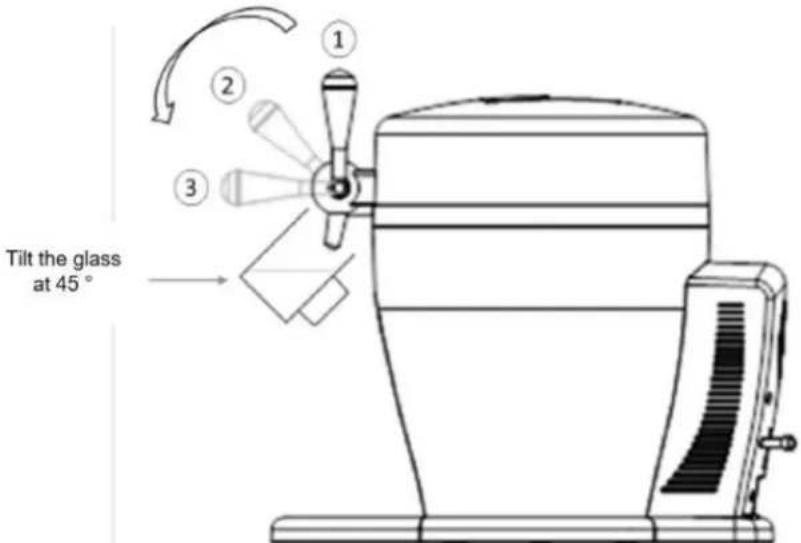

Tilt the previously wet glass at 45^ under the handle in the normal position (1).

Operate the beer draft handle by pulling it toward you halfway (45°, position 2) to run the beer. The flow is at its maximum when the handle is fully pulled (90°, position 3).

At the end of filling, raise the glass upright and release the pull handle. It automatically returns to position 1. The beer stops flowing.

E. Change of barrel

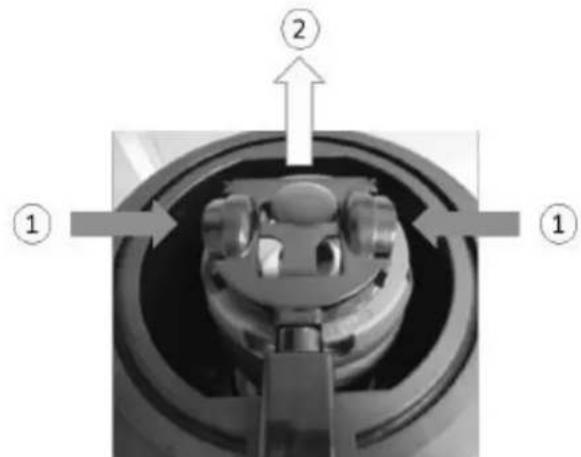

• Unclip the pull mechanism.

Press both buttons at the same time.
Remove the mechanism from the barrel collar and release the buttons.

• Put in place a new extension tube.
• Install the new drum by following the steps detailed at the beginning of this chapter.

F. Cooling function

The beer dispenser can cool the beer keg. Before installing the pull mechanism, let it cool in the beer dispenser for about 48 hours.

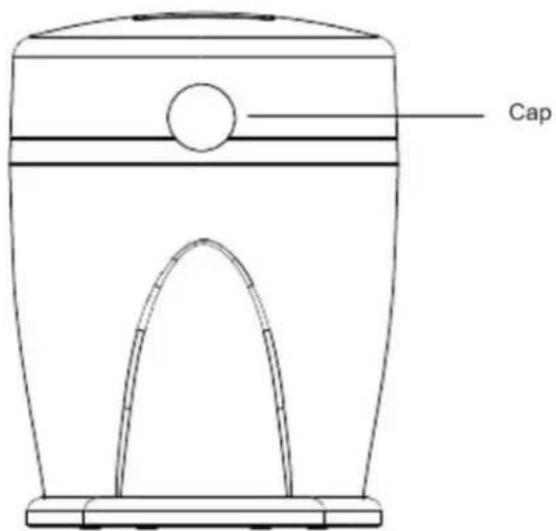

To ensure an optimal temperature inside the beer dispenser, the cap must be put in place.

When a beer barrel is not used, your beer blender could be used to cool pre-packaged drinks. The beer drafting mechanism must be removed.

The refrigerated compartment of the beer dispenser can hold up to 3 bottles of 30~cm height or 10 cans of drink 33cl.

ATTENTION

Do not pour water or any other liquid inside the appliance.

MAINTENANCE AND CLEANING

Food hygiene guidelines

Beer is a natural product that can degrade on contact with the air; the beer dispenser must therefore remain clean to maintain an excellent level of beer quality and prevent the growth of mold or bad odors.

IMPORTANT

Before starting a new keg of beer, check its expiry date and the expiry date after opening written on the keg of beer. Exceeding these dates may expose you to the risk of food poisoning.

Always clean the outside of the beer dispenser, the drip tray and the grill after each use with a damp cloth.

Clean the accessories of the beer dispenser after each use.

For hygiene reasons, the extension tube must be rinsed after each use and must be changed at the installation of each new drum.

If the beer dispenser does not work properly, refer to the Troubleshooting Guide below. You will find a list of small problems that can be easily solved.

For other cases, please contact the after-sales service.

TROUBLESHOOTING GUIDE

Some malfunctions can be easily solved. Before calling for service or a repairer, please refer to the following table:

Possible faults	Causes	Solution
The beer does not come out.	1. The extension tube is not inserted correctly. 2. There is no barrel of beer in the dispenser, or no beer in the barrel.	1. Insert the extension tube correctly. 2. Place a new keg of beer in the dispenser.
The beer drawn is too frothy, and there is not enough beer.	1. The beer was not properly poured into the glass. 2. The temperature in the drum is too high (the best temperature is between 3°C and 5°C). 3. The beer barrel was shaken before use. 4. The cask is almost empty.	1. Open the faucet completely and quickly. Find the best distance between the faucet and the glass (between ¾ and the full height of the glass). Check the color and concentration of the foam: it should be dense and cream-colored. 2. Cool the beer to 3°C -5°C. 3. Rest the drum until the foam disappears. 4. Place a new keg of beer in the dispenser.
The flow of beer is too low.	1. The pressure in the drum is too low. 2. Extension tube or manual pull handle is leaking.	1. Check the condition of the tube. 2. Check the condition of the manual pull handle.

For any other problem occurring on your device: contact the After-Sales Service.

WARRANTY

This warranty does not cover:

• Damage or problems resulting from transportation, improper use or negligence.
• Devices declared as being used in a commercial environment, plus those that are subject to lease.
• The wear parts of the product, or the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact of the product with food or liquids and due to corrosion caused by rust or the presence of insects;
(3) any incident, misuse, misuse, alteration, disassembly or unauthorized repair;
(4) any unsuitable maintenance operation, use that is not in accordance with the product instructions or incorrect voltage connection;
(5) any use of accessories not supplied or approved by the manufacturer.

The warranty will be void if the nameplate and / or serial number of the product is removed.

DISPOSAL

This appliance carries the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be supported by a selective collection system in accordance with the EU Directive 2012/19/EU so that it can either

be recycled or dismantled in order to reduce any impact on the environment.

For more information, you can contact your local or regional government. Electronic products that have not been sorted are potentially dangerous for the environment and human health because of the presence of hazardous substances.

Insulating foam:

This device contains an insulating foam made of Cyclopentane. This foam is flammable.

At the end of the appliance's life, it must be disposed of in a suitable place, capable of recycling refrigerators, freezers or wine cellars. For this contact the town hall of your home.

Under no circumstances should you throw this unit on public roads.

Instruction manual version: V1
