USER MANUAL GS 750.1 INOX Güde

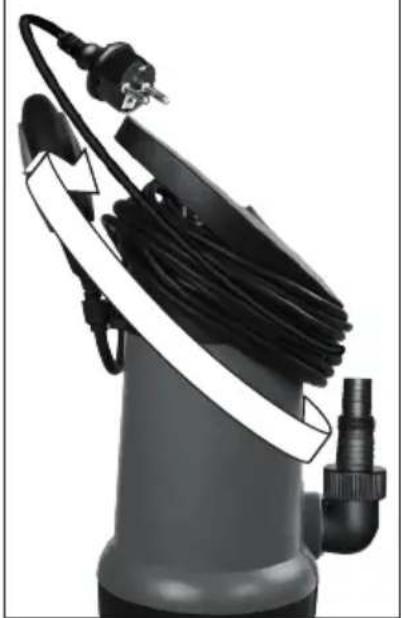

Starting-up the device

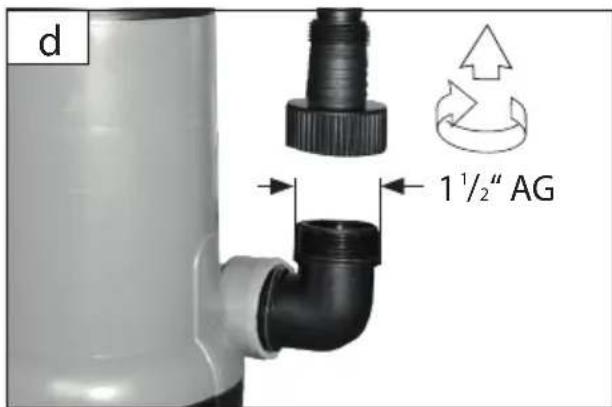

ENGLISH Technical Data Submersible sewage pump GS 750.1 INOX Art. No 94679 Rated voltage 230 V Degree of protection IP X8 Max. delivered quantity 15.000 l/h Max. head of delivery Hmax 8 m Max. immersion 7 m Max. suction 35 mm Max. Water temperature 35 °C Service connection 1 1/2“ IG Cable length 10 m Weight 6,5 kg Read and understand the operating instructions before using the appliance. Familiarise with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties. The operator is responsible for accidents or risks to third parties. In case of any doubts about connection and operati

on refer please to our customer center This appliance can be used by child- ren aged from 8 years and above and persons withreduced physical, sensory or mental capabilities or lack of experience and knowledge if theyhave been given supervision or instruction concerning use of the appliance in a safe way andunder- stand the hazards involved. Cleaning and user maintenance shall not be made by children wit

hout supervision. Children should be supervised in order to ensure that they do not play with the tool. Always keep children and unauthorised persons out of reach of the appliance. Specied Conditions of Use The pump is solely used for drainage and for pum- ping into and out of containers in the house, garden, farm and agriculture and only for water. Respecting technical data and safety precautions. Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages. Do not use pump at outside temperatures over 40 °C or under 0 °C The pump is not suited for long-run operation (e.g. as a circulation pump in ponds or streams). When used in this manner, its service life is curtailed correspondingly. In these cases, then, use a time switch to secure sucient idle periods between cycles of operation. Do not leave the pump unattended while in operation in order to prevent subsequent damages caused by eventual malfunctions. Make sure to disconnect the device from the grid if you do not plan on using it. Do not use the pump for drinking water! The pump must not be used to pump waste water. The pump must not be connected to the existing water-supply network as a pressure- boosting device. Never use the pump as a pool circulation pump. Safety Warnings WARNING! Electric shock! There is a risk of an injury caused by electric shock! Check the cable and/or socket for damages before the appliance putting into operation. Do not grab the feeder cable, plunge the pump, lift or carry it while it is connected to the grid! It is necessary to make sure the connecting socket was not near water and humidity and the plug was protected against humidity. Check the voltage. Technical data given on the type label must correspond with electric network voltage. Only use splash proof extension cables approved for outdoor purposes.15

ENGLISH Unplug the device prior to submersion, upon termi- nation of operation, in the course of defect removal and prior to performing maintenance procedures. WARNING ! Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA). Electric connection to a socket. If the pump is in operation, neither people nor animals can be present or plunged in the pumped liquid (e.g. pools, cellars, etc.). The temperature of the drained liquid must not exceed +35 °C. The pump must not in any case run without llings. Do not leave the pump unattended while in operati

on in order to prevent subsequent damages caused by eventual malfunctions. Make sure to disconnect the device from the grid if you do not plan on using it. If the pump is used in ponds, wells, etc. and appropri

ate pumping stations, standards valid for pumps in the given country must unconditionally be observed. The user is responsible to third parties if pump (dum

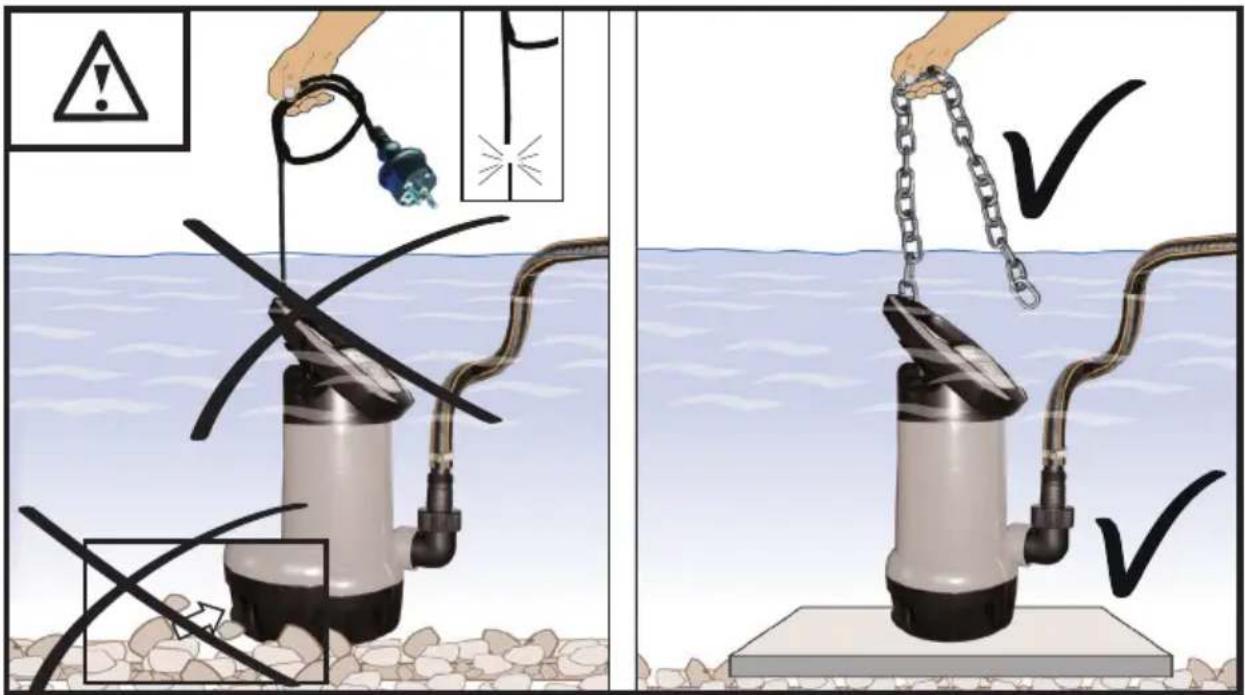

ping stations, etc.) is used. Protect the feeder cable from excessive temperatures, oil and sharp edges. To avoid danger, a damaged mains supply pipe must be replaced by the manufacturer. Do not under any circumstances attempt any repair yourself. Requirements for operating sta The operating sta must carefully read the Opera- tingInstructions before using the appliance. Qualication: Apart from the detailed instructions by aprofessional, no special qualication is necessary forappliance using. Minimum age: Persons over 16 years of age can only workon the appliance.An exception includes youngsters trained in order to reachknowledge under supervision of the trainer duringoccupational education. Training: Using the appliance only requires correspondingtraining by a professional or the Operating Instructions. Nospecial training is necessary. Emergency procedure Conduct a rst-aid procedure adequate to the injury and summon qualied medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help,state the following pieces ofinformation: 1. Accident site, 2. Accident type, 3. Number of injured persons, 4. Injury type(s) SYMBOLS WARNING/CAUTION! WARNING - Read the operating instruc- tions to reduce the risk of injury. Machine to be always unplugged before any adjustment and servicing work on it. Staying in the transportation medium prohibited Warning against dangerous voltage AC Current Max. immersion

Voltage Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres. CE marking16 ENGLISH DEEN Maintenance Before any adjustment, cleaning and maintenance work, switch o the device and disconnect it from the power supply. Before using the appliance, perform a visual inspec

tion at all times to make sure the power cord and the plug, in particular, are not damaged on the charger. The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts. If the supply cord of this power tool is damaged, it cannot be replaced, and the power tool shall be scrapped. Repairs and works specied in these Instructions may only be performed by qualied authorised sta. Use only original accessories and original spare parts. Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insucient mainte

nance and care can lead to unforeseen accidents and injuries. To ensure long service life of the pump seal we recommend rinsing the pump with clean water in regular intervals. Caution! Depending on the design, water that is left standing for a longer period of time may cause corro

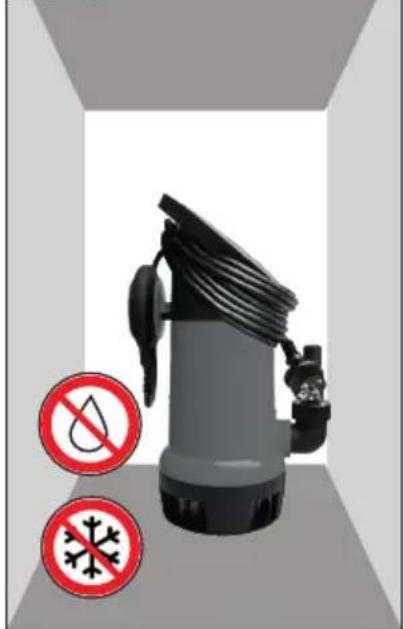

sion in the pump housing! (Brown colouration) For winter storage, ensure that there is no water in the device. Otherwise, frost exposure may cause irreparable damage to the device. The pump must be stored in a completely empty and frost-proof state. You can reduce the chance of the mechanical seals sticking by ushing out the pump with suitable oil (e.g. vegetable oil). If necessary, a list of spare parts can be found at www.guede.com. Guarantee Warranty period of 12 months applies to commercial use and 24 months applies to private use and com- mences on the day of purchase of the device. The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be sub

mitted for any claim in the guarantee period. The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the ope

rating and assembly instructions and common wear are also not included in the guarantee. GÜDE cannot be held responsible for damages incurred in consequence of unqualied installation or unskilled handling of the pump. The device has to be checked on a regular basis to ensure perfect functioning. Let us refer to the fact we do not assume any respon

sibility – according to standards in force – for damage eventually caused by our appliances in the below- mentioned cases: Unprofessional repairs executed by unauthorised service centres;

• Use in conict with the designed purpose, or failure to observe the use as designed;

• Pump overload with a continuous run;

• Damage as a result of icing or any other fault caused by climatic inuences; Identical regulations apply for accessory parts. To prevent damage (such as ooded rooms, etc.) as a result of faulty pump operation (failure or fault) the ow- ner (user) is obliged to take reasonable safety measures (alarm assembly, spare pump, etc.). Important information for the customer Please note that returns within or outside the warran

ty period should always be in the original packaging. This measure eectively avoids unnecessary trans- port damage and any associated disputed ruling. Your equipment is optimally protected only in the original box, and keeping it in that box will ensure smooth processing. Service Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureau- cracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Tel.: [phone] / 700-360 Fax: [phone] E-Mail: [e-mail] EN17 Inspection and maintenance plan Time interval Description Any other details As needed Cleaning and rinsing. Check the oat switch function. Failures – causes - removal Failures Causes Removal Engine does not start No power supply. Blocked pump wheel Floating switch in shutdown position Check the voltage Visually inspect the pump wheel for foreign objects Check the water level Pump does not suck Pump without water Water level too low Hose connection to greatly reduced Blocked pump wheel Let the air bubbles release

Switch the pump o, water level must go up. Select as large hose connection Replace hose connection Remove the obstruction Thermal detector swit- ching the pump o

Plugged strainer Water temperature too high Pump running continuously at maximum pressure. Clean the strainer and let the pump cool down Reduce the water temperature Make more breaks Insucient amount of water pumped Dirty strainer Water level quickly drops down Maximum head of delivery exceeded Broken piping Clean the strainer Ensure sucient inow Check the transport line Check the transport line
