R8128SC2 - Cooker QLIMA - Free user manual and instructions

Find the device manual for free R8128SC2 QLIMA in PDF.

QLIMA R8128SC2 - Cooker
📄 178 pages English EN Download 💬 AI Question 10 questions ⚙️ Specs
Notice QLIMA R8128SC2 - page 78
Pick your language and provide your email: we'll send you a specifically translated version.
Product type Mobile liquid fuel heater
Brand Qlima
Model R8128SC2
Dimensions (L x D x H) 455 x 295 x 470 mm
Weight 9.7 kg
Power supply 6V DC batteries (4 x R14) + liquid fuel
Max. heating power 238 g/h (2850 W)
Recommended room volume 50 to 105 m³
Tank autonomy 17.5 hours
Removable tank capacity 5.2 liters
Ignition Electric (ignition button)
Fuel types Liquid fuel complying with the decrees of 18/07/2002 and 25/06/2010 (e.g., Qlima Premium Quality Fuels, PTX)
Safety Automatic shutdown in case of overheating, air quality control system (CO₂ sensor), extinguishing button, tempered "Safe top"
Maintenance Cleaning with a dry cloth, replacement of the wick and batteries, draining the tank at the end of the season
Parts subject to wear Wick, batteries, hand pump
Warranty 4 years (excluding consumables)
Included accessories Hand pump, transport cap, user manual
Transport Use the transport cap, always keep the appliance in an upright position
General information Intermittent operation auxiliary heating appliance, indoor use only

Frequently Asked Questions - R8128SC2 QLIMA

What fuel should I use for the Qlima R8128SC2 heater?
Only use a liquid fuel complying with the decrees of 18/07/2002 and 25/06/2010, such as Qlima Premium Quality Fuels or PTX. Using other fuels is prohibited and dangerous.
How to correctly ignite the appliance?
Turn the central knob to the right until it stops, then press the ignition button. Never use matches or a lighter. After ignition, wait 10 to 15 minutes before checking the flame.
Why does the appliance turn off by itself?
This may be due to overheating (the safety system cuts off the appliance) or lack of oxygen (the room is too small or poorly ventilated). Wait 15 minutes before restarting and ventilate the room.
How to maintain the wick?
To extend the wick's lifespan, let the appliance completely consume its fuel from time to time. Wick replacement must be carried out by an approved specialist. Follow the instructions in chapter L of the manual.
What is the tank filling procedure?
Turn off the appliance, remove the removable tank, unscrew the cap and use the hand pump to fill. Do not overfill, especially if the fuel is cold. Replace the tank and close the lid.
What to do if the flame is too low or unstable?
Check the fuel level, fuel quality, room ventilation, and burner position. If the problem persists, the wick may be worn - consult your dealer.
How to transport the appliance safely?
Let the appliance cool down, remove the removable tank and fuel filter, then insert the provided transport cap. Always transport the appliance in an upright position.
What is the warranty and what does it cover?
The warranty is 4 years from the date of purchase, covering manufacturing or design defects. Wear parts (wick, batteries, pump) and damage due to inappropriate fuel are not covered.
Can the appliance be used in a bathroom or kitchen?
No, the appliance must not be used near a water point (bath, shower, pool). It must be placed in a dry, well-ventilated room, at least 1.5 meters from walls, curtains, and furniture.
What to do in case of fuel spillage?
Wipe up the spilled fuel immediately with a cloth. Make sure the room is well ventilated. Do not attempt to light the appliance until the smell has dissipated.

User questions about R8128SC2 QLIMA

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Cooker in PDF format for free! Find your manual R8128SC2 - QLIMA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. R8128SC2 by QLIMA.

USER MANUAL R8128SC2 QLIMA

This product is not suitable for primary heating purposes.

guarantee

4 YEARS

FMANUEL D'UTILISATION4
DGEBRAUCHSANWEISUNG16
DKBRUGSANVISNING28
EINSTRUCCIONES DE USO40
FINKÄYTTÖOHJE52
GBOPERATING MANUAL64
IISTRUZIONI D'USO76
NBRUKSANVISNING88
NLGEBRUIKSAANWIJZING100
PMANUAL DE INSTRUÇÕES112
PLINSTRUKCJI OBSŁUGI124
SBRUKSANVISNING136
SLONAVODILA ZA UPORABO148

AFAQ AFNOR CERTIFICATION 11, AVENUE FRANCIS DE PRESSENSE 93571 SAINT-DENIS LA PLAINE CEDEX

INFORMATION SHEET

PAR EUROVENT CERTITA CERTIFICATION NF

MOBILE LIQUID FUEL HEATERS

www.marque-nf.com

NF 128 37/01

Distributed in Europe by:

PVG Holding B.V.

P.O.Box 96, 5340 AB OSS

Only use Class C1 paraffin in accordance with BS2869 part two • Never use petrol or other fuels

- Please read the operating manual prior to filling.

WARNINGS FOR CORRECT USE

  • Children should be supervised to ensure that they do not play with the appliance.
  • Do not move the heater when it is burning or still hot. Do not refill or service the heater when it is burning or still hot.
  • Position the front of the heater at a minimum distance of 1.5 metres from walls, curtains, and furniture.
  • Do not use the heater in dusty rooms or in very draughty places. In both cases you will not have optimum burning.

- Switch off the heater before you go to sleep.

- Store and move fuel only in suitable tanks and jerrycans.

- Make sure that the fuel is not exposed to heat or extreme temperature changes. Always store the fuel in a cool, dry and dark place (sunlight will affect the quality).

- Never use the heater in places where harmful gasses or fumes may be present (e.g. exhaust gasses or paint fumes).

- Be aware that the grid of the heater becomes hot. If the appliance is covered there is a risk of fire.

• Always make sure that there is sufficient ventilation.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

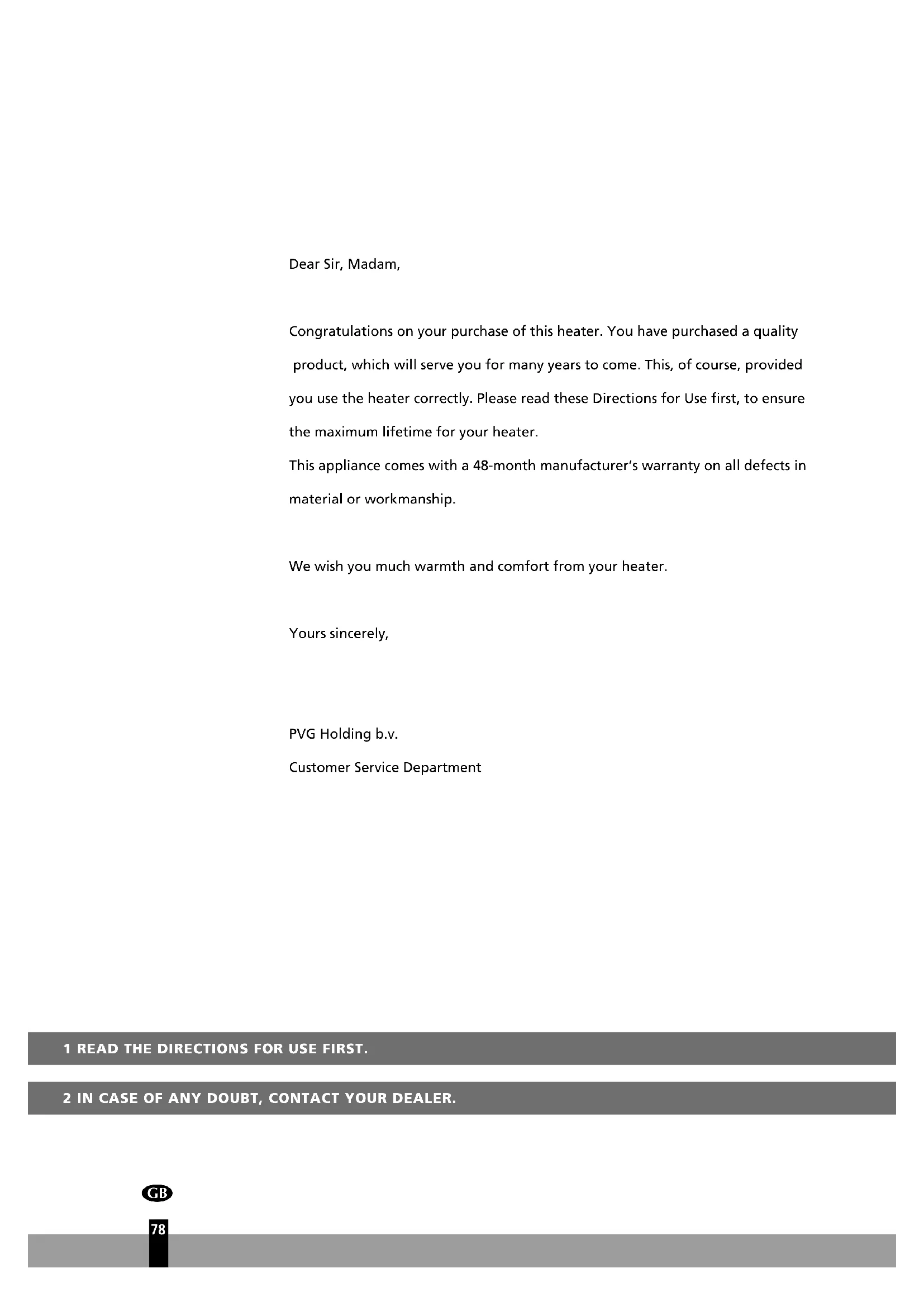

Dear Madam, Dear Sir,

THE APPROPRIATE FUEL

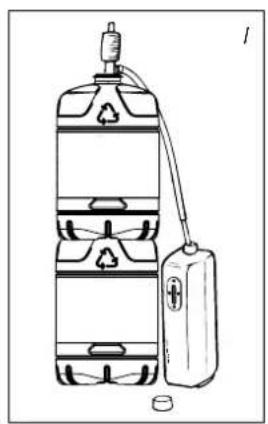

MANUAL

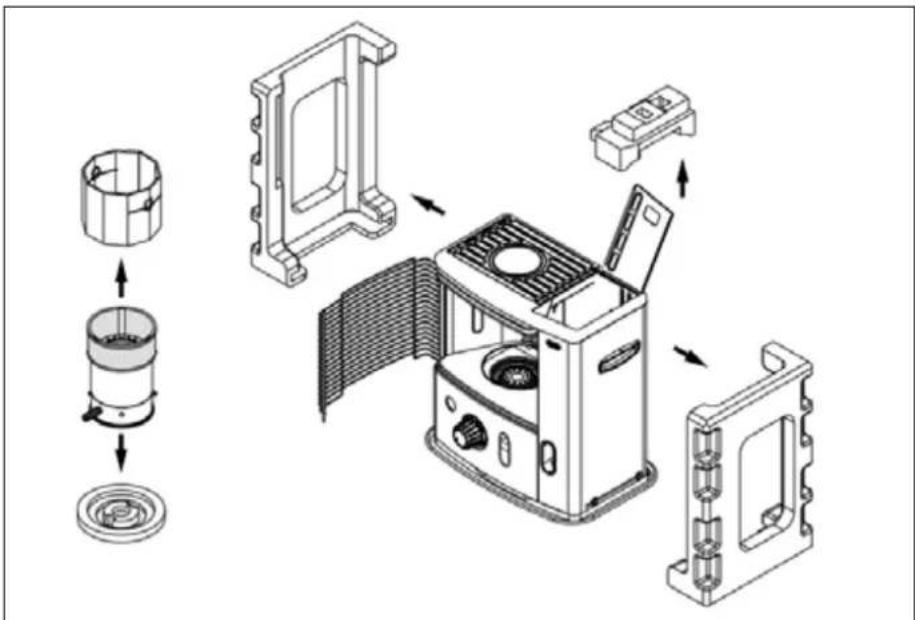

QLIMA R8128SC2 - MANUAL - 1

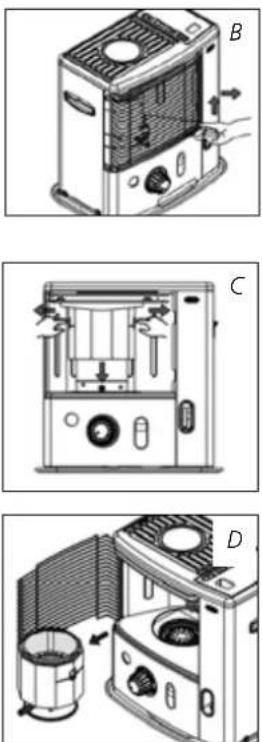

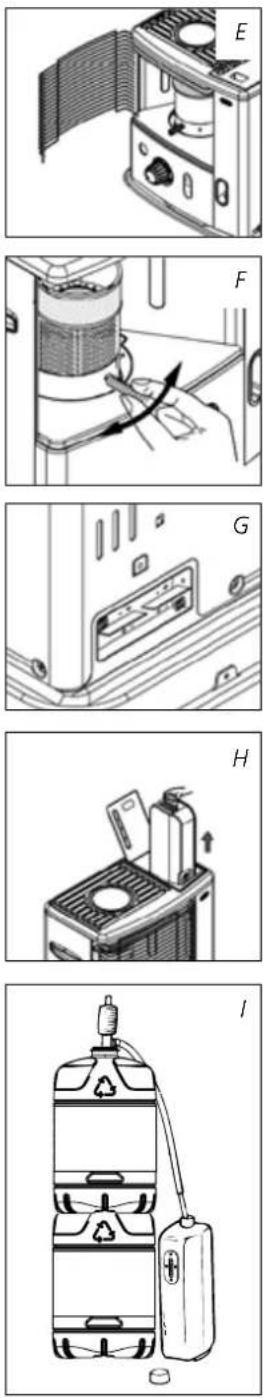

A INSTALLATION OF THE APPLIANCE

Illustration of a hand operating a mounted device with control knobs and a mesh screen (no text or symbols visible)

Diagram of a mechanical device with force arrows indicating movement or force direction (no text or symbols present)

Illustration of a portable air conditioner unit with a hand inserting a plug into it (no text or symbols visible)

Diagram of a computer monitor with an inserted slot and labeled component (G), no readable text or symbols present.

E EXTINGUISHING THE APPLIANCE

K WARRANTY CONDITIONS

Illustration of a portable electronic device connected to a small plug, with an inset showing a close-up of its internal components (no text or symbols visible)

Illustration of a device with a front panel and internal components, showing no text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols.

Technical diagram showing a mechanical assembly with labeled components and directional arrows.

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present).

Technical line drawing of a mechanical device with two components (no text or symbols).

Illustration of a mechanical device with a hand operating it, accompanied by three labeled components (no text or symbols present).

Technical line drawing of a mechanical assembly with a hand holding a component (no text or symbols visible).

Line drawing of a hand holding a circular object with radial lines, no text or symbols present.

Illustration of a mechanical device with hands operating it, no visible text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols.

Technical line drawing of a mechanical assembly (no visible text or symbols).

Technical line drawing of a mechanical device with an arrow indicating motion (no text or symbols).

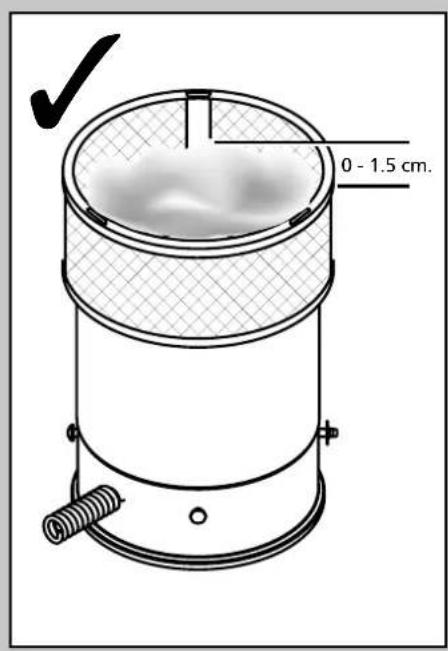

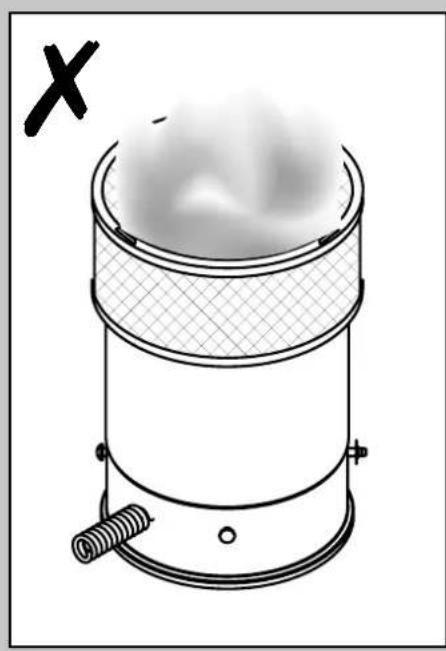

CHANGING THE WICK

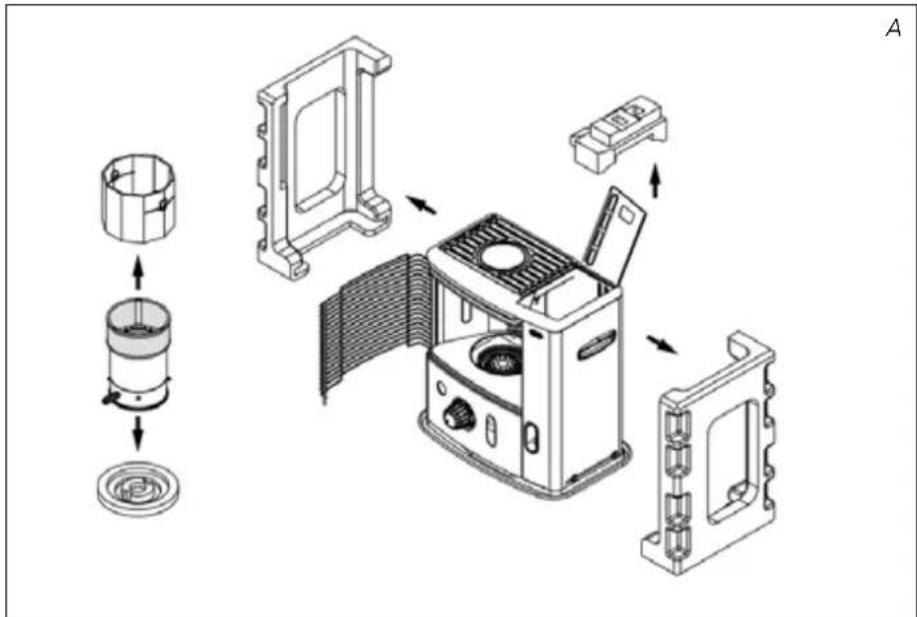

L BEFORE STARTING TO CHANGE THE WICK, THE APPLIANCE MUST BE TURNED OFF AND COMPLETELY COOLED DOWN.

516°

Technical line drawing of a mechanical component with concentric rings and mounting features (no text or symbols).

Technical diagram showing a device with internal components and directional arrows, likely illustrating a mechanical or electrical assembly.

Technical line drawing of a mechanical assembly with no visible text or symbols.

Mechanical assembly diagram showing a motor or engine component with no visible text or symbols.

Technical line drawing of a mechanical device with no visible text or symbols.

Illustration of a device with a digital display and internal components, no text or symbols.

Illustration of a portable electronic device connected to a hand, showing internal components and wiring, no text or symbols.

Line drawing of a portable electric heater with ventilation grilles and a paper clip, no text or symbols.

Line drawing of a hand inserting a component into a device, no visible text or symbols.

Technical line drawing of a mechanical device with no visible text or symbols.

Interior view of a kitchen appliance with a bed, stove, and oven, no visible text or symbols.

IT IS FORBIDDEN

INSTRUCTIONS FOR USE

QLIMA R8128SC2 - INSTRUCTIONS FOR USE - 1

A INSTALLATION OF THE STOVE

Illustration of a hand pressing down on a kitchen appliance with a handle, no visible text or symbols.

Mechanical diagram showing a rotating component with force arrows, no text or symbols present.

Line drawing of a portable air purifier with a hand inserting a plug into it, no text or symbols.

Illustration of a portable air conditioner unit with a hand operating the front panel (no text or symbols visible).

QLIMA R8128SC2 - A INSTALLATION OF THE STOVE - 5

D

Transport lock

TRANSPORT

Illustration of a portable electronic device connected to a small plug, with an inset showing its cable connection (no text or symbols visible).

Illustration of a device with a front panel and internal components, showing no text or symbols.

Exploded view diagram of a mechanical device showing internal components and housing (no text or labels).

Technical diagram showing mechanical assembly with labeled components and directional arrows.

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present).

Technical line drawing of a mechanical device with two components (no text or symbols).

Illustration of a mechanical device with a hand operating it, accompanied by three labeled components (no text or symbols present).

Technical line drawing of a mechanical assembly with a hand holding a component (no text or symbols visible).

Line drawing of a hand holding a circular object with radial lines, no text or symbols present.

Illustration of a mechanical device with hands operating it (no text or symbols visible).

Technical line drawing of a mechanical assembly with no visible text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols.

Technical line drawing of a mechanical device with an arrow indicating motion (no text or symbols).

CHANGING THE WICK

516°

Technical line drawing of a mechanical component with concentric rings and mounting features (no text or symbols).

Technical diagram showing a device with internal components and directional arrows, likely illustrating a mechanical or electrical assembly.

Technical line drawing of a mechanical assembly with no visible text or symbols.

Mechanical assembly diagram showing a motor or engine component with no visible text or symbols.

Technical line drawing of a mechanical device with no visible text or symbols.

Illustration of a device with a digital display and internal components (no text or symbols).

Illustration of a portable electronic device connected to a hand, showing internal components and wiring (no text or symbols).

Line drawing of a portable electric heater with ventilation grilles and a paper clip (no text or symbols).

Line drawing of a hand inserting a component into a device (no text or symbols visible).

WHAT YOU SHOULD KNOW FIRST

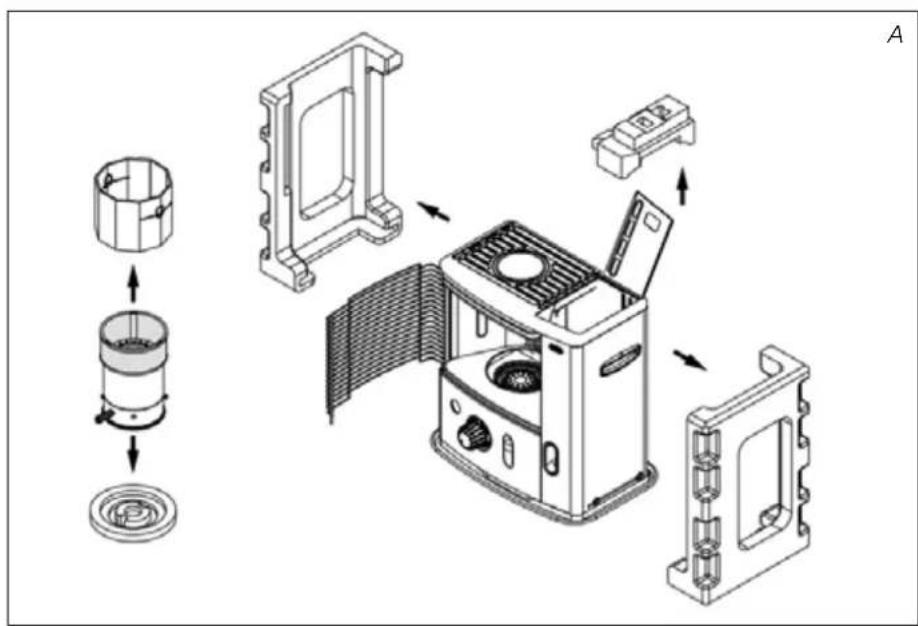

ALWAYS ENSURE ADEQUATE VENTILATION

Technical line drawing of a mechanical device with no visible text or symbols.

Diagram of a kitchen appliance with a side panel and fan, showing no text or symbols.

DO NOT

INSTRUCTIONS

QLIMA R8128SC2 - INSTRUCTIONS - 1

A INSTALLATION OF THE STOVE

Illustration of a hand operating a kitchen appliance with a mesh chamber and buttons (no text or symbols visible).

Illustration of a portable air purifier with a hand inserting a plug into the chamber (no text or symbols).

D ADJUSTING THE FLAME

A flame that is too low can be caused by:

Simple line drawing of a mortar or pestle with a handle and base (no text or symbols).

transport plug

TRANSPORT

Illustration of a portable electronic device connected to a small plug, with an inset showing a close-up of its internal components (no text or symbols visible).

Illustration of a device with a front panel and internal components, showing no text or symbols.

Exploded view diagram of a mechanical device showing internal components and housing (no text or labels).

Technical diagram showing mechanical assembly with labeled components and directional arrows.

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or labels).

Technical line drawing of a mechanical device with two components (no text or symbols)

Illustration of a mechanical device with a hand operating it, accompanied by three labeled components (no text or symbols present)

Technical line drawing of a mechanical assembly with a hand holding a component (no text or symbols visible)

Line drawing of a hand holding a circular object with radial lines, no text or symbols present

Illustration of a mechanical device with hands operating it (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly (no visible text or symbols)

Technical line drawing of a mechanical device with an arrow indicating motion (no text or symbols)

REPLACING THE WICK

L BEFORE YOU BEGIN REPLACING THE WICK, THE FIREPLACE MUST BE TURNED OFF AND COMPLETELY COOLED.

516°

Technical line drawing of a mechanical component with concentric rings and mounting features (no text or symbols)

Technical diagram showing a device with internal components and directional arrows, likely illustrating a mechanical or electrical assembly.

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a motor or engine component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of a device with a digital display and internal components (no text or symbols)

Illustration of a portable electronic device connected to a hand, showing internal components and wiring (no text or symbols)

Illustration of a portable electric heater with ventilation grilles and a paper clip (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols visible)

Technical diagram of a device's internal components and assembly, showing exploded view with labeled parts and directional arrows.

MANUAL

QLIMA R8128SC2 - MANUAL - 1

A INSTALLATION OF THE STOVE

Illustration of a hand operating a refrigerator with buttons and a handle (no text or symbols visible)

Diagram of a mechanical device with force arrows indicating movement or force direction (no text or symbols present)

Illustration of a portable air conditioner unit with a hand inserting a plug (no text or symbols visible)

Illustration of a portable air purifier with a hand adjusting its side panel (no text or symbols visible)

F FAULTS, CAUSES AND SOLUTIONS

Transport cap

TRANSPORT

Illustration of a portable electronic device connected to a small plug, with an inset showing a close-up of its internal components (no text or symbols visible)

Illustration of a device with a front panel and internal components, showing no text or symbols.

Exploded view diagram of a mechanical device showing internal components and housing (no text or labels).

Technical diagram showing mechanical assembly with labeled components and directional arrows.

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present).

Technical line drawing of a mechanical device with two components (no text or symbols).

Illustration of a mechanical device with a hand operating it, accompanied by three labeled components (no text or symbols present).

Technical line drawing of a mechanical assembly with a hand holding a component (no text or symbols visible).

Line drawing of a hand holding a circular object with radial lines, no text or symbols present.

Illustration of a mechanical device with hands operating it, no visible text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols.

Technical line drawing of a mechanical device with an arrow indicating motion (no text or symbols).

CHANGING THE WICK

BEFORE STARTING TO CHANGE THE WICK, THE HEATER MUST BE SWITCHED OFF AND COMPLETELY COLD.

516°

Technical line drawing of a mechanical component with concentric rings and mounting features (no text or symbols).

Technical diagram showing a device with internal components and directional arrows, likely illustrating a mechanical or electrical assembly.

Technical line drawing of a mechanical assembly with no visible text or symbols.

Mechanical assembly diagram showing a motor or engine component with no visible text or symbols.

Technical line drawing of a mechanical device with no visible text or symbols.

Illustration of a device with a digital display and a separate housing (no text or symbols visible).

Illustration of a portable electronic device connected to a hand, showing internal components and wiring (no text or symbols).

Illustration of a portable electric heater with ventilation grilles and a paper clip (no text or symbols).

Line drawing of a hand inserting a component into a device (no text or symbols visible).

Technical line drawing of a mechanical device with no visible text or symbols.

Illustration of a kitchen appliance with a chimney, fan, and evaporator (no text or symbols).

Diagram of a refrigerator with lid removed, showing internal compartments and ventilation slots (no text or symbols).

INSTRUCTIONS FOR USE

QLIMA R8128SC2 - INSTRUCTIONS FOR USE - 1

A INSTALLING THE HEATER

Diagram of a computer monitor with an inserted slot and ventilation slots (no text or symbols).

Diagram of a device with paper feeding into a fan, no text or symbols.

Line drawing of a multi-tiered cylindrical device with a connected piping bag and a small container, no text or symbols.

1 2 3

Illustration of a kitchen appliance with a hand inserting a plug into the air gap, no text or symbols visible.

Illustration of a hand operating a kitchen appliance with a tool, no text or symbols visible.

Diagram of a mechanical device with a rotating component and force arrow, no visible text or symbols.

Illustration of a portable air conditioner unit with a hand inserting a plug into the front panel, no text or symbols visible.

Illustration of a portable air conditioner unit with a hand operating the lid, no text or symbols visible.

Technical line drawing of a device rear panel with mounting holes and a labeled section (G), no readable text or symbols present.

transport cap

H STORAGE (AT THE END OF THE HEATING SEASON)

Illustration of a portable electronic device connected to a small plug, with an inset showing a close-up of its internal components, no text or symbols visible.

Illustration of a device with a front panel and internal components, no text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols.

Technical diagram showing mechanical assembly with labeled components and directional arrows.

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present).

Technical line drawing of a mechanical device with two views (top and side), no visible text or symbols.

Illustration of a hand using a portable device to interact with a container and a lid (no text or symbols present).

Technical line drawing of a mechanical assembly with a hand holding a component (no text or symbols visible).

Line drawing of a hand holding a curved object, possibly a worm or worm gear (no text or symbols).

Illustration of a mechanical device with hands operating it (no text or symbols visible).

Technical line drawing of a mechanical assembly with no visible text or symbols.

Technical line drawing of a mechanical assembly (no visible text or symbols).

Technical line drawing of a mechanical device with an arrow indicating motion (no text or symbols).

CHANGING THE WICK

L MAKE SURE THE HEATER IS SWITCHED OFF AND COMPLETELY COOLED DOWN BEFORE YOU START CHANGING THE WICK.

516°

Technical line drawing of a mechanical component with concentric rings and mounting features (no text or symbols).

Technical diagram showing a device with internal components and directional arrows, likely illustrating a mechanical or electrical assembly.

Technical line drawing of a mechanical assembly with no visible text or symbols.

Mechanical assembly diagram showing a motor or engine component with no visible text or symbols.

Technical line drawing of a mechanical device with no visible text or symbols.

Technical line drawing of a device with two views: one showing a mounted device and the other showing a flat base. No text or symbols.

Illustration of a portable electronic device connected to a cable, showing internal components and a hand holding the cable. No text or symbols visible.

Illustration of a portable electric heater with ventilation grilles and a paper clip. No text or symbols.

Line drawing of a hand inserting a component into a device. No text or symbols visible.

Congratulations on your purchase of this heater. You have purchased a quality product, which will serve you for many years to come. This, of course, provided you use the heater correctly. Please read these Directions for Use first, to ensure the maximum lifetime for your heater.

This appliance comes with a 48-month manufacturer's warranty on all defects in material or workmanship.

We wish you much warmth and comfort from your heater.

Yours sincerely,

PVG Holding b.v.

Customer Service Department

1 READ THE DIRECTIONS FOR USE FIRST.

2 IN CASE OF ANY DOUBT, CONTACT YOUR DEALER.

GENERAL DIRECTIONS FOR USE

Below you will find the main steps to be taken for using your heater. For more details, please refer to the MANUAL (pages 67 ff.).

1 Remove all packaging materials (refer to Section A, Fig. A). 2 Fill the removable tank ⑨ and wait 180 minutes before you ignite the heater (refer to Section B, Fig. 1). 3 Insert the batteries into the battery holder 11 (refer to Section A, Fig. G). 4 Check whether the combustion chamber ④ is fully upright (refer to Section A, Fig. F). 5 Ignite the heater by turning the knurled wick adjustment knob ② as far to the right as possible. Lightly press the ignition button ③ down to ignite the heater. (refer to Section C, Fig. K and L). 6 After igniting the heater it will take 10 to 15 minutes before you can check if the heater burns well (refer to Section D). 7 Switch off the heater (refer to Section E).

  • As a fire precaution, the tank must be filled either when the heater has been switched off or in another room than the room where the heater is installed.
  • Store all fuel containers with their original caps and seals in a cool and dark place.
  • Fuel ages. Use new fuel at the start of every heating season.
  • The use of Qlima Premium Quality Fuels as a heating fuel assures you that you have a good quality fuel.
  • Before changing brands and/or types of fuel make sure that the mobile heater first completely empties all of the remaining fuel inside the heater.

MAIN COMPONENTS

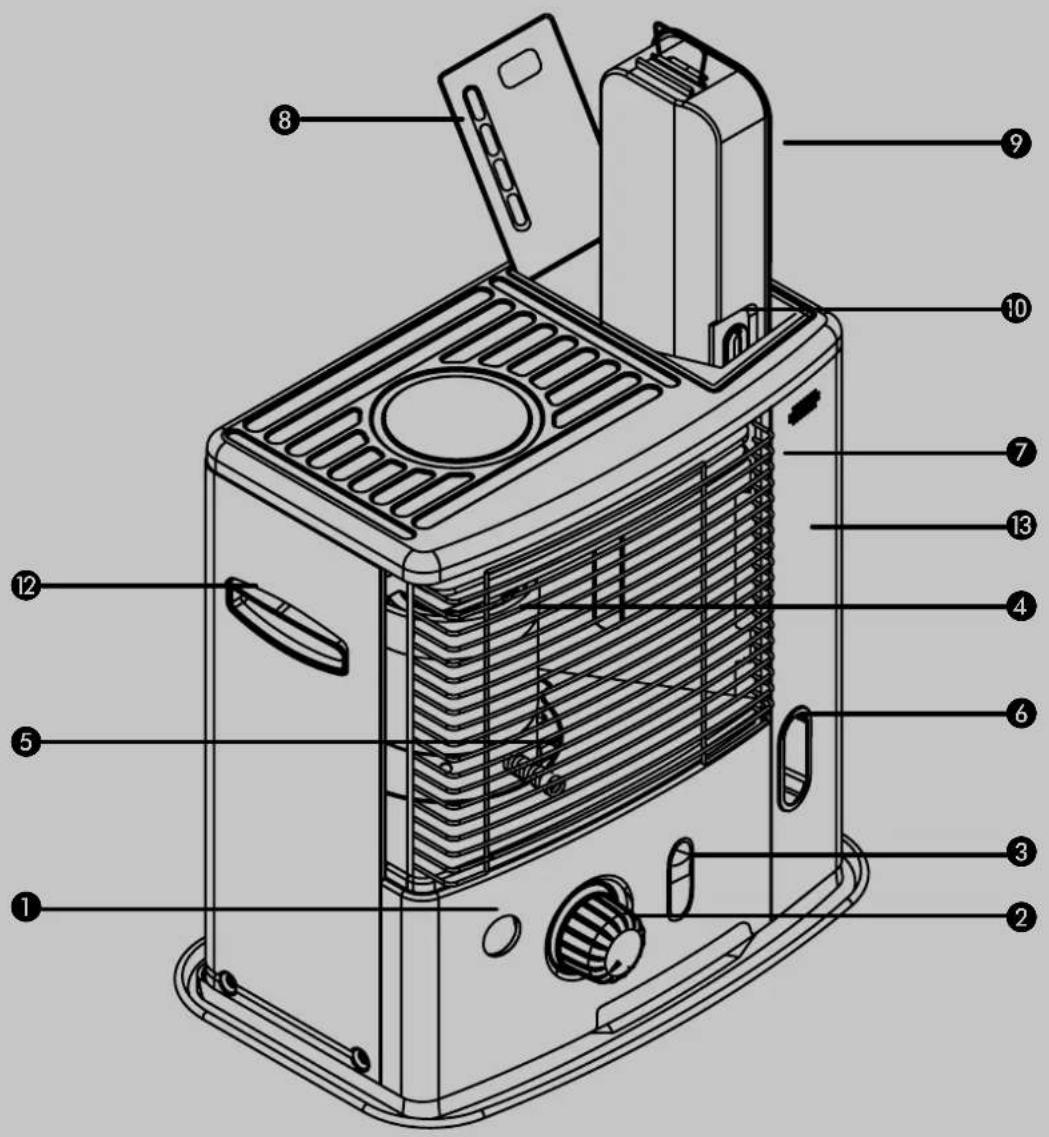

1 OFF - button ② Knurled wick adjustment knob ③ Ignition button 4 Combustion chamber ⑤ Combustion chamber handle 6 Fuel indicator 7 Grill ⑧ Lid for removable tank 9 Removable tank 10 Fuel gauge removable tank ⑪ Battery holder 12 Handle 13 Cabinet 14 Air quality control system

WHAT YOU NEED TO KNOW IN ADVANCE

ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION

This device is fitted with a security system that stops it when the temperature in the room is too high. When the heater has switched off (manually or automatically) it may not be restarted for 15 minutes. In order to prevent damage to the device, please do not force the ignition of the heater during this period.

This heater is equipped with an air quality control system. When there is insufficient ventilation in the room or when the heater is being used in a room which is too small, the heater will shut off automatically. For comfortable and safe heating ensure that there is sufficient ventilation. Note: To avoid unexpected shut off, we recommend to put a door or window ajar when the heater is operating.

Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards. This product is intended to be used as a heater in residential houses and is only suitable for use in dry locations, in normal household conditions, indoors in living room, kitchen and garage.

Regardless of the model, you must always make sure that the heater is used in a room large enough to enable the heater to be used safely without extra ventilation. If the room is smaller than required, you must always open a door or window slightly (ensuring an opening of approx. 2.5 cm). It is important that every room where the heater is used has sufficient air intake and efficient air outflow (both openings must have a minimum cross section of 50 cm²). No modifications to the safety system are allowed, as that will invalidate the guarantee that the air probe will work properly. Consult your dealer in case of doubt.

SAFETY WARNING

  • Each room in which the mobile liquid fuel heater is used must be fitted with a sufficient air inlet and efficient air outlet (minimum cross-section of 50 cm² for each port).
  • Avoid any contact with the grill which may be very hot.
  • For heaters with electrical power supply: "If the power supply cable for this heater is damaged, its replacement must be carried out by the manufacturer or by a repair workshop recognised by the importer, to avoid any danger."
  • This mobile liquid fuel heater is an auxiliary space heater for intermittent operation.

FUEL WARNING

Especially for France: Your heater was designed to operate exclusively on fuel for liquid fuel-operated mobile heaters in accordance with the Decrees of 18-07-2002 and 25-06-2010. The use of other fuels is forbidden. Ask your dealer or check our website for the addresses of our retailers. The liquid fuel-operated mobile heater is intended as an extra heater, and not as a continuous source of heat.

Especially for United Kingdom: Only use Class C1 paraffin fuel in accordance with BS2869; Part 2, or equivalent.

QLIMA R8128SC2 - FUEL WARNING - 1

SAFETY SYSTEM

When you have turned on the heater, if the room temperature is relatively low (19 to 20°C) it may automatically switch off. The cause of this is build-up of heat in the heater. This is a logical consequence of the safety mechanism. This will not occur when using the heater at lower ambient temperatures.

SAFE TOP

The heater is supplied with a safe top. This application decreases the temperature of the top plate. In this way, the risk of harmful accidents at accidentally touching the top plate is considerably decreased. However, be aware that the top plate still becomes hot.

Avoid any contact with the top plate and grille.

QLIMA R8128SC2 - SAFE TOP - 1

Only the use of the correct fuel will ensure safe, efficient, and comfortable use of your heater.

QLIMA R8128SC2 - SAFE TOP - 2

The user must comply with the following instructions for proper use:

DO NOT

  • use the liquid fuel-operated mobile heater in caravans, boats, and vehicle cabins;
  • use the liquid fuel-operated mobile heater in insufficiently ventilated rooms (consult the table of properties for the minimum dimensions of the room to be heated), underground rooms and / or at a height of over 1500 metres;
  • modify the heater safety features.

This type of heater must only be used in public reception rooms if the regulatory procedure has been followed. The user must inform himself of this procedure before use.

THE RIGHT FUEL

Your heater has been designed for use with high-quality water-free pure paraffin oil like Qlima Premium Quality Fuels. Only fuels of this kind will ensure clean and proper burning. Lower quality fuel may result in:

▶ excessive tar deposits on the glass fibre wick ▶ incomplete burning ▶ reduced heater lifetime ▶ smoke and/or smells ▶ deposits on the grid or mantle

Using the right fuel is therefore essential for safe, efficient, and comfortable use of your heater.

Damage and/or malfunctions of the heater due to the use of other than high quality water-free pure paraffin oil is not covered by the warranty.

Always refer to your local dealer for the right fuel for your heater.

Exploded view diagram of a microwave oven assembly with labeled components and directional arrows indicating assembly steps.

MANUAL

A INSTALLING THE HEATER

1 Carefully remove your heater from the box and check the contents. In addition to the heater you also need to have:

▶ a manual fuel pump ▶ a transportation cap ▶ these directions for use

GB

QLIMA R8128SC2 - A INSTALLING THE HEATER - 1

1 2 3

Keep the box and the packaging materials (Fig. A) for storage and/or transportation.

2 Remove the other packaging materials:

▶ Release the right side of the grill. Lift the grill from the slot (Fig. B) and pull it forward.

▶ Pull both ends of the packaging to the sides and at the same time slightly downwards (see Fig. C).

Remove the combustion chamber from the heater and remove the packaging underneath (see Fig. D).

▶ Put the combustion chamber back into its place. The combustion chamber is positioned correctly when it can be smoothly moved a little to the left and to the right by its handle ⑤ (Fig. F). Close the grill: Slightly lift it to reposition it in its slot.

▶ Open the lid of the removable tank ⑧ and remove the piece of polyfoam.

3 Fill the removable tank as indicated in Section B.

4 Insert the batteries into their holder ⑪ at the back of the heater (Fig. G). Ensure that the positive and negative poles match the + and - marks indicated on the battery housing. Close the battery cover.

▶ Do not mix the + and the - pole

▶ Do NOT recharge non-rechargeable batteries!

Do NOT mix different types and brands of batteries, do NOT mix old and new batteries.

▶ If the appliance is stored or not used for a longer period: always remove the batteries.

▶ Do NOT short circuit the electrical power supply terminals.

▶ To remove the batteries: simply remove them from the battery enclosure.

5 The floor should be firm and completely level. Reposition the heater if it is not level. Do not correct the situation by placing books or other goods under the heater. Please refer to the separate instructions in the carton box for fixing the heater.

6 Your heater is now ready for use.

B FILLING FUEL

Fill the removable tank in a suitable place since there can always be some spillage. Follow the procedure below:

1 Make sure that the heater is switched off.

2 Open the upper lid and lift the removable tank out of the heater (Fig. H). Note: Some drops may leak from the tank. Put down the removable tank (cap pointing upwards, handle on floor) and screw off the fuel cap.

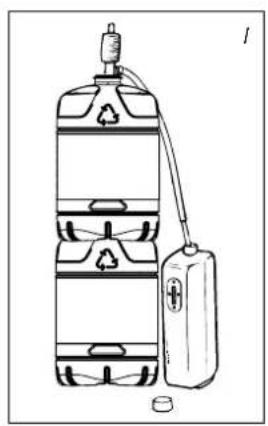

3 Fill the removable tank using a fuel pump (refer to fuel pump operation instructions). Make sure that it is in a higher position than the removable tank (Fig. I). Insert the ribbed hose into the opening of the removable tank.

4 Check the removable tank fuel gauge while filling the tank (Fig. J). Stop filling once the gauge indicates that the tank is full. Never overfill the tank, especially not when the fuel is very cold (fuel expands when it heats up).

QLIMA R8128SC2 - B FILLING FUEL - 1

Illustration of a portable air conditioner unit with a hand inserting a plug. No text or symbols visible.

Illustration of a hand pressing down on a device panel with buttons and a mesh chamber. No text or symbols.

Technical diagram of a mechanical assembly with directional arrows indicating motion or force. No text or symbols.

Illustration of a portable air conditioner unit with a hand inserting a plug into it. No text or symbols visible.

Illustration of a portable air conditioner unit with a hand operating the control panel. No text or symbols visible.

5 Let the remaining fuel in the pump flow back into the jerry can and carefully remove the pump. Carefully screw the fuel cap back on the tank. Clean off any spilled fuel.

6 Check whether the fuel cap is straight and tightened properly. Reinstall the removable tank in the heater (cap down). Close the lid.

C IGNITING THE HEATER

A new heater may give off some smells for a short while, when it is used for the first time. You should therefore provide extra ventilation or ignite the heater outside the living room.

QLIMA R8128SC2 - C IGNITING THE HEATER - 1

When you use the heater for the first time, first put the filled removable tank into place, and then wait approximately 180 minutes before you ignite the heater. This allows the glass fibre wick to soak up the fuel. Follow the same procedure when you have completely burnt up all fuel from the tank, and after the glass fibre wick has been replaced.

Before igniting the heater, always check the fuel indicator ⑥ to see whether the removable tank needs filling up.

QLIMA R8128SC2 - C IGNITING THE HEATER - 2

Always ignite the heater with the ignition mechanism. Never use matches or a cigarette lighter.

Follow the procedure below:

1 Turn the knurled wick adjustment knob ② clockwise to its stop (Fig. K).

2 Press the ignition button down ③ (Fig. L), but do not apply too much force. Release the ignition button as soon as a flame is visible in the combustion chamber ④.

QLIMA R8128SC2 - C IGNITING THE HEATER - 3

After having ignited the heater, always check whether the combustion chamber ④ is level, by sliding it slightly to the left and the right by its handle ⑤ (Fig. F). This should be a smooth movement. If the combustion chamber is not level, this will cause smoke and soot to develop.

D BURNING OF THE HEATER

After you have ignited the heater, it will take 10 to 15 minutes before you can check whether the heater is burning well. Too high a flame may cause smoke and soot, whereas too low a flame causes smells. Fig. Q shows the minimum and maximum permissible burning heights of the flame. The flame can be slightly adjusted with the knurled wick adjustment knob ② (Fig. M).

Burning that is too low may be caused by:

▶ insufficient fuel (fill the tank) ▶ poor fuel quality (contact your dealer) ▶ insufficient ventilation (put window or door ajar) ▶ wastage of the wick (contact your dealer or replace the wick, refer to section L

Diagram of a computer monitor with an inserted slot and labeled component (G), showing no readable text or symbols.

E SWITCHING OFF THE HEATER

Push the OFF button ①. The flame will extinguish after a little while (Fig. N).

F MALFUNCTION, CAUSES AND SOLUTIONS

If any malfunctioning cannot be solved from the directions below, please contact your dealer.

THE HEATER DOES NOT IGNITE

▶ The batteries are not positioned correctly in the holder. Check (Fig. G). There is not enough power left in the batteries for the ignition. Replace (Fig. G). ▶ You have run out of fuel from the tank or the wick has been replaced. After having refilled and replaced the removable tank, wait for 180 minutes before igniting the heater. ▶ You are pushing the ignition button ③ with too much force. Push it in less forcefully (Section C).

IRREGULAR FLAME AND/OR SOOT AND/OR SMELLS

▶ The combustion chamber ④ has not been positioned correctly. Use the handle ⑤ to put it level, until you can easily slide it slightly to the left and to the right and the chamber is level. ▶ You are using fuel which is past its 'use by' date. Start every heating season with fresh fuel. ▶ You are using the incorrect type of fuel. Refer to THE RIGHT FUEL (See Section 'What you need to know in advance'). ▶ Dust has gathered in the lower part of the heater. Contact your dealer. ▶ The wick height is not correct. Contact your dealer.

THE HEATER SLOWLY EXTINGUISHES

▶ The removable tank is empty. See Section B. ▶ The lower reservoir is contaminated by moist. Contact your dealer. ▶ The wick has hardened on the upper side. Burn the heater until all fuel is used (Section G). Use the right fuel. ▶ You are using fuel which is past its 'use by' date. Start every heating season with fresh fuel.

QLIMA R8128SC2 - THE HEATER SLOWLY EXTINGUISHES - 1

THE HEATER REMAINS BURNING LOW

▶ Wick position too low. Contact your dealer. ▶ Before you refilled the tank, the heater had burnt up almost all the fuel. After having refilled and replaced the removable tank, wait for 180 minutes before igniting the heater. ▶ You are using the incorrect type of fuel. Refer to THE RIGHT FUEL (See Section 'What you need to know in advance'). ▶ The room is insufficiently ventilated. Leave a window or a door wide open for a while.

THE HEATER IS BURNING TOO HIGH

▶ You are using an incorrect, too volatile type of fuel. Refer to THE RIGHT FUEL (See Section 'What you need to know in advance'). ▶ Wick position too high. Contact your dealer.

QLIMA R8128SC2 - THE HEATER IS BURNING TOO HIGH - 1

G MAINTENANCE

Your heater needs hardly any maintenance. It is, however, important that you remove dust and stains in time with a damp cloth, because otherwise these may cause stains that are hard to remove. Under normal conditions, only three components are subject to wear:

1. THE BATTERIES

You may replace the batteries yourself. Do not dispose of old batteries along with the other domestic waste. Follow the locally applicable regulations regarding the disposal of domestic chemical waste. Do not throw batteries into the fire, where they can explode or release dangerous liquids.

2. THE WICK

To extend the glass fibre wick life, you must occasionally let the heater burn until the tank is completely emptied and the heater extinguishes by itself. Do this when you notice that the flame is weakening. The burn-out will cause some smells, so it is recommended that you take the heater outside of the living room.

QLIMA R8128SC2 - THE WICK - 1

Do not remove any heater components yourself. Always contact your dealer for repairs.

QLIMA R8128SC2 - THE WICK - 2

Let the heater cool down first, before you start any maintenance or service work.

H STORAGE (END OF THE HEATING SEASON)

We recommend that you burn up all the fuel in the fuel tank at the end of the heating season and store the heater properly. Follow the procedure on the next page:

1 Ignite the heater outside the living room and let it burn until all fuel is used. 2 Let the heater cool down. 3 Clean the heater with a damp cloth and then dry it with a dry cloth. 4 Remove the batteries from the holder ⑪ and store them in a dry place. 5 Clean the fuel filter. 6 Store the heater in a dust-free place, if possible in its original packaging. Unused fuel cannot be used for the next heating season. If there is still some fuel left, do not throw it away, but dispose of it in accordance with the local regulations for the disposal of domestic chemical waste. Always start the new heating season with fresh fuel. When you start re-using the heater, follow the instructions again (starting from Section A and as specified).

Simple line drawing of a mortar or cup with a handle and base. No text or symbols present.

transportation cap

TRANSPORTATION

Take the following measures to avoid fuel leakage during the transportation of the heater:

1 Let the heater cool down. 2 Remove the removable tank ⑨ from the heater and remove the fuel filter. Some drops may leak from the filter; keep a cloth at hand. Store the fuel filter and the removable tank outside the heater.

3 Place the transportation cap (Fig. O) into the position of the fuel filter. Press it tight. The transportation cap will, as much as possible, prevent oil leakage from the heater during transport.

4 Always move the heater in an upright position.

5 Make the fixed tank empty with a fuel pump before transportation or in case of wrong or dirty fuel. First remove the fuel filter and then insert the fuel pump into the empty fixed tank. Follow the same procedure if the fuel tank contains water.

J SPECIFICATIONS

R 8128S C-2
Ignition electrical
Fuel paraffin
Capacity (kW)* 2.85
Suitable space (m3)** 50-105
Fuel consumption (l/hr)* 0.297
Fuel consumption (g/hr)* 238
Burning time per tank (hr)* 17.5
Capacity removable tank (litres) 5.2
Weight (kg) 9.7
Dimensions (mm) (including base plate)width 455
depth 295
height 470
Required batteries 6V D.C. (R14 x 4)
Wick type O
Monitoring of the quality of ventilation (air renewal): Direct measurement of the CO2 level (NDIR CO2-sensor 14).

* At maximum setting ** Specified values are indicative

K WARRANTY PROVISIONS

Your heater comes with a 48-month warranty starting on the date of purchase. Within this period all defects in material or workmanship will be repaired without any charge. The following provisions shall apply regarding this warranty:

1 We expressly dismiss all other claims for damages, including consequential damages. 2 Any repairs or replacements of components within the term of warranty will not result in an extension of the term of warranty. 3 The warranty will no longer apply, when the heater has been modified, non-original parts have been used, or when it is repaired by third parties. 4 The warranty will not apply to parts that are subject to normal wear, such as the batteries, the wick and the manual fuel pump. See for the complete list of parts excluded from warranty on Qlima.com/warranty. 5 The warranty will only apply, when you present the original, dated proof of

QLIMA R8128SC2 - K WARRANTY PROVISIONS - 1

100 cm 50 cm 150 cm 20 cm 50 cm

purchase, provided no changes have been made to it.

6 The use of correct fuel is crucial for the correct working of the heater. The warranty shall not apply to damages caused by actions not in compliance with the Directions for Use, neglect, and the use of an incorrect type of fuel, or fuel past its use-by date. The use of incorrect fuel can even be dangerous*, please refer to the chapter 'the right fuel'. 7 Transportation costs and the risks involved during the transportation of the heater or heater components will always be the responsibility of the purchaser.

In order to avoid unnecessary costs, we recommend that you always read the 'Directions for Use' carefully first. In case they offer no solution, please take the heater to your dealer for repair.

* Highly inflammable substances may induce uncontrollable burning, causing flames to break out. Should this happen, never try to move the heater, but always switch off the heater immediately (refer to Section E). In cases of emergency you may use a fire extinguisher, but only a type B extinguisher: a carbon dioxide or powder extinguisher.

Illustration of a portable electronic device with a lid and ventilation slots (no text or symbols visible)

Illustration of a portable electronic device connected to a small plug, with an inset showing a close-up of its internal components (no text or symbols visible)

Illustration of a device with a front panel and internal components, showing no text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing mechanical assembly with labeled components and directional arrows

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with two components (no text or symbols)

Illustration of a hand using a portable device to interact with a container and a lid (no text or symbols present)

Technical line drawing of a mechanical assembly with a hand holding a component (no text or symbols visible)

Line drawing of a hand holding a curved object, possibly a worm or worm gear (no text or symbols)

Illustration of a mechanical device with hands operating it (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly (no visible text or symbols)

Technical line drawing of a mechanical device with an arrow indicating motion (no text or symbols)

REPLACEMENT OF THE WICK

L ENSURE THAT THE HEATER IS OFF AND COMPLETELY COOL BEFORE STARTING TO REPLACE THE WICK.

1a. Open the tank cover ⑧ and remove the fuel tank ⑨.

1b. Remove the batteries to prevent possible burns.

1c. Open the front grille and remove the combustion chamber ④.

1d. Remove the wick adjuster ② and ignition button ③ by pulling them straight out.

2a. Unscrew the 5 screws: 1 from the back, 2 from the right side, and 2 from the left side of the cabinet.

2b. Remove the sensor at the back side of the cabinet.

  1. Remove the cabinet by pulling it straight up.
  2. Remove the 1 screw on the wind cover A/B.

5a. Remove the connector (1EA) from the ignitor.

5b. Remove the tip-over safety switch by unscrewing 1 screw.

5c. Remove the 3 connectors (3EA) from the printplate.

  1. Unscrew 4 wing nuts.
  2. Remove the wick adjuster assembly.
  3. Press the pin of the wick that is assembled inside the wick case assembly. Disassemble the wick, the wick holder, and the wick case assembly separately.
  4. Install the new wick and insert the three pins on the new wick into the three holes on the wick sleeve in the upward direction (see the arrow marked "up" on the wick sleeve).
  5. Push the new wick into the retainer teeth of the wick sleeve so that the wick adheres tightly around the inside of the wick sleeve, smoothing out any wrinkles.
  6. Line up the pins with the slotted holes inside the wick adjuster. Then lightly press each of the three pins of the wick (now attached to the wick sleeve) towards the inside. Insert the three pins into the slanted grooves of the wick adjuster. Press on each of the three pins, inserting them securely in the holes.
  7. Turn the wick adjustment knob ② and check to be sure that the wick moves up and down freely.
  8. Slide the wick adjuster assembly down the draft tube. Position the adjuster shaft to the front of the heater.
  9. Snug the four wing nuts on the mounting stud, but do not tighten them.

Technical line drawing of a mechanical device with no visible text or symbols

516°

Technical line drawing of a mechanical component with concentric rings and mounting features (no text or symbols)

Technical diagram showing a device with internal components and directional arrows, likely illustrating a mechanical or electrical assembly.

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a motor or engine component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of a device with a digital display and internal components (no text or symbols)

Illustration of a portable electronic device connected to a cable, with an inset showing a close-up of its front panel (no text or symbols visible)

Illustration of a portable electric heater with ventilation grilles and a paper clip (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols visible)

  1. Raise the wick to its highest position and tighten the wing nuts in several steps.
  2. Check the wick height. It should be 5/16 above the collar.
  3. Check for the correct clearance between wick holder and draft tube. It should be the same all around.

18a. Reinstall the tip-over switch assembly by pushing the extinguish knob ①.

18b. Connect the 3 connectors (3EA) with the circuit board.

18c. Remove the connector (1EA) from the ignitor.

  1. Check the function of the tip-over safety stop by pushing the extinguish button ① to upset the pendulum.
  2. Reinstall the automatic ignition assembly.
  3. Reinstall the wind cover A / B.
  4. Reinstall the cabinet 14.
  5. Tighten the 5 screws on the cabinet and reinstall the sensor at the back of the cabinet 14.
  6. Reinstall the combustion chamber ④ and the fuel tank ⑨.
  7. Reinstall the wick adjusting knob ② and ignition button ③. Close the front plate.

Install the batteries in the battery case and fill the fuel tank with Qlima Premium Quality Fuels. Set the tank into the heater and wait at least 180 minutes for the new wick to fully saturate with the fuel.

Technical illustration of a mechanical device with labeled component B (no text or symbols beyond label)

Technical line drawing of a mechanical device with no visible text or symbols

Interior view of a kitchen appliance with a stove, oven, and a cylindrical stove (no text or symbols visible)

Illustration of a portable air conditioner unit with a hand inserting a button (no text or symbols visible)

Illustration of a hand operating a refrigerator with buttons and a wall-mounted screen (no text or symbols visible).

Technical diagram of a mechanical assembly with force arrows and component labels (no readable text or symbols).

Illustration of a portable electric heater with a hand inserting a plug into it (no text or symbols).

Illustration of a portable air conditioner unit with a hand inserting a button (no text or symbols visible).

Simple line drawing of a cup with a handle and spout, no text or symbols present.

Illustration of a portable electronic device connected to a small plug, with an inset showing a close-up of its internal components (no text or symbols visible).

Illustration of a device with a front panel and internal components, showing no text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols.

Technical diagram showing mechanical assembly with labeled components and directional arrows.

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present).

Technical line drawing of a mechanical device with two views (top and side), no visible text or symbols.

Illustration of a hand using a portable device to interact with a container and a lid (no text or symbols present).

Technical line drawing of a mechanical assembly with a hand holding a component (no text or symbols visible).

Line drawing of a hand holding a segmented, bulbous object.

Illustration of a mechanical device with hands operating it.

Technical line drawing of a mechanical assembly.

Technical line drawing of a mechanical assembly.

Technical line drawing of a mechanical device with an arrow indicating motion.

516°

Technical line drawing of a mechanical component with concentric rings and mounting features.

Technical diagram showing a device with internal components and directional arrows, likely illustrating a mechanical or electrical assembly.

Technical line drawing of a mechanical assembly.

Mechanical assembly diagram showing a motor or engine component.

Technical line drawing of a mechanical device.

Illustration of a device with a digital display and a separate housing.

Illustration of a portable electronic device connected to a hand, showing internal components and wiring.

Illustration of a portable electric heater with ventilation grilles and a paper clip.

Line drawing of a hand inserting a component into a device (no text or symbols visible)

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of a kitchen appliance with a chimney, fan, and evaporator (no text or symbols)

Diagram of a kitchen appliance with a grater and fan (no text or symbols)

Diagram of a mechanical device with a rotating component and force arrow, no visible text or symbols

Technical line drawing of a device rear panel with mounting holes and a labeled section (G), no readable text or symbols present.

Diagram of a device with a paper feeding into a container, showing airflow direction (no text or symbols)

Line drawing of a multi-stage water tank with a connected gas bag and a plastic container (no text or symbols)

1 2 3

Illustration of a portable air conditioner unit with a hand inserting a plug (no text or symbols visible)

Illustration of a hand operating a device with control knobs and a labeled component (no text or symbols present)

Technical diagram of a mechanical assembly with no visible text or symbols

Illustration of a portable air conditioner unit with ventilation grille and handle (no text or symbols)

Illustration of a portable air conditioner unit with a hand operating the lid (no text or symbols visible)

Diagram of a device panel with labeled ports and mounting brackets (no text or symbols)

1 Turn the ribbed adjustment knob ② clockwise until it stops (fig. K). 2 Press the ignition button ③ (fig. L), but do not use excessive force. Release the ignition button as soon as you see a flame in the combustion chamber ④.

Simple line drawing of a mortar or pestle with a handle and base (no text or symbols)

transport cover

H STORAGE (END OF THE COLD SEASON)

Illustration of a portable electronic device with a hand inserting a cable (no text or symbols visible)

Technical illustration of a device with two views: one showing internal components and the other showing internal wiring (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing a device with internal components and directional arrows, likely illustrating a mechanical or electrical assembly.

Technical line drawing of a mechanical device with an arrow pointing to a component (no text or symbols present)

Technical line drawing of a mechanical component with a small inset image (no text or symbols)

Diagram illustrating a mechanical device with labeled components and a magnified view of the component.

Mechanical assembly diagram showing a hand operating a rotating component with a valve (no text or symbols visible)

Simple line drawing of a hand holding a circular object with radial lines, no text or symbols present

Illustration of a mechanical device with hands operating it (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly (no visible text or symbols).

Technical line drawing of a mechanical device with an arrow indicating a component (no text or symbols present).

REPLACING THE WICK

L MAKE SURE THE STOVE IS OFF AND COMPLETELY COLD BEFORE YOU START REPLACING THE WICK.

5/16° 15

Technical line drawing of a mechanical device with a circular component and base mount (no text or symbols).

Diagram showing a device with labeled components and directional arrows, including a small component and a mechanical component.

Mechanical assembly diagram showing a motor or gear mechanism with no visible text or symbols.

Technical line drawing of a mechanical device with no visible text or symbols.

Technical line drawing of a mechanical device with no visible text or symbols.

Illustration of a device with a front panel and internal components, no visible text or symbols.

Illustration of a hand inserting a cable into a portable heater device (no text or symbols visible).

Line drawing of a portable air conditioner unit with ventilation grilles and a handle (no text or symbols).

Hand inserting a component into a device (no text or symbols visible).

WHAT YOU SHOULD KNOW BEFOREHAND

ALWAYS VENTILATE SUFFICIENTLY

Exploded view diagram of a microwave oven assembly with labeled components and directional arrows indicating assembly steps.

MANUAL

QLIMA R8128SC2 - MANUAL - 1

A INSTALLING THE STOVE

Illustration of a hand operating a refrigerator, adjusting the door.

Diagram of a mechanical device with a rotating shaft and a force arrow.

Illustration of a portable air purifier with a hand inserting a plug into the housing.

Illustration of a portable air conditioner unit with a hand inserting a button.

C LIGHTING THE STOVE

F FAULTS, CAUSES AND SOLUTIONS

Transport cap

TRANSPORT

Illustration of a portable electronic device connected to a small plug, with an inset showing a close-up of its internal components.

Illustration of a device with a front panel and internal components.

Technical line drawing of a mechanical assembly.

Technical diagram showing a mechanical assembly with labeled components and directional arrows.

Mechanical assembly diagram showing a component with an arrow indicating direction.

Technical line drawing of a mechanical device with two components.

Illustration of a hand using a tool to interact with a device and a separate container (no text or symbols present)

Technical line drawing of a mechanical assembly with a hand holding a component (no text or symbols visible)

Line drawing of a hand holding a segmented, bulbous object (no text or symbols)

Illustration of a mechanical device with hands operating it (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly (no visible text or symbols)

Technical line drawing of a mechanical device with an arrow indicating motion (no text or symbols)

REPLACING THE WICK

L BEFORE STARTING TO REPLACE THE WICK, THE STOVE MUST BE OFF AND COMPLETELY COOLED DOWN.

516°

Technical line drawing of a mechanical component with concentric rings and mounting features (no text or symbols)

Technical diagram showing a device with internal components and directional arrows, likely illustrating a mechanical or electrical assembly.

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a motor or engine component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of a device with a digital display and a separate housing (no text or symbols visible)

Illustration of a portable electronic device connected to a hand, showing internal components and wiring (no text or symbols)

Illustration of a portable electric heater with ventilation grilles and a paper clip (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols visible)

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a kitchen appliance with a chimney, fan, and fan valve (no text or labels)

Diagram of a refrigerator interior showing the door, fan, and side panel (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating motion or force, no visible text or symbols

MANUAL

Diagram of a device's internal structure showing a connector or panel with mounting holes (no text or symbols)

Diagram of a device with a paper feeding into a container, showing airflow direction (no text or symbols)

Line drawing of a water tank with a connected device and a plastic bag, no text or symbols present

1 2 3

Illustration of a hand operating a refrigerator with a handle and control panel (no text or symbols visible)

Diagram of a mechanical device with a rotating component and a force arrow, no readable text or symbols present.

Illustration of a portable air conditioner unit with a hand inserting a plug into it, no text or symbols visible.

Illustration of a portable air conditioner unit with a hand operating the button, no text or symbols visible.

Diagram of a computer monitor with an inserted port and cable, no text or symbols visible.

Transport cap

Illustration of a portable heater with a hand inserting a cable, showing internal components and wiring, no text or symbols.

Technical illustration of a device housing with internal components, no text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols.

Technical diagram showing mechanical assembly with labeled components and directional arrows.

Mechanical assembly diagram showing a component with an arrow indicating direction, no text or symbols present.

Technical line drawing of a mechanical assembly with two components, no text or symbols.

Illustration of a cooking process with a pot, stove, and container, no text or symbols.

Mechanical assembly diagram showing a hand holding a fish inside a coiled component, no text or symbols visible.

Simple line drawing of a hand holding a circular object with radial lines, no text or symbols present.

Illustration of a mechanical device with hands operating it (no text or symbols visible)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an arrow indicating a component (no text or symbols present)

516° 108

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram showing mechanical assembly with labeled components and directional arrows

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a motor or engine component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a device with two views: one showing a mounted device and the other a flat case (no text or symbols)

Illustration of a portable electronic device connected to a cable, with an inset showing a close-up of its ports (no text or symbols visible)

Line drawing of a portable air conditioner unit with ventilation grilles and a paper clip (no text or symbols)

Line drawing of a hand inserting a component into a device casing (no text or symbols)

ENSURE ADEQUATE VENTILATION,

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of a kitchen appliance with a side panel and fan (no text or symbols)

Diagram of a kitchen appliance with ventilation grilles and fan (no text or symbols)

OPERATING INSTRUCTIONS

QLIMA R8128SC2 - OPERATING INSTRUCTIONS - 1

AND HEATER INSTALLATION

Technical line drawing of a device panel with mounting holes and a label 'G' (no text or symbols on the diagram itself)

Diagram of a device with a paper feeding into a fan, showing no text or symbols

Line drawing of a water tank with recycling symbols and a connected device (no text or labels)

1 2 3

Illustration of a kitchen appliance with a hand inserting a plug into the air gap (no text or symbols visible)

Illustration of a hand operating a device with a screen and buttons (no text or symbols visible)

Diagram of a mechanical device with a rotating shaft and force arrow, no visible text or symbols

Illustration of a portable air conditioner unit with a hand inserting a plug into it (no text or symbols visible)

Illustration of a portable air conditioner unit with a hand operating the control panel (no text or symbols visible)

Diagram of a computer monitor with an inserted slot and labeled component G.

Simple line drawing of a container with a handle and spout.

transport plug

Illustration of a portable electronic device with a lid and ventilation slots.

Illustration of a portable electronic device connected to a small plug, with an inset showing a close-up of its internal components.

Illustration of a device with a front panel and internal components.

Technical line drawing of a mechanical assembly.

Technical diagram showing mechanical assembly with labeled components and directional arrows.

Mechanical assembly diagram showing a component with an arrow indicating direction.

Technical line drawing of a mechanical device with two components.

Illustration of a hand using a portable device to interact with a container and a lid.

Technical line drawing of a mechanical assembly with a hand holding a component.

Line drawing of a hand holding a curved object, possibly a worm or worm gear.

Illustration of a mechanical device with hands operating it.

Technical line drawing of a mechanical assembly.

Technical line drawing of a mechanical assembly.

Technical line drawing of a mechanical device with an arrow indicating motion (no text or symbols).

WICK REPLACEMENT

BEFORE STARTING THE WICK REPLACEMENT, MAKE SURE THE HEATER IS TURNED OFF AND COLD.

5/16° 15

Technical line drawing of a mechanical clutch assembly (no text or symbols).

Technical diagram showing a device with labeled components and directional arrows indicating assembly or connection.

Technical line drawing of a mechanical assembly with no visible text or symbols.

Mechanical assembly diagram showing a motor or engine component with no visible text or symbols.

Technical line drawing of a mechanical device with no visible text or symbols.

Technical illustration of a device with two views: one showing a mounted device and the other a flat case (no text or symbols visible).

Illustration of a portable heater connected to a hand, showing internal components and a close-up view (no text or symbols).

Line drawing of a portable air conditioner unit with ventilation slots and a paper clip (no text or symbols).

Line drawing of a hand inserting a component into a device (no text or symbols).

ALWAYS ENSURE THAT THERE IS ADEQUATE VENTILATION

Technical illustration of a portable air conditioner unit with labeled component B (no text or symbols beyond label).

Technical line drawing of a mechanical device with no visible text or symbols.

Diagram of a kitchen appliance with a chimney and fan, showing no text or symbols.

Diagram of a refrigerator interior with lid removed, showing exterior and front views (no text or symbols).

MANUAL

QLIMA R8128SC2 - MANUAL - 1

AND INSTALL THE HEATER

Technical line drawing of a device rear panel with mounting holes and a labeled section (G), no readable text or symbols present.

Diagram of a device with a fan and lid, showing a mechanical assembly (no text or symbols).

Line drawing of a water tank with recycling symbol and connected to a battery (no text or labels).

1 2 3

Illustration of a hand pressing down on a device panel with buttons and a handle (no text or symbols visible).

Diagram of a mechanical device with a rotating component and force arrow, no visible text or symbols.

Illustration of a portable air conditioner unit with a hand inserting a plug into the front panel (no text or symbols visible).

Illustration of a portable air conditioner unit with a hand operating the button (no text or symbols visible).

THE HEATER CONTINUES TO BURN WEAKLY

transport cover

TRANSPORT

Illustration of a portable heater connected to a cable, with an inset showing a close-up of its internal components (no text or symbols visible)

Technical illustration of a device with internal components and a separate exploded view (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing mechanical assembly with labeled components and directional arrows

Technical line drawing of a mechanical device with an arrow pointing to a component (no text or symbols present)

Technical line drawing of a mechanical device with a top component and a side view showing internal components (no text or symbols)

Illustration of a mechanical device with hands operating it and three views of a cylindrical component (no text or symbols)

Mechanical assembly diagram showing a hand operating a rotating component with a dial and handle (no text or symbols)

Simple line drawing of a hand holding a circular object with radial lines (no text or symbols)

Illustration of a mechanical device with hands operating it (no text or symbols visible)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly (no visible text or symbols)

Technical line drawing of a mechanical device with an arrow pointing to a component (no text or symbols present)

REPLACING THE WICK

MAKE SURE THE HEATER IS SWITCHED OFF AND COMPLETELY COOLED DOWN BEFORE REPLACING THE WICK.

5/16° 15

Technical line drawing of a mechanical clutch assembly (no text or symbols).

Technical diagram showing a device with labeled components and directional arrows indicating motion or assembly.

Technical line drawing of a mechanical device with no visible text or symbols.

Mechanical assembly diagram showing a motor or engine component with no visible text or symbols.

Technical line drawing of a mechanical device with no visible text or symbols.

Technical illustration of a device with two views: one showing a display unit and the other showing a mechanical component (no text or symbols present).

Illustration of a portable electronic device connected to a cable, with an inset showing a close-up of its cable (no text or symbols visible).

Line drawing of a portable industrial device with ventilation slots and a paper clip (no text or symbols).

Hand inserting a component into a device casing (no text or symbols visible).

Illustration of a portable air conditioner unit with labeled component B (no text or symbols on the device itself).

Technical line drawing of a mechanical device with no visible text or symbols.

Illustration of a kitchen appliance with a chimney, fan, and stove (no text or symbols).

Diagram of a kitchen appliance with a grater and fan (no text or symbols).

QLIMA R8128SC2 - INSTRUCTIONS FOR USE - 1

A. PREPARING THE STOVE

Diagram of a computer monitor with ports and cable routing (no text or symbols)

Diagram of a device with paper feeding into a container, showing airflow direction (no text or symbols)

Line drawing of a water tank with a gas bag connected to a container (no text or symbols)

1 2 3

Simple line drawing of a mortar or cup with a handle and base, no text or symbols present.

Transport cap

Illustration of a portable electronic device connected to a small plug, with an inset showing a close-up of its internal components (no text or symbols visible)

Illustration of a device with a front panel and internal components, showing no text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing mechanical assembly with labeled components and directional arrows

Mechanical assembly diagram showing a component with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with two views (top and side), no visible text or symbols

Illustration of a hand using a tool to interact with a device and a separate container (no text or symbols present)

Technical line drawing of a mechanical assembly with a hand holding a component (no text or symbols visible)

Line drawing of a hand holding a segmented, bulbous object (no text or symbols)

Illustration of a mechanical device with hands operating it (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly (no visible text or symbols)

Technical line drawing of a mechanical device with an arrow indicating motion (no text or symbols)

REPLACING THE WICK

BEFORE REPLACING THE WICK, MAKE SURE THE STOVE IS SWITCHED OFF AND COLD.

516°

Technical line drawing of a mechanical component with concentric rings and mounting features (no text or symbols)

Technical diagram showing a device with internal components and directional arrows, likely illustrating a mechanical or electrical assembly.

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a motor or engine component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of a device with a digital display and internal components (no text or symbols)

Illustration of a hand inserting a plug into a portable electronic device (no text or symbols visible)

Illustration of a portable air conditioner unit with ventilation grilles and a paper clip (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols visible)

  1. Check that there is sufficient clearance between the wick holder and the air tube. The clearance must be equal all around.

18a. Press the extinguishing button ① and reinstall the anti-tip guard.

0 - 1.5 cm.

Line drawing of a cylindrical container with a coiled spring and lid, no text or symbols present

Q

Technical diagram of a portable air conditioner unit with numbered parts for identification

Technical diagram of a device casing with numbered annotations pointing to internal components.

Qlima www.Qlima.com

Distributed in Europe by PVG Holding B.V.

If you need more information or if problems arise, please visit our website www.qlima.com or contact our customer service (T: +31 412 694 694). For any further information or if you encounter any problems with the appliance, please refer to www.qlima.com or contact your local customer service center (T: +45 77 34 33 30). (ES) If you need information or if you have a problem, please visit our website www.qlima.es or contact customer service (T: +34 916 113 113). If you would like additional information or if you encounter a problem, please visit our website (www.qlima.fr / www.fr.qlima.be) or contact our customer service (T: +33 2 32 96 07 47 / +32 (0)3 326 39 39). If you need service, more information, or if you have problems with the device, please visit our website at www.qlima.com or ask for advice from PVG's consumer service center (T: +45 77 34 33 30). (88) If you need information or if you have a problem, please visit our website (www.qlima.com) or contact our sales support (T: +31 412 694 694). ① For information and in case of problems, visit the website www.glima.it or contact the Customer Service Center (T: +39 0571 628 500). If you need information, or if you have a problem with the product, you can visit the websites www.qlima.com. Alternatively, you can contact PVG's consumer service (T: +45 77 34 33 30). If you need information or if you have a problem, please visit our website (www.qlima.nl / www.qlima.be) or contact the sales support department (T: +31 412 694 694 / +32 (0)3 326 39 39). If you need information or if you have problems, please visit the website www.qlima.es or contact the Service Center (T: +34 916 113 113). PL In case of problems or for detailed information, visit the Qlima website at www.qlima.com or contact the Qlima contact center (T: +48 48 613 00 70). If you need service or information or have problems with the appliance, you can visit www.qlima.com or contact Qlima customer service (T: +45 77 34 33 30). ⑤u For additional information, visit the company's website at www.qlima.si or call the telephone number (T: +386 (0)41 674 139).

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : QLIMA

Model : R8128SC2

Category : Cooker
