Notice QLIMA SRE9046C-2 - page 20
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Portable Liquid Fuel Heater (Kerosene/Paraffin)
Brand Qlima
Model SRE9046C-2
Heating Capacity (Max) 4.65 kW
Suitable Room Volume 75 - 190 m³
Fuel Type High-quality water-free pure paraffin oil (Class C1 in UK)
Fuel Consumption (Max) 0.485 l/hr (388 g/hr)
Burning Time per Tank (Max) 18 hours
Removable Tank Capacity 9 liters
Weight 12.1 kg
Dimensions (W x D x H) 466 x 349 x 445 mm
Power Supply 230 V ~ 50 Hz
Electrical Consumption (Ignition/Continuous) 428 W / 88-175 W
Ignition Electronic (ON/OFF button, no matches needed)
Control Type Digital display with touch buttons (Mode, Timer, Temperature, Child Lock, SAVE, 3H OFF)
Temperature Setting Range 5°C to 26°C
Timer Programmable on/off timer (set activation time)
Child Safety Lock Yes, press and hold CHILDLOCK key for 3 seconds
SAVE Function (Economy Mode) Auto on/off when room temperature exceeds set temp by 3°C
3H OFF Function Automatic shut-off after 3 hours
Automatic Deactivation After 56 hours of continuous operation
Safety Features Overheat protection, shock sensor, air quality monitor (CO2), fuel indicator, flame monitoring
Fuel Filter Yes, cleanable (tap gently, do not wash with water)
Ventilator Filter Yes, clean regularly
Accessories Included Manual fuel pump, transportation cap
Warranty 48 months (manufacturer's warranty on materials and workmanship)

Frequently Asked Questions - SRE9046C-2 QLIMA

What type of fuel should I use in my Qlima SRE9046C-2 heater?
Use only high-quality, water-free pure paraffin oil, such as Qlima Premium Quality Fuels. In the UK, use Class C1 paraffin fuel according to BS2869 Part 2. Using incorrect fuel can cause incomplete combustion, smoke, and damage not covered by warranty.
How do I fill the fuel tank?

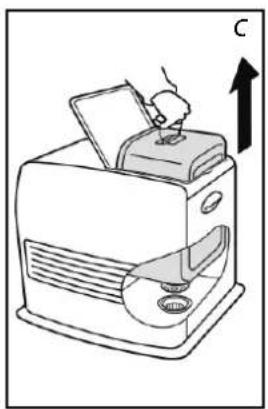

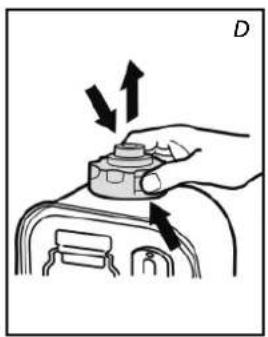

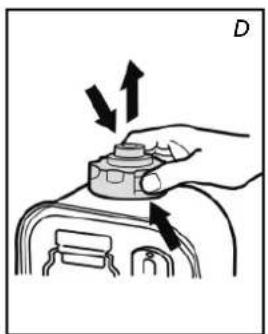

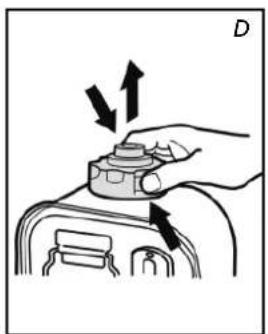

Switch off the heater. Open the tank compartment lid, lift out the removable tank. Remove the metal cap and fill using a manual fuel pump (supplied) until the gauge shows full. Do not overfill. Replace cap, reinstall tank with cap down, and close lid. Always fill in a well-ventilated area away from the heater.
What do the error codes on the display mean?
Common codes: E01 (earthquake/shock), E02/E03 (ignition fault or water/dirt in fuel), E07 (ambient temperature too high), Filter/E09 (blocked ventilator), E13 (closed space), E17 (high CO2). Refer to the manual for specific actions. Generally, ventilate, clean filters, and press ON/OFF to reset.
How do I clean the fuel filter?
Remove the removable tank, then remove the fuel filter (Fig. S). Tap it upside down against a hard surface to remove dirt. Never clean with water. Reinstall the filter. Perform this regularly to ensure proper ignition and burning.
Can I leave the heater on overnight?
It is not recommended. The heater has an automatic shut-off after 56 hours of continuous operation. However, for safety, always switch off before sleeping or leaving the room. Ensure adequate ventilation and keep flammable materials at least 1.5 m away.
Why does the heater produce a smell when first used?
A slight smell is normal when the protective lacquer heats up for the first time. It should dissipate quickly. Provide extra ventilation during initial use. If the smell persists or is unusual, check for fuel spills or incorrect fuel.
What is the SAVE function and how does it work?
The SAVE function is an economy mode. When activated, the heater automatically switches off if the room temperature exceeds the set temperature by 3°C, and switches back on when it drops to the set temperature. Use it to save fuel when you are not in the room or to maintain frost-free conditions.
How do I set the timer to automatically turn on the heater?
Ensure the clock is set (Section C). With the heater off, press the MODE key until 'Timer' and 'Set' appear. Use the ▲/▼ buttons to set the desired on-time, then press the ON/OFF button (the indicator lights up). Finally, press the TIMER button (17) to activate. The heater will turn on at the set time.
What safety features does the heater have?
The heater includes: automatic shut-off after 56 hours, shock sensor (E01), overheat protection (Filter/E09), air quality monitor (E17), low fuel indicator with 80-minute burn-down, child lock, and a flame inspection window. Always follow the safety instructions in the manual.
Can I use an extension cord?
No. Do not use extension cords or multi-socket adapters. Plug the heater directly into a wall socket (230 V ~ 50 Hz) that is accessible at all times. Damaged cords must be replaced by an authorized service center.

User questions about SRE9046C-2 QLIMA

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Cooker in PDF format for free! Find your manual SRE9046C-2 - QLIMA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SRE9046C-2 by QLIMA.

USER MANUAL SRE9046C-2 QLIMA

natural_image Front view of a modern air conditioner unit with digital display and control buttons (no visible text or symbols)

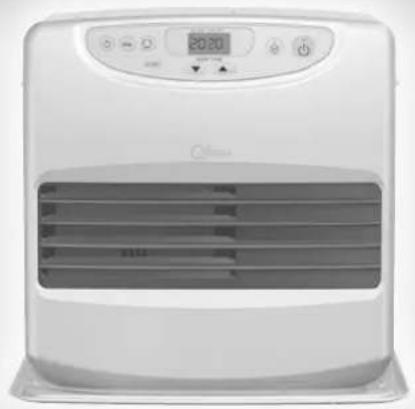

QLIMA SRE9046C-2 - 1

natural_image Front view of a white electric heating appliance with digital display and control buttons (no visible text or symbols)

QLIMA SRE9046C-2 - 2

natural_image White Qilita air fryer with digital display and control buttons (no visible text or symbols on device body)

© This product is not suitable for primary heating purposes

Distributed in Europe by:

PVG Holding B.V.

P.O.Box 96, 5340 AB OSS

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Do not move the heater when it is burning or still hot. Do not refill nor service the heater when it is burning or still hot.

- Position the front of the heater at a distance of minimum 1.5 metres from walls, curtains, and furniture.

- Do not use the heater in dusty rooms or places with strong draughts. In either situation you will not have optimum burning. Do not use the heater in the immediate surrounding of a bath, a shower or a swimmingpool.

- Switch off the heater, before you leave or go to sleep. Unplug the heater as well, when you go away for a longer period of time (e.g. holidays).

- Store and move fuel only in suitable tanks and jerrycans.

• Make sure that the fuel is not exposed to heat or extreme temperature changes. Always store the fuel in a cool, dry and dark place (sunlight will affect the quality).

- Never use the heater in places where harmful gasses or fumes may be present (e.g. exhaust gasses or paint fumes).

- Beware that the grid of the heater becomes hot. If the appliance is covered there is a risk of fire.

• Always make sure that there is sufficient ventilation.

• This appliance can be used by children aged

from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.

DANGER

  • Do not immerse the appliance in water and do not let water run into it.
  • Never open the appliance to prevent electric shock.

WARNING

  • The installation must be completely in accordance with local regulations, ordinances and standards.
  • Check if the voltage indicated on the type plate corresponds to the local mains voltage before you connect the appliance.
  • The appliance is suitable for mains voltages ranging from \~230 V.
  • If the mains cord is damaged, you must have it replaced by an authorized service centre or similarly qualified persons in order to avoid a hazard.
    • Always return the appliance to an authorized service centre for examination or repair.
  • Repair by unqualified people could cause an extremely hazardous situation for the user.
  • Do not attempt to repair the appliance yourself, otherwise your guarantee becomes invalid.
  • Keep the mains cord away from hot surfaces.
    • Children should be supervised to ensure that

they do not play with the appliance.

• The plug must be accessible at all times.
- Do not insert objects into the openings of the device.
- The device must not be located immediately below a socket outlet.
- In order to avoid overheating, do not cover the device.
- Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
- The heater is to be installed so that switches and other controls cannot be touched by a person in the bath or shower.
• Children of less than 3 years should be kept away unless continuously supervised.
- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
- CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

CAUTION

- Switch off the appliance and disconnect it from the mains immediately if it produces a strange smell or an abnormal noise. Take the appliance to an authorized service centre.

- Switch off the appliance and unplug it accord-

ing to the user instructions before you move or clean it.

• Make sure the appliance and the mains cord are always out of reach of babies (at least one metre away).

- Do not use the appliance if not IPX4 protection class (see type plate) in damp places or close to water. Only IPX4 class appliances are suitable for these circumstances.

- Do not use the appliance in places where the humidity level exceeds 95%.

- Do not expose the appliance to extreme heat or cold or to direct sunlight.

- Do not use the appliance outdoors.

- Never tilt or move the appliance while it is operating.

- Do not use any extension cords or multi-socket adapters.

• Always take the plug out of the socket when the device is not in use.

> 1m > 15 cm > 15 cm > 15 cm > 1m

① CONSIGLI PER UN USO SICURO

LE COMBUSTIBLE APPROPRIÉ

natural_image Illustration of a cardboard box with an open lid and a separate package (no text or symbols)

QLIMA SRE9046C-2 - LE COMBUSTIBLE APPROPRIÉ - 1

natural_image Line drawing of a portable air conditioner unit with ventilation slots and cooling fins (no text or symbols)

QLIMA SRE9046C-2 - LE COMBUSTIBLE APPROPRIÉ - 2

natural_image Line drawing of a printer with a hand inserting a paper into it, showing internal components and an upward arrow (no text or symbols)

QLIMA SRE9046C-2 - LE COMBUSTIBLE APPROPRIÉ - 3

natural_image Illustration of a hand adjusting a mechanical component with arrows indicating motion (no text or symbols)

QLIMA SRE9046C-2 - LE COMBUSTIBLE APPROPRIÉ - 4

natural_image Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

MANUEL D'UTILISATION

QLIMA SRE9046C-2 - MANUEL D'UTILISATION - 1

A INSTALLATION DE L'APPAREIL

C REGLAGE DE L'HEURE

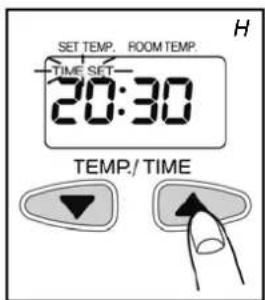

F PROGRAMMATION DE L'HEURE DESIREE (TIMER)

natural_image Simple line drawing of a finger pressing a key on a circular button (no text or symbols)

VERROUILLAGE DE SECURITE ENFANTS

natural_image Illustration of a computer tower with a hand inserting a cable into the front panel (no text or symbols visible)
natural_image Diagram of a mechanical device with internal components and an arrow indicating motion (no text or symbols)

L CONTRÔLE D'ATMOSPHÈRE

natural_image Cross-sectional diagram of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols)
natural_image Illustration of a hand using a tool to clean or prepare a device with a container and small cup nearby (no text or symbols)

N ENTREPOSAGE (FIN DE LA SAISON)

CONDITIONS DE GARANTIE

natural_image Illustration of a cardboard box with an open lid and a stack of plastic sheets (no text or symbols)

QLIMA SRE9046C-2 - CONDITIONS DE GARANTIE - 1

natural_image Line drawing of a portable air conditioner unit with ventilation slots and cooling fins (no text or symbols)

QLIMA SRE9046C-2 - CONDITIONS DE GARANTIE - 2

natural_image Line drawing of a printer with a hand inserting a paper into the top box, showing an upward arrow (no text or symbols)

QLIMA SRE9046C-2 - CONDITIONS DE GARANTIE - 3

natural_image Illustration of a hand adjusting a mechanical component with arrows indicating motion (no text or symbols)

QLIMA SRE9046C-2 - CONDITIONS DE GARANTIE - 4

natural_image Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

GEBRAUCHSANWEISUNG

QLIMA SRE9046C-2 - GEBRAUCHSANWEISUNG - 1

A DIE INSTALLATION DES KAMINOFENS

C ZEITEINSTELLUNG

SET TEMP ROOM TEMP. 22 15

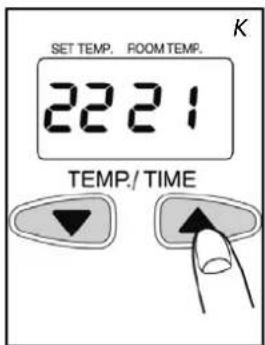

SET TEMP. ROOMTEMP. 22.21 K TEMP./TIME

natural_image Simple line drawing of a finger pressing a keyhole (no text or symbols)

KINDERSICHERUNG

natural_image Illustration of a computer tower with a hand inserting a cable into the front panel (no text or symbols visible)

Brennstofffilter
QLIMA SRE9046C-2 - KINDERSICHERUNG - 1

K DIE BRENNSTOFFANZEIGE „OIL“

natural_image Cross-sectional diagram of a mechanical device with internal components and an arrow indicating motion (no text or symbols)
natural_image Diagram of a mechanical device with a handle and arrow indicating direction (no text or symbols)

QLIMA SRE9046C-2 - K DIE BRENNSTOFFANZEIGE „OIL“ - 1

QLIMA SRE9046C-2 - K DIE BRENNSTOFFANZEIGE „OIL“ - 2

natural_image Illustration of a hand using a tool to clean or operate a device with a battery and cup nearby (no text or symbols)
natural_image Illustration of a cardboard box with an open lid and a stack of plastic sheets (no text or symbols)

QLIMA SRE9046C-2 - K DIE BRENNSTOFFANZEIGE „OIL“ - 3

natural_image Line drawing of a mechanical device with internal components and labeled section B (no text or symbols on the device itself)

QLIMA SRE9046C-2 - K DIE BRENNSTOFFANZEIGE „OIL“ - 4

natural_image Line drawing of a printer with a hand inserting a paper into the top box, showing mechanical components and an upward arrow (no text or symbols)

QLIMA SRE9046C-2 - K DIE BRENNSTOFFANZEIGE „OIL“ - 5

natural_image Illustration of a hand adjusting a mechanical component with arrows indicating motion (no text or symbols)

QLIMA SRE9046C-2 - K DIE BRENNSTOFFANZEIGE „OIL“ - 6

natural_image Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

VEJLEDNING

QLIMA SRE9046C-2 - VEJLEDNING - 1

A INSTALLATION AF KAMINEN

SET TEM. FROM TEM. 12:00 TIMER SET L

F BRUG AF TIMEREN

natural_image Illustration of a finger pressing a button with a checkmark (no text or symbols)

QLIMA SRE9046C-2 - F BRUG AF TIMEREN - 1

natural_image Simple line drawing of a finger pressing a key on a circular button (no text or symbols)

B∅RNESIKRING

natural_image Illustration of a computer tower with a hand inserting a cable into the front panel (no text or symbols visible)

K 'OIL'-INDIKATOREN

natural_image Cross-sectional diagram of a mechanical device with internal components and an arrow indicating motion (no text or symbols)

QLIMA SRE9046C-2 - K 'OIL'-INDIKATOREN - 1

natural_image Diagram of a mechanical device with a hand pressing down on a component, labeled 'T' (no text or symbols present)
natural_image Illustration of a hand using a tool to clean or wash a container, with another container nearby and a small cup nearby (no text or symbols)

N OPBEVARING (SLUT PÅ FYRINGSSÆSONEN)

natural_image Illustration of a cardboard box with an open lid and a stack of plastic sheets (no text or symbols)

QLIMA SRE9046C-2 - N OPBEVARING (SLUT PÅ FYRINGSSÆSONEN) - 1

natural_image Line drawing of a portable air conditioner unit with ventilation slots and cooling fins (no text or symbols)

QLIMA SRE9046C-2 - N OPBEVARING (SLUT PÅ FYRINGSSÆSONEN) - 2

natural_image Line drawing of a printer with a hand inserting a paper into the top box, showing mechanical components and an upward arrow (no text or symbols)

QLIMA SRE9046C-2 - N OPBEVARING (SLUT PÅ FYRINGSSÆSONEN) - 3

natural_image Illustration of a hand adjusting a mechanical component with arrows indicating motion (no text or symbols)

QLIMA SRE9046C-2 - N OPBEVARING (SLUT PÅ FYRINGSSÆSONEN) - 4

natural_image Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

MANUAL

QLIMA SRE9046C-2 - MANUAL - 1

A INSTALACION DE LA ESTUFA

C AJUSTE DE HORA

SET TEMP. ROOM TEM. TIMER SET 12:00

natural_image Simple line drawing of a finger pressing a keyhole (no text or symbols)

P OIL

QLIMA SRE9046C-2 - C AJUSTE DE HORA - 3

QLIMA SRE9046C-2 - C AJUSTE DE HORA - 4

natural_image Illustration of a computer tower with a hand inserting a cable into the front panel (no text or symbols visible)

QLIMA SRE9046C-2 - C AJUSTE DE HORA - 5

natural_image Cross-sectional diagram of a mechanical device with internal components and an arrow indicating direction (no text or symbols)
natural_image Cross-sectional diagram of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols)

J USO CORRECTO DE LA FUNCION 'SAVE'

natural_image Illustration of a hand using a tool to clean or wash a machine, with no visible text or symbols.

O TRANSPORTE

natural_image Illustration of a box with an open lid and a pair of plastic sheets, showing internal components (no text or symbols)

QLIMA SRE9046C-2 - O TRANSPORTE - 1

natural_image Line drawing of a portable air conditioner unit with ventilation slots and cooling fins (no text or symbols)

QLIMA SRE9046C-2 - O TRANSPORTE - 2

natural_image Line drawing of a printer with a hand inserting a paper into the top box, showing internal components and an upward arrow (no text or symbols)

QLIMA SRE9046C-2 - O TRANSPORTE - 3

natural_image Illustration of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

QLIMA SRE9046C-2 - O TRANSPORTE - 4

natural_image Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

KÄYTTÖÖHJEET

QLIMA SRE9046C-2 - KÄYTTÖÖHJEET - 1

A LÄMMITTIMEN ASENTAMINEN

SET TEMP. ROOM TEMP. TIME SET 20:30 TEMP./ TIME

SET TEMP. ROOM TEM. TIMER SET 12:00 L

F AJASTIMEN KÄYTTÄMINEN

natural_image Simple line drawing of a finger pressing a button with a checkmark (no text or symbols)

QLIMA SRE9046C-2 - F AJASTIMEN KÄYTTÄMINEN - 1

natural_image Simple line drawing of a finger pressing a key on a circular button (no text or symbols)

LAPSITURVALUKKO

J 'SAVE'-TOIMINNON OIKEA KÄYTTÖ

K ÖLJYN MERKKIVALO

natural_image Illustration of a computer tower with a hand inserting a cable into the front panel (no text or symbols visible)
natural_image Technical diagram of a mechanical device with internal components and an arrow indicating motion (no text or symbols)

M KUNNOSSAPITO

natural_image Diagram of a mechanical device with a handle and arrow indicating direction (no text or symbols)

QLIMA SRE9046C-2 - M KUNNOSSAPITO - 1

natural_image Illustration of a kitchen appliance with a hand holding a tool, accompanied by a water dispenser and small bowl (no text or symbols)

N VARASTOINTI (LÄMMITYSKAUDEN PÄÄTTYESSÄ)

natural_image Line drawing of an open box with a bag, a plastic sheet, and a small inset image (no text or symbols)

QLIMA SRE9046C-2 - N VARASTOINTI (LÄMMITYSKAUDEN PÄÄTTYESSÄ) - 1

natural_image Line drawing of a portable air conditioner unit with ventilation grilles and cooling fans (no text or symbols)

QLIMA SRE9046C-2 - N VARASTOINTI (LÄMMITYSKAUDEN PÄÄTTYESSÄ) - 2

natural_image Line drawing of a portable device with a hand inserting a card into the top panel, showing internal components and a label 'C' (no text or symbols on the device itself)

QLIMA SRE9046C-2 - N VARASTOINTI (LÄMMITYSKAUDEN PÄÄTTYESSÄ) - 3

natural_image Diagram of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

QLIMA SRE9046C-2 - N VARASTOINTI (LÄMMITYSKAUDEN PÄÄTTYESSÄ) - 4

natural_image Diagram of a water safety device with a recycling symbol and connected tubing (no text or labels)

ΕΓΧΕΙΡΙΔΙΟ

SET TEM. ROOM TEM. TIME SET 12:00 G

C PYOMIESH THΣ ΩΡΑΣ

Set the time to use the heater as a clock or if using the timer. You can even set the time when the heater is on.

SET TEMP. ROOM TEMP. TIME SET 20:30 TEMP./ TIME

QLIMA SRE9046C-2 - C PYOMIESH THΣ ΩΡΑΣ - 2

D ENAYΣH THΣ ΘΕΡΜΑΣΤΡΑΣ

SET TEMP. ROOMTEMP. 22.21 K TEMP./ TIME

QLIMA SRE9046C-2 - D ENAYΣH THΣ ΘΕΡΜΑΣΤΡΑΣ - 2

F XPHSH TOY XRONODIAKOPTH

natural_image Hand holding a circular button with a black dot and 'N' label, no text or symbols on the button itself
natural_image Simple line drawing of a finger pressing a key on a circular button (no text or symbols)

Φίλτρο καυσίμο

natural_image Illustration of a hand using a pipette to clean water from a bottle, with another small container nearby (no text or symbols)

QLIMA SRE9046C-2 - F XPHSH TOY XRONODIAKOPTH - 1

Πώμα μεταφοράς

Congratulations with your purchase of a portable domestic heater. You have purchased a quality product, which will serve you for many years to come. This, of course, provided you use the heater correctly. Please read these Directions for Use first, to ensure maximum lifetime for your heater.

Your heater comes with a 48-month manufacturer's warranty on all defects in materials or workmanship.

We wish you a warm and comfortable time with your heater.

Yours sincerely,

PVG Holding b.v.

Customer Service Department

1 READ THE DIRECTIONS FOR USE FIRST.

2 IN CASE OF ANY DOUBT, CONTACT YOUR DEALER.

GENERAL DIRECTIONS FOR USE

Below you will find the main steps to be taken for using your heater. For more details, please refer to the MANUAL (pages 114 ff.).

1 Remove all packaging materials (refer to Section A, Fig. A).
2 Fill the removable tank ④ (refer to Section B, Fig. C-F).
3 Insert the plug into the wall-socket.
4 Ignite the heater using the ON-OFF key (refer to Section D).
5 If required, change the temperature using the adjustment keys ④6 (refer to Section E).
6 Switch off the heater by pressing the ON-OFF key

As a fire precaution, the tank must be filled either when the heater has been switched off or in another room than the room where the heater is installed.

  • The first time the heater is ignited it will smell like "new" for a short time.
  • Store all fuel containers with their original caps and seals in a cool and dark place.
  • Fuel ages. Use new fuel at the start of every heating season.
  • The use of Qlima Premium Quality Fuels as a heating fuel assures you that you have a good quality fuel.
  • Before changing brands and/or types of fuel make sure that the mobile heater first completely empties all of the remaining fuel inside the heater.

QLIMA SRE9046C-2 - GENERAL DIRECTIONS FOR USE - 1

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new once, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge.

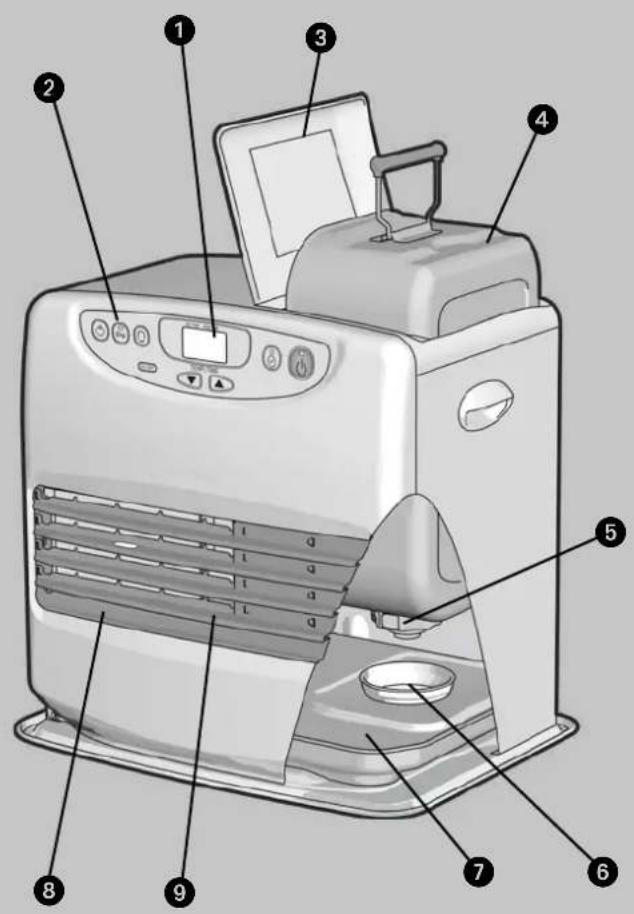

MAIN COMPONENTS

① Information display
② Operating keys
③ Tank compartment lid
④ Removable tank
⑤ Metal cap
6 Fuel filter
⑦ Fixed tank
⑧ Flame inspection window
9 Hot air grille
⑩ Air supply
⑪ Safety bracket
12 Filter ventilator
13 Plug
14 Connecting lead
⑮ Child safety catch key
16 Green timer indicator
17 Timer key
18 Mode key
19 Key to set temperature/time
⑳ On/off key (red indicator on)
SAVE key
3H OFF function

WHAT YOU NEED TO KNOW IN ADVANCE

VENTILATE SUFFICIENTLY

This heater is equipped with an air quality control system. When there is insufficient ventilation in the room or when the heater is being used in a room which is too small, the heater will shut off automatically. For comfortable and safe heating ensure that there is sufficient ventilation.

Note: To avoid unexpected shut off, we recommend to put a door or window ajar when the heater is operating.

Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards. This product is intended to be used as a heater in residential houses and is only suitable for use in dry locations, in normal household conditions, indoors in living room, kitchen and garage.

Regardless of the model, you must always make sure that the heater is used in a room large enough to enable the heater to be used safely without extra ventilation. If the room is smaller than required, you must always open a door or window slightly (ensuring an opening of approx. 2.5 cm). It is important that every room where the heater is used has sufficient air intake and efficient air outflow (both openings must have a minimum cross section of 50 cm^2 ). No modifications to the safety system are allowed, as that will invalidate the guarantee that the air probe will work properly. Consult your dealer in case of doubt.

Especially for France: Your heater was designed to operate exclusively on fuel for liquid fuel-operated mobile heaters in accordance with the Decrees of 18-07-2002 and 25-06-2010. The use of other fuels is forbidden.

Ask your dealer or check our website for the addresses of our retailers.

The liquid fuel-operated mobile heater is intended as an extra heater, and not as a continuous source of heat.

Especially for United Kingdom: Only use Class C1 paraffin fuel in accordance with BS2869; Part 2, or equivalent.

The user must comply with the following instructions for proper use:

DO NOT

  • use the liquid fuel-operated mobile heater in caravans, boats, and vehicle cabins;
  • use the liquid fuel-operated mobile heater in insufficiently ventilated rooms (consult the table of properties for the minimum dimensions of the room to be heated), underground rooms and / or at a height of over 1000 metres;
  • modify the heater safety features.

The use of this type of heating in public rooms is subject to prior regulatory permission. Obtain proper information on this in advance.

QLIMA SRE9046C-2 - DO NOT - 1
Only the use of the correct fuel will ensure safe, efficient, and comfortable use of your heater.

QLIMA SRE9046C-2 - DO NOT - 2
This transportation cap is packed separately in the box. Only this cap ensures trouble-free transportation of the heater after use. Store it well!

THE RIGHT FUEL

Your heater has been designed for use with high-quality water-free pure paraffin oil, such as Qlima Premium Quality Fuels. Only fuels of this kind will ensure clean and proper burning. Lower quality fuel may result in:

▶ increased possibility of malfunctioning

▶ incomplete combustion

▶ reduced heater lifetime

▶ smoke and/or fumes

▶ deposits on the grid or mantle

Using the right fuel is therefore essential for safe, efficient, and comfortable use of your heater.

Damage and/or malfunctions of the heater due to the use of other than high-quality water-free pure parafine oil is not covered by the warranty.

Always refer to your local dealer for the right fuel for your heater.

QLIMA SRE9046C-2 - THE RIGHT FUEL - 1

natural_image Illustration of a cardboard box with an open lid and a stack of plastic sheets (no text or symbols)

QLIMA SRE9046C-2 - THE RIGHT FUEL - 2

natural_image Line drawing of a portable air conditioner unit with ventilation slots and cooling fins (no text or symbols)

QLIMA SRE9046C-2 - THE RIGHT FUEL - 3

natural_image Line drawing of a printer with a paper feeding into a tray, showing mechanical components and an upward arrow (no text or symbols)

QLIMA SRE9046C-2 - THE RIGHT FUEL - 4

natural_image Illustration of a hand adjusting a mechanical component with arrows indicating motion (no text or symbols)

QLIMA SRE9046C-2 - THE RIGHT FUEL - 5

natural_image Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

MANUAL

QLIMA SRE9046C-2 - MANUAL - 1

A INSTALLING THE HEATER

1 Carefully remove your heater from the box and check the contents. In addition to the heater you also need to have:

▶ a manual fuel pump
▶ a transportation cap
▶ these directions for use

Keep the box and the packaging materials (Fig. A) for storage and/or transportation.

2 Open the lid of the tank compartment ③ and remove the piece of cardboard.
3 Fill the removable tank as indicated in Section B.

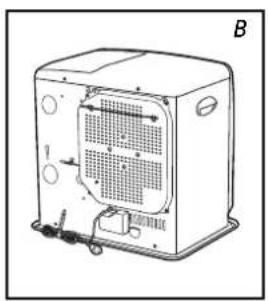

4 The floor should be firm and completely level. Reposition the heater, when it is not level. Do not try to correct the situation by placing books or other goods under the heater.
5 Use the horizontal safety bracket ⑪ to prevent the curtains from covering the ventilator (Fig. B.).
6 Insert the plug 13 into the wall-socket (230 Volts - AC / 50 Hz) and set the correct time using the adjustment keys 19 (refer to Section C).
7 Your heater is now ready for use.

B FILLING FUEL

Fill the removable tank in a suitable place since there can always be some spillage. Follow the procedure below:

1 Make sure that the heater is switched off.
2 Open the upper lid and lift the removable tank out of the heater (Fig. C). Note: Some drops may leak from the tank. Put down the removable tank (cap pointing upwards, handle on floor and take off the fuel cap.

3 Remove the metal cap. Easy to open by holding the outside (fig. D.).

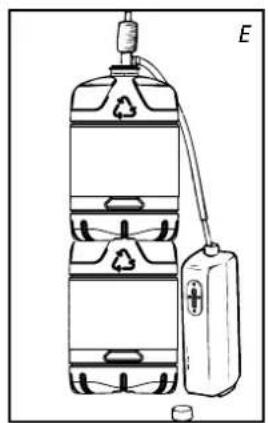

4 Fill the removable tank using a fuel pump (refer to fuel pump operation instructions.) Make sure that it is in a higher position than the removable tank (Fig. E). Insert the ribbed hose into the opening of the removable tank.

5 Check the removable tank fuel gauge while filling the tank (Fig. F). Stop filling once the gauge indicates that the tank is full. Never overfill the tank, especially not when the fuel is very cold (fuel expands when it heats up).

6 Let the remaining fuel in the pump flow back into the jerrycan and carefully

F - F - F empty full

remove the pump. Carefully reposition the fuel cap back on the tank. Clean off any spilled fuel.

7 Check whether the fuel cap is straight and tightened properly. Reinstall the removable tank in the heater (cap down). Close the lid.

QLIMA SRE9046C-2 - B FILLING FUEL - 2

- Do not move the heater after reinstalling the tank.

- Take care not to damage the cap while filling the tank. Deformation of the cap can lead to fuel leakage.

8 Turn the heater on again.

C SETTING THE TIME

Set the time to use the heater as a clock or if using the timer. You can even set the time when the heater is on.

SET TEMP. ROOM TEMP. TIME SET 12:00 G

1 Press the mode key to set the time (fig. G). Time set and the time flash on the display.

SET TEMP. ROOM TEMP. TIME SET 20:30 TEMP./ TIME

2 Press the buttons (▼) or (▲) to set the time. The time displays the numbers 00:00 to 23:59. Press the (▲) button to go forwards and the (▼) button to go backwards. The time will change in one minute steps each time you press one of these 2 buttons. The time on the display will change in ten minute steps if you keep the button pressed (fig. H.).

3 Press the mode key again to activate the timer function. See chapter F.

4 Press the mode keys to display the time (fig. 1.). If the time is not set, the display indicates --:--.

SET TEMP ROOM TEMP. TIME 20:30

QLIMA SRE9046C-2 - C SETTING THE TIME - 4

The time must be set again after a power cut or if the plug has been removed from the socket.

D IGNITING THE HEATER

When used for the first time, a new heater may give out a smell for a short while. You should therefore provide extra ventilation.

SET TEMPLEROOM TEMPLE 22 15

QLIMA SRE9046C-2 - D IGNITING THE HEATER - 2

Always ignite the heater with the ON / OFF button ⚙. Never use matches or a cigarette lighter.

1 Press the ON / OFF button

The ignition indicator will light up: the required temperature and the ambient temperature are displayed (fig. J.). The ambient temperature is displayed from 1°C. If the temperature is below 0°C, Lo is displayed. Ignition takes about 45 seconds.

2 Normal combustion:

• The flames are blue

• The burner grille can become red

SET TEMP. ROOM TEMP. 22 21 K TEMP./ TIME

Abnormal combustion:

- The flame is yellow and blue In this case take appropriate measures.

This heater cannot be switched on continuously for more than 56 hours. After 56 hours it stops automatically, even if the tank has been refilled within this period.

E SETTING THE REQUIRED TEMPERATURE

If the heater is on, the required temperature can be changed using the adjustment buttons (fig. K). To increase the temperature, press the ▲ button. To decrease the temperature, press the ▼ button. Each time you press the adjustment button the temperature changes by 1°C. The temperature can be set to a minimum of 5°C and a maximum of 26°C.

SETTEMP. ROOM TEMP. TIMER SET 12:00

QLIMA SRE9046C-2 - E SETTING THE REQUIRED TEMPERATURE - 2

- If the heater is used in a small space, in a well-insulated space or if the outside temperature is relatively high, the ambient temperature can become higher than the required temperature. In this case, turn the heater off. - The displayed temperature is the mean ambient temperature. This temperature may not correspond with that indicated by a thermometer.

SETTEMP. ROOM TEMP. -TIMER SET- 6:30 TEMP./ TIME

F USING THE TIMER

The timer allows you to switch on the heater automatically at a preset time. In order to switch on the timer, the correct time must have been set (refer to Section C) and the heater should be off. Follow the procedure below:

1 Check that the time is set properly (see chapter C).
2 Press the mode button 19 (fig. L) until Timer and Set appear in the display.
3 Press the (▼) or (▲) buttons 19 to set the required activation time for the heater. Press the (▲) button to go forwards and the (▼) button to go backwards. The time will change in one minute steps each time you press one of these 2 buttons. The time on the display will change in ten minute steps if you keep the button pressed (fig. M).

4 Press the ON/OFF buttons 📋 to turn the heater on (the indicator will light up). It is not necessary to press this button if the heater is on.

5 Press the timer button ⑰. The indicator goes out. The time indicator will light up and the timer is set.

QLIMA SRE9046C-2 - F USING THE TIMER - 1

Take care not to press the ON / OFF button 📂 again after setting the timer, this will reset the timer.

6 The heater turns on at the time chosen.

QLIMA SRE9046C-2 - F USING THE TIMER - 2

  • To cancel the timer, press the ON / OFF button (the timer indicator goes out).
  • Set the timer and the clock again after a power cut.
  • In case of an earthquake, or shocks, code E01 will appear in the display. Reset the error and repeat from point 4 to set the timer again.

3H OFF FUNCTION

When the heater is working and button 3H/OFF is pushed, the heater will switch off automatically after three hours of operation (after pushing the button). During the countdown period this setting can be de-activated by pushing the button again. In the display the status of this function is shown.

G TURNING THE HEATER OFF

1 Press the ON / OFF button. The red lamp flashes for about 8 seconds and the heater is turned off. Always check that the flame goes out.

QLIMA SRE9046C-2 - G TURNING THE HEATER OFF - 1

The ventilator continues operating for about 3 minutes after turning off in order to cool the inside of the heater. If you turn off the power earlier, uncontrolled symptoms can occur (release of smoke, smell etc.).

H IN CASE OF PROBLEMS

The symptoms mentioned above are not faults and not abnormal.

Check the list.

Symptoms Causes
While ignitingIgniting is tediousIgniting takes about 45 seconds. After filling the tank, wait till the fuel has reached the fixed tank. Repeat ignition 2 or 3 times.
Crackling soundThis sound is made by the electric ignition.
White smokeThis can happen if the fuel does not circulate past the burner properly
During ignition or turning offSmoke and an unpleasant smell during first useThat is the protective lacquer getting warm. This soon stops. Give the space more ventilation.
The ambient temperature does not increase and the requested temperature is higher.The space is too large.
The flame glows red.The ambient air is damp or salty or it contains too many impurities.
The ambient temperature does not decrease and the requested temperature is lower.The heater is being used in a small insulated space or the outside temperature is relatively high. Turn the heater off.
The displayed ambient temperature is not the same as indicated by a thermometer.This is because the displayed ambient temperature is an indication of the average temperature of the space.
Small knocking noises when the heater is in operation or immediately after turning off.This is the sound of the metal expanding.
Noise 8 seconds after turning off.A ticking sound: can occur when the heater cools off.

THE INFORMATION DISPLAY

The information display ① not only serves as an indicator of the (set) time and temperature (sections C, E, and F), it also indicates any malfunctioning of the heater. The code on the information display tells you what is the matter:

Code InformationAction
Time----The heater has been automatically turned off by a power cut or bad connection.Restore power or restore the connection. Press the ON / OFF key 📄 again.
E01An earthquake (magnitude 5 or more), strong vibrations or a shock will ensure that the heater automatically turns off. (The safety system against shocks has worked).Make sure there are no combustible materials around the heater, or fuel leakages. Press the ON / OFF key 📄 again.
E02E03The heater has been automatically turned off after a fault or during ignition or due to the presence of water or dust in the fuel filter or in the fixed tank.Remove the water and the dust in the fixed tank. Clean the fuel filter (see chapter M).Press the ON / OFF button 📄 again.
E07An increase in ambient temperature has turned the heater off. (The temperature monitoring system has worked).Ventilate the space. Let the heater cool off. Press the ON / OFF button 📄 again.
FilterE09The heater has been automatically turned off because the hot air stream, the ventilator or the ventilator filter is blocked or hindered by something. (The safety system against overheating has worked).Remove obstacles from the ventilator opening. Clean the ventilator filter (see chapter M) Press the ON/OFF button 📄 again. If the problem occurs again after taking the above measures, contact your dealer.
E13The heater has been turned off in a closed space. (The safety system against incomplete combustion has worked).Ventilate the space and press the ON / OFF button 📄 again.Ensure the space is sufficiently ventilated.
E17The heater has been turned off due to an increased CO2 concentration. (The system for air quality monitoring has worked).Ventilate the space and set the ON / OFF button 📄 again.Ensure the space is sufficiently ventilated.
The ON indicator flashes. Err lights upThe heater has automatically stopped because the ON / OFF button was kept pressed in or was blocked.Remove obstacles around the buttons of the display panel.Press the ON/OFF button 📄 again.
F00 – F30Poor functioning. Heater needs maintenanceNote the messages displayed and turn the heater off. Contact your dealer.
Symptoms Causes Measures to be taken
Heater doesn't igniteThe child safety catch lights upTurn the child safety catch off
The fuel indicator lamp doesn't workThe tank is empty Fill the tank
The tank is deformed Replace the tank
Dirt particles dust or water on the filter and / or in the fixed tankClean the fixed tank and the fuel filter.
Power lossThe fuel indicator flashes
The fuel indicator flashes Fill the tank
A poor quality fuel has been used.Remove the fuel from the two tanks, then rinse with the correct fuel.
Abnormal combustionA poor quality fuel has been used.
Poor ventilation Ventilate regularly
Dust on the ventilator filter Clean the ventilator filter
Unpleasant smellsA poor quality fuel has been usedRemove the fuel from the two tanks, then rinse with the correct fuel.
No fuel in the tank Fill the tank
Fuel leakage or spilled fuelDo not use any more and contact your dealer
Fuel leakageMove the heater, the tank is not empty
A poor quality fuel has been used.

AUTOMATIC DEACTIVATION

This heater is fitted with a safety system that ensures that it switches off automatically after 56 hours continuous operation. If desired, you can switch the heater on again by pressing the ON/OFF button (see section D).

CHILDPROOF LOCK

The childproof lock can be used to prevent children accidentally changing the heater settings. When the heater is burning and the childproof lock is on, the heater can only be switched off. Other functions are blocked then. If the heater has already been switched off, the childproof lock also prevents accidental ignition of the heater. Activate the childproof lock by pressing the CHILDLOCK key 15 and holding it down for more than 3 seconds. The childlock indicator will appear on the information display (Fig. O), indicating that the childproof lock has been activated. Switch off the childproof lock by pressing the CHILDLOCK key 15 and holding it down for more than 3 seconds once again.

J THE CORRECT USE OF 'SAVE'

The 'SAVE' function allows you to limit the temperature. When this function is activated, the heater will automatically switch off, when the room temperature exceeds the set temperature by 3°C. Subsequently, when the room temperature has dropped again to the set temperature, the heater will automatically switch on again. Activate the 'SAVE' setting by pressing the appropriate key. The SAVE indicator light will light up. Switch off the function by pressing the SAVE key once again.

QLIMA SRE9046C-2 - J THE CORRECT USE OF 'SAVE' - 1

natural_image Simple line drawing of a finger pressing a keyhole (no text or symbols)

P SET TEMP. ROOM TEMP. E03 Q R

Fuel filter
QLIMA SRE9046C-2 - J THE CORRECT USE OF 'SAVE' - 3

S T

QLIMA SRE9046C-2 - J THE CORRECT USE OF 'SAVE' - 5

Without the 'SAVE' setting your heater will maintain the set temperature by approximation as well, by adjusting its heating capacity. 'SAVE' is an economy setting, which you can use when, for instance, you are not present in the room or to keep it frost-free.

K THE 'OIL' INDICATOR

If the low fuel level indicator lights up in combination with a short tone, then the fuel tank is empty. The heater will automatically burn at its lowest setting for a period of about 80 minutes. The fuel tank must be replenished.

▶ remove the removable tank from the heater and fill it with new fuel (outside the living space in a safe place) (see chapter B)

If you take no action, the fuel tank will be emptied and the display will indicate "E 03" (fig. Q). The heater is automatically turned off.

To ignite the heater once more, fill the tank and wait a few minutes.

Then press the ON / OFF button 📄.

L CHECKING THE AIR QUALITY

If the space is insufficiently ventilated, the indicator E17 will light up and the heater is automatically turned off. As soon as you hear this signal, ventilate the space (e.g. by opening a door or a window). As soon as the space has been ventilated sufficiently, (e.g. by opening a door or a window) the heater can be ignited by pressing the ON/OFF button.

M MAINTENANCE

Switch off the heater and let it cool down, before you start any maintenance work. Also disconnect the plug from the mains. Your heater needs hardly any maintenance.

1 Clean the ventilator filter (fig. R).

Clean the fuel filter:

1 Remove the removable tank ④ from the heater and remove the fuel filter (Fig. S). Some drops may leak from the filter; keep a cloth at hand.
2 Remove the dirt by tapping the fuel filter upside-down against a hard surface. (Never clean it with water!)
3 Reinstall the fuel filter into the heater.

QLIMA SRE9046C-2 - Clean the fuel filter: - 1

natural_image Diagram of a mechanical device with a handle and internal components, no visible text or symbols

QLIMA SRE9046C-2 - Clean the fuel filter: - 2

We recommend that you remove dust and stains from time to time with a damp cloth, because otherwise these may cause stains that are hard to remove.

QLIMA SRE9046C-2 - Clean the fuel filter: - 3

Do not use solvents or alcohol to clean the heater: fire hazard. Clean very dirty components with a light synthetic cleaning agent.

QLIMA SRE9046C-2 - Clean the fuel filter: - 4

Do not remove any heater components yourself. Always contact your dealer for repairs.

QLIMA SRE9046C-2 - Clean the fuel filter: - 5

When the power cord is damaged, it may only be replaced by an authorised fitter. Use a new cord of the type H05 VV-F.

QLIMA SRE9046C-2 - Clean the fuel filter: - 6

natural_image Illustration of a hand using a pipette to clean water from a container (no text or symbols visible)

Transport cap
QLIMA SRE9046C-2 - Clean the fuel filter: - 7

N STORAGE (END OF THE HEATING SEASON)

At the end of the heating season, you must store the heater in a dust-free place, if possible in its original packaging. Unused fuel cannot be used in the next heating season. We therefore recommend that you burn up all fuel. If there is still some fuel left, do not throw it away, but dispose of it in accordance with the local regulations for the disposal of domestic chemical waste.

Always start the new heating season with fresh fuel. When you start re-using the heater follow the instructions again (starting from section A and as specified).

O TRANSPORTATION

Take the following measures to avoid fuel leakage during the transportation of the heater:

1 Let the heater cool down.
2 Remove the removable tank ④ from the heater and remove the fuel filter. Some drops may leak from the filter; keep a cloth at hand. Store the fuel filter and the removable tank outside the heater.
3 Empty the fixed fuel tank (fig. U).
4 Place the transport cap.
5 Always move the heater in an upright position.

QLIMA SRE9046C-2 - O TRANSPORTATION - 1

Make the fixed tank empty with a fuel pump before transportation or in case of wrong or dirty fuel. First remove the fuel filter and then insert the fuel pump into the empty fixed tank. Follow the same procedure if the fuel tank contains water.

P

SPECIFICATIONS

SRE 5035 C-2 SRE 8040 C SRE 9046 C-2
Ignition electrical
Fuel paraffin
Capacity (kW)* 1.28 - 3.50 1.28 - 4.00.28 - 4.65
Suitable space (m3)** 54 - 140 65 - 17075 - 190
Fuel consumption (l/hr)* 0.365 0.416 0.485
Fuel consumption (g/hr)* 292 333 388
Burning time per tank (hr)* 24 21 18
Capacity removable tank (litres) 9
Weight (kg)12.1
Dimensions (mm) (including base plate)width 466
depth 349
height 445
Accessoriestransportation cap, manual fuel pump
Mains230V - AC 50 Hz
Electrical consumption:IgniterContinuous428W88-147W88-162W88-175W
Monitoring of the quality of ventilation (air renewal): Direct measurement of the CO2 level (NDIR CO2-sensor).

* At maximum setting ** Specified values are indicative

The CE marking corresponds with the compliance with the standards EN 60-335 part 1 (1995) and EN 50-165 (08/97)

Q

WARRANTY PROVISIONS

Your heater comes with a 48-month warranty starting on the date of purchase. Within this period all defects in material or workmanship will be repaired without any charge. Transportation costs and the risks involved during the transportation of the heater or heater components shall always be at the expense of the purchaser. The following provisions shall apply regarding this warranty:

1 We expressly dismiss all other claims for damages, including consequential damages.
2 Any repairs or replacements of components within the term of warranty will not result in an extension of the term of warranty.
3 The warranty shall no longer apply, when the heater has been modified, non-original parts have been used, or when it is repaired by third parties.
4 The warranty shall not apply to parts that are subject to normal wear, such as the manual fuel pump.
5 The warranty shall only apply, when you present the original, dated proof of purchase, provided no changes have been made to it.
6 The warranty shall not apply to damages caused by actions not in compliance with the Directions for Use, neglect, and the use of an incorrect type of fuel, or fuel past its use-by date. The use of incorrect fuel can even be dangerous*.

In order to avoid unnecessary costs, we recommend that you always read the 'Directions for Use' carefully first. In case they offer no solution, please take the heater to your dealer for repair.

* Highly inflammable substances may induce uncontrollable burning, causing flames to break out. Should this happen, never try to move the heater, but always switch off the heater immediately. In case of emergency you may use a fire extinguisher, but only a type B extinguisher: a carbon dioxide or powder extinguisher.

Egregio Signore, Gentile Signora,

natural_image Illustration of a cardboard box with an open lid and a stack of plastic sheets (no text or symbols)

QLIMA SRE9046C-2 - WARRANTY PROVISIONS - 1

natural_image Line drawing of a portable air conditioner unit with ventilation slots and cooling fins (no text or symbols)

QLIMA SRE9046C-2 - WARRANTY PROVISIONS - 2

natural_image Line drawing of a printer with a hand inserting a paper into the top box, showing mechanical components and an upward arrow (no text or symbols)

QLIMA SRE9046C-2 - WARRANTY PROVISIONS - 3

natural_image Illustration of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

QLIMA SRE9046C-2 - WARRANTY PROVISIONS - 4

natural_image Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

ISTRUZIONI D'USO

SET TEMP. ROOM TEMP. TIME SET 12:00

QLIMA SRE9046C-2 - ISTRUZIONI D'USO - 2

D ACCENSIONE DELLA STUFA

SET TEMP. ROOM TEMP. TIMER SET 12:00

F USO DEL TIMER

natural_image Illustration of a finger pressing a button with a checkmark (no text or symbols)

QLIMA SRE9046C-2 - F USO DEL TIMER - 1

natural_image Simple line drawing of a finger pressing a key on a circular button (no text or symbols)

DISPOSITIVO DI SICUREZZA

QLIMA SRE9046C-2 - DISPOSITIVO DI SICUREZZA - 1
Filtro del combustibile

S T

natural_image Illustration of a hand using a tool to clean or operate a device with a water bottle and cup nearby (no text or symbols)

QLIMA SRE9046C-2 - DISPOSITIVO DI SICUREZZA - 3

natural_image Line drawing of a box with an open lid, showing three different views: top view (no text or symbols)

QLIMA SRE9046C-2 - DISPOSITIVO DI SICUREZZA - 4

natural_image Line drawing of a portable air conditioner unit with ventilation slots and cooling fins (no text or symbols)

QLIMA SRE9046C-2 - DISPOSITIVO DI SICUREZZA - 5

natural_image Line drawing of a printer with a hand inserting a paper into the top box, showing mechanical components and an upward arrow (no text or symbols)

QLIMA SRE9046C-2 - DISPOSITIVO DI SICUREZZA - 6

natural_image Illustration of a hand adjusting a mechanical component with arrows indicating motion (no text or symbols)

QLIMA SRE9046C-2 - DISPOSITIVO DI SICUREZZA - 7

natural_image Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

HÅNDBOK

QLIMA SRE9046C-2 - HÅNDBOK - 1

A INSTALLERE OVNEN

C ANGI TIDEN

Angi tiden for å bruke varmeovnen som en klokke eller hvis timeren brukes. Du kan også angi tiden när varmeovnen er på.

F BRUKE TIMEREN

Ved hjelp av timeren kan varmeovnen slås på automatisk på et forhåndsinnstilt tidspunkt. For å kunne aktivere timeren må du ha stilt tiden riktig (se avsnitt C) og varmeovnen må være slått av. Følg fremgangsmåten nedenfor:

SETTEMP. ROOM TEMP. -TIMER SET- 6:30 TEMP./TIME M

natural_image Illustration of a finger pressing a button with a checkmark (no text or symbols)

QLIMA SRE9046C-2 - F BRUKE TIMEREN - 2

natural_image Simple line drawing of a finger pressing a keyhole (no text or symbols)

K "OLJE" INDIKATOREN

natural_image Illustration of a hand using a tool to clean or operate a device with a container and a small cup nearby (no text or symbols)

Transportlokket
QLIMA SRE9046C-2 - K "OLJE" INDIKATOREN - 1

WAT U VOORAF MOET WETEN

ALTIJD VOLDOENDE VENTILEREN

natural_image Illustration of a cardboard box with an open lid and a stack of plastic sheets (no text or symbols)

QLIMA SRE9046C-2 - ALTIJD VOLDOENDE VENTILEREN - 1

natural_image Line drawing of a mechanical device with internal components and labeled section B (no text or symbols on the device itself)

QLIMA SRE9046C-2 - ALTIJD VOLDOENDE VENTILEREN - 2

natural_image Line drawing of a printer with a hand inserting a paper into the top box, showing mechanical components and an upward arrow (no text or symbols)

QLIMA SRE9046C-2 - ALTIJD VOLDOENDE VENTILEREN - 3

natural_image Illustration of a hand adjusting a mechanical component with arrows indicating motion (no text or symbols)

QLIMA SRE9046C-2 - ALTIJD VOLDOENDE VENTILEREN - 4

natural_image Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

HANDLEIDING

QLIMA SRE9046C-2 - HANDLEIDING - 1

A HET INSTALLEREN VAN DE KACHEL

C INSTELLEN VAN DE TIJD

SET TEMP. ROOM TEMP. TIME 20:30

SET TEMPLEROOM TEMPLE 22:15

SET TEMP. ROOMTEMP. 22.21 K TEMP./TIME

F HET BENUTTEN VAN DE TIMER

natural_image Simple line drawing of a finger pressing a keyhole (no text or symbols)

HET KINDERSLOT

J HET JUISTE GEBRUIK VAN 'SAVE'

natural_image Cross-sectional diagram of a mechanical device with internal components and directional arrows (no text or symbols)

M ONDERHOUD

natural_image Cross-sectional diagram of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols)
natural_image Illustration of a hand using a tool to clean or wash liquid from a water dispenser (no text or symbols)

QLIMA SRE9046C-2 - M ONDERHOUD - 1

natural_image Illustration of a cardboard box with an open lid and a stack of plastic sheets (no text or symbols)

QLIMA SRE9046C-2 - M ONDERHOUD - 2

natural_image Line drawing of a mechanical device with internal components and labeled section B (no text or symbols on the device itself)

QLIMA SRE9046C-2 - M ONDERHOUD - 3

natural_image Line drawing of a printer with a hand inserting a paper into the top box, showing mechanical components and an upward arrow (no text or symbols)

QLIMA SRE9046C-2 - M ONDERHOUD - 4

natural_image Illustration of a hand adjusting a mechanical component with arrows indicating motion (no text or symbols)

QLIMA SRE9046C-2 - M ONDERHOUD - 5

natural_image Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

MANUAL DE INSTRUÇÕES

SET TEMP. ROOM TEMP. TIME SET 12:00 G

C CONFIGURAR O TEMPO

SET TEMP. ROOM TEMP. TIME 20:30

SET TEMP. ROOM TEMP. TIMER SET 12:00

natural_image Simple line drawing of a finger pressing a keyhole (no text or symbols)

K O INDICADOR DE ÓLEO (OIL)

natural_image Illustration of a hand using a tool to clean or operate a water dispenser with a bottle and cup nearby (no text or symbols)

QLIMA SRE9046C-2 - K O INDICADOR DE ÓLEO (OIL) - 1

Tampa para transporte

ZAPEWNIĆ ODPOWIEDNIA WENTYLACJE,

natural_image Line drawing of an open box with a bag, a plastic sheet, and a pair of eyeglasses (no text or symbols)

QLIMA SRE9046C-2 - ZAPEWNIĆ ODPOWIEDNIA WENTYLACJE, - 1

natural_image Line drawing of a portable air conditioner unit with ventilation slots and cooling fins (no text or symbols)

QLIMA SRE9046C-2 - ZAPEWNIĆ ODPOWIEDNIA WENTYLACJE, - 2

natural_image Line drawing of a hand using a device to press or install a component, with an upward arrow indicating motion (no text or symbols)

QLIMA SRE9046C-2 - ZAPEWNIĆ ODPOWIEDNIA WENTYLACJE, - 3

natural_image Diagram of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

QLIMA SRE9046C-2 - ZAPEWNIĆ ODPOWIEDNIA WENTYLACJE, - 4

natural_image Diagram of a water safety device with a plastic bag and recycling symbol, no text or labels present

INSTRUKCJA OBSŁUGI

QLIMA SRE9046C-2 - INSTRUKCJA OBSŁUGI - 1

A INSTALACJA GRZEJNIKA

SET TEMP. ROOMTEMP. 22 21 TEMP./TIME K

QLIMA SRE9046C-2 - A INSTALACJA GRZEJNIKA - 2

natural_image Simple line drawing of a finger pressing a button with a 'N' label (no text or symbols on the diagram itself)

QLIMA SRE9046C-2 - A INSTALACJA GRZEJNIKA - 3

natural_image Simple line drawing of a finger pressing a key on a circular button (no text or symbols)
natural_image Illustration of a computer tower with a hand inserting a screwdriver into the front panel (no text or symbols)

K WSKAŹNIK „OIL”

natural_image Cross-sectional diagram of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

QLIMA SRE9046C-2 - K WSKAŹNIK „OIL” - 1

natural_image Diagram of a mechanical device with a handle and internal components, no visible text or symbols
natural_image Illustration of a hand using a tool to clean or wash a container, with a small container nearby (no text or symbols)

N PRZECHOWYWANIE (KONIEC SEZONU GRZEWCZEGO)

SE ALLTID TILL ATT DET FINNS TILLRÄCKLIG VENTILATION

natural_image Illustration of a cardboard box with an open lid and a stack of plastic sheets (no text or symbols)

QLIMA SRE9046C-2 - SE ALLTID TILL ATT DET FINNS TILLRÄCKLIG VENTILATION - 1

natural_image Line drawing of a portable air conditioner unit with ventilation slots and cooling fins (no text or symbols)

QLIMA SRE9046C-2 - SE ALLTID TILL ATT DET FINNS TILLRÄCKLIG VENTILATION - 2

natural_image Line drawing of a printer with a hand inserting a paper into the cover, showing an upward arrow (no text or symbols)

QLIMA SRE9046C-2 - SE ALLTID TILL ATT DET FINNS TILLRÄCKLIG VENTILATION - 3

natural_image Illustration of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

QLIMA SRE9046C-2 - SE ALLTID TILL ATT DET FINNS TILLRÄCKLIG VENTILATION - 4

natural_image Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

MANUAL

QLIMA SRE9046C-2 - MANUAL - 1

A INSTALLERA VÄRMAREN

SET TEMP. ROOM TEMP. TIME SET 20:30 TEMP./ TIME

SET TEMP. ROOM TEMP. TIME 20:30

SET TEMP. ROOM TEMP. TIMER SET 12:00 L

QLIMA SRE9046C-2 - A INSTALLERA VÄRMAREN - 4

natural_image Illustration of a finger pressing a button with a checkmark (no text or symbols)

QLIMA SRE9046C-2 - A INSTALLERA VÄRMAREN - 5

natural_image Simple line drawing of a finger pressing a keyhole (no text or symbols)

K OLJEINDIKATORN

natural_image Cross-sectional diagram of a mechanical device with internal components and an arrow indicating direction (no text or symbols)
natural_image Cross-sectional diagram of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols)

QLIMA SRE9046C-2 - K OLJEINDIKATORN - 1

QLIMA SRE9046C-2 - K OLJEINDIKATORN - 2

natural_image Illustration of a hand using a tool to clean or wash a container, with a small container nearby (no text or symbols)

Transportlocket

QLIMA SRE9046C-2 - K OLJEINDIKATORN - 3

natural_image Line drawing of a plastic bottle with a recycling symbol on top (no text or labels)
natural_image Illustration of a box with an open lid, a folded paper sheet, and a pair of eyeglasses (no text or symbols)

QLIMA SRE9046C-2 - K OLJEINDIKATORN - 4

natural_image Line drawing of a portable air conditioner unit with ventilation slots and cooling fins (no text or symbols)

QLIMA SRE9046C-2 - K OLJEINDIKATORN - 5

natural_image Line drawing of a hand operating a device with an arrow indicating upward motion (no text or symbols)

QLIMA SRE9046C-2 - K OLJEINDIKATORN - 6

natural_image Illustration of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

QLIMA SRE9046C-2 - K OLJEINDIKATORN - 7

natural_image Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

QLIMA SRE9046C-2 - NAVODILA ZA UPORABO - 1

A A PRIPRAVA PEČI NA DELOVANJE

SET TEMP. ROOM TEM. TIMER SET 12:00

F UPORABA TIMERJA

natural_image Hand holding a finger to press a circular button with a black dot and 'N' label (no text or symbols on the button itself)

QLIMA SRE9046C-2 - F UPORABA TIMERJA - 1

natural_image Simple diagram of a light bulb with rays, labeled 'P' (no text or symbols on the bulb itself)

QLIMA SRE9046C-2 - F UPORABA TIMERJA - 2

QLIMA SRE9046C-2 - F UPORABA TIMERJA - 3

natural_image Illustration of a computer tower with a hand inserting a cable into the front panel (no text or symbols visible)

Filter za gorivo
QLIMA SRE9046C-2 - F UPORABA TIMERJA - 4

QLIMA SRE9046C-2 - F UPORABA TIMERJA - 5

natural_image Cross-sectional diagram of a mechanical device with internal components and an arrow indicating motion (no text or symbols)

QLIMA SRE9046C-2 - F UPORABA TIMERJA - 6

natural_image Diagram of a mechanical device inside a bell jar with a downward arrow indicating force or movement (no text or symbols)

QLIMA SRE9046C-2 - F UPORABA TIMERJA - 7

K PRIKAZOVALNIK GORIVA

L NADZOR KAKOVOSTI ZRAKA

natural_image Illustration of a hand using a tool to clean or wash a machine, with a water bottle and small cup nearby (no text or symbols)

QLIMA SRE9046C-2 - L NADZOR KAKOVOSTI ZRAKA - 1
Pokrovček za prevoz

N SHRANJEVANJE (PO KONČANI GRELNI SEZONI)

Clima
Marque - Make - Make - Marca - Brand - Marcho Merk - Marca - Marka - Marke - Blagova zanma
F. DE - DK - ES - FN - IT NL - PT - PL - SE - SL
Model - Model - Model - Model - Modelo
Case, Effect to Engrigeule Energy Efficientness Index Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency ClassEnergy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class Energy Efficiency Class EnergyEfficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy EfficiencyClassification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency ClassificationEnergy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification EnergyEfficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiencyclassification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classificationenergy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiency classification energy efficiencyclassification energy efficiency classification energy efficiencyclassification energy efficiency classification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassificationenergy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy efficiencyclassification energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency Classification Energy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergyEfficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy EfficiencyClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEconomy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Attendance ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classification energies Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergy Efficiency classificationEnergyEfficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy EfficiencyclassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency Classificationenergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassification energiesensitivityclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergy efficiencyclassificationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergeefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEmergaffieingclassEmergaffieingclassEmergaffieingclassEmergaffieingclassEmergaffieingclassEmergaffieingclassEmergaffieingclassEmergaffieingclassEmergaffieingclassEmergaffieingclassEmergaffieingclassEmergaffieingclassEmergaffieingclassEmergaffieingclassEmergaffieingclassClimate, Effect, and EngrigeuleEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency Classification energiesensitivityclassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy Efficiency ClassificationEnergy EfficiencyClassificationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergefficientelast GenerationEnergeafficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencylassCEase, Effect, and EngrigeuleEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiencyClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency certificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency CertificationEnergyEfficiency identification energy efficiencyclassEnergyEfficiency identification energy efficiencyclassEnergyEfficiency identification energy efficiencyclassEnergyEfficiency identification energy efficiencyclassEnergyEfficiency identification energy efficiencyclassEnergyEfficiency identification energy efficiencyclassEnergyEfficiency identification energy efficiencyclassEnergyEfficiency identification energy efficiencyclassEnergyEfficiency identification energy efficiencyclassEnergyEfficiency identification energy efficiencyclassEnergyEfficiency identification energy efficiencyclassEnergyEfficiency identification energy efficiencyclassEnergyEfficiency identification energy efficiencyclassEnergyEfficiency identification energy efficiencyclassEnergyEfficiency identification energy efficiencyclassEnergyEffectivenessclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergerfficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassClimate, Effect, and EngrigeuleEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency ClassificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiency ClassificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiency classificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyClassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyclassificationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyvalidationEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiency UniversidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyabilidadEnergyEfficiencyinidadEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergeefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergefficiencyclassEnergeefficiencyclassElergefficiencyclassElergefficiencyclassElergefficiencyclassElergefficiencyclassElergefficiencyclassElergefficiencyclassElergefficiencyclassElergefficiencyclassElergefficiencyclassElergefficiencyclassElergefficiencyclassElergefficiencyclassElergefficiencyclassElergefficiencyclassElergefficiencyclassElergefficiencyclassElergefficiencyclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlessclassEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlasscEmissionlassccEmissionlassccEmissionlassccEmissionlassccEmissionlassccEmissionlassccEmissionlassccEmissionlassccEmissionlassccEmissionlassccEmissionlassccEmissionlassccEmissionlassccEmissionlassccEmissionlassccEmissionlassccEmissionlassccEmissionlassccEmissionlassccEmissionlassccE

QLIMA SRE9046C-2 - N SHRANJEVANJE (PO KONČANI GRELNI SEZONI) - 1

bar | Category | Value | |---|---| | Category 1 | 100 | | Category 2 | 100 | | Category 3 | 100 | | Category 4 | 100 | | Category 5 | 100 | | Category 6 | 100 | | Category 7 | 100 | | Category 8 | 100 | | Category 9 | 100 | | Category 10 | 100 | | Category 11 | 100 | | Category 12 | 100 | | Category 13 | 100 | | Category 14 | 100 | | Category 15 | 100 | | Category 16 | 100 | | Category 17 | 100 | | Category 18 | 100 | | Category 19 | 100 | | Category 20 | 100 | | Category 21 | 100 | | Category 22 | 100 | | Category 23 | 100 | | Category 24 | 100 | | Category 25 | 100 | | Category 26 | 100 | | Category 27 | 100 | | Category 28 | 100 | | Category 29 | 100 | | Category 30 | 100 | | Category 31 | 100 | | Category 32 | 100 | | Category 33 | 100 | | Category 34 | 100 | | Category 35 | 100 | | Category 36 | 100 | | Category 37 | 100 | | Category 38 | 100 | | Category 39 | 100 | | Category 40 | 100 | | Category 41 | 100 | | Category 42 | 100 | | Category 43 | 100 | | Category 44 | 100 | | Category 45 | 100 | | Category 46 | 100 | | Category 47 | 100 | | Category 48 | 100 | | Category 49 | 100 | | Category 50 | 100 | | Category 51 | 100 | | Category 52 | 100 | | Category 53 | 100 | | Category 54 | 100 | | Category 55 | 100 | | Category 56 | 100 | | Category 57 | 100 | | Category 58 | 100 | | Category 59 | 100 | | Category 60 | 100 | | Category 61 | 100 | | Category 62 | 100 | | Category 63 | 100 | | Category 64 | 100 | | Category 65 | 100 | | Category 66 | 100 | | Category 67 | 100 | | Category 68 | 100 | | Category 69 | 100 | | Category 70 | 100 | | Category 71 | 100 | | Category 72 | 100 | | Category 73 | 100 | | Category 74 | 100 | | Category 75 | 100 | | Category 76 | 100 | | Category 77 | 100 | | Category 78 | 100 | | Category 79 | 100 | | Category 80 | 100 | | Category 81 | 100 | | Category 82 | 100 | | Category 83 | 100 | | Category 84 | 100 | | Category 85 | 100 | | Category 86 | 100 | | Category 87 | 100 | | Category 88 | 100 | | Category 89 | 100 | | Category 90 | 100 | | Category 91 | 100 | | Category 92 | 100 | | Category 93 | 100 | | Category 94 | 100 | | Category 95 | 100 | | Category 96 | 100 | | Category 97 | 100 | | Category 98 | 100 | | Category 99 | 100 | | Total (Total) = [sum of bars] / [values] * sum of bars for each category. The values in the table represent the sum of bars for each category. There is no variation in the total value from the individual data. Values are estimated based on the provided data. The chart type is a single bar.

Labeled diagram of a toaster oven with numbered parts for identification

Labeled diagram of a microwave oven interior showing internal components and wiring

SET TEMP. ROOM TEMP. TIME SET TIMER SET 88:88 OIL 3H./OFF SAVING FILTER TEMP./ TIME 21 15 18 16 17 3H./OFF 19 3H.

Qlima www.Qlima.com

Distributed in Europe by PVG Holding B.V.

Benötigen Sie weitere Informationen oder treten Probleme auf, besuchen Sie bitte unsere Website www.qlima.com, oder setzen Sie sich mit unserem Kundendienst in Verbindung (Telefonnummer auf www.qlima.com).
For alle yderligere oplysninger eller ved eventuelle problemer med apparatet henvises til www.qlima.com eller det lokale Kundecenter (telefonnumre findes i www.qlima.com).
(ES) Si necesita información o si tiene algún problema, visite nuestra página Web www.qlima.com, o póngase en contacto con el servicio cliente (hallará el número de teléfono en www.qlima.com).
Si vous souhaitez obtenir des informations supplémentaires ou si vous rencontrez un problème, rendez-vous sur notre site Web (www.qlima.com) ou contactez notre service client (vous trouverez l'adresse et numéro de téléphone sur www.qlima.com).
FHN Jos haluat huoltoapua, lisätietoja tai laitteen kanssa tulee ongelmia, tutustu verkkosivustoon osoitteessa www.qlima.com tai kysy neuvoa PVG kuluttajapalvelukeskuksesta (www.qlima.com).
(68) If you need information or if you have a problem, please visit the our website (www.qlima.com) or contact our sales support (you find its phone number on www.qlima.com)
① Per informazioni e in caso di problemi, visitate il sito Web www.qlima.com oppure contattate il Centro Assistenza Clienti (per conoscere il numero di telefono, consultate www.qlima.com).
Hvis du trenger informasjon, eller hvis du har et problem med produktet, kan du gå til nettsidene www.qlima.com. Alternativt kan du kontakte med PVG' forbrukertjeneste (telefonnummeret i www.qlima.com).
NL Als u informatie nodig hebt of als u een probleem hebt, bezoek dan de onze website (www.qlima.com) of neem contact op met de afdeling sales support (adres en telefoon op www.qlima.com).
Se necessitar de informações ou se tiver problemas, visite o Web site www.qlima.com ou contacte o Centro de Assistência (número de telefone o www.qlima.com)
W przypadku problemów i w celu uzyskania szczegółowych informacji odwiedź stronę internetową Qlima dostępną pod adresem www.qlima.com lub skontaktuj się z Centrum kontaktów Qlima (www.qlima.com)
⑧ Om du behöver service eller information eller har problem med apparaten kan du besöka www.qlima.com eller kontakta Qlima kundtjänst (du hittar telefonnumret på www.qlima.com).
⑤⑥ Če želite dodatne informacije, obiščite spletno mesto podjetja na naslovu www.qlima.com ali pokličite na telefonsko (www.qlima.com).
TR Daha fazla bilgiye ihtiyaç duyarsanız veya bir sorunla karşılaşırsanız, www.qlima.com adresindeki Qlima Internet sitesini ziyaret edin veya ülkenizde bulunan Qlima müşteri merkeziyle iletişim kurun (telefon numarasını: www.qlima.com).

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : QLIMA

Model : SRE9046C-2

Category : Cooker
