Product Type	Electric Winch
Brand	Güde
Model	GSZ 100200
Motor Power	450 W
Supply Voltage	230 V / 50 Hz
Maximum Lifting Capacity (without pulley)	100 kg
Maximum Lifting Capacity (with pulley)	200 kg
Maximum Lifting Height (100 kg load)	11 m
Maximum Lifting Height (200 kg load)	5.5 m
Cable Length	12 m
Cable Diameter	3 mm
Protection Rating	IP54
Weight	12 kg
Cable Material	Steel
Control Type	Switch with emergency stop
Safety	Limit switches, thermal fuse
Included Accessories	Snatch pulley, 2 mounting brackets, 4 hex screws, instruction manual
Intended Use	Lifting rigid loads, domestic and leisure use
Maintenance	Clean with damp cloth, lubricate pulley bearing, check cable
Repairability	Repairs by qualified electrician
Spare Parts	Original steel cable available
Warranty	Material and manufacturing defects
Standards	CE, TÜV, GS

Frequently Asked Questions - GSZ 100200 Güde

What is the maximum lifting capacity of the GSZ 100200 winch?

The maximum lifting capacity is 100 kg without snatch pulley and 200 kg with snatch pulley.

Can this winch be used to lift people?

No, it is strictly forbidden to lift people or animals. This winch is designed only for rigid loads.

How to install the snatch pulley?

Insert the cable into the snatch pulley, assemble it and tighten the screws. Then attach the load hook into the hook bracket of the console.

What to do if the emergency stop is activated?

Press the red emergency stop button. To unlock, turn it a quarter turn clockwise.

How to maintain the steel cable?

Regularly check for cracks or fraying. Grease the cable once a month and replace it with an original cable if damaged.

What is the required supply voltage?

The winch operates on 230 V / 50 Hz and must be plugged into a socket protected by a residual current device (RCD).

Is the motor protected against overload?

Yes, the motor is equipped with a thermal fuse. In case of overheating, the winch stops; after cooling (about 5 minutes), it can be reused.

Can I use the winch continuously?

No, the winch is not designed for industrial or continuous use. Observe duty cycles and allow it to cool between uses.

How to replace the steel cable?

Replacement must be done with an original cable. Contact your dealer or authorized service. During assembly, do not forget the tension weight.

What accessories are supplied with the winch?

The package contains: 1 snatch pulley, 4 hex screws, 2 mounting brackets and the instruction manual.

USER MANUAL GSZ 100200 Güde

Translation of original Operating Instructions

ELECTRIC CABLE WINCH

Please read carefully the Operating Instructions

before using the electric winch

Français

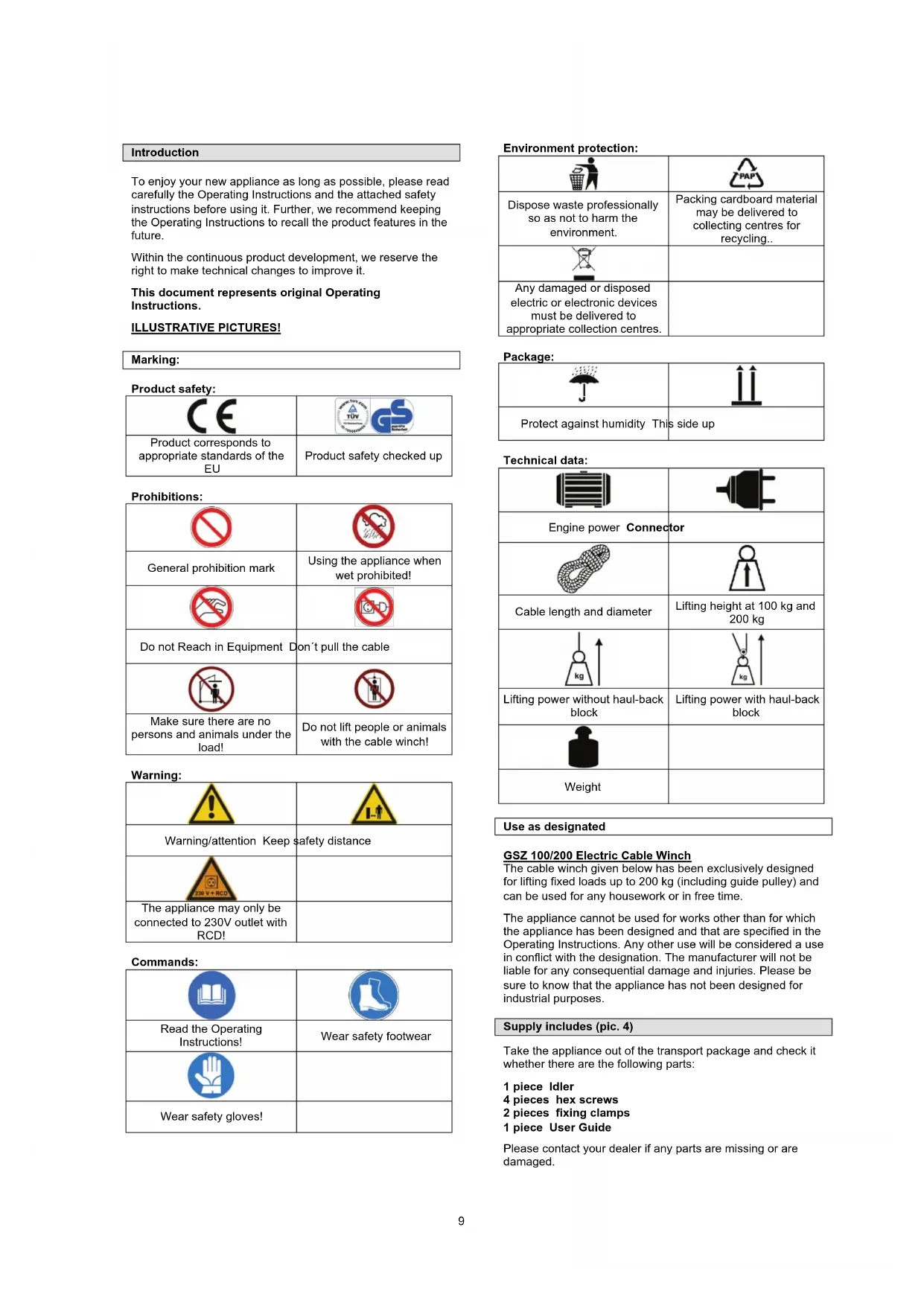

To enjoy your new appliance as long as possible, please read carefully the Operating Instructions and the attached safety instructions before using it. Further, we recommend keeping the Operating Instructions to recall the product features in the future.

Within the continuous product development, we reserve the right to make technical changes to improve it.

This document represents original Operating Instructions.

ILLUSTRATIVE PICTURES!

Marking:

Product safety:

CE	TUV GS
Product corresponds to appropriate standards of the EU	Product safety checked up

Prohibitions:

General prohibition mark	Using the appliance when wet prohibited!
Do not Reach in Equipment	Don't pull the cable
Make sure there are no persons and animals under the load!	Do not lift people or animals with the cable winch!

Warning:

!	L-1
Warning/attention Keep safety distance
230V RCD
The appliance may only be connected to 230V outlet with RCD!

Commands:

Read the Operating Instructions!	Wear safety footwear
Wear safety gloves!

Environment protection:

	PAP
Dispose waste professionally so as not to harm the environment.	Packing cardboard material may be delivered to collecting centres for recycling..
Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

Package:

J	IH
Protect against humidity This side up

Technical data:

Engine power Connector
Cable length and diameter	Lifting height at 100 kg and 200 kg
kg	kg
Lifting power without haul-back block	Lifting power with haul-back block
Weight

Use as designated

GSZ 100/200 Electric Cable Winch

The cable winch given below has been exclusively designed for lifting fixed loads up to 200kg (including guide pulley) and can be used for any housework or in free time.

The appliance cannot be used for works other than for which the appliance has been designed and that are specified in the Operating Instructions. Any other use will be considered a use in conflict with the designation. The manufacturer will not be liable for any consequential damage and injuries. Please be sure to know that the appliance has not been designed for industrial purposes.

Supply includes (pic. 4)

Take the appliance out of the transport package and check it whether there are the following parts:

1 piece Idler

4 pieces hex screws

2 pieces fixing clamps

1 piece User Guide

Please contact your dealer if any parts are missing or are damaged.

Appliance description (pic. 1 and 2)

a	Fixing	clamp
b	Hex	screw
c	Tension	clamp
d	Burden	hook
e	Limit switch for lifting
f	Engine
g	Switch	body
h	Controller
i	Safety	switch
j	Hook	holder
k	Cable	drum
l	Tension	weight
m	Steel	cable
n	Idler
o	Bracket
p	Limit switch for sinking

Warranty

The warranty exclusively applies to material or manufacturing defects. The original proof of purchase including the date of purchase must be submitted when applying XXX a claim in the warranty period.

The warranty does not cover any unauthorised use such as appliance overload, violent use, damage by a foreign person or an undesirable item. The failure to follow the Operating Instructions and assembly instructions and common wear and tear are also excluded from the warranty.

Important basic safety instructions

Before you start working with the appliance please read carefully the following safety regulations and Operating Instructions. If any other person is to handle the appliance provide him/her with the Operating Instructions. Keep the Operating Instructions for future reference!

Package: The appliance has been put in a package to prevent any damage during transport. Packages are raw materials so they can be reused or recycled.

Please read carefully the Operating Instructions and follow them. Use these Operating Instructions to get acquainted with the appliance, its corresponding use and safety instructions. Keep the Instructions for future reference.

• The cable reel can only be operated by persons who have thoroughly read and understood these Operating Instructions. The cable reel must not be operated by persons not sufficiently instructed or not in a good health state.
• Inspect the appliance visually before each use. Do not use the appliance if any safety device is damaged or worn out. Never remove any safety device.
• Use the appliance only for the purpose specified in these Operating Instructions.
• Be always careful when working. Watch your activity. Proceed carefully. Do not use the cable reel if you are not concentrated.
• Safety in the workplace is your responsibility.
• Never leave the appliance unattended.
• Put the appliance to a safe place if you need to interrupt your work.
• Do not use the appliance when raining or in a humid or wet environment
• Never spray water on the cable reel or submerge it to any liquid.
• Do not use electric tools near flammable liquids or gases.

• Do not switch the appliance on if turned over or not in the operating position.

• Keep the appliance out of reach of other persons, especially children and pets.

• Do not let other persons touch the appliance or cable.
  After you finish working with the appliance, pull the plug out of socket and check if the appliance is not damaged.
• If the appliance is not used store it to a dry place inaccessible to children.
• The system voltage must correspond to the voltage specified on the type label.
• Any repairs can only be executed by an electrician.
• Before putting the appliance into operation and after any impact check it for any wear-out or damage and have necessary repairs executed.
• Never use spare parts and accessories not recommended by the producer.
• Use the appliance only in broad daylight or under sufficient artificial lighting.
  Make sure no item causes short-circuit on appliance contacts.
• Lay all cables in a manner to prevent risk of trip and to eliminate cable damage!
• Wear protective clothing suitable for the given environment the whole time you work and take suitable preventive measures to prevent accidents.
• Do not use the cable for any other purpose than specified. Do not wear the cable by its cable and do not use the cable for pulling the plug out of socket. Protect the cable against excessive temperatures, oil and sharp edges.
• Be very careful of your appliance. Keep it clean so that working with it is fine and safe. Regularly check the plug and cable and have them repaired by an authorised specialist if damaged. Regularly check the extension cables and have any damaged cable replaced by a specialist.
• Extension cables to be used outdoors only. For outdoor work, use extension cables adequately marked and approved for that purpose (within 20m 1.5mm^2 20 - 50m 2.5mm^2)
  Unplug the appliance - before every cleaning - after each use
• Persons unable to operate the appliance due to their physical, sensory or mental abilities or their inexperience or lack of knowledge must not operate it.
• If the appliance, feeder cable or steel cable show any sign of visible damage the appliance must not be put into operation.
• If the feeder cable of the appliance is damaged it needs to be replaced by the producer or an electrician.
• Repairs of the appliance can only be executed by an electrician. There might be significant risks as a result of unauthorized repairs.
  The same regulations apply for accessories.

Güde GmbH & Co. KG does not answer for damages caused by:

• Appliance damage by mechanical influences and overloading.
• Any changes to the appliance.
• Use for any other purpose than that described in the Operating Instructions.
• Unconditionally follow all safety instructions to prevent accidents and damage.

Important safety instructions

• The cable winch must be checked before starting work if all components are working perfectly. In particular, check the perfect state of the snap hooks preventing any unintentional release of the lifting hook from slings (ropes, rings, transportation eyes, etc.).
• The cable reel can only be used for lifting of burdens whose weight does not exceed the maximum load capacity specified by the producer in technical data and on the type label of the cable reel.
• Burdens fixed in conflict with regulations that could fall down must not be lifted.

• Attach the load correctly.

• Lifted loads may only be lifted in a vertical position! Never pull and lift in an inclined position!

• No persons - except for the operator - may stay under the load or in the dangerous area. Keep the minimum distance of 10m from the lifted load.
• All lifting work is only allowed when appropriate fixing elements (cables, rings, transport loops, etc.) are used and when in accordance with appropriate provisions and standards valid in the workplace.
• The reel metal cable must not be used for burden fixing.
• Putting the cable reel into operation is only allowed with a perfectly balanced cable.
• The cable reel cannot be left unattended with burdens lifted up.
• The load capacity of bearing structures must be checked before you start working with the cable reel.
• Check the cables for any wear-out before you start working with the cable reel; if there are any signs of wear-out the cables need to be replaced with new ones whose characteristics must correspond to the maximum allowed load capacity of the cable reel. Cables only need to be replaced with original spare cables.
• If you face any problems with working of the cable reel please contact your authorised dealer and refrain from any improvisation work.
• The cable reel engine drive is not fitted with an engine protection circuit-breaker. The engine therefore cannot be overloaded when there are any problems with lifting; in such a case check whether the lifted burden does not exceed the allowed load capacity of the cable reel and whether the system voltage has not dropped.
• To be able to intervene in time in case of any imminent danger, the operating staff must operate the cable reel from a suitable place to control the entire workplace.
  Make sure the cable always reels up smoothly on the drum. pic. 5
• Make sure the cable reel cable is always twined around the drum at least thrice when working.
• The cable reel must not be changed anyhow; use only devices supplied with the cable reel for lifting.
• Use the lifting devices supplied with the cable reel only in a manner described in these Operating Instructions. Do not use these devices for any other appliance or purpose.
• Do not use an adhesive tape or any other tools for connecting the feeder cable to the extension cable.
• Make sure the electric characteristics of the network for cable reel connection correspond to the values specified on the engine type label.
• When an extension cable is used, make sure that the cable with the plug and socket correspond to the cable reel input.
  The steel cable needs to be checked for any damage each time you put it into operation. It is strictly prohibited to use the cable reel when the cable is damaged (pic. 3)
• Lifting of persons inadmissible.

• Disorder in the workplace can cause accidents.

• Protect against electric shock. Prevent your body from coming into contact with earthed parts.

• Check whether your appliance is not damaged. Carefully inspect safety devices if not faulty or working improperly before further use of the appliance. Check whether functions of movable parts are all right, whether not clogged or damaged. All parts must be installed correctly so that all appliance conditions were guaranteed. Any damaged protective device and part must be professionally repaired or replaced in a customer service centre unless provided otherwise in the Operating Instructions. Damaged switches must be replaced in a customer service centre. Do not use devices whose switches cannot be on or off.

The cable reel electric motor is protected with a thermal fuse. When the thermal fuse responses, the cable reel stops. The cable reel can be used again only after cooled down (app. 5 minutes).
Caution: The cable winch is not suitable for industrial or continuous operation and it may get switched off after several operating cycles. When used for industrial purposes, the appliance must be checked by an expert before being put into operation for the first time in accordance with the applicable operating safety regulations.
- Have any damaged part immediately replaced.
- Never take part in any repair (guarantee expiry and risk taking).
- Do not unnecessarily expose the cable reel to climatic influences, solar radiation, dust or low temperatures.
It is explicitly prohibited that persons stayed or walked under or in the immediate vicinity of the hung burdens.
- Your electric cable reel is fitted with a safety switch. Press the red safety switch in case of emergency!! If you want to release the safety switch blocking then turn it by quarter of a turn clockwise.
Attention:

The cable reel has a limit switch that stops the engine if the drum is just twined around thrice.

Inadmissible operation

The following manners of use are prohibited!

1. Lifting when cable is not hanging vertically.
2. Trying to lift burdens connected to earth.
3. Lifting of burdens hung outside of axis of gravity.
4. Swinging with the hung burden when trying to get the burden outside of the reel axis.
5. Burden lifting or sinking if there are any obstacles in the burden lifting or sinking path.
6. Leaving the reel with a hung burden unattended.
7. Operating the reel from a place where the entire burden is not in the visual field of the operating staff
8. Lifting of people

Lifting of burdens with a weight exceeding the maximum allowed load of the reel.

Using the cable reel in any other than faultless condition.

Continuous operation: Observe the cycles of operation specified by the producer to ensure proper engine work.

Using the lifting limit switch for common lifting process switch-off.

To eliminate abnormal cable unreeling from the drum, the hook and hook block must not touch the floor.

Burden lifting with a haul-back block

The limit switch does not work when the cable reel is operated with a haul-back block! Make sure the haulback block does not arrive to the cable reel nearer than 20~cm

1. Unscrew the haul-back block.
2. Put cable to the haul-back block.
3. Screw the haul-back block together again and tighten the screws.
4. Tie the lifted burden to the burden hook.

Disposal

The disposal instructions are based on icons placed on the appliance or its package. The description of the meanings can be found in the "Marking" section.

Transport package disposal

The package protects the appliance against damage during transport. Packing materials are usually chosen depending on their environmental friendliness and disposal method and can therefore be recycled. Returning the package to material circulation saves raw materials and reduces waste disposal costs. Parts of packages (e.g. foils, styropor®) can be dangerous to children. Risk of suffocation! Keep parts of packages away from children and dispose them as soon as possible.

Handling requirements

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification

Apart from the detailed instruction by a professional no special qualification is necessary for using the appliance.

Minimum age

Only persons over 16 years of age can work with the appliance. An exception includes youngsters if they work within their professional education the purpose of which is to obtain knowledge supervised by a trainer.

Training

Using the appliance only requires corresponding training by a professional or following of the Operating Instructions. No special training is necessary.

Technical data

Connector 230 Volt
Engine power 450 W
Max. lifting power with haul-back block	200 kg
Max. lifting power without haul-back block	100 kg
Max. lifting height at 100 kg 11 m
Max. lifting height at 200 kg 5,5 m
Cable diameter 3 mm
Cable length 12 m
Protection type IP 54
Weight 12 kg

Transport and storing

When storing, it is necessary that the appliance is put to a dry place, inaccessible to children and unauthorised persons.

Clean the appliance thoroughly before longer putting out of operation.

Assembly and preparation

Installation

• When unpacking your cable reel, make sure the supply includes all parts and check the state of the reel and accessories if not faulty. To ensure guarantee validity, any claim needs to be reported immediately after your product is supplied.
• Please read thoroughly the Operating Instructions supplied with the cable reel (this manual) and proceed exactly according to the specified information when installing the cable reel.
• The structural part the cable reel is to be fixed to must be able to bear at least the double value of the expected burden (consultation with an expert recommended).
• The cable reel is especially mounted to a steel tubular bail arm. The used steel tube must have a diameter of 43mm and its wall must be min. 3 mm thick.
• The bail arm must be firmly anchored in the wall. Anchoring must be stable to stand up to generated forces.
• Make sure the appliance is always fixed horizontally and never awry.
• If a haul-back block is used hang the burden hook (d) to the hook holder (j) and bracket (o).

Putting the electric cable reel into operation

Step 1

Make sure the system voltage corresponds to the voltage on the type label of the cable reel.

Step 2

Check the steel cable and all safety devices of the cable reel.

Step 3

Check whether the cable reel is installed properly and is able to hold the max. lifted burden.

Step 4

Secure the burden against turnover and swinging and check the supporting members.

Step 5

Lift the burden vertically and control it.

Electric cable reel is now ready for operation!

Residual risks and protective measures

Electric residual risks:

Threat Description Protective measure(s)
Direct electric contact	Electric shock	RCD
Indirect electric contact	Electric shock through medium	RCD

Other risks:

Threat	Description	Protective measure(s)
Thrown-away items or spraying liquids	Oil can squirt from the electric cable reel and cause serious injuries.	Always wear gloves and protective glasses.
Slipping, tripping or fall of persons	The feeder cable and appliance itself can become a cause of tripping.	Depending on the installation type, take appropriate countermeasures suitable installation place, installation place marking, etc.)

Maintenance and treatment

1. Attention - threat to life by electric shock! Disconnect the appliance before each cleaning and treatment. Attention - risk of appliance damage! Never clean the appliance under running water or rinse water. Do not use aggressive cleaning means or hard items for cleaning as they could damage the appliance. Occasionally wipe the appliance with a moist cloth.
2. Regularly check the steel cable (m) in its entire length for any damage and whether the limit switch (e) is not faulty (lift the reel up until the tension weight (l) activates the tension clamp (c)).
3. If the steel cable (m) is damaged (broken or tattered, see pic. 3) then replace it with an original spare cable. When installing the cable, you must not in any case forget the tension weight (l) so that safe tension in the end position was ensured.
4. Regularly grease the haul-back block bearing (n) with little oil.
5. When the appliance is switched off check the mobility of all mechanical construction parts of the reel.
6. A specialist must check the appliance at least once a year. The test result needs to be recorded in the Check Book.
7. Clean the steel cable and grease it with oil once a month.

EU Declaration of Conformity

We,

Güde GmbH & Co. KG

Birkichstraße 6

74549 Wolpertshausen

Germany

hereby declare the conception and construction of the below-mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.

Marking of appliances: GSZ 100/200 electric cable reel

Order No.: 55050

Appropriate EU Directives:

2006/42EG

2004/108EG

Harmonised standards used:

EN 14492-2: 2006

EN 60204-32:1998

ZEK01.2-08/12.08

EN 55014-1:2006

EN 61000-3-3:1995+A1+A2

EN 61000-3-2:2006

EN 55014-2:1997+A1

EN 55014-1:1993+A1+A2

EN 55014-2: 1997

EN 61000-3-2: 1995+A1+A2

EN 61000-3-3: 1995

Certification place:

TUV Rheinland Product Safety GmbH - Am Grauen Stein

D-51105 Köln

Date/producer signature: 04.10.2011

Signed by: Mr Arnold, Managing Director

Technical Documentation: J. Burkle; FBL, QS

Check List

Dear Customer

To prevent injuries and any material damage, the cable reel operator is obliged to keep the appliance in a working and proper state. The following Check List should be used as a basis for regular checks at intervals determined by the operator and also as documentation. Any detected faults must be promptly removed in an authorised service centre.

Cable reel Check List/Check Book

Date

Date

Date

Steel cable:

Check of wires

Inspection of steel cable - break point

Check of steel cable - twisting point

Pressing check

YES

□

NO

□

□

□

YES

□

□

□

□

NO

□

□

□

□

YES

1

□

□

□

□

□

一

□

□

□

□

□

NO

□

□

□

□

□

□

□

□

□

Cable:

Feeder cable check

Check of cable with switches

□

□

□

□

□

□

□

□

□

□

□

□

□

Control part:

Switch cover check

□

□

□

□

□

□

□

Check of buttons

Fan guard:

Fan guard without impurities

□

□

□

□

□

□

□

□
□
□
□

Brake:

Brake check

□

□

□

□

□

Fixing screws:

Check of screws

□

□

□

□

□

□

□
□
□

□

Check of supporting members and installation parts

Appliance check - rust and corrosion

□

□

□

□

□

□

□

□

□
□

□

Appliance cover check - tightness

□

□

□

□

□

□

□

□

Connecting cabinet:

Connecting cabinet check - cracks

□

□

□

□

□

□
□

□

Limit switches:

Check of limit switches

□

□

□

□

□

□

□

□

□

□

Burden hook:

Hook inspection - gaps

□

□

□

□

□

□

□

□
□
□

□

Hook inspection - cracks

Locking spring check

□
□

□

□

□
□
□

Introduction

IMAGES D'ILLUSTRATION!

Symboles:

Lieudecertification:

OcbEN NOpO6H Nooyehne OT CnEuaJInc 3a nIIN3BaHeTo Ha ypeHa He e Heo6xOIMMa HnKaBA CneuaJHa KBaJIuФnkaUy.

MHHMaHaBb3paCT

C ypea Moat da paobotc camo Nua, KOITc ca Habbpwnn 18dounn. NkHoueHn npaBn nON3BaHTo Ha HehbnHOteN cMo, Ako TOBA CTaba NO Bpeme Ha npOdecno-HaHnTO oBuYeHne C cen NoCTrAhe HaymHe NoHa3OpaHa oBuYaAsOTo Nue.

06yuēHnE

N3non3BaHTo Ha ypeDa n3nCKBa cAmo CbOTBeTHO noyHeNe oT CneuaHnCT, peCn. OT ynBtBAHTo 3a 06cnyKbaHe. CneuaJIHO 06yHe He e Heo6xOIMO.

TexHHueckn DaHHN

Hansexehoe/uectota:	230 V
Mошноct на мотор:	450 W
Мак. подигаа сида с врьшаа рочka	200 кг
Мак. подигаа сида бeз врьшаа рочka	100 кг
Мак. Височина на подигае 100 кг	11 M
Мак. Височина на подигае 200 кг	5,5 M
Дынхина на вьжeteо	12 M
Диаметър на вьжeteо	3 ММ
Клас на зашита	L
Тип зашита	IP 54 B
Тergло	12,0 кг

TpaHcnpToPAne ncknaDnpaNe

PnCbXpAHHeH e Heo6xOaHMo da Ce BHMaBa, ypeDa 6Tbe NoCTABe Hc cyxo Macto 6e3 docTbHa deca Ha HeynbHOMoH e Hna. Ako no-PrOdbJNXtHNO HMa Da N3NoN3BaTe ypeDa, nouchTeTe ro ctapaTeHo.

MoHTaxI TpaHCnOpTnpaHe

HCTaIpaHe

• Ppi pa3onakOBAHe Ha BbXeHaTa ne6eKa ce y6eTe, ye doCTabKa Ta CbIbPka BCINKu Yactn IN pOBepTe 6e3ynpeHOTcCbCTORHe Ha ne6eKaTa n npHaDnE9xHocHTne. 3a da 3ana3Ne BAHNHOCTTA Ha rapaHuaTg, e Heo6xOIMo Da cBo6unite eBENTyAnHa peKnamaun He3a6abHNo CnE NOlyuabaHeTo.
  IpooyTeTe NOIpO6Ho INHCTpyKunnte 3a 06cnykBaHe DOCTABEHN 3aeDHO C BbXeHATA Je6eKa (TOBa pkoBOOCTBO) INpN INCTaINPapHe Ha BxKeHaTa Je6eKa cneBaNte ToHNO CnopeDOny NocOeHInTe daHHN.
  Hoceuata YaCT,Ha KOrTo TpR6Ba Da ce 3aKpeNn BbKeHATA Ne6eJa, Tpr6Ba Da 6bTe CNOC6Ha da n3DbPkn MNHMYM DbA bTn NOBuey eOT OaKaBaHaTa TeXeCT (PiepOpBvBaMe Da Ce NocBBeTBate Cbc Cneuannr).
  BbkeHa TbeKa Ce MOHTnBa npeH BcNtko Ha CTOMAHeo Tp5bHO OTKIOHBauO ce pAmO. HnON3BaHata CTOMAHea Tp6ba Tpr8Ba da e C DnAmEtpb 43 MM Nde6eHHa HA CTeHaTMAH. 3 MM.
  OTKIOHAUOTo pAmo TpRA6Ba Da 6bDe 3aKOTBeHO 3dpaBO KbM cTeHaT. 3aKOTBHeTO TpRA6Ba Da 6bDe CtaBnH0, 3a Da N3DbpxN Ha Bb3HnKBAuNTe CnIN.
  BHHMABaIte 3aTOBa, ypeJa BnHaHn Da 6bDe 3akpeneH BOIDOPOBHO HNKORA He HAKPINO.
  Ako n3non3BaTe Bpbuasa pOka, OKaueTe KyKaTa 3a TeXeCT (d) B dBpKaua Ha KyKaTa (j) HA KOH3onata (o).

IyckaHe Ha eKeTpueckKaTa BbXeHa Je6eKa B Eeknloatauia

Cmbika 1

Y6eTeCE, daHn HAnpeKeHEnTo Ha MpeKaTa e CXoHc C HAnpeKeHEnTo Ha TINOBaTa TaBeJaHa BbKeHata Ne6eJa.

Cmbka 2

IpoBepete CTomAHeHOTOBxKe N BCNUK CbOpBxKeHn3a 6e3oNaChOCT Ha BxKeHaTaJe6eKa.

Cmbika 3

IpoBepTe, daJIbBxKeHaTaJe6Ekae HcTAmnpaH npaBnIO n daJIu N3dbpxMmKc. NOBduraHa TeXeCT.

Cmbika 4

Ocnpyte TeXeCTa Cpeu nppeo6pbuahe n IIOJIeHe IN pnoBepTe HocseUITE eJEMeHTN.

Cmbka5

BnraTe TeXeCTTa OTBeCHO KOHTpOINpaHO.

Cera eIeKtpnueckKaTa BbXeHa Ie6Eka e cnocO6Ha 3a pa60ta!

OctatbUHOnaChOCTn INpeDna3HN MepKn

EneKtpnueckn octaTbUHN onaChocTHN:

IpoBcPka HnHocCInHTe CImeHTH MoHTaXHHTE HaCTH

IpoBepkaHa ypeJa-pbKJa H Kopo3nHa

PpOBepka Ha KaIIaKa Ha ypeIa - IIbTHoCT

PnncbceHnHaBn ⅢkaΦ:

PpOBepKaHa npHcbeDHHBaIIHII KaΦ -NyKHaTHHH

KpaaiHn N3KJIIOuBaTeJIN:

IpoBepKaHa KpaHHTe H3KJIIOuBaTeJIH

Kyka 3a Tejekta:

IperJIeHa kyKaTa-nyKHaTHHH

IperJIeHa kyKaTa-HaNYKBAHn

IpoBcPaHaΦHKcHpaIIaTaIpyKHa
